初始化
首先Hystrix中HystrixCircuitBreaker类代表熔断器对象，这个类在AbstractCommand类里，这个类在初始化的时候就会来初始化HystrixCircuitBreaker，
this.circuitBreaker = initCircuitBreaker(this.properties.circuitBreakerEnabled().get(), circuitBreaker, this.commandGroup, this.commandKey, this.properties, this.metrics);
initCircuitBreaker()这个方法就实现了熔断器的初始化，我们来看看他是怎么初始化的。
private static HystrixCircuitBreaker initCircuitBreaker(boolean enabled, HystrixCircuitBreaker fromConstructor,
HystrixCommandGroupKey groupKey, HystrixCommandKey commandKey,
HystrixCommandProperties properties, HystrixCommandMetrics metrics) {
if (enabled) {
if (fromConstructor == null) {
// get the default implementation of HystrixCircuitBreaker
return HystrixCircuitBreaker.Factory.getInstance(commandKey, groupKey, properties, metrics);
} else {
return fromConstructor;
}
} else {
return new NoOpCircuitBreaker();
}
}
很显然它是从HystrixCircuitBreaker.Factory.getInstance(commandKey, groupKey, properties, metrics);这个方法来获得的，继续跟进。
public static HystrixCircuitBreaker getInstance(HystrixCommandKey key, HystrixCommandGroupKey group, HystrixCommandProperties properties, HystrixCommandMetrics metrics) {
// this should find it for all but the first time
HystrixCircuitBreaker previouslyCached = circuitBreakersByCommand.get(key.name());
if (previouslyCached != null) {
return previouslyCached;
}
// if we get here this is the first time so we need to initialize
// Create and add to the map ... use putIfAbsent to atomically handle the possible race-condition of
// 2 threads hitting this point at the same time and let ConcurrentHashMap provide us our thread-safety
// If 2 threads hit here only one will get added and the other will get a non-null response instead.
HystrixCircuitBreaker cbForCommand = circuitBreakersByCommand.putIfAbsent(key.name(), new HystrixCircuitBreakerImpl(key, group, properties, metrics));
if (cbForCommand == null) {
// this means the putIfAbsent step just created a new one so let's retrieve and return it
return circuitBreakersByCommand.get(key.name());
} else {
// this means a race occurred and while attempting to 'put' another one got there before
// and we instead retrieved it and will now return it
return cbForCommand;
}
}
可以看出每个方法对应一个HystrixCircuitBreaker，并把所有的HystrixCircuitBreaker保存在一个ConcurrentHashMap中，代码如下：
private static ConcurrentHashMap<String, HystrixCircuitBreaker> circuitBreakersByCommand = new ConcurrentHashMap<String, HystrixCircuitBreaker>();
如何监听各种异常信息
熔断器的实现类是HystrixCircuitBreakerImpl，看看这个类的构造方法，
protected HystrixCircuitBreakerImpl(HystrixCommandKey key, HystrixCommandGroupKey commandGroup, final HystrixCommandProperties properties, HystrixCommandMetrics metrics) {
this.properties = properties;
this.metrics = metrics;
//On a timer, this will set the circuit between OPEN/CLOSED as command executions occur
Subscription s = subscribeToStream();
activeSubscription.set(s);
}
Subscription s = subscribeToStream();这行代码很重要，熔断器监听各种异常信息就是通过这个方法来的，我们来看它的实现
private Subscription subscribeToStream() {
/*
* This stream will recalculate the OPEN/CLOSED status on every onNext from the health stream
*/
return metrics.getHealthCountsStream()
.observe()
.subscribe(new Subscriber<HealthCounts>() {
@Override
public void onCompleted() {
}
@Override
public void onError(Throwable e) {
}
@Override
public void onNext(HealthCounts hc) {
// check if we are past the statisticalWindowVolumeThreshold
if (hc.getTotalRequests() < properties.circuitBreakerRequestVolumeThreshold().get()) {
// we are not past the minimum volume threshold for the stat window,
// so no change to circuit status.
// if it was CLOSED, it stays CLOSED
// if it was half-open, we need to wait for a successful command execution
// if it was open, we need to wait for sleep window to elapse
} else {
if (hc.getErrorPercentage() < properties.circuitBreakerErrorThresholdPercentage().get()) {
//we are not past the minimum error threshold for the stat window,
// so no change to circuit status.
// if it was CLOSED, it stays CLOSED
// if it was half-open, we need to wait for a successful command execution
// if it was open, we need to wait for sleep window to elapse
} else {
// our failure rate is too high, we need to set the state to OPEN
if (status.compareAndSet(Status.CLOSED, Status.OPEN)) {
circuitOpened.set(System.currentTimeMillis());
}
}
}
}
});
}
熔断器订阅了metrics,每次如果有新的统计信息，就会来回调这个onNext()方法，该方法就会对统计信息进行各种检查，按照我们设置的一些参数，来完成对应的熔断的打开，hc.getTotalRequests() < properties.circuitBreakerRequestVolumeThreshold().get() 就是说在最近一个时间窗口内（10s），totalRequests（总请求数量）小于circuitBreakerRequestVolumeThreshold（默认是20），那么什么都不干，反之，如果说totalRequests（总请求数量） >= circuitBreakerRequestVolumeThreshold（默认是20），那么就会进入下一步的尝试。if (hc.getErrorPercentage() < properties.circuitBreakerErrorThresholdPercentage().get()) 如果说最近一个时间窗口（默认是10s）内的异常的请求次数所占的比例（25次请求，5次，20%），< circuitBreakerErrorThresholdPercentage（异常比例，默认是50%），什么都不干。。。。但是反之，如果最近一个时间窗口内（默认是10s）内的异常的请求次数所占的比例（25次请求，20次，80%） > circuitBreakerErrorThresholdPercentage（默认是50%），此时就会打开熔断开关。
if (status.compareAndSet(Status.CLOSED, Status.OPEN)) {
circuitOpened.set(System.currentTimeMillis());
}
这段逻辑，就会将熔断器的状态设置为OPEN，并把circuitOpened设置为当前时间，这个值默认为-1，代表熔断器是关闭的。
熔断器打开之后如何自动回复
private boolean isAfterSleepWindow() {
final long circuitOpenTime = circuitOpened.get();
final long currentTime = System.currentTimeMillis();
final long sleepWindowTime = properties.circuitBreakerSleepWindowInMilliseconds().get();
return currentTime > circuitOpenTime + sleepWindowTime;
}
circuitBreakerSleepWindowInMilliseconds
默认是5秒钟，我们可以自己去修改，不修改也没事
如果上次熔断打开的时间是：20:00:00
此时当前的时间是20:00:06 > 20:00:00 + circuitBreakerSleepWindowInMilliseconds（5s） = 20:00:05
当前时间比上一次熔断器打开的时间已经超过了5秒钟了
熔断器状态会从OPEN -> HALF_OPEN，这时会放这个请求过去，尝试执行。如果尝试请求失败了，拒绝、超时、失败，会走到handleFallback这个组件 ，然后调用 circuitBreaker.markNonSuccess();方法
@Override
public void markNonSuccess() {
if (status.compareAndSet(Status.HALF_OPEN, Status.OPEN)) {
//This thread wins the race to re-open the circuit - it resets the start time for the sleep window
circuitOpened.set(System.currentTimeMillis());
}
}
这个方法就会把状态从HALF_OPEN改为OPEN，并且把circuitOpened设为当前时间。
如果尝试请求成功了，会回调markEmits或者markOnCompleted然后调用circuitBreaker.markSuccess() 方法。
@Override
public void markSuccess() {
if (status.compareAndSet(Status.HALF_OPEN, Status.CLOSED)) {
//This thread wins the race to close the circuit - it resets the stream to start it over from 0
metrics.resetStream();
Subscription previousSubscription = activeSubscription.get();
if (previousSubscription != null) {
previousSubscription.unsubscribe();
}
Subscription newSubscription = subscribeToStream();
activeSubscription.set(newSubscription);
circuitOpened.set(-1L);
}
}
这个方法就会把状态从HALF_OPEN改为CLOSED，并且把circuitOpened设为-1。

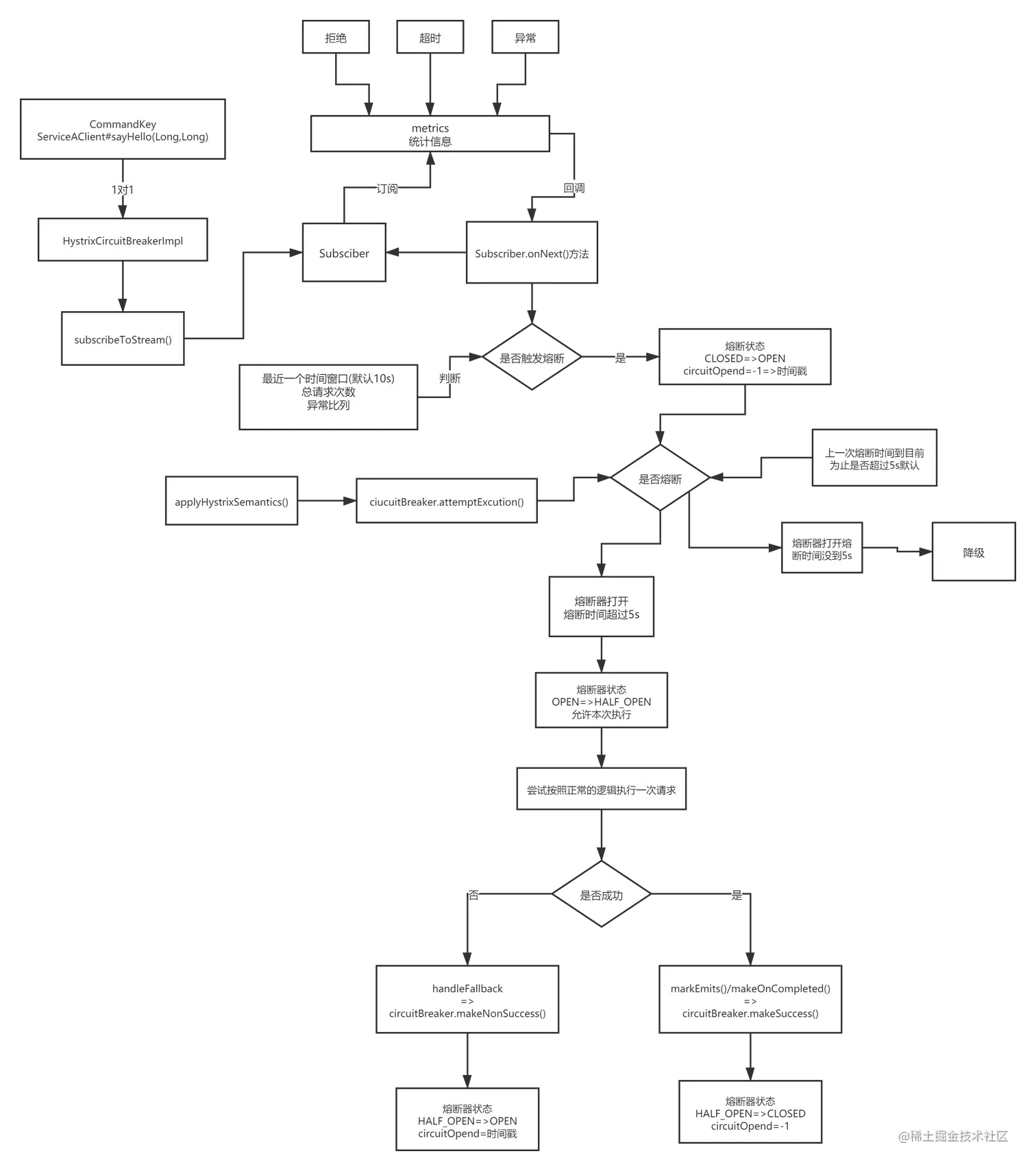

整体流程图：
