three.js-mesh材质

Mr_Diligent
1,403 阅读7分钟

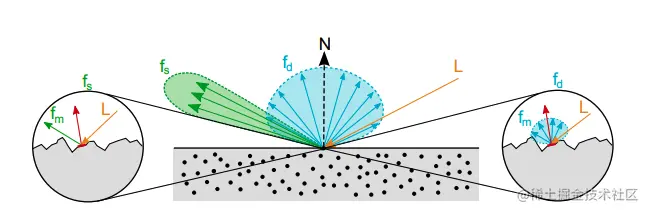

现实世界的光照与抽象模型

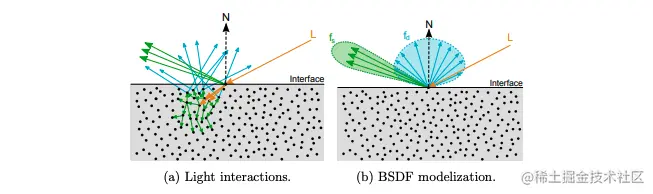

Bidirectional Scattering Distribution Function：双向散射分布函数
双向反射分布函数(BRDF)
双向透射分布函数(BTDF)
双向衍射分布函数(BDDF)

比较简单的材质（非pbr）

MeshBasicMaterial

1.常用属性举例

  • map: 颜色是贴图
  • color: 颜色

2.特点

一个以简单着色（平面或线框）方式来绘制几何体的材质。

这种材质不受光照的影响。

3.代码片段

#ifdef USE_MAP

	vec4 texelColor = texture2D( map, vUv );

	texelColor = mapTexelToLinear( texelColor );
	diffuseColor *= texelColor;

#endif


#ifdef USE_COLOR

	diffuseColor.rgb *= vColor;

#endif

MeshLambertMaterial

1. 常用属性举例

  • map
  • color

2. 特点

一种非光泽表面的材质，没有镜面高光。

该材质使用基于非物理的Lambertian模型来计算反射率。 这可以很好地模拟一些表面（例如未经处理的木材或石材），但不能模拟具有镜面高光的光泽表面（例如涂漆木材）。

使用Gouraud着色模型计算着色。这将计算每个顶点的着色 （即在vertex shader中）并在多边形的面上插入结果。

3. 代码片段

dotNL = dot( geometry.normal, directLight.direction );
directLightColor_Diffuse = PI * directLight.color;

vLightFront += saturate( dotNL ) * directLightColor_Diffuse;

MeshPhongMaterial

1. 常用属性举例

  • .shininess : Float 高亮的程度，越高的值越闪亮。默认值为 30。
  • .specular : Color 材质的高光颜色。默认值为0x111111（深灰色）的颜色Color。这定义了材质的光泽度和光泽的颜色。
  • .specularMap : Texture 镜面反射贴图值会影响镜面高光以及环境贴图对表面的影响程度。默认值为null。

2. 特点

一种用于具有镜面高光的光泽表面的材质。

该材质使用非物理的Blinn-Phong模型来计算反射率。 与MeshLambertMaterial中使用的Lambertian模型不同，该材质可以模拟具有镜面高光的光泽表面（例如涂漆木材）。

使用Phong着色模型计算着色时，会计算每个像素的阴影（在fragment shader， AKA pixel shader中），与MeshLambertMaterial使用的Gouraud模型相比，该模型的结果更准确，但代价是牺牲一些性能。 MeshStandardMaterial和MeshPhysicalMaterial也使用这个着色模型。

3. 代码片段

void RE_Direct_BlinnPhong( const in IncidentLight directLight, const in GeometricContext geometry, const in BlinnPhongMaterial material, inout ReflectedLight reflectedLight ) {

	float dotNL = saturate( dot( geometry.normal, directLight.direction ) );
	vec3 irradiance = dotNL * directLight.color;

	#ifndef PHYSICALLY_CORRECT_LIGHTS

		irradiance *= PI; // punctual light

	#endif

	reflectedLight.directDiffuse += irradiance * BRDF_Diffuse_Lambert( material.diffuseColor );

	reflectedLight.directSpecular += irradiance * BRDF_Specular_BlinnPhong( directLight, geometry, material.specularColor, material.specularShininess ) * material.specularStrength;

}
vec3 BRDF_Diffuse_Lambert( const in vec3 diffuseColor ) {

	return RECIPROCAL_PI * diffuseColor;

} // validated
vec3 BRDF_Specular_BlinnPhong( const in IncidentLight incidentLight, const in GeometricContext geometry, const in vec3 specularColor, const in float shininess ) {

	vec3 halfDir = normalize( incidentLight.direction + geometry.viewDir );

	//float dotNL = saturate( dot( geometry.normal, incidentLight.direction ) );
	//float dotNV = saturate( dot( geometry.normal, geometry.viewDir ) );
	float dotNH = saturate( dot( geometry.normal, halfDir ) );
	float dotLH = saturate( dot( incidentLight.direction, halfDir ) );

	vec3 F = F_Schlick( specularColor, dotLH );

	float G = G_BlinnPhong_Implicit( /* dotNL, dotNV */ );

	float D = D_BlinnPhong( shininess, dotNH );

	return F * ( G * D );

} // validated
vec3 F_Schlick( const in vec3 specularColor, const in float dotLH ) {

	// Original approximation by Christophe Schlick '94
	// float fresnel = pow( 1.0 - dotLH, 5.0 );

	// Optimized variant (presented by Epic at SIGGRAPH '13)
	// https://cdn2.unrealengine.com/Resources/files/2013SiggraphPresentationsNotes-26915738.pdf
	float fresnel = exp2( ( -5.55473 * dotLH - 6.98316 ) * dotLH );

	return ( 1.0 - specularColor ) * fresnel + specularColor;

} // validated
float G_BlinnPhong_Implicit( /* const in float dotNL, const in float dotNV */ ) {

	// geometry term is (n dot l)(n dot v) / 4(n dot l)(n dot v)
	return 0.25;

}
float D_BlinnPhong( const in float shininess, const in float dotNH ) {

	return RECIPROCAL_PI * ( shininess * 0.5 + 1.0 ) * pow( dotNH, shininess );

}

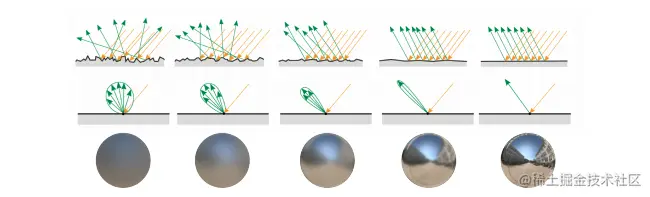

比较复杂的材质（pbr）

MeshStandardMaterial

1.常用属性举例

  • .metalness : Float 材质与金属的相似度。非金属材质，如木材或石材，使用0.0，金属使用1.0，通常没有中间值。默认值为0.0。0.0到1.0之间的值可用于生锈金属的外观。如果还提供了metalnessMap，则两个值相乘。
  • .metalnessMap : Texture 该纹理的蓝色通道用于改变材质的金属度。
  • .roughness : Float 材质的粗糙程度。0.0表示平滑的镜面反射，1.0表示完全漫反射。默认值为1.0。如果还提供roughnessMap，则两个值相乘。
  • .roughnessMap : Texture 该纹理的绿色通道用于改变材质的粗糙度。

2. 特点

一种基于物理的标准材质，使用Metallic-Roughness工作流程。

基于物理的渲染（PBR）最近已成为许多3D应用程序的标准，例如Unity， Unreal和 3D Studio Max。

这种方法与旧方法的不同之处在于，不使用近似值来表示光与表面的相互作用，而是使用物理上正确的模型。 我们的想法是，不是在特定照明下调整材质以使其看起来很好，而是可以创建一种材质，能够“正确”地应对所有光照场景。

在实践中，该材质提供了比MeshLambertMaterial 或MeshPhongMaterial 更精确和逼真的结果，代价是计算成本更高。

计算着色的方式与MeshPhongMaterial相同，都使用Phong着色模型， 这会计算每个像素的阴影（即在fragment shader， AKA pixel shader中）， 与MeshLambertMaterial使用的Gouraud模型相比，该模型的结果更准确，但代价是牺牲一些性能。

请注意，为获得最佳效果，您在使用此材质时应始终指定environment map。

3. 代码片段

void RE_Direct_Physical( const in IncidentLight directLight, const in GeometricContext geometry, const in PhysicalMaterial material, inout ReflectedLight reflectedLight ) {

	float dotNL = saturate( dot( geometry.normal, directLight.direction ) );

	vec3 irradiance = dotNL * directLight.color;

	#ifndef PHYSICALLY_CORRECT_LIGHTS

		irradiance *= PI; // punctual light

	#endif

	#ifdef CLEARCOAT

		float ccDotNL = saturate( dot( geometry.clearcoatNormal, directLight.direction ) );

		vec3 ccIrradiance = ccDotNL * directLight.color;

		#ifndef PHYSICALLY_CORRECT_LIGHTS

			ccIrradiance *= PI; // punctual light

		#endif

		float clearcoatDHR = material.clearcoat * clearcoatDHRApprox( material.clearcoatRoughness, ccDotNL );

		reflectedLight.directSpecular += ccIrradiance * material.clearcoat * BRDF_Specular_GGX( directLight, geometry.viewDir, geometry.clearcoatNormal, vec3( DEFAULT_SPECULAR_COEFFICIENT ), material.clearcoatRoughness );

	#else

		float clearcoatDHR = 0.0;

	#endif

	#ifdef USE_SHEEN
		reflectedLight.directSpecular += ( 1.0 - clearcoatDHR ) * irradiance * BRDF_Specular_Sheen(
			material.specularRoughness,
			directLight.direction,
			geometry,
			material.sheenColor
		);
	#else
		reflectedLight.directSpecular += ( 1.0 - clearcoatDHR ) * irradiance * BRDF_Specular_GGX( directLight, geometry.viewDir, geometry.normal, material.specularColor, material.specularRoughness);
	#endif

	reflectedLight.directDiffuse += ( 1.0 - clearcoatDHR ) * irradiance * BRDF_Diffuse_Lambert( material.diffuseColor );
}

// GGX Distribution, Schlick Fresnel, GGX-Smith Visibility
vec3 BRDF_Specular_GGX( const in IncidentLight incidentLight, const in vec3 viewDir, const in vec3 normal, const in vec3 specularColor, const in float roughness ) {

	float alpha = pow2( roughness ); // UE4's roughness

	vec3 halfDir = normalize( incidentLight.direction + viewDir );

	float dotNL = saturate( dot( normal, incidentLight.direction ) );
	float dotNV = saturate( dot( normal, viewDir ) );
	float dotNH = saturate( dot( normal, halfDir ) );
	float dotLH = saturate( dot( incidentLight.direction, halfDir ) );

	vec3 F = F_Schlick( specularColor, dotLH );

	float G = G_GGX_SmithCorrelated( alpha, dotNL, dotNV );

	float D = D_GGX( alpha, dotNH );

	return F * ( G * D );

} // validated

// Microfacet Models for Refraction through Rough Surfaces - equation (33)
// http://graphicrants.blogspot.com/2013/08/specular-brdf-reference.html
// alpha is "roughness squared" in Disney’s reparameterization
float D_GGX( const in float alpha, const in float dotNH ) {

	float a2 = pow2( alpha );

	float denom = pow2( dotNH ) * ( a2 - 1.0 ) + 1.0; // avoid alpha = 0 with dotNH = 1

	return RECIPROCAL_PI * a2 / pow2( denom );

}

// Moving Frostbite to Physically Based Rendering 3.0 - page 12, listing 2
// https://seblagarde.files.wordpress.com/2015/07/course_notes_moving_frostbite_to_pbr_v32.pdf
float G_GGX_SmithCorrelated( const in float alpha, const in float dotNL, const in float dotNV ) {

	float a2 = pow2( alpha );

	// dotNL and dotNV are explicitly swapped. This is not a mistake.
	float gv = dotNL * sqrt( a2 + ( 1.0 - a2 ) * pow2( dotNV ) );
	float gl = dotNV * sqrt( a2 + ( 1.0 - a2 ) * pow2( dotNL ) );

	return 0.5 / max( gv + gl, EPSILON );

}

void RE_IndirectDiffuse_Physical( const in vec3 irradiance, const in GeometricContext geometry, const in PhysicalMaterial material, inout ReflectedLight reflectedLight ) {

	reflectedLight.indirectDiffuse += irradiance * BRDF_Diffuse_Lambert( material.diffuseColor );

}

void RE_IndirectSpecular_Physical( const in vec3 radiance, const in vec3 irradiance, const in vec3 clearcoatRadiance, const in GeometricContext geometry, const in PhysicalMaterial material, inout ReflectedLight reflectedLight) {

	#ifdef CLEARCOAT

		float ccDotNV = saturate( dot( geometry.clearcoatNormal, geometry.viewDir ) );

		reflectedLight.indirectSpecular += clearcoatRadiance * material.clearcoat * BRDF_Specular_GGX_Environment( geometry.viewDir, geometry.clearcoatNormal, vec3( DEFAULT_SPECULAR_COEFFICIENT ), material.clearcoatRoughness );

		float ccDotNL = ccDotNV;
		float clearcoatDHR = material.clearcoat * clearcoatDHRApprox( material.clearcoatRoughness, ccDotNL );

	#else

		float clearcoatDHR = 0.0;

	#endif

	float clearcoatInv = 1.0 - clearcoatDHR;

	// Both indirect specular and indirect diffuse light accumulate here

	vec3 singleScattering = vec3( 0.0 );
	vec3 multiScattering = vec3( 0.0 );
	vec3 cosineWeightedIrradiance = irradiance * RECIPROCAL_PI;

	BRDF_Specular_Multiscattering_Environment( geometry, material.specularColor, material.specularRoughness, singleScattering, multiScattering );

	vec3 diffuse = material.diffuseColor * ( 1.0 - ( singleScattering + multiScattering ) );

	reflectedLight.indirectSpecular += clearcoatInv * radiance * singleScattering;
	reflectedLight.indirectSpecular += multiScattering * cosineWeightedIrradiance;

	reflectedLight.indirectDiffuse += diffuse * cosineWeightedIrradiance;

}

// Fdez-Agüera's "Multiple-Scattering Microfacet Model for Real-Time Image Based Lighting"
// Approximates multiscattering in order to preserve energy.
// http://www.jcgt.org/published/0008/01/03/
void BRDF_Specular_Multiscattering_Environment( const in GeometricContext geometry, const in vec3 specularColor, const in float roughness, inout vec3 singleScatter, inout vec3 multiScatter ) {

	float dotNV = saturate( dot( geometry.normal, geometry.viewDir ) );

	vec3 F = F_Schlick_RoughnessDependent( specularColor, dotNV, roughness );
	vec2 brdf = integrateSpecularBRDF( dotNV, roughness );
	vec3 FssEss = F * brdf.x + brdf.y;

	float Ess = brdf.x + brdf.y;
	float Ems = 1.0 - Ess;

	vec3 Favg = specularColor + ( 1.0 - specularColor ) * 0.047619; // 1/21
	vec3 Fms = FssEss * Favg / ( 1.0 - Ems * Favg );

	singleScatter += FssEss;
	multiScatter += Fms * Ems;

}

vec3 F_Schlick_RoughnessDependent( const in vec3 F0, const in float dotNV, const in float roughness ) {

	// See F_Schlick
	float fresnel = exp2( ( -5.55473 * dotNV - 6.98316 ) * dotNV );
	vec3 Fr = max( vec3( 1.0 - roughness ), F0 ) - F0;

	return Fr * fresnel + F0;

}

// Analytical approximation of the DFG LUT, one half of the
// split-sum approximation used in indirect specular lighting.
// via 'environmentBRDF' from "Physically Based Shading on Mobile"
// https://www.unrealengine.com/blog/physically-based-shading-on-mobile - environmentBRDF for GGX on mobile
vec2 integrateSpecularBRDF( const in float dotNV, const in float roughness ) {
	const vec4 c0 = vec4( - 1, - 0.0275, - 0.572, 0.022 );

	const vec4 c1 = vec4( 1, 0.0425, 1.04, - 0.04 );

	vec4 r = roughness * c0 + c1;

	float a004 = min( r.x * r.x, exp2( - 9.28 * dotNV ) ) * r.x + r.y;

	return vec2( -1.04, 1.04 ) * a004 + r.zw;

}

// ref: https://www.unrealengine.com/blog/physically-based-shading-on-mobile - environmentBRDF for GGX on mobile
vec3 BRDF_Specular_GGX_Environment( const in vec3 viewDir, const in vec3 normal, const in vec3 specularColor, const in float roughness ) {

	float dotNV = saturate( dot( normal, viewDir ) );

	vec2 brdf = integrateSpecularBRDF( dotNV, roughness );

	return specularColor * brdf.x + brdf.y;

} // validated

MeshPhysicalMaterial

1.常用属性举例

  • .clearcoat : Float Represents the thickness of the clear coat layer, from 0.0 to 1.0. Use clear coat related properties to enable multilayer materials that have a thin translucent layer over the base layer. Default is 0.0.
  • .clearcoatMap : Texture The red channel of this texture is multiplied against .clearcoat, for per-pixel control over a coating's thickness. Default is null.
  • .transmission : Float Degree of transmission (or optical transparency), from 0.0 to 1.0. Default is 0.0. Thin, transparent or semitransparent, plastic or glass materials remain largely reflective even if they are fully transmissive. The transmission property can be used to model these materials. When transmission is non-zero, opacity should be set to 1.
  • .transmissionMap : Texture The red channel of this texture is multiplied against .transmission, for per-pixel control over optical transparency. Default is null.

2.特点

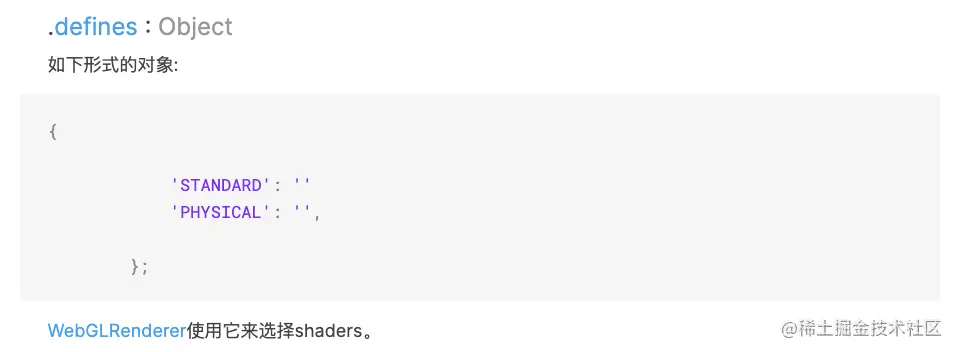

默认着色器与standard一毛一样，采用不同的配置选项，可以看做一种api糖，可以配置defines属性切换着色器，所以着色器代码不再列出来了。

特殊用途材质

MeshDepthMaterial

  • 一种按深度绘制几何体的材质。深度基于相机远近平面。白色最近，黑色最远。

threejs.org/docs/index.…

MeshNormalMaterial

  • 一种把法向量映射到RGB颜色的材质。

threejs.org/docs/index.…

MeshToonMaterial

  • 一种通过color表达光照的卡通材质

threejs.org/docs/index.…

MeshMatcapMaterial

MeshMatcapMaterial 由一个材质捕捉（MatCap，或光照球（Lit Sphere））纹理所定义，其编码了材质的颜色与明暗。

由于mapcap图像文件编码了烘焙过的光照，因此MeshMatcapMaterial 不对灯光作出反应。 它将会投射阴影到一个接受阴影的物体上(and shadow clipping works)，但不会产生自身阴影或是接受阴影。

threejs.org/docs/index.…

引用

github.com/mrdoob/thre…
seblagarde.files.wordpress.com/2015/07/cou…
cdn2-unrealengine-1251447533.file.myqcloud.com/Resources/f…
zhuanlan.zhihu.com/p/58641686
zhuanlan.zhihu.com/p/58692781
