ItemDecoration
An ItemDecoration allows the application to add a special drawing and layout offset to specific item views from the adapter's data set. This can be useful for drawing dividers between items, highlights, visual grouping boundaries and more.
ItemDecoration 用于对 ItemView 添加装饰绘制和布局偏移量。常用于绘制布局 ItemView 分割线、高亮显示、视觉分组边界等。
All ItemDecorations are drawn in the order they were added, before the item views (in onDraw() and after the items (in onDrawOver(Canvas, RecyclerView, RecyclerView.State).
可以为 RecyclerViewe 添加多个 ItemDecoration，绘制时ItemDecoration 将会按添加的顺序绘制，添加的装饰将绘制于 ItemView 绘制之前（onDraw()中的添加的装饰）或之后（onDrawOver()中添加的装饰）。这里之前和之后指代的不是时间上的前后而是图层的前后。
ItemDecoration接口
ItemDecoration接口 如下：
public abstract static class ItemDecoration {
/**
* 在提供给RecyclerView的画布上绘制任何适当的装饰。
* 通过此方法绘制的任何内容都将在绘制 item view 之前绘制，因此将出现在 item view 之下。
*
* @param c 画布
* @param parent RecyclerView 将绘制 ItemDecoration 的目标 RecyclerView
* @param state RecyclerView 状态
*/
public void onDraw(Canvas c,RecyclerView parent, State state) {}
/**
* 和 onDraw 方法作用类似, 不同的是它是绘制在 item view 图层之上。
*/
public void onDrawOver(Canvas c, RecyclerView parent, State state) {}
/**
* 提供指定 item view 布局偏移量。
* outRect 的四个字段指定了四个方向上偏移量的像素数，类似于 paddinng 或 margin。默认为0。
*
* 可以调用 RecyclerView.getChildAdapterPosition(View) 来获得 item view 的适配器位置。
*
* @param outRect 用于接收偏移量.
* @param view 目标子 view
* @param parent 目标 RecyclerView
* @param state RecyclerView 的状态.
*/
public void getItemOffsets(Rect outRect, View view, RecyclerView parent, State state) {}
}
onDraw() 和 onDrawOver 没什么好说的了，可以重写方法在 Item View 图层的下方或上方绘制任何你想绘制的图案。下面主要介绍一下 getItemOffSet()。

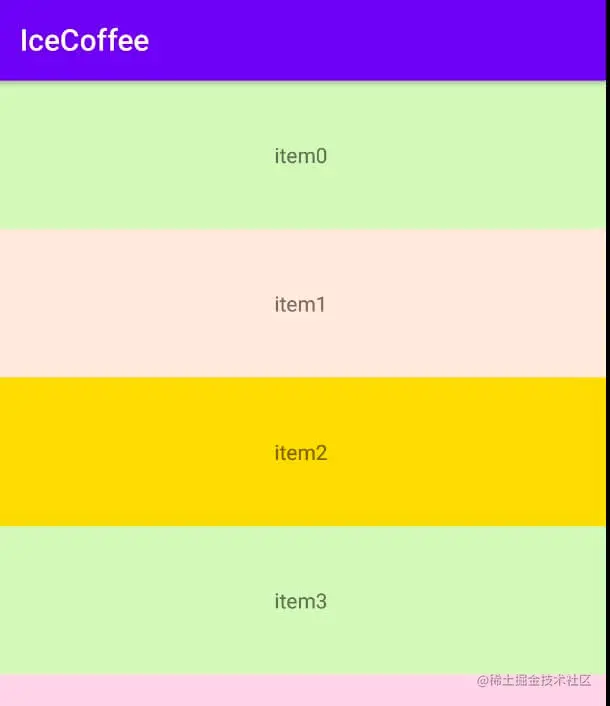

先绘制一个不添加任何 ItemDecoration 的 RecyclerView：

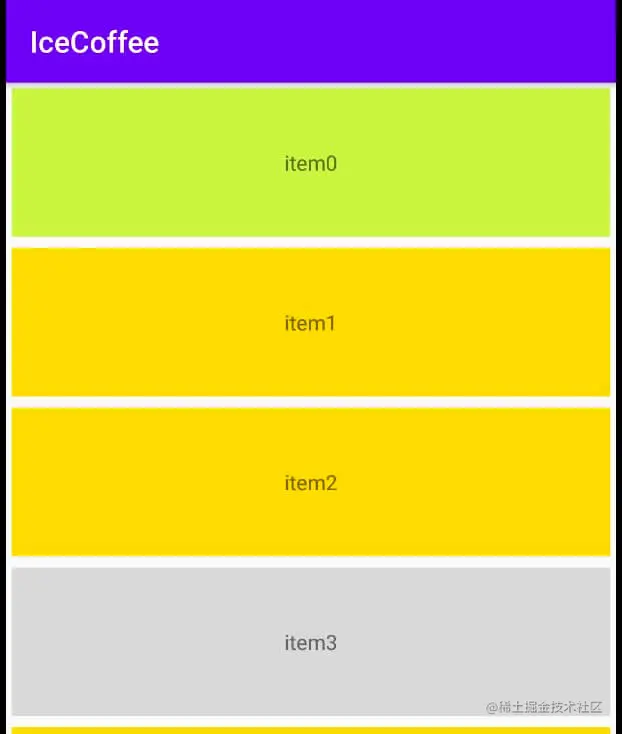

设置 outRect 看下效果：
override fun getItemOffsets(outRect: Rect, view: View, parent: RecyclerView, state: RecyclerView.State) {
super.getItemOffsets(outRect, view, parent, state)
outRect.set(10, 10, 10, 10)
}
这就是 outRect 的能力。
DividerItemDecoration
Android 官方提供了 DividerItemDecoration 用于 LinearLayoutMnager 布局中分割线的绘制，可改变分割线的高度和颜色等属性。下面来看下它是如何实现的：
public class DividerItemDecoration extends ItemDecoration {
public static final int HORIZONTAL = 0;
public static final int VERTICAL = 1;
//绘制器
private Drawable mDivider;
//方向
private int mOrientation;
//要绘制的范围
private final Rect mBounds = new Rect();
...
}
可以看到 DividerItemDecoration 实现 ItemDecoration 接口，如果我们自定义 ItemDecoration 的话也必须实现它。DividerItemDecoration 有三个重要的变量：
mDivider：分割线将由它来绘制mOrientation：代表布局方向，也说明仅支持LinearLayoutManager布局mBounds：代表分割线绘制区域
看下 getItemOffsets 方法中的具体实现：
public void getItemOffsets(Rect outRect, View view, RecyclerView parent, State state) {
if (this.mDivider == null) {
outRect.set(0, 0, 0, 0);
} else {
if (this.mOrientation == 1) {
outRect.set(0, 0, 0, this.mDivider.getIntrinsicHeight());
} else {
outRect.set(0, 0, this.mDivider.getIntrinsicWidth(), 0);
}
}
}
可以看到 mDivider 不为空是绘制分割线的前提条件。分割线的高度由 mDivider 提供。
DividerItemDecoration 中绘制分割线的操作在 onDraw 中实现：
@Override
public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
if (parent.getLayoutManager() == null || mDivider == null) {
return;
}
if (mOrientation == VERTICAL) {
drawVertical(c, parent);
} else {
drawHorizontal(c, parent);
}
}
private void drawVertical(Canvas canvas, RecyclerView parent) {
canvas.save();
final int left;
final int right;
//noinspection AndroidLintNewApi - NewApi lint fails to handle overrides.
if (parent.getClipToPadding()) {
left = parent.getPaddingLeft();
right = parent.getWidth() - parent.getPaddingRight();
canvas.clipRect(left, parent.getPaddingTop(), right,
parent.getHeight() - parent.getPaddingBottom());
} else {
left = 0;
right = parent.getWidth();
}
final int childCount = parent.getChildCount();
for (int i = 0; i < childCount; i++) {
final View child = parent.getChildAt(i);
parent.getDecoratedBoundsWithMargins(child, mBounds);
final int bottom = mBounds.bottom + Math.round(child.getTranslationY());
final int top = bottom - mDivider.getIntrinsicHeight();
mDivider.setBounds(left, top, right, bottom);
mDivider.draw(canvas);
}
canvas.restore();
}
以上源码理解起来不难，循环 RecyclerView 中每个子 View 获取其绘制范围保存在 mBounds 中，接着计算分割线绘制的范围，由 mDivider 进行绘制。
具体实现如下：
<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="rectangle">
<size android:height="2dp" />
<solid android:color="@color/colorPrimary" />
</shape>

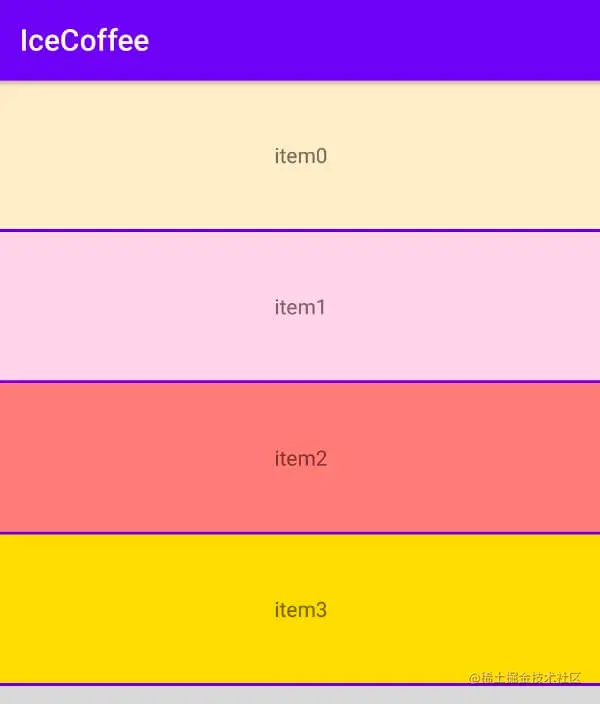

val itemDecoration = DividerItemDecoration(this, DividerItemDecoration.VERTICAL)
itemDecoration.setDrawable(ContextCompat.getDrawable(this, R.drawable.shape_item_decor)!!)
recyclerView.addItemDecoration(itemDecoration)
这里我们知道 DividerItemDecoration 是不支持 GridLayoutManager 的，那来写一个吧
override fun getItemOffsets(outRect: Rect, view: View, parent: RecyclerView, state: RecyclerView.State) {
super.getItemOffsets(outRect, view, parent, state)
//item view 总数
val itemCount = parent.adapter?.itemCount ?: 0
//当前 item view 的 adapter 位置
val position = parent.getChildAdapterPosition(view)
val layoutManager = parent.layoutManager
if (layoutManager is GridLayoutManager) {
//GridLayoutManager 列数
val spanCount = layoutManager.spanCount
//当前列
val column = position % spanCount
//是否需要包含边界
if (includeEdge) {
outRect.left = spacing - column * spacing / spanCount
outRect.right = (column + 1) * spacing / spanCount
if (position < spanCount) {
outRect.top = spacing
}
outRect.bottom = spacing
} else {
outRect.left = column * spacing / spanCount
outRect.right = spacing - (column + 1) * spacing / spanCount
outRect.top = 0
//最后一行判断
if (position + spanCount < itemCount) {
outRect.bottom = spacing
}
}
}
}
LayoutItemDecoration
理解起来还是挺容易的。下面是一个公共方法，大家随意取用。在实际开发中需要定制分割线样式的要求不是很多，所以这里就先不加入分割线样式的设置了。
class LayoutItemDecoration : RecyclerView.ItemDecoration {
/**
* 水平方向间隔
*/
var horizontalSpacing: Int
/**
* 垂直方向间隔
*/
var verticalSpacing: Int
/**
* 是否设置边缘间距
*/
var includeEdge: Boolean
constructor(spacing: Int, includeEdge: Boolean) {
this.horizontalSpacing = spacing
this.verticalSpacing = spacing
this.includeEdge = includeEdge
}
constructor(horizontalSpacing: Int, verticalSpacing: Int, includeEdge: Boolean) {
this.horizontalSpacing = horizontalSpacing
this.verticalSpacing = verticalSpacing
this.includeEdge = includeEdge
}
/**
* position 和对应 view 所在列的对应关系
*/
private var positionToColumn: MutableMap<Int, Int>? = null
/**
* 下标对应列, 值对应某列当前最远的距离
*/
private var endLineToColum: IntArray? = null
override fun getItemOffsets(outRect: Rect, view: View, parent: RecyclerView, state: RecyclerView.State) {
super.getItemOffsets(outRect, view, parent, state)
//item view 总数
val itemCount = parent.adapter?.itemCount ?: 0
//当前 item view 的 adapter 位置
val position = parent.getChildAdapterPosition(view)
when (val layoutManager = parent.layoutManager) {
is GridLayoutManager -> {
setGridItemDecoration(layoutManager, outRect, layoutManager.spanCount, position, itemCount)
}
is StaggeredGridLayoutManager -> {
setStaggeredGridItemDecoration(layoutManager, outRect, layoutManager.spanCount, position, itemCount)
}
is LinearLayoutManager -> {
setLinearItemDecoration(outRect, layoutManager.orientation, position, itemCount)
}
else -> {
outRect.set(horizontalSpacing, verticalSpacing, horizontalSpacing, verticalSpacing)
}
}
}
/**
* 设置线性布局分割线
*/
private fun setLinearItemDecoration(outRect: Rect, orientation: Int, position: Int, itemCount: Int) {
val horizontalRect = if (includeEdge) horizontalSpacing else 0
val verticalRect = if (includeEdge) verticalSpacing else 0
if (orientation == LinearLayoutManager.HORIZONTAL) {
when (position) {
0 -> outRect.set(horizontalRect, verticalRect, horizontalSpacing, verticalRect)
itemCount - 1 -> outRect.set(0, verticalRect, horizontalRect, verticalRect)
else -> outRect.set(0, verticalRect, horizontalSpacing, verticalRect)
}
} else {
when (position) {
0 -> outRect.set(horizontalRect, verticalRect, horizontalRect, verticalSpacing)
itemCount - 1 -> outRect.set(horizontalRect, 0, horizontalRect, verticalRect)
else -> outRect.set(horizontalRect, 0, horizontalRect, verticalSpacing)
}
}
}
/**
* 设置网格布局分割线
*/
private fun setGridItemDecoration(layoutManager: GridLayoutManager, outRect: Rect, spanCount: Int, position: Int, itemCount: Int) {
//当前列
val column = position % spanCount
calculateGridOutRectByColum(outRect, spanCount, itemCount, position, layoutManager.orientation, column)
}
/**
* 设置瀑布流布局分割线
*/
private fun setStaggeredGridItemDecoration(layoutManager: StaggeredGridLayoutManager, outRect: Rect, spanCount: Int, position: Int, itemCount: Int) {
if (null == positionToColumn) {
positionToColumn = HashMap()
}
if (null == endLineToColum) {
endLineToColum = IntArray(spanCount)
}
//当前 view 应处的列
var column = 0
if (positionToColumn!!.containsKey(position)) {
column = positionToColumn!![position]!!
} else {
if (position > 0) {
val lastViewPosition = position - 1
val lastView = layoutManager.findViewByPosition(lastViewPosition)
if (null != lastView) {
val lastViewColumn = positionToColumn!![lastViewPosition]!!
if (layoutManager.orientation == StaggeredGridLayoutManager.VERTICAL) {
endLineToColum!![lastViewColumn] = endLineToColum!![lastViewColumn] + lastView.height
} else {
endLineToColum!![lastViewColumn] = endLineToColum!![lastViewColumn] + lastView.width
}
}
}
//首行判断
if (position < spanCount) {
column = position
} else {
var minLine = Int.MAX_VALUE
for (i in spanCount - 1 downTo 0) {
if (endLineToColum!![i] <= minLine) {
minLine = endLineToColum!![i]
column = i
}
}
}
positionToColumn!![position] = column
}
calculateGridOutRectByColum(outRect, spanCount, itemCount, position, layoutManager.orientation, column)
}
/**
* 计算间隔
*/
private fun calculateGridOutRectByColum(outRect: Rect, spanCount: Int, itemCount: Int, position: Int, orientation: Int, column: Int) {
//是否需要包含边界
if (includeEdge) {
if (orientation == StaggeredGridLayoutManager.VERTICAL) {
outRect.left = horizontalSpacing - column * horizontalSpacing / spanCount
outRect.right = (column + 1) * horizontalSpacing / spanCount
//第一行判断
if (position < spanCount) {
outRect.top = verticalSpacing
}
outRect.bottom = verticalSpacing
} else {
outRect.top = verticalSpacing - column * verticalSpacing / spanCount
outRect.bottom = (column + 1) * verticalSpacing / spanCount
//第一行判断
if (position < spanCount) {
outRect.left = horizontalSpacing
}
outRect.right = horizontalSpacing
}
} else {
if (orientation == StaggeredGridLayoutManager.VERTICAL) {
outRect.left = column * horizontalSpacing / spanCount
outRect.right = horizontalSpacing - (column + 1) * horizontalSpacing / spanCount
outRect.top = 0
//最后一行判断
if (position + spanCount < itemCount) {
outRect.bottom = verticalSpacing
}
} else {
outRect.top = column * verticalSpacing / spanCount
outRect.bottom = verticalSpacing - (column + 1) * verticalSpacing / spanCount
outRect.left = 0
//最后一行判断
if (position + spanCount < itemCount) {
outRect.right = horizontalSpacing
}
}
}
}
}
StaggeredGridLayoutManager
这里重点再说明一下我对 StaggeredGridLayoutManager 添加 ItemDecoration 的思路。
StaggeredGridLayoutManager 和 GridLayoutManager 设置 ItemDeration 最重要的点都在于计算当前 ItemView 应被添加到的列 column。
GridLayoutManager 计算 colum 很简单，因为它的布局是有序的（RTL \ LTR 依次添加）：
val column = position % spanCount
而 StaggeredGridLayoutManager 会将 ItemView 添加到当前最短的一列。看下 RecyclerView 源码。直接定位到 fill() 方法（Android 提供的 LayoutManager 子 View 的布局逻辑都在 fill() 方法中）。
private int fill(RecyclerView.Recycler recycler, LayoutState layoutState,
RecyclerView.State state) {
。。。
while (layoutState.hasMore(state)
&& (mLayoutState.mInfinite || !mRemainingSpans.isEmpty())) {
View view = layoutState.next(recycler);
LayoutParams lp = ((LayoutParams) view.getLayoutParams());
final int position = lp.getViewLayoutPosition();
final int spanIndex = mLazySpanLookup.getSpan(position);
Span currentSpan;
final boolean assignSpan = spanIndex == LayoutParams.INVALID_SPAN_ID;
if (assignSpan) {
currentSpan = lp.mFullSpan ? mSpans[0] : getNextSpan(layoutState);
mLazySpanLookup.setSpan(position, currentSpan);
if (DEBUG) {
Log.d(TAG, "assigned " + currentSpan.mIndex + " for " + position);
}
} else {
if (DEBUG) {
Log.d(TAG, "using " + spanIndex + " for pos " + position);
}
currentSpan = mSpans[spanIndex];
}
}
。。。
}
可以看到 fill() 方法中通过 while 循环添加 ItemView 到 RecyclerView 中，currentSpan 即代表从 layoutState.next(recycler) 中获取的 View 应被添加到那列中。接下来查看 getNextSpan() 它是获取 currentSpan 的重要方法。
private Span getNextSpan(LayoutState layoutState) {
final boolean preferLastSpan = preferLastSpan(layoutState.mLayoutDirection);
final int startIndex, endIndex, diff;
if (preferLastSpan) {
startIndex = mSpanCount - 1;
endIndex = -1;
diff = -1;
} else {
startIndex = 0;
endIndex = mSpanCount;
diff = 1;
}
if (layoutState.mLayoutDirection == LAYOUT_END) {
Span min = null;
int minLine = Integer.MAX_VALUE;
final int defaultLine = mPrimaryOrientation.getStartAfterPadding();
for (int i = startIndex; i != endIndex; i += diff) {
final Span other = mSpans[i];
int otherLine = other.getEndLine(defaultLine);
if (otherLine < minLine) {
min = other;
minLine = otherLine;
}
}
return min;
} else {
Span max = null;
int maxLine = Integer.MIN_VALUE;
final int defaultLine = mPrimaryOrientation.getEndAfterPadding();
for (int i = startIndex; i != endIndex; i += diff) {
final Span other = mSpans[i];
int otherLine = other.getStartLine(defaultLine);
if (otherLine > maxLine) {
max = other;
maxLine = otherLine;
}
}
return max;
}
}
可以看到 getNextSpan() 方法中的逻辑是通过遍历所有列找到当前长度最短（长度代表所添加子元素的长度总和，具体是高还是宽的总和看布局方向）的一列并返回。然后就是根绝所获取的 Span 执行
- 添加：
addView() - 测量：
measureChildWithDecorationsAndMargin() - 布局：
layoutDecoratedWithMargins()
等一系列操作。
可以看到 StaggeredGridLayoutManager 会将 ItemView 添加到最短列中，那么如何确定当前 ItemView 应被添加到那列呢。我是参考 getNextSpan() 的逻辑，通过记录每列当前的长度来确定 colum 的值的。具体实现逻辑可以看上面的代码 ^_^。
