入口-BasicDataSource

执行sql的时候，就会先获取数据库连接，在哪里获取？就在这里。

/**
 * Create (if necessary) and return a connection to the database.
 *
 * @throws SQLException if a database access error occurs
 * @return a database connection
 */
public Connection getConnection() throws SQLException {
    return createDataSource().getConnection();
}

获取连接的核心类

核心步骤
1.从连接池获取连接对象
2.校验连接是否有效

---

源码

GenericObjectPool

public T borrowObject() throws Exception {
  long starttime = System.currentTimeMillis();
  GenericObjectPool.Latch<T> latch = new GenericObjectPool.Latch();
  byte whenExhaustedAction;
  long maxWait;

//排队处理
  synchronized(this) {
    whenExhaustedAction = this._whenExhaustedAction;
    maxWait = this._maxWait;
    this._allocationQueue.add(latch);
  }

//从连接池获取连接
  this.allocate();

  while(true) {
    synchronized(this) {
      this.assertOpen();
    }

    if (latch.getPair() == null && !latch.mayCreate()) {
      switch(whenExhaustedAction) {
      case 0:
        synchronized(this) {
          if (latch.getPair() == null && !latch.mayCreate()) {
            this._allocationQueue.remove(latch);
            throw new NoSuchElementException("Pool exhausted");
          }
          break;
        }
      case 1:
        try {
          synchronized(latch) {
            if (latch.getPair() != null || latch.mayCreate()) {
              break;
            }

            if (maxWait <= 0L) {
              latch.wait();
            } else {
              long elapsed = System.currentTimeMillis() - starttime;
              long waitTime = maxWait - elapsed;
              if (waitTime > 0L) {
                latch.wait(waitTime);
              }
            }
          }

          if (this.isClosed()) {
            throw new IllegalStateException("Pool closed");
          }
        } catch (InterruptedException var51) {
          boolean doAllocate = false;
          synchronized(this) {
            if (latch.getPair() == null && !latch.mayCreate()) {
              this._allocationQueue.remove(latch);
            } else if (latch.getPair() == null && latch.mayCreate()) {
              --this._numInternalProcessing;
              doAllocate = true;
            } else {
              --this._numInternalProcessing;
              ++this._numActive;
              this.returnObject(latch.getPair().getValue());
            }
          }

          if (doAllocate) {
            this.allocate();
          }

          Thread.currentThread().interrupt();
          throw var51;
        }

        if (maxWait <= 0L || System.currentTimeMillis() - starttime < maxWait) {
          continue;
        }

        synchronized(this) {
          if (latch.getPair() != null || latch.mayCreate()) {
            break;
          }

          this._allocationQueue.remove(latch);
        }

        throw new NoSuchElementException("Timeout waiting for idle object");
      case 2:
        synchronized(this) {
          if (latch.getPair() == null && !latch.mayCreate()) {
            this._allocationQueue.remove(latch);
            ++this._numInternalProcessing;
          }
          break;
        }
      default:
        throw new IllegalArgumentException("WhenExhaustedAction property " + whenExhaustedAction + " not recognized.");
      }
    }

    boolean newlyCreated = false;
    if (null == latch.getPair()) {
      boolean var36 = false;

      try {
        var36 = true;
        T obj = this._factory.makeObject();
        latch.setPair(new ObjectTimestampPair(obj));
        newlyCreated = true;
        var36 = false;
      } finally {
        if (var36) {
          if (!newlyCreated) {
            synchronized(this) {
              --this._numInternalProcessing;
            }

            this.allocate();
          }

        }
      }

      if (!newlyCreated) {
        synchronized(this) {
          --this._numInternalProcessing;
        }

        this.allocate();
      }
    }


    try {
      this._factory.activateObject(latch.getPair().value); //
      if (this._testOnBorrow//每次获取连接是否校验有效，默认值是false && !this._factory.validateObject(latch.getPair().value)) { //这里不会校验，因为_testOnBorrow=false
        throw new Exception("ValidateObject failed");
      }

      synchronized(this) {
        --this._numInternalProcessing; //内部进程数量加1
        ++this._numActive; //当前活跃数量加1
      }

      return latch.getPair().value; //返回连接对象
    } catch (Throwable var47) {
      PoolUtils.checkRethrow(var47);

      try {
        this._factory.destroyObject(latch.getPair().value);
      } catch (Throwable var42) {
        PoolUtils.checkRethrow(var42);
      }

      synchronized(this) {
        --this._numInternalProcessing;
        if (!newlyCreated) {
          latch.reset();
          this._allocationQueue.add(0, latch);
        }
      }

      this.allocate();
      if (newlyCreated) {
        throw new NoSuchElementException("Could not create a validated object, cause: " + var47.getMessage());
      }
    }
  }
}

PoolableConnectionFactory

激活连接对象，为什么要激活？因为连接池在实际项目当中都是关闭自动提交，即
1.开始事务 //一开始是关闭自动提交的
2.sql1
3.sql2
4.提交事务 //最后提交事务的时候，才会设置为自动提交

protected boolean _defaultAutoCommit = true; //连接池默认是自动提交

public void activateObject(Object obj) throws Exception {
    if (obj instanceof DelegatingConnection) {
      ((DelegatingConnection)obj).activate();
    }

    if (obj instanceof Connection) {
      Connection conn = (Connection)obj;
      if (conn.getAutoCommit()//项目里禁用自动提交，所以值是false != this._defaultAutoCommit//连连接池默认是自动提交，所以值是true) {
        conn.setAutoCommit(this._defaultAutoCommit); //为什么要设置为自动提交？提交事务的时候，会设置为自动提交
      }

      if (this._defaultTransactionIsolation != -1 && conn.getTransactionIsolation() != this._defaultTransactionIsolation) {
        conn.setTransactionIsolation(this._defaultTransactionIsolation);
      }

      if (this._defaultReadOnly != null && conn.isReadOnly() != this._defaultReadOnly) {
        conn.setReadOnly(this._defaultReadOnly);
      }

      if (this._defaultCatalog != null && !this._defaultCatalog.equals(conn.getCatalog())) {
        conn.setCatalog(this._defaultCatalog);
      }
    }

  }

从连接池获取连接对象

真正获取连接对象的是这个方法

private CursorableLinkedList<ObjectTimestampPair<T>> _pool; //连接池，是一个LinkedList

//从连接池获取连接
private synchronized void allocate() {
  if (!this.isClosed()) {
    GenericObjectPool.Latch latch; //封装了连接对象
    while(!this._pool.isEmpty() && !this._allocationQueue.isEmpty()) {
      latch = (GenericObjectPool.Latch)this._allocationQueue.removeFirst(); //从排队里获取一个进行处理
      latch.setPair((ObjectTimestampPair)this._pool.removeFirst()); //从连接池获取连接对象
      ++this._numInternalProcessing;
      synchronized(latch) {
        latch.notify();
      }
    }

    while(!this._allocationQueue.isEmpty() && (this._maxActive < 0 || this._numActive + this._numInternalProcessing < this._maxActive)) {
      latch = (GenericObjectPool.Latch)this._allocationQueue.removeFirst();
      latch.setMayCreate(true);
      ++this._numInternalProcessing;
      synchronized(latch) {
        latch.notify();
      }
    }

  }
}

校验连接是否有效

public boolean validateObject(Object obj) {
  if (obj instanceof Connection) {
    try {
      this.validateConnection((Connection)obj); //校验连接是否有效
      return true; //如果连接有效，就返回true
    } catch (Exception var3) {
      return false; //如果连接无效，就返回false
    }
  } else {
    return false;
  }
}

public void validateConnection(Connection conn) throws SQLException {
  String query = this._validationQuery;
  if (conn.isClosed()) { //连接已经关闭
    throw new SQLException("validateConnection: connection closed");
  } else { //连接没有关闭，就校验连接是否有效：通过查询数据库，来校验连接是否有效
    if (null != query) {
      Statement stmt = null;
      ResultSet rset = null;

      try {
        stmt = conn.createStatement();
        if (this._validationQueryTimeout > 0) {
          stmt.setQueryTimeout(this._validationQueryTimeout);
        }

        rset = stmt.executeQuery(query);
        if (!rset.next()) {
          throw new SQLException("validationQuery didn't return a row");
        }
      } finally {
        if (rset != null) {
          try {
            rset.close();
          } catch (Exception var14) {
          }
        }

        if (stmt != null) {
          try {
            stmt.close();
          } catch (Exception var13) {
          }
        }

      }
    }

  }
}

数据结构

连接对象

封装了连接对象

private static final class Latch<T> {
  private ObjectTimestampPair<T> _pair;

static class ObjectTimestampPair<T> implements Comparable<T> {
  /** @deprecated */
  @Deprecated
  T value; //连接对象

  /** @deprecated */
  @Deprecated
  long tstamp;

连接池

private CursorableLinkedList<ObjectTimestampPair<T>> _pool; //是一个集合，元素是连接对象

性能

获取连接的时候，有锁

private synchronized void allocate() { //同步方法
  if (!this.isClosed()) {
    GenericObjectPool.Latch latch;
    while(!this._pool.isEmpty() && !this._allocationQueue.isEmpty()) {
      latch = (GenericObjectPool.Latch)this._allocationQueue.removeFirst();
      latch.setPair((ObjectTimestampPair)this._pool.removeFirst());
      ++this._numInternalProcessing;
      synchronized(latch) {
        latch.notify();
      }
    }

    while(!this._allocationQueue.isEmpty() && (this._maxActive < 0 || this._numActive + this._numInternalProcessing < this._maxActive)) {
      latch = (GenericObjectPool.Latch)this._allocationQueue.removeFirst();
      latch.setMayCreate(true);
      ++this._numInternalProcessing;
      synchronized(latch) {
        latch.notify();
      }
    }

  }
}

截图

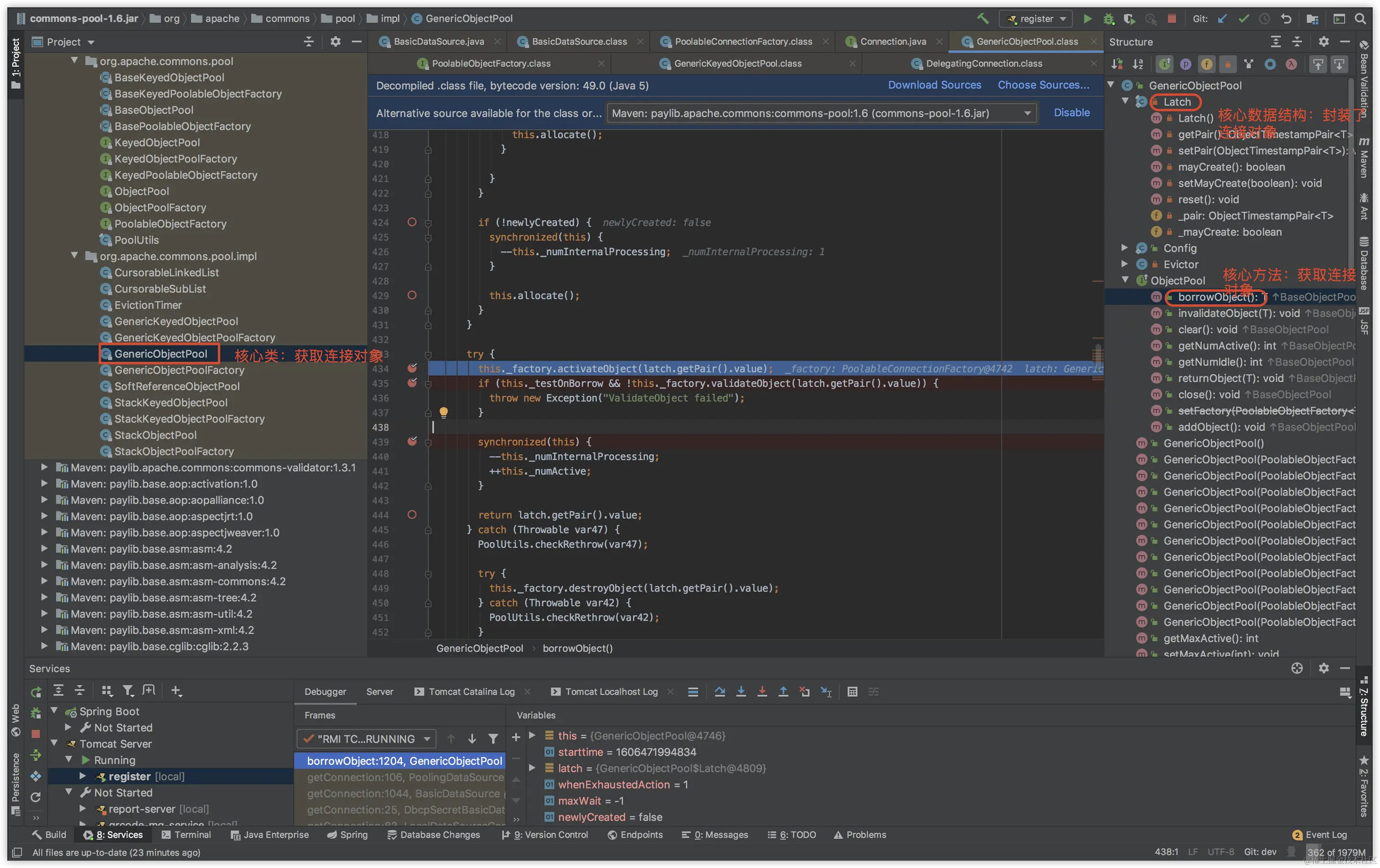

1、获取连接对象

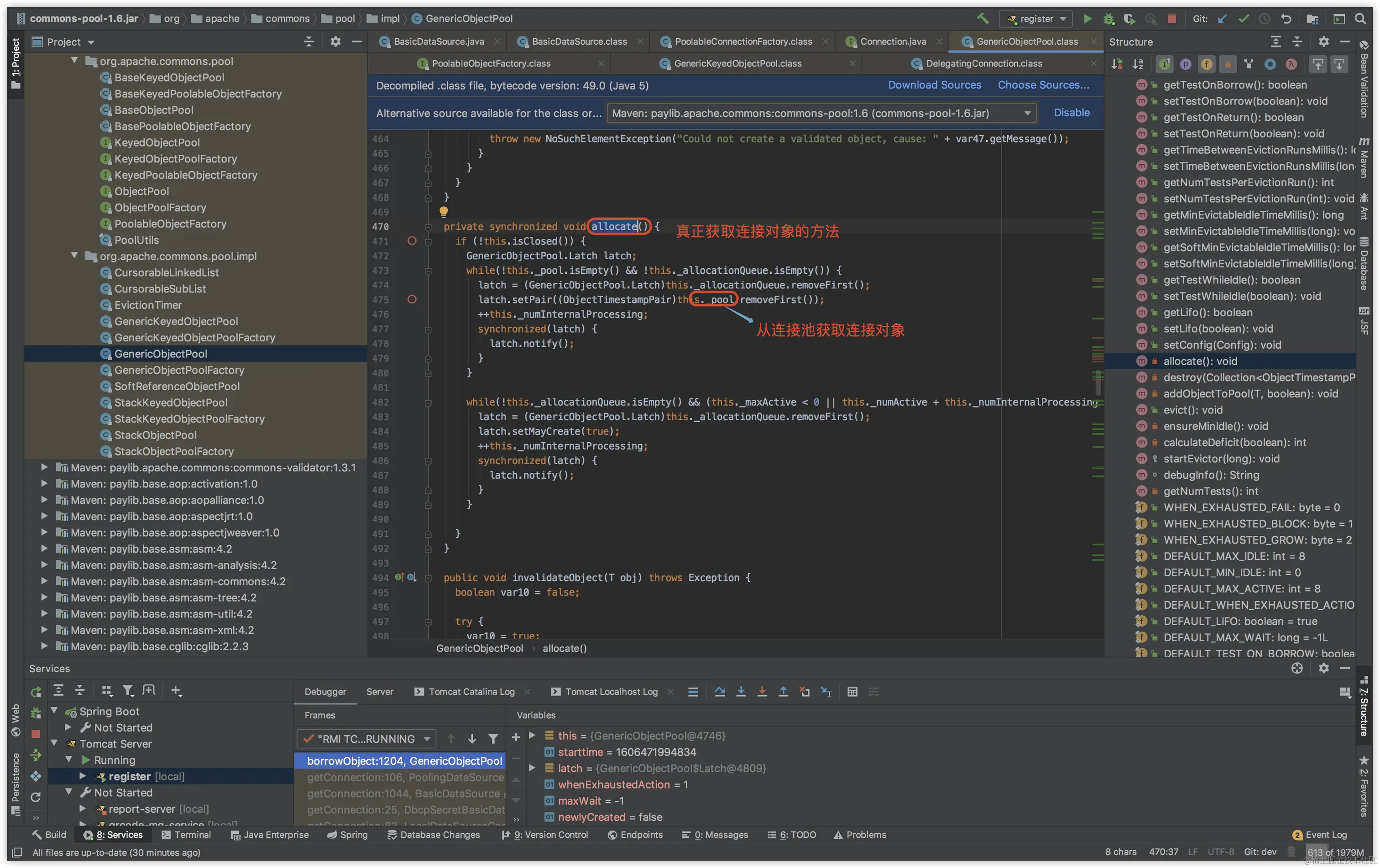

真正获取连接对象的方法

2、校验连接是否有效

dbcp和pool

dbcp是基于pool，底层的连接池都是pool实现的。

调用栈

borrowObject:1059, GenericObjectPool (org.apache.commons.pool.impl) //从连接池获取连接对象
getConnection:106, PoolingDataSource (org.apache.commons.dbcp) //获取连接
getConnection:1044, BasicDataSource (org.apache.commons.dbcp) //获取连接
getConnection:26, DbcpSecretBasicDataSource (xxx.qrcode.common.monitor.dbcp) //获取连接

getConnection:83, LocalDataSourceConnectionProvider (org.springframework.orm.hibernate3)

openConnection:446, ConnectionManager (org.hibernate.jdbc)
getConnection:167, ConnectionManager (org.hibernate.jdbc)
connection:160, JDBCContext (org.hibernate.jdbc)
begin:81, JDBCTransaction (org.hibernate.transaction)
beginTransaction:1473, SessionImpl (org.hibernate.impl)

doBegin:556, HibernateTransactionManager (org.springframework.orm.hibernate3) //开始事务
getTransaction:372, AbstractPlatformTransactionManager (org.springframework.transaction.support) //获取事务
createTransactionIfNecessary:417, TransactionAspectSupport (org.springframework.transaction.interceptor)
invokeWithinTransaction:255, TransactionAspectSupport (org.springframework.transaction.interceptor)
invoke:94, TransactionInterceptor (org.springframework.transaction.interceptor)
proceed:172, ReflectiveMethodInvocation (org.springframework.aop.framework)
invoke:91, ExposeInvocationInterceptor (org.springframework.aop.interceptor)
proceed:172, ReflectiveMethodInvocation (org.springframework.aop.framework)
intercept:631, CglibAopProxy$DynamicAdvisedInterceptor (org.springframework.aop.framework)
merModifyNoAudit:-1, UrmtminfService$$EnhancerByCGLIB$$c1377819 (xxx.qrcode.register.dbservice.impl)
merModifyNoAudit:517, QrcodeRegisterServer (xxx.qrcode.register.remoteserver.impl)
invokeMethod:-1, Wrapper22 (com.alibaba.dubbo.common.bytecode)
doInvoke:47, JavassistProxyFactory$1 (com.alibaba.dubbo.rpc.proxy.javassist)
invoke:76, AbstractProxyInvoker (com.alibaba.dubbo.rpc.proxy)
invoke:52, DelegateProviderMetaDataInvoker (com.alibaba.dubbo.config.invoker)
invoke:56, InvokerWrapper (com.alibaba.dubbo.rpc.protocol)
invoke:62, ExceptionFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:75, MonitorFilter (com.alibaba.dubbo.monitor.support)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:42, TimeoutFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:11, AppNameAppendFilter (com.xxx.log.rpc.dubbo)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:78, TraceFilter (com.alibaba.dubbo.rpc.protocol.dubbo.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:60, ExecuteLimitFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:85, AccessLogExtFilter (xxx.qrcode.common.filter.dubbo)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:82, CatTransaction (com.xxx.log.rpc.dubbo)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:73, ContextFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:138, GenericFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:38, ClassLoaderFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
invoke:38, EchoFilter (com.alibaba.dubbo.rpc.filter)
invoke:72, ProtocolFilterWrapper$1 (com.alibaba.dubbo.rpc.protocol)
reply:104, DubboProtocol$1 (com.alibaba.dubbo.rpc.protocol.dubbo)
handleRequest:96, HeaderExchangeHandler (com.alibaba.dubbo.remoting.exchange.support.header)
received:173, HeaderExchangeHandler (com.alibaba.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (com.alibaba.dubbo.remoting.transport)
run:57, ChannelEventRunnable (com.alibaba.dubbo.remoting.transport.dispatcher)
runWorker:1149, ThreadPoolExecutor (java.util.concurrent)
run:624, ThreadPoolExecutor$Worker (java.util.concurrent)
run:748, Thread (java.lang)
