背景：用vue-cli3搭建了一个前端项目，由于甲方爸爸想要一个桌面的应用，在此基础上使用了electron-builder,MAC开发

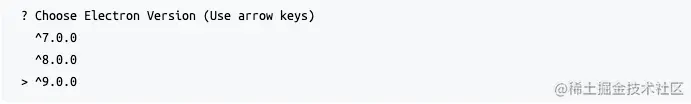

1.vue add electron-builder
（选择版本，最新即可）
package.json
{
"name": "hello-web",
"version": "0.1.0",
"private": true,
"scripts": {
"serve": "vue-cli-service serve",
"build": "vue-cli-service build",
"lint": "vue-cli-service lint",
"electron:build": "vue-cli-service electron:build --win",
"electron:serve": "vue-cli-service electron:serve",
"postinstall": "electron-builder install-app-deps",
"postuninstall": "electron-builder install-app-deps",
"upload": "node upload.js"
},
"main": "background.js",
"dependencies": {
"axios": "^0.21.0",
"core-js": "^3.6.5",
"file-saver": "^2.0.2",
"js-cookie": "^2.2.1",
"jszip": "^3.5.0",
"moment": "^2.29.1",
"view-design": "^4.3.2",
"vue": "^2.6.11",
"vue-router": "^3.2.0",
"vuex": "^3.4.0"
},
"devDependencies": {
"@vue/cli-plugin-babel": "~4.5.0",
"@vue/cli-plugin-eslint": "~4.5.0",
"@vue/cli-plugin-router": "~4.5.0",
"@vue/cli-plugin-vuex": "~4.5.0",
"@vue/cli-service": "~4.5.0",
"@vue/eslint-config-standard": "^5.1.2",
"babel-eslint": "^10.1.0",
"echarts": "^4.9.0",
"electron": "^9.0.0",
"electron-devtools-installer": "^3.1.0",
"eslint": "^6.7.2",
"eslint-plugin-import": "^2.20.2",
"eslint-plugin-node": "^11.1.0",
"eslint-plugin-promise": "^4.2.1",
"eslint-plugin-standard": "^4.0.0",
"eslint-plugin-vue": "^6.2.2",
"less": "^3.0.4",
"less-loader": "^5.0.0",
"scp2": "^0.5.0",
"vue-cli-plugin-electron-builder": "~2.0.0-rc.5",
"vue-particles": "^1.0.9",
"vue-template-compiler": "^2.6.11"
},
"__npminstall_done": false
}
background.js
'use strict'
import { app, protocol, BrowserWindow } from 'electron'
import { createProtocol } from 'vue-cli-plugin-electron-builder/lib'
import installExtension, { VUEJS_DEVTOOLS } from 'electron-devtools-installer'
const isDevelopment = process.env.NODE_ENV !== 'production'
// Scheme must be registered before the app is ready
protocol.registerSchemesAsPrivileged([
{ scheme: 'app', privileges: { secure: true, standard: true } }
])
async function createWindow() {
// Create the browser window.
const win = new BrowserWindow({
width: 800,
height: 600,
fullscreen: true,
// frame: false,
webPreferences: {
// Use pluginOptions.nodeIntegration, leave this alone
// See nklayman.github.io/vue-cli-plugin-electron-builder/guide/security.html#node-integration for more info
nodeIntegration: process.env.ELECTRON_NODE_INTEGRATION
}
})
if (process.env.WEBPACK_DEV_SERVER_URL) {
// Load the url of the dev server if in development mode
await win.loadURL(process.env.WEBPACK_DEV_SERVER_URL)
if (!process.env.IS_TEST) win.webContents.openDevTools()
} else {
// createProtocol('app')
// Load the index.html when not in development
win.loadURL('线上地址 eg: http//:xxxx')
}
}
// Quit when all windows are closed.
app.on('window-all-closed', () => {
// On macOS it is common for applications and their menu bar
// to stay active until the user quits explicitly with Cmd + Q
if (process.platform !== 'darwin') {
app.quit()
}
})
app.on('activate', () => {
// On macOS it's common to re-create a window in the app when the
// dock icon is clicked and there are no other windows open.
if (BrowserWindow.getAllWindows().length === 0) createWindow()
})
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', async () => {
if (isDevelopment && !process.env.IS_TEST) {
// Install Vue Devtools
try {
await installExtension(VUEJS_DEVTOOLS)
} catch (e) {
console.error('Vue Devtools failed to install:', e.toString())
}
}
createWindow()
})
// Exit cleanly on request from parent process in development mode.
if (isDevelopment) {
if (process.platform === 'win32') {
process.on('message', (data) => {
if (data === 'graceful-exit') {
app.quit()
}
})
} else {
process.on('SIGTERM', () => {
app.quit()
})
}
}
vue.config.js
pluginOptions: {
electronBuilder: {
builderOptions: {
appId: 'cn.psvmc',
productName: 'hephaestus',
icon: './app.ico',
files: ['**/*', 'static/*'],
asar: true,
mac: {
icon: './Icon.icns',
target: ['zip', 'dmg']
},
win: {
icon: './app3.ico',
target: ['zip', 'nsis']
},
nsis: {
oneClick: false, // 是否一键安装
allowElevation: true, // 允许请求提升。 如果为false，则用户必须使用提升的权限重新启动安装程序
allowToChangeInstallationDirectory: true, // 允许修改安装目录
installerIcon: './app3.ico', // 安装图标
uninstallerIcon: './app3.ico', // 卸载图标
installerHeaderIcon: './app3.ico', // 安装时头部图标
createDesktopShortcut: true, // 创建桌面图标
createStartMenuShortcut: true, // 创建开始菜单图标
// license: './LICENSE.txt',
shortcutName: 'hephaestus' // 图标名称
}
}
}
}
安装遇到的坑待补充。。。。
2.使用electron-builder打包时下载electron失败解决方案
electron-builder 在打包时会检测cache中是否有electron 包，如果没有的话会从github上拉去，在国内网络环境中拉取的过程大概率会失败，所以你可以自己去下载一个包放到cache目录里
各个平台的目录地址
Linux: $XDG_CACHE_HOME or ~/.cache/electron/
MacOS: ~/Library/Caches/electron/
Windows: %LOCALAPPDATA%/electron/Cache or ~/AppData/Local/electron/Cache/
➜ clipboard git:(master) ✗ npm run dist
> clipboard@1.0.0 dist /Users/xx/workspace/electron/clipboard
> electron-builder --mac --x64
• electron-builder version=22.3.2 os=18.7.0
• loaded configuration file=package.json ("build" field)
• writing effective config file=dist/builder-effective-config.yaml
• packaging platform=darwin arch=x64 electron=8.0.0 appOutDir=dist/mac
• downloading url=https://github.com/electron/electron/releases/download/v8.0.0/electron-v8.0.0-darwin-x64.zip size=66 MB parts=8
可以单独下载这个包 github.com/electron/el… 放到~/Library/Caches/electron/ 目录下
3.打包会遇到缓存问题
macOS
打包所需依赖缓存位置：
$ ~/Library/Caches/electron
$ ~/Library/Caches/electron-builder
程序缓存位置：
$ ~/Library/Application Support/Caches
Linux:
$ ~/.cache/electron-builder
windows:
$ %LOCALAPPDATA%\electron\cache
$ %LOCALAPPDATA%\electron-builder\cache
4.为 Electron windows/mac 应用配置图标
electron-builder 中设置应用icon要求：
windows支持icon格式：png、ico
mac支持icon格式：png、icns
macOS：Icon size should be at least 512x512.
windows： Icon size should be at least 256x256
windows ico图标生成方式： www.ico51.cn/
mac icns 图标生成方式：命令行方式生成
准备一个png图片，假设名字为 pic.png
使用以下命令行创建一个临时目录存放不同大小的图片
$ mkdir tmp.iconset
把原图片转为不同大小的图片，并放入上面的临时目录
全部拷贝到命令行回车执行，执行结束之后去tmp.iconset查看十张图片是否生成好
sips -z 16 16 pic.png --out tmp.iconset/icon_16x16.png
sips -z 32 32 pic.png --out tmp.iconset/icon_16x16@2x.png
sips -z 32 32 pic.png --out tmp.iconset/icon_32x32.png
sips -z 64 64 pic.png --out tmp.iconset/icon_32x32@2x.png
sips -z 128 128 pic.png --out tmp.iconset/icon_128x128.png
sips -z 256 256 pic.png --out tmp.iconset/icon_128x128@2x.png
sips -z 256 256 pic.png --out tmp.iconset/icon_256x256.png
sips -z 512 512 pic.png --out tmp.iconset/icon_256x256@2x.png
sips -z 512 512 pic.png --out tmp.iconset/icon_512x512.png
sips -z 1024 1024 pic.png --out tmp.iconset/icon_512x512@2x.png
通过iconutil生成icns文件：
$ iconutil -c icns tmp.iconset -o Icon.icns
