三行代码导出任一样式文档word

1,129 阅读2分钟

officeexport-java基于Apache FreeMarker,遵从模板 + 数据模型 = 输出的理念, 通过极简API实现javaBean即数据源,模板即样式的Word导出,提供以下功能:

  • 基本文本的输出,文本占位符样式即输出文本样式。
  • 文本行、表格行单行或多行的遍历输出,并能够进行循环嵌套。
  • 提供数据处理的插件,通过添加处理器可定制任意输出值,例如:特定项的日期、数字等文本格式转换
  • 图片保留样式的输出。

解决的问题以及现有实现方案的对比

工具主要为减少word模板导出的复杂性而设计,使用者无需了解如poi Api、Freemarker等语法即可实现导出。

现有方案对比:

方案跨平台易用性
Freemarker跨平台需要掌握freemarker的语法,配置xml结构,复杂模型导出非常繁琐
Apache POIJava组件,跨平台需要掌握POIApi,对于复杂样式配置起来很复杂
officeexportJava组件,跨平台拥有极简API,极简的模板语法,模板样式即输出样式(模板样式直接通过word调整)

快速开始

代码示例

1、调整word模板,添加占位符,并转换到word 2003 xml文档(.xml)。

2、Maven引入jar包,通过api导出


   <dependency>
       <groupId>com.github.kmood</groupId>
       <artifactId>officeexport-java</artifactId>
       <version>1.0.1.6-RELEASE</version>
   </dependency>

  HashMap<String, Object> data = new HashMap<>();
  ...准备数据
  data.put("zxsm",zxsmList);
  data.put("sbsm","kmood-导出-商标说明");

  DocumentProducer dp = new DocumentProducer(ActualModelPath);
  dp.Complie(xmlPath, "filename.xml",true);
  dp.produce(map, ExportFilePath);

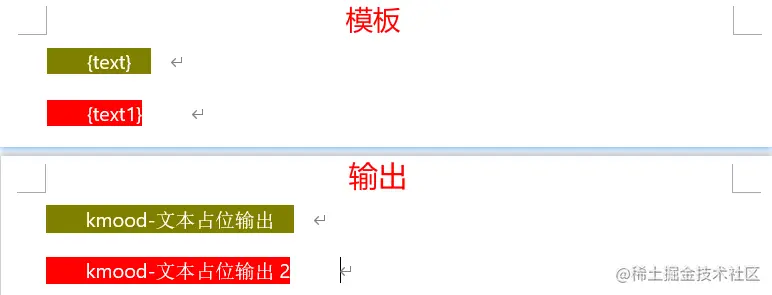

示例1-文本输出

代码实例

                   HashMap<String, Object> map = new HashMap<>();
                   map.put("text", "kmood-文本占位输出");
                   map.put("text1", "kmood-文本占位输出2");
                   DocumentProducer dp = new DocumentProducer(ActualModelPath);
                   String complie = dp.Complie(xmlPath, "text.xml", true);
                   dp.produce(map, ExportFilePath);

实现效果

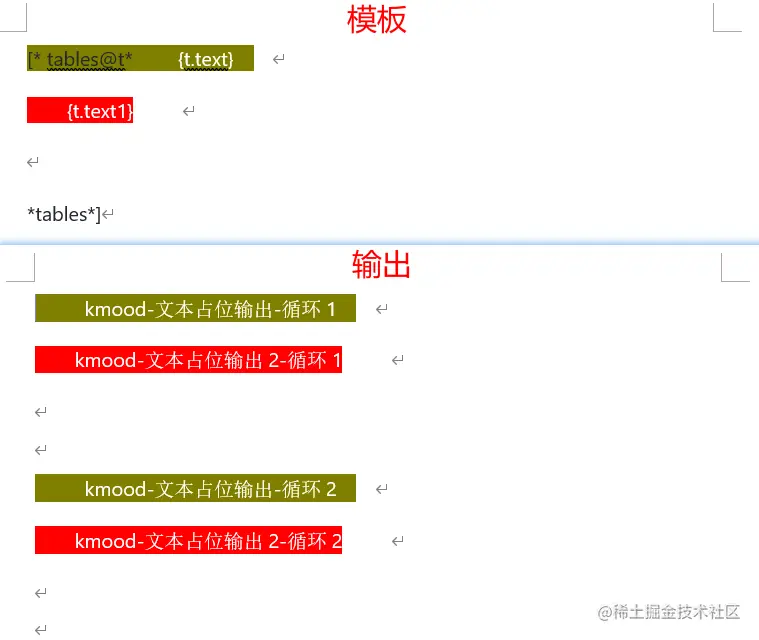

示例2-文本循环输出

代码实例

        //准备数据
        HashMap<String, Object> map = new HashMap<>();
        ArrayList<Object> tables = new ArrayList<>();
        HashMap<String, Object> map1 = new HashMap<>();
        map1.put("text", "kmood-文本占位输出-循环1");
        map1.put("text1", "kmood-文本占位输出2-循环1");
        tables.add(map1);
        HashMap<String, Object> map2 = new HashMap<>();
        map2.put("text", "kmood-文本占位输出-循环2");
        map2.put("text1", "kmood-文本占位输出2-循环2");
        tables.add(map2);
        map.put("tables",map);
        //编译输出
        DocumentProducer dp = new DocumentProducer(ActualModelPath);
        String complie = dp.Complie(xmlPath, "textf.xml", true);
        dp.produce(map, ExportFilePath);

实现效果

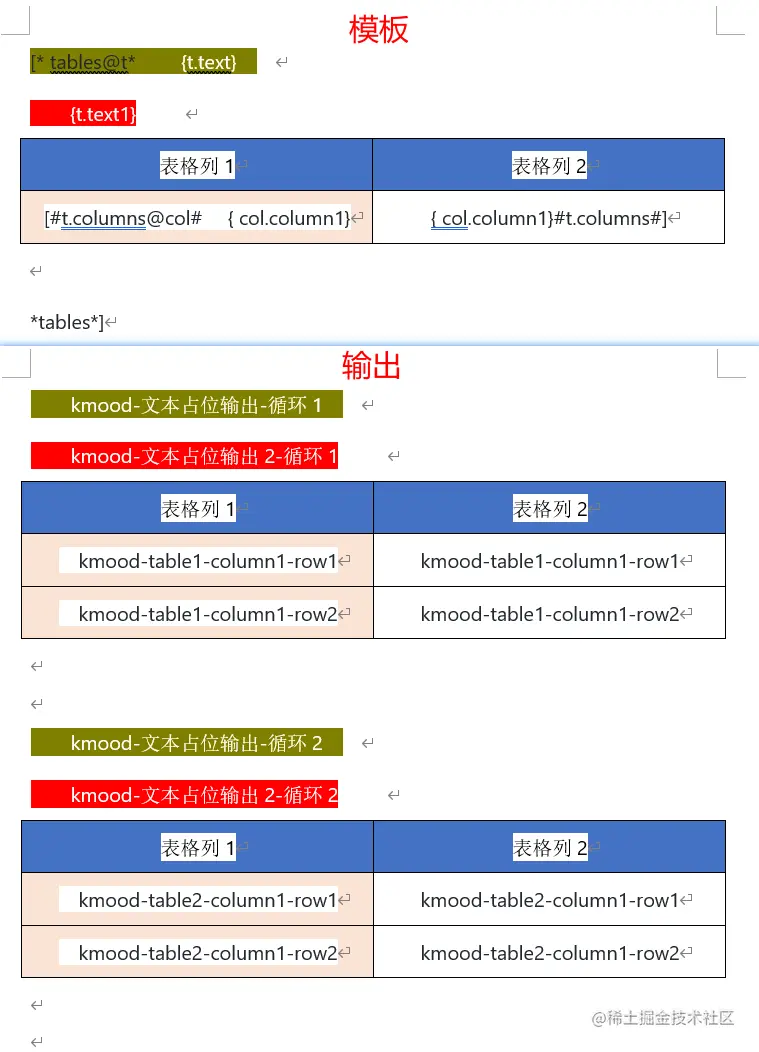

示例3-文本、表格循环输出

代码实例

        //准备数据
       HashMap<String, Object> map = new HashMap<>();
       ArrayList<Object> tables = new ArrayList<>();
       HashMap<String, Object> map1 = new HashMap<>();
       map1.put("text", "kmood-文本占位输出-循环1");
       map1.put("text1", "kmood-文本占位输出2-循环1");
       //表格数据
       ArrayList<Object> columns1= new ArrayList<>();
       HashMap<String, Object> row = new HashMap<>();
       row.put("column1", "kmood-table1-column1-row1");
       row.put("column2", "kmood-table1-column2-row1");
       columns1.add(row);
       HashMap<String, Object> row2 = new HashMap<>();
       row2.put("column1", "kmood-table1-column1-row2");
       row2.put("column2", "kmood-table1-column2-row2");
       columns1.add(row2);
       map1.put("columns", columns1);
       tables.add(map1);

       HashMap<String, Object> map2 = new HashMap<>();
       map2.put("text", "kmood-文本占位输出-循环2");
       map2.put("text1", "kmood-文本占位输出2-循环2");
       //表格数据
       ArrayList<Object> columns2= new ArrayList<>();
       HashMap<String, Object> row3 = new HashMap<>();
       row3.put("column1", "kmood-table2-column1-row1");
       row3.put("column2", "kmood-table2-column2-row1");
       columns2.add(row3);
       HashMap<String, Object> row4 = new HashMap<>();
       row4.put("column1", "kmood-table2-column1-row2");
       row4.put("column2", "kmood-table2-column2-row2");
       columns2.add(row4);
       map2.put("columns", columns2);

       tables.add(map2);
       map.put("tables",tables);
       //编译输出
       DocumentProducer dp = new DocumentProducer(ActualModelPath);
       String complie = dp.Complie(xmlPath, "table.xml", true);
       dp.produce(map, ExportFilePath);

实现效果

中文文档:https://github.com/kmood/officeexport-java/wiki

github:**https://github.com/kmood/officeexport-java
