MyBatis
一款优秀的持久层框架，它支持定制化 SQL、存储过程以及高级映射。MyBatis 避免了几乎所有的 JDBC 代码和手动设置参数以及获取结果集。MyBatis 可以使用简单的 XML 或注解来配置和映射原生类型、接口和 Java 的 POJO（Plain Old Java Objects，普通老式 Java 对象）为数据库中的记录。（摘抄至官网）
前言：如果您对MyBatis的底层感兴趣，想知道发起一条Sql语句执行，底层走了什么操作，那您可以花点时间，认真阅读下本篇文章，相信会给你不少收获的。本篇文章步骤条例很清晰的。
MyBatis底层是怎么运行的呢？
public static void main(String[] args) throws IOException {
String configName = "mybatis_config.xml";
Reader reader = Resources.getResourceAsReader(configName);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
}
12345
1：启动，加载配置文件
- new SqlSessionFactoryBuilder().build(reader)，SqlSessionFactoryBuilder创建出SqlSessionFactory，reader参数接收一个mybatis-config.xml的流文件。
- 创建 XMLConfigBuilder：config.xml解析器。
- 实例化 XMLConfigBuilder父类(BaseBuilder)的Configuration类。
- 解析config.xml数据，加载到Configuration对象中。
- new DefaultSqlSessionFactory(config) 创建一个SqlSessionFactory实例，默认是DefaultSqlSessionFactory。

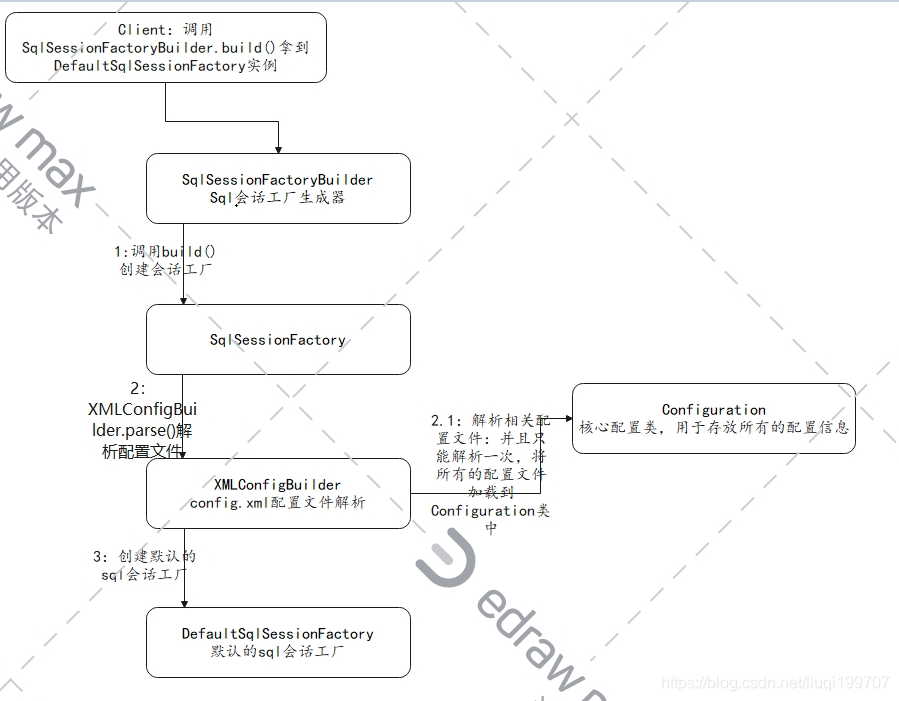

如图所示

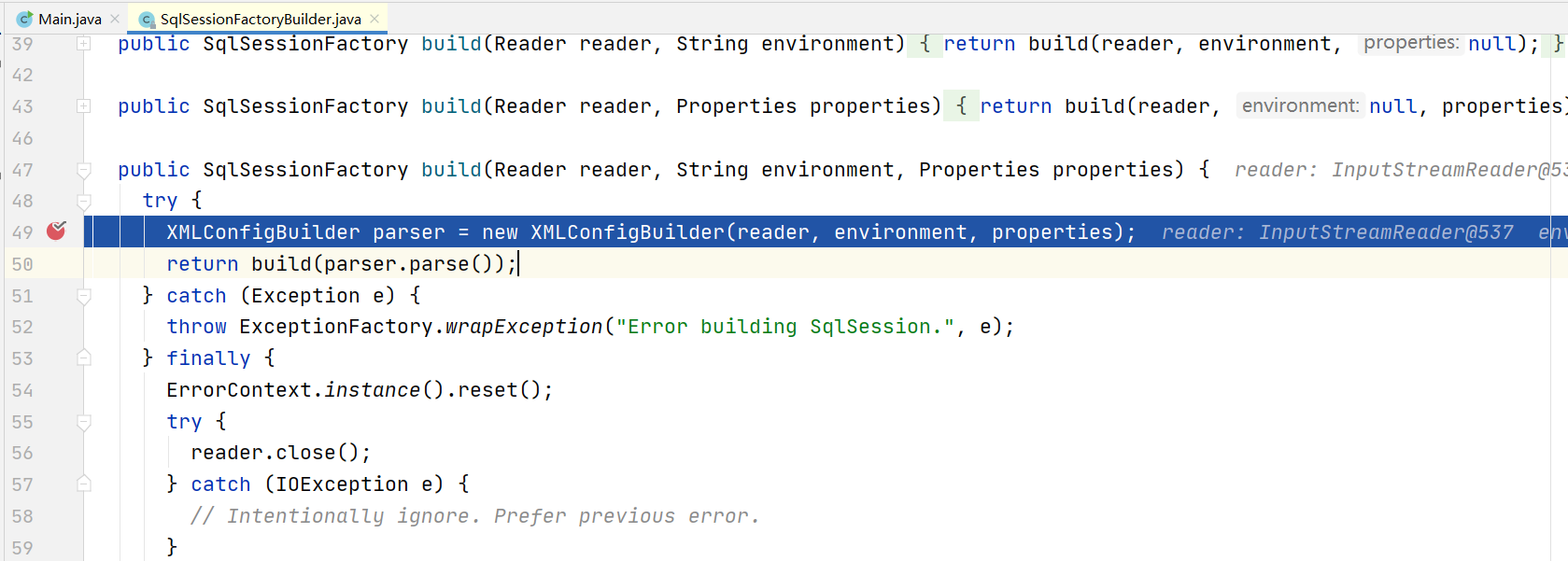

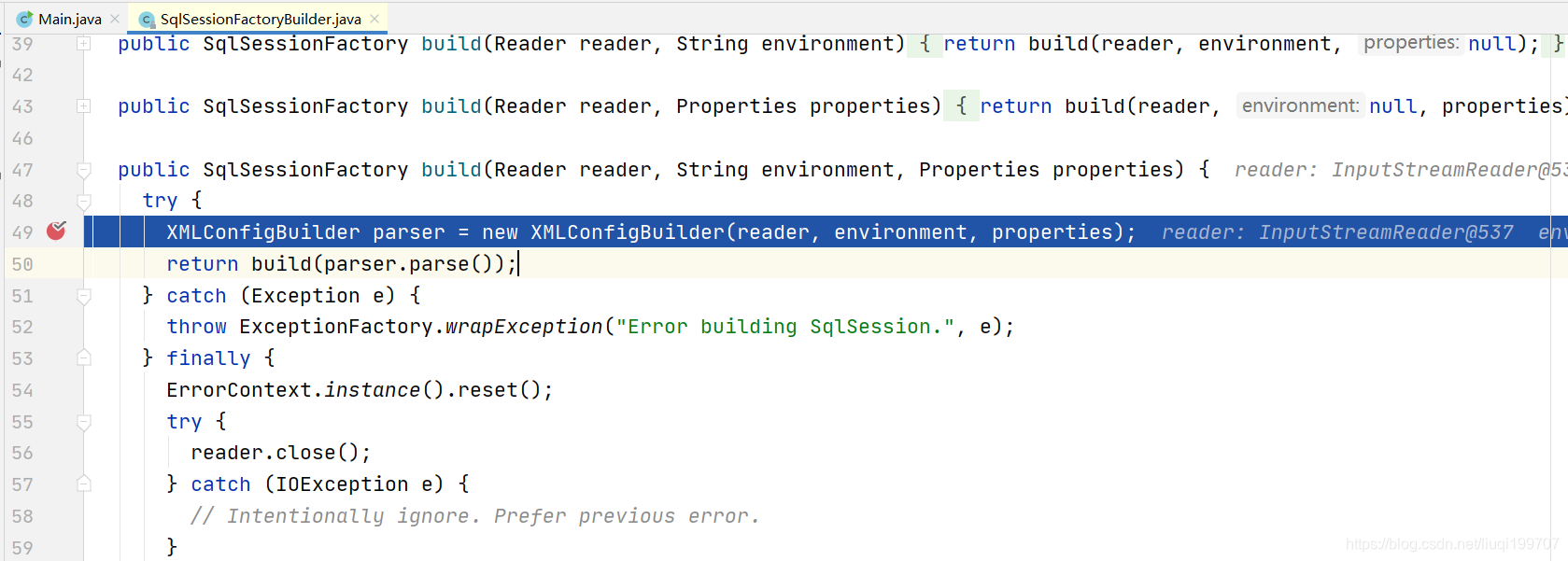

1.1：new SqlSessionFactoryBuilder().build(reader)
创建SqlSessionFactory对象实例
1.2：new XMLConfigBuilder(reader, environment, properties);
解析 mybatis-config.xml文件
public class XMLConfigBuilder extends BaseBuilder {
/* 标记是否已经解析过配置文件 */
private boolean parsed;
/* 解析器 */
private final XPathParser parser;
/**
* 数据源，SqlSessionFactoryBuilder.build(Reader reader, String environment, Properties properties)
* 不指定为空
*/
private String environment;
public XMLConfigBuilder(XPathParser parser, String environment, Properties props) {
/* 初始化 Configuration */
super(new Configuration());
ErrorContext.instance().resource("SQL Mapper Configuration");
/* 设置格外的属性 */
this.configuration.setVariables(props);
/* 标记初始化为 false */
this.parsed = false;
this.environment = environment;
this.parser = parser;
}
}
123456789101112131415161718192021222324
1.3：new Configuration()
创建 Configuration 实例
public class Configuration {
/**
* 类型别名注册
* 比如 <dataSource type="POOLED">
* 其中的 type="POOLED" 会使用 PooledDataSourceFactory类创建数据源连接池
*/
protected final TypeAliasRegistry typeAliasRegistry = new TypeAliasRegistry();
protected final LanguageDriverRegistry languageRegistry = new LanguageDriverRegistry();
public Configuration() {
/**
* JDBC 对应使用的 事务工厂类
* <transactionManager type="JDBC"></transactionManager>
*/
typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
/**
* MANAGED 对应使用的 事务工厂类
*/
typeAliasRegistry.registerAlias("MANAGED", ManagedTransactionFactory.class);
/**
* JNDI 对应使用的 数据源
*/
typeAliasRegistry.registerAlias("JNDI", JndiDataSourceFactory.class);
/**
* POOLED 对应使用的 数据源
* <dataSource type="POOLED">
*/
typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
/**
* UNPOOLED 对应使用的 数据源
*/
typeAliasRegistry.registerAlias("UNPOOLED", UnpooledDataSourceFactory.class);
/**
* 缓存策略
*/
typeAliasRegistry.registerAlias("PERPETUAL", PerpetualCache.class);
typeAliasRegistry.registerAlias("FIFO", FifoCache.class);
typeAliasRegistry.registerAlias("LRU", LruCache.class);
typeAliasRegistry.registerAlias("SOFT", SoftCache.class);
typeAliasRegistry.registerAlias("WEAK", WeakCache.class);
typeAliasRegistry.registerAlias("DB_VENDOR", VendorDatabaseIdProvider.class);
typeAliasRegistry.registerAlias("XML", XMLLanguageDriver.class);
typeAliasRegistry.registerAlias("RAW", RawLanguageDriver.class);
/**
* 日志
*/
typeAliasRegistry.registerAlias("SLF4J", Slf4jImpl.class);
typeAliasRegistry.registerAlias("COMMONS_LOGGING", JakartaCommonsLoggingImpl.class);
typeAliasRegistry.registerAlias("LOG4J", Log4jImpl.class);
typeAliasRegistry.registerAlias("LOG4J2", Log4j2Impl.class);
typeAliasRegistry.registerAlias("JDK_LOGGING", Jdk14LoggingImpl.class);
typeAliasRegistry.registerAlias("STDOUT_LOGGING", StdOutImpl.class);
typeAliasRegistry.registerAlias("NO_LOGGING", NoLoggingImpl.class);
typeAliasRegistry.registerAlias("CGLIB", CglibProxyFactory.class);
typeAliasRegistry.registerAlias("JAVASSIST", JavassistProxyFactory.class);
languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
languageRegistry.register(RawLanguageDriver.class);
}
}
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566

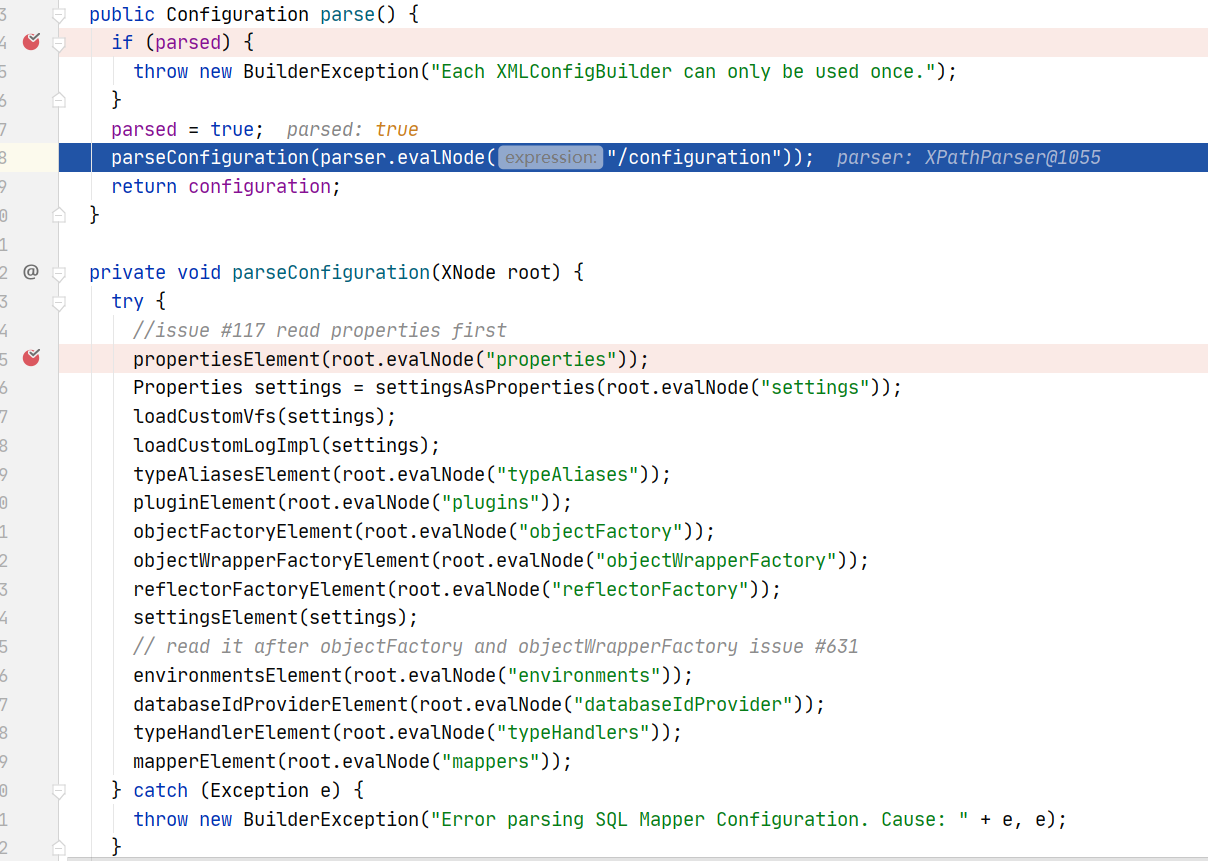

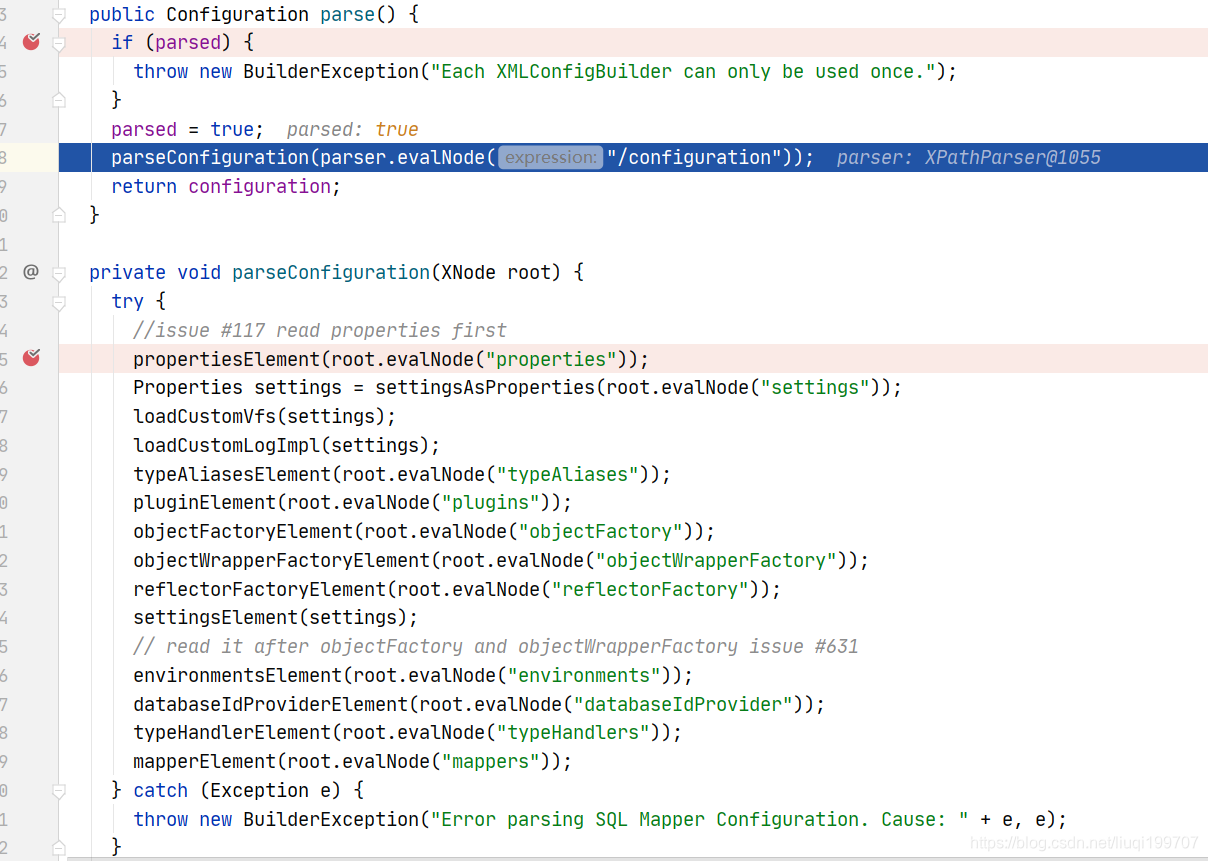

1.4 XMLConfigBuilder.parse()
解析 mybatis-config.xml
private void parseConfiguration(XNode root) {
try {
//issue #117 read properties first
/**
* 解析 <properties resource="my.properties" /> 配置文件
*/
propertiesElement(root.evalNode("properties"));
/**
* 解析settings配置文件
* <settings>
* <setting name="logImpl" value="STDOUT_LOGGING"/>
* </settings>
*/
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
loadCustomLogImpl(settings);
/**
* 解析 typeAliases配置文件
*/
typeAliasesElement(root.evalNode("typeAliases"));
/**
* 解析 plugins 配置文件
* 这个是插件，可以动态的拦截sql执行
*/
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
/**
* 加载 mapper.xml 文件
*/
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
1234567891011121314151617181920212223242526272829303132333435363738394041424344
1.4.1： mapperElement(root.evalNode(“mappers”));
解析mapper.xml文件，以及接口方法的注解
public class XMLConfigBuilder extends BaseBuilder {
/**
* mapper隐射文件解析
* @param parent
* @throws Exception
*/
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
/**
* 解析 <package
* <mappers>
* <package name="com.mapper"/>
* </mappers>
*/
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
/**
* 添加所有包下的接口
* 实际调用 configuration.addMapper(mapperInterface);
*/
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
/**
* 解析 <mapper resource
* <mappers>
* <mapper resource="mapper/UserMapper.xml"/>
* </mappers>
*/
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
InputStream inputStream = Resources.getResourceAsStream(resource);
/**
* mapper.xml 解析器
*/
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
/**
* 开始解析 mapper.xml文件
* 重点分析这个 同样也会调用 configuration.addMapper(mapperInterface); 这个方法
*/
mapperParser.parse();
} else if (resource == null && url != null && mapperClass == null) {
/**
* 解析 <mapper url
*/
ErrorContext.instance().resource(url);
InputStream inputStream = Resources.getUrlAsStream(url);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url == null && mapperClass != null) {
/**
* 解析 <mapper class
*/
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
/**
* 以下代码可以看出 url resource class 三个属性只能选择一个，否则就会报错
*/
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
}
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869
1.4.2：mapperParser.parse();解析
我的UserMapper.xml文件内容为：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.mapper.UserMapper">
<select id="findById" resultType="com.entity.User">
select * from `user` where userId = #{userId}
</select>
</mapper>
123456789
UserMapper接口内容为：
package com.mapper;
import com.entity.User;
import org.apache.ibatis.annotations.Select;
public interface UserMapper {
@Select("select * from `user` where userId = 2")
User findById(int userId);
}
123456789
疑问？UserMapper.xml有<select id=“findById”，而在接口中的findById方法我又加了一个@Select注解；那么执行会选择哪一条Sql执行还是报错呢？

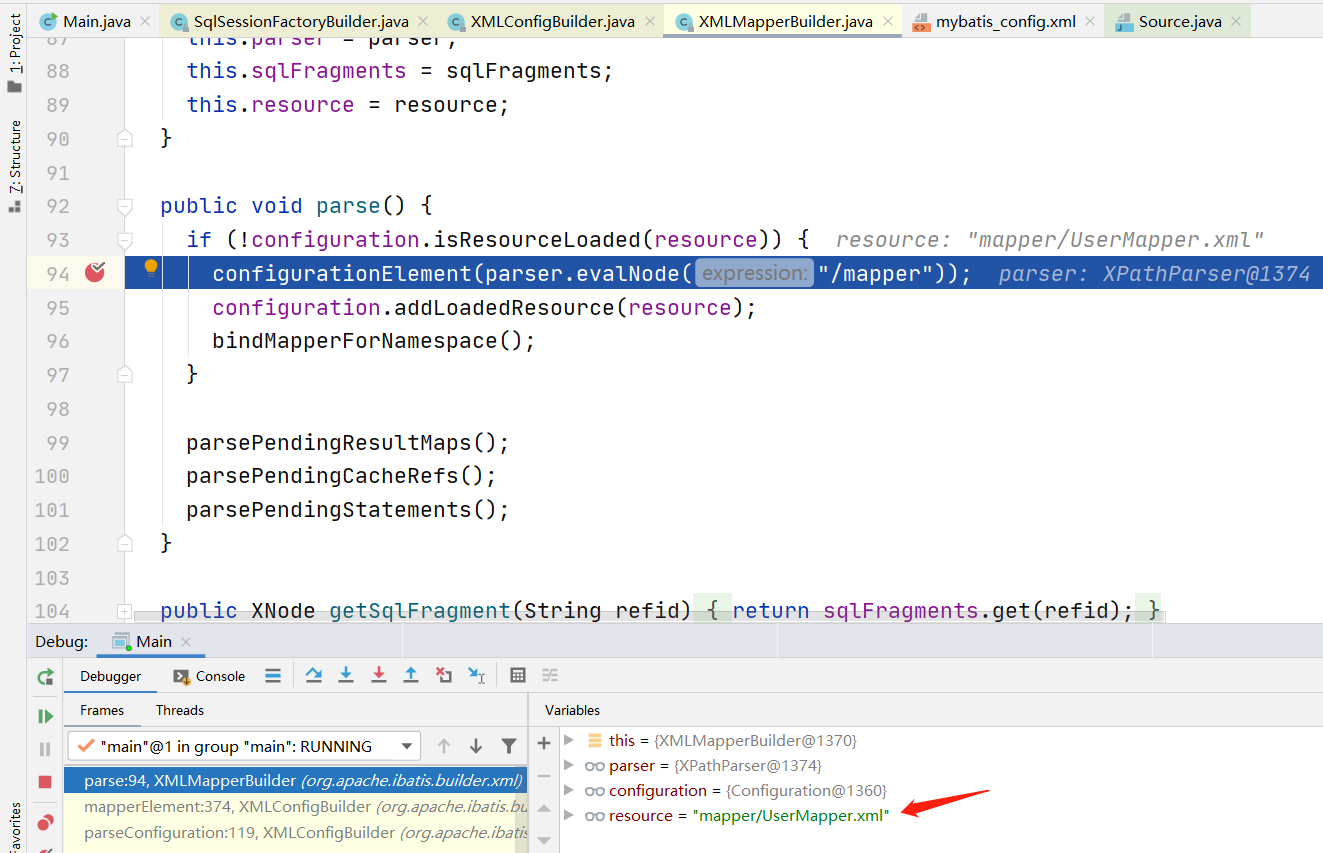

以UserMapper.xml为例子解析，可以看到 resource = mapper/UserMapper.xml
public class XMLMapperBuilder extends BaseBuilder {
public void parse() {
if (!configuration.isResourceLoaded(resource)) {
/**
* 解析 mapper.xml文件内容
*/
configurationElement(parser.evalNode("/mapper"));
configuration.addLoadedResource(resource);
/**

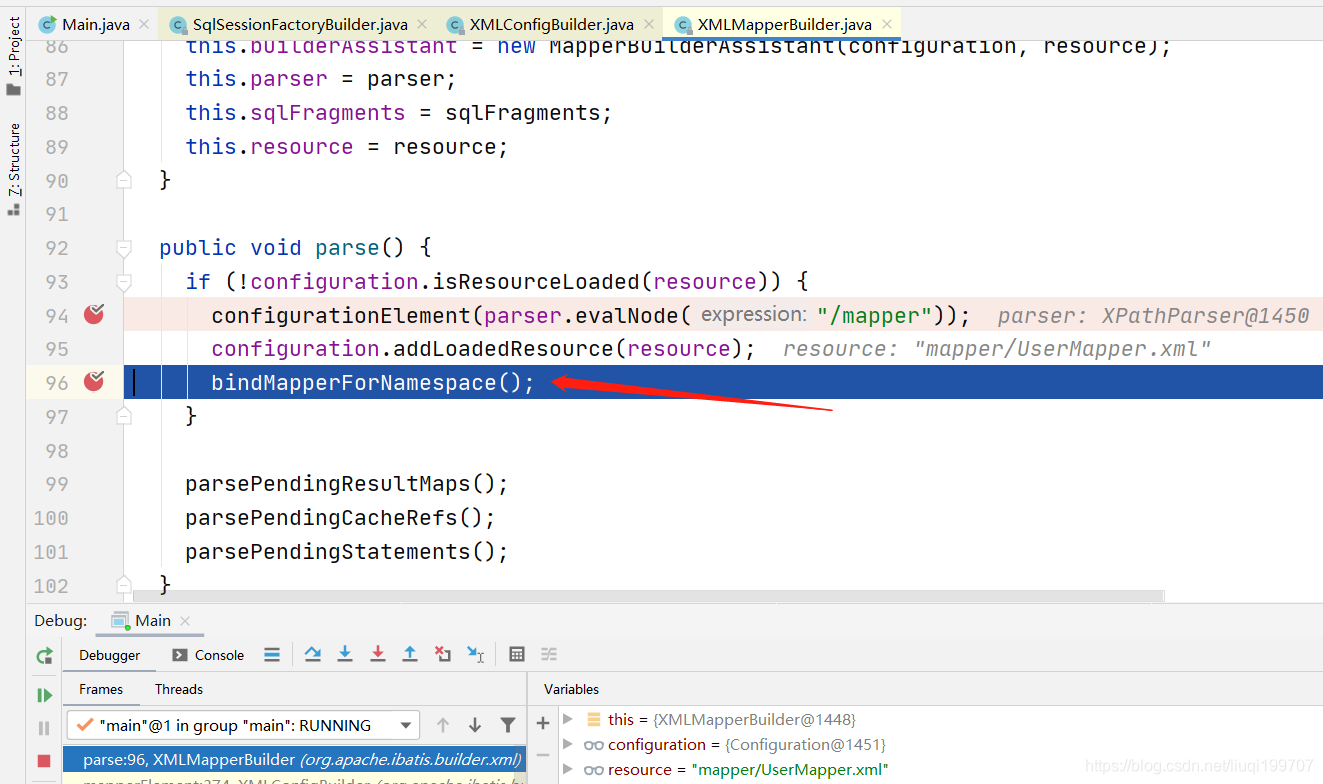

* 解析 mapper.xml的<mapper namespace="com.mapper.UserMapper">
* namespace指定的{UserMapper}接口的注解信息
*/
bindMapperForNamespace();
}
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
}
1234567891011121314151617181920
1.4.3：configurationElement(parser.evalNode("/mapper"));
解析 mapper.xml文件内容
public class XMLMapperBuilder extends BaseBuilder {
private void configurationElement(XNode context) {
try {
/**
* namespace属性
*/
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.equals("")) {
/**
* 不指定 namespace会报错哦 由此得知 namespace属性是必须指定的
*/
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
/**
* 解析 cache-ref
*/
cacheRefElement(context.evalNode("cache-ref"));
/**
* 解析 cache
*/
cacheElement(context.evalNode("cache"));
/**
* 解析 parameterMap
*/
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
/**
* 解析 resultMap
*/
resultMapElements(context.evalNodes("/mapper/resultMap"));
/**
* 解析 sql
*/
sqlElement(context.evalNodes("/mapper/sql"));
/**
* 解析 sql语句 select|insert|update|delete
* 重点分析这里，这里的解析会关联到 mapper接口的执行方法 sql语句映射
*/
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
}
}
}
1234567891011121314151617181920212223242526272829303132333435363738394041424344

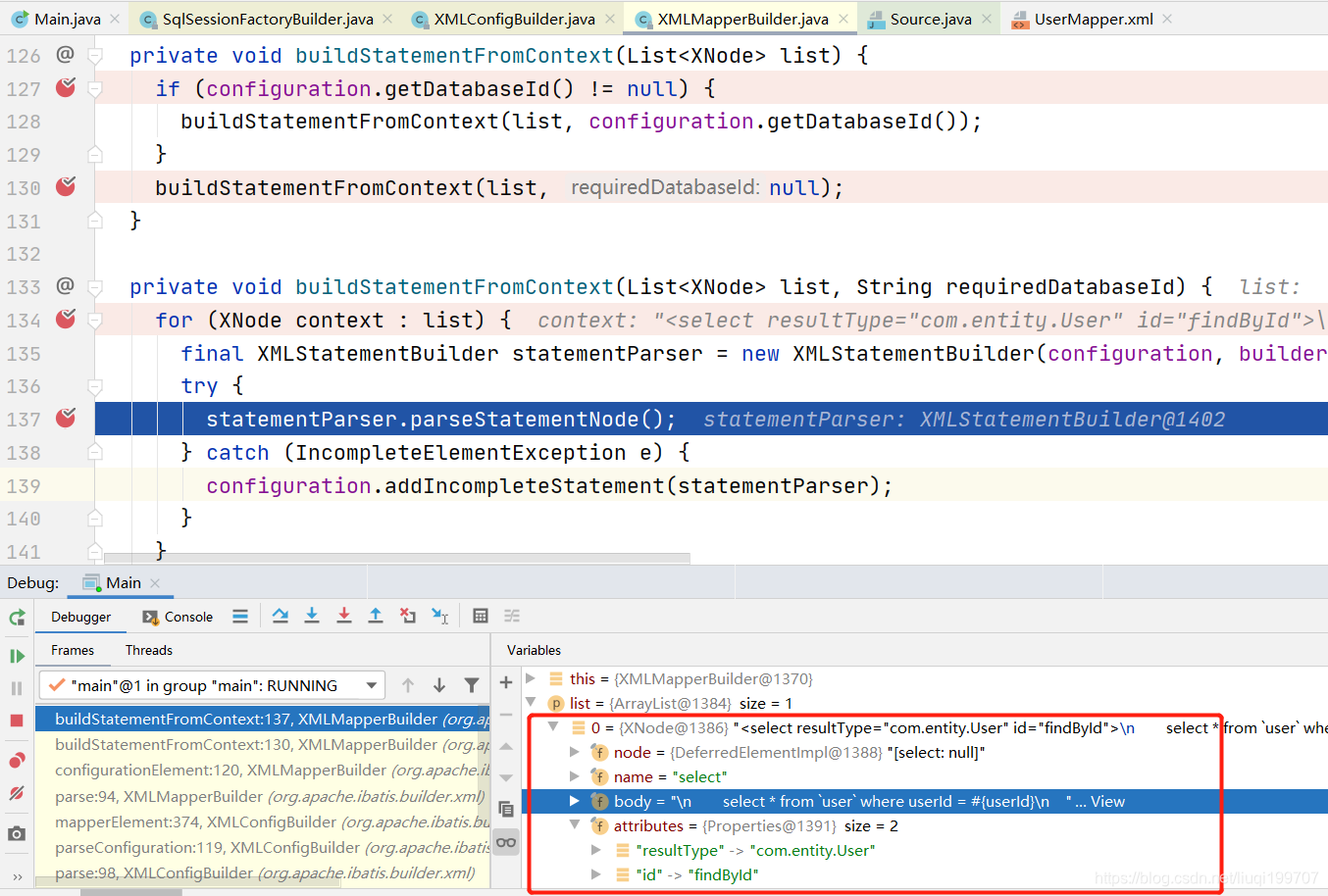

1.4.4：buildStatementFromContext(context.evalNodes(“select|insert|update|delete”));
解析 sql语句 select|insert|update|delete；list参数内容是select|insert|update|delete的Sql语句
XMLStatementBuilder Sql语句的解析器
1.4.5：statementParser.parseStatementNode();解析Sql语句
builderAssistant.addMappedStatement,并不是添加一个mapper.xml文件隐射的实例，而是为每一个Sql语句创建一个实例
public class XMLStatementBuilder extends BaseBuilder {
private final MapperBuilderAssistant builderAssistant;
public void parseStatementNode() {
/**
* 此处省略一大推代码...
*/
/**
* <select id="findById" resultType="com.entity.User">
* select * from `user` where userId = #{userId}
* </select>
* 参数解析
*
* id：标签指定的id = findById
* sqlSource：Sql语句，Sql参数占位
* statementType：sql执行类型 参考{@link StatementType}
* STATEMENT: 直接操作sql，不进行预编译 ${}
* PREPARED: 预处理，参数，进行预编译 #{}
* CALLABLE: 执行存储过程
* sqlCommandType：sql语句类型 参考{@link SqlCommandType}
* UNKNOWN：未知，INSERT：新增，UPDATE：修改，DELETE：删除，SELECT：查询，FLUSH：刷新
*
* 其他参数可查看官网：https://mybatis.org/mybatis-3/zh/sqlmap-xml.html
*/
builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
resultSetTypeEnum, flushCache, useCache, resultOrdered,
keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}
}
1234567891011121314151617181920212223242526272829

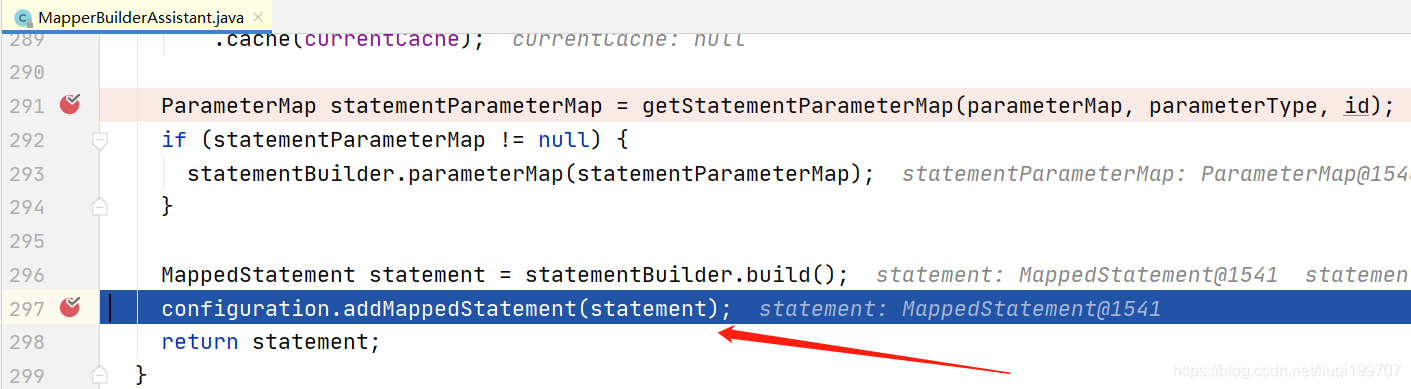

1.4.6：builderAssistant.addMappedStatement();
创建一个MappedStatement实例添加到 Configuration.mappedStatements的Map集合中
public class XMLStatementBuilder extends BaseBuilder {
public MappedStatement addMappedStatement() {
/**
* 此处省略一大推代码...
*/
MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
/**
* 建造者模式
* 用于设置 MappedStatement的属性
* 此处省略一大推代码...
*/
/**
* 设置参数入参类型 parameterType属性
* <select id="findById" parameterType="int" resultType="com.entity.User">
* select * from `user` where userId = #{userId}
* </select>
*/
ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
if (statementParameterMap != null) {
statementBuilder.parameterMap(statementParameterMap);
}
/**
* 创建一个 {@link MappedStatement} 实例
*/
MappedStatement statement = statementBuilder.build();
/**
* MappedStatement实例添加到 {@link #configuration.mappedStatements} Map集合中
* MappedStatement 是对应一个Sql语句的实例对象
*
* configuration.mappedStatements 存放所有的MappedStatement实例，后面会详细介绍
*/
configuration.addMappedStatement(statement);
return statement;
}
}
1234567891011121314151617181920212223242526272829303132333435363738
以上流程执行完后，又回到1.4.2：mapperParser.parse();解析，现在开始解析 namespace指定的接口的注解信息，并创建该接口的代理工厂对象，UserMapper接口。
1.4.7：bindMapperForNamespace();
开始解析接口注解，并添加一个MapperProxyFactory代理工厂的对象到configuration.mapperRegistry.knownMappers；key是Mapper接口
public class XMLMapperBuilder extends BaseBuilder {
private void bindMapperForNamespace() {
String namespace = builderAssistant.getCurrentNamespace();
if (namespace != null) {
Class<?> boundType = null;
try {
/**
* java 反射 Class.classForName
*/
boundType = Resources.classForName(namespace);
} catch (ClassNotFoundException e) {
/**
* 这里并没有抛出异常，说明 namespace 可以指定一个不存在的接口
*/
//ignore, bound type is not required 忽略，绑定类型不是必需的
}
if (boundType != null) {
if (!configuration.hasMapper(boundType)) {
// Spring may not know the real resource name so we set a flag
// to prevent loading again this resource from the mapper interface
// look at MapperAnnotationBuilder#loadXmlResource
configuration.addLoadedResource("namespace:" + namespace);
/**
* 添加一个Mapper接口的代理工厂对象到configuration.mapperRegistry.knownMappers集合中
* 参考 {@link Configuration#mapperRegistry},
* {@link MapperRegistry#knownMappers}
*/
configuration.addMapper(boundType);
}
}
}
}
}
123456789101112131415161718192021222324252627282930313233
1.4.8：configuration.addMapper(boundType);
public class Configuration {
protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
public <T> void addMapper(Class<T> type) {
/**
* mapperRegistry = {@link MapperRegistry} mapper接口注册器，存放所有的mapper接口信息
*/
mapperRegistry.addMapper(type);
}
}
123456789
mapperRegistry.addMapper(type)；
为Mapper接口创建一个代理工厂，方便后期使用Mapper接口时创建代理类
解析mapper接口的注解信息
public class MapperRegistry {
public <T> void addMapper(Class<T> type) {
if (type.isInterface()) {
if (hasMapper(type)) {
throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
}
boolean loadCompleted = false;
try {
/**
* {@link MapperProxyFactory} 代理接口工厂
*/
knownMappers.put(type, new MapperProxyFactory<>(type));
// It's important that the type is added before the parser is run
// otherwise the binding may automatically be attempted by the
// mapper parser. If the type is already known, it won't try.
/**
* {@link MapperAnnotationBuilder} mapper接口注解解析器
*/
MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
/* 开始解析 */
parser.parse();
loadCompleted = true;
} finally {
if (!loadCompleted) {
knownMappers.remove(type);
}
}
}
}
}
123456789101112131415161718192021222324252627282930
1.4.9 parser.parse(); MapperAnnotationBuilder.parse()
解析mapper接口的注解信息，parseStatement(method)主要在这个方法中完成
public class MapperAnnotationBuilder {
public void parse() {
String resource = type.toString();
if (!configuration.isResourceLoaded(resource)) {
loadXmlResource();
configuration.addLoadedResource(resource);
assistant.setCurrentNamespace(type.getName());
/**
* 解析 @CacheNamespace 注解
*/
parseCache();
/**
* 解析 CacheNamespaceRef 注解
*/
parseCacheRef();
Method[] methods = type.getMethods();
for (Method method : methods) {
try {
// issue #237
if (!method.isBridge()) {
/**
* 解析Sql相关注解 列如 @Select|@Update 之类的注解
*
* 重点关注
*/
parseStatement(method);
}
} catch (IncompleteElementException e) {
configuration.addIncompleteMethod(new MethodResolver(this, method));
}
}
}
/**
* 解析待定方法
*/
parsePendingMethods();
}
}
1234567891011121314151617181920212223242526272829303132333435363738
1.5.0：parseStatement(method)；
创建一个MappedStatement实例添加到 Configuration.mappedStatements的Map集合中
public class MapperAnnotationBuilder {
private final MapperBuilderAssistant assistant;
void parseStatement(Method method) {
/**
* 此处省略一大推代码...
*/
assistant.addMappedStatement(
mappedStatementId,
sqlSource,
statementType,
sqlCommandType,
fetchSize,
timeout,
// ParameterMapID
null,
parameterTypeClass,
resultMapId,
getReturnType(method),
resultSetType,
flushCache,
useCache,
// TODO gcode issue #577
false,
keyGenerator,
keyProperty,
keyColumn,
// DatabaseID
null,
languageDriver,
// ResultSets
options != null ? nullOrEmpty(options.resultSets()) : null);
}
}
123456789101112131415161718192021222324252627282930313233
1.5.1：assistant.addMappedStatement();
这里可以参考1.4.6：builderAssistant.addMappedStatement();一模一样的操作
都调用了configuration.addMappedStatement(statement);
这里重点分析Configuration.addMappedStatement(statement);在做什么操作，并且解决 1.4.2留下的疑点；UserMapper.xml和UserMapper接口都有findById的Sql语句定义
public class Configuration {
public void addMappedStatement(MappedStatement ms) {
mappedStatements.put(ms.getId(), ms);
}
}
12345
mappedStatements.put(ms.getId(), ms); 实际调用 Configuration.StrictMap.put()方法
Configuration.StrictMap是一个重写的HashMap，put方法会先校验key是否存在
public class Configuration {
/**
* mappedStatements Sql语句的对象
*
* Configuration.StrictMap 实现了HashMap
*/
protected final Map<String, MappedStatement> mappedStatements = new Configuration.StrictMap<MappedStatement>("Mapped Statements collection")
.conflictMessageProducer((savedValue, targetValue) ->
". please check " + savedValue.getResource() + " and " + targetValue.getResource());
protected static class StrictMap<V> extends HashMap<String, V> {
@Override
@SuppressWarnings("unchecked")
public V put(String key, V value) {
/**
* key 是否存在 存在就抛出异常
*
* 由此得知，方法映射Sql语句只能定义一个，要么在 mapper.xml中定义，要么就注解定义
*/
if (containsKey(key)) {
throw new IllegalArgumentException(name + " already contains value for " + key
+ (conflictMessageProducer == null ? "" : conflictMessageProducer.apply(super.get(key), value)));
}
if (key.contains(".")) {
final String shortKey = getShortName(key);
if (super.get(shortKey) == null) {
super.put(shortKey, value);
} else {
super.put(shortKey, (V) new org.apache.ibatis.session.Configuration.StrictMap.Ambiguity(shortKey));
}
}
return super.put(key, value);
}
}
}
1234567891011121314151617181920212223242526272829303132333435
debug调试，key已经存在，就会报错。由此得知，方法映射Sql语句只能定义一个，要么在 mapper.xml中定义，要么就注解定义
到此，MyBatis的启动流程就走完了。
2：接下来就来看下是如何执行Sql查询的。
public class Main {
public static void main(String[] args) throws IOException {
String configName = "mybatis_config.xml";
Reader reader = Resources.getResourceAsReader(configName);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
/**
* 获取一个会话连接
*/
SqlSession sqlSession = sqlSessionFactory.openSession();
/**
* 拿到 UserMapper 的代理类
*/
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
/**
* 执行Sql查询
*/
User user = userMapper.findById(1);
System.out.println(user);
}
}
1234567891011121314151617181920212223
输出结果：User{userId=1, username=‘张三’, sex=‘男’, age=12}
一行代码的查询，底层既然走了那么多流程；
流程图：
2.1：sqlSessionFactory.openSession();打开会话连接
调用DefaultSqlSessionFactory.openSessionFromDataSource();
public class DefaultSqlSessionFactory implements SqlSessionFactory {
private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
Transaction tx = null;
try {
/**
* mybatis_config.xml配置的
* <environment>数据源<environment/>
*/
final Environment environment = configuration.getEnvironment();
/**
* transactionManager 配置的事务管理器工厂 type="JDBC" {@link JdbcTransactionFactory}
*<environments default="developmentss">
* <environment id="developmentss">
* <transactionManager type="JDBC"></transactionManager>
* </environment>
* </environments>
*/
final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
/**
* 创建事务管理器，由于上面指定的事务管理器工厂是 {@link JdbcTransactionFactory}
* 所以创建的事务管理器是 {@link JdbcTransaction}
*
* @param level 事务隔离级别
* @param autoCommit 是否自动提交事务
*/
tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
/**
* 创建Sql执行器
*
* @param execType 创建执行器类型 defaultExecutorType如果不指定 默认就是 SIMPLE
* <settings>
* <setting name="defaultExecutorType" value="SIMPLE"/>
* </settings>
*/
final Executor executor = configuration.newExecutor(tx, execType);
/**
* 创建一个默认的 SqlSession实例
*/
return new DefaultSqlSession(configuration, executor, autoCommit);
} catch (Exception e) {
closeTransaction(tx); // may have fetched a connection so lets call close()
throw ExceptionFactory.wrapException("Error opening session. Cause: " + e, e);
} finally {
ErrorContext.instance().reset();
}
}
}
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051
2.2：configuration.newExecutor(tx, execType);创建执行器
public class Configuration {
public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
executorType = executorType == null ? defaultExecutorType : executorType;
executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
Executor executor;
if (ExecutorType.BATCH == executorType) {
/**
* 执行器不仅重用语句还会执行批量更新
*/
executor = new BatchExecutor(this, transaction);
/**
* 执行器会重用预处理语句（PreparedStatement）
*/
} else if (ExecutorType.REUSE == executorType) {
executor = new ReuseExecutor(this, transaction);
} else {
/**
* 普通的执行器 也是默认的执行器
*/
executor = new SimpleExecutor(this, transaction);
}
/**
* 如果开启了二级缓存 cacheEnabled，创建一个CachingExecutor缓存执行器
* cacheEnabled 默认为true
* <settings>
* <setting name="cacheEnabled" value="true"/>
* </settings>
*/
if (cacheEnabled) {
executor = new CachingExecutor(executor);
}
executor = (Executor) interceptorChain.pluginAll(executor);
return executor;
}
}
1234567891011121314151617181920212223242526272829303132333435
2.3：sqlSession.getMapper(UserMapper.class);
获取Mapper接口代理类实例
public class DefaultSqlSession implements SqlSession {
@Override
public <T> T getMapper(Class<T> type) {
/**
* 用 Configuration 类的 getMapper方法
*/
return configuration.getMapper(type, this);
}
}
123456789
public class Configuration {
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
/**
* 调用 MapperRegistry Mapper接口注册器
*/
return mapperRegistry.getMapper(type, sqlSession);
}
}
12345678
public class MapperRegistry {
private final Configuration config;
private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
/**
* knownMappers 从缓存中获取 MapperProxyFactory Mapper接口代理工厂
* 如果没有找到就会抛出异常，
* 说明获取Mapper接口代理实例时，需要事先定义好 --> 相当于Spring的扫包
*/
final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
}
try {
/**
* 创建代理实例
*/
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception e) {
throw new BindingException("Error getting mapper instance. Cause: " + e, e);
}
}
}
123456789101112131415161718192021222324
2.3.1：使用JDK代理创建Mapper接口代理
InvocationHandler是MapperProxy
public class MapperProxyFactory<T> {
private final Class<T> mapperInterface;
/**
* MapperMethod 缓存
*/
private final Map<Method, MapperMethod> methodCache = new ConcurrentHashMap<>();
public MapperProxyFactory(Class<T> mapperInterface) {
this.mapperInterface = mapperInterface;
}
@SuppressWarnings("unchecked")
protected T newInstance(MapperProxy<T> mapperProxy) {
/**
* JDK 生产代理类
*/
return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
}
public T newInstance(SqlSession sqlSession) {
/**
* 代理类回调接口
*/
final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
return newInstance(mapperProxy);
}
}
12345678910111213141516171819202122232425262728
2.4：userMapper.findById(1); 调用Mapper接口方法Sql查询
会走代理类 MapperProxy.invoke
public class MapperProxy<T> implements InvocationHandler, Serializable {
private static final long serialVersionUID = -6424540398559729838L;
private final SqlSession sqlSession;
private final Class<T> mapperInterface;
private final Map<Method, MapperMethod> methodCache;
public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
this.sqlSession = sqlSession;
this.mapperInterface = mapperInterface;
this.methodCache = methodCache;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else if (method.isDefault()) {
return invokeDefaultMethod(proxy, method, args);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
/**
* 根据方法全限名 获取一个MapperMethod实例，并且缓存
*
* 注意：这里的 methodCache 只是一个引用，缓存的所有对象都在 {@link MapperProxyFactory#methodCache}中
*/
final MapperMethod mapperMethod = cachedMapperMethod(method);
/**
* 开始执行
*/
return mapperMethod.execute(sqlSession, args);
}
/**
* 添加到缓存 methodCache {@link MapperProxyFactory#methodCache}中
* computeIfAbsent HashMap 存在就获取，不存在就新增
* @param method
* @return
*/
private MapperMethod cachedMapperMethod(Method method) {
return methodCache.computeIfAbsent(method, k -> new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
}
}
12345678910111213141516171819202122232425262728293031323334353637383940414243444546
2.5：mapperMethod.execute(sqlSession, args);
执行Sql语句查询，由于我的返回结果是一个 User对象，所以会走到
result = sqlSession.selectOne(command.getName(), param);这一行，查询一条记录
实际走到 DefaultSqlSession.selectOne()
public class MapperMethod {
private final org.apache.ibatis.binding.MapperMethod.SqlCommand command;
private final org.apache.ibatis.binding.MapperMethod.MethodSignature method;
public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
this.command = new org.apache.ibatis.binding.MapperMethod.SqlCommand(config, mapperInterface, method);
this.method = new org.apache.ibatis.binding.MapperMethod.MethodSignature(config, mapperInterface, method);
}
/**
* 开始执行Sql查询
*/
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
switch (command.getType()) {
case INSERT: {
// 省略代码... 执行 insert语句 <insert>/@Insert
break;
}
case UPDATE: {
// 省略代码... 执行 insert语句 <update>/@Update
break;
}
case DELETE: {
// 省略代码... 执行 delete语句 <delete>/@Delete
break;
}
case SELECT: // 执行 select语句 <select>/@Select
if (method.returnsVoid() && method.hasResultHandler()) {
// 返回类型是否为空 一般情况做Sql操作都要有返回结果的
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) {
/**
* 是否返回多个结果集 {@link Collection}集合/数组
*/
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
/**
* 返回类型是否为 Map 集合
*/
result = executeForMap(sqlSession, args);
} else if (method.returnsCursor()) {
/**
* 返回类型是否是 游标 {@link org.apache.ibatis.cursor.Cursor}
*/
result = executeForCursor(sqlSession, args);
} else {
/**
* 将参数转换为Sql命令参数
*/
Object param = method.convertArgsToSqlCommandParam(args);
/**
* 发起查询 调用的是 sqlSession中的方法
*/
result = sqlSession.selectOne(command.getName(), param);
if (method.returnsOptional()
&& (result == null || !method.getReturnType().equals(result.getClass()))) {
result = Optional.ofNullable(result);
}
}
break;
case FLUSH: // 刷新
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + command.getName());
}
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}
}
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475

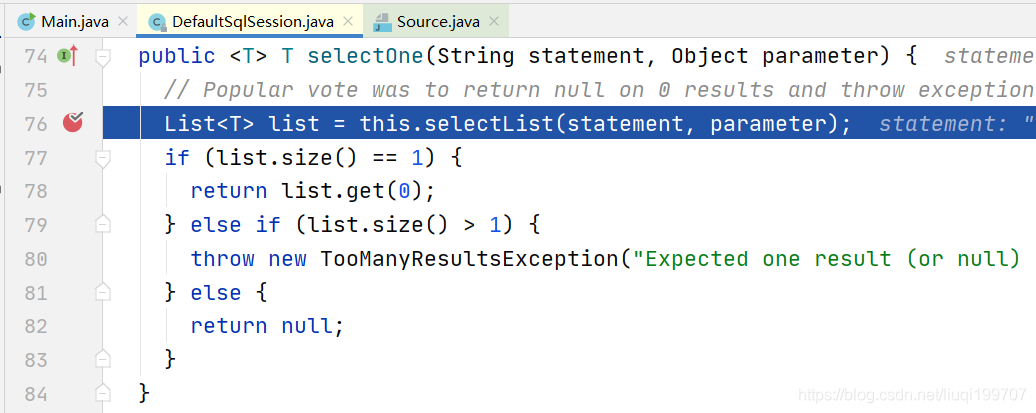

DefaultSqlSession.selectOne()可以看出实际是调用selectList()，而且如果返回了多个结果集就会报错。错误信息如下
Expected one result (or null) to be returned by selectOne(), but found: 2
到这里MyBatis的Sql查询就结束了，同理添加，修改，删除也是同样的流程。
可以自己跟着以上步骤，断点调试追踪下源码，一切迷雾都将会拨开的。
总结：
- 核心依赖于动态代理模式创建Mapper接口代理实例
- SqlSessionFactory负责创建SqlSession，全局唯一实例(类似于单例)
- Configuration 核心中的核心，走到哪里都有它的存在，而且是全局唯一实例(类似于单例)
大家好，我是AIO生活，关注我，后续连载更多技术重难点，文章有不足之处，欢迎大家留言指正，谢谢大家啦！
顺便提一下，帮大家整理了些JAVA电子书，扫码回复“1024”获取电子书合集，也可签到领现金红包！
