问题0011 - Android 阴影轮廓 Outline直接使用 elevation , translationZ

1.阴影

Android materialDesign 风格阴影改变阴影颜色
setOutlineAmbientShadowColor 及 setOutlineSpotShadowColor
承香墨影聊聊 Material Design里，阴影的那些事儿！

知识点

Api Level>=21情况下:
- 直接使用 elevation , translationZ 即可实现阴影.
- 使用其中1个就行,同时使用,则View在Z轴的高度是 elevation + translationZ . 两者效果是累加的.
elevation,translationZ要生效,对应的View一定要有背景:
- android:background 或 View.setBackground()
Api Level<21: 无法实现.
- 可是使用.9图模拟阴影效果,且颜色,阴影范围可控制,但是会占用View的尺寸,见承香墨影
在 sdk>=21 情况下,android:elevation 和 android:translationZ才有用,不占用View的大小,但是无法控制阴影颜色.

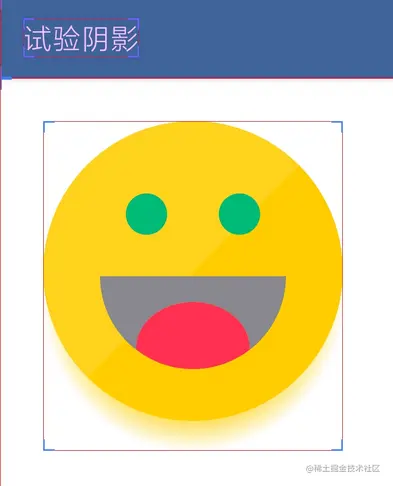

本地验证

Android未提供现成的工具,实现自定义颜色的阴影.
开源库使用的是Paint.setShadowLayer方法:
- 在原始View外部套了1个ViewGroup,增加了View的层级;横向和纵向占用尺寸都会增大;
- Paint.setShadowLayer试验下来,颜色的透明度变化太快,只有很窄的范围能看到颜色渐变;

使用Shader在特定场景下,实现阴影/颜色渐变效果,更容易控制.

更进一步,使用Paint.setXfermode,仅仅截取出'阴影部分',可以解决上层内容区域是半透明情况下,底部的'阴影'冗余显示问题.还未试验.

public class ShaderView extends View {
    private Paint paint;
    private Shader shader;
    int[] colors;
    float[] stops;

    public ShaderView(Context context) {
        this(context, null, 0);
    }
    public ShaderView(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs, 0);
    }
    public ShaderView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }
    private void init() {
        setLayerType(LAYER_TYPE_SOFTWARE, null);
        paint = new Paint(Paint.ANTI_ALIAS_FLAG);
        paint.setStyle(Paint.Style.FILL);
        colors = new int[]{
                Color.parseColor("#000C51CA"),
                Color.parseColor("#A00C51CA"),
                Color.parseColor("#500C51CA"),
                Color.parseColor("#000C51CA")
        };
        stops = new float[]{
                0.75F,
                0.80F,
                0.90F,
                1.00F
        };
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        shader = new RadialGradient(getWidth() / 2.0F, getHeight() / 2.0F, 300.0f, colors, stops, Shader.TileMode.CLAMP);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        paint.setShader(shader);
        //经试验,同时使用Shader和setShadowLayer,setShadowLayer无效果
        //paint.setShadowLayer(40,0,0,Color.parseColor("#040C51CA"));
        canvas.drawCircle(getWidth() / 2, getHeight() / 2, 300.0F, paint);
        paint.setShader(null);
        paint.setColor(Color.parseColor("#FF0C51CA"));
        canvas.drawCircle(getWidth() / 2, getHeight() / 2 - 300.0F * 0.20F, 300.0F, paint);
    }
}

直接继承ImageView,添加部分属性,实现'上,下,左,右'四个位置绘制阴影,可以调整阴影初始透明度及阴影宽度与实际内容区域的比例.也可以添加'角度'属性,可以围绕实际内容区域任意角度绘制阴影.

public class RoundShadowImageView extends AppCompatImageView {
    private Paint paint;
    private Shader shader;
    int[] colors;
    float[] stops;
    private float shadowRatio = 0.20F;
    private float shadowRadius = 0.0F;
    private boolean shadowRatioViaHeight = true;
    private boolean shadowOnEnd = true;
    private boolean shadowOnBottom = true;
    private @IntRange(from = 1, to = 255)
    int shadowStartAlpha = 255;

    ***
}

RoundShadowImageView

自定义阴影宽度相对于内容区域半径的比例
自定义阴影中心相对于内容区域中心的角度,以内容区域垂直向下为0度/起始角度
自定义阴影颜色
自定义阴影颜色初始透明度
自定义阴影位置

attr属性:

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <declare-styleable name="RoundShadowImageView">
        <!--阴影宽度相对于内容区域半径的比例-->
        <attr name="shadowRatio" format="float" />
        <!--阴影中心相对于内容区域中心的角度,以内容区域垂直向下为0度/起始角度-->
        <attr name="shadowCircleAngle" format="float" />
        <!--阴影颜色-->
        <attr name="shadowColor" format="color|reference" />
        <!--阴影颜色初始透明度-->
        <attr name="shadowStartAlpha" format="float" />
        <!--阴影位置-->
        <attr name="shadowPosition" format="enum">
            <enum name="start" value="1" />
            <enum name="top" value="2" />
            <enum name="end" value="3" />
            <enum name="bottom" value="4" />
        </attr>
    </declare-styleable>
</resources>

Java源码

import static com.huanhailiuxin.jet2020.othertest.shadow.ShadowPosition.BOTTOM;
import static com.huanhailiuxin.jet2020.othertest.shadow.ShadowPosition.END;
import static com.huanhailiuxin.jet2020.othertest.shadow.ShadowPosition.START;
import static com.huanhailiuxin.jet2020.othertest.shadow.ShadowPosition.TOP;
@IntDef({
        START,
        TOP,
        END,
        BOTTOM
})
@Retention(RetentionPolicy.SOURCE)
@Target({ElementType.FIELD, ElementType.PARAMETER})
@interface ShadowPosition {
    int START = 1;
    int TOP = 2;
    int END = 3;
    int BOTTOM = 4;
}

/**
 * @author HuanHaiLiuXin
 * @github https://github.com/HuanHaiLiuXin
 * @date 2020/11/23
 */
public class RoundShadowImageView extends AppCompatImageView {
    private Paint paint;
    private Shader shader;
    int[] colors;
    float[] stops;
    private float contentSize;
    @FloatRange(from = 0.0F, to = 1.0F)
    private float shadowRatio = 0.30F;
    private float shadowRadius = 0.0F;
    private float shadowCenterX, shadowCenterY;
    @ShadowPosition
    private int shadowPosition = ShadowPosition.BOTTOM;
    private float shadowCircleAngle = 0F;
    private boolean useShadowCircleAngle = false;
    private int red, green, blue;
    private int shadowColor = Color.RED;
    private @FloatRange(from = 0F, to = 1F)
    float shadowStartAlpha = 0.5F;
    private boolean isLtr = true;

    public RoundShadowImageView(Context context) {
        this(context, null, 0);
    }

    public RoundShadowImageView(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public RoundShadowImageView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        initAttrs(context, attrs);
    }

    private void initAttrs(Context context, @Nullable AttributeSet attrs) {
        setLayerType(LAYER_TYPE_SOFTWARE, null);
        paint = new Paint(Paint.ANTI_ALIAS_FLAG);
        paint.setStyle(Paint.Style.FILL);
        isLtr = getResources().getConfiguration().getLayoutDirection() == View.LAYOUT_DIRECTION_LTR;
        if (attrs != null) {
            TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.RoundShadowImageView);
            shadowRatio = typedArray.getFloat(R.styleable.RoundShadowImageView_shadowRatio, shadowRatio);
            shadowCircleAngle = typedArray.getFloat(R.styleable.RoundShadowImageView_shadowCircleAngle, shadowCircleAngle);
            if (shadowCircleAngle > 0F) {
                useShadowCircleAngle = true;
            }
            if (!useShadowCircleAngle) {
                shadowPosition = typedArray.getInt(R.styleable.RoundShadowImageView_shadowPosition, shadowPosition);
            }
            shadowColor = typedArray.getColor(R.styleable.RoundShadowImageView_shadowColor, shadowColor);
            gainRGB();
            shadowStartAlpha = typedArray.getFloat(R.styleable.RoundShadowImageView_shadowStartAlpha, shadowStartAlpha);
            typedArray.recycle();
        }
    }

    private void gainRGB() {
        red = Color.red(shadowColor);
        green = Color.green(shadowColor);
        blue = Color.blue(shadowColor);
    }

    private void gainShadowCenterAndShader() {
        gainShadowCenter();
        gainShader();
    }

    private void gainShadowCenter() {
        shadowRadius = contentSize / 2F;
        if (useShadowCircleAngle) {
            double radians = Math.toRadians(shadowCircleAngle + 90);
            shadowCenterX = (float) (getWidth() / 2 + Math.cos(radians) * shadowRadius * shadowRatio);
            shadowCenterY = (float) (getHeight() / 2 + Math.sin(radians) * shadowRadius * shadowRatio);
        } else {
            switch (shadowPosition) {
                case ShadowPosition.START:
                    if (isLtr) {
                        shadowCenterX = getWidth() / 2 - shadowRadius * shadowRatio;
                    } else {
                        shadowCenterX = getWidth() / 2 + shadowRadius * shadowRatio;
                    }
                    shadowCenterY = getHeight() / 2;
                    break;
                case ShadowPosition.TOP:
                    shadowCenterY = getHeight() / 2 - shadowRadius * shadowRatio;
                    shadowCenterX = getWidth() / 2;
                    break;
                case ShadowPosition.END:
                    if (isLtr) {
                        shadowCenterX = getWidth() / 2 + shadowRadius * shadowRatio;
                    } else {
                        shadowCenterX = getWidth() / 2 - shadowRadius * shadowRatio;
                    }
                    shadowCenterY = getHeight() / 2;
                    break;
                case ShadowPosition.BOTTOM:
                    shadowCenterY = getHeight() / 2 + shadowRadius * shadowRatio;
                    shadowCenterX = getWidth() / 2;
                    break;
                default:
                    shadowCenterY = getHeight() / 2 + shadowRadius * shadowRatio;
                    shadowCenterX = getWidth() / 2;
                    break;
            }
        }
    }

    private void gainShader() {
        colors = new int[]{
                Color.TRANSPARENT,
                Color.argb((int) (shadowStartAlpha * 255), red, green, blue),
                Color.argb((int) (shadowStartAlpha * 255 / 2), red, green, blue),
                Color.argb(0, red, green, blue)
        };
        stops = new float[]{
                (1F - shadowRatio) * 0.95F,
                1F - shadowRatio,
                1F - shadowRatio * 0.50F,
                1F
        };
        shader = new RadialGradient(shadowCenterX, shadowCenterY, shadowRadius, colors, stops, Shader.TileMode.CLAMP);
    }

    private void contentSizeChanged() {
        contentSize = Math.min(getWidth(), getHeight()) / (1 + this.shadowRatio);
        setPadding((int) (getWidth() - contentSize) / 2, (int) (getHeight() - contentSize) / 2, (int) (getWidth() - contentSize) / 2, (int) (getHeight() - contentSize) / 2);
        gainShadowCenterAndShader();
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        contentSizeChanged();
    }

    public void setShadowRatio(@FloatRange(from = 0.0F, to = 1.0F) float shadowRatio) {
        shadowRatio = shadowRatio % 1F;
        if (shadowRatio != this.shadowRatio) {
            this.shadowRatio = shadowRatio;
            contentSizeChanged();
            invalidate();
        }
    }

    public void setShadowColor(@ColorInt int shadowColor) {
        if (shadowColor != this.shadowColor) {
            this.shadowColor = shadowColor;
            gainRGB();
            gainShader();
            invalidate();
        }
    }

    public void setShadowStartAlpha(@FloatRange(from = 0F, to = 1F) float shadowStartAlpha) {
        shadowStartAlpha = shadowStartAlpha % 1F;
        if (shadowStartAlpha != this.shadowStartAlpha) {
            this.shadowStartAlpha = shadowStartAlpha;
            gainShader();
            invalidate();
        }
    }

    public void setShadowCircleAngle(float shadowCircleAngle) {
        shadowCircleAngle = Math.abs(shadowCircleAngle) % 360.0F;
        if (shadowCircleAngle != this.shadowCircleAngle) {
            this.shadowCircleAngle = shadowCircleAngle;
            if (this.shadowCircleAngle > 0F) {
                useShadowCircleAngle = true;
            }
            gainShadowCenterAndShader();
            invalidate();
        }
    }

    public void setShadowPosition(@ShadowPosition int shadowPosition){
        if(useShadowCircleAngle || shadowPosition != this.shadowPosition){
            useShadowCircleAngle = false;
            this.shadowPosition = shadowPosition;
            gainShadowCenterAndShader();
            invalidate();
        }
    }

    public float getShadowRatio() {
        return shadowRatio;
    }

    public float getShadowCircleAngle() {
        return shadowCircleAngle;
    }

    public int getShadowColor() {
        return shadowColor;
    }

    public float getShadowStartAlpha() {
        return shadowStartAlpha;
    }

    public int getShadowPosition() {
        return shadowPosition;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        paint.setShader(shader);
        canvas.drawCircle(shadowCenterX, shadowCenterY, shadowRadius, paint);
        paint.setShader(null);
        super.onDraw(canvas);
    }

    @Override
    protected void onConfigurationChanged(Configuration newConfig) {
        super.onConfigurationChanged(newConfig);
        boolean newLtr = getResources().getConfiguration().getLayoutDirection() == View.LAYOUT_DIRECTION_LTR;
        if (newLtr != isLtr) {
            this.isLtr = newLtr;
            gainShadowCenterAndShader();
            invalidate();
        }
    }
}

使用

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".othertest.shadow.ShadowActivity"
    android:fillViewport="true"
    >
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:padding="30dp"
        android:background="@android:color/white"
        >
        <com.huanhailiuxin.jet2020.othertest.shadow.RoundShadowImageView
            android:id="@+id/shadowImageView"
            android:layout_width="700px"
            android:layout_height="800px"
            android:src="@drawable/ic_smile"
            app:shadowColor="#FFCD00"
            app:shadowStartAlpha="0.7"
            />
        <androidx.appcompat.widget.AppCompatButton
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
            android:text="调整阴影位置"
            android:onClick="modifyShadowPosition"
            />
        <androidx.appcompat.widget.AppCompatButton
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
            android:text="旋转阴影"
            android:onClick="rotateTheShadow"
            />
        <androidx.appcompat.widget.AppCompatButton
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
            android:text="调整阴影尺寸比例"
            android:onClick="modifyShadowRatio"
            />
        <androidx.appcompat.widget.AppCompatButton
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
            android:text="调整阴影起始透明度"
            android:onClick="modifyShadowStartAlpha"
            />
    </LinearLayout>
</ScrollView>

public class ShadowActivity extends BaseActivity {
    private RoundShadowImageView shadowImageView;
    ObjectAnimator animator;
    private float shadowCircleAngle,shadowRatio,shadowStartAlpha;
    private @ShadowPosition int shadowPosition;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_shadow);
        setTitle("试验阴影");
        shadowImageView = findViewById(R.id.shadowImageView);
        shadowCircleAngle = shadowImageView.getShadowCircleAngle();
        shadowRatio = shadowImageView.getShadowRatio();
        shadowStartAlpha = shadowImageView.getShadowStartAlpha();
        shadowPosition = shadowImageView.getShadowPosition();
    }
    private void reset(){
        shadowImageView.setShadowPosition(shadowPosition);
        shadowImageView.setShadowCircleAngle(shadowCircleAngle);
        shadowImageView.setShadowRatio(shadowRatio);
        shadowImageView.setShadowStartAlpha(shadowStartAlpha);
    }
    private void initAnimator(){
        animator.setRepeatCount(ValueAnimator.INFINITE);
        animator.setRepeatMode(ObjectAnimator.RESTART);
        animator.setDuration(4000);
        animator.setInterpolator(new LinearInterpolator());
    }
    private void initAngleAnimator(){
        if(animator != null){
           animator.cancel();
        }
        animator = ObjectAnimator.ofFloat(shadowImageView,"shadowCircleAngle",0F,360F);
        initAnimator();
    }
    public void rotateTheShadow(View view) {
        reset();
        initAngleAnimator();
        animator.start();
    }
    private void initShadowRatioAnimator(){
        if(animator != null){
            animator.cancel();
        }
        animator = ObjectAnimator.ofFloat(shadowImageView,"shadowRatio",0.1F,0.5F);
        initAnimator();
    }
    public void modifyShadowRatio(View view) {
        reset();
        initShadowRatioAnimator();
        animator.start();
    }
    private void initShadowStartAlphaAnimator(){
        if(animator != null){
            animator.cancel();
        }
        animator = ObjectAnimator.ofFloat(shadowImageView,"shadowStartAlpha",0.1F,0.9F);
        initAnimator();
    }
    public void modifyShadowStartAlpha(View view) {
        reset();
        initShadowStartAlphaAnimator();
        animator.start();
    }

    private int shadowPositionIndex = 0;
    private @ShadowPosition int[] shadowPositions = new int[]{
            ShadowPosition.START,
            ShadowPosition.TOP,
            ShadowPosition.END,
            ShadowPosition.BOTTOM
    };
    public void modifyShadowPosition(View view) {
        if(animator != null){
            animator.cancel();
        }
        reset();
        int index = shadowPositionIndex ++ % shadowPositions.length;
        shadowImageView.setShadowPosition(shadowPositions[index]);
    }
}

2.轮廓

知识点

源码解析:

要想通过ViewOutlineProvider生成的Outline绘制阴影,需要调用Outline.setRoundRect, Outline.setOval, Outline.setConvexPath , set(@NonNull Outline src) ,改变 mMode 的默认值(MODE_EMPTY)
要想通过ViewOutlineProvider生成的Outline实现View的轮廓裁剪, Outline需要最终调用 setRoundRect.

View的默认ViewOutlineProvider生成的的Outline可以实现轮廓裁剪.

View.java
//View默认的ViewOutlineProvider是ViewOutlineProvider.BACKGROUND
ViewOutlineProvider mOutlineProvider = ViewOutlineProvider.BACKGROUND;
/**
 * Sets the {@link ViewOutlineProvider} of the view, which generates the Outline that defines
 * the shape of the shadow it casts, and enables outline clipping.
 * <p>
 * The default ViewOutlineProvider, {@link ViewOutlineProvider#BACKGROUND}, queries the Outline
 * from the View's background drawable, via {@link Drawable#getOutline(Outline)}. Changing the
 * outline provider with this method allows this behavior to be overridden.
 * <p>
 * If the ViewOutlineProvider is null, if querying it for an outline returns false,
 * or if the produced Outline is {@link Outline#isEmpty()}, shadows will not be cast.
 * <p>
 * Only outlines that return true from {@link Outline#canClip()} may be used for clipping.
 *
 * @see #setClipToOutline(boolean)
 * @see #getClipToOutline()
 * @see #getOutlineProvider()
 */
//ViewOutlineProvider用于View的轮廓裁切,并生成定义View阴影形状的Outline实例.
//当生成的Outline实例的isEmpty为true,则不能为View绘制阴影.
//当生成的Outline实例的canClip为false,则不能为View进行轮廓裁切.
public void setOutlineProvider(ViewOutlineProvider provider) {
    mOutlineProvider = provider;
    invalidateOutline();
}
/**
 * Sets whether the View's Outline should be used to clip the contents of the View.
 * <p>
 * Only a single non-rectangular clip can be applied on a View at any time.
 * Circular clips from a {@link ViewAnimationUtils#createCircularReveal(View, int, int, float, float)
 * circular reveal} animation take priority over Outline clipping, and
 * child Outline clipping takes priority over Outline clipping done by a
 * parent.
 * <p>
 * Note that this flag will only be respected if the View's Outline returns true from
 * {@link Outline#canClip()}.
 *
 * @see #setOutlineProvider(ViewOutlineProvider)
 * @see #getClipToOutline()
 */
//设置是否使用View关联的Outline来进行轮廓裁剪.
//即使clipToOutline为true,也需要Outline.canClip()fanhuitrue,该方法才会生效.
//即生效条件: clipToOutline==true 且 Outline最终调用过setRoundRect.
public void setClipToOutline(boolean clipToOutline) {
    damageInParent();
    if (getClipToOutline() != clipToOutline) {
        mRenderNode.setClipToOutline(clipToOutline);
    }
}

ViewOutlineProvider.java
//View默认的ViewOutlineProvider,最总调用了setRoundRect
1:
Drawable background.getOutline(outline);
-->
Drawable.java
public void getOutline(@NonNull Outline outline) {
    outline.setRect(getBounds());
    outline.setAlpha(0);
}
-->
Outline.java
public void setRect(@NonNull Rect rect) {
    setRect(rect.left, rect.top, rect.right, rect.bottom);
}
public void setRect(int left, int top, int right, int bottom) {
    //最终调用了setRoundRect
    setRoundRect(left, top, right, bottom, 0.0f);
}
2:
outline.setRect(0, 0, view.getWidth(), view.getHeight());
-->
setRoundRect
public static final ViewOutlineProvider BACKGROUND = new ViewOutlineProvider() {
    @Override
    public void getOutline(View view, Outline outline) {
        Drawable background = view.getBackground();
        if (background != null) {
            background.getOutline(outline);
        } else {
            outline.setRect(0, 0, view.getWidth(), view.getHeight());
            outline.setAlpha(0.0f);
        }
    }
};

Outline.java
@Mode
//mMode 默认就是 MODE_EMPTY
public int mMode = MODE_EMPTY;
/**
 * Returns whether the Outline is empty.
 * <p>
 * Outlines are empty when constructed, or if {@link #setEmpty()} is called,
 * until a setter method is called
 *
 * @see #setEmpty()
 */
//当 mMode 是 MODE_EMPTY.返回true.
public boolean isEmpty() {
    return mMode == MODE_EMPTY;
}
/**
 * Returns whether the outline can be used to clip a View.
 * <p>
 * Currently, only Outlines that can be represented as a rectangle, circle,
 * or round rect support clipping.
 *
 * @see android.view.View#setClipToOutline(boolean)
 */
//当 mMode 不是 MODE_CONVEX_PATH.返回true.
public boolean canClip() {
    return mMode != MODE_CONVEX_PATH;
}
//看 mMode 如何变化:
setEmpty:
-> mMode = MODE_EMPTY;

set(@NonNull Outline src):
-> mMode = src.mMode;

setRoundRect(int left, int top, int right, int bottom, float radius):
-> mMode = MODE_ROUND_RECT;

setOval(int left, int top, int right, int bottom):
-> mMode = MODE_CONVEX_PATH;

setConvexPath(@NonNull Path convexPath):
-> mMode = MODE_CONVEX_PATH;

问题0011 - Android 阴影轮廓 Outline

1.阴影

相关文章

知识点

本地验证

RoundShadowImageView

2.轮廓

相关文章

知识点

本地验证

问题0011 - Android 阴影 轮廓 Outline

1.阴影

相关文章

知识点

本地验证

RoundShadowImageView

2.轮廓

相关文章

知识点

本地验证

问题0011 - Android 阴影轮廓 Outline
