TODO

Spring

Servlet

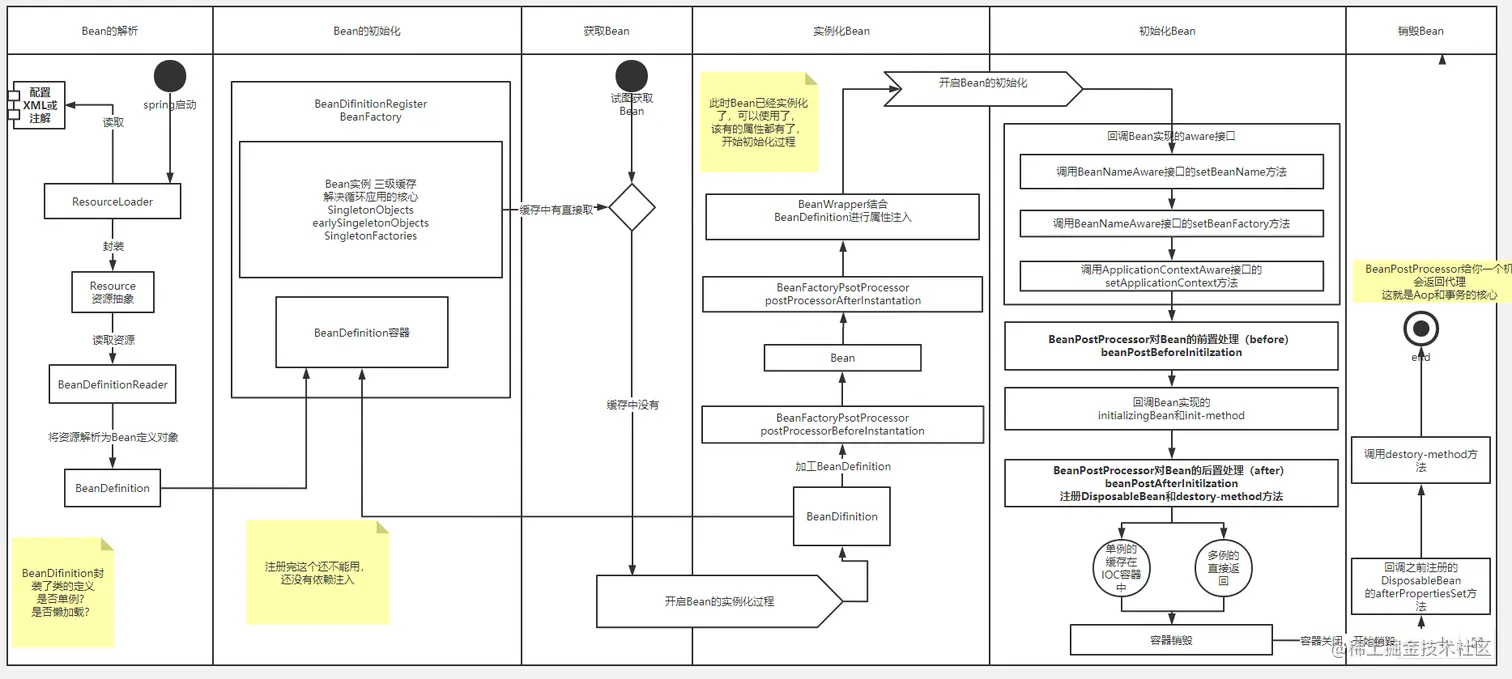

Spring bean生命周期

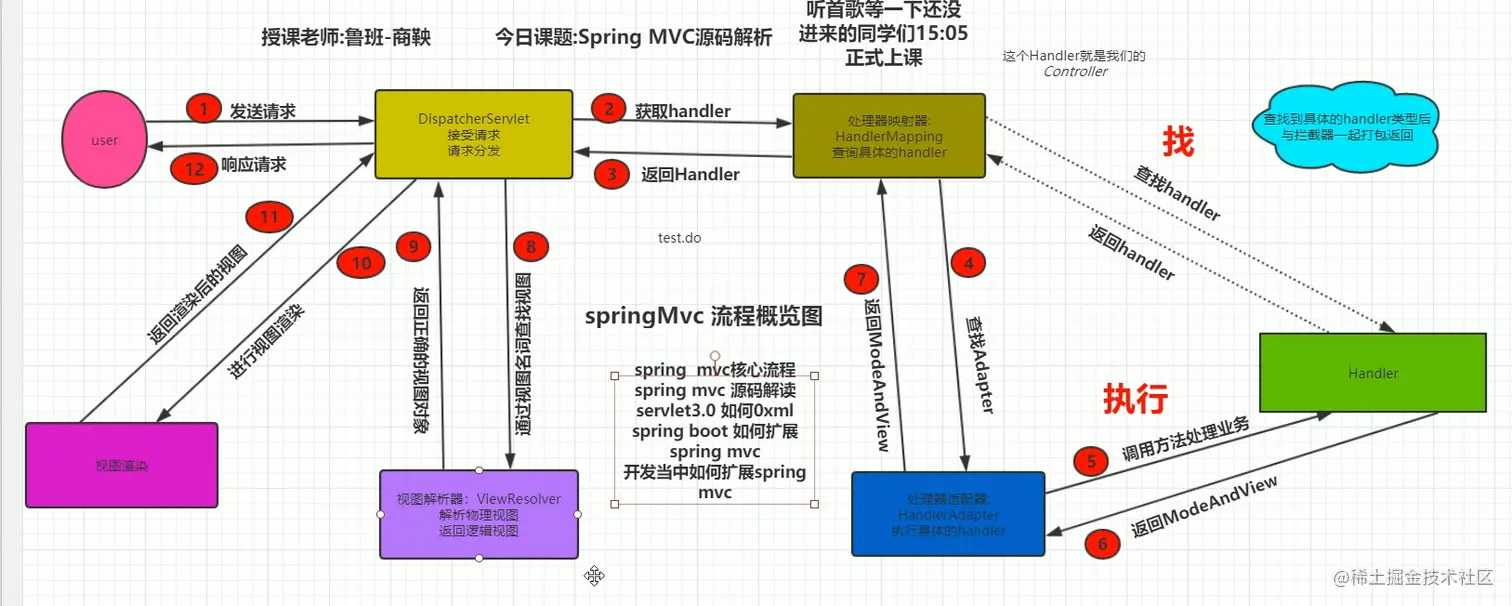

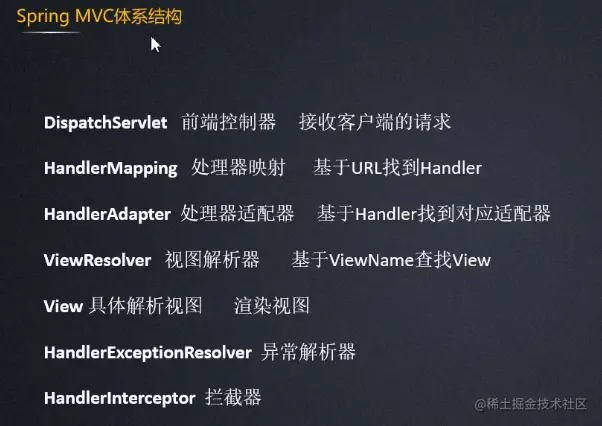

Spring MVC流程

3种controller方式参照adapter#supports()

@Component+ impl org.springframework.web.servlet.mvc.Controller @RestController||@controller @Component+ impl org.springframework.web.HttpRequestHandler 容器初始化时加载所有controller对象的所有加了RequestMapping方法 uri为key method为value

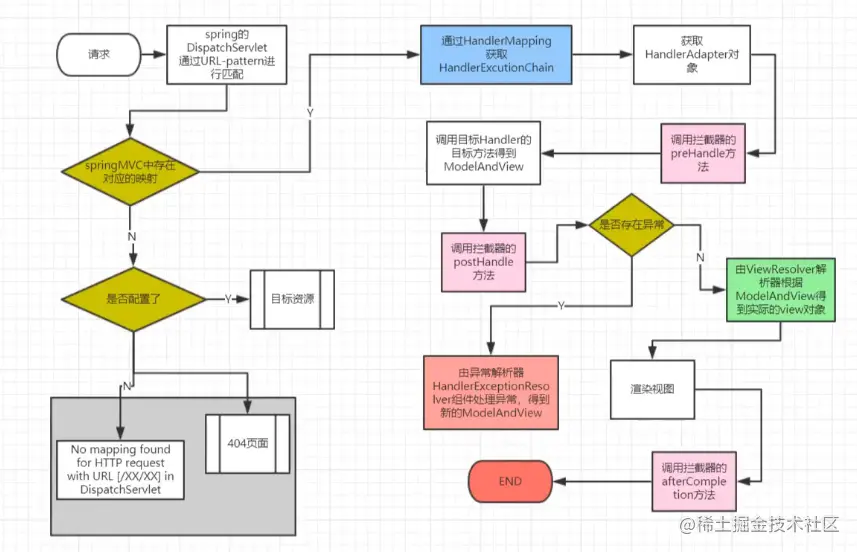

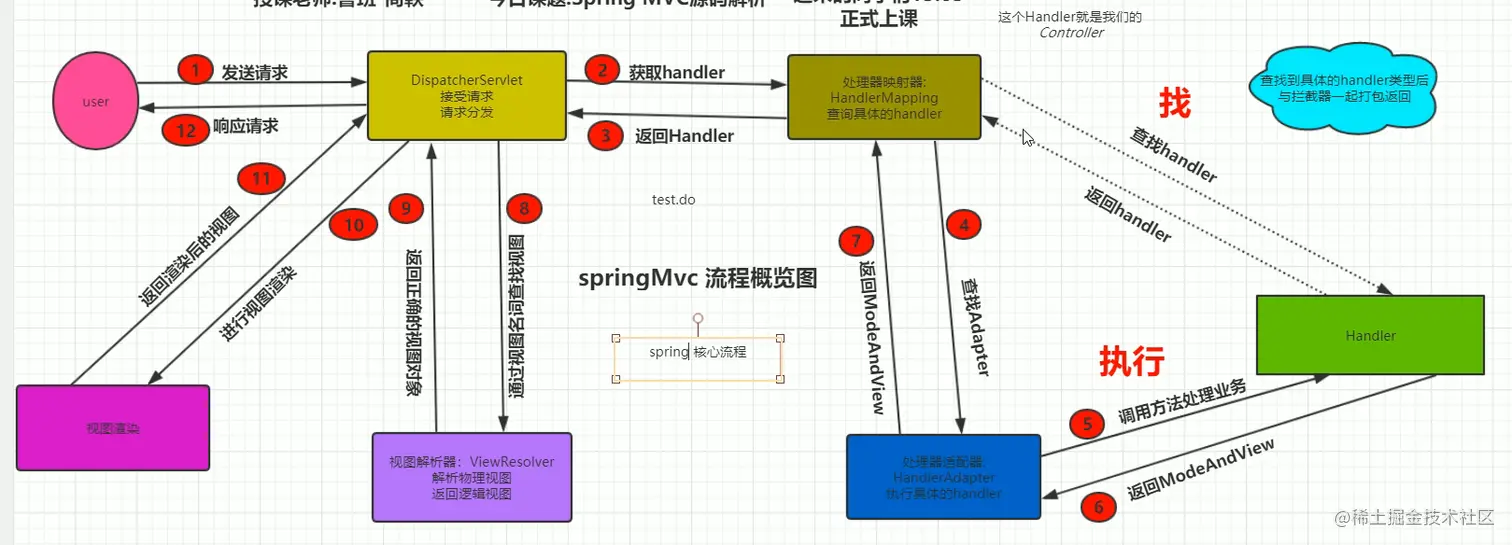

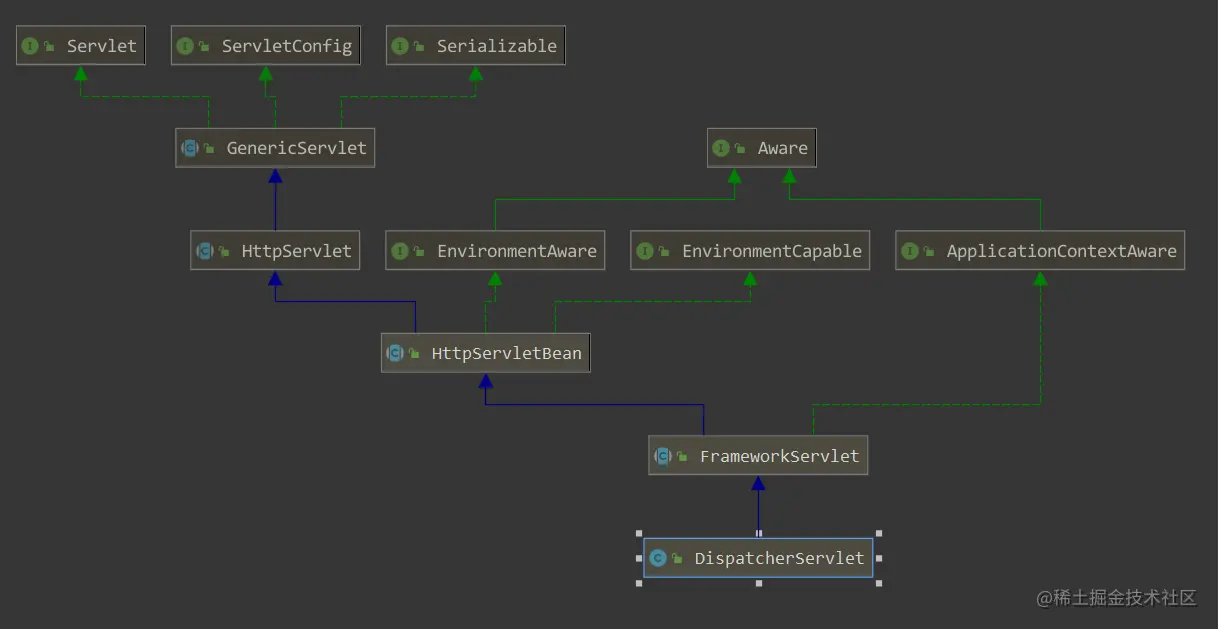

请求-->DispatcherServlet-->handlerExecutionChain-->getHandlerAdapter--->handle-->processDispatchResult

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
                //获取HandlerExecutionChain执行链
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// 获取handle
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}
				//执行拦截器pre
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				//执行方法
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
                //执行拦截器post
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

Filter

HandlerInterceptor

AOP

@Aspect:作用是把当前类标识为一个切面供容器读取
@Pointcut：Pointcut是植入Advice的触发条件。每个Pointcut的定义包括2部分，一是表达式，二是方法签名。方法签名必须是 public及void型。可以将Pointcut中的方法看作是一个被Advice引用的助记符，因为表达式不直观，因此我们可以通过方法签名的方式为 此表达式命名。因此Pointcut中的方法只需要方法签名，而不需要在方法体内编写实际代码。
@Around：环绕增强，相当于MethodInterceptor
@AfterReturning：后置增强，相当于AfterReturningAdvice，方法正常退出时执行
@Before：标识一个前置增强方法，相当于BeforeAdvice的功能，相似功能的还有
@AfterThrowing：异常抛出增强，相当于ThrowsAdvice
@After: final增强，不管是抛出异常或者正常退出都会执行

Mybatis

MyBatis拦截器的用途:在这些被拦截的方法执行前后加上某些逻辑 sql打印,参数加密解密,分页等待

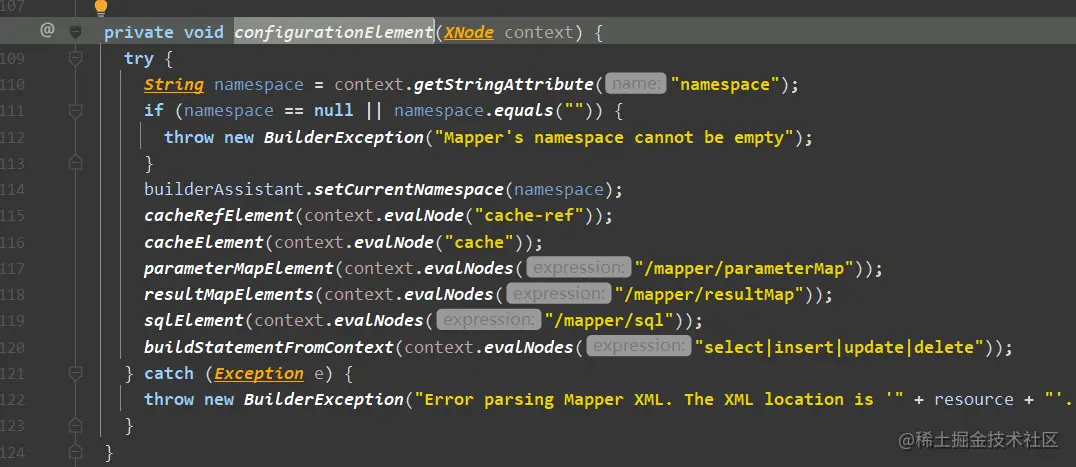

项目启动时扫描解析全项目的mapper.xml org.apache.ibatis.builder.xml.XMLMapperBuilder#configurationElement invoke时动态sql拼接org.apache.ibatis.binding.MapperMethod#execute

SPI

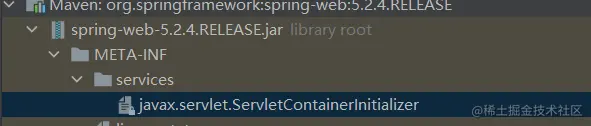

Servlet SPI规范

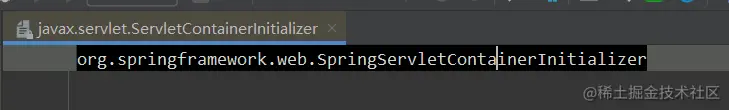

文件名为接口全地址,内容为实现类全地址

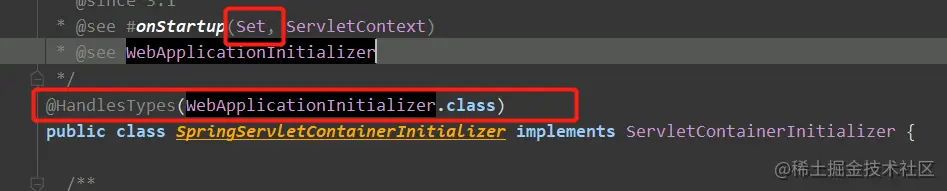

@HandlesTypes(xx.class)会将所有xx类扫描到一个set集合

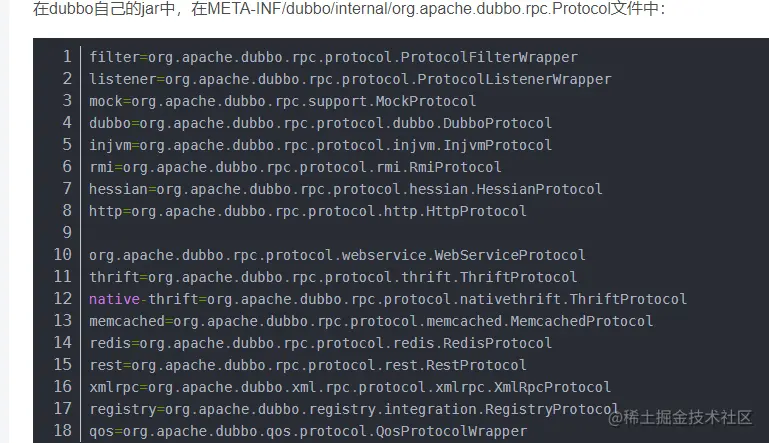

dubbo spi

key为bean name value为实现类全地址

dubbo spi文章

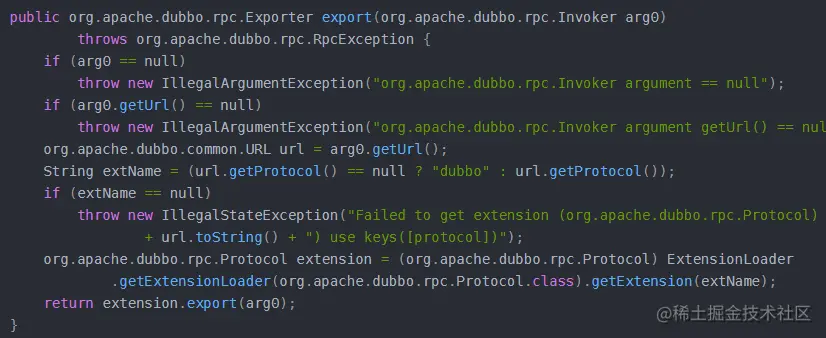

@Adaptive注解在方法上的作用 @Activate 提供了一些配置来允许我们配置加载条件，比如 group 过滤，比如 key 过滤。有点类似我们讲 springboot 的时候用到的 conditional，根据条件进行自动激活

动态代理

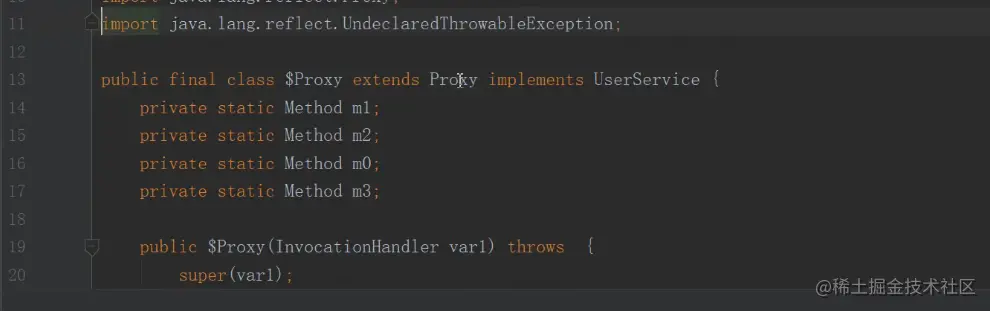

jdk代理为什么必须是接口,因为生成的代理对象自动继承Proxy,若想代理执行方法则必须采用implements juejin.cn/post/684490… 动态代理相较于静态代理的优点:无需编写代理类,假如委托类有100个方法时无需都实现只要一个invoke即可

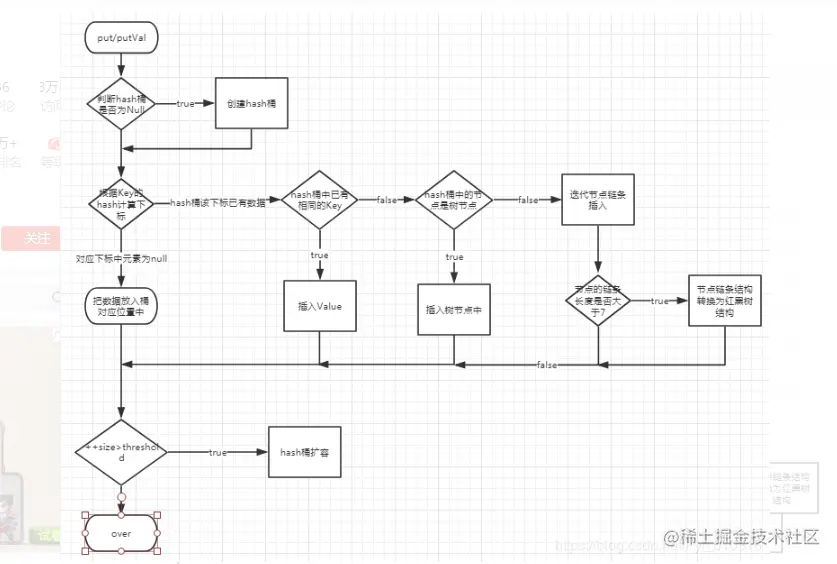

Map源码

ThreadPoolExecutor

public ThreadPoolExecutor(int corePoolSize,//核心线程数
                              int maximumPoolSize,//最大线程数  当core用完,queue满了时才启动非核心线程
                              long keepAliveTime,//线程存活时间
                              TimeUnit unit,//时间单位
                              BlockingQueue<Runnable> workQueue,//存放任务队列
                              //ArrayBlockingQueue LinkedBlockingQueue SynchronousQueue DelayQueue
                              ThreadFactory threadFactory,//线程生成factory
                              RejectedExecutionHandler handler) {
                              //AbortPolicy抛异常 DiscardPolicy忽略 DiscardOldestPolicy丢弃对首任务 CallerRunsPolicy主线程执行
                              //任务拒绝策略 当core用完,queue满了,也无非核心线程可用时启动拒绝策略
        if (corePoolSize < 0 ||
            maximumPoolSize <= 0 ||
            maximumPoolSize < corePoolSize ||
            keepAliveTime < 0)
            throw new IllegalArgumentException();
        if (workQueue == null || threadFactory == null || handler == null)
            throw new NullPointerException();
        this.acc = System.getSecurityManager() == null ?
                null :
                AccessController.getContext();
        this.corePoolSize = corePoolSize;
        this.maximumPoolSize = maximumPoolSize;
        this.workQueue = workQueue;
        this.keepAliveTime = unit.toNanos(keepAliveTime);
        this.threadFactory = threadFactory;
        this.handler = handler;
    }

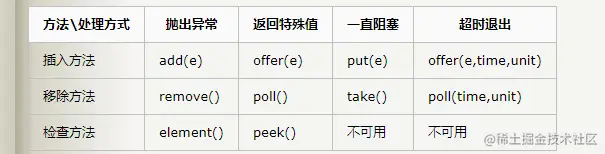

BlockingQueue

ClassLoader

ZskController.class.getClassLoader();//AppClassLoader 用户自定义class
String.class.getClassLoader();//jdk 常用包下的class bootstrapClassLoader
CallSiteDescriptor.class.getClassLoader();//ExtClassLoader jdk插件包(ext)下的class

String.intern()

常量池中不存在"123" 将"123"添加到常量池返回常量池引用常量池存在"123" 则返回常量池引用

String a = "123";
String b = new String("123");
b=b.intern();
System.out.println(a == b);

CAS

缺点

其他线程系统开销

不保证原子操作

ABA问题解决办法增加一个version解决ABA问题,参考elasticSearch的version

Redis

效率高的原因

基于内存

Redis使用的是非阻塞IO，IO多路复用

Redis采用了单线程的模型，保证了每个操作的原子性，也减少了线程的上下文切换

基于C语言

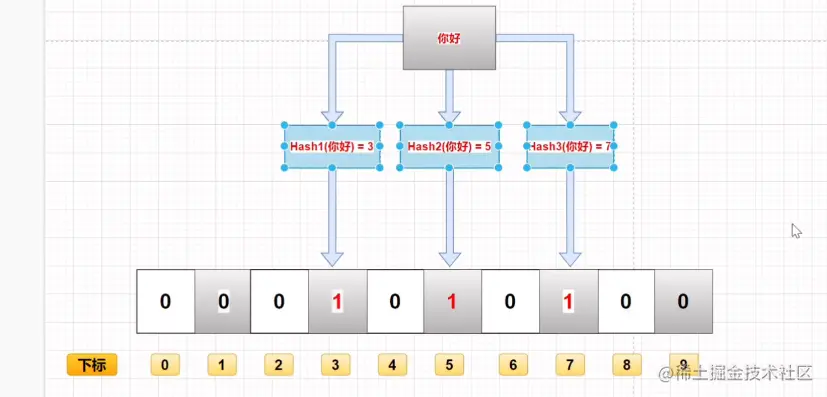

布隆过滤器

原始数据应该一定hash函数后索引到数组且值为1时证明值存在

误判率越小hash函数各数与数组大小越多,检索更慢

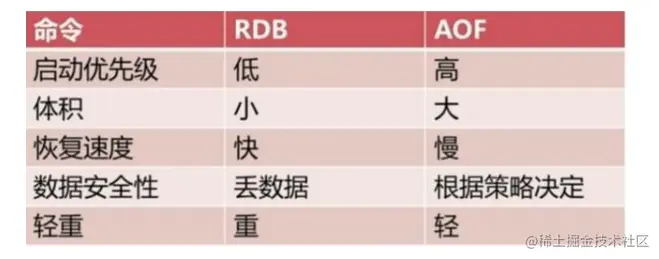

RDB默认

相比于AOF机制，如果数据集很大，RDB的启动效率会更高

对于灾难恢复而言，RDB是非常不错的选择,数据恢复快

数据的完整性和一致性不高可能最后一次rdb时宕机,数据不完整

AOF

因为同步粒度较细,所以比全量rdb快

数据恢复粒度比RDB更准确取决于配置的策略最后一次aof宕机后redis-check-aof 解决数据一致性

rewrite机制,当aof文件超过设定的阈值,另起一个新文件将内存中的值write到新文件中并将后续操作append到新文件

文件会越来越大，数据恢复也会越来越慢

Redis的部署模式

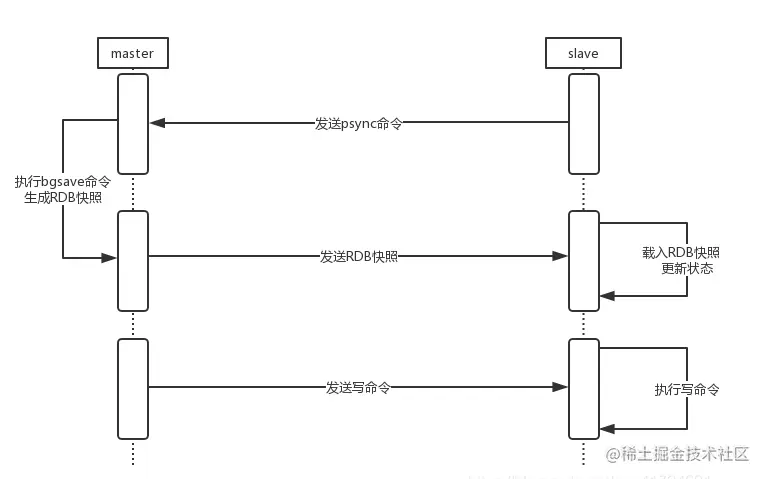

主从:主负责写数据然后同步给从,从库负责读

哨兵: 哨兵通过发送命令，等待Redis服务器响应，从而监控运行的多个Redis实例

RedisCluster底层原理

todo

缓存过期策略

定期删除+惰性删除

定期删除 定期抽查一批key检查是否过期

惰性删除 服务get()时检查是否过期

缓存淘汰机制

volatile-lru 在设置了过期时间的键空间中，移除最近最少使用的key 推荐

volatile-ttl 在设置了过期时间的键空间中，优先移除快过期的key

volatile-random 在设置了过期时间的键空间中，随机移除一个键 不建议

allkeys-lru 移除最近最少使用的key

allkeys-random 直接在键空间中随机移除一个键 不建议

noeviction 不做过键处理，只返回一个写操作错误 不建议

缓存穿透、缓存雪崩、缓存击穿

缓存穿透 缓存或数据库中不存在此key的值; 布隆过滤器或者缓存空值,程序限流

缓存击穿 某个key数据存在，但在redis中过期又高并发请求; 互斥锁,程序限流

缓存雪崩 大量缓存集中在某一个时间段失效; 缓存失效时间分散开,缓存系统高可用,程序限流

引用

强引用 gc时不会消失

软引用 内存空间足够，gc时就不会回收它

弱引用 不管当前内存空间足够与否，gc时都会回收它的内存

虚引用

分库分表

shardingsphere讲解

水平分某张表key按照某一规则分散在不同表比如 hash(key)取模 range(key)区间分散

hash 没有热点问题，但扩容迁移数据痛苦 eg:数据变多时取模的值i变大不好迁移

range 不需要迁移数据，但有热点问题新的订单永远查询单一表

垂直分不同类型的表分散在不同的库,分库不分表

土豪专用

多数据源

基于 Spring AbstractRoutingDataSource 做拓展

不同操作类，固定数据源

分库分表中间件 baomidou,shardingsphere

一致性Hash

带来的数据倾斜问题可以使用虚拟节点解决,比如一个node有多个hash值

/**
   * MurMurHash算法,性能高,碰撞率低
   *
   * @param key String
   * @return Long
   */
  public Long hash(String key) {
    ByteBuffer buf = ByteBuffer.wrap(key.getBytes());
    int seed = 0x1234ABCD;
    ByteOrder byteOrder = buf.order();
    buf.order(ByteOrder.LITTLE_ENDIAN);
    long m = 0xc6a4a7935bd1e995L;
    int r = 47;
    long h = seed ^ (buf.remaining() * m);
    long k;
    while (buf.remaining() >= 8) {
      k = buf.getLong();
      k *= m;
      k ^= k >>> r;
      k *= m;
      h ^= k;
      h *= m;
    }
    if (buf.remaining() > 0) {
      ByteBuffer finish = ByteBuffer.allocate(8).order(ByteOrder.LITTLE_ENDIAN);
      finish.put(buf).rewind();
      h ^= finish.getLong();
      h *= m;
    }
    h ^= h >>> r;
    h *= m;
    h ^= h >>> r;
    buf.order(byteOrder);
    return h;
  }

分库分表配置

spring:
  # ShardingSphere 配置项
  shardingsphere:
    datasource:
      # 所有数据源的名字
      names: ds-orders-0, ds-orders-1
      # 订单 orders 数据源配置 00
      ds-orders-0:
        type: com.zaxxer.hikari.HikariDataSource # 使用 Hikari 数据库连接池
        driver-class-name: com.mysql.jdbc.Driver
        jdbc-url: jdbc:mysql://127.0.0.1:3306/lab18_orders_0?useSSL=false&useUnicode=true&characterEncoding=UTF-8
        username: root
        password:
      # 订单 orders 数据源配置 01
      ds-orders-1:
        type: com.zaxxer.hikari.HikariDataSource # 使用 Hikari 数据库连接池
        driver-class-name: com.mysql.jdbc.Driver
        jdbc-url: jdbc:mysql://127.0.0.1:3306/lab18_orders_1?useSSL=false&useUnicode=true&characterEncoding=UTF-8
        username: root
        password:
    # 分片规则
    sharding:
      tables:
        # orders 表配置
        orders:
#          actualDataNodes: ds-orders-$->{0..1}.orders_$->{0..4} # 映射到 ds-orders 数据源的 orders 表
#          actualDataNodes: ds-orders-0.orders_0, ds-orders-0.orders_2, ds-orders-0.orders_4, ds-orders-0.orders_6, ds-orders-1.orders_1, ds-orders-1.orders_3, ds-orders-1.orders_5, ds-orders-1.orders_7
          actualDataNodes: ds-orders-0.orders_$->{[0,2,4,6]}, ds-orders-1.orders_$->{[1,3,5,7]} # 映射到 ds-orders-0 和 ds-orders-1 数据源的 orders 表们
          key-generator: # 主键生成策略
            column: id
            type: SNOWFLAKE
          database-strategy:
            inline:
              algorithm-expression: ds-orders-$->{user_id % 2}
              sharding-column: user_id
          table-strategy:
            inline:
              algorithm-expression: orders_$->{user_id % 8}
              sharding-column: user_id
        # order_config 表配置
        order_config:
          actualDataNodes: ds-orders-0.order_config # 仅映射到 ds-orders-0 数据源的 order_config 表
    # 拓展属性配置
    props:
      sql:
        show: true # 打印 SQL

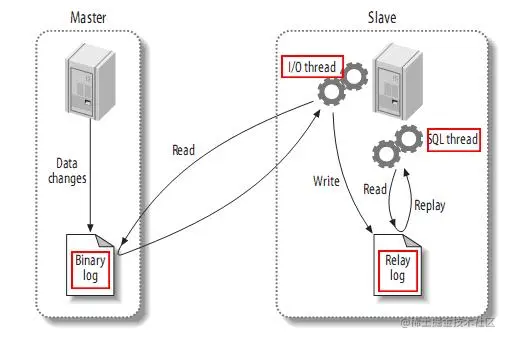

读写分离

spring:
  # ShardingSphere 配置项
  shardingsphere:
    # 数据源配置
    datasource:
      # 所有数据源的名字
      names: ds-master, ds-slave-1, ds-slave-2
      # 订单 orders 主库的数据源配置
      ds-master:
        type: com.zaxxer.hikari.HikariDataSource # 使用 Hikari 数据库连接池
        driver-class-name: com.mysql.jdbc.Driver
        jdbc-url: jdbc:mysql://127.0.0.1:3306/test_orders?useSSL=false&useUnicode=true&characterEncoding=UTF-8
        username: root
        password:
      # 订单 orders 从库数据源配置
      ds-slave-1:
        type: com.zaxxer.hikari.HikariDataSource # 使用 Hikari 数据库连接池
        driver-class-name: com.mysql.jdbc.Driver
        jdbc-url: jdbc:mysql://127.0.0.1:3306/test_orders_01?useSSL=false&useUnicode=true&characterEncoding=UTF-8
        username: root
        password:
      # 订单 orders 从库数据源配置
      ds-slave-2:
        type: com.zaxxer.hikari.HikariDataSource # 使用 Hikari 数据库连接池
        driver-class-name: com.mysql.jdbc.Driver
        jdbc-url: jdbc:mysql://127.0.0.1:3306/test_orders_02?useSSL=false&useUnicode=true&characterEncoding=UTF-8
        username: root
        password:
    # 读写分离配置，对应 YamlMasterSlaveRuleConfiguration 配置类
    masterslave:
      name: ms # 名字，任意，需要保证唯一
      master-data-source-name: ds-master # 主库数据源
      slave-data-source-names: ds-slave-1, ds-slave-2 # 从库数据源
    # 拓展属性配置
    props:
      sql:
        show: true # 打印 SQL

TCP三次握手

分布式事务

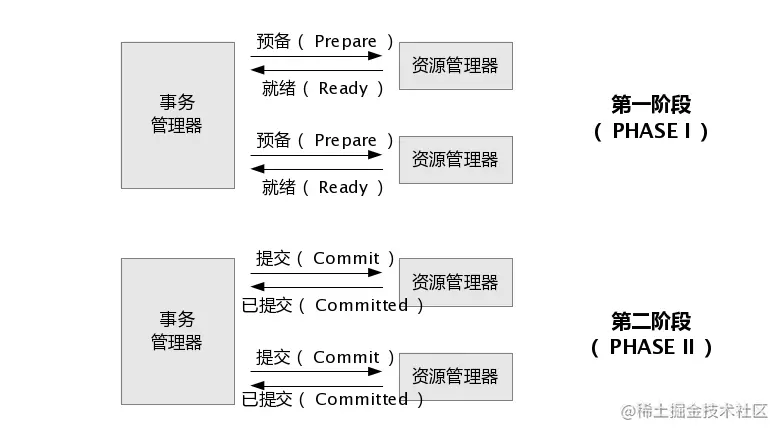

2PC两阶段提交 step1TM(请求事务)->RM(操作完成)->step2TM(提交事务)->RM(事务成功/失败)->TM(事务完成/回滚) 缺点锁资源

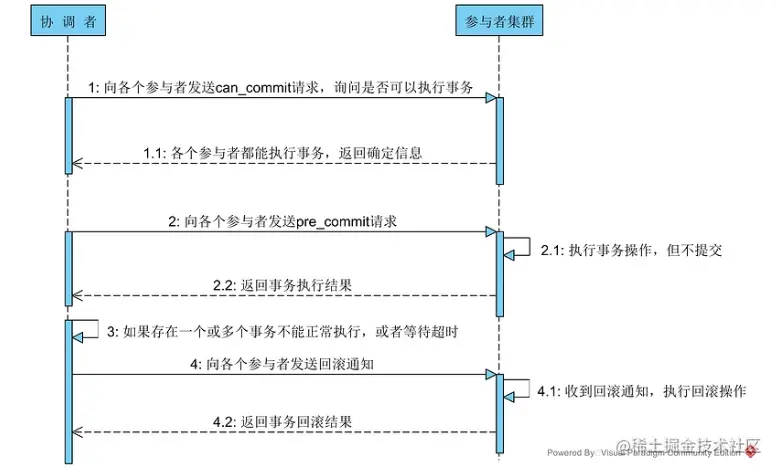

3PC三阶段提交(相较于两阶段增加一个canCommit和timeout) step1TM(事务功能询问)->RM(可以正常提交事务)->step2TM(请求事务)->RM(操作完成)->step3TM(提交事务)->RM(事务成功/失败)->TM(事务完成/回滚)

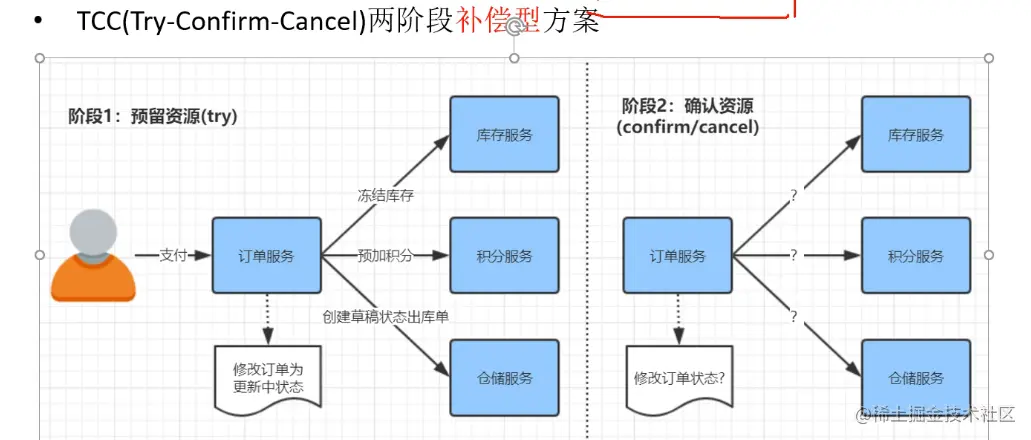

TCC Try、Confirm/Cancel try截断预留资源 confirm真正执行业务/cancel释放还原try阶段预留资源

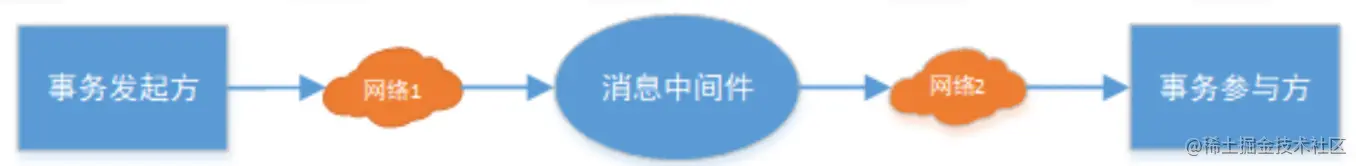

MQ消息事务（最终一致性）当事务发起执行完全本地事务后并发出一条消息，事务参与方（消息消费者）一定(retry)能够接收消息并处理事务成功

最大努力通知当收到消息后，向被动方发送通知，同时生成通知记录。如果没有接收到被动方的返回消息，就根据通知记录进行重复通知

分布式事务框架 LCN Seata

github.com/seata/seata…

@Transactional失效

sql异常被人为捕获

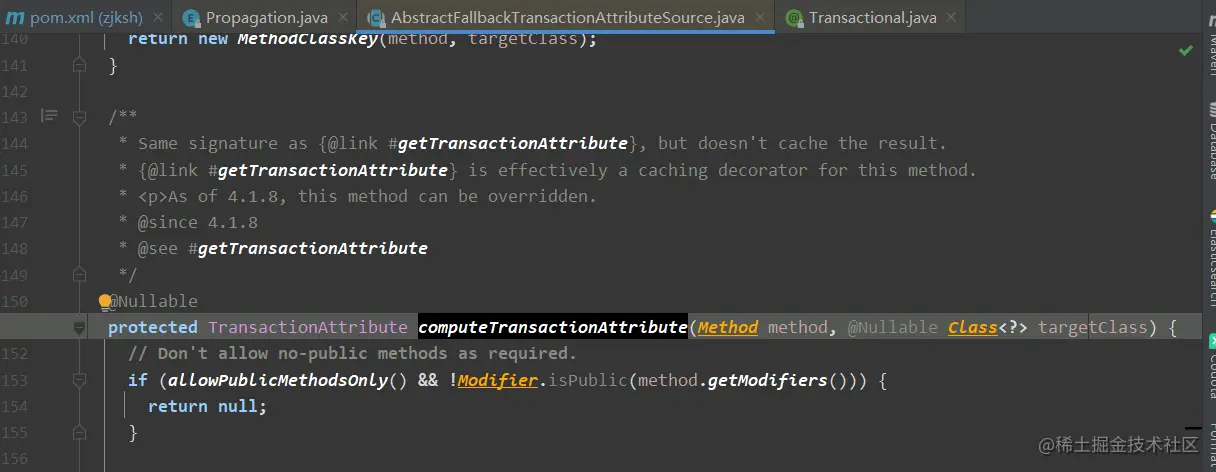

@Transactional 应用在非 public 修饰的方法上

@Transactional配置错误 eg: rollbackFor指定了回滚异常 propagation属性配置错误 REQUIRED有则加入,无则创建 SUPPORTS有则加入,无则不创建 MANDATORY 有则加入,无则异常REQUIRES_NEW有则暂停重新创建 NOT_SUPPORTED无事务方式运行,有则暂停 NEVER无事务方式运行,有则异常

同一个class类之间调用因为只有当事务方法被当前类以外的代码调用时，才会由Spring生成的代理对象来管理。

数据库引擎不支持事务如mysql MyISAM

mysql

MySQL为啥使用B+树索引

ACID

原子性 一致性 隔离性 持久性

log

rodolog 持久性 提交事务时,先记录修改后的数据，再改真正数据 innodb层面

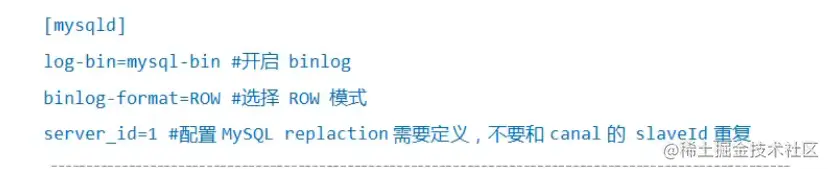

bin log 用于记录数据库执行的写入性操作 mysql server层面

undo log 原子性 sql语句的回滚镜像

index失效

组合索引最左原则
不在索引列上做任何操作如 funcation(index)=xxx
使用<> ,like %开头, between and ,is not null,or,not in,mysql认为权表扫描快
或者< 有时走索引有时不走

分布式锁

基于数据库实现

基于redis等缓存 setnx(key,ttl) redisson-spring-boot-starter

基于zk zk是基于目录结构的客户机创建临时顺序节点生成id 最小id则获取锁,将客户机信息存入节点可以实现重入锁 curator-recipes

漏桶算法、令牌桶算法

漏桶消费速率一定,限制生产速度,桶满则fallback

令牌桶有利于突发大量请求因为可以瞬间取走所有令牌

docker

pom.xml

<plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
                <configuration>
<!--                    hub.zlt.com:8080/microservices-platform/-->
                    <imageName>${docker.image.prefix}/${project.artifactId}</imageName>
                    <imageTags>
                        <imageTag>${project.version}</imageTag>
                        <imageTag>latest</imageTag>
                    </imageTags>
                    <forceTags>true</forceTags>
<!--                    openjdk:8-jre-alpine-->
                    <baseImage>${docker.baseImage}</baseImage>
                    <volumes>${docker.volumes}</volumes>
                    <env>
<!--                        -Xms128m -Xmx128m-->
                        <JAVA_OPTS>${docker.java.opts}</JAVA_OPTS>
                    </env>
<!--                    -Djava.security.egd=file:/dev/./urandom-->
                    <entryPoint>["java ","$JAVA_OPTS ${docker.java.security.egd} ","-jar
                        ","/${project.build.finalName}.jar"]
                    </entryPoint>
                    <resources>
                        <resource>
                            <targetPath>/</targetPath>
<!--                            target-->
                            <directory>${project.build.directory}</directory>
                            <include>${project.build.finalName}.jar</include>
                        </resource>
                    </resources>
                </configuration>
            </plugin>

DockerFile

FROM frolvlad/alpine-oraclejdk8:slim
VOLUME /tmp
ADD /target/tld-0.0.1-SNAPSHOT.jar app.jar
EXPOSE 8090
ENTRYPOINT ["java","-jar","/app.jar"]

docker-compose

version: '3'
services:
  elasticsearch:
    image: elasticsearch:7.9.3
    container_name: es
    environment:
      - cluster.name=my-application
      - node.name=node
      - bootstrap.memory_lock=true
      - http.cors.enabled=true
      - http.cors.allow-origin=*
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - "cluster.initial_master_nodes=node,node1,node2"
      - "discovery.seed_hosts=elasticsearch,elasticsearch1,elasticsearch2"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    ports:
      - 9200:9200
      - 9300:9300
    networks:
      - esnet
    volumes:
      - es_data:/usr/share/elasticsearch/data
      - es_plugin:/usr/share/elasticsearch/plugins

  elasticsearch1:
    image: elasticsearch:7.9.3
    container_name: es1
    environment:
      - cluster.name=my-application
      - node.name=node1
      - bootstrap.memory_lock=true
      - http.cors.enabled=true
      - http.cors.allow-origin=*
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - "cluster.initial_master_nodes=node,node1,node2"
      - "discovery.seed_hosts=elasticsearch,elasticsearch1,elasticsearch2"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    ports:
      - 9201:9200
      - 9301:9300
    networks:
      - esnet
    volumes:
      - es1_data:/usr/share/elasticsearch/data
      - es_plugin:/usr/share/elasticsearch/plugins

  elasticsearch2:
    image: elasticsearch:7.9.3
    container_name: es2
    environment:
      - cluster.name=my-application
      - node.name=node2
      - bootstrap.memory_lock=true
      - http.cors.enabled=true
      - http.cors.allow-origin=*
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - "cluster.initial_master_nodes=node,node1,node2"
      - "discovery.seed_hosts=elasticsearch,elasticsearch1,elasticsearch2"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    ports:
      - 9202:9200
      - 9302:9300
    networks:
      - esnet
    volumes:
      - es2_data:/usr/share/elasticsearch/data
      - es_plugin:/usr/share/elasticsearch/plugins

  kibana:
    image: kibana:7.9.3
    container_name: kibana
    environment:
      - ELASTICSEARCH_URL=http://elasticsearch:9200
    ports:
      - "5601:5601"
    networks:
      - esnet
volumes:
  es_data:
    driver: local
  es1_data:
    driver: local
  es2_data:
    driver: local
  es_plugin:
    driver: local
networks:
  esnet:

设计模式 todo

状态模式

责任链模式

模板方法模式

策略模式

单例模式

MQ

优点:异步,削峰缺点:增加系统复杂度,可用性降低,一致性问题

Kafka

顺序写磁盘 零拷贝

leader复制读写,follower复制备份 topic分区在不同的broker上,分lender跟follower,leader宕机时从isr(跟leader最接近的broker)中选举,leader也在isr中 group-topic-partition v0.9版本之前offset存储在zk内部,之后版本存储在kafka offset主题内数据默认存储失效时间7天,在log目录下均可配置 HW: 多个副本中最小的leo叫做HW LEO: 每个副本中最大的offset

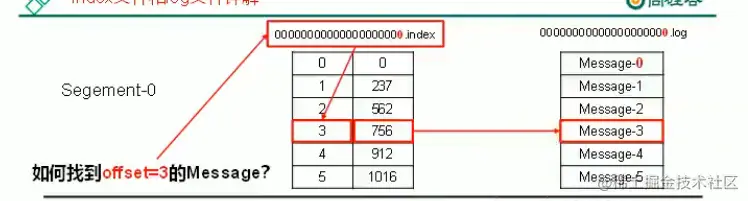

数据存储

offset到index中查找消息起始偏移量以及消息大小,然后根据值计算出真实消息在.log文件中的位置

时间内isr中follower没有及时同步则剔除

acks

0 不需要leader的ack
1 leader落盘后ack
-1/all leader和isr都落盘后ack

生产数据重复

isr都同步后还未ack时leader宕机重新选举,生产者没有接收到ack则重试生产

消费数据重复

分组,手动提交offset

选举

ElasticSearch

请求集群任一节点,请求会被转发到其他节点

关键字

match 将搜索词分词查询

match_phrase 搜索词顺序一致,间隔为slop

match_phrase_prefix

operator 将分词条件用and连接默认为or

boost 检索权重

minmum_should_match 搜索词相关度

shard

primary shard 以及其replica shard(承担读请求负载) 一个index分词若干shard(分片) primary shard拥有其replica shard(备份节点)

倒排索引

将一句话利用分词器分成若干字或词,每个字词分布在哪些doc

# ======================== Elasticsearch Configuration =========================
#
# NOTE: Elasticsearch comes with reasonable defaults for most settings.
#       Before you set out to tweak and tune the configuration, make sure you
#       understand what are you trying to accomplish and the consequences.
#
# The primary way of configuring a node is via this file. This template lists
# the most important settings you may want to configure for a production cluster.
#
# Please consult the documentation for further information on configuration options:
# https://www.elastic.co/guide/en/elasticsearch/reference/index.html
#
# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
cluster.name: elasticsearch
#
# ------------------------------------ Node ------------------------------------
#
# Use a descriptive name for the node:
#
node.name: node-2
#
# Add custom attributes to the node:
#
#node.attr.rack: r1
#
# ----------------------------------- Paths ------------------------------------
#
# Path to directory where to store the data (separate multiple locations by comma):
#
path.data: /path/to/data2
#
# Path to log files:
#
path.logs: /path/to/logs2
#
# ----------------------------------- Memory -----------------------------------
#
# Lock the memory on startup:
#
#bootstrap.memory_lock: true
#
# Make sure that the heap size is set to about half the memory available
# on the system and that the owner of the process is allowed to use this
# limit.
#
# Elasticsearch performs poorly when the system is swapping the memory.
#
# ---------------------------------- Network -----------------------------------
#
# Set the bind address to a specific IP (IPv4 or IPv6):
#
network.host: 127.0.0.1
#
# Set a custom port for HTTP:
#
http.port: 9202
transport.tcp.port: 9302
#
# For more information, consult the network module documentation.
#
# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when this node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
discovery.seed_hosts: ["127.0.0.1:9302","127.0.0.1:9300"]
#
# Bootstrap the cluster using an initial set of master-eligible nodes:
#
cluster.initial_master_nodes: ["node-1", "node-2"]
#
# For more information, consult the discovery and cluster formation module documentation.
#
# ---------------------------------- Gateway -----------------------------------
#
# Block initial recovery after a full cluster restart until N nodes are started:
#
#gateway.recover_after_nodes: 3
#
# For more information, consult the gateway module documentation.
#
# ---------------------------------- Various -----------------------------------
#
# Require explicit names when deleting indices:
#
#action.destructive_requires_name: true

选举

private DiscoveryNode findMaster() {
        //根据yml配置的discovery.seed_hosts获取ping列表
        List<ZenPing.PingResponse> fullPingResponses = pingAndWait(pingTimeout).toList();
        if (fullPingResponses == null) {
            return null;
        }
        //当前节点
        final DiscoveryNode localNode = transportService.getLocalNode();
        fullPingResponses.add(new ZenPing.PingResponse(localNode, null, this.clusterState()));
        //根据配置是否剔除非master节点过滤
        final List<ZenPing.PingResponse> pingResponses = filterPingResponses(fullPingResponses, masterElectionIgnoreNonMasters, logger);
        //集群中已存在的master节点
        List<DiscoveryNode> activeMasters = new ArrayList<>();
        for (ZenPing.PingResponse pingResponse : pingResponses) {
            if (pingResponse.master() != null && !localNode.equals(pingResponse.master())) {
                activeMasters.add(pingResponse.master());
            }
        }
        //拥有master role的节点 即有资格成为master
        List<ElectMasterService.MasterCandidate> masterCandidates = new ArrayList<>();
        for (ZenPing.PingResponse pingResponse : pingResponses) {
            if (pingResponse.node().isMasterNode()) {
                masterCandidates.add(new ElectMasterService.MasterCandidate(pingResponse.node(), pingResponse.getClusterStateVersion()));
            }
        }
        //master节点为空 则让替补竞选
        if (activeMasters.isEmpty()) {
        	//是否需要满足min_master_nodes配置
            if (electMaster.hasEnoughCandidates(masterCandidates)) {
                final ElectMasterService.MasterCandidate winner = electMaster.electMaster(masterCandidates);
                return winner.getNode();
            } else {
                return null;
            }
        } else {
        //不然则选择nodeID小的master
            return electMaster.tieBreakActiveMasters(activeMasters);
        }
    }

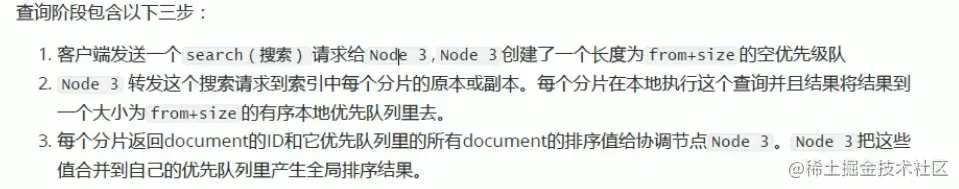

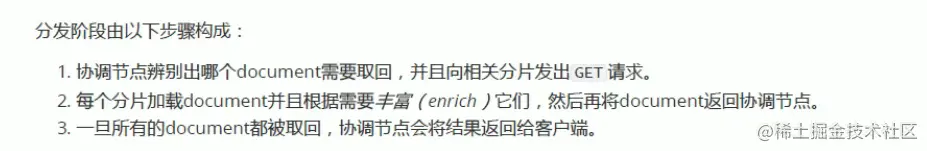

query&fetch

性能

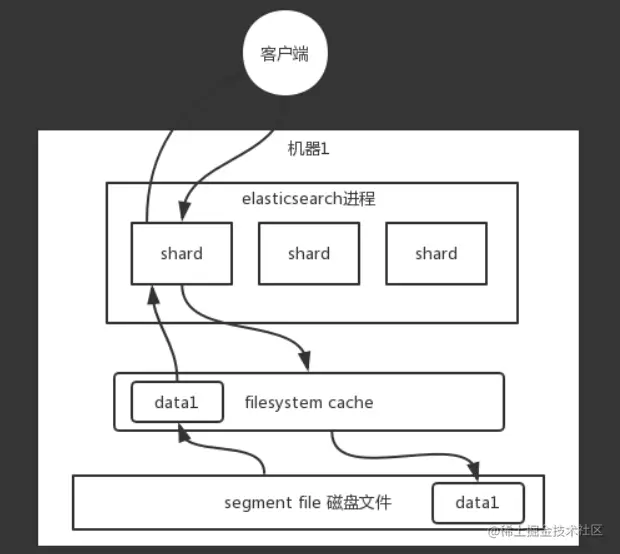

filesystem cache 大小占总数据量一半最好

es + hbase 将参与检索的字段放入es 然后根据检索结果去hbase中检索剩余字段

缓存

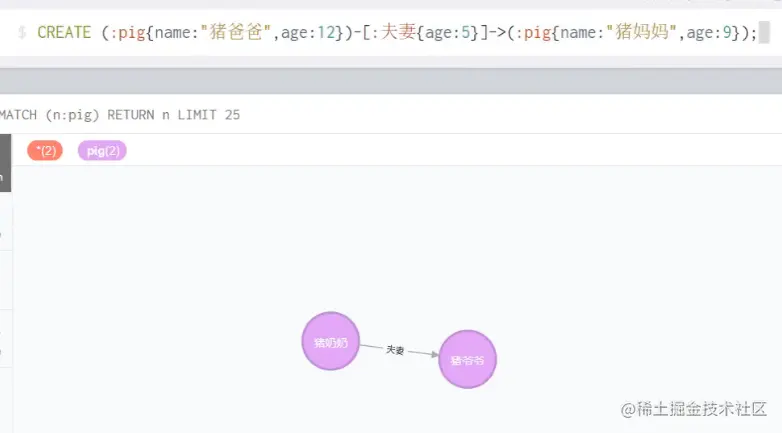

neo4j

CREATE (TheMatrix:Movie {title:'The Matrix', released:1999, tagline:'Welcome to the Real World'})
CREATE (Keanu:Person {name:'Keanu Reeves', born:1964})
CREATE (Carrie:Person {name:'Carrie-Anne Moss', born:1967})
CREATE (Laurence:Person {name:'Laurence Fishburne', born:1961})
CREATE (Hugo:Person {name:'Hugo Weaving', born:1960})
CREATE (LillyW:Person {name:'Lilly Wachowski', born:1967})
CREATE (LanaW:Person {name:'Lana Wachowski', born:1965})
CREATE (JoelS:Person {name:'Joel Silver', born:1952})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrix),
  (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrix),
  (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrix),
  (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrix),
  (LillyW)-[:DIRECTED]->(TheMatrix),
  (LanaW)-[:DIRECTED]->(TheMatrix),
  (JoelS)-[:PRODUCED]->(TheMatrix)

cypher语法

create

create(节点名称：节点标签{属性名：属性值，属性名：属性值...})

CREATE (JoelS:Person {name: 'Joel Silver', born: 1952})

match

MATCH (nineties:Movie) WHERE nineties.released >= 1990 AND nineties.released < 2000 RETURN nineties.title

set

delete

()代表标签label

{}代表节点node

[]代表关系relationship

Hive

UDF 一进一出

UDAF 多进一出

UDTF 一进多出

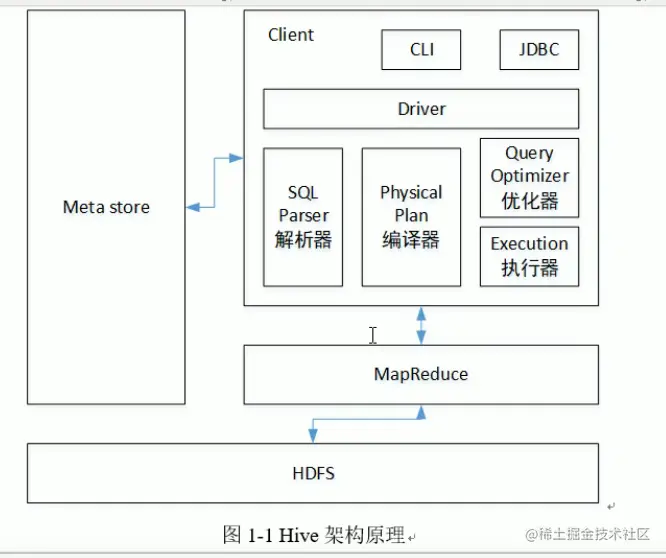

架构

Hive数据存储在hdfs上而非本地文件

文件入库

mysql只是取代derby作为支撑hive工作的元数据库 建表时指定字段分隔符

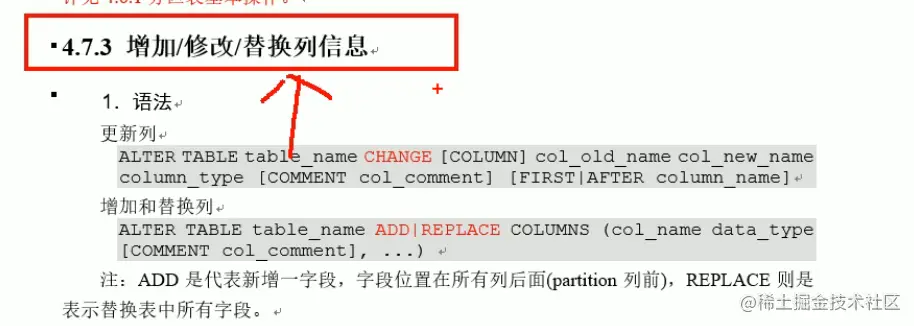

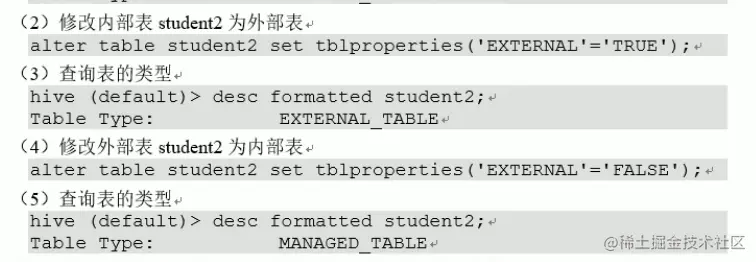

建表时不含exrernal关键字默认为内部表,删除表数据时一并删除hdsf以及源数据库表(mysql) update table

分区

手动添加目录上传数据需要修复上传数据再建表指定分区无需修复

Flink

第三代低延迟高吞吐

提交job

-c 指定入口 -p并行度 jar目录自定义属性

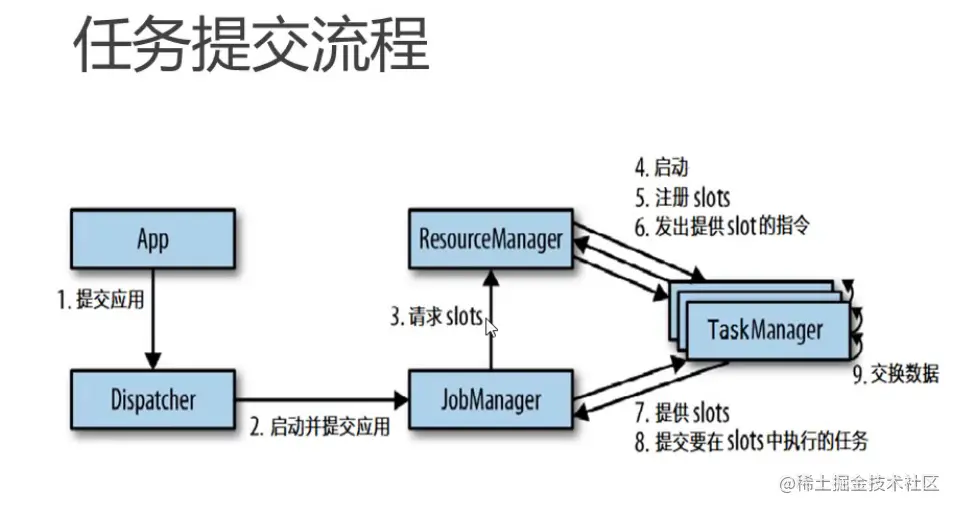

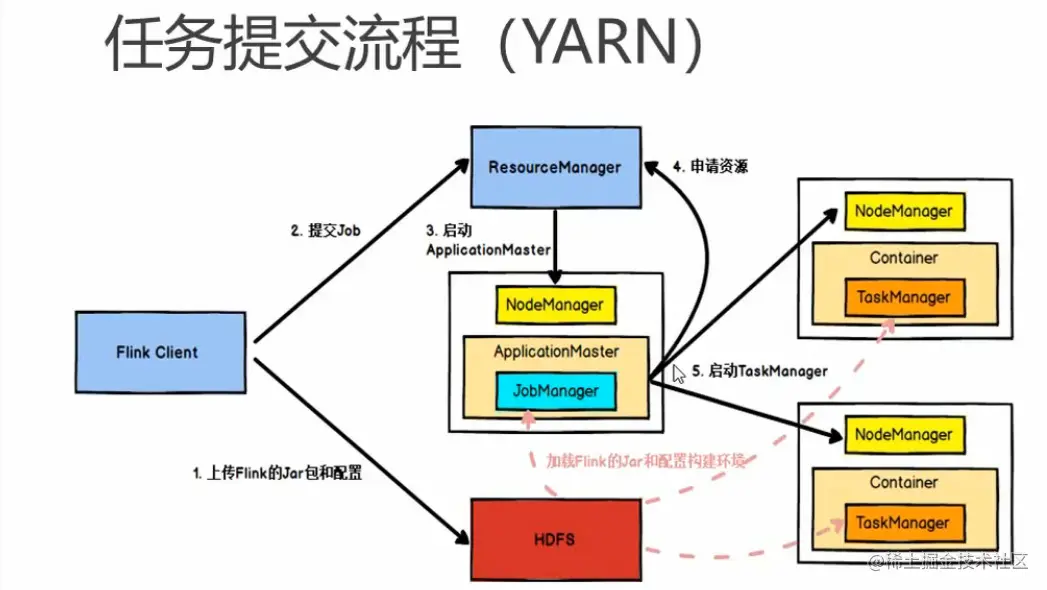

standand模式提交job yarn模式提交job流程

task

job

slot

slot被占据的多少根据task最大并行度而定

ssl

此 demo 主要演示了 Spring Boot 如何集成 https

1. 生成证书

首先使用 jdk 自带的 keytool 命令生成证书复制到项目的 resources 目录下（生成的证书一般在用户目录下 C:\Users\Administrator\server.keystore）

自己生成的证书浏览器会有危险提示,去ssl网站上使用金钱申请则不会

ssl 命令截图

2. 添加配置

在配置文件配置生成的证书

server:
  ssl:
    # 证书路径
    key-store: classpath:server.keystore
    key-alias: tomcat
    enabled: true
    key-store-type: JKS
    #与申请时输入一致
    key-store-password: 123456
    # 浏览器默认端口 和 80 类似
  port: 443

配置 Tomcat

/**
 * <p>
 * HTTPS 配置类
 * </p>
 *
 * @author yangkai.shen
 * @date Created in 2020-01-19 10:31
 */
@Configuration
public class HttpsConfig {
    /**
     * 配置 http(80) -> 强制跳转到 https(443)
     */
    @Bean
    public Connector connector() {
        Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
        connector.setScheme("http");
        connector.setPort(80);
        connector.setSecure(false);
        connector.setRedirectPort(443);
        return connector;
    }

    @Bean
    public TomcatServletWebServerFactory tomcatServletWebServerFactory(Connector connector) {
        TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory() {
            @Override
            protected void postProcessContext(Context context) {
                SecurityConstraint securityConstraint = new SecurityConstraint();
                securityConstraint.setUserConstraint("CONFIDENTIAL");
                SecurityCollection collection = new SecurityCollection();
                collection.addPattern("/*");
                securityConstraint.addCollection(collection);
                context.addConstraint(securityConstraint);
            }
        };
        tomcat.addAdditionalTomcatConnectors(connector);
        return tomcat;
    }
}

3. 测试

启动项目，浏览器访问 http://localhost 将自动跳转到 https://localhost

4. 参考

keytool命令参考

$ keytool --help
密钥和证书管理工具

命令:

 -certreq            生成证书请求
 -changealias        更改条目的别名
 -delete             删除条目
 -exportcert         导出证书
 -genkeypair         生成密钥对
 -genseckey          生成密钥
 -gencert            根据证书请求生成证书
 -importcert         导入证书或证书链
 -importpass         导入口令
 -importkeystore     从其他密钥库导入一个或所有条目
 -keypasswd          更改条目的密钥口令
 -list               列出密钥库中的条目
 -printcert          打印证书内容
 -printcertreq       打印证书请求的内容
 -printcrl           打印 CRL 文件的内容
 -storepasswd        更改密钥库的存储口令

使用 "keytool -command_name -help" 获取 command_name 的用法

Java Keytool工具简介

报表

ureport2

<dependency>
    <groupId>com.pig4cloud.plugin</groupId>
    <artifactId>ureport-spring-boot-starter</artifactId>
    <version>0.0.1</version>
</dependency>

cpu信息

private void setCpuInfo(CentralProcessor processor) {
        // CPU信息
        long[] prevTicks = processor.getSystemCpuLoadTicks();
        Util.sleep(OSHI_WAIT_SECOND);
        long[] ticks = processor.getSystemCpuLoadTicks();
        long nice = ticks[TickType.NICE.getIndex()] - prevTicks[TickType.NICE.getIndex()];
        long irq = ticks[TickType.IRQ.getIndex()] - prevTicks[TickType.IRQ.getIndex()];
        long softirq = ticks[TickType.SOFTIRQ.getIndex()] - prevTicks[TickType.SOFTIRQ.getIndex()];
        long steal = ticks[TickType.STEAL.getIndex()] - prevTicks[TickType.STEAL.getIndex()];
        long cSys = ticks[TickType.SYSTEM.getIndex()] - prevTicks[TickType.SYSTEM.getIndex()];
        long user = ticks[TickType.USER.getIndex()] - prevTicks[TickType.USER.getIndex()];
        long iowait = ticks[TickType.IOWAIT.getIndex()] - prevTicks[TickType.IOWAIT.getIndex()];
        long idle = ticks[TickType.IDLE.getIndex()] - prevTicks[TickType.IDLE.getIndex()];
        long totalCpu = user + nice + cSys + idle + iowait + irq + softirq + steal;
        cpu.setCpuNum(processor.getLogicalProcessorCount());
        cpu.setTotal(totalCpu);
        cpu.setSys(cSys);
        cpu.setUsed(user);
        cpu.setWait(iowait);
        cpu.setFree(idle);
    }

WebFLux

路由配置可以使用传统MVC GetMapping注解方式也可以使用如下bean注入方式

@Configuration
public class UserRouter {

    @Bean
    public RouterFunction<ServerResponse> routeCity(UserHandler userHandler) {
        return RouterFunctions
                .route(RequestPredicates.GET("/listUser")
                                .and(RequestPredicates.accept(MediaType.APPLICATION_JSON)),
                        userHandler::listUser)
                .andRoute(RequestPredicates.GET("/user/{id}")
                                .and(RequestPredicates.accept(MediaType.APPLICATION_JSON)),
                        userHandler::getUser)
                .andRoute(RequestPredicates.GET("/deleteUser/{id}")
                                .and(RequestPredicates.accept(MediaType.APPLICATION_JSON)),
                        userHandler::deleteUser)
                .andRoute(RequestPredicates.POST("/saveUser")
                                .and(RequestPredicates.accept(MediaType.APPLICATION_JSON)),
                        userHandler::saveUser);
    }

Shell

杀死某个jar进程

ps -ef | grep visual.jar | grep -v grep | awk '{print $2}' | xargs kill -9

TransmittableThreadLocal

解决了InheritableThreadLocal无法在线程池模式时的父子线程传值
