前言

本文是我在学习vue源码时记下的笔记，其中包括部分vue源码，和我对源码的理解，望共勉。

new Vue时发生的事

vue执行文件入口

path: src\platforms\web\entry-runtime-with-compiler.js

入口文件，覆盖$mount，执行模板解析和编译工作

vue运行时初始化入口

path: src\platforms\web\runtime\index.js

安装平台运行时特有的命令和组件

extend(Vue.options.directives, platformDirectives)
extend(Vue.options.components, platformComponents)

• 定义__patch__方法，该方法将执行虚拟dom转化成真实dom

Vue.prototype.__patch__ = inBrowser ? patch : noop

• 定义$mount方法，挂载实例到宿主元素上，其中最重要的步骤是mountComponent()(path: src/core/instance/lifecycle.js)

vue核心来源

path: src\core\index.js

初始化全局API

initGlobalAPI(Vue)

initGlobalAPI方法

path: src/core/global-api/index.js

Vue.set = set
Vue.delete = del
Vue.nextTick = nextTick
initUse(Vue)
initMixin(Vue)
initExtend(Vue)
initAssetRegisters(Vue)

Vue构造函数

path: src\core\instance\index.js

vue构造函数

function Vue (options) { // 构造函数仅执行了_init
  this._init(options)
}
initMixin(Vue) // 实现init函数
stateMixin(Vue) // 状态相关api $data,$props,$set,$delete,$watch
eventsMixin(Vue) // 事件相关api $on,$once,$off,$emit
lifecycleMixin(Vue) // 生命周期api _update,$forceUpdate,$destroy
renderMixin(Vue) // 渲染api _render,$nextTick

_init方法

path: src\core\instance\init.js

定义_init方法

vm._self = vm
initLifecycle(vm) // $parent,$root,$children,$refs
initEvents(vm) // 处理父组件传递的事件和回调
initRender(vm) // $slots,$scopedSlots,_c,$createElement
callHook(vm, 'beforeCreate')
initInjections(vm) // 获取注入数据
initState(vm) // 数据初始化，响应式
initProvide(vm) // 提供数据注入
callHook(vm, 'created')

initLifecycle

path: src\core\instance\lifecycle.js

自顶向下绑定父级关系

export function initLifecycle (vm: Component) {
  const options = vm.$options

  // locate first non-abstract parent
  let parent = options.parent
  if (parent && !options.abstract) {
    while (parent.$options.abstract && parent.$parent) {
      parent = parent.$parent
    }
    parent.$children.push(vm)
  }

  vm.$parent = parent
  vm.$root = parent ? parent.$root : vm

  vm.$children = []
  vm.$refs = {}

  vm._watcher = null
  vm._inactive = null
  vm._directInactive = false
  vm._isMounted = false
  vm._isDestroyed = false
  vm._isBeingDestroyed = false
}

new vue时数据响应化的过程

initState方法

path: src\core\instance\state.js

初始化数据，包括props、methods、data、computed和watch

export function initState (vm: Component) {
  vm._watchers = []
  const opts = vm.$options
  if (opts.props) initProps(vm, opts.props)
  if (opts.methods) initMethods(vm, opts.methods)
  if (opts.data) {
    // 处理数据响应化
    initData(vm)
  } else {
    observe(vm._data = {}, true /* asRootData */)
  }
  if (opts.computed) initComputed(vm, opts.computed)
  if (opts.watch && opts.watch !== nativeWatch) {
    initWatch(vm, opts.watch)
  }
}

initData()：

function initData (vm: Component) {
  let data = vm.$options.data
  data = vm._data = typeof data === 'function'
    ? getData(data, vm)
    : data || {}
  if (!isPlainObject(data)) {
    data = {}
    process.env.NODE_ENV !== 'production' && warn(
      'data functions should return an object:\n' +
      'https://vuejs.org/v2/guide/components.html#data-Must-Be-a-Function',
      vm
    )
  }
  // proxy data on instance
  const keys = Object.keys(data)
  const props = vm.$options.props
  const methods = vm.$options.methods
  let i = keys.length
  while (i--) {
    const key = keys[i]
    if (process.env.NODE_ENV !== 'production') {
      if (methods && hasOwn(methods, key)) {
        warn(
          `Method "${key}" has already been defined as a data property.`,
          vm
        )
      }
    }
    if (props && hasOwn(props, key)) {
      process.env.NODE_ENV !== 'production' && warn(
        `The data property "${key}" is already declared as a prop. ` +
        `Use prop default value instead.`,
        vm
      )
    } else if (!isReserved(key)) {
      // 代理数据
      proxy(vm, `_data`, key)
    }
  }
  // observe data
  // 响应化数据
  observe(data, true /* asRootData */)
}

observe方法

path: src\core\observer\index.js

observe()：

export function observe (value: any, asRootData: ?boolean): Observer | void {
  if (!isObject(value) || value instanceof VNode) {
    return
  }
  let ob: Observer | void
  // 判断对象是否已经有observer
  if (hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
    ob = value.__ob__
  } else if (
    shouldObserve &&
    !isServerRendering() &&
    (Array.isArray(value) || isPlainObject(value)) &&
    Object.isExtensible(value) &&
    !value._isVue
  ) {
    // 没有的新建一个observer
    ob = new Observer(value)
  }
  if (asRootData && ob) {
    ob.vmCount++
  }
  return ob
}

Observer定义:

export class Observer {
  value: any;
  // 为什么Observer里面生命Dep
  // Object里面新增或者删除属性
  // Array中有变更方法
  dep: Dep;
  vmCount: number; // number of vms that have this object as root $data

  constructor (value: any) {
    this.value = value
    this.dep = new Dep()
    this.vmCount = 0
    // 设置__ob__
    def(value, '__ob__', this)
    if (Array.isArray(value)) {
      if (hasProto) {
        protoAugment(value, arrayMethods)
      } else {
        copyAugment(value, arrayMethods, arrayKeys)
      }
      this.observeArray(value)
    } else {
      this.walk(value)
    }
  }

  /**
   * Walk through all properties and convert them into
   * getter/setters. This method should only be called when
   * value type is Object.
   */
  walk (obj: Object) {
    const keys = Object.keys(obj)
    for (let i = 0; i < keys.length; i++) {
      defineReactive(obj, keys[i])
    }
  }

  /**
   * Observe a list of Array items.
   */
  observeArray (items: Array<any>) {
    for (let i = 0, l = items.length; i < l; i++) {
      observe(items[i])
    }
  }
}

defineReactive针对每个key进行响应：

  // 只要是对象，childOb就会有值
  let childOb = !shallow && observe(val)
  Object.defineProperty(obj, key, {
    enumerable: true,
    configurable: true,
    get: function reactiveGetter () {
      const value = getter ? getter.call(obj) : val
      // 存在依赖就收集
      if (Dep.target) {
        dep.depend()
        // 如果子ob存在，也建立依赖收集
        if (childOb) {
          childOb.dep.depend()
          if (Array.isArray(value)) {
            dependArray(value)
          }
        }
      }
      return value
    },
    set: function reactiveSetter (newVal) {
      const value = getter ? getter.call(obj) : val
      /* eslint-disable no-self-compare */
      if (newVal === value || (newVal !== newVal && value !== value)) {
        return
      }
      /* eslint-enable no-self-compare */
      if (process.env.NODE_ENV !== 'production' && customSetter) {
        customSetter()
      }
      // #7981: for accessor properties without setter
      if (getter && !setter) return
      if (setter) {
        setter.call(obj, newVal)
      } else {
        val = newVal
      }
      // 新值是对象也要响应化
      childOb = !shallow && observe(newVal)
      // 通知更新
      dep.notify()
    }
  })

由上总结

• observer：有多少对象就有多少个oberser
• dep：有多少key就有多少个dep
• watcher：一个组件对应一个watcher

vue异步更新实现

• 异步：只要侦听到数据变化，Vue 将开启一个队列，并缓冲在同一事件循环中发生的所有数据变更。
• 批量：如果同一个 watcher 被多次触发，只会被推入到队列中一次。去重对于避免不必要的计算和 DOM 操作是非常重要的。然后，在下一个的事件循环“tick”中，Vue 刷新队列执行实际工作。
• 异步策略：Vue 在内部对异步队列尝试使用原生的 Promise.then 、MutationObserver 和 setImmediate ，如果执行环境不支持，则会采用 setTimeout(fn, 0) 代替。

watcher里的update方法

path: src/core/observer/watcher.js

dep.notify()通知watcher进行更新，调用watcher的update方法。

update () {
  /* istanbul ignore else */
  if (this.lazy) {
    this.dirty = true
  } else if (this.sync) {
    this.run()
  } else {
    queueWatcher(this)
  }
}

queueWatcher方法

path: src/core/observer/scheduler.js

export function queueWatcher (watcher: Watcher) {
  const id = watcher.id
  // 判断watcher是否已在队列
  if (has[id] == null) {
    has[id] = true
    if (!flushing) {
      queue.push(watcher)
    } else {
      // if already flushing, splice the watcher based on its id
      // if already past its id, it will be run next immediately.
      let i = queue.length - 1
      while (i > index && queue[i].id > watcher.id) {
        i--
      }
      queue.splice(i + 1, 0, watcher)
    }
    // queue the flush
    if (!waiting) {
      waiting = true

      if (process.env.NODE_ENV !== 'production' && !config.async) {
        flushSchedulerQueue()
        return
      }
      // 执行刷新
      nextTick(flushSchedulerQueue)
    }
  }
}

nextTick方法

path: src/core/util/next-tick.js

export function nextTick (cb?: Function, ctx?: Object) {
  let _resolve
  // 将更新队列操作放入回调函数
  callbacks.push(() => {
    if (cb) {
      try {
        cb.call(ctx)
      } catch (e) {
        handleError(e, ctx, 'nextTick')
      }
    } else if (_resolve) {
      _resolve(ctx)
    }
  })
  if (!pending) {
    pending = true
    // 微任务执行处
    timerFunc()
  }
  // $flow-disable-line
  if (!cb && typeof Promise !== 'undefined') {
    return new Promise(resolve => {
      _resolve = resolve
    })
  }
}

timeFunc

// 通过一系列降级适配，实现微任务的执行
let timerFunc
if (typeof Promise !== 'undefined' && isNative(Promise)) {
  const p = Promise.resolve()
  timerFunc = () => {
    p.then(flushCallbacks)
    if (isIOS) setTimeout(noop)
  }
  isUsingMicroTask = true
} else if (!isIE && typeof MutationObserver !== 'undefined' && (
  isNative(MutationObserver) ||
  MutationObserver.toString() === '[object MutationObserverConstructor]'
)) {
  let counter = 1
  const observer = new MutationObserver(flushCallbacks)
  const textNode = document.createTextNode(String(counter))
  observer.observe(textNode, {
    characterData: true
  })
  timerFunc = () => {
    counter = (counter + 1) % 2
    textNode.data = String(counter)
  }
  isUsingMicroTask = true
} else if (typeof setImmediate !== 'undefined' && isNative(setImmediate
  timerFunc = () => {
    setImmediate(flushCallbacks)
  }
} else {
  timerFunc = () => {
    setTimeout(flushCallbacks, 0)
  }
}

flushCallbacks：真正执行异步更新的地方

function flushCallbacks () {
  pending = false
  const copies = callbacks.slice(0)
  callbacks.length = 0
  for (let i = 0; i < copies.length; i++) {
    copies[i]()
  }
}

总结：对同一个watcher里的数据进行操作，最后只会执行一次run()

虚拟dom

优点：

• 虚拟DOM轻量、快速：当它们发生变化时通过新旧虚拟DOM比对可以得到最小DOM操作量，从 而提升性能

patch(vnode, h('div#app', obj.foo))

• 跨平台：将虚拟dom更新转换为不同运行时特殊操作实现跨平台

const patch = init([snabbdom_style.default])
patch(vnode, h('div#app', {style:{color:'red'}}, obj.foo))

• 兼容性：还可以加入兼容性代码增强操作的兼容性

必要性：

在vue1.0中，是没有虚拟dom的，这就导致一个数据就会对应一个watcher，在大型项目中会造成极大的开销，所以在vue2.0中，一个组件对应一个watcher实例，再引入虚拟DOM去进行比对和渲染。

mountComponent方法

path: src/core/instance/lifecycle.js

在vue执行$mount时，会执行mountComponent操作

export function mountComponent (
  vm: Component,
  el: ?Element,
  hydrating?: boolean
): Component {
  vm.$el = el
  if (!vm.$options.render) {
    vm.$options.render = createEmptyVNode
    if (process.env.NODE_ENV !== 'production') {
      /* istanbul ignore if */
      if ((vm.$options.template && vm.$options.template.charAt(0) !== '#') ||
        vm.$options.el || el) {
        warn(
          'You are using the runtime-only build of Vue where the template ' +
          'compiler is not available. Either pre-compile the templates into ' +
          'render functions, or use the compiler-included build.',
          vm
        )
      } else {
        warn(
          'Failed to mount component: template or render function not defined.',
          vm
        )
      }
    }
  }
  callHook(vm, 'beforeMount')

  let updateComponent
  /* istanbul ignore if */
  if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
    updateComponent = () => {
      const name = vm._name
      const id = vm._uid
      const startTag = `vue-perf-start:${id}`
      const endTag = `vue-perf-end:${id}`

      mark(startTag)
      const vnode = vm._render()
      mark(endTag)
      measure(`vue ${name} render`, startTag, endTag)

      mark(startTag)
      vm._update(vnode, hydrating)
      mark(endTag)
      measure(`vue ${name} patch`, startTag, endTag)
    }
  } else {
    // 用户$mount时被执行
    // 实际在这里渲染更新组件
    updateComponent = () => {
      vm._update(vm._render(), hydrating)
    }
  }

  // we set this to vm._watcher inside the watcher's constructor
  // since the watcher's initial patch may call $forceUpdate (e.g. inside child
  // component's mounted hook), which relies on vm._watcher being already defined
  new Watcher(vm, updateComponent, noop, {
    before () {
      if (vm._isMounted && !vm._isDestroyed) {
        callHook(vm, 'beforeUpdate')
      }
    }
  }, true /* isRenderWatcher */)
  hydrating = false

  // manually mounted instance, call mounted on self
  // mounted is called for render-created child components in its inserted hook
  if (vm.$vnode == null) {
    vm._isMounted = true
    callHook(vm, 'mounted')
  }
  return vm
}

_render()方法

path: src/core/instance/render.js

生成虚拟dom

Vue.prototype._render = function (): VNode {
  const vm: Component = this
  const { render, _parentVnode } = vm.$options

  // 判断挂载的根结点是否存在
  if (_parentVnode) {
    vm.$scopedSlots = normalizeScopedSlots(
       _parentVnode.data.scopedSlots,
      vm.$slots,
      vm.$scopedSlots
    )
  }

  // set parent vnode. this allows render functions to have access
  // to the data on the placeholder node.
  vm.$vnode = _parentVnode
  // render self
  let vnode
  try {
    currentRenderingInstance = vm
    // createElement创建vnode
    vnode = render.call(vm._renderProxy, vm.$createElement)
  } catch (e) {
    handleError(e, vm, `render`)
    if (process.env.NODE_ENV !== 'production' && vm.$options.renderError) {
      try {
        vnode = vm.$options.renderError.call(vm._renderProxy, vm.$createElement, e)
      } catch (e) {
        handleError(e, vm, `renderError`)
        vnode = vm._vnode
      }
    } else {
      vnode = vm._vnode
    }
  } finally {
    currentRenderingInstance = null
  }
  // if the returned array contains only a single node, allow it
  if (Array.isArray(vnode) && vnode.length === 1) {
    vnode = vnode[0]
  }
  // return empty vnode in case the render function errored out
  if (!(vnode instanceof VNode)) {
    if (process.env.NODE_ENV !== 'production' && Array.isArray(vnode)) {
      warn(
        'Multiple root nodes returned from render function. Render function ' +
        'should return a single root node.',
        vm
      )
    }
    vnode = createEmptyVNode()
  }
  // set parent
  vnode.parent = _parentVnode
  return vnode
}

_upadate()方法

path: src/core/instance/lifecycle.js

_render()方法获得虚拟dom后，又回到lifecycle里的—_upadate()方法进行更新

Vue.prototype._update = function (vnode: VNode, hydrating?: boolean) {
  const vm: Component = this
  const prevEl = vm.$el
  const prevVnode = vm._vnode
  const restoreActiveInstance = setActiveInstance(vm)
  vm._vnode = vnode
  // Vue.prototype.__patch__ is injected in entry points
  // based on the rendering backend used.
  // 判断是否曾经渲染过
  if (!prevVnode) {
    // initial render
    vm.$el = vm.__patch__(vm.$el, vnode, hydrating, false /* removeOnly */)
  } else {
    // updates
    vm.$el = vm.__patch__(prevVnode, vnode)
  }
  restoreActiveInstance()
  // update __vue__ reference
  if (prevEl) {
    prevEl.__vue__ = null
  }
  if (vm.$el) {
    vm.$el.__vue__ = vm
  }
  // if parent is an HOC, update its $el as well
  if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
    vm.$parent.$el = vm.$el
  }
  // updated hook is called by the scheduler to ensure that children are
  // updated in a parent's updated hook.
}

__patch__方法来自与path: src/platforms/web/runtime/index.js

patch方法

path: src/platforms/web/runtime/patch.js

patch是createPatchFunction的返回值，传递nodeOps和modules是web平台特别实现

export const patch: Function = createPatchFunction({ nodeOps, modules })

createPatchFunction

export function createPatchFunction (backend) {
  let i, j
  const cbs = {}

  const { modules, nodeOps } = backend

  for (i = 0; i < hooks.length; ++i) {
    cbs[hooks[i]] = []
    for (j = 0; j < modules.length; ++j) {
      if (isDef(modules[j][hooks[i]])) {
        // 属性的钩子保存
        cbs[hooks[i]].push(modules[j][hooks[i]])
      }
    }
  }
}

nodeOps定义

path: src/platforms/web/runtime/node-ops.js

包含各种原生dom操作

modules定义

path: src/platforms/web/runtime/modules/index.js

包含dom属性更新实现

最后总结下虚拟dom转变成真实dom的过程：

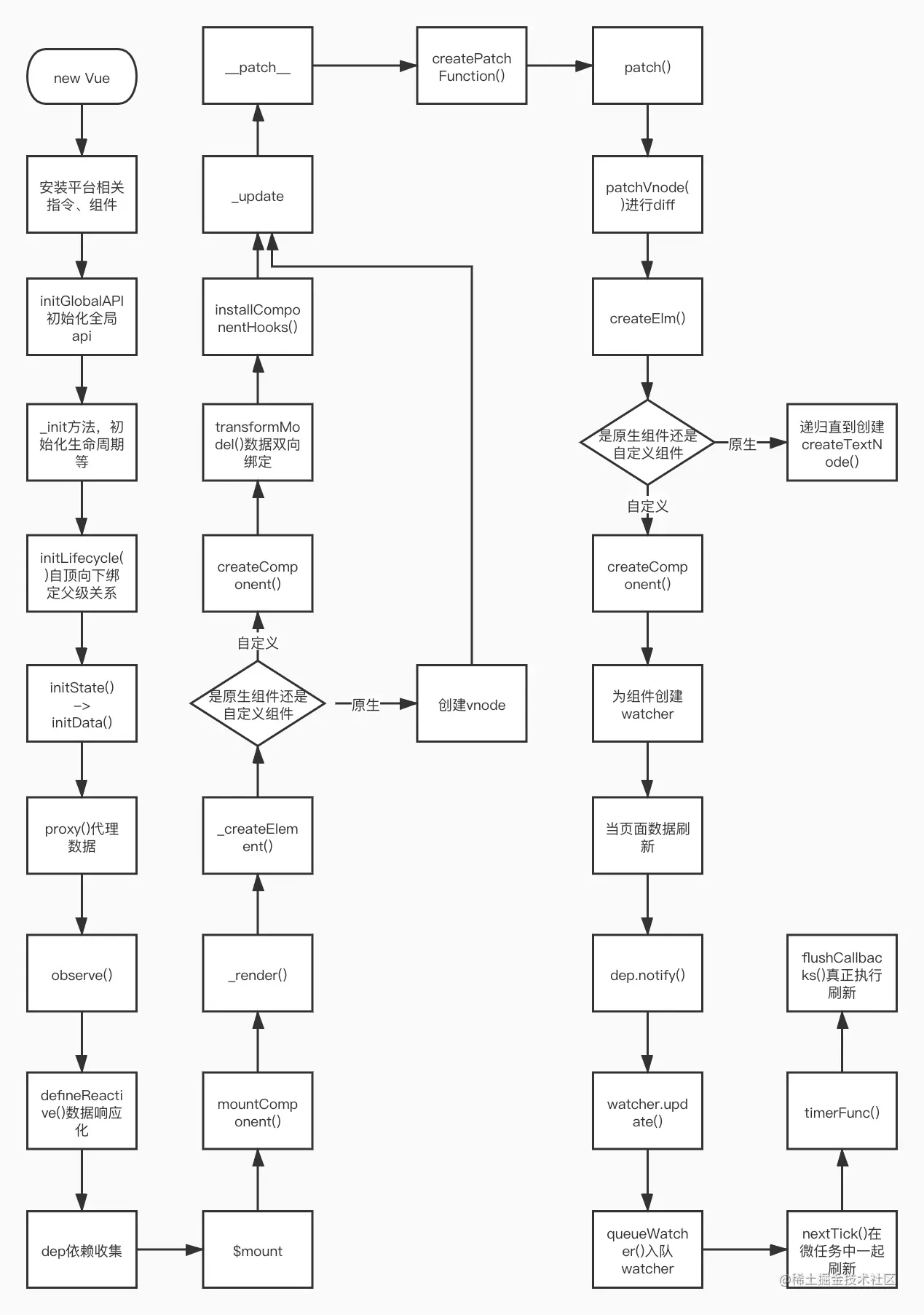

watcher.run() => updateComponent() => _render() => _update() => patch

patch实现过程

path: src/core/vdom/patch.js

首先进行树级别比较，可能有三种情况：增删改。

• new VNode不存在就删；
• old VNode不存在就增；
• 都存在就执行diff执行更新

patchNode

比较两个VNode，包括三种类型操作：属性更新、文本更新、子节点更新 具体规则如下：

1. 新老节点均有children子节点，则对子节点进行diff操作，调用updateChildren
2. 如果老节点没有子节点而新节点有子节点，先清空老节点的文本内容，然后为其新增子节点。
3. 当新节点没有子节点而老节点有子节点的时候，则移除该节点的所有子节点。
4. 当新老节点都无子节点的时候，只是文本的替换。

function patchVnode (
  oldVnode,
  vnode,
  insertedVnodeQueue,
  ownerArray,
  index,
  removeOnly
) {
  if (oldVnode === vnode) {
    return
  }

  if (isDef(vnode.elm) && isDef(ownerArray)) {
    // clone reused vnode
    vnode = ownerArray[index] = cloneVNode(vnode)
  }

  const elm = vnode.elm = oldVnode.elm

  if (isTrue(oldVnode.isAsyncPlaceholder)) {
    if (isDef(vnode.asyncFactory.resolved)) {
      hydrate(oldVnode.elm, vnode, insertedVnodeQueue)
    } else {
      vnode.isAsyncPlaceholder = true
    }
    return
  }

  // reuse element for static trees.
  // note we only do this if the vnode is cloned -
  // if the new node is not cloned it means the render functions have been
  // reset by the hot-reload-api and we need to do a proper re-render.
  if (isTrue(vnode.isStatic) &&
    isTrue(oldVnode.isStatic) &&
    vnode.key === oldVnode.key &&
    (isTrue(vnode.isCloned) || isTrue(vnode.isOnce))
  ) {
    vnode.componentInstance = oldVnode.componentInstance
    return
  }

  // 执行组建钩子
  let i
  const data = vnode.data
  if (isDef(data) && isDef(i = data.hook) && isDef(i = i.prepatch)) {
    i(oldVnode, vnode)
  }

  // 判断新旧节点是否有子元素
  const oldCh = oldVnode.children
  const ch = vnode.children
  // 属性更新
  if (isDef(data) && isPatchable(vnode)) {
    // cbs中关于属性更新的函数拿出来执行
    for (i = 0; i < cbs.update.length; ++i) cbs.update[i](oldVnode, vnode)
    if (isDef(i = data.hook) && isDef(i = i.update)) i(oldVnode, vnode)
  }
  if (isUndef(vnode.text)) {
    if (isDef(oldCh) && isDef(ch)) {
      // 情况一：比较新老节点，进行diff算法
      if (oldCh !== ch) updateChildren(elm, oldCh, ch, insertedVnodeQueue, removeOnly)
    } else if (isDef(ch)) {
      if (process.env.NODE_ENV !== 'production') {
        checkDuplicateKeys(ch)
      }
      // 情况二：先清空老节点，再增加新的子节点
      if (isDef(oldVnode.text)) nodeOps.setTextContent(elm, '')
      addVnodes(elm, null, ch, 0, ch.length - 1, insertedVnodeQueue)
    } else if (isDef(oldCh)) {
      // 情况三：删除老节点的子节点
      removeVnodes(oldCh, 0, oldCh.length - 1)
    } else if (isDef(oldVnode.text)) {
      // 清空老节点的文本内容
      nodeOps.setTextContent(elm, '')
    }
  } else if (oldVnode.text !== vnode.text) {
    // 情况四：做简单文本替换
    nodeOps.setTextContent(elm, vnode.text)
  }
  if (isDef(data)) {
    if (isDef(i = data.hook) && isDef(i = i.postpatch)) i(oldVnode, vnode)
  }
}

updateChildren

updateChildren主要作用是用一种较高效的方式比对新旧两个VNode的children得出最小操作补丁。执行一个双循环是传统方式，vue中针对web场景特点做了特别的算法优化。

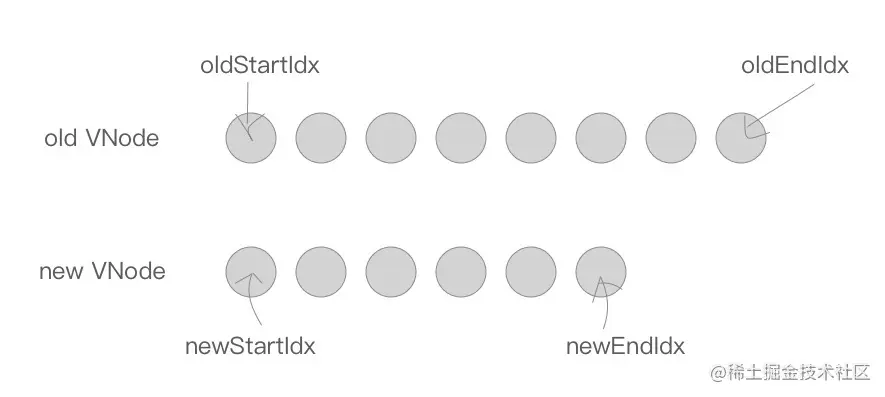

在新老两组VNode节点的左右头尾两侧都有一个变量标记，在遍历过程中这几个变量都会向中间靠拢。当oldStartIdx > oldEndIdx或者newStartIdx > newEndIdx时结束循环，oldStartVnode、oldEndVnode与newStartVnode、newEndVnode两两交叉比较，共有4种比较结果。

1. 当 oldStartVnode和newStartVnode 或者 oldEndVnode和newEndVnode 满足sameVnode
2. oldStartVnode与newEndVnode满足sameVnode
3. oldEndVnode与newStartVnode满足sameVnode
4. 以上情况都不符合

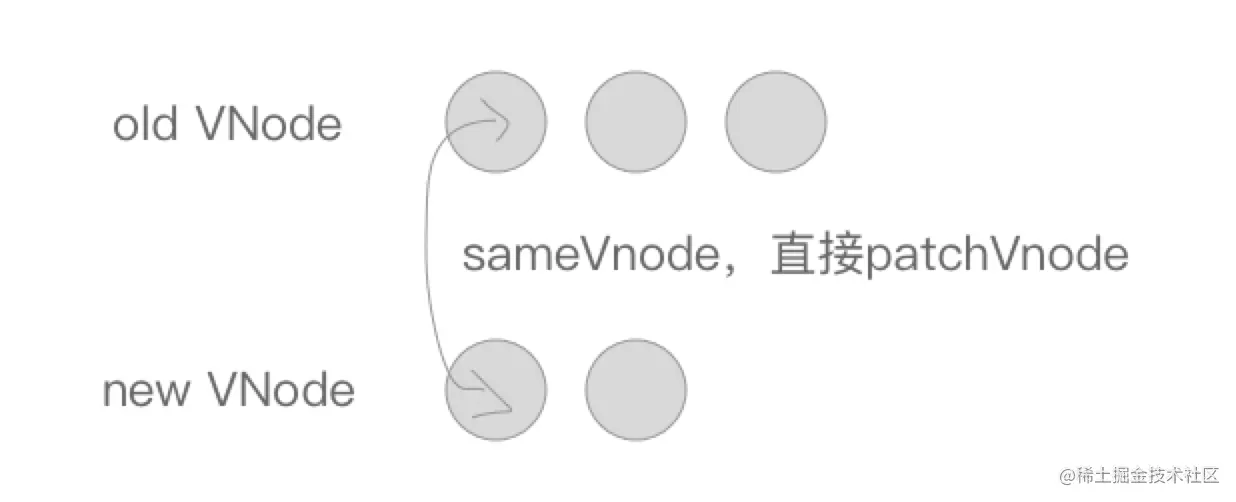

情况一：oldStartVnode和newStartVnode 或者 oldEndVnode和newEndVnode 满足sameVnode

直接将该VNode节点进行patchVnode即可，不需再遍历就完成了一次循环

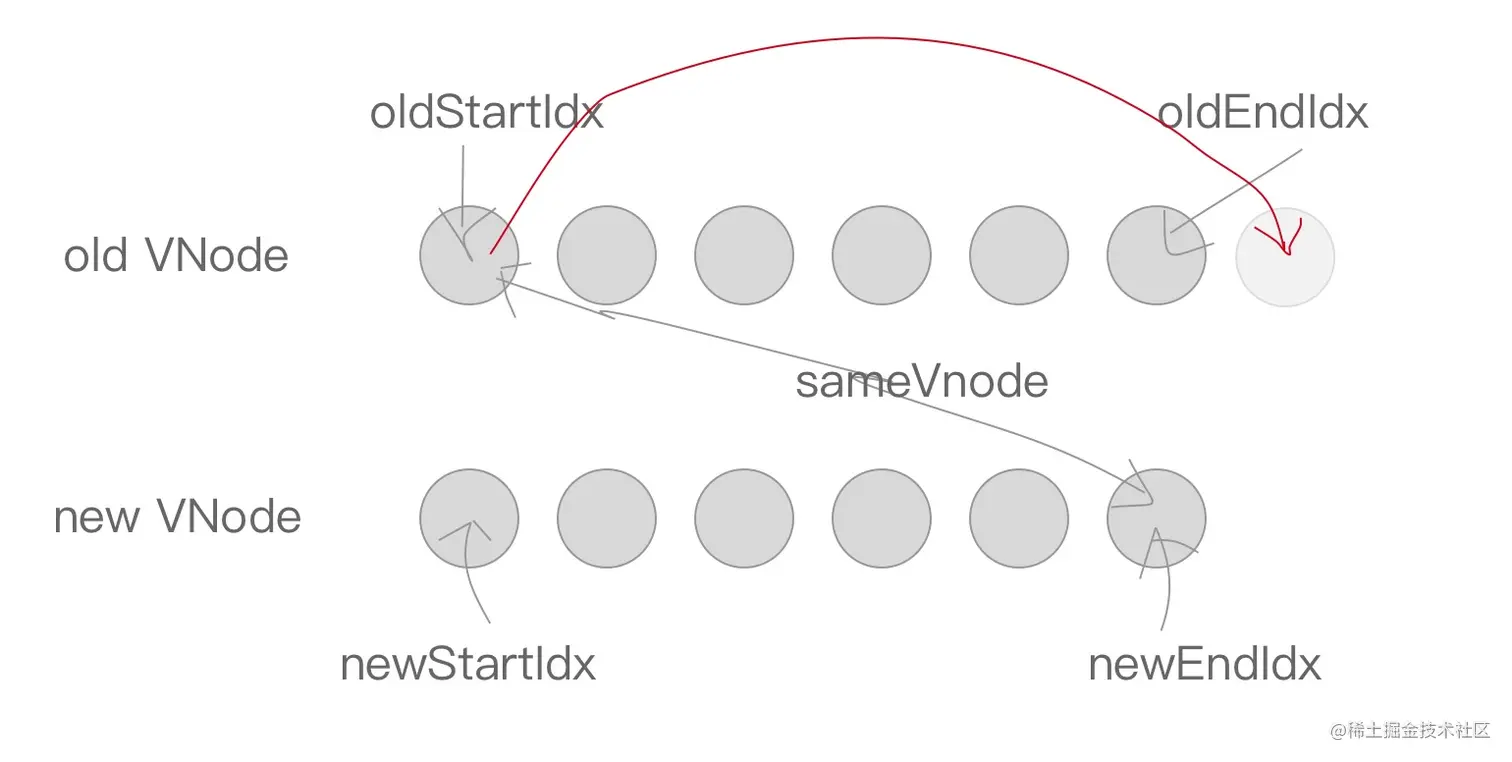

情况二：oldStartVnode与newEndVnode满足sameVnode

• 将该VNode节点进行patchVnode
• 将oldStartVnode对应DOM移动到oldEndVnode对应DOM的后面

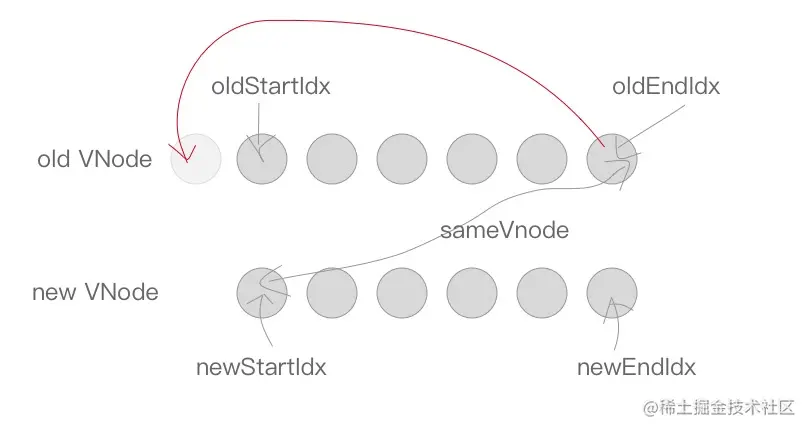

情况三：oldEndVnode与newStartVnode满足sameVnode

• 将该VNode节点进行patchVnode
• 将oldEndVnode对应DOM移动到oldStartVnode对应DOM的前面

情况四：以上情况都不符合

• 遍历old VNode，直到找到和newStartVnode满足sameVnode的节点
• 如果存在，则将该VNode节点进行patchVnode，并把oldEndVnode对应DOM移动到oldStartVnode对应DOM的前面
• 如果不存在，则创建新的VNode，插入到oldStartVnode对应DOM的前面

在循环结束后，会出现3种结果

1. old VNode和new VNode都刚好遍历完，此时不需要做其他操作

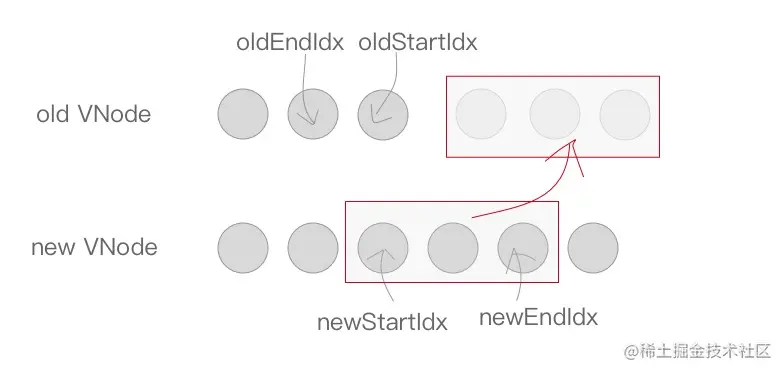

2. old VNode遍历完，new VNode还有多余节点，此时需要调用addVnodes新增VNode

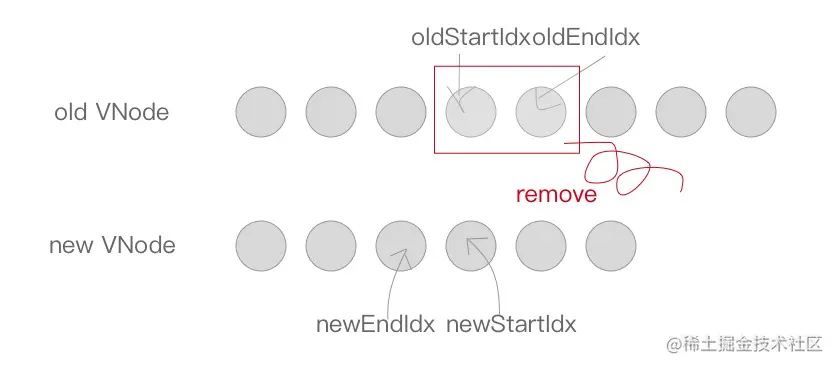

3. new VNode遍历完，old VNode还有多余节点，此时需要调用removeVnodes删除VNode

function updateChildren (parentElm, oldCh, newCh, insertedVnodeQueue, removeOnly) {
  let oldStartIdx = 0
  let newStartIdx = 0
  let oldEndIdx = oldCh.length - 1
  let oldStartVnode = oldCh[0]
  let oldEndVnode = oldCh[oldEndIdx]
  let newEndIdx = newCh.length - 1
  let newStartVnode = newCh[0]
  let newEndVnode = newCh[newEndIdx]
  let oldKeyToIdx, idxInOld, vnodeToMove, refElm

  // removeOnly is a special flag used only by <transition-group>
  // to ensure removed elements stay in correct relative positions
  // during leaving transitions
  const canMove = !removeOnly

  if (process.env.NODE_ENV !== 'production') {
    checkDuplicateKeys(newCh)
  }

  while (oldStartIdx <= oldEndIdx && newStartIdx <= newEndIdx) {
    if (isUndef(oldStartVnode)) {
      oldStartVnode = oldCh[++oldStartIdx] // Vnode has been moved left
    } else if (isUndef(oldEndVnode)) {
      oldEndVnode = oldCh[--oldEndIdx]
    } else if (sameVnode(oldStartVnode, newStartVnode)) {
      patchVnode(oldStartVnode, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
      oldStartVnode = oldCh[++oldStartIdx]
      newStartVnode = newCh[++newStartIdx]
    } else if (sameVnode(oldEndVnode, newEndVnode)) {
      patchVnode(oldEndVnode, newEndVnode, insertedVnodeQueue, newCh, newEndIdx)
      oldEndVnode = oldCh[--oldEndIdx]
      newEndVnode = newCh[--newEndIdx]
    } else if (sameVnode(oldStartVnode, newEndVnode)) { // Vnode moved right
      patchVnode(oldStartVnode, newEndVnode, insertedVnodeQueue, newCh, newEndIdx)
      canMove && nodeOps.insertBefore(parentElm, oldStartVnode.elm, nodeOps.nextSibling(oldEndVnode.elm))
      oldStartVnode = oldCh[++oldStartIdx]
      newEndVnode = newCh[--newEndIdx]
    } else if (sameVnode(oldEndVnode, newStartVnode)) { // Vnode moved left
      patchVnode(oldEndVnode, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
      canMove && nodeOps.insertBefore(parentElm, oldEndVnode.elm, oldStartVnode.elm)
      oldEndVnode = oldCh[--oldEndIdx]
      newStartVnode = newCh[++newStartIdx]
    } else {
      if (isUndef(oldKeyToIdx)) oldKeyToIdx = createKeyToOldIdx(oldCh, oldStartIdx, oldEndIdx)
      idxInOld = isDef(newStartVnode.key)
        ? oldKeyToIdx[newStartVnode.key]
        : findIdxInOld(newStartVnode, oldCh, oldStartIdx, oldEndIdx)
      if (isUndef(idxInOld)) { // New element
        createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
      } else {
        vnodeToMove = oldCh[idxInOld]
        if (sameVnode(vnodeToMove, newStartVnode)) {
          patchVnode(vnodeToMove, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
          oldCh[idxInOld] = undefined
          canMove && nodeOps.insertBefore(parentElm, vnodeToMove.elm, oldStartVnode.elm)
        } else {
          // same key but different element. treat as new element
          createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
        }
      }
      newStartVnode = newCh[++newStartIdx]
    }
  }
  if (oldStartIdx > oldEndIdx) {
    refElm = isUndef(newCh[newEndIdx + 1]) ? null : newCh[newEndIdx + 1].elm
    addVnodes(parentElm, refElm, newCh, newStartIdx, newEndIdx, insertedVnodeQueue)
  } else if (newStartIdx > newEndIdx) {
    removeVnodes(oldCh, oldStartIdx, oldEndIdx)
  }
}

diff算法总结：

diff算法是什么

diff算法是引入虚拟dom后，用来比较计算dom操作最小开销量的一种算法。

为什么要使用diff算法

• 通过引入虚拟dom结合diff算法，我们可以更高效的进行dom操作，提高性能
• 因为虚拟dom的引入，使得我们的操作具有跨平台性

什么时候使用diff

在vue源码里，比较新老节点patchVnode时，会使用diff算法。

diff是怎么实现的

• 深度优先：递归比较新老节点的所有子节点，直到叶子节点
• 同层比较：对同层节点进行比较
• 双指针遍历：比较子节点时，采用头尾双指针想中间靠拢，分别比较新老节点的收尾，降低时间复杂度

模版编译

模板编译的主要目标是将模板(template)转换为渲染函数(render)

• 必要性：Vue 2.0需要用到VNode描述视图以及各种交互，手写显然不切实际，因此用户只需编写类似HTML代码的Vue模板，通过编译器将模板转换为可返回VNode的render函数。

compileToFunctions

在入口文件的$mount时，我们会通过compileToFunctions获取render方法

const { render, staticRenderFns } = compileToFunctions(template, {
  outputSourceRange: process.env.NODE_ENV !== 'production',
  shouldDecodeNewlines,
  shouldDecodeNewlinesForHref,
  delimiters: options.delimiters,
  comments: options.comments
}, this)
options.render = render
options.staticRenderFns = staticRenderFns

而这个方法来自于：

path: src/platforms/web/compiler/index.js

const { compile, compileToFunctions } = createCompiler(baseOptions)

createCompiler

path: src/compiler/index.js

export const createCompiler = createCompilerCreator(function baseCompile (
  template: string,
  options: CompilerOptions
): CompiledResult {
  // 1.解析：模版转换为对象AST
  const ast = parse(template.trim(), options)
  // 2.优化：标记静态节点，diff时可以直接跳过
  if (options.optimize !== false) {
    optimize(ast, options)
  }
  // 3.代码生成：转换ast为代码字符串， new function(code)
  const code = generate(ast, options)
  return {
    ast,
    render: code.render,
    staticRenderFns: code.staticRenderFns
  }
})

第一步：模版解析parse

path: src/compiler/parser/index.js

• 解析器将模板解析为抽象语法树
• 解析器内部分了HTML解析器、文本解析器和过滤器解析器，最主要是HTML解析器

// 核心部分
parseHTML(template, {
  warn,
  expectHTML: options.expectHTML,
  isUnaryTag: options.isUnaryTag,
  canBeLeftOpenTag: options.canBeLeftOpenTag,
  shouldDecodeNewlines: options.shouldDecodeNewlines,
  shouldDecodeNewlinesForHref: options.shouldDecodeNewlinesForHref,
  shouldKeepComment: options.comments,
  outputSourceRange: options.outputSourceRange,
  // 遇到开始标签就执行
  start (tag, attrs, unary, start, end) {
    // check namespace.
    // inherit parent ns if there is one
    const ns = (currentParent && currentParent.ns) || platformGetTagNamespace(tag)

    // handle IE svg bug
    /* istanbul ignore if */
    if (isIE && ns === 'svg') {
      attrs = guardIESVGBug(attrs)
    }

    // 遇到开始标签就创建一个新的ast树
    let element: ASTElement = createASTElement(tag, attrs, currentParent)
    if (ns) {
      element.ns = ns
    }

    if (process.env.NODE_ENV !== 'production') {
      if (options.outputSourceRange) {
        element.start = start
        element.end = end
        element.rawAttrsMap = element.attrsList.reduce((cumulated, attr) => {
          cumulated[attr.name] = attr
          return cumulated
        }, {})
      }
      attrs.forEach(attr => {
        if (invalidAttributeRE.test(attr.name)) {
          warn(
            `Invalid dynamic argument expression: attribute names cannot contain ` +
            `spaces, quotes, <, >, / or =.`,
            {
              start: attr.start + attr.name.indexOf(`[`),
              end: attr.start + attr.name.length
            }
          )
        }
      })
    }

    if (isForbiddenTag(element) && !isServerRendering()) {
      element.forbidden = true
      process.env.NODE_ENV !== 'production' && warn(
        'Templates should only be responsible for mapping the state to the ' +
        'UI. Avoid placing tags with side-effects in your templates, such as ' +
        `<${tag}>` + ', as they will not be parsed.',
        { start: element.start }
      )
    }

    // apply pre-transforms
    for (let i = 0; i < preTransforms.length; i++) {
      element = preTransforms[i](element, options) || element
    }

    if (!inVPre) {
      processPre(element)
      if (element.pre) {
        inVPre = true
      }
    }
    if (platformIsPreTag(element.tag)) {
      inPre = true
    }
    if (inVPre) {
      processRawAttrs(element)
    } else if (!element.processed) {
      // structural directives
      processFor(element)
      processIf(element)
      processOnce(element)
    }

    if (!root) {
      root = element
      if (process.env.NODE_ENV !== 'production') {
        checkRootConstraints(root)
      }
    }

    if (!unary) {
      currentParent = element
      stack.push(element)
    } else {
      closeElement(element)
    }
  },

  end (tag, start, end) {
    const element = stack[stack.length - 1]
    // pop stack
    stack.length -= 1
    currentParent = stack[stack.length - 1]
    if (process.env.NODE_ENV !== 'production' && options.outputSourceRange) {
      element.end = end
    }
    closeElement(element)
  },

  chars (text: string, start: number, end: number) {
    if (!currentParent) {
      if (process.env.NODE_ENV !== 'production') {
        if (text === template) {
          warnOnce(
            'Component template requires a root element, rather than just text.',
            { start }
          )
        } else if ((text = text.trim())) {
          warnOnce(
            `text "${text}" outside root element will be ignored.`,
            { start }
          )
        }
      }
      return
    }
    // IE textarea placeholder bug
    /* istanbul ignore if */
    if (isIE &&
      currentParent.tag === 'textarea' &&
      currentParent.attrsMap.placeholder === text
    ) {
      return
    }
    const children = currentParent.children
    if (inPre || text.trim()) {
      text = isTextTag(currentParent) ? text : decodeHTMLCached(text)
    } else if (!children.length) {
      // remove the whitespace-only node right after an opening tag
      text = ''
    } else if (whitespaceOption) {
      if (whitespaceOption === 'condense') {
        // in condense mode, remove the whitespace node if it contains
        // line break, otherwise condense to a single space
        text = lineBreakRE.test(text) ? '' : ' '
      } else {
        text = ' '
      }
    } else {
      text = preserveWhitespace ? ' ' : ''
    }
    if (text) {
      if (!inPre && whitespaceOption === 'condense') {
        // condense consecutive whitespaces into single space
        text = text.replace(whitespaceRE, ' ')
      }
      let res
      let child: ?ASTNode
      if (!inVPre && text !== ' ' && (res = parseText(text, delimiters))) {
        child = {
          type: 2,
          expression: res.expression,
          tokens: res.tokens,
          text
        }
      } else if (text !== ' ' || !children.length || children[children.length - 1].text !== ' ') {
        child = {
          type: 3,
          text
        }
      }
      if (child) {
        if (process.env.NODE_ENV !== 'production' && options.outputSourceRange) {
          child.start = start
          child.end = end
        }
        children.push(child)
      }
    }
  },
  comment (text: string, start, end) {
    // adding anything as a sibling to the root node is forbidden
    // comments should still be allowed, but ignored
    if (currentParent) {
      const child: ASTText = {
        type: 3,
        text,
        isComment: true
      }
      if (process.env.NODE_ENV !== 'production' && options.outputSourceRange) {
        child.start = start
        child.end = end
      }
      currentParent.children.push(child)
    }
  }
})

第二步：优化optimize

path: src/compiler/optimizer.js

优化器的作用是在AST中找出静态子树并打上标记。静态子树是在AST中永远不变的节点，如纯文本节点。

标记静态子树的好处：

• 每次重新渲染，不需要为静态子树创建新节点
• 虚拟DOM中patch时，可以跳过静态子树

export function optimize (root: ?ASTElement, options: CompilerOptions) {
  if (!root) return
  isStaticKey = genStaticKeysCached(options.staticKeys || '')
  isPlatformReservedTag = options.isReservedTag || no
  // first pass: mark all non-static nodes.
  // 标记静态节点
  markStatic(root)
  // second pass: mark static roots.
  // 标记静态根节点
  markStaticRoots(root, false)
}

在patchVnode中对静态节点的判断

// 静态节点判断
if (isTrue(vnode.isStatic) &&
  isTrue(oldVnode.isStatic) &&
  vnode.key === oldVnode.key &&
  (isTrue(vnode.isCloned) || isTrue(vnode.isOnce))
) {
  vnode.componentInstance = oldVnode.componentInstance
  return
}

第三步：代码生成generate

path: src/compiler/codegen/index.js

export function generate (
  ast: ASTElement | void,
  options: CompilerOptions
): CodegenResult {
  const state = new CodegenState(options)
  const code = ast ? genElement(ast, state) : '_c("div")'
  return {
    render: `with(this){return ${code}}`,
    staticRenderFns: state.staticRenderFns
  }
}

生成的code形如：

`_c('div',{attrs:{"id":"demo"}},[
_c('h1',[_v("Vue.js测试")]),
_c('p',[_v(_s(foo))])
])`

典型指令的实现：v-if、v-for

• v-if：

在parse的时候执行processIf

function processIf (el) {
  const exp = getAndRemoveAttr(el, 'v-if')
  if (exp) {
    el.if = exp
    addIfCondition(el, {
      exp: exp,
      block: el
    })
  } else {
    if (getAndRemoveAttr(el, 'v-else') != null) {
      el.else = true
    }
    const elseif = getAndRemoveAttr(el, 'v-else-if')
    if (elseif) {
      el.elseif = elseif
    }
  }
}

addIfCondition会把condition绑定在el的ifConditions属性上

export function addIfCondition (el: ASTElement, condition: ASTIfCondition) {
  if (!el.ifConditions) {
    el.ifConditions = []
  }
  el.ifConditions.push(condition)
}

在generate的genElement时，通过genIf将其代码转化为字符串

export function genIf (
  el: any,
  state: CodegenState,
  altGen?: Function,
  altEmpty?: string
): string {
  el.ifProcessed = true // avoid recursion
  return genIfConditions(el.ifConditions.slice(), state, altGen, altEmpty)
}

function genIfConditions (
  conditions: ASTIfConditions,
  state: CodegenState,
  altGen?: Function,
  altEmpty?: string
): string {
  if (!conditions.length) {
    return altEmpty || '_e()'
  }

  const condition = conditions.shift()
  if (condition.exp) {
    return `(${condition.exp})?${
      genTernaryExp(condition.block)
    }:${
      genIfConditions(conditions, state, altGen, altEmpty)
    }`
  } else {
    return `${genTernaryExp(condition.block)}`
  }

  // v-if with v-once should generate code like (a)?_m(0):_m(1)
  function genTernaryExp (el) {
    return altGen
      ? altGen(el, state)
      : el.once
        ? genOnce(el, state)
        : genElement(el, state)
  }
}

最终结果形如：

"with(this){return _c('div',{attrs:{"id":"demo"}},[
(foo) ? _c('h1',[_v(_s(foo))]) : _c('h1',[_v("no title")]),
_v(" "),_c('abc')],1)}"

• v-for：

通过parse解析，在el上绑定for和alias属性

export function processFor (el: ASTElement) {
  let exp
  if ((exp = getAndRemoveAttr(el, 'v-for'))) {
    const res = parseFor(exp)
    if (res) {
      extend(el, res)
    } else if (process.env.NODE_ENV !== 'production') {
      warn(
        `Invalid v-for expression: ${exp}`,
        el.rawAttrsMap['v-for']
      )
    }
  }
}

export function parseFor (exp: string): ?ForParseResult {
  const inMatch = exp.match(forAliasRE)
  if (!inMatch) return
  const res = {}
  res.for = inMatch[2].trim()
  const alias = inMatch[1].trim().replace(stripParensRE, '')
  const iteratorMatch = alias.match(forIteratorRE)
  if (iteratorMatch) {
    res.alias = alias.replace(forIteratorRE, '').trim()
    res.iterator1 = iteratorMatch[1].trim()
    if (iteratorMatch[2]) {
      res.iterator2 = iteratorMatch[2].trim()
    }
  } else {
    res.alias = alias
  }
  return res
}

在generate的genElement时，通过将其代码转化为字符串

export function genFor (
  el: any,
  state: CodegenState,
  altGen?: Function,
  altHelper?: string
): string {
  const exp = el.for
  const alias = el.alias
  const iterator1 = el.iterator1 ? `,${el.iterator1}` : ''
  const iterator2 = el.iterator2 ? `,${el.iterator2}` : ''

  if (process.env.NODE_ENV !== 'production' &&
    state.maybeComponent(el) &&
    el.tag !== 'slot' &&
    el.tag !== 'template' &&
    !el.key
  ) {
    state.warn(
      `<${el.tag} v-for="${alias} in ${exp}">: component lists rendered with ` +
      `v-for should have explicit keys. ` +
      `See https://vuejs.org/guide/list.html#key for more info.`,
      el.rawAttrsMap['v-for'],
      true /* tip */
    )
  }

  el.forProcessed = true // avoid recursion
  return `${altHelper || '_l'}((${exp}),` +
    `function(${alias}${iterator1}${iterator2}){` +
      `return ${(altGen || genElement)(el, state)}` +
    '})'
}

最终结果形如：

"with(this){return _c('div',{attrs:{"id":"demo"}},[_m(0),_v(" "),(foo)?_c('p',
[_v(_s(foo))]):_e(),_v(" "),
_l((arr),function(s){return _c('b',{key:s},[_v(_s(s))])})
,_v(" "),_c('comp')],2)}"

组件化机制

组件的注册

在initGlobalAPI时通过initAssetRegisters方法注册组件 path: src/core/global-api/assets.js

export function initAssetRegisters (Vue: GlobalAPI) {
  /**
   * Create asset registration methods.
   */
  ASSET_TYPES.forEach(type => {
    Vue[type] = function (
      id: string,
      definition: Function | Object
    ): Function | Object | void {
      if (!definition) {
        return this.options[type + 's'][id]
      } else {
        /* istanbul ignore if */
        if (process.env.NODE_ENV !== 'production' && type === 'component') {
          validateComponentName(id)
        }
        // def是对象
        if (type === 'component' && isPlainObject(definition)) {
          // 自定义组件的名字
          definition.name = definition.name || id
          // extend创建组件的构造函数，def变成构造函数
          definition = this.options._base.extend(definition)
        }
        if (type === 'directive' && typeof definition === 'function') {
          definition = { bind: definition, update: definition }
        }
        this.options[type + 's'][id] = definition
        return definition
      }
    }
  })
}

组件的创建

在render()函数里，调用了createElement函数，实现了节点的创建，_createElement实际执行VNode创建的函数，通过判断传入tag是否是非保留标签，来判定自定义组件createComponent去创建

path: src/core/vdom/create-element.js

export function createElement (
  context: Component,
  tag: any,
  data: any,
  children: any,
  normalizationType: any,
  alwaysNormalize: boolean
): VNode | Array<VNode> {
  if (Array.isArray(data) || isPrimitive(data)) {
    normalizationType = children
    children = data
    data = undefined
  }
  if (isTrue(alwaysNormalize)) {
    normalizationType = ALWAYS_NORMALIZE
  }
  return _createElement(context, tag, data, children, normalizationType)
}

export function _createElement (
  context: Component,
  tag?: string | Class<Component> | Function | Object,
  data?: VNodeData,
  children?: any,
  normalizationType?: number
): VNode | Array<VNode> {
  if (isDef(data) && isDef((data: any).__ob__)) {
    process.env.NODE_ENV !== 'production' && warn(
      `Avoid using observed data object as vnode data: ${JSON.stringify(data)}\n` +
      'Always create fresh vnode data objects in each render!',
      context
    )
    return createEmptyVNode()
  }
  // object syntax in v-bind
  if (isDef(data) && isDef(data.is)) {
    tag = data.is
  }
  if (!tag) {
    // in case of component :is set to falsy value
    return createEmptyVNode()
  }
  // warn against non-primitive key
  if (process.env.NODE_ENV !== 'production' &&
    isDef(data) && isDef(data.key) && !isPrimitive(data.key)
  ) {
    if (!__WEEX__ || !('@binding' in data.key)) {
      warn(
        'Avoid using non-primitive value as key, ' +
        'use string/number value instead.',
        context
      )
    }
  }
  // support single function children as default scoped slot
  if (Array.isArray(children) &&
    typeof children[0] === 'function'
  ) {
    data = data || {}
    data.scopedSlots = { default: children[0] }
    children.length = 0
  }
  if (normalizationType === ALWAYS_NORMALIZE) {
    children = normalizeChildren(children)
  } else if (normalizationType === SIMPLE_NORMALIZE) {
    children = simpleNormalizeChildren(children)
  }
  // 核心，根据标签名称做相应操作生成虚拟dom
  let vnode, ns
  if (typeof tag === 'string') {
    let Ctor
    ns = (context.$vnode && context.$vnode.ns) || config.getTagNamespace(tag)
    // 保留标签的情况
    if (config.isReservedTag(tag)) {
      // platform built-in elements
      if (process.env.NODE_ENV !== 'production' && isDef(data) && isDef(data.nativeOn)) {
        warn(
          `The .native modifier for v-on is only valid on components but it was used on <${tag}>.`,
          context
        )
      }
      vnode = new VNode(
        config.parsePlatformTagName(tag), data, children,
        undefined, undefined, context
      )
    } else if ((!data || !data.pre) && isDef(Ctor = resolveAsset(context.$options, 'components', tag))) {
      // 获取组件的构造函数，context是组件实例，vm.$options.component
      // component
      // 自定义组件的情况
      vnode = createComponent(Ctor, data, context, children, tag)
    } else {
      // unknown or unlisted namespaced elements
      // check at runtime because it may get assigned a namespace when its
      // parent normalizes children
      vnode = new VNode(
        tag, data, children,
        undefined, undefined, context
      )
    }
  } else {
    // direct component options / constructor
    vnode = createComponent(tag, data, context, children)
  }
  if (Array.isArray(vnode)) {
    return vnode
  } else if (isDef(vnode)) {
    if (isDef(ns)) applyNS(vnode, ns)
    if (isDef(data)) registerDeepBindings(data)
    return vnode
  } else {
    return createEmptyVNode()
  }
}

渲染虚拟dom时的createComponent

path: src/core/vdom/create-component.js

//创建自定义组件的地方
export function createComponent (
  Ctor: Class<Component> | Function | Object | void,
  data: ?VNodeData,
  context: Component,
  children: ?Array<VNode>,
  tag?: string
): VNode | Array<VNode> | void {
  if (isUndef(Ctor)) {
    return
  }

  const baseCtor = context.$options._base

  // plain options object: turn it into a constructor
  if (isObject(Ctor)) {
    Ctor = baseCtor.extend(Ctor)
  }

  // if at this stage it's not a constructor or an async component factory,
  // reject.
  if (typeof Ctor !== 'function') {
    if (process.env.NODE_ENV !== 'production') {
      warn(`Invalid Component definition: ${String(Ctor)}`, context)
    }
    return
  }

  // async component
  let asyncFactory
  if (isUndef(Ctor.cid)) {
    asyncFactory = Ctor
    Ctor = resolveAsyncComponent(asyncFactory, baseCtor)
    if (Ctor === undefined) {
      // return a placeholder node for async component, which is rendered
      // as a comment node but preserves all the raw information for the node.
      // the information will be used for async server-rendering and hydration.
      return createAsyncPlaceholder(
        asyncFactory,
        data,
        context,
        children,
        tag
      )
    }
  }

  //处理数据
  data = data || {}

  // resolve constructor options in case global mixins are applied after
  // component constructor creation
  resolveConstructorOptions(Ctor)

  // transform component v-model data into props & events
  // v-model 数据双向绑定
  if (isDef(data.model)) {
    transformModel(Ctor.options, data)
  }

  // extract props
  const propsData = extractPropsFromVNodeData(data, Ctor, tag)

  // functional component
  if (isTrue(Ctor.options.functional)) {
    return createFunctionalComponent(Ctor, propsData, data, context, children)
  }

  // extract listeners, since these needs to be treated as
  // child component listeners instead of DOM listeners
  const listeners = data.on
  // replace with listeners with .native modifier
  // so it gets processed during parent component patch.
  data.on = data.nativeOn

  if (isTrue(Ctor.options.abstract)) {
    // abstract components do not keep anything
    // other than props & listeners & slot

    // work around flow
    const slot = data.slot
    data = {}
    if (slot) {
      data.slot = slot
    }
  }

  // install component management hooks onto the placeholder node
  // 安装自定义组件管理钩子，比如初始化钩子init等
  installComponentHooks(data)

  // return a placeholder vnode
  const name = Ctor.options.name || tag
  const vnode = new VNode(
    `vue-component-${Ctor.cid}${name ? `-${name}` : ''}`,
    data, undefined, undefined, undefined, context,
    { Ctor, propsData, listeners, tag, children },
    asyncFactory
  )

  // Weex specific: invoke recycle-list optimized @render function for
  // extracting cell-slot template.
  // https://github.com/Hanks10100/weex-native-directive/tree/master/component
  /* istanbul ignore if */
  if (__WEEX__ && isRecyclableComponent(vnode)) {
    return renderRecyclableComponentTemplate(vnode)
  }

  return vnode
}

patch时的createComponent

render执行完成后，在update时，通过patch方法，最终走到createElm实现真实dom

$mount => render() => update() => patch => createElm =》 createComponent path: src/core/vdom/patch.js

// 把已经得到的vnode转换成真实dom
function createComponent (vnode, insertedVnodeQueue, parentElm, refElm) {
  let i = vnode.data
  if (isDef(i)) {
    const isReactivated = isDef(vnode.componentInstance) && i.keepAlive
    // 存在init则创建
    if (isDef(i = i.hook) && isDef(i = i.init)) {
      i(vnode, false /* hydrating */)
    }
    // after calling the init hook, if the vnode is a child component
    // it should've created a child instance and mounted it. the child
    // component also has set the placeholder vnode's elm.
    // in that case we can just return the element and be done.
    if (isDef(vnode.componentInstance)) {
      initComponent(vnode, insertedVnodeQueue)
      // dom 插入操作
      insert(parentElm, vnode.elm, refElm)
      if (isTrue(isReactivated)) {
        reactivateComponent(vnode, insertedVnodeQueue, parentElm, refElm)
      }
      return true
    }
  }
}

总结：

• 组件创建顺序自上而下
• 组件挂载顺序自下而上

事件处理机制

初始化阶段：

• 原生事件监听
• 自定义事件监听

原生事件监听

path: src/platforms/web/runtime/modules/events.js

• 事件也是作为属性做处理
• 整体流程：patch => createElm => invokeCreateHooks => hook.create => updateDOMListeners

function updateDOMListeners (oldVnode: VNodeWithData, vnode: VNodeWithData) {
  if (isUndef(oldVnode.data.on) && isUndef(vnode.data.on)) {
    return
  }
  const on = vnode.data.on || {}
  const oldOn = oldVnode.data.on || {}
  target = vnode.elm
  normalizeEvents(on)
  updateListeners(on, oldOn, add, remove, createOnceHandler, vnode.context)
  target = undefined
}

自定义事件监听

path: src/core/instance/events.js

• 整体流程：patch => createElm => createComponent => initComponent => invokeCreateHooks => hook.init => _init => initEvents

export function initEvents (vm: Component) {
  vm._events = Object.create(null)
  vm._hasHookEvent = false
  // init parent attached events
  // 自定义组件中真正做事件监听的是派发者自己，即子组件
  const listeners = vm.$options._parentListeners
  if (listeners) {
    updateComponentListeners(vm, listeners)
  }
}

path: src/core/instance/events.js

export function updateComponentListeners (
  vm: Component,
  listeners: Object,
  oldListeners: ?Object
) {
  target = vm
  updateListeners(listeners, oldListeners || {}, add, remove, createOnceHandler, vm)
  target = undefined
}

path: src/core/vdom/helpers/update-listeners.js

export function updateListeners (
  on: Object,
  oldOn: Object,
  add: Function,
  remove: Function,
  createOnceHandler: Function,
  vm: Component
) {
  let name, def, cur, old, event
  for (name in on) {
    def = cur = on[name]
    old = oldOn[name]
    event = normalizeEvent(name)
    /* istanbul ignore if */
    if (__WEEX__ && isPlainObject(def)) {
      cur = def.handler
      event.params = def.params
    }
    if (isUndef(cur)) {
      process.env.NODE_ENV !== 'production' && warn(
        `Invalid handler for event "${event.name}": got ` + String(cur),
        vm
      )
    } else if (isUndef(old)) {
      if (isUndef(cur.fns)) {
        cur = on[name] = createFnInvoker(cur, vm)
      }
      if (isTrue(event.once)) {
        cur = on[name] = createOnceHandler(event.name, cur, event.capture)
      }
      // 添加事件
      add(event.name, cur, event.capture, event.passive, event.params)
    } else if (cur !== old) {
      old.fns = cur
      on[name] = old
    }
  }
  for (name in oldOn) {
    if (isUndef(on[name])) {
      event = normalizeEvent(name)
      remove(event.name, oldOn[name], event.capture)
    }
  }
}

其他vue的事件

export function eventsMixin (Vue: Class<Component>) {
  const hookRE = /^hook:/
  Vue.prototype.$on = function (event: string | Array<string>, fn: Function): Component {
    const vm: Component = this
    if (Array.isArray(event)) {
      for (let i = 0, l = event.length; i < l; i++) {
        vm.$on(event[i], fn)
      }
    } else {
      // 某个事件，它的回调可能是一个数组
      (vm._events[event] || (vm._events[event] = [])).push(fn)
      // optimize hook:event cost by using a boolean flag marked at registration
      // instead of a hash lookup
      if (hookRE.test(event)) {
        vm._hasHookEvent = true
      }
    }
    return vm
  }

  Vue.prototype.$once = function (event: string, fn: Function): Component {
    const vm: Component = this
    // 高阶函数，执行一次就释放
    function on () {
      vm.$off(event, on)
      fn.apply(vm, arguments)
    }
    on.fn = fn
    vm.$on(event, on)
    return vm
  }

  Vue.prototype.$off = function (event?: string | Array<string>, fn?: Function): Component {
    const vm: Component = this
    // all
    // 没有参数的情况，清空所有事件
    if (!arguments.length) {
      vm._events = Object.create(null)
      return vm
    }
    // array of events
    if (Array.isArray(event)) {
      for (let i = 0, l = event.length; i < l; i++) {
        vm.$off(event[i], fn)
      }
      return vm
    }
    // specific event
    const cbs = vm._events[event]
    if (!cbs) {
      return vm
    }
    // 没有指定某个方法的具体回调，则清空该方法下的所有回调
    if (!fn) {
      vm._events[event] = null
      return vm
    }
    // specific handler
    // 指定了特定的回调函数，则只删除改回调
    let cb
    let i = cbs.length
    while (i--) {
      cb = cbs[i]
      if (cb === fn || cb.fn === fn) {
        cbs.splice(i, 1)
        break
      }
    }
    return vm
  }

  Vue.prototype.$emit = function (event: string): Component {
    const vm: Component = this
    if (process.env.NODE_ENV !== 'production') {
      const lowerCaseEvent = event.toLowerCase()
      if (lowerCaseEvent !== event && vm._events[lowerCaseEvent]) {
        tip(
          `Event "${lowerCaseEvent}" is emitted in component ` +
          `${formatComponentName(vm)} but the handler is registered for "${event}". ` +
          `Note that HTML attributes are case-insensitive and you cannot use ` +
          `v-on to listen to camelCase events when using in-DOM templates. ` +
          `You should probably use "${hyphenate(event)}" instead of "${event}".`
        )
      }
    }
    let cbs = vm._events[event]
    if (cbs) {
      cbs = cbs.length > 1 ? toArray(cbs) : cbs
      const args = toArray(arguments, 1)
      const info = `event handler for "${event}"`
      for (let i = 0, l = cbs.length; i < l; i++) {
        invokeWithErrorHandling(cbs[i], vm, args, vm, info)
      }
    }
    return vm
  }
}

hook事件

在vue中，hook可以当作一个事件，在vue源码中，被称为hookEvent

<Table @hook:update="handleUpdate"></Table>

path: src/core/instance/lifecycle.js

export function callHook (vm: Component, hook: string) {
  // #7573 disable dep collection when invoking lifecycle hooks
  pushTarget()
  const handlers = vm.$options[hook]
  const info = `${hook} hook`
  if (handlers) {
    for (let i = 0, j = handlers.length; i < j; i++) {
      invokeWithErrorHandling(handlers[i], vm, null, vm, info)
    }
  }
  // 若包含hook事件，则一并派发
  if (vm._hasHookEvent) {
    vm.$emit('hook:' + hook)
  }
  popTarget()
}

数据双向绑定实现机制

原生组件的双向绑定

function updateDOMProps (oldVnode: VNodeWithData, vnode: VNodeWithData) {
  if (isUndef(oldVnode.data.domProps) && isUndef(vnode.data.domProps)) {
    return
  }
  let key, cur
  const elm: any = vnode.elm
  const oldProps = oldVnode.data.domProps || {}
  let props = vnode.data.domProps || {}
  // clone observed objects, as the user probably wants to mutate it
  if (isDef(props.__ob__)) {
    props = vnode.data.domProps = extend({}, props)
  }

  for (key in oldProps) {
    if (!(key in props)) {
      elm[key] = ''
    }
  }

  for (key in props) {
    cur = props[key]
    // ignore children if the node has textContent or innerHTML,
    // as these will throw away existing DOM nodes and cause removal errors
    // on subsequent patches (#3360)
    if (key === 'textContent' || key === 'innerHTML') {
      if (vnode.children) vnode.children.length = 0
      if (cur === oldProps[key]) continue
      // #6601 work around Chrome version <= 55 bug where single textNode
      // replaced by innerHTML/textContent retains its parentNode property
      if (elm.childNodes.length === 1) {
        elm.removeChild(elm.childNodes[0])
      }
    }

    if (key === 'value' && elm.tagName !== 'PROGRESS') {
      // store value as _value as well since
      // non-string values will be stringified
      elm._value = cur
      // avoid resetting cursor position when value is the same
      const strCur = isUndef(cur) ? '' : String(cur)
      if (shouldUpdateValue(elm, strCur)) {
        elm.value = strCur
      }
    } else if (key === 'innerHTML' && isSVG(elm.tagName) && isUndef(elm.innerHTML)) {
      // IE doesn't support innerHTML for SVG elements
      svgContainer = svgContainer || document.createElement('div')
      svgContainer.innerHTML = `<svg>${cur}</svg>`
      const svg = svgContainer.firstChild
      while (elm.firstChild) {
        elm.removeChild(elm.firstChild)
      }
      while (svg.firstChild) {
        elm.appendChild(svg.firstChild)
      }
    } else if (
      // skip the update if old and new VDOM state is the same.
      // `value` is handled separately because the DOM value may be temporarily
      // out of sync with VDOM state due to focus, composition and modifiers.
      // This  #4521 by skipping the unnecessary `checked` update.
      cur !== oldProps[key]
    ) {
      // some property updates can throw
      // e.g. `value` on <progress> w/ non-finite value
      try {
        elm[key] = cur
      } catch (e) {}
    }
  }
}

自定义组件的双向绑定

path: src/core/vdom/create-component.js

// data中存在model选项时的操作
if (isDef(data.model)) {
  transformModel(Ctor.options, data)
}

function transformModel (options, data: any) {
  // 用户如果有自定义数据明晨或事件名称则使用用户的，否则默认为value，input
  const prop = (options.model && options.model.prop) || 'value'
  const event = (options.model && options.model.event) || 'input'
  ;(data.attrs || (data.attrs = {}))[prop] = data.model.value
  const on = data.on || (data.on = {})
  // 合并用户设置的监听事件
  const existing = on[event]
  const callback = data.model.callback
  if (isDef(existing)) {
    if (
      Array.isArray(existing)
        ? existing.indexOf(callback) === -1
        : existing !== callback
    ) {
      on[event] = [callback].concat(existing)
    }
  } else {
    on[event] = callback
  }
}

总结

最后，用一张流程图来系统描述一下vue从创建到更新的全过程。
