做个简单应用，大概就是这种结构
- index.html （简单的html）
- Dockerfile （docker镜像配置，主要是安装nginx）
- default.conf （nginx配置）
- deploy.yml （部署到k8s的规则）
index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>k8s app</title>
</head>
<body>
<h2>Hello</h2>
<p>我是k8s中的应用</p>
</body>
</html>
Dockerfile
FROM nginx:alpine
LABEL maintainer="Heartide Developers <heywalkerman@gmail.com>" version="1.0" license="MIT"
ADD default.conf /etc/nginx/conf.d/
COPY index.html /var/html/index.html
EXPOSE 80
default.conf
server {
listen 80;
listen [::]:80;
server_name _;
location / {
root /var/html;
index index.html index.htm;
}
error_page 400 403 404 500 501 502 503 504 = @errorPage;
location @errorPage {
add_header Content-Type 'text/html;charset=utf-8';
return 200 "# 页面错误";
}
}
在发布之前先在本地跑一遍
# 在项目目录下执行
$ docker build -t app .
Sending build context to Docker daemon 4.096kB
Step 1/5 : FROM nginx:alpine
alpine: Pulling from library/nginx
df20fa9351a1: Pull complete
3db268b1fe8f: Pull complete
f682f0660e7a: Pull complete
7eb0e8838bc0: Pull complete
e8bf1226cc17: Pull complete
Digest: sha256:a97eb9ecc708c8aa715ccfb5e9338f5456e4b65575daf304f108301f3b497314
Status: Downloaded newer image for nginx:alpine
---> 6f715d38cfe0
Step 2/5 : LABEL maintainer="Heartide Developers <heywalkerman@gmail.com>" version="1.0" license="MIT"
---> Running in f59aabaaf304
Removing intermediate container f59aabaaf304
---> 012f9b6f16a5
Step 3/5 : ADD default.conf /etc/nginx/conf.d/
---> 411644b457c6
Step 4/5 : COPY index.html /var/html/index.html
---> a7bb6d4c5ec2
Step 5/5 : EXPOSE 80
---> Running in 808126e5f6dc
Removing intermediate container 808126e5f6dc
---> 9f5c64d4aace
Successfully built 9f5c64d4aace
Successfully tagged app:latest
# 然后运行
$ docker run -d --name=app -p 8980:80 app
a4661d97a4d1fdcaf4e9e0efe4405d05ed4d87948f6d19609a51698b8f8b4d5e
# 浏览器访问 http://localhost:8980，如果正常显示内容，就说明镜像OK了

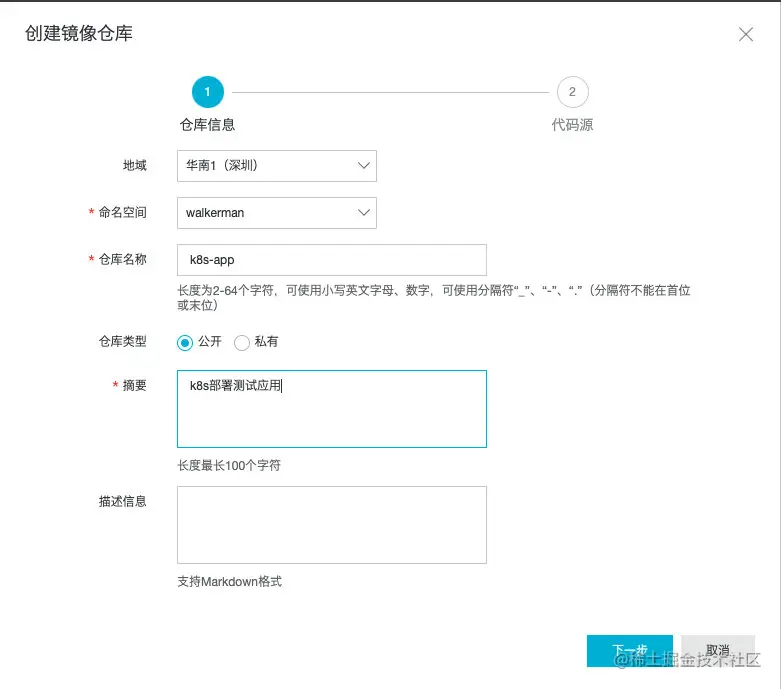

在阿里镜像仓库建个仓库
我设定的是“公开”，免去了docker拉取时要认证，这里是测试，就不考虑那么多了，如果是生产环境，请选择私有

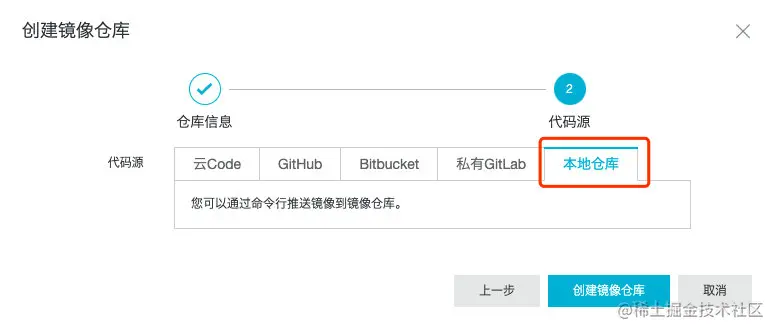

这里选择本地仓库，待会我是要把项目push上去，不需求CI/CD
在push到仓库前，处理下认证
# 登录
$ docker login --username=xxx registry.cn-shenzhen.aliyuncs.com
# 把刚才做好的镜像推上去
# 9f5c64d4aace 是镜像ID,可以 docker images 去查看
# latest 取最后的版本
# tag 重命名镜像名称
$ docker tag 9f5c64d4aace registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app:latest
# 查看下
$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
app latest 9f5c64d4aace 22 minutes ago 22.1MB
registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app latest 9f5c64d4aace 22 minutes ago 22.1MB
nginx alpine 6f715d38cfe0 12 days ago 22.1MB
# 然后push
$ docker push registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app:latest
The push refers to repository [registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app]
6f8cee086e17: Pushed
f7a312835304: Pushed
6ad8d562c843: Pushed
425ee8569962: Pushed
5d9ee84be1ec: Pushed
6bcd003260b2: Pushed
50644c29ef5a: Pushed
latest: digest: sha256:2fa50d4004061f976da0f73043fd11f45efed715a59fff57a856b9854eb89ee5 size: 1774
# 搞定

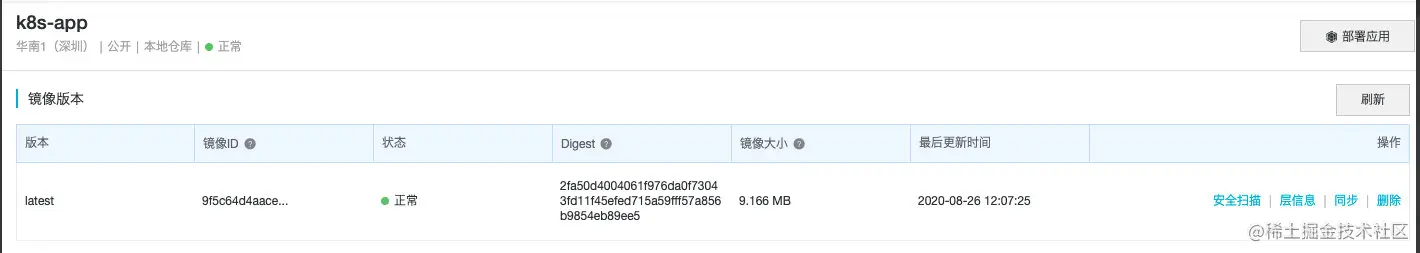

查看仓库
现在镜像也有了，开始定义k8s的部署配置 deploy.yml
master 节点上新建一个 deploy.yml 的文件，内容如下：
apiVersion: apps/v1 #
kind: Deployment # 类型为“部署”
metadata: # 名字啊，标签啊
name: k8s-app
labels:
app: k8s-app
spec:
replicas: 1 # 部署多少个，这里部署1个
selector:
matchLabels:
app: k8s-app
template:
metadata:
labels:
app: k8s-app
spec:
containers:
- name: k8s-app
image: registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app:latest # 这就是我们前面上传好的镜像地址,tag我指定的是latest
ports:
- containerPort: 80 # 容器暴露的端口
resources: # 使用的、限制的资源，各种cpu、内存
requests:
cpu: "1000m"
memory: "1Gi"
limits:
cpu: "2000m"
memory: "2Gi"
---
# 这一部分是services
apiVersion: v1
kind: Service # 类型为 service
metadata:
name: k8s-app-service
spec:
selector:
app: k8s-app # 这里跟容器的定义保持一致
type: NodePort #当前的类型是 NodePort ，后面我们会用到 Ingresss ，这里先不做更改，后面介绍到 Ingresss的时候会再配置
ports:
- name: web
port: 80
protocol: TCP
发布配置
$ kubectl apply -f deploy.yml
deployment.apps/k8s-app created
service/k8s-app-service created
# 看下执行情况
# 镜像很小，部署的很快
# k8s-app-5c8757d6dd-th9zt 看到这个容器已经是 Running 的状态，在 default 的命名空间中，然后当前运行在 kube-node-1 这台节点服务器上，flannel 给他分配的IP是 10.244.1.2
# 然后这个镜像会在哪里拉取呢？会在 kube-node-1 这台节点服务器上
$ kubectl get pods --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
default k8s-app-5c8757d6dd-th9zt 1/1 Running 0 9m8s 10.244.1.2 kube-node-1 <none> <none>
kube-system coredns-66bff467f8-9qlqm 1/1 Running 0 6h2m 10.244.0.3 kube-master <none> <none>
kube-system coredns-66bff467f8-l8ksl 1/1 Running 0 6h2m 10.244.0.2 kube-master <none> <none>
kube-system etcd-kube-master 1/1 Running 0 6h2m 10.0.0.3 kube-master <none> <none>
kube-system kube-apiserver-kube-master 1/1 Running 0 6h2m 10.0.0.3 kube-master <none> <none>
kube-system kube-controller-manager-kube-master 1/1 Running 0 6h2m 10.0.0.3 kube-master <none> <none>
kube-system kube-flannel-ds-amd64-6g7j2 1/1 Running 0 3h47m 10.0.0.5 kube-node-2 <none> <none>
kube-system kube-flannel-ds-amd64-d5vpn 1/1 Running 0 3h53m 10.0.0.4 kube-node-1 <none> <none>
kube-system kube-flannel-ds-amd64-vcmx9 1/1 Running 0 4h20m 10.0.0.3 kube-master <none> <none>
kube-system kube-proxy-l66h2 1/1 Running 0 3h47m 10.0.0.5 kube-node-2 <none> <none>
kube-system kube-proxy-p4vmz 1/1 Running 0 3h53m 10.0.0.4 kube-node-1 <none> <none>
kube-system kube-proxy-rg44d 1/1 Running 0 6h2m 10.0.0.3 kube-master <none> <none>
kube-system kube-scheduler-kube-master 1/1 Running 0 6h2m 10.0.0.3 kube-master <none> <none>
# 看下详情
$ kubectl describe pods k8s-app-5c8757d6dd-th9zt
Name: k8s-app-5c8757d6dd-th9zt
Namespace: default
Priority: 0
Node: kube-node-1/10.0.0.4
Start Time: Wed, 26 Aug 2020 14:26:18 +0800
Labels: app=k8s-app
pod-template-hash=5c8757d6dd
Annotations: <none>
Status: Running
IP: 10.244.1.2
IPs:
IP: 10.244.1.2
Controlled By: ReplicaSet/k8s-app-5c8757d6dd
Containers:
k8s-app:
Container ID: docker://d718fca68e732e056d77cf7244009d8f69ab2378aec5c98ac89b9c91cf272810
Image: registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app
Image ID: docker-pullable://registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app@sha256:2fa50d4004061f976da0f73043fd11f45efed715a59fff57a856b9854eb89ee5
Port: 80/TCP
Host Port: 0/TCP
State: Running
Started: Wed, 26 Aug 2020 14:26:22 +0800
Ready: True
Restart Count: 0
Limits:
cpu: 2
memory: 2Gi
Requests:
cpu: 1
memory: 1Gi
Environment: <none>
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from default-token-8zvv5 (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
default-token-8zvv5:
Type: Secret (a volume populated by a Secret)
SecretName: default-token-8zvv5
Optional: false
QoS Class: Burstable
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 8m7s default-scheduler Successfully assigned default/k8s-app-5c8757d6dd-th9zt to kube-node-1
Normal Pulling <invalid> kubelet, kube-node-1 Pulling image "registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app"
Normal Pulled <invalid> kubelet, kube-node-1 Successfully pulled image "registry.cn-shenzhen.aliyuncs.com/walkerman/k8s-app"
Normal Created <invalid> kubelet, kube-node-1 Created container k8s-app
Normal Started <invalid> kubelet, kube-node-1 Started container k8s-app
# 再看下serveices
# 新建了一个 k8s-app-service 的 service，类型是NodePort，看似好像没有问题
$ kubectl get service -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
k8s-app-service NodePort 10.105.32.4 <none> 80:32383/TCP 60s app=k8s-app
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 6h9m <none>
实际上很有问题，目前这个应用，前面说过了的，是部署在了 kube-node-1 这台节点服务器上，那我们怎么访问这个服务？
部署到这里，很多人说，这是集群，肯定是从 master 节点上访问，不完全是！
目前只能从应用所在的服务器上访问,现在注意 service 的属性里，k8s-app-service 生成的端口映射里，是 80:32383/TCP，所以现在访问服务，只能是 http://kube-node-1:32383
其实这并不是k8s的设计导致 的问题，正常情况下，只要在集群内的所有节点，任意节点的IP都能访问服务
问题出在虚拟机的网卡上！
看下网卡信息
# 第一篇我们设定了两个网卡，一个是NAT，一个是主机网络
# K8s的网络插件flannel默认使用了错误的网卡，他指向了NAT，也就是enp0s3
$ ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 08:00:27:71:07:fc brd ff:ff:ff:ff:ff:ff
inet 10.0.2.15/24 brd 10.0.2.255 scope global noprefixroute enp0s3
valid_lft forever preferred_lft forever
inet6 fe80::4563:d4f6:2f9a:da55/64 scope link noprefixroute
valid_lft forever preferred_lft forever
3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 08:00:27:60:bf:b8 brd ff:ff:ff:ff:ff:ff
inet 10.0.0.3/24 brd 10.0.0.255 scope global noprefixroute enp0s8
valid_lft forever preferred_lft forever
inet6 fe80::f3f2:bff0:8aa1:cd36/64 scope link noprefixroute
valid_lft forever preferred_lft forever
4: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:15:6d:18:38 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
5: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default
link/ether ae:ec:e9:1c:0b:87 brd ff:ff:ff:ff:ff:ff
inet 10.244.0.0/32 scope global flannel.1
valid_lft forever preferred_lft forever
inet6 fe80::acec:e9ff:fe1c:b87/64 scope link
valid_lft forever preferred_lft forever
6: cni0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
link/ether 82:77:41:8f:13:52 brd ff:ff:ff:ff:ff:ff
inet 10.244.0.1/24 brd 10.244.0.255 scope global cni0
valid_lft forever preferred_lft forever
inet6 fe80::8077:41ff:fe8f:1352/64 scope link
valid_lft forever preferred_lft forever
7: veth029d217a@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue master cni0 state UP group default
link/ether a2:7a:f2:8f:35:1d brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::a07a:f2ff:fe8f:351d/64 scope link
valid_lft forever preferred_lft forever
8: veth940bf9d9@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue master cni0 state UP group default
link/ether 8e:fe:d3:6d:64:75 brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet6 fe80::8cfe:d3ff:fe6d:6475/64 scope link
valid_lft forever preferred_lft forever
重新修改下之前定义的 kube-flannel.yml 文件中的配置并发布
# 大概在 191行处，添加网卡指定的配置
args:
- --ip-masq
- --iface=enp0s8
- --kube-subnet-mgr
# 再次发布flannel配置
$ kubectl apply -f kube-flannel.yml
# 然后各个节点的 flannel 会逐个更新配置
$ kubectl get pods --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
default k8s-app-5c8757d6dd-nnkpc 1/1 Running 0 33m 10.244.2.2 kube-node-2 <none> <none>
kube-system coredns-66bff467f8-9qlqm 1/1 Running 0 6h42m 10.244.0.3 kube-master <none> <none>
kube-system coredns-66bff467f8-l8ksl 1/1 Running 0 6h42m 10.244.0.2 kube-master <none> <none>
kube-system etcd-kube-master 1/1 Running 0 6h42m 10.0.0.3 kube-master <none> <none>
kube-system kube-apiserver-kube-master 1/1 Running 0 6h42m 10.0.0.3 kube-master <none> <none>
kube-system kube-controller-manager-kube-master 1/1 Running 0 6h42m 10.0.0.3 kube-master <none> <none>
kube-system kube-flannel-ds-amd64-djkvk 1/1 Running 0 34s 10.0.0.4 kube-node-1 <none> <none>
kube-system kube-flannel-ds-amd64-ndwfs 1/1 Running 0 77s 10.0.0.5 kube-node-2 <none> <none>
kube-system kube-flannel-ds-amd64-vcmx9 0/1 Terminating 0 4h59m 10.0.0.3 kube-master <none> <none>
kube-system kube-proxy-l66h2 1/1 Running 0 4h27m 10.0.0.5 kube-node-2 <none> <none>
kube-system kube-proxy-p4vmz 1/1 Running 0 4h32m 10.0.0.4 kube-node-1 <none> <none>
kube-system kube-proxy-rg44d 1/1 Running 0 6h42m 10.0.0.3 kube-master <none> <none>
kube-system kube-scheduler-kube-master 1/1 Running 0 6h42m 10.0.0.3 kube-master <none> <none>
配置更新之后，集群中所有的节点都可以通过IP来进行访问，但这里还不能算是发布成功了，因为这里的 PORT 他是动态的，80:32383/TCP，80端口映射的32383，他是不固定的，要解决这一点，我们需要用到 Ingress

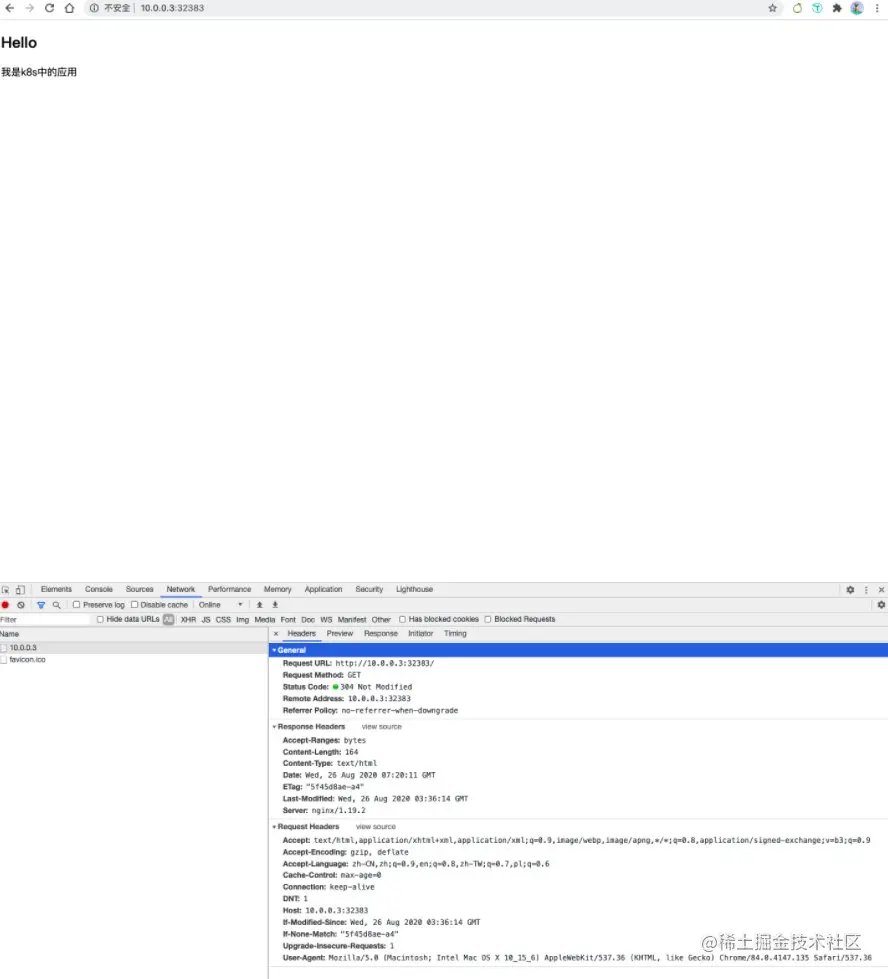

现在的效果：http://节点IP:端口
