优先队列的作用是能保证每次取出的元素都是队列中权值最小(最大)的。这里牵涉到了大小关系,元素大小的评判可以通过元素本身的自然顺序(natural ordering),也可以通过构造时传入的比较器。
PriorityQueue总体介绍
Java中PriorityQueue通过二叉堆实现,可以用一棵完全二叉树表示(任意一个非叶子节点的权值,都不大于其左右子节点的权值),也就意味着可以通过数组来作为PriorityQueue的底层实现,PriorityQueue通过一个Object数组来存储数据。PriorityQueue实现了Queue接口,不允许放入null
元素。
/**
* Priority queue represented as a balanced binary heap: the two
* children of queue[n] are queue[2*n+1] and queue[2*(n+1)]. The
* priority queue is ordered by comparator, or by the elements'
* natural ordering, if comparator is null: For each node n in the
* heap and each descendant d of n, n <= d. The element with the
* lowest value is in queue[0], assuming the queue is nonempty.
*/
transient Object[] queue; // non-private to simplify nested class access

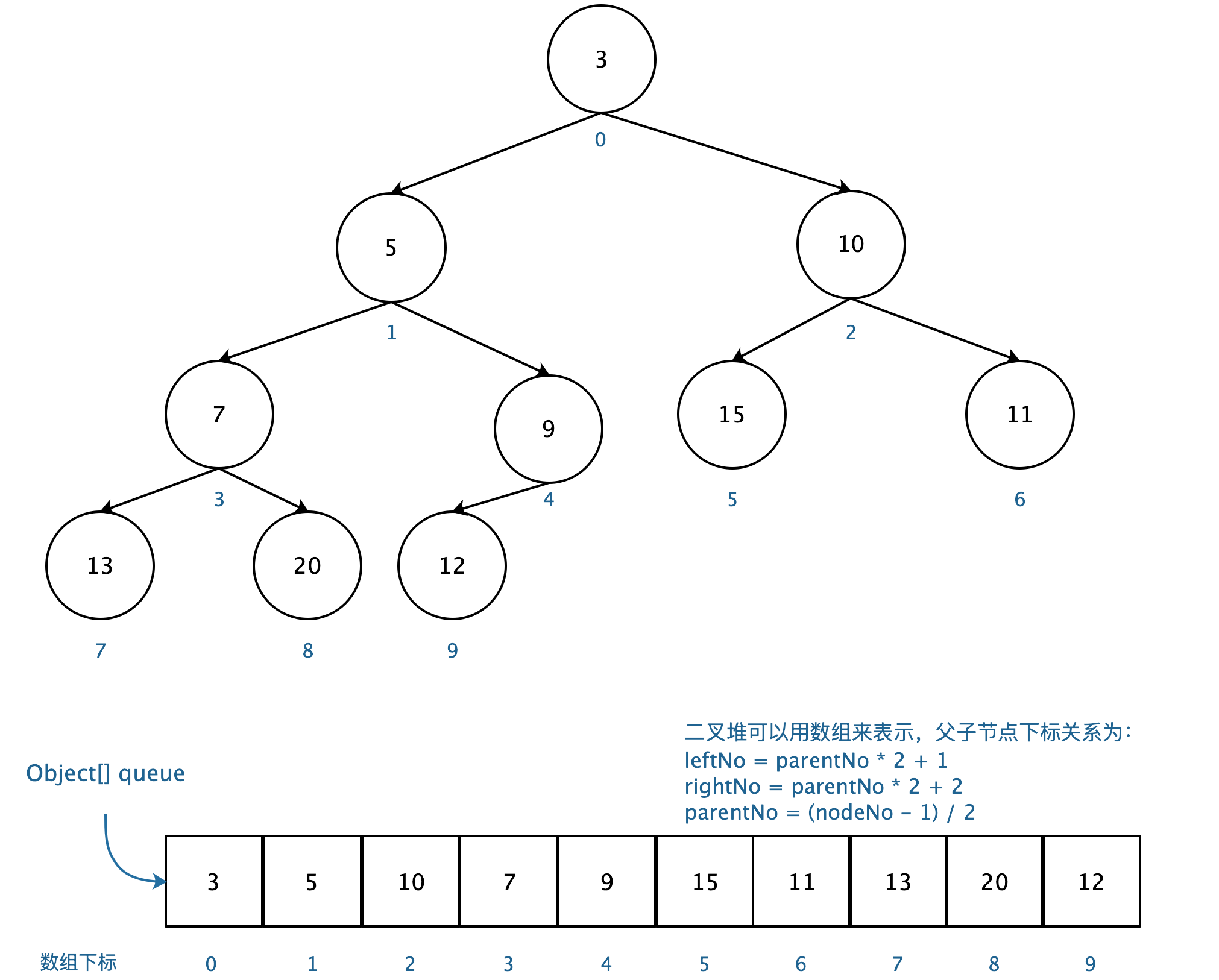

上图中我们给每个元素按照层序遍历的方式进行了编号,如果你足够细心,会发现父节点和子节点的编号是有联系的,更确切的说父子节点的编号之间有如下关系:
leftNo = parentNo*2+1
rightNo = parentNo*2+2
parentNo = (nodeNo-1)/2
通过上述三个公式,可以轻易计算出某个节点的父节点以及子节点的下标。这也就是为什么可以直接用数组来存储堆的原因。
PriorityQueue的peek()
和element
操作是常数时间,add()
, offer()
, 无参数的remove()
以及poll()
方法的时间复杂度都是log(N)。
方法剖析
add()和offer()
add(E e)
和offer(E e)
的语义相同,都是向优先队列中插入元素,只是Queue
接口规定二者对插入失败时的处理不同,前者在插入失败时抛出异常,后则则会返回false
。对于PriorityQueue这两个方法其实没什么差别。
新加入的元素可能会破坏小顶堆的性质,因此需要进行必要的调整。
public boolean offer(E e) {
if (e == null)
throw new NullPointerException();
modCount++;
int i = size;
if (i >= queue.length)
grow(i + 1)
size = i + 1;
if (i == 0)
queue[0] = e;
else
siftUp(i, e);
return true;
}
offer(E e)方法的代码中,扩容函数grow()
类似于ArrayList
里的grow()
函数,就是再申请一个更大的数组,并将原数组的元素复制过去。需要注意的是siftUp(int k, E x)
方法,该方法用于插入元素x
并维持堆的特性。
private void siftUp(int k, E x) {
if (comparator != null)
siftUpUsingComparator(k, x);
else
siftUpComparable(k, x);
}
private void siftUpUsingComparator(int k, E x) {
while (k > 0) {
int parent = (k - 1) >>> 1;
Object e = queue[parent];
if (comparator.compare(x, (E) e) >= 0)
break;
queue[k] = e;
k = parent;
}
queue[k] = x;
}
private void siftUpComparable(int k, E x) {
Comparable<? super E> key = (Comparable<? super E>) x;
while (k > 0) {
int parent = (k - 1) >>> 1;
Object e = queue[parent];
if (key.compareTo((E) e) >= 0)
break;
queue[k] = e;
k = parent;
}
queue[k] = key;
}

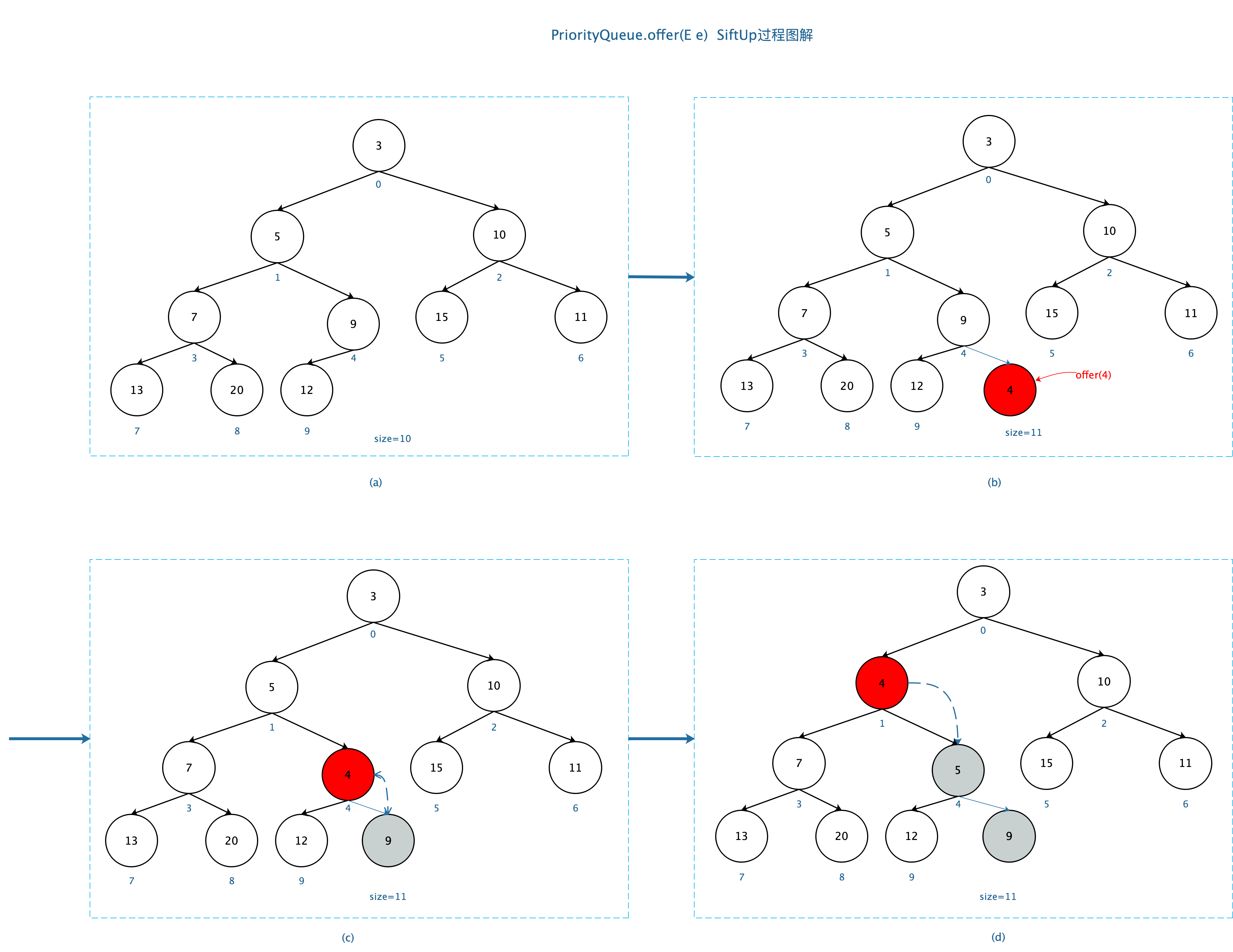

新加入的元素x
可能会破坏小顶堆的性质,因此需要进行调整。调整的过程为:从k
指定的位置开始,将x
逐层与当前点的parent
进行比较并交换,直到满足x >= queue[parent]
为止。注意这里的比较可以是元素的自然顺序,也可以是依靠比较器的顺序。
element()和peek()
element()
和peek()
的语义完全相同,都是获取但不删除队首元素,也就是队列中权值最小的那个元素,二者唯一的区别是当方法失败时前者抛出异常,后者返回null
。根据小顶堆的性质,堆顶那个元素就是全局最小的那个;由于堆用数组表示,根据下标关系,0
下标处的那个元素既是堆顶元素。所以直接返回数组0
下标处的那个元素即可。
peek()方法非常简单,直接返回堆顶元素:
public E peek() {
return (size == 0) ? null : (E) queue[0];
}
remove()和poll()
remove()
和poll()
方法的语义也完全相同,都是获取并删除队首元素,区别是当方法失败时前者抛出异常,后者返回null
。由于删除操作会改变队列的结构,为维护小顶堆的性质,需要进行必要的调整。

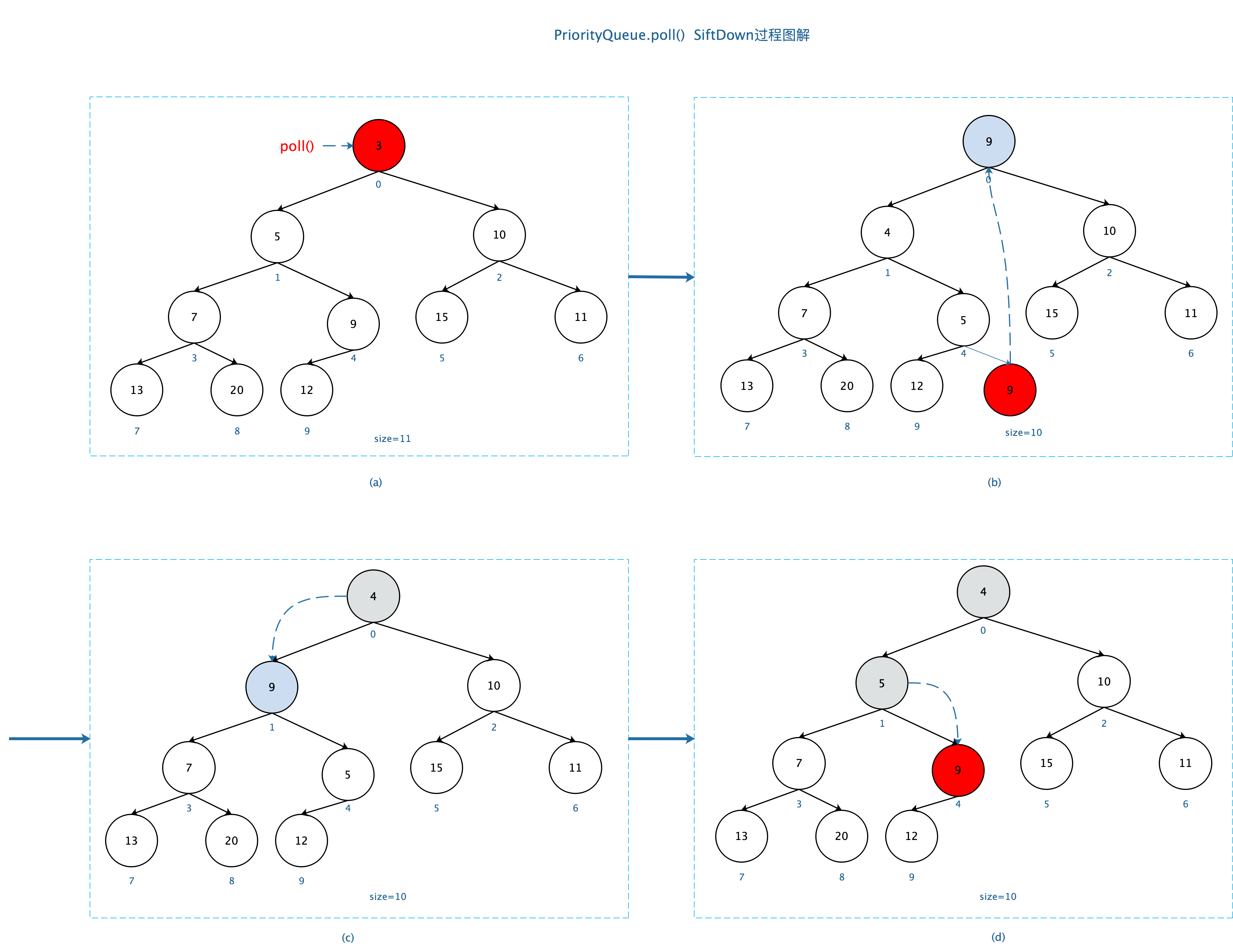

上述代码首先记录0
下标处的元素,并用最后一个元素替换0
下标位置的元素,之后调用siftDown()
方法对堆进行调整,最后返回原来0
下标处的那个元素(也就是最小的那个元素)。重点是siftDown(int k, E x)
方法,该方法的作用是从k
指定的位置开始,将x
逐层向下与当前点的左右孩子中较小的那个交换,直到x
小于或等于左右孩子中的任何一个为止。
public E poll() {
if (size == 0)
return null;
int s = --size;
modCount++;
E result = (E) queue[0];
E x = (E) queue[s];
queue[s] = null;
if (s != 0)
siftDown(0, x);
return result;
}
private void siftDown(int k, E x) {
if (comparator != null)
siftDownUsingComparator(k, x);
else
siftDownComparable(k, x);
}
private void siftDownUsingComparator(int k, E x) {
int half = size >>> 1;
while (k < half) {
int child = (k << 1) + 1;
Object c = queue[child];
int right = child + 1;
if (right < size &&
comparator.compare((E) c, (E) queue[right]) > 0)
c = queue[child = right];
if (comparator.compare(x, (E) c) <= 0)
break;
queue[k] = c;
k = child;
}
queue[k] = x;
}
private void siftDownComparable(int k, E x) {
Comparable<? super E> key = (Comparable<? super E>)x;
int half = size >>> 1; // loop while a non-leaf
while (k < half) {
int child = (k << 1) + 1; // assume left child is least
Object c = queue[child];
int right = child + 1;
if (right < size &&
((Comparable<? super E>) c).compareTo((E) queue[right]) > 0)
c = queue[child = right];
if (key.compareTo((E) c) <= 0)
break;
queue[k] = c;
k = child;
}
queue[k] = key;
}
remove(Object o)
remove(Object o)
方法用于删除队列中跟o
相等的某一个元素(如果有多个相等,只删除一个),该方法不是
接口内的方法,而是
接口的方法。由于删除操作会改变队列结构,所以要进行调整;又由于删除元素的位置可能是任意的,所以调整过程比其它函数稍加繁琐。

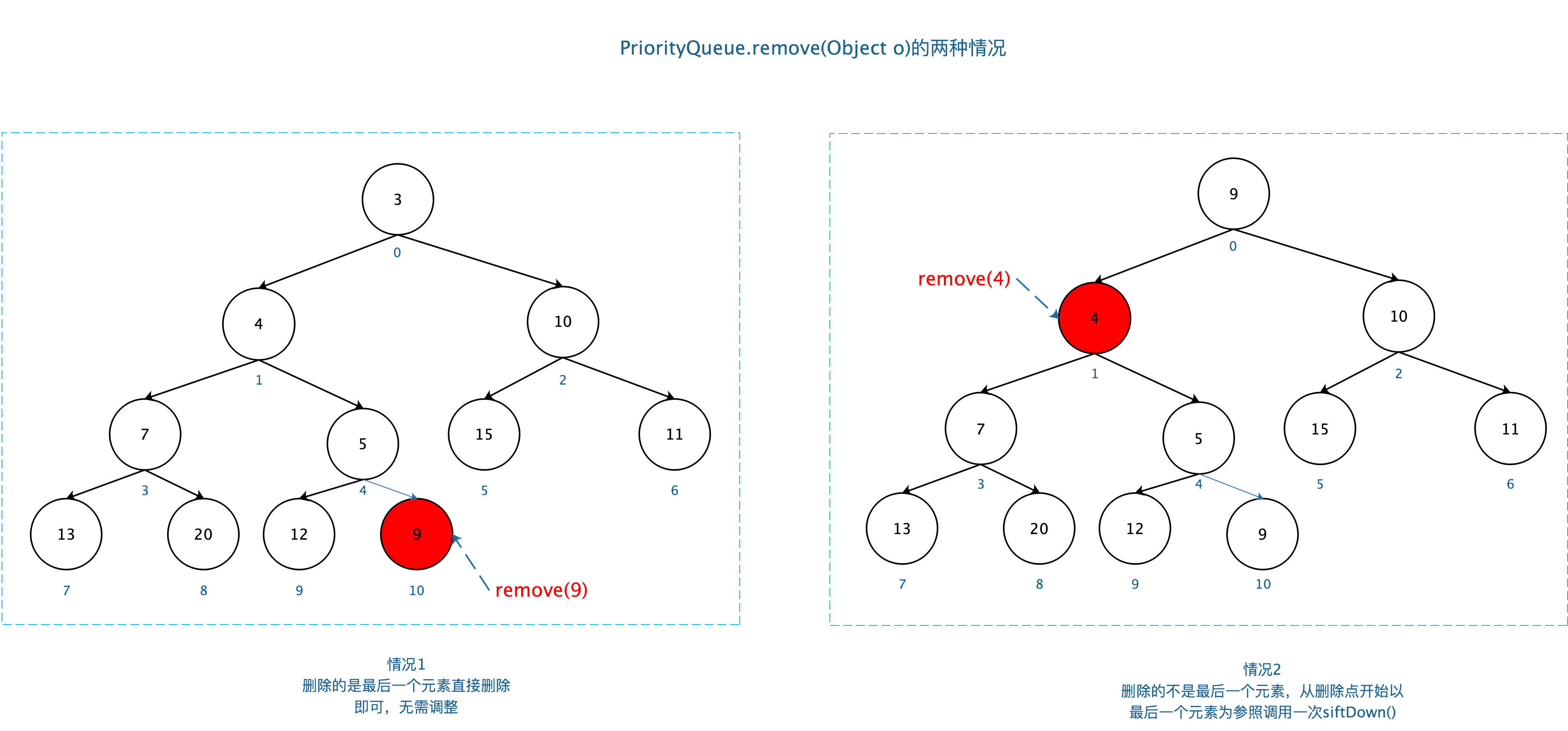

具体来说,remove(Object o)
可以分为2种情况:
- 删除的是最后一个元素。直接删除即可,不需要调整。
- 删除的不是最后一个元素,从删除点开始以最后一个元素为参照调用一次
siftDown()
即可。
