一、UI界面版

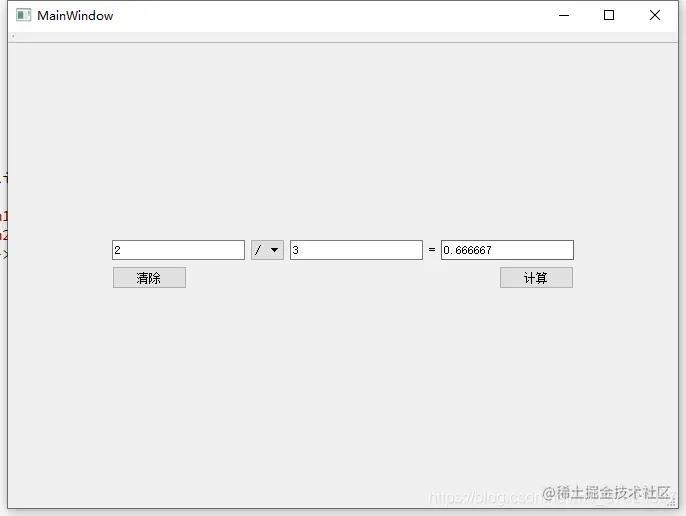

运行效果：输入num1和num2选择+-*/点击计算即可

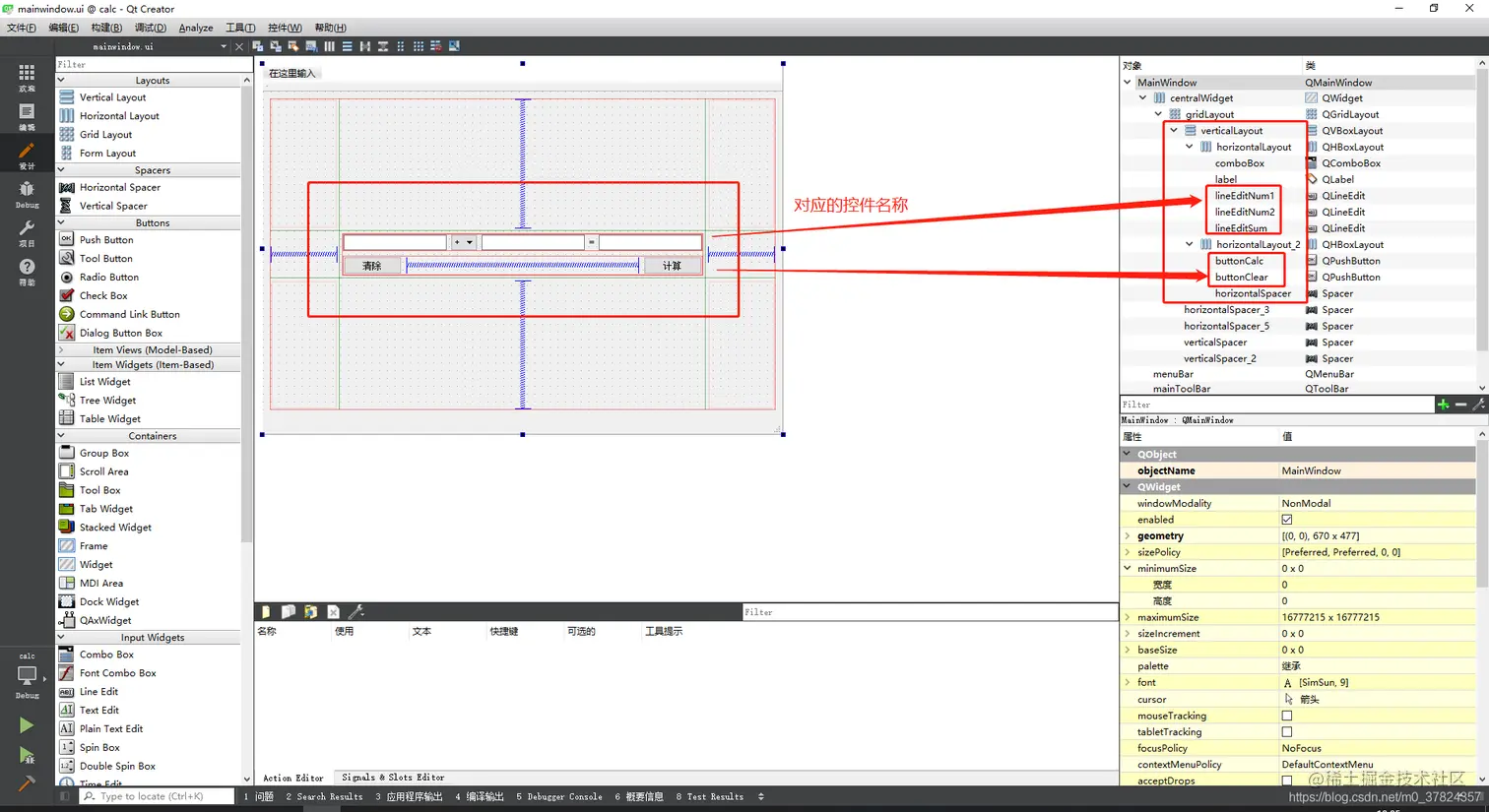

UI界面设计：
3个lineEdit（lineEditNum1，lineEditNum2，lineEditSum）
2个PushButton（buttonClear，ButtonCalc）
1个comboBox
1个label
布局：
3个lineEdit和1个comboBox、1个label水平布局
2个PushButton和一个弹簧水平布局
最后整体布局即可
main.cpp
#include "mainwindow.h" #include <QApplication> int main(int argc, char *argv[]) { QApplication a(argc, argv); MainWindow w; w.show(); return a.exec(); }
mainwindow.cpp
#include "mainwindow.h" #include "ui_mainwindow.h" #include <QDebug> #include <QMessageBox> MainWindow::MainWindow(QWidget *parent) : QMainWindow(parent), ui(new Ui::MainWindow) { ui->setupUi(this); } MainWindow::~MainWindow() { delete ui; } void MainWindow::on_buttonCalc_clicked() { double num1 = ui->lineEditNum1->text().toDouble();//获取num1的值 double num2 = ui->lineEditNum2->text().toDouble();//获取num2的值 uint8_t index = ui->comboBox->currentIndex(); //获取下拉框的下标0 +, 1 - ,2 *, 3 / double result = 0.0; switch (index) { case 0: result = num1 + num2; break; case 1: result = num1 - num2; break; case 2: result = num1 * num2; break; case 3: if(num2 == 0) { QMessageBox::about(this,"注意","除数不能为0"); return; } result = num1 / num2; break; default: break; } ui->lineEditSum->setText(QString::number(result)); } void MainWindow::on_buttonClear_clicked() { ui->lineEditNum1->clear(); ui->lineEditNum2->clear(); ui->lineEditSum->clear(); }
mainwindow.h
#ifndef MAINWINDOW_H #define MAINWINDOW_H #include <QMainWindow> namespace Ui { class MainWindow; } class MainWindow : public QMainWindow { Q_OBJECT public: explicit MainWindow(QWidget *parent = 0); ~MainWindow(); private slots: void on_buttonCalc_clicked();//计算结果槽函数 void on_buttonClear_clicked();//清除输入框槽函数 private: Ui::MainWindow *ui; }; #endif // MAINWINDOW_H

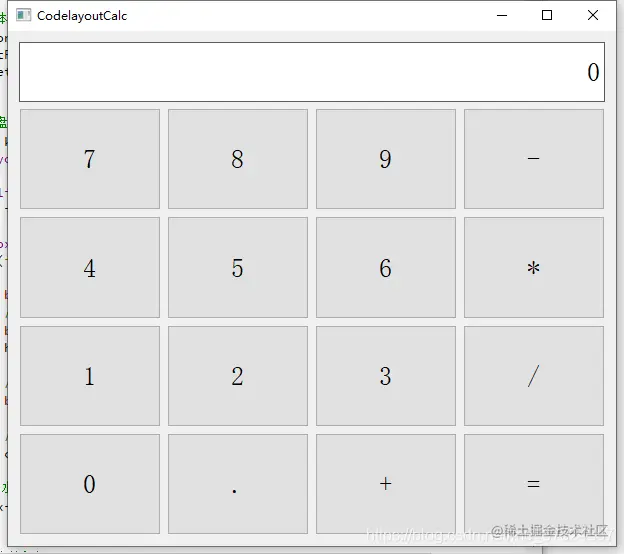

二、纯代码版
注：只能两个数单独加减乘除，不能连续运算，按‘ = ’重新开始两个数运算
main.cpp
#include "calc.h" #include <QApplication> int main(int argc, char *argv[]) { QApplication a(argc, argv); Calc w; w.show(); return a.exec(); }
calc.cpp
#include "calc.h" #include <QHBoxLayout> #include <QVBoxLayout> #include <QLineEdit> #include <QSizePolicy> #include <QDebug> Calc::Calc(QWidget *parent) : QWidget(parent) { //获取字体QFont QFont font = this->font(); font.setPixelSize(30); this->setFont(font); //保存键盘值 QString keys="789-456*123/0.+="; QVBoxLayout *vbox = new QVBoxLayout(); QSizePolicy qsPolicy(QSizePolicy::Expanding, QSizePolicy::Expanding); for(int i=0; i<4; i++) { QHBoxLayout *hbox = new QHBoxLayout(); for(int j=0; j<4; j++) { buttons[i*4+j] = new QToolButton(this); //设置文本 buttons[i*4+j]->setText(keys.mid(i*4+j, 1)); hbox->addWidget(buttons[i*4+j]); //策略设置 buttons[i*4+j]->setSizePolicy(qsPolicy); //把按钮触发信号关联槽函数 connect(buttons[i*4+j], SIGNAL(clicked(bool)),this, SLOT(buttons_chick())); } //把水平布局管理器添加到垂直布局管理器中 vbox->addLayout(hbox); } //创建一个输入框 edit = new QLineEdit(this); edit->setSizePolicy(qsPolicy); edit->setMaximumHeight(60); edit->setAlignment(Qt::AlignRight); QVBoxLayout *allVbox = new QVBoxLayout(this); allVbox->addWidget(edit); allVbox->addLayout(vbox); //初始化 firstNumber.clear(); secondNumber.clear(); calcflag = 0; } Calc::~Calc() { } void Calc::input_data(QString str) { if(calcflag == 0) { firstNumber.append(str); edit->setText(firstNumber); }else { secondNumber.append(str); edit->setText(secondNumber); } } void Calc::buttons_chick() { //通过信号发送者获取按钮对象 QToolButton *button = (QToolButton*)sender(); //qDebug() QString str = button->text(); QString datastr = ".0123456789"; QStringList typestr; typestr<<"+"<<"-"<<"*"<<"/"; if(datastr.indexOf(str) >= 0)//获取按键值 { input_data(str); //输入数据 }else if(typestr.indexOf(str)>=0) { calcflag = typestr.indexOf(str)+1;//获取运算符号type }else //= { double result = 0.0; switch (calcflag) { case 1: result = firstNumber.toDouble()+secondNumber.toDouble(); break; case 2: result = firstNumber.toDouble()-secondNumber.toDouble(); break; case 3: result = firstNumber.toDouble()*secondNumber.toDouble(); break; case 4: result = firstNumber.toDouble()/secondNumber.toDouble(); break; default: break; } edit->setText(QString::number(result)); calcflag = 0; firstNumber.clear(); secondNumber.clear(); } }
calc.h
#ifndef CALC_H #define CALC_H #include <QWidget> #include <QToolButton> #include <QLineEdit> class Calc : public QWidget { Q_OBJECT public: explicit Calc(QWidget *parent = 0); ~Calc(); void input_data(QString str); protected slots: void buttons_chick();//按键槽函数 private: QToolButton *buttons[16]; //按钮数组 QLineEdit *edit; //输入框 QString firstNumber; //记录输入第一个数值 QString secondNumber; //记录输入第一个数值 int calcflag; //1-add， 2-sub, 3-mul, 4-div }; #endif // CALC_H
