再次思考:从浏览器输入 URL 到页面展示过程的过程中发生了什么?

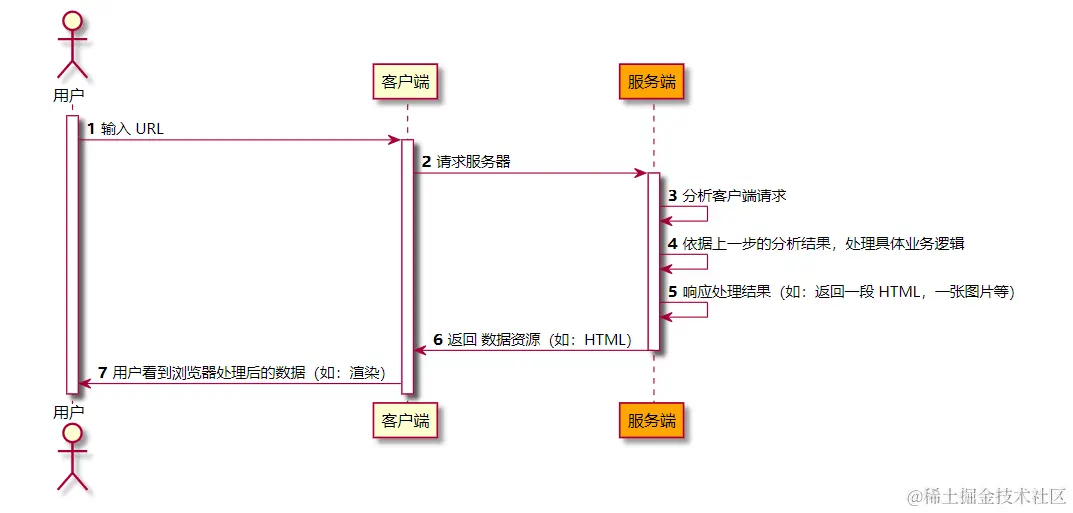

通过前面的基础学习,我们了解了基于 Web 的应用基本流程:
通过上图不难发现,无论具体应用功能如何变化, 服务端
处理任务核心三个步骤:③、④、⑤ 中,③ 和 ⑤ 的模式基本是固定的(因为HTTP协议规范了),而 ④ 是最大的变量。
如果我们每次开发一个新的应用都要把 ③ 和 ⑤ 的逻辑重新实现一遍就会特别的麻烦。所以,我们可以封装一个框架(库)把 ③ 和 ⑤ 的逻辑进行统一处理,然后通过某种方式,把 ④ 的处理暴露给框架使用者。
egg.js
nest.js
nodemon的局部安装与快捷键
// 局部安装 开发模式
npm i nodemon -D
// 快捷启动方式,package.json文件里scripts下配置快捷键名称
"scripts": {
"aaa": "nodemon app.js"
}
// 快捷启动
npm run aaa
Koa
资源:
官网:koajs.com/
- 基于 NodeJS 的 web 框架,致力于 web 应用和 API 开发。
- 由 Express 原班人马打造。
- 支持 async。
- 更小、更灵活、更优雅。
安装
当前最新 Koa 依赖 node v7.6.0+、ES2015+ 以及 async 的支持。
具体请关注官网说明(依赖会随着版本的变化而变化)。
// 创建一个package.json文件
npm init
npm init -y
// 安装 koa
npm i koa
// 或者
yarn add koa
核心
Koa
对 NodeJS
原生 IncomingMessage
和 ServerResponse
对象和解析响应通用流程进行了包装,并提供了几个核心类(对象)用于其它各种用户业务调用。
- Application 对象
- Context 对象
- Request 对象
- Response 对象
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.listen(8888);
Application 对象
该对象是 Koa
的核心对象,通过该对象来初始化并创建 WebServer
。
/**
* File: /node_modules/koa/lib/application.js
***/
constructor(options) {
super();
options = options || {};
this.proxy = options.proxy || false;
this.subdomainOffset = options.subdomainOffset || 2;
this.proxyIpHeader = options.proxyIpHeader || 'X-Forwarded-For';
this.maxIpsCount = options.maxIpsCount || 0;
this.env = options.env || process.env.NODE_ENV || 'development';
if (options.keys) this.keys = options.keys;
this.middleware = [];
this.context = Object.create(context);
this.request = Object.create(request);
this.response = Object.create(response);
if (util.inspect.custom) {
this[util.inspect.custom] = this.inspect;
}
}
构造函数对 Application
创建进行了一些初始化工作,暂时不需要关注这里的太多细节,后续关注。
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
listen 方法
WebServer
并不是在 Application
对象创建的时候就被创建的,而是在调用了 Application
下的 listen
方法的时候在创建。
/**
* File: /node_modules/koa/lib/application.js
***/
listen(...args) {
debug('listen');
const server = http.createServer(this.callback());
return server.listen(...args);
}
通过源码可以看到,其本质还是通过 NodeJS
内置的 http
模块的 createServer
方法创建的 Server
对象。并且把 this.callback()
执行后的结果(函数)作为后续请求的回调函数。
/**
* File: /node_modules/koa/lib/application.js
***/
callback() {
const fn = compose(this.middleware);
if (!this.listenerCount('error')) this.on('error', this.onerror);
const handleRequest = (req, res) => {
const ctx = this.createContext(req, res);
return this.handleRequest(ctx, fn);
};
return handleRequest;
}
通过上述代码的分析,实际上请求执行的回调函数式 callback
返回的 handleRequest
函数,且该函数接收的 req
和 res
参数就是 NodeJS
中 HTTP
模块内置的两个对象 IncomingMessage
和 ServerResponse
对象。其中:
const ctx = this.createContext(req, res);
这里, Koa
会调用 Application
对象下的 createContext
方法对 req
和 res
进行包装,生成 Koa
另外一个核心对象: Context
对象 - 后续分析。
return this.handleRequest(ctx, fn);
接着调用 Application
对象下的 handleRequest
方法进行请求处理,并传入:
- ctx: 前面提到的
Context
对象。 - fn: 这个实际上是
const fn = compose(this.middleware);
这段代码得到的是一个执行函数,这里又称为:中间件函数
。
中间件函数
所谓的中间件函数,其实就是一开始我们提到的 ④,首先, Application
对象中会提供一个属性 this.middleware = [];
,它是一个数组,用来存储 ④ 需要处理的各种业务函数。这些业务函数会通过 Application
下的 use
方法进行注册(类似事件注册)。
为什么叫中间件
因为它是在 请求
之后, 响应
之前调用的函数,所以就叫它 中间件函数
。
响应流程处理
通过上述流程分析,可以看到,每一个请求都会执行到 Application
对象下的 handleRequest
方法。
/**
* File: /node_modules/koa/lib/application.js
***/
handleRequest(ctx, fnMiddleware) {
const res = ctx.res;
res.statusCode = 404;
const onerror = err => ctx.onerror(err);
const handleResponse = () => respond(ctx);
onFinished(res, onerror);
return fnMiddleware(ctx).then(handleResponse).catch(onerror);
}
这里的 fnMiddleware
就是一系列中间件函数执行后结果(一个 Promise
对象),当所有中间件函数执行完成以后,会通过 then
调用 handleResponse
,也就是调用了 respond
这个方法。
响应处理
/**
* File: /node_modules/koa/lib/application.js
***/
function respond(ctx) {
// allow bypassing koa
if (false === ctx.respond) return;
if (!ctx.writable) return;
const res = ctx.res;
let body = ctx.body;
const code = ctx.status;
// ignore body
if (statuses.empty[code]) {
// strip headers
ctx.body = null;
return res.end();
}
if ('HEAD' === ctx.method) {
if (!res.headersSent && !ctx.response.has('Content-Length')) {
const { length } = ctx.response;
if (Number.isInteger(length)) ctx.length = length;
}
return res.end();
}
// status body
if (null == body) {
if (ctx.req.httpVersionMajor >= 2) {
body = String(code);
} else {
body = ctx.message || String(code);
}
if (!res.headersSent) {
ctx.type = 'text';
ctx.length = Buffer.byteLength(body);
}
return res.end(body);
}
// responses
if (Buffer.isBuffer(body)) return res.end(body);
if ('string' == typeof body) return res.end(body);
if (body instanceof Stream) return body.pipe(res);
// body: json
body = JSON.stringify(body);
if (!res.headersSent) {
ctx.length = Buffer.byteLength(body);
}
res.end(body);
}
上面这个函数就是 Koa
在处理完各种中间件函数以后,最后进行响应的逻辑。
Koa 的流程
中间件
首先, Application
对象通过一个数组来存储中间件:
/**
* File: lib/application.js
***/
constructor()
// ...
this.middleware = [];
// ...
}
注册中间件函数
其次,Application
对象提供了一个 use
方法来注册中间件函数:
/**
* File: lib/application.js
***/
use(fn) {
if (typeof fn !== 'function') throw new TypeError('middleware must be a function!');
if (isGeneratorFunction(fn)) {
deprecate('Support for generators will be removed in v3. ' +
'See the documentation for examples of how to convert old middleware ' +
'https://github.com/koajs/koa/blob/master/docs/migration.md');
fn = convert(fn);
}
debug('use %s', fn._name || fn.name || '-');
this.middleware.push(fn);
return this;
}
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use( (ctx) => {
ctx.body = 'Hello!';
} );
app.listen(8888);
中间件的执行
中间件的执行实际来源另外一个独立模块: koa-compose
提供的 compose
函数。
/**
* File: lib/application.js
***/
callback() {
const fn = compose(this.middleware);
// ...
}
/**
* Module: koa-compose
* File: index.js
***/
function compose (middleware) {
if (!Array.isArray(middleware)) throw new TypeError('Middleware stack must be an array!')
for (const fn of middleware) {
if (typeof fn !== 'function') throw new TypeError('Middleware must be composed of functions!')
}
/**
* @param {Object} context
* @return {Promise}
* @api public
*/
return function (context, next) {
// last called middleware #
let index = -1
return dispatch(0)
function dispatch (i) {
if (i <= index) return Promise.reject(new Error('next() called multiple times'))
index = i
let fn = middleware[i]
if (i === middleware.length) fn = next
if (!fn) return Promise.resolve()
try {
return Promise.resolve(fn(context, dispatch.bind(null, i + 1)));
} catch (err) {
return Promise.reject(err)
}
}
}
}
compose 函数
组合 - 把多个函数组合成一个函数执行。
上面这个 compose
函数核心就在:
Promise.resolve(fn(context, dispatch.bind(null, i + 1)));
它会在执行当前中间件函数的时候,把下一个中间件函数作为当前中间件函数的第二个参数传入(next)。这样就可以实现对多个中间件函数执行流程进行把控。
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async ctx => {
console.log('a');
});
app.use(async ctx => {
console.log('b');
});
app.use(async ctx => {
console.log('c');
});
app.use(async ctx => {
console.log('d');
});
app.listen(8888);
输出
a
我们会发现,当我们访问这个 WebServer
的时候,后端服务器上打印的只有 a
。这是因为当第一个中间件函数执行以后,后续的中间件是需要通过当前执行中间件函数的第二个参数去显式的调用才能执行的。
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
console.log('a');
next();
});
app.use(async (ctx, next) => {
console.log('b');
next();
});
app.use(async (ctx, next) => {
console.log('c');
next();
});
app.use(async (ctx, next) => {
console.log('d');
next();
});
app.listen(8888);
输出
a
b
c
d
通过以上的代码改造,我们会发现就实现了 a
、 b
、 c
、 d
的输出了。
因为函数调用的栈(LIFO - Last In First Out - 后进先出)特性,所以:
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
console.log('a - start');
next();
console.log('a - end');
});
app.use(async (ctx, next) => {
console.log('b - start');
next();
console.log('b - end');
});
app.use(async (ctx, next) => {
console.log('c - start');
next();
console.log('c - end');
});
app.use(async (ctx, next) => {
console.log('d - start');
next();
console.log('d - end');
});
app.listen(8888);
输出
a - start
b - start
c - start
d - start
d - end
c - end
b - end
a - end
我们给这种特性现象起了一个很形象的名字:
洋葱模型
好处
框架这么设计的好处在哪呢? - 扩展
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
// 这是我们开始的某个业务逻辑
ctx.body = 'hello';
});
app.listen(8888);
现在,我们希望在不改变原有中间件逻辑的基础上进行一些扩展,比如在现有 body
内容后面添加 ',kkb!'
这个字符串,我们就可以利用中间件特性来进行扩展了:
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
// 在不改变原有中间件逻辑代码基础上进行扩展
app.use(async (ctx, next) => {
// 注意这里,我们是要在原有中间件逻辑之后添加新的逻辑,所以先 调用 next。
next();
ctx.body += ', kkb!';
});
app.use(async (ctx, next) => {
// 这是我们开始的某个业务逻辑
ctx.body = 'hello';
});
app.listen(8888);
next 调用取决中间件的具体需求。放置在你想要调用的任何阶段。
异步的中间件
有的时候,我们的中间件逻辑中会包含一些异步任务:
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
// 在不改变原有中间件逻辑代码基础上进行扩展
app.use(async (ctx, next) => {
// 注意这里,我们是要在原有中间件逻辑之后添加新的逻辑,所以先 调用 next
next();
ctx.body += ', kkb!';
});
app.use(async (ctx, next) => {
setTimeout(() => {
ctx.body = 'hello';
}, 1000);
});
app.listen(8888);
我们会发现,还不等定时器执行, Koa
就已经返回(处理响应了)。我们需要把任务包装成 Promise
的:
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
// 在不改变原有中间件逻辑代码基础上进行扩展
app.use(async (ctx, next) => {
// 注意这里需要使用 await 来处理异步的任务
await next();
ctx.body += ', kkb!';
});
app.use(async (ctx, next) => {
// 返回一个 Promise
return new Promise((resolve, reject) => {
setTimeout(() => {
ctx.body = 'hello';
resolve();
}, 1000);
});
});
app.listen(8888);
输出(客户端-如:浏览器)
hello, kkb!
注意:这里需要注意中间件的注册顺序!
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
// 返回一个 Promise
return new Promise((resolve, reject) => {
setTimeout(() => {
ctx.body = 'hello';
resolve();
}, 1000);
});
});
// 在不改变原有中间件逻辑代码基础上进行扩展
app.use(async (ctx, next) => {
// 注意这里需要使用 await 来处理异步的任务
await next();
ctx.body += ', kkb!';
});
app.listen(8888);
输出(客户端-如:浏览器)
hello
Context 对象
Koa
的核心对象之一,它为 Koa
框架内部提供了重要的各种接口,同时也通过这个对象代理了 Application
、 Request
、 Response
对象的访问,简而言之,后续框架的提供的各种方法都是通过该对象来完成的。
/**
* File: lib/application.js
***/
constructor() {
// ...
this.context = Object.create(context);
// ...
}
context 对象
这里的 context
对象,来源于 lib/context.js
,提供一些基础方法,同时对 Request
和 Response
对象做了代理访问:
/**
* File: lib/context.js
***/
'use strict';
/**
* Module dependencies.
*/
const util = require('util');
const createError = require('http-errors');
const httpAssert = require('http-assert');
const delegate = require('delegates');
const statuses = require('statuses');
const Cookies = require('cookies');
const COOKIES = Symbol('context#cookies');
/**
* Context prototype.
*/
const proto = module.exports = {
/**
* util.inspect() implementation, which
* just returns the JSON output.
*
* @return {Object}
* @api public
*/
inspect() {
if (this === proto) return this;
return this.toJSON();
},
/**
* Return JSON representation.
*
* Here we explicitly invoke .toJSON() on each
* object, as iteration will otherwise fail due
* to the getters and cause utilities such as
* clone() to fail.
*
* @return {Object}
* @api public
*/
toJSON() {
return {
request: this.request.toJSON(),
response: this.response.toJSON(),
app: this.app.toJSON(),
originalUrl: this.originalUrl,
req: '<original node req>',
res: '<original node res>',
socket: '<original node socket>'
};
},
/**
* Similar to .throw(), adds assertion.
*
* this.assert(this.user, 401, 'Please login!');
*
* See: https://github.com/jshttp/http-assert
*
* @param {Mixed} test
* @param {Number} status
* @param {String} message
* @api public
*/
assert: httpAssert,
/**
* Throw an error with `status` (default 500) and
* `msg`. Note that these are user-level
* errors, and the message may be exposed to the client.
*
* this.throw(403)
* this.throw(400, 'name required')
* this.throw('something exploded')
* this.throw(new Error('invalid'))
* this.throw(400, new Error('invalid'))
*
* See: https://github.com/jshttp/http-errors
*
* Note: `status` should only be passed as the first parameter.
*
* @param {String|Number|Error} err, msg or status
* @param {String|Number|Error} [err, msg or status]
* @param {Object} [props]
* @api public
*/
throw(...args) {
throw createError(...args);
},
/**
* Default error handling.
*
* @param {Error} err
* @api private
*/
onerror(err) {
// don't do anything if there is no error.
// this allows you to pass `this.onerror`
// to node-style callbacks.
if (null == err) return;
if (!(err instanceof Error)) err = new Error(util.format('non-error thrown: %j', err));
let headerSent = false;
if (this.headerSent || !this.writable) {
headerSent = err.headerSent = true;
}
// delegate
this.app.emit('error', err, this);
// nothing we can do here other
// than delegate to the app-level
// handler and log.
if (headerSent) {
return;
}
const { res } = this;
// first unset all headers
/* istanbul ignore else */
if (typeof res.getHeaderNames === 'function') {
res.getHeaderNames().forEach(name => res.removeHeader(name));
} else {
res._headers = {}; // Node < 7.7
}
// then set those specified
this.set(err.headers);
// force text/plain
this.type = 'text';
// ENOENT support
if ('ENOENT' == err.code) err.status = 404;
// default to 500
if ('number' != typeof err.status || !statuses[err.status]) err.status = 500;
// respond
const code = statuses[err.status];
const msg = err.expose ? err.message : code;
this.status = err.status;
this.length = Buffer.byteLength(msg);
res.end(msg);
},
get cookies() {
if (!this[COOKIES]) {
this[COOKIES] = new Cookies(this.req, this.res, {
keys: this.app.keys,
secure: this.request.secure
});
}
return this[COOKIES];
},
set cookies(_cookies) {
this[COOKIES] = _cookies;
}
};
/**
* Custom inspection implementation for newer Node.js versions.
*
* @return {Object}
* @api public
*/
/* istanbul ignore else */
if (util.inspect.custom) {
module.exports[util.inspect.custom] = module.exports.inspect;
}
/**
* Response delegation.
*/
delegate(proto, 'response')
.method('attachment')
.method('redirect')
.method('remove')
.method('vary')
.method('has')
.method('set')
.method('append')
.method('flushHeaders')
.access('status')
.access('message')
.access('body')
.access('length')
.access('type')
.access('lastModified')
.access('etag')
.getter('headerSent')
.getter('writable');
/**
* Request delegation.
*/
delegate(proto, 'request')
.method('acceptsLanguages')
.method('acceptsEncodings')
.method('acceptsCharsets')
.method('accepts')
.method('get')
.method('is')
.access('querystring')
.access('idempotent')
.access('socket')
.access('search')
.access('method')
.access('query')
.access('path')
.access('url')
.access('accept')
.getter('origin')
.getter('href')
.getter('subdomains')
.getter('protocol')
.getter('host')
.getter('hostname')
.getter('URL')
.getter('header')
.getter('headers')
.getter('secure')
.getter('stale')
.getter('fresh')
.getter('ips')
.getter('ip');
context 对象的初始化
通过上面代码,我们可以看到,在 Application
对象初始化的时候,会创建一个 Context
对象,并挂载到 Application
的 context
属性下。同时在中间件执行的时候,还会对这个 context
进行包装,并把包装后的 context
对象作为中间件函数的第一个参数进行传入,所以我们就可以通过中间件函数的第一个参数来调用这个 context
对象了。
/**
* File: lib/application.js
***/
callback() {
// ...
const ctx = this.createContext(req, res);
return this.handleRequest(ctx, fn);
}
/**
* File: lib/application.js
***/
createContext(req, res) {
const context = Object.create(this.context);
const request = context.request = Object.create(this.request);
const response = context.response = Object.create(this.response);
context.app = request.app = response.app = this;
context.req = request.req = response.req = req;
context.res = request.res = response.res = res;
request.ctx = response.ctx = context;
request.response = response;
response.request = request;
context.originalUrl = request.originalUrl = req.url;
context.state = {};
return context;
}
ctx.state 属性
有的时候,我们需要在多个中间件中传递共享数据,虽然我们可以通过 context
对象进行挂载,但是这样会对 context
对象造成污染, context
对象为我们提供了一个专门用来共享这类用户数据的命名空间( context.state = {}
)。
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
ctx.state.user = {id: 1, name: 'zMouse'};
});
app.use(async (ctx, next) => {
ctx.body = `Hello, ${ctx.state.user.name}`;
});
app.listen(8888);
ctx.throw([status], [msg], [properties])
用来手动抛出一个包含 状态码、状态码文本 以及 其它信息的错误。状态默认为:500。
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.use(async (ctx, next) => {
ctx.throw(401, 'access_denied', { user: user });
});
app.use(async (ctx, next) => {
ctx.body = 'kkb!';
});
app.listen(8888);
app.on('error', callback)
配合着 Application
对象的 on
方法(继承至 NodeJS 的 Emitter
)来捕获 throw
错误。
/**
* File: lib/application.js
***/
module.exports = class Application extends Emitter {
// ...
}
应用代码
/**
* File: /app.js
***/
const Koa = require('koa');
const app = new Koa();
app.on('error', async (err) => {
console.log('error');
// app 会自动根据错误向前端进行响应。
});
app.use(async (ctx, next) => {
ctx.throw(401, 'access_denied', { user: user });
});
app.use(async (ctx, next) => {
ctx.body = 'kkb!';
});
app.listen(8888);
Request 对象
Koa` 通过 `Getter` 、 `Setter` 对 `Request` 进行了封装,具体代码: `node_modules/koa/lib/request.js
Response 对象
Koa` 通过 `Getter` 、 `Setter` 对 `Response` 进行了封装,具体代码: `node_modules/koa/lib/response.js
Context 代理
为了方便对 Request
和 Response
对象进行操作, Koa
通过 delegates
对 Context
进行了代理访问处理,使得可以通过 Context
即可操作对应的 Request
和 Response
:
/**
* File: lib/context.js
***/
// ...
/**
* Response delegation.
*/
delegate(proto, 'response')
.method('attachment')
.method('redirect')
.method('remove')
.method('vary')
.method('has')
.method('set')
.method('append')
.method('flushHeaders')
.access('status')
.access('message')
.access('body')
.access('length')
.access('type')
.access('lastModified')
.access('etag')
.getter('headerSent')
.getter('writable');
/**
* Request delegation.
*/
delegate(proto, 'request')
.method('acceptsLanguages')
.method('acceptsEncodings')
.method('acceptsCharsets')
.method('accepts')
.method('get')
.method('is')
.access('querystring')
.access('idempotent')
.access('socket')
.access('search')
.access('method')
.access('query')
.access('path')
.access('url')
.access('accept')
.getter('origin')
.getter('href')
.getter('subdomains')
.getter('protocol')
.getter('host')
.getter('hostname')
.getter('URL')
.getter('header')
.getter('headers')
.getter('secure')
.getter('stale')
.getter('fresh')
.getter('ips')
.getter('ip');
参数:proto
delegate
的第一个参数 proto
就是 Context
对象。
参数:'response' 和 'response'
delegate
的第二个参数 'response'
和 'request'
就是需要被代理访问的 Request
对象和 Response
对象。
method 方法
代理对象的对应方法。
access 方法
代理对象属性的 getter
和 setter
。
getter 方法
代理对象属性的 getter
。
setter 方法
代理对象属性的 setter
。
