深入理解 iOS 启动流程和优化技巧 上

点赞再看，微信搜索 【iOS 成长指北】 对全书进行指点。欢迎分享，有任何问题都可以提出

参考文章：今日头条iOS客户端启动速度优化，优化 App 的启动时间,深入理解iOS App的启动过程

基本知识

mach-O

• Executable 可执行文件

• Dylib 动态库

• Bundle 无法被链接的动态库，只能通过 dlopen() 加载

• Image 指的是 Executable，Dylib 和 Bundle的一种，文中会多次使用 Image 这个名词。

• Framework 动态库和对应的头文件、资源逻辑的集合。

mach-O 组成结构

源码地址 mach-O loader.h

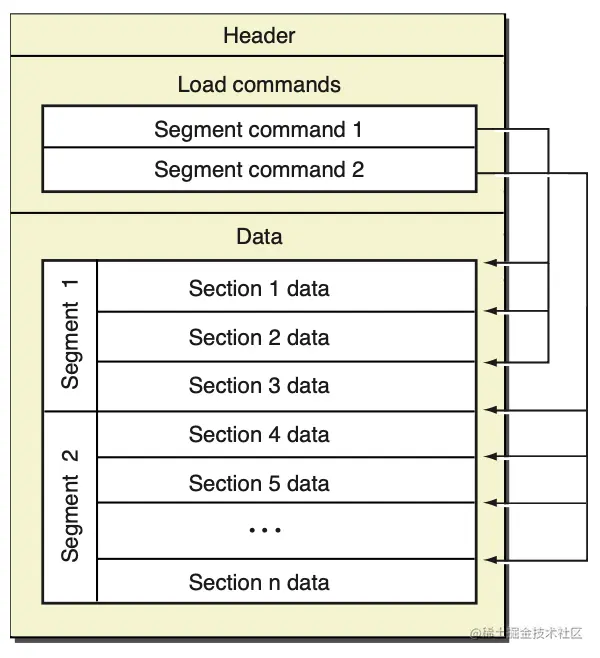

mach-o的结构

• Mach-O头部(mach header): 描述了Mach-O的CPU架构，文件类型，以及加载命令等信息。

• 加载命令(load command): 描述了文件中数据的具体组织结构，不同的数据类型使用不同的加载命令表示。

• Data: Data中每个段(segment)的数据都保存在这里，每个段都一个或多个section，他们存放了具体的数据与代码。

mach_header

保存了一些基本信息，包括了该文件运行的平台、文件类型、LoadCommands的个数等等。

struct mach_header {
    uint32_t    magic;
    cpu_type_t    cputype;
    cpu_subtype_t    cpusubtype;
    uint32_t    filetype;
    uint32_t    ncmds;
    uint32_t    sizeofcmds;
    uint32_t    flags;
}

struct mach_header_64 {
    uint32_t    magic;
    cpu_type_t    cputype;
    cpu_subtype_t    cpusubtype;
    uint32_t    filetype;
    uint32_t    ncmds;
    uint32_t    sizeofcmds;
    uint32_t    flags;
    uint32_t    reserved;
};

32位和64位 mach_header

magic:

魔数，用于快速确认该文件用于64位还是32位

cputype:

CPU 类型，比如 arm

cpusubtype:

对应的具体类型，比如 arm64、armv7

filetype:

文件类型，比如可执行文件、库文件、Dsym 文件

 /* Constants for the filetype field of the mach_header  */
#define MH_OBJECT   0x1     /* relocatable object file Target 文件：编译器对源码编译后得到的中间结果  */
#define MH_EXECUTE  0x2     /* demand paged executable file 可执行二进制文件 */
#define MH_FVMLIB   0x3     /* fixed VM shared library file VM 共享库文件 */
#define MH_CORE     0x4     /* core file Core 文件，一般在 App Crash 产生 */
#define MH_PRELOAD  0x5     /* preloaded executable file */
#define MH_DYLIB    0x6     /* dynamically bound shared library 动态库*/
#define MH_DYLINKER 0x7     /* dynamic link editor 动态连接器 /usr/lib/dyld  */
#define MH_BUNDLE   0x8     /* dynamically bound bundle file 非独立的二进制文件，往往通过 gcc-bundle 生成 */
#define MH_DYLIB_STUB   0x9     /* shared library stub for static 静态链接文件 */
#define MH_DSYM     0xa     /* companion file with only debug 符号文件以及调试信息，在解析堆栈符号中常用 */
#define MH_KEXT_BUNDLE  0xb     /* x86_64 kexts x86_64 内核扩展*/

ncmds:

ncmds 指明了 Mach-O 文件中加载命令的数量

sizeofcmds:

sizeofcmds 字段指明了 Mach-O 文件加载命令所占的总字节大小

flags:

flags 代表文件标志，它是一个含有一组位标志的整数，指明了 Mach-O 文件的一些标志信息

#define MH_NOUNDEFS         0x1  /* 目前没有未定义的符号，不存在链接依赖 Target 文件中没有带未定义的符号，常为静态二进制文件 */
#define MH_DYLDLINK         0x4  /* 该文件是dyld的输入文件，无法被再次静态链接 */
#define MH_SPLIT_SEGS       0x20 /* Target 文件中的只读 Segment 和可读写 Segment 分开  */
#define MH_TWOLEVEL         0x80 /*两级名称空间 该 Image 使用二级命名空间(two name space binding)绑定方案 */
#define MH_FORCE_FLAT       0x100 /* 使用扁平命名空间(flat name space binding)绑定（与 MH_TWOLEVEL 互斥） */
#define MH_WEAK_DEFINES     0x8000  /* 二进制文件使用了弱符号 */
#define MH_BINDS_TO_WEAK    0x10000 /* 二进制文件链接了弱符号 */
#define MH_ALLOW_STACK_EXECUTION 0x20000   /* 允许 Stack 可执行 */
#define MH_PIE                   0x200000  /* 对可执行的文件类型启用地址空间 layout 随机化 加载程序在随机的地址空间，只在 MH_EXECUTE中使用 */
#define MH_NO_HEAP_EXECUTION     0x1000000 /* 将 Heap 标记为不可执行，可防止 heap spray 攻击 */

dyld

动态链接器，当内核执行 LC_DYLINK 时，连接器会启动，查找进程所依赖的动态库，并加载到内存中。

随机地址空间

进程每一次启动，地址空间都会简单地随机化。

对于大多数应用程序来说，地址空间随机化是一个和他们完全不相关的实现细节，但是对于黑客来说，它具有重大的意义。

如果采用传统的方式，程序的每一次启动的虚拟内存镜像都是一致的，黑客很容易采取重写内存的方式来破解程序。采用 ASLR 可以有效的避免黑客攻击。 ASLR(Address Space Layout Randomization)技术就是通过加载程序的时候不再使用固定的基址加载，从而干扰 shellcode 定位的一种保护机制。

二级名称空间

这是 dyld 的一个独有特性，说是符号空间中还包括所在库的信息，这样子就可以让两个不同的库导出相同的符号，与其对应的是平摊空间

reserved:

64位的 mach_header_64 比 32 位多了一个 reserved 字段，目前它的取值系统保留。

load_command (加载命令)

在 mach_header 之后是 Load Command 加载命令，这些加载命令在 Mach-O 文件加载解析时，被内核加载器或动态连接器调用，基本的加载命令的数据结构如下：

struct load_command {
    uint32_t cmd;        /* type of load command */
    uint32_t cmdsize;    /* total size of command in bytes */
};

cmd 代表当前加载命令的类型，cmdsize 字段代表加载命令的大小。

cmd

cmd 的类型不同，所代表的加载命令的类型就不同，他的结构体也会有所不同。不同类型加载命令会在load_command 结构体后面加上一个或多个字段来表示特定的结构体信息。

LC_SEGMENT

表示这是一个短加载命令，需要将它加载到对应的进程空间中。

LC_LOAD_DYLIB

表示这是一个需要动态加载的链接库。它使用 dylib_command 结构体。当 cmd 类型是 LC_ID_DYLIB,LC_LOAD_DYLIB,LC_LOAD_WEAK_DYLIB与LC_REEXPORT_DYLIB 时，统一用 dylib_command 结构体表示。

struct dylib_command {
	uint32_t	cmd;		/* LC_ID_DYLIB, LC_LOAD_{,WEAK_}DYLIB, LC_REEXPORT_DYLIB */
	uint32_t	cmdsize;	/* includes pathname string */
	struct dylib	dylib;		/* the library identification */
};

使用dylib结构体来存储要加载的动态库的具体信息。

struct dylib {
  union lc_str  name;			/* library's path name */
  uint32_t timestamp;			/* library's build time stamp */
  uint32_t current_version;		/* library's current version number */
  uint32_t compatibility_version;	/* library's compatibility vers number*/
};

• name 是动态库的完整路径，动态连接器在加载动态库时，会通过此路径进行加载。

• timestamp 字段描述了动态库建构是的时间戳。

• current_version 与 compatibility_version 指明了当前版本与兼容的版本号。

LC_CODE_SIGNATURE

LC_CODE_SIGNATURE 是代码签名加载命令，描述了 Mach-O 的代码签名信息，如果不符合 Code（或者在 iOS 当中不存在），进程会立即被内核用 SIGKILL 命令杀死。它属于链接信息，使用 linedit_data_command 结构体表示。

struct linkedit_data_command {
  uint32_t	cmd;		/* LC_CODE_SIGNATURE or LC_SEGMENT_SPLIT_INFO */
  uint32_t	cmdsize;	/* sizeof(struct linkedit_data_command) */
  uint32_t	dataoff;	/* file offset of data in __LINKEDIT segment */
  uint32_t	datasize;	/* file size of data in __LINKEDIT segment  */
};

• dataoff字段制定了相对于 _LINKEDIT 段的文件偏移位置。

• datasize字段指明了数据的大小。

LC_SEGMENT

段加载命令 LC_SEGMENT 描述了 Mach-O 文件的段信息，使用 segment_command 结构体来表示，它的定义如下：

/*
 * The segment load command indicates that a part of this file is to be
 * mapped into the task's address space.  The size of this segment in memory,
 * vmsize, maybe equal to or larger than the amount to map from this file,
 * filesize.  The file is mapped starting at fileoff to the beginning of
 * the segment in memory, vmaddr.  The rest of the memory of the segment,
 * if any, is allocated zero fill on demand.  The segment's maximum virtual
 * memory protection and initial virtual memory protection are specified
 * by the maxprot and initprot fields.  If the segment has sections then the
 * section structures directly follow the segment command and their size is
 * reflected in cmdsize.
 */

struct segment_command { /* for 32-bit architectures */
  uint32_t	cmd;		/* LC_SEGMENT */
  uint32_t	cmdsize;	/* includes sizeof section structs */
  char		segname[16];	/* segment name */
  uint32_t	vmaddr;		/* memory address of this segment */
  uint32_t	vmsize;		/* memory size of this segment */
  uint32_t	fileoff;	/* file offset of this segment */
  uint32_t	filesize;	/* amount to map from the file */
  vm_prot_t	maxprot;	/* maximum VM protection */
  vm_prot_t	initprot;	/* initial VM protection */
  uint32_t	nsects;		/* number of sections in segment */
  uint32_t	flags;		/* flags */
};

/** The 64-bit segment load command indicates that a part of this file is to be
 * mapped into a 64-bit task's address space.  If the 64-bit segment has
 * sections then section_64 structures directly follow the 64-bit segment
 * command and their size is reflected in cmdsize.
 */

struct segment_command_64 { /* for 64-bit architectures */
  uint32_t	cmd;		/* LC_SEGMENT_64 */
  uint32_t	cmdsize;	/* includes sizeof section_64 structs */
  char		segname[16];	/* segment name */
  uint64_t	vmaddr;		/* memory address of this segment */
  uint64_t	vmsize;		/* memory size of this segment */
  uint64_t	fileoff;	/* file offset of this segment */
  uint64_t	filesize;	/* amount to map from the file */
  vm_prot_t	maxprot;	/* maximum VM protection */
  vm_prot_t	initprot;	/* initial VM protection */
  uint32_t	nsects;		/* number of sections in segment */
  uint32_t	flags;		/* flags */
};

一个编译后可能执行的程序会分成多个段（Segment），不同类型的数据放入不同的段中。

程序的代码被称作代码段，放入一个名为 __TEXT的段中。

__TEXT 代表的是 Segment，小写的 __text 代表 Section。

• segname 字段是一个16字节大小的空间，用来存储段的名称

• vmaddr 字段指明了段要加载的虚拟内存地址

• vmsize 字段指明了段所占的虚拟内存的大小

• fileoff 字段指明了段数据所在文件中的偏移地址

• filesize 字段指明了段数据实际的大小

• maxprot 字段指明了页面所需要的内存保护（可读，可写，可执行等）

  代码段的maxprot字段在编译时被设置成VM_PROT_READ（可读）,VM_PROT_WRITE（可写）,VM_PROT_EXECUTE（可执行）。

• initprot 字段指明了页面初始的内存保护

  initprot 字段被设置成 VM_PROT_READ 与 VM_PROT_EXECUTE，这样是合理的，一个普通的应用程序，代码段部分通常是不可写的。

• nsects 字段指明了段所包含的节区

  nsects 字段指定了段加载命令包含几个节区，一个段可以包含 0 个或多个节区。如 __PAGEZERO 段就不包含任何节区，该段被称为空指针陷阱段，映射到虚拟内存空间的第一页，用于捕捉 NULL 指针的引用。当一个段包含多个节区时，节区信息会以数组的形式存储在段加载命令后面。节区使用结构体 section 表示（64位用 section_64 表示）。

struct section_64 { /* for 64-bit architectures */
  char		sectname[16];	/* name of this section */
  char		segname[16];	/* segment this section goes in */
  uint64_t	addr;		/* memory address of this section */
  uint64_t	size;		/* size in bytes of this section */
  uint32_t	offset;		/* file offset of this section */
  uint32_t	align;		/* section alignment (power of 2) */
  uint32_t	reloff;		/* file offset of relocation entries */
  uint32_t	nreloc;		/* number of relocation entries */
  uint32_t	flags;		/* flags (section type and attributes)*/
  uint32_t	reserved1;	/* reserved (for offset or index) */
  uint32_t	reserved2;	/* reserved (for count or sizeof) */
  uint32_t	reserved3;	/* reserved */
};

• sectname 字段表示节区的名称，
• segname 字段表示节区所在的段名，
• offset 指明了节区所在的文件偏移，
• align 表示节区的内存对齐边界，
• reloff 指明了重定位信息的文件偏移，
• nreloc 表示重定位条目的数目，
• flags则是节区的一些标志属性。

• flags 字段指明了段的标志信息

  flags存储了段的一些标志属性，取值如下：

  #define    SG_HIGHVM    0x1
  #define    SG_FVMLIB    0x2
  #define    SG_NORELOC    0x4
  #define SG_PROTECTED_VERSION_1    0x8


  值得关注的是 SG_PROTECTED_VERSTION_1，当段被设置了改标志位时，表示段是经过加密的。在 macOS 版本 10.6 以前，使用 AES 算法加密解密，10.6 以后版本使用了 Blowfish 加密算法。著名的iOS逆向工具 class-dump 提供了一个静态数据段解密工具 deprotect。

• __TEXT 代码段，只读，包含函数，和只读的字符串，上图中类似__TEXT，__text 的都是代码段

• __Data 数据段，读写，包括可读写的全局变量等，__DATA，__data 都是数据段

• __LINKEDIT 包含了方法和变量的元数据(位置，偏移量)，以及代码签名等信息。

更多细节查看 Mac OS X ABI Mach-O File Format Reference

启动过程

从 exec() 函数开始

main() 函数是整个程序的入口，在程序启动之前，系统会调用exec()函数。系统内核把应用映射到新的地址空间，且每次起始位置都是随机的（因为使用 ASLR）。并将起始位置到 0x000000 这段范围的进程权限都标记为不可读写不可执行。如果是 32 位进程，这个范围 至少 是 4KB；对于 64 位进程则 至少 是 4GB。NULL 指针引用和指针截断误差都是会被它捕获。

dyld

参考 iOS 程序 main 函数之前发生了什么

简介

dyld（the dynamic link editor）是苹果的动态链接器，是苹果操作系统一个重要组成部分，在系统内核做好程序准备工作之后，交由dyld负责余下的工作。点击下载。

共享缓存机制

在 iOS 系统中，每个程序依赖的动态库都需要通过 dyld（位于/usr/lib/dyld）一个一个加载到内存，然而，很多系统库几乎是每个程序都会用到的，如果在每个程序运行的时候都重复的去加载一次，势必造成运行缓慢，为了优化启动速度和提高程序性能，共享缓存机制就应运而生。所有默认的动态链接库被合并成一个大的缓存文件，放到 /System/Library/Caches/com.apple.dyld/目录下，按不同的架构保存分别保存着。

dyld 加载过程

__dyld_start

在 dyld 源代码 dyldStartup.s 中的 __dyld_start，源码中可以看到一条 call 命令，根据注释可以知道是跳转到 dyldbootstrap::start() 函数：

	# call dyldbootstrap::start(app_mh, argc, argv, slide, dyld_mh, &startGlue)
	movl	%edx,(%esp)	# param1 = app_mh
	movl	4(%ebp),%eax
	movl	%eax,4(%esp)	# param2 = argc
	lea     8(%ebp),%eax
	movl	%eax,8(%esp)	# param3 = argv
	movl	%ebx,12(%esp)	# param4 = slide
	movl	%ecx,16(%esp)	# param5 = actual load address
	lea	28(%esp),%eax
	movl	%eax,20(%esp)	# param6 = &startGlue
	call	__ZN13dyldbootstrap5startEPK12macho_headeriPPKclS2_Pm

dyldbootstrap::start() 函数中做了很多 dyld 初始化相关的工作，包括

• rebaseDyld() dyld重定位

• mach_init() mach消息初始化

• __guard_setup() 栈溢出保护

初始化工作完成后，此函数调用到了 dyld::_main()，再将返回值传递给 __dyld_start 去调用真正的 main() 函数。在 dyldInitialization.cpp 文件中可以找到 dyldbootstrap::start() 函数的实现如下：

//
//  This is code to bootstrap dyld.  This work in normally done for a program by dyld and crt.
//  In dyld we have to do this manually.
//
uintptr_t start(const struct macho_header* appsMachHeader, int argc, const char* argv[],
				intptr_t slide, const struct macho_header* dyldsMachHeader,
				uintptr_t* startGlue)
{
	// if kernel had to slide dyld, we need to fix up load sensitive locations
	// we have to do this before using any global variables
    slide = slideOfMainExecutable(dyldsMachHeader);
    bool shouldRebase = slide != 0;
#if __has_feature(ptrauth_calls)
    shouldRebase = true;
#endif
    if ( shouldRebase ) {
        rebaseDyld(dyldsMachHeader, slide);
    }

	// allow dyld to use mach messaging
	mach_init();

	// kernel sets up env pointer to be just past end of agv array
	const char** envp = &argv[argc+1];

	// kernel sets up apple pointer to be just past end of envp array
	const char** apple = envp;
	while(*apple != NULL) { ++apple; }
	++apple;

	// set up random value for stack canary
	__guard_setup(apple);

#if DYLD_INITIALIZER_SUPPORT
	// run all C++ initializers inside dyld
	runDyldInitializers(dyldsMachHeader, slide, argc, argv, envp, apple);
#endif

	// now that we are done bootstrapping dyld, call dyld's main
	uintptr_t appsSlide = slideOfMainExecutable(appsMachHeader);
	return dyld::_main(appsMachHeader, appsSlide, argc, argv, envp, apple, startGlue);
}

dyld::_main()

参考资料：dyld详解，dylib动态库加载过程分析，XNU、dyld源码分析Mach-O和动态库的加载过程(上)，XNU、dyld 源码分析，Mach-O 和动态库的加载过程 (下)

具体代码如下：

//
// Entry point for dyld.  The kernel loads dyld and jumps to __dyld_start which
// sets up some registers and call this function.
//
// Returns address of main() in target program which __dyld_start jumps to
//

uintptr_t

_main(const macho_header* mainExecutableMH, uintptr_t mainExecutableSlide,
      int argc, const char* argv[], const char* envp[], const char* apple[],
      uintptr_t* startGlue) {
  if (dyld3::kdebug_trace_dyld_enabled(DBG_DYLD_TIMING_LAUNCH_EXECUTABLE)) {
    launchTraceID = dyld3::kdebug_trace_dyld_duration_start(DBG_DYLD_TIMING_LAUNCH_EXECUTABLE, (uint64_t)mainExecutableMH, 0, 0);
  }
  //-------------第一步，设置运行环境-------------
  // Grab the cdHash of the main executable from the environment

  uint8_t mainExecutableCDHashBuffer[20];
  const uint8_t* mainExecutableCDHash = nullptr;

  if ( hexToBytes(_simple_getenv(apple, "executable_cdhash"), 40, mainExecutableCDHashBuffer) ) {

    //获取主程序的hash
    mainExecutableCDHash = mainExecutableCDHashBuffer;
  }

  // Trace dyld's load
  notifyKernelAboutImage((macho_header*)&__dso_handle, _simple_getenv(apple, "dyld_file"));

#if !TARGET_IPHONE_SIMULATOR

	// Trace the main executable's load
	notifyKernelAboutImage(mainExecutableMH, _simple_getenv(apple, "executable_file"));
#endif

  uintptr_t result = 0;
  //获取主程序的macho_header结构
  sMainExecutableMachHeader = mainExecutableMH;
  //获取主程序slide值
  sMainExecutableSlide = mainExecutableSlide;

#if __MAC_OS_X_VERSION_MIN_REQUIRED
  // if this is host dyld, check to see if iOS simulator is being run
  const char* rootPath = _simple_getenv(envp, "DYLD_ROOT_PATH");

  if ( (rootPath != NULL) ) {
    // look to see if simulator has its own dyld
    char simDyldPath[PATH_MAX];
    strlcpy(simDyldPath, rootPath, PATH_MAX);
    strlcat(simDyldPath, "/usr/lib/dyld_sim", PATH_MAX);
    int fd = my_open(simDyldPath, O_RDONLY, 0);

    if ( fd != -1 ) {
      const char* errMessage = useSimulatorDyld(fd, mainExecutableMH, simDyldPath, argc, argv, envp, apple, startGlue, &result);

      if ( errMessage != NULL )
        halt(errMessage);
        return result;
    }
  }

#endif
  CRSetCrashLogMessage("dyld: launch started");

  //设置当前上下文信息
  setContext(mainExecutableMH, argc, argv, envp, apple);

  // Pickup the pointer to the exec path.
  //获取主程序路径
   sExecPath = _simple_getenv(apple, "executable_path");

 // <rdar://problem/13868260> Remove interim apple[0] transition code from dyld
  if (!sExecPath) sExecPath = apple[0];

  if ( sExecPath[0] != '/' ) {
    // have relative path, use cwd to make absolute
    char cwdbuff[MAXPATHLEN];
    if ( getcwd(cwdbuff, MAXPATHLEN) != NULL ) {
      // maybe use static buffer to avoid calling malloc so early...
      char* s = new char[strlen(cwdbuff) + strlen(sExecPath) + 2];
      strcpy(s, cwdbuff);
      strcat(s, "/");
      strcat(s, sExecPath);
      sExecPath = s;
    }
  }

  // Remember short name of process for later logging
  // 获取进程名称
  sExecShortName = ::strrchr(sExecPath, '/');

  if ( sExecShortName != NULL )
    ++sExecShortName;
  else
    sExecShortName = sExecPath;

  //配置进程受限模式
  configureProcessRestrictions(mainExecutableMH);

#if __MAC_OS_X_VERSION_MIN_REQUIRED
  if ( !gLinkContext.allowEnvVarsPrint && !gLinkContext.allowEnvVarsPath && !gLinkContext.allowEnvVarsSharedCache ) {
    pruneEnvironmentVariables(envp, &apple);

    // set again because envp and apple may have changed or moved
    setContext(mainExecutableMH, argc, argv, envp, apple);
}
  else
#endif
  {
    //检测环境变量
    checkEnvironmentVariables(envp);
    defaultUninitializedFallbackPaths(envp);
  }

#if __MAC_OS_X_VERSION_MIN_REQUIRED
  if (  ((dyld3::MachOFile*)mainExecutableMH)->supportsPlatform(dyld3::Platform::iOSMac)
      && !((dyld3::MachOFile*)mainExecutableMH)->supportsPlatform(dyld3::Platform::macOS)) {
    gLinkContext.rootPaths = parseColonList("/System/iOSSupport", NULL);
    gLinkContext.marzipan = true;

    if ( sEnv.DYLD_FALLBACK_LIBRARY_PATH == sLibraryFallbackPaths )
      sEnv.DYLD_FALLBACK_LIBRARY_PATH = sRestrictedLibraryFallbackPaths;

    if ( sEnv.DYLD_FALLBACK_FRAMEWORK_PATH == sFrameworkFallbackPaths )
      sEnv.DYLD_FALLBACK_FRAMEWORK_PATH = sRestrictedFrameworkFallbackPaths;
}

#endif

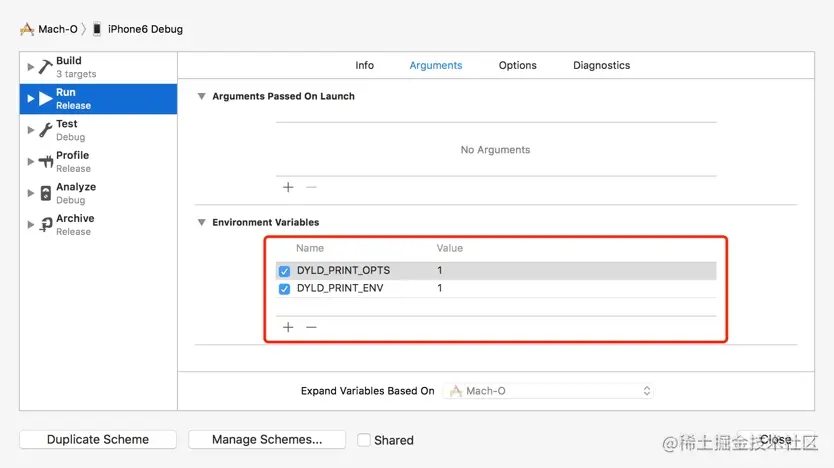

  //如果设置了DYLD_PRINT_OPTS则调用printOptions()打印参数
  if ( sEnv.DYLD_PRINT_OPTS )
    printOptions(argv);

  // 如果设置了DYLD_PRINT_ENV则调用printEnvironmentVariables()打印环境变量
  if ( sEnv.DYLD_PRINT_ENV )
    printEnvironmentVariables(envp);

  // 获取当前程序架构
  getHostInfo(mainExecutableMH, mainExecutableSlide);

  //-------------第二步 加载共享缓存-------------
  // load shared cache
  // 检查共享缓存是否开启，iOS必须开启
  checkSharedRegionDisable((dyld3::MachOLoaded*)mainExecutableMH, mainExecutableSlide);

#if TARGET_IPHONE_SIMULATOR
  // <HACK> until <rdar://30773711> is fixed
  gLinkContext.sharedRegionMode = ImageLoader::kUsePrivateSharedRegion;
  // </HACK>
#endif

  if ( gLinkContext.sharedRegionMode != ImageLoader::kDontUseSharedRegion ) {
    mapSharedCache();
	}

	bool cacheCompatible = (sSharedCacheLoadInfo.loadAddress == nullptr) || (sSharedCacheLoadInfo.loadAddress->header.formatVersion == dyld3::closure::kFormatVersion);
	if ( cacheCompatible && (sEnableClosures || inWhiteList(sExecPath)) ) {
		const dyld3::closure::LaunchClosure* mainClosure = nullptr;
		dyld3::closure::LoadedFileInfo mainFileInfo;
		mainFileInfo.fileContent = mainExecutableMH;
		mainFileInfo.path = sExecPath;
		// FIXME: If we are saving this closure, this slice offset/length is probably wrong in the case of FAT files.
		mainFileInfo.sliceOffset = 0;
		mainFileInfo.sliceLen = std::numeric_limits<__typeof(mainFileInfo.sliceLen)>::max();
		struct stat mainExeStatBuf;
		if ( ::stat(sExecPath, &mainExeStatBuf) == 0 ) {
			mainFileInfo.inode = mainExeStatBuf.st_ino;
			mainFileInfo.mtime = mainExeStatBuf.st_mtime;
		}
		// 首先检查缓存中是否关闭
		// check for closure in cache first
		if ( sSharedCacheLoadInfo.loadAddress != nullptr ) {
			mainClosure = sSharedCacheLoadInfo.loadAddress->findClosure(sExecPath);
			if ( gLinkContext.verboseWarnings && (mainClosure != nullptr) )
				dyld::log("dyld: found closure %p (size=%lu) in dyld shared cache\n", mainClosure, mainClosure->size());
		}
    #if !TARGET_IPHONE_SIMULATOR
if ( (mainClosure == nullptr) || !closureValid(mainClosure, mainFileInfo, mainExecutableCDHash, true, envp) ) {
			mainClosure = nullptr;
			if ( sEnableClosures || isStagedApp((dyld3::MachOFile*)mainExecutableMH, sExecPath) ) {
				// 如果强制闭包，缓存中没有闭包，或者它无效，请检查缓存闭包
				// if forcing closures, and no closure in cache, or it is invalid, check for cached closure
				mainClosure = findCachedLaunchClosure(mainExecutableCDHash, mainFileInfo, envp);
				if ( mainClosure == nullptr ) {
					// if  no cached closure found, build new one
					mainClosure = buildLaunchClosure(mainExecutableCDHash, mainFileInfo, envp);
				}
			}
		}
	#endif
		// try using launch closure
		if ( mainClosure != nullptr ) {
			CRSetCrashLogMessage("dyld3: launch started");
			bool launched = launchWithClosure(mainClosure, sSharedCacheLoadInfo.loadAddress, (dyld3::MachOLoaded*)mainExecutableMH,
											  mainExecutableSlide, argc, argv, envp, apple, &result, startGlue);
	#if !TARGET_IPHONE_SIMULATOR
			if ( !launched ) {
				// closure is out of date, build new one
				mainClosure = buildLaunchClosure(mainExecutableCDHash, mainFileInfo, envp);
				if ( mainClosure != nullptr ) {
					launched = launchWithClosure(mainClosure, sSharedCacheLoadInfo.loadAddress, (dyld3::MachOLoaded*)mainExecutableMH,
												 mainExecutableSlide, argc, argv, envp, apple, &result, startGlue);
				}
			}
	#endif
			if ( launched ) {
#if __has_feature(ptrauth_calls)
				// start() calls the result pointer as a function pointer so we need to sign it.
				result = (uintptr_t)__builtin_ptrauth_sign_unauthenticated((void*)result, 0, 0);
#endif
				if (sSkipMain)
					result = (uintptr_t)&fake_main;
				return result;
			}
			else {
				if ( gLinkContext.verboseWarnings )
					dyld::log("dyld: unable to use closure %p\n", mainClosure);
			}
		}
	}
	else {
		if ( gLinkContext.verboseWarnings )
			dyld::log("dyld: not using closure because shared cache format version does not match dyld's\n");
	}
	// could not use closure info, launch old way

	// install gdb notifier
	stateToHandlers(dyld_image_state_dependents_mapped, sBatchHandlers)->push_back(notifyGDB);
	stateToHandlers(dyld_image_state_mapped, sSingleHandlers)->push_back(updateAllImages);
	// make initial allocations large enough that it is unlikely to need to be re-alloced
	sImageRoots.reserve(16);
	sAddImageCallbacks.reserve(4);
	sRemoveImageCallbacks.reserve(4);
	sAddLoadImageCallbacks.reserve(4);
	sImageFilesNeedingTermination.reserve(16);
	sImageFilesNeedingDOFUnregistration.reserve(8);

#if !TARGET_IPHONE_SIMULATOR
#ifdef WAIT_FOR_SYSTEM_ORDER_HANDSHAKE
	// <rdar://problem/6849505> Add gating mechanism to dyld support system order file generation process
	WAIT_FOR_SYSTEM_ORDER_HANDSHAKE(dyld::gProcessInfo->systemOrderFlag);
#endif
#endif

	try {
		// add dyld itself to UUID list
		addDyldImageToUUIDList();

#if SUPPORT_ACCELERATE_TABLES
#if __arm64e__
		// Disable accelerator tables when we have threaded rebase/bind, which is arm64e executables only for now.
		if (sMainExecutableMachHeader->cpusubtype == CPU_SUBTYPE_ARM64_E)
			sDisableAcceleratorTables = true;
#endif
		bool mainExcutableAlreadyRebased = false;
		if ( (sSharedCacheLoadInfo.loadAddress != nullptr) && !dylibsCanOverrideCache() && !sDisableAcceleratorTables && (sSharedCacheLoadInfo.loadAddress->header.accelerateInfoAddr != 0) ) {
			struct stat statBuf;
			if ( ::stat(IPHONE_DYLD_SHARED_CACHE_DIR "no-dyld2-accelerator-tables", &statBuf) != 0 )
				sAllCacheImagesProxy = ImageLoaderMegaDylib::makeImageLoaderMegaDylib(&sSharedCacheLoadInfo.loadAddress->header, sSharedCacheLoadInfo.slide, mainExecutableMH, gLinkContext);
		}

reloadAllImages:
#endif

    CRSetCrashLogMessage(sLoadingCrashMessage);

    //-------------第三步 实例化主程序-------------
    // instantiate ImageLoader for main executable
		sMainExecutable = instantiateFromLoadedImage(mainExecutableMH, mainExecutableSlide, sExecPath);
		gLinkContext.mainExecutable = sMainExecutable;
		gLinkContext.mainExecutableCodeSigned = hasCodeSignatureLoadCommand(mainExecutableMH);

\#if TARGET_IPHONE_SIMULATOR

#if TARGET_IPHONE_SIMULATOR
		// check main executable is not too new for this OS
		{
			if ( ! isSimulatorBinary((uint8_t*)mainExecutableMH, sExecPath) ) {
				throwf("program was built for a platform that is not supported by this runtime");
			}
			uint32_t mainMinOS = sMainExecutable->minOSVersion();

			// dyld is always built for the current OS, so we can get the current OS version
			// from the load command in dyld itself.
			uint32_t dyldMinOS = ImageLoaderMachO::minOSVersion((const mach_header*)&__dso_handle);
			if ( mainMinOS > dyldMinOS ) {
	#if TARGET_OS_WATCH
				throwf("app was built for watchOS %d.%d which is newer than this simulator %d.%d",
						mainMinOS >> 16, ((mainMinOS >> 8) & 0xFF),
						dyldMinOS >> 16, ((dyldMinOS >> 8) & 0xFF));
	#elif TARGET_OS_TV
				throwf("app was built for tvOS %d.%d which is newer than this simulator %d.%d",
						mainMinOS >> 16, ((mainMinOS >> 8) & 0xFF),
						dyldMinOS >> 16, ((dyldMinOS >> 8) & 0xFF));
	#else
				throwf("app was built for iOS %d.%d which is newer than this simulator %d.%d",
						mainMinOS >> 16, ((mainMinOS >> 8) & 0xFF),
						dyldMinOS >> 16, ((dyldMinOS >> 8) & 0xFF));
	#endif
			}
		}
#endif

	#if __MAC_OS_X_VERSION_MIN_REQUIRED
		// <rdar://problem/22805519> be less strict about old mach-o binaries
		uint32_t mainSDK = sMainExecutable->sdkVersion();
		gLinkContext.strictMachORequired = (mainSDK >= DYLD_MACOSX_VERSION_10_12) || gLinkContext.allowInsertFailures;
	#else
		// simulators, iOS, tvOS, and watchOS are always strict
		gLinkContext.strictMachORequired = true;
	#endif

	#if SUPPORT_ACCELERATE_TABLES
		sAllImages.reserve((sAllCacheImagesProxy != NULL) ? 16 : INITIAL_IMAGE_COUNT);
	#else
		sAllImages.reserve(INITIAL_IMAGE_COUNT);
	#endif

		// Now that shared cache is loaded, setup an versioned dylib overrides
	#if SUPPORT_VERSIONED_PATHS
		checkVersionedPaths();
	#endif

		// dyld_all_image_infos image list does not contain dyld
		// add it as dyldPath field in dyld_all_image_infos
		// for simulator, dyld_sim is in image list, need host dyld added
#if TARGET_IPHONE_SIMULATOR
		// get path of host dyld from table of syscall vectors in host dyld
		void* addressInDyld = gSyscallHelpers;
#else
		// get path of dyld itself
		void*  addressInDyld = (void*)&__dso_handle;
#endif
		char dyldPathBuffer[MAXPATHLEN+1];
		int len = proc_regionfilename(getpid(), (uint64_t)(long)addressInDyld, dyldPathBuffer, MAXPATHLEN);
		if ( len > 0 ) {
			dyldPathBuffer[len] = '\0'; // proc_regionfilename() does not zero terminate returned string
			if ( strcmp(dyldPathBuffer, gProcessInfo->dyldPath) != 0 )
				gProcessInfo->dyldPath = strdup(dyldPathBuffer);
		}

    //-------------第四步 加载插入的动态库-------------
    // load any inserted libraries
    if	( sEnv.DYLD_INSERT_LIBRARIES != NULL ) {
			for (const char* const* lib = sEnv.DYLD_INSERT_LIBRARIES; *lib != NULL; ++lib)
				loadInsertedDylib(*lib);
		}

    // record count of inserted libraries so that a flat search will look at
		// inserted libraries, then main, then others.
    // 记录插入的动态库数量

    sInsertedDylibCount = sAllImages.size()-1;

    //-------------第五步 链接主程序-------------
    // link main executable

    gLinkContext.linkingMainExecutable = true;

#if SUPPORT_ACCELERATE_TABLES
		if ( mainExcutableAlreadyRebased ) {
			// previous link() on main executable has already adjusted its internal pointers for ASLR
			// work around that by rebasing by inverse amount
			sMainExecutable->rebase(gLinkContext, -mainExecutableSlide);
		}
#endif
    link(sMainExecutable, sEnv.DYLD_BIND_AT_LAUNCH, true, ImageLoader::RPathChain(NULL, NULL), -1);
		sMainExecutable->setNeverUnloadRecursive();
		if ( sMainExecutable->forceFlat() ) {
			gLinkContext.bindFlat = true;
			gLinkContext.prebindUsage = ImageLoader::kUseNoPrebinding;
		}

    //-------------第六步 链接插入的动态库-------------
		// link any inserted libraries
		// do this after linking main executable so that any dylibs pulled in by inserted
		// dylibs (e.g. libSystem) will not be in front of dylibs the program uses

    if ( sInsertedDylibCount > 0 ) {
			for(unsigned int i=0; i < sInsertedDylibCount; ++i) {
				ImageLoader* image = sAllImages[i+1];
				link(image, sEnv.DYLD_BIND_AT_LAUNCH, true, ImageLoader::RPathChain(NULL, NULL), -1);
				image->setNeverUnloadRecursive();
			}
			// only INSERTED libraries can interpose
			// register interposing info after all inserted libraries are bound so chaining works
			for(unsigned int i=0; i < sInsertedDylibCount; ++i) {
				ImageLoader* image = sAllImages[i+1];
				image->registerInterposing(gLinkContext);
			}
		}

    // <rdar://problem/19315404> dyld should support interposition even without DYLD_INSERT_LIBRARIES
		for (long i=sInsertedDylibCount+1; i < sAllImages.size(); ++i) {
			ImageLoader* image = sAllImages[i];
			if ( image->inSharedCache() )
				continue;
			image->registerInterposing(gLinkContext);
		}

	#if SUPPORT_ACCELERATE_TABLES
		if ( (sAllCacheImagesProxy != NULL) && ImageLoader::haveInterposingTuples() ) {
			// Accelerator tables cannot be used with implicit interposing, so relaunch with accelerator tables disabled
			ImageLoader::clearInterposingTuples();
			// unmap all loaded dylibs (but not main executable)
			for (long i=1; i < sAllImages.size(); ++i) {
				ImageLoader* image = sAllImages[i];
				if ( image == sMainExecutable )
					continue;
				if ( image == sAllCacheImagesProxy )
					continue;
				image->setCanUnload();
				ImageLoader::deleteImage(image);
			}
			// note: we don't need to worry about inserted images because if DYLD_INSERT_LIBRARIES was set we would not be using the accelerator table
			sAllImages.clear();
			sImageRoots.clear();
			sImageFilesNeedingTermination.clear();
			sImageFilesNeedingDOFUnregistration.clear();
			sAddImageCallbacks.clear();
			sRemoveImageCallbacks.clear();
			sAddLoadImageCallbacks.clear();
			sDisableAcceleratorTables = true;
			sAllCacheImagesProxy = NULL;
			sMappedRangesStart = NULL;
			mainExcutableAlreadyRebased = true;
			gLinkContext.linkingMainExecutable = false;
			resetAllImages();
			goto reloadAllImages;
		}
	#endif

		// apply interposing to initial set of images
		for(int i=0; i < sImageRoots.size(); ++i) {
			sImageRoots[i]->applyInterposing(gLinkContext);
		}
		ImageLoader::applyInterposingToDyldCache(gLinkContext);
		gLinkContext.linkingMainExecutable = false;

		// Bind and notify for the main executable now that interposing has been registered
		uint64_t bindMainExecutableStartTime = mach_absolute_time();
		sMainExecutable->recursiveBindWithAccounting(gLinkContext, sEnv.DYLD_BIND_AT_LAUNCH, true);
		uint64_t bindMainExecutableEndTime = mach_absolute_time();
		ImageLoaderMachO::fgTotalBindTime += bindMainExecutableEndTime - bindMainExecutableStartTime;
		gLinkContext.notifyBatch(dyld_image_state_bound, false);

		// Bind and notify for the inserted images now interposing has been registered
		if ( sInsertedDylibCount > 0 ) {
			for(unsigned int i=0; i < sInsertedDylibCount; ++i) {
				ImageLoader* image = sAllImages[i+1];
				image->recursiveBind(gLinkContext, sEnv.DYLD_BIND_AT_LAUNCH, true);
			}
		}

    //-------------第七步 执行弱符号绑定-------------
		// <rdar://problem/12186933> do weak binding only after all inserted images linked
		sMainExecutable->weakBind(gLinkContext);

		// If cache has branch island dylibs, tell debugger about them
		if ( (sSharedCacheLoadInfo.loadAddress != NULL) && (sSharedCacheLoadInfo.loadAddress->header.mappingOffset >= 0x78) && (sSharedCacheLoadInfo.loadAddress->header.branchPoolsOffset != 0) ) {
			uint32_t count = sSharedCacheLoadInfo.loadAddress->header.branchPoolsCount;
			dyld_image_info info[count];
			const uint64_t* poolAddress = (uint64_t*)((char*)sSharedCacheLoadInfo.loadAddress + sSharedCacheLoadInfo.loadAddress->header.branchPoolsOffset);
			// <rdar://problem/20799203> empty branch pools can be in development cache
			if ( ((mach_header*)poolAddress)->magic == sMainExecutableMachHeader->magic ) {
				for (int poolIndex=0; poolIndex < count; ++poolIndex) {
					uint64_t poolAddr = poolAddress[poolIndex] + sSharedCacheLoadInfo.slide;
					info[poolIndex].imageLoadAddress = (mach_header*)(long)poolAddr;
					info[poolIndex].imageFilePath = "dyld_shared_cache_branch_islands";
					info[poolIndex].imageFileModDate = 0;
				}
				// add to all_images list
				addImagesToAllImages(count, info);
				// tell gdb about new branch island images
				gProcessInfo->notification(dyld_image_adding, count, info);
			}
		}

    CRSetCrashLogMessage("dyld: launch, running initializers");
	#if SUPPORT_OLD_CRT_INITIALIZATION
		// Old way is to run initializers via a callback from crt1.o
		if ( ! gRunInitializersOldWay )
			initializeMainExecutable();
	#else
		// run all initializers
    //-------------第八步 执行初始化方法-------------
		initializeMainExecutable();
	#endif

		// notify any montoring proccesses that this process is about to enter main()
		if (dyld3::kdebug_trace_dyld_enabled(DBG_DYLD_TIMING_LAUNCH_EXECUTABLE)) {
			dyld3::kdebug_trace_dyld_duration_end(launchTraceID, DBG_DYLD_TIMING_LAUNCH_EXECUTABLE, 0, 0, 2);
		}
		notifyMonitoringDyldMain();

    //-------------第九步 查找入口点并返回-------------
		// find entry point for main executable
		result = (uintptr_t)sMainExecutable->getEntryFromLC_MAIN();
		if ( result != 0 ) {
			// main executable uses LC_MAIN, we need to use helper in libdyld to call into main()
			if ( (gLibSystemHelpers != NULL) && (gLibSystemHelpers->version >= 9) )
				*startGlue = (uintptr_t)gLibSystemHelpers->startGlueToCallExit;
			else
				halt("libdyld.dylib support not present for LC_MAIN");
		}
		else {
			// main executable uses LC_UNIXTHREAD, dyld needs to let "start" in program set up for main()
			result = (uintptr_t)sMainExecutable->getEntryFromLC_UNIXTHREAD();
			*startGlue = 0;
		}
#if __has_feature(ptrauth_calls)
		// start() calls the result pointer as a function pointer so we need to sign it.
		result = (uintptr_t)__builtin_ptrauth_sign_unauthenticated((void*)result, 0, 0);
#endif
	}
	catch(const char* message) {
		syncAllImages();
		halt(message);
	}
	catch(...) {
		dyld::log("dyld: launch failed\n");
	}

	CRSetCrashLogMessage("dyld2 mode");

	if (sSkipMain) {
		if (dyld3::kdebug_trace_dyld_enabled(DBG_DYLD_TIMING_LAUNCH_EXECUTABLE)) {
			dyld3::kdebug_trace_dyld_duration_end(launchTraceID, DBG_DYLD_TIMING_LAUNCH_EXECUTABLE, 0, 0, 2);
		}
		result = (uintptr_t)&fake_main;
		*startGlue = (uintptr_t)gLibSystemHelpers->startGlueToCallExit;
	}
	return result;
}

设置运行环境

这一步主要是设置运行参数、环境变量等。代码在开始的时候，将入参 mainExecutableMH 赋值给了 sMainExecutableMachHeader，这是一个 macho_header 结构体，表示的是当前主程序的 Mach-O 头部信息，加载器依据 Mach-O 头部信息就可以解析整个 Mach-O 文件信息。接着调用 setContext() 设置上下文信息，包括一些回调函数、参数、标志信息等。设置的回调函数都是 dyld 模块自身实现的，如 loadLibrary() 函数实际调用的是 libraryLocator()，负责加载动态库。

static void setContext(const macho_header* mainExecutableMH, int argc, const char* argv[], const char* envp[], const char* apple[]) {

   gLinkContext.loadLibrary         = &libraryLocator;
   gLinkContext.terminationRecorder = &terminationRecorder;
   ...
}

configureProcessRestrictions() 用来配置进程是否受限。AMFI(AppleMobileFileIntegrity)。

static void configureProcessRestrictions(const macho_header* mainExecutableMH) {
	uint64_t amfiInputFlags = 0;
#if TARGET_IPHONE_SIMULATOR
	amfiInputFlags |= AMFI_DYLD_INPUT_PROC_IN_SIMULATOR;
#elif __MAC_OS_X_VERSION_MIN_REQUIRED
	if ( hasRestrictedSegment(mainExecutableMH) )
		amfiInputFlags |= AMFI_DYLD_INPUT_PROC_HAS_RESTRICT_SEG;
#elif __IPHONE_OS_VERSION_MIN_REQUIRED
	if ( isFairPlayEncrypted(mainExecutableMH) )
		amfiInputFlags |= AMFI_DYLD_INPUT_PROC_IS_ENCRYPTED;
#endif
	uint64_t amfiOutputFlags = 0;
	if ( amfi_check_dyld_policy_self(amfiInputFlags, &amfiOutputFlags) == 0 ) {
		gLinkContext.allowAtPaths 				= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_AT_PATH);
		gLinkContext.allowEnvVarsPrint			= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_PRINT_VARS);
		gLinkContext.allowEnvVarsPath			= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_PATH_VARS);
		gLinkContext.allowEnvVarsSharedCache	= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_CUSTOM_SHARED_CACHE);
		gLinkContext.allowClassicFallbackPaths	= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_FALLBACK_PATHS);
		gLinkContext.allowInsertFailures    	= (amfiOutputFlags & AMFI_DYLD_OUTPUT_ALLOW_FAILED_LIBRARY_INSERTION);
	}
	else {
#if __MAC_OS_X_VERSION_MIN_REQUIRED
		// support chrooting from old kernel
		bool isRestricted = false;
		bool libraryValidation = false;
		// any processes with setuid or setgid bit set or with __RESTRICT segment is restricted
		if ( issetugid() || hasRestrictedSegment(mainExecutableMH) ) {
			isRestricted = true;
		}
		bool usingSIP = (csr_check(CSR_ALLOW_TASK_FOR_PID) != 0);
		uint32_t flags;
		if ( csops(0, CS_OPS_STATUS, &flags, sizeof(flags)) != -1 ) {
			// On OS X CS_RESTRICT means the program was signed with entitlements
			if ( ((flags & CS_RESTRICT) == CS_RESTRICT) && usingSIP ) {
				isRestricted = true;
			}
			// Library Validation loosens searching but requires everything to be code signed
			if ( flags & CS_REQUIRE_LV ) {
				isRestricted = false;
				libraryValidation = true;
			}
		}
		gLinkContext.allowAtPaths                = !isRestricted;
		gLinkContext.allowEnvVarsPrint           = !isRestricted;
		gLinkContext.allowEnvVarsPath            = !isRestricted;
		gLinkContext.allowEnvVarsSharedCache     = !libraryValidation || !usingSIP;
		gLinkContext.allowClassicFallbackPaths   = !isRestricted;
		gLinkContext.allowInsertFailures         = false;
#else
		halt("amfi_check_dyld_policy_self() failed\n");
#endif
	}
}

checkEnvironmentVariables() 检测环境变量。

static void checkEnvironmentVariables(const char* envp[])
{
	if ( !gLinkContext.allowEnvVarsPath && !gLinkContext.allowEnvVarsPrint )
		return;
	const char** p;
	for(p = envp; *p != NULL; p++) {
		const char* keyEqualsValue = *p;
	    if ( strncmp(keyEqualsValue, "DYLD_", 5) == 0 ) {
			const char* equals = strchr(keyEqualsValue, '=');
			if ( equals != NULL ) {
				strlcat(sLoadingCrashMessage, "\n", sizeof(sLoadingCrashMessage));
				strlcat(sLoadingCrashMessage, keyEqualsValue, sizeof(sLoadingCrashMessage));
				const char* value = &equals[1];
				const size_t keyLen = equals-keyEqualsValue;
				char key[keyLen+1];
				strncpy(key, keyEqualsValue, keyLen);
				key[keyLen] = '\0';
				if ( (strncmp(key, "DYLD_PRINT_", 11) == 0) && !gLinkContext.allowEnvVarsPrint )
					continue;
				processDyldEnvironmentVariable(key, value, NULL);
			}
		}
		else if ( strncmp(keyEqualsValue, "LD_LIBRARY_PATH=", 16) == 0 ) {
			const char* path = &keyEqualsValue[16];
			sEnv.LD_LIBRARY_PATH = parseColonList(path, NULL);
		}
	}

#if SUPPORT_LC_DYLD_ENVIRONMENT
	checkLoadCommandEnvironmentVariables();
#endif // SUPPORT_LC_DYLD_ENVIRONMENT

#if SUPPORT_ROOT_PATH
	// <rdar://problem/11281064> DYLD_IMAGE_SUFFIX and DYLD_ROOT_PATH cannot be used together
	if ( (gLinkContext.imageSuffix != NULL && *gLinkContext.imageSuffix != NULL) && (gLinkContext.rootPaths != NULL) ) {
		dyld::warn("Ignoring DYLD_IMAGE_SUFFIX because DYLD_ROOT_PATH is used.\n");
		gLinkContext.imageSuffix = NULL; // this leaks allocations from parseColonList
	}
#endif
}

最后是调用 getHostInfo() 获取当前程序架构。

整个过程中有一些 DYLD_* 开头的环境变量

// 如果设置了DYLD_PRINT_OPTS则调用printOptions()打印参数
if ( sEnv.DYLD_PRINT_OPTS )
  printOptions(argv);

// 如果设置了DYLD_PRINT_ENV则调用printEnvironmentVariables()打印环境变量
if ( sEnv.DYLD_PRINT_ENV )
  printEnvironmentVariables(envp);

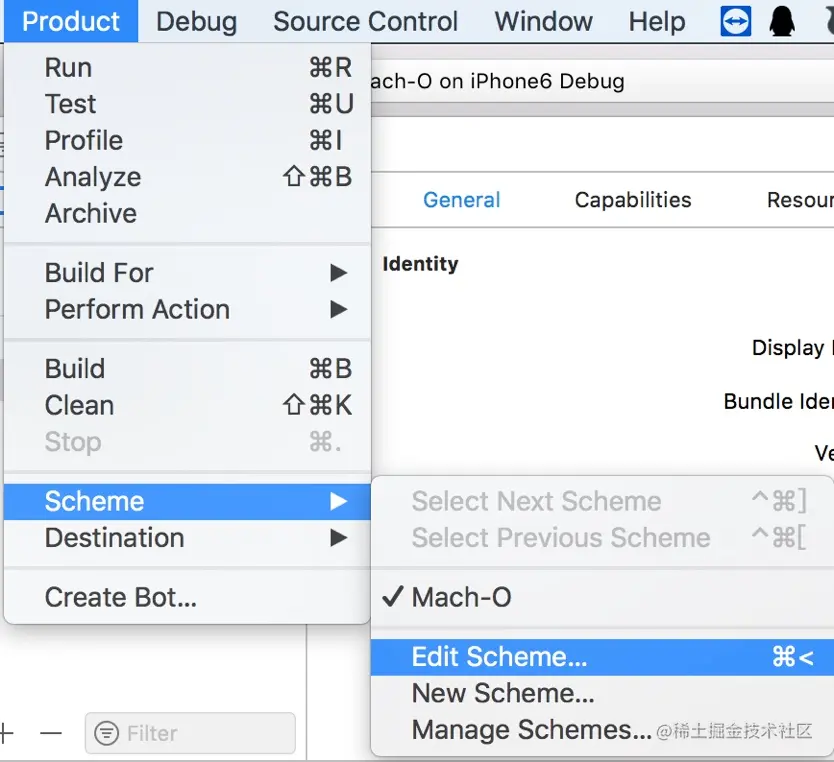

受限在Xcode中配置一下即可让这些环境变量生效

然后，按下图所示添加环境变量DYLD_PRINT_OPTS并设置 Value 为1。

运行Xcode即可看到控制台打印的详细信息：

加载共享缓存

static void checkSharedRegionDisable(const dyld3::MachOLoaded* mainExecutableMH, uintptr_t mainExecutableSlide) {
  ...
  // iOS cannot run without shared region
}

这一步先调用checkSharedRegionDisable()检查共享缓存是否禁用。该函数的iOS实现部分仅有一句注释，从注释我们可以推断iOS必须开启共享缓存才能正常工作.

接下来调用 mapSharedCache() 加载共享缓存，而 mapSharedCache() 实际上是调用了 loadDyldCache() 方法。从代码可以看出，共享缓存加载又分为以下三种情况:

• 仅加载到当前进程，调用mapCachePrivate()

• 共享缓存已加载，不做任何处理

• 当前进程首次加载共享缓存，调用mapCacheSystemWide()

loadDyldCache() 的实现如下:

bool loadDyldCache(const SharedCacheOptions& options, SharedCacheLoadInfo* results) {
  results->loadAddress        = 0;
  results->slide              = 0;
  results->errorMessage       = nullptr;

if TARGET_IPHONE_SIMULATOR
  // simulator only supports mmap()ing cache privately into process
  return mapCachePrivate(options, results);
#else
  if ( options.forcePrivate ) {
    // mmap cache into this process only
    return mapCachePrivate(options, results);
  }
  else {
    // fast path: when cache is already mapped into shared region
    bool hasError = false;
    if ( reuseExistingCache(options, results) ) {
      hasError = (results->errorMessage != nullptr);
    } else {
      // slow path: this is first process to load cache
      hasError = mapCacheSystemWide(options, results);
    }
    return hasError;
  }
endif
}

实例化主程序

这一步将主程序的 Mach-O 加载进内存，并实例化一个 ImageLoader。instantiateFromLoadedImage() 首先调用 isCompatibleMachO() 检测 Mach-O 头部的 magic、cputype、cpusubtype 等相关属性，判断 Mach-O 文件的兼容性，如果兼容性满足，则调用 ImageLoaderMachO::instantiateMainExecutable() 实例化主程序的 ImageLoader，代码如下：

// The kernel maps in main executable before dyld gets control.  We need to
// make an ImageLoader* for the already mapped in main executable.

static ImageLoaderMachO* instantiateFromLoadedImage(const macho_header* mh, uintptr_t slide, const char* path) {
  // try mach-o loader
  if ( isCompatibleMachO((const uint8_t*)mh, path) ) {
    ImageLoader* image = ImageLoaderMachO::instantiateMainExecutable(mh, slide, path, gLinkContext);
    addImage(image);
    return (ImageLoaderMachO*)image;
  }
  throw "main executable not a known format";

}

ImageLoaderMachO::instantiateMainExecutable() 函数里面首先会调用 sniffLoadCommands() 函数来获取一些数据，包括：

• compressed：若 Mach-O 存在 LC_DYLD_INFO 和 LC_DYLD_INFO_ONLY 加载命令，则说明是压缩类型的 Mach-O，代码片段如下：

  switch (cmd->cmd) {
    case LC_DYLD_INFO:
    case LC_DYLD_INFO_ONLY:

    if ( cmd->cmdsize != sizeof(dyld_info_command) )
      throw "malformed mach-o image: LC_DYLD_INFO size wrong";

    dyldInfoCmd = (struct dyld_info_command*)cmd;

    // 存在LC_DYLD_INFO或者LC_DYLD_INFO_ONLY则表示是压缩类型的Mach-O
    *compressed = true;
    break;

    ...

  }


• segCount：根据 LC_SEGMENT_COMMAND 加载命令来统计段数量，这里抛出的错误日志也说明了段的数量是不能超过 255 个，代码片段如下：

  case LC_SEGMENT_COMMAND:

  segCmd = (struct macho_segment_command*)cmd;

  ...

  if ( segCmd->vmsize != 0 )
    *segCount += 1;

  if ( *segCount > 255 )
    dyld::throwf("malformed mach-o image: more than 255 segments in %s", path);


• libCount：根据 LC_LOAD_DYLIB、LC_LOAD_WEAK_DYLIB、LC_REEXPORT_DYLIB、LC_LOAD_UPWARD_DYLIB 这几个加载命令来统计库的数量，库的数量不能超过4095个。代码片段如下：

  case LC_LOAD_DYLIB:
  case LC_LOAD_WEAK_DYLIB:
  case LC_REEXPORT_DYLIB:
  case LC_LOAD_UPWARD_DYLIB:

  *libCount += 1;
  if ( *libCount > 4095 )
    dyld::throwf("malformed mach-o image: more than 4095 dependent libraries in %s", path)


• codeSigCmd：通过解析LC_CODE_SIGNATURE来获取代码签名加载命令，代码片段如下：

  case LC_CODE_SIGNATURE:

  *codeSigCmd = (struct linkedit_data_command*)cmd;

  break;


• encryptCmd：通过LC_ENCRYPTION_INFO和LC_ENCRYPTION_INFO_64来获取段的加密信息，代码片段如下：

  case LC_ENCRYPTION_INFO:

  ...

  *encryptCmd = (encryption_info_command*)cmd;

  break;

  case LC_ENCRYPTION_INFO_64:

  ...

  *encryptCmd = (encryption_info_command*)cmd;

  break;


ImageLoader 是抽象类，其子类负责把 Mach-O 文件实例化为 image，当 sniffLoadCommands() 解析完以后，根据 compressed 的值来决定调用哪个子类进行实例化，代码如下：

ImageLoader* ImageLoaderMachO::instantiateMainExecutable(const macho_header* mh, uintptr_t slide, const char* path, const LinkContext& context) {

  bool compressed;
  unsigned int segCount;
  unsigned int libCount;

  const linkedit_data_command* codeSigCmd;
  const encryption_info_command* encryptCmd;

  sniffLoadCommands(mh, path, false, &compressed, &segCount, &libCount, context, &codeSigCmd, &encryptCmd);

  // instantiate concrete class based on content of load commands
  if ( compressed )
    return ImageLoaderMachOCompressed::instantiateMainExecutable(mh, slide, path, segCount, libCount, context);

  else

#if SUPPORT_CLASSIC_MACHO

    return ImageLoaderMachOClassic::instantiateMainExecutable(mh, slide, path, segCount, libCount, context);

#else

  throw "missing LC_DYLD_INFO load command";

#endif

}

此过程可以用下图来进行直观描述：

下面以 ImageLoaderMachOCompressed::instantiateMainExecutable() 为例来看一下实现：

// create image for main executable

ImageLoaderMachOCompressed* ImageLoaderMachOCompressed::instantiateMainExecutable(
  const macho_header* mh, uintptr_t slide, const char* path,
  unsigned int segCount, unsigned int libCount, const LinkContext& context) {

  ImageLoaderMachOCompressed* image = ImageLoaderMachOCompressed::instantiateStart(mh, path, segCount, libCount);

  // set slide for PIE programs
  image->setSlide(slide);


  // for PIE record end of program, to know where to start loading dylibs
  if ( slide != 0 )
    fgNextPIEDylibAddress = (uintptr_t)image->getEnd();

  image->disableCoverageCheck();
  image->instantiateFinish(context);
  image->setMapped(context);

  if ( context.verboseMapping ) {
    dyld::log("dyld: Main executable mapped %s\n", path);

    for(unsigned int i=0, e=image->segmentCount(); i < e; ++i) {
      const char* name = image->segName(i);
      if ( (strcmp(name, "__PAGEZERO") == 0) || (strcmp(name, "__UNIXSTACK") == 0)  )
        dyld::log("%18s at 0x%08lX->0x%08lX\n", name, image->segPreferredLoadAddress(i), image->segPreferredLoadAddress(i)+image->segSize(i));
      else
        dyld::log("%18s at 0x%08lX->0x%08lX\n", name, image->segActualLoadAddress(i), image->segActualEndAddress(i));
    }
  }
  return image;

}

总结为4步：

• ImageLoaderMachOCompressed::instantiateStart() 创建 ImageLoaderMachOCompressed 对象

• image->disableCoverageCheck() 禁用段覆盖检测

• image->instantiateFinish() 首先调用 parseLoadCmds() 解析加载命令，然后调用 this->setDyldInfo()设置动态库链接信息，最后调用 this->setSymbolTableInfo() 设置符号表相关信息

• image->setMapped() 函数注册通知回调、计算执行时间等等

在调用完 ImageLoaderMachO::instantiateMainExecutable() 后继续调用 addImage()，将 image 加入到 sAllImages 全局镜像列表，并将 image 映射到申请的内存中。代码如下：

static void addImage(ImageLoader* image) {

  // add to master list

  allImagesLock();
  sAllImages.push_back(image);
  allImagesUnlock();

  // update mapped ranges

  uintptr_t lastSegStart = 0;
  uintptr_t lastSegEnd = 0;

  for(unsigned int i=0, e=image->segmentCount(); i < e; ++i) {
    if ( image->segUnaccessible(i) )
      continue;

    uintptr_t start = image->segActualLoadAddress(i);
    uintptr_t end = image->segActualEndAddress(i);

    if ( start == lastSegEnd ) {
      // two segments are contiguous, just record combined segments
      lastSegEnd = end;
    }
    else {
      // non-contiguous segments, record last (if any)
      if ( lastSegEnd != 0 )
        addMappedRange(image, lastSegStart, lastSegEnd);

      lastSegStart = start;
      lastSegEnd = end;
    }
  }

  if ( lastSegEnd != 0 )
    addMappedRange(image, lastSegStart, lastSegEnd);

  if ( gLinkContext.verboseLoading || (sEnv.DYLD_PRINT_LIBRARIES_POST_LAUNCH && (sMainExecutable!=NULL) && sMainExecutable->isLinked()) ) {
    dyld::log("dyld: loaded: %s\n", image->getPath());
  }
}

至此，初始化主程序这一步就完成了。ImageLoaderMachOClassic::instantiateMainExecutable() 函数的实现，同理可推，此处不再详述。

加载插入的动态库

这一步是加载环境变量 DYLD_INSERT_LIBRARIES 中配置的动态库，先判断环境变量DYLD_INSERT_LIBRARIES 中是否存在要加载的动态库，如果存在则调用 loadInsertedDylib() 依次加载，代码如下：

// load any inserted libraries
if	( sEnv.DYLD_INSERT_LIBRARIES != NULL ) {
  for (const char* const* lib = sEnv.DYLD_INSERT_LIBRARIES; *lib != NULL; ++lib)
    loadInsertedDylib(*lib);
}

loadInsertedDylib() 内部设置了一个 LoadContext 参数后，调用了load() 函数，

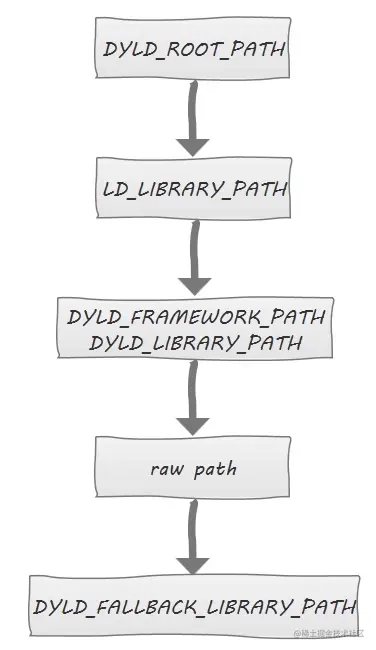

load() 函数的实现为一系列的 loadPhase*() 函数，loadPhase0()~loadPhase1() 函数会按照下图所示顺序搜索动态库，并调用不同的函数来继续处理。

当内部调用到loadPhase5load() 函数的时候，会先在共享缓存中搜寻，如果存在则使用ImageLoaderMachO::instantiateFromCache() 来实例化 ImageLoader，否则通过 loadPhase5open() 打开文件并读取数据到内存后，再调用 loadPhase6()，通过 ImageLoaderMachO::instantiateFromFile() 实例化 ImageLoader，最后调用 checkandAddImage() 验证镜像并将其加入到全局镜像列表中。

load() 函数代码如下：

ImageLoader* load(const char* path, const LoadContext& context, unsigned& cacheIndex) {

  ...

  // try all path permutations and check against existing loaded images

  ImageLoader* image = loadPhase0(path, orgPath, context, cacheIndex, NULL);
  if ( image != NULL ) {

    CRSetCrashLogMessage2(NULL);
    return image;

  }

  // try all path permutations and try open() until first success
  std::vector<const char*> exceptions;

  image = loadPhase0(path, orgPath, context, cacheIndex, &exceptions);

#if !TARGET_IPHONE_SIMULATOR
    // <rdar://problem/16704628> support symlinks on disk to a path in dyld shared cache
  if ( image == NULL)
    image = loadPhase2cache(path, orgPath, context, cacheIndex, &exceptions);

#endif

  ...
}

链接主程序

这一步调用link()函数将实例化后的主程序进行动态修正，让二进制变为可正常执行的状态。link() 函数内部调用了 ImageLoader::link() 函数，从源代码可以看到，这一步主要做了以下几个事情：

• recursiveLoadLibraries() 根据 LC_LOAD_DYLIB 加载命令把所有依赖库加载进内存

• recursiveUpdateDepth() 递归刷新依赖库的层级

• recursiveRebase()由于 ASLR 的存在，必须递归对主程序以及依赖库进行重定位操作

• recursiveBind() 把主程序二进制和依赖进来的动态库全部执行符号表绑定

• weakBind() 如果链接的不是主程序二进制的话，会在此时执行弱符号绑定，主程序二进制则在 link() 完后再执行弱符号绑定，后面会进行分析

• recursiveGetDOFSections()、context.registerDOFs() 注册 DOF(DTrace Object Format)节

ImageLoader::link() 源代码如下：

void ImageLoader::link(const LinkContext& context, bool forceLazysBound, bool preflightOnly, bool neverUnload, const RPathChain& loaderRPaths, const char* imagePath) {
  ...

  uint64_t t0 = mach_absolute_time();

  // 递归加载加载主程序所需依赖库
  this->recursiveLoadLibraries(context, preflightOnly, loaderRPaths, imagePath);

  ...

  uint64_t t1 = mach_absolute_time();
  context.clearAllDepths();

  // 递归刷新依赖库的层级
  this->recursiveUpdateDepth(context.imageCount());
  uint64_t t2 = mach_absolute_time();

  // 递归进行rebase
  this->recursiveRebase(context);
  uint64_t t3 = mach_absolute_time();

  // 递归绑定符号表
  this->recursiveBind(context, forceLazysBound, neverUnload);
  uint64_t t4 = mach_absolute_time();

  if ( !context.linkingMainExecutable )
    // 弱符号绑定
    this->weakBind(context);

  uint64_t t5 = mach_absolute_time();
  context.notifyBatch(dyld_image_state_bound, false);

  uint64_t t6 = mach_absolute_time();
  std::vector<DOFInfo> dofs;

  // 注册DOF节
  this->recursiveGetDOFSections(context, dofs);
  context.registerDOFs(dofs);
  uint64_t t7 = mach_absolute_time();

  ...
}

链接插入的动态库

这一步与链接主程序一样，将前面调用addImage()函数保存在sAllImages中的动态库列表循环取出并调用link()进行链接，需要注意的是，sAllImages中保存的第一项是主程序的镜像，所以要从i+1的位置开始，取到的才是动态库的ImageLoader：

ImageLoader* image = sAllImages[i+1];

接下来循环调用每个镜像的 registerInterposing() 函数，该函数会遍历 Mach-O 的 LC_SEGMENT_COMMAND 加载命令，读取 __DATA，__interpose，并将读取到的信息保存到 fgInterposingTuples中，接着调用applyInterposing() 函数，内部经由 doInterpose() 虚函数进行替换操作，以ImageLoaderMachOCompressed::doInterpose() 函数的实现为例：该函数内部调用了 eachBind() 与eachLazyBind()，具体处理函数是 interposeAt()，该函数调用 interposedAddress() 在fgInterposingTuples 中查找需要替换的符号地址，进行最终的符号地址替换，代码如下：

void ImageLoaderMachOCompressed::doInterpose(const LinkContext& context) {

  // update prebound symbols

  eachBind(context, &ImageLoaderMachOCompressed::interposeAt);
  eachLazyBind(context, &ImageLoaderMachOCompressed::interposeAt);
}

uintptr_t ImageLoaderMachOCompressed::interposeAt(const LinkContext& context,
                                                  uintptr_t addr, uint8_t type, const char*,
                                                  uint8_t, intptr_t,  long, const char*,
                                                  LastLookup*,bool runResolver) {
  if ( type == BIND_TYPE_POINTER ) {
    uintptr_t* fixupLocation = (uintptr_t*)addr;
    uintptr_t curValue = *fixupLocation;

    if ( newValue != curValue) {
      *fixupLocation = newValue;
    }
  }
  return 0;
}

执行弱符号绑定

weakBind() 首先通过 getCoalescedImages() 合并所有动态库的弱符号到一个列表里，然后调用 initializeCoalIterator() 对需要绑定的弱符号进行排序，接着调用incrementCoalIterator() 读取 dyld_info_command 结构的 weak_bind_off 和 weak_bind_size 字段，确定弱符号的数据偏移与大小，最终进行弱符号绑定，代码如下：

bool ImageLoaderMachOCompressed::incrementCoalIterator(CoalIterator& it) {

  if (it.done)
    return false;

  if ( this->fDyldInfo->weak_bind_size == 0 ) {
    /// hmmm, ld set MH_WEAK_DEFINES or MH_BINDS_TO_WEAK, but there is no weak binding info
    it.done = true;
    it.symbolName = "~~~";
    return true;
  }
  const uint8_t* start = fLinkEditBase + fDyldInfo->weak_bind_off;
  const uint8_t* p = start + it.curIndex;
  const uint8_t* end = fLinkEditBase + fDyldInfo->weak_bind_off + this->fDyldInfo->weak_bind_size;

  uintptr_t count;
  uintptr_t skip;
  uintptr_t segOffset;
  while ( p < end ) {
    uint8_t immediate = *p & BIND_IMMEDIATE_MASK;
    uint8_t opcode = *p & BIND_OPCODE_MASK;
    ++p;

    switch (opcode) {
      case BIND_OPCODE_DONE:
        it.done = true;
        it.curIndex = p - start;
        it.symbolName = "~~~"; // sorts to end
        return true;
    }
    break;
    ...
  }
  ...
    return true;
}

执行初始化方法

这一步由initializeMainExecutable() 完成。dyld 会优先初始化动态库，然后初始化主程序。该函数首先执行runInitializers()，内部再依次调用 processInitializers()、recursiveInitialization()。我们在recursiveInitialization() 函数里找到了 notifySingle() 函数：

context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);

接着跟进 notifySingle 函数，看到下面处理代码：

if ((state == dyld_image_state_dependents_initialized) && (sNotifyObjCInit != NULL) && image->notifyObjC() ) {

  uint64_t t0 = mach_absolute_time();
  (*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
  uint64_t t1 = mach_absolute_time();
  uint64_t t2 = mach_absolute_time();
  uint64_t timeInObjC = t1-t0;
  uint64_t emptyTime = (t2-t1)*100;
  if ( (timeInObjC > emptyTime) && (timingInfo != NULL) ) {
    timingInfo->addTime(image->getShortName(), timeInObjC);
  }
}

我们关心的只有 sNotifyObjCInit 这个回调，继续寻找赋值的地方：

void registerObjCNotifiers(_dyld_objc_notify_mapped mapped, _dyld_objc_notify_init init, _dyld_objc_notify_unmapped unmapped) {

  // record functions to call

  sNotifyObjCMapped   = mapped;
  sNotifyObjCInit     = init;
  sNotifyObjCUnmapped = unmapped;
  ...

}

再接着找 registerObjCNotifiers 函数调用，最终找到这里：

void _dyld_objc_notify_register(_dyld_objc_notify_mapped    mapped,
                                _dyld_objc_notify_init      init,
                                _dyld_objc_notify_unmapped  unmapped) {
  dyld::registerObjCNotifiers(mapped, init, unmapped);
}

那么到底谁调用了_dyld_objc_notify_register() 呢？静态分析已经无法得知，只能对_dyld_objc_notify_register() 下个符号断点观察一下了，

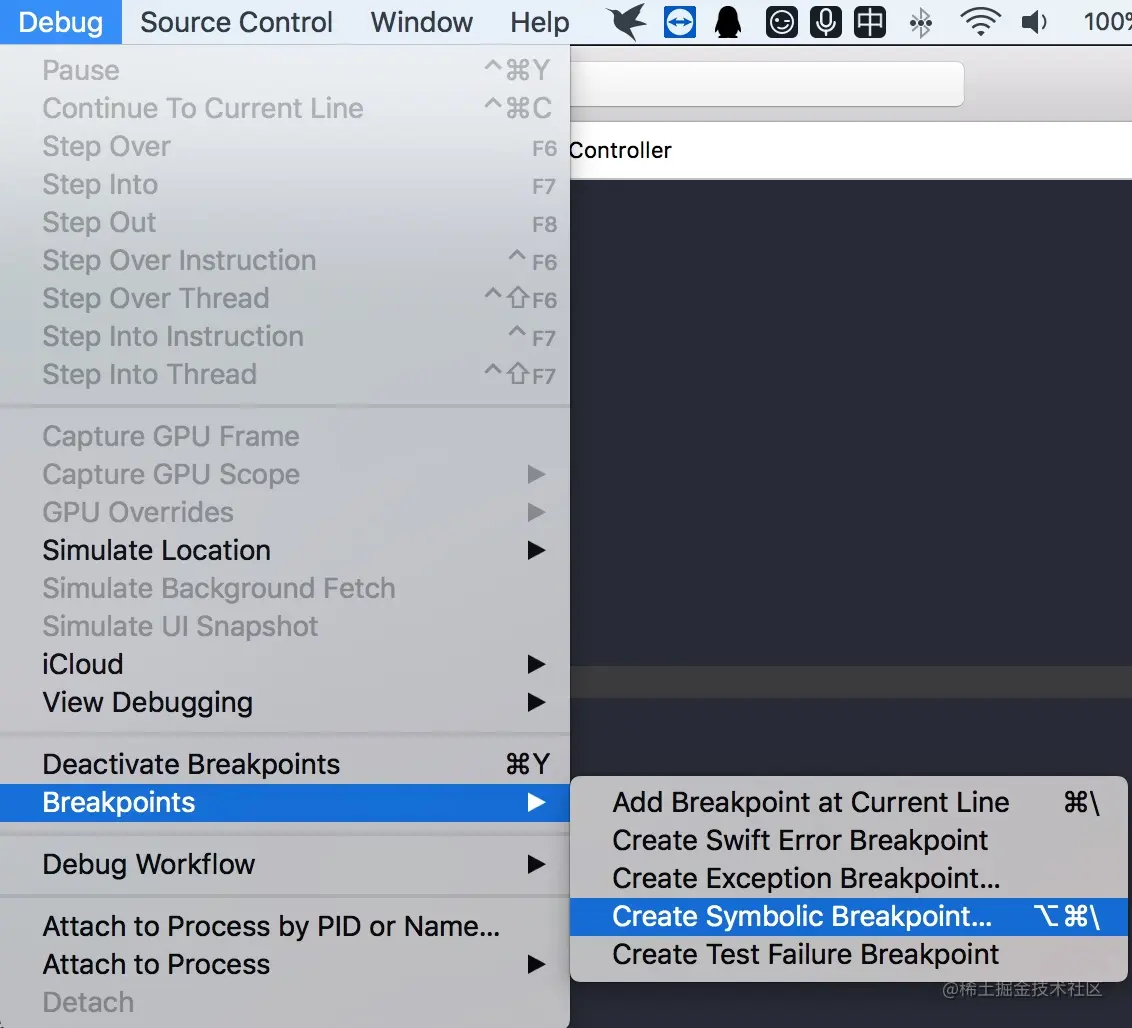

点击Xcode的「Debug」菜单，然后点击「Breakpoints」，接着选择「Create Symbolic Breakpoint...」。如下图所示：

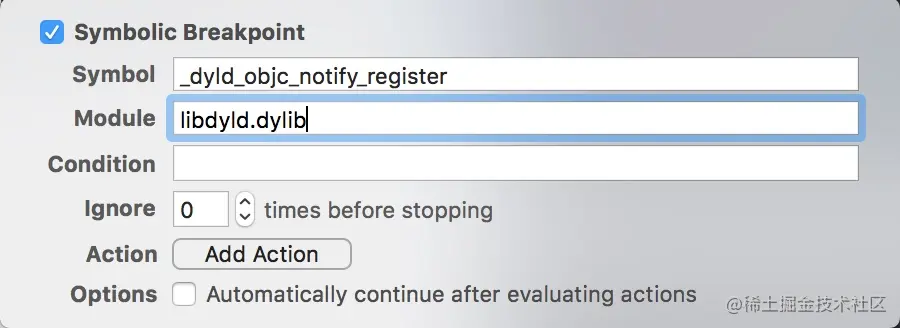

在弹出的对话框中设置 _dyld_objc_notify_register()符号断点，按下图所示：

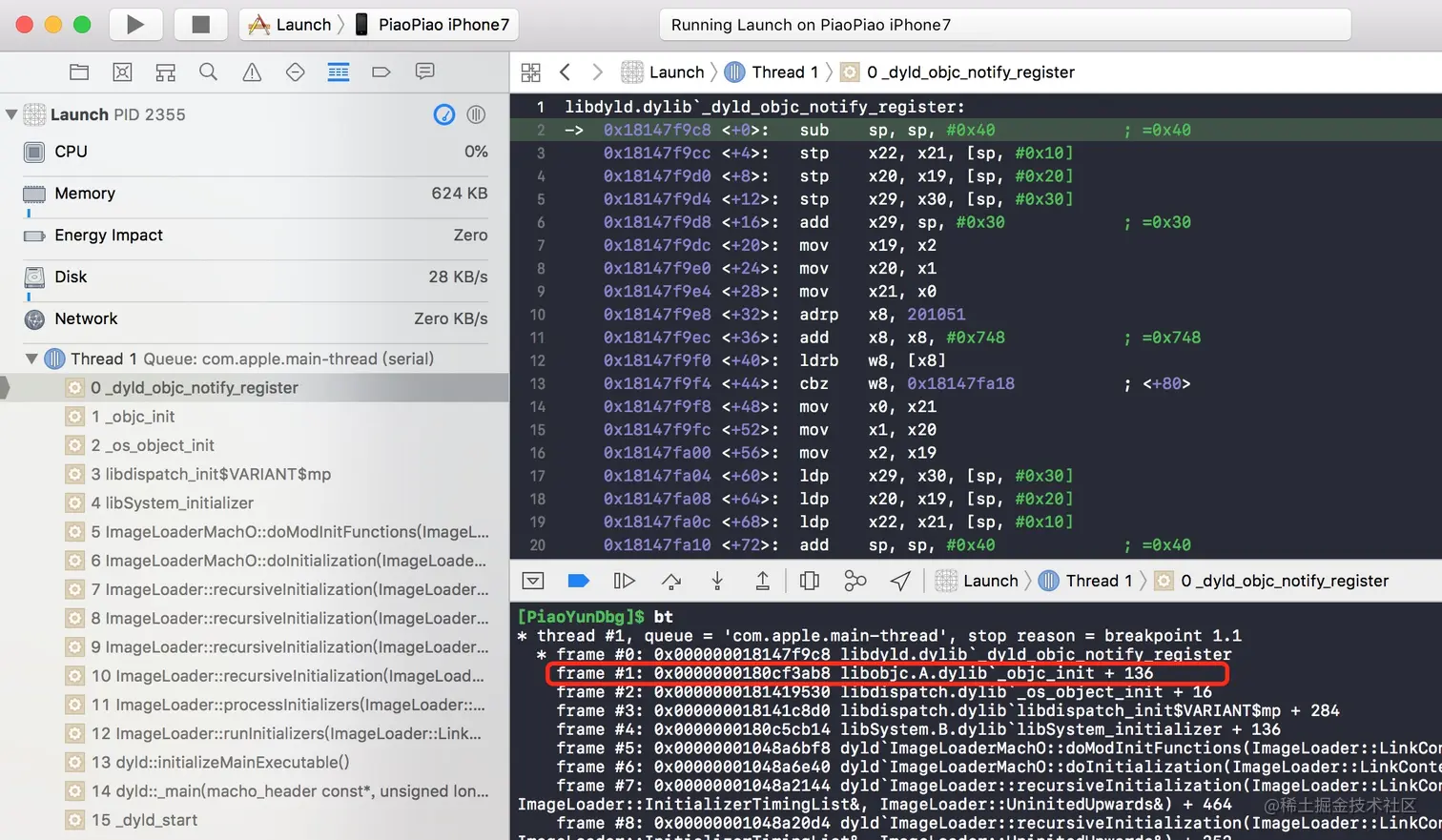

运行程序，成功命中断点，从调用栈看到是libobjc.A.dylib的_objc_init函数调用了_dyld_objc_notify_register()。如下图所示：

下载 objc源代码，找到 _objc_init 函数：

/***********************************************************************

* _objc_init
* Bootstrap initialization. Registers our image notifier with dyld.
* Called by libSystem BEFORE library initialization time

**********************************************************************/

void _objc_init(void) {
    static bool initialized = false;
    if (initialized) return;
    initialized = true;
    // fixme defer initialization until an objc-using image is found?
    environ_init();
    tls_init();
    static_init();
    lock_init();
    exception_init();
    _dyld_objc_notify_register(&map_images, load_images, unmap_image);
}

这里注册的init回调函数就是load_images()，回调里面调用了 call_load_methods() 来执行所有的+load() 方法。现在修改一下工程源码，加入以下代码并下断点即可看到调用栈：

+ (void)load {
  NSLog(@"load");
}

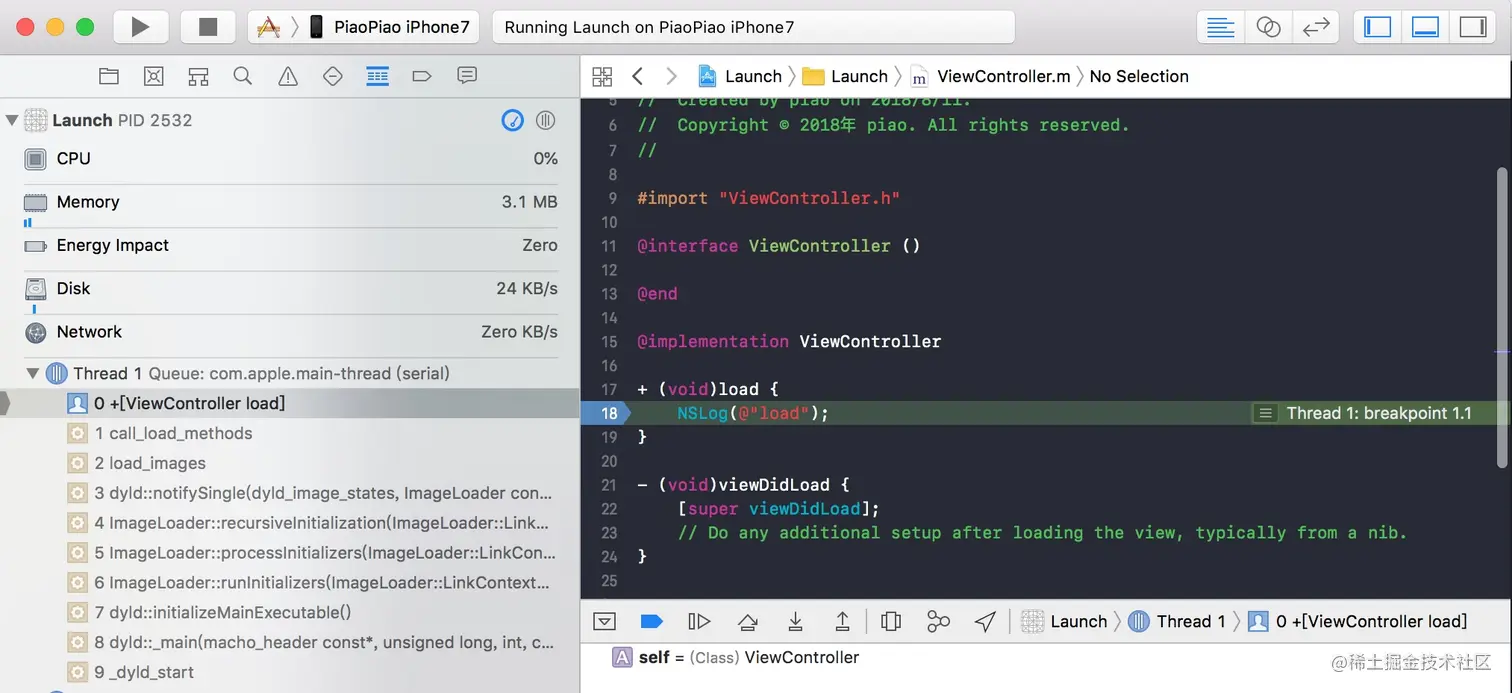

notifySingle() 之后就是调用 doInitialization() ，代码如下：

// initialize this image

// 调用constructor()

bool hasInitializers = this->doInitialization(context);

doInitialization()内部首先调用 doImageInit 来执行镜像的初始化函数，也就是 LC_ROUTINES_COMMAND 中记录的函数，然后再执行doModInitFunctions()方法来解析并执行__DATA，__mod_init_func 这个 section 中保存的函数，如下图所示。

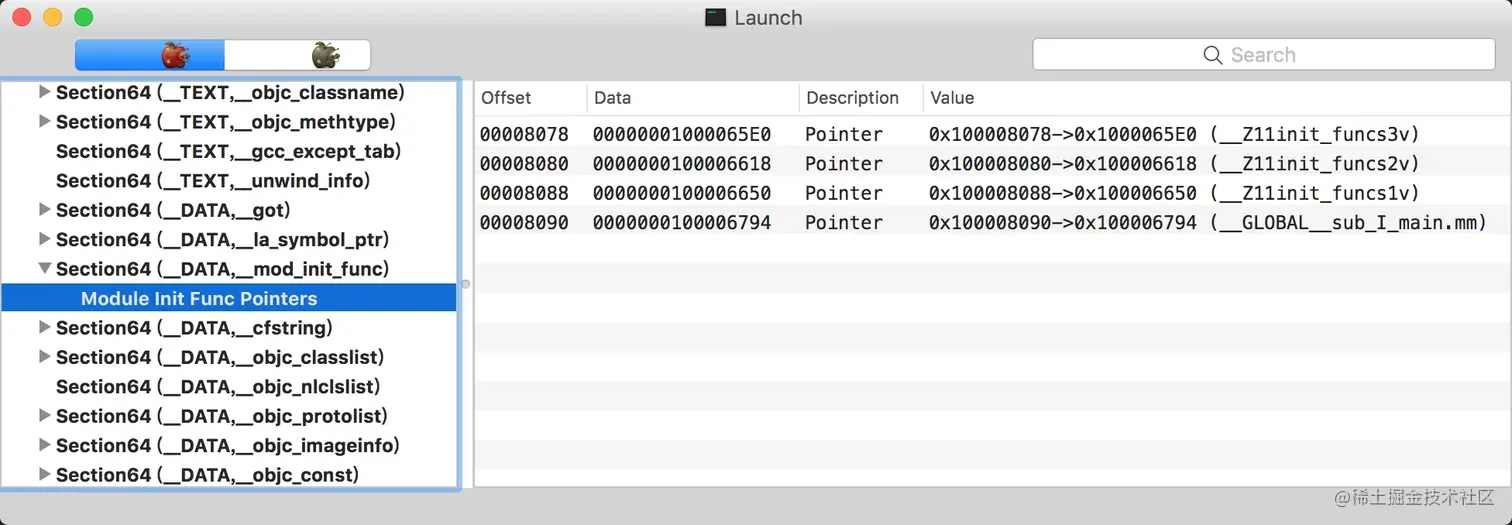

_mod_init_func中保存的是全局 C++对象的构造函数以及所有带__attribute__((constructor) 的C函数。

现在添加一些代码再来运行一下程序即可验证，如下图所示：

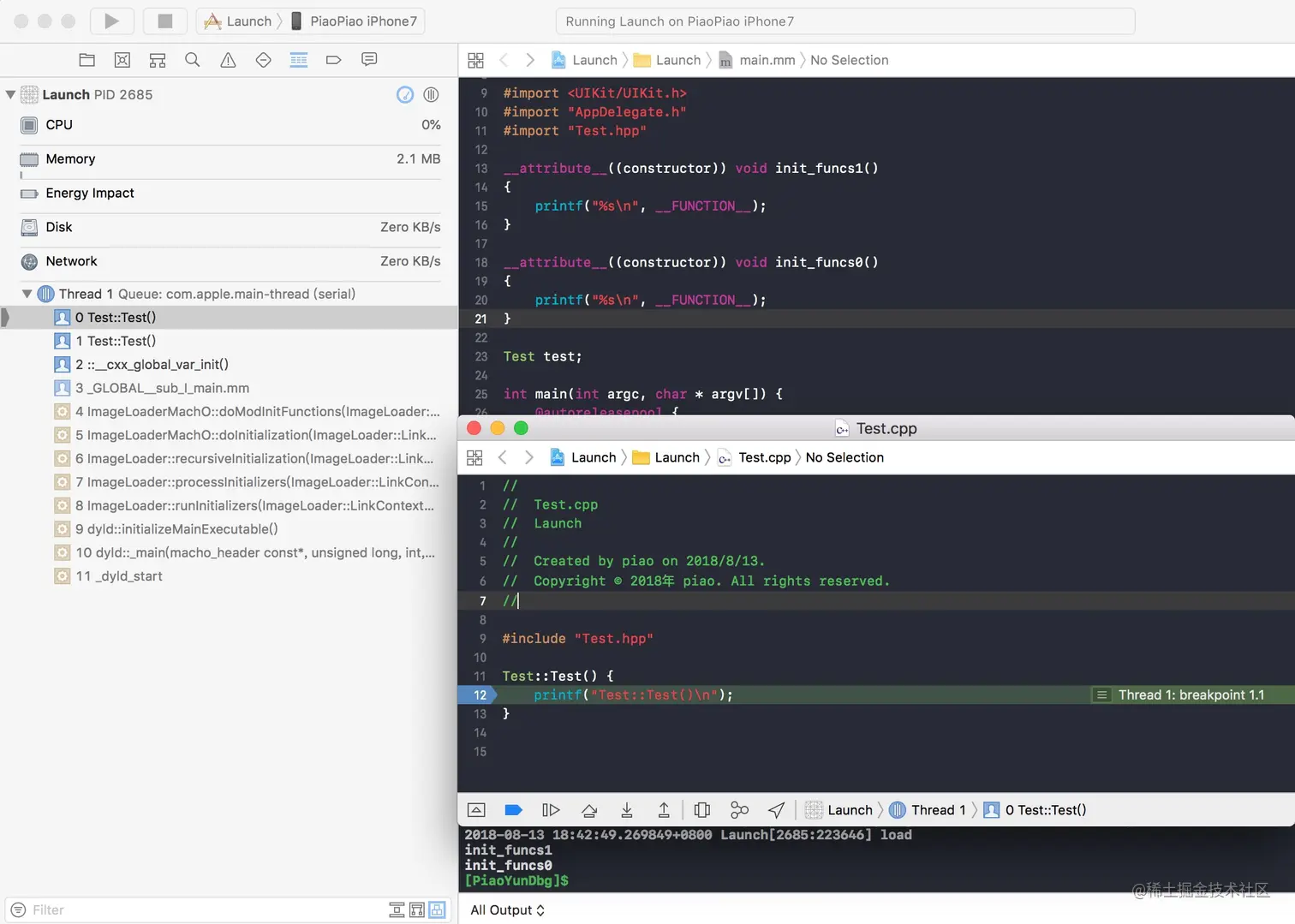

找入口点并返回

这一步调用主程序镜像的 getThreadPC()，从加载命令读取 LC_MAIN 入口，如果没有 LC_MAIN 就调用getMain() 读取 LC_UNIXTHREAD，找到后就跳到入口点指定的地址并返回。

至此，整个 dyld 的加载过程就分析完成了。

---

欢迎点赞、转发、评论。微信搜索公众号「iOS成长指北」。由于笔者的学习能力和语言表达能力，有任何不清楚或错误的地方欢迎在留言区留言。后续也会对文章进行修改。希望能一起学习，获得成长。
