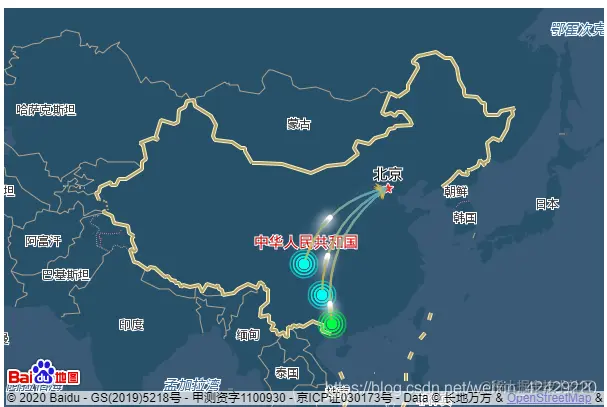

效果：
代码地址
集成js
<script type="text/javascript" src="https://api.map.baidu.com/api?v=2.0&ak=你自己申请得百度地图ak"></script>
<script src="./dist/echarts.min.js" ></script>
<script src="./dist/extension/bmap.min.js"></script>
添加div
<div id="main" style="width: 600px;height:400px;"></div>
设置地图样式
let mapStyle = {
styleJson: [
{
'featureType': 'water',
'elementType': 'all',
'stylers': {
'color': '#395a75'
}
}, {
'featureType': 'land',
'elementType': 'all',
'stylers': {
'color': '#285069'
}
}, {
'featureType': 'railway',
'elementType': 'all',
}, {
'featureType': 'highway',
'elementType': 'all',
}, {
'featureType': 'highway',
'elementType': 'labels',
}, {
'featureType': 'arterial',
'elementType': 'geometry',
}, {
'featureType': 'arterial',
'elementType': 'geometry.fill',
'stylers': {
'color': '#fefefe'
}
}, {
'featureType': 'poi',
'elementType': 'all',
}, {
'featureType': 'green',
'elementType': 'all',
}, {
'featureType': 'subway',
'elementType': 'all',
}, {
'featureType': 'manmade',
'elementType': 'all',
}, {
'featureType': 'local',
'elementType': 'all',
}, {
'featureType': 'arterial',
'elementType': 'labels',
}, {
'featureType': 'boundary',
'elementType': 'all',
}, {
'featureType': 'building',
'elementType': 'all',
}, {
'featureType': 'label',
'elementType': 'labels.text.fill',
}]
}
设置飞线样式
let geo = {
"map": "bmap",
"polyline": true,
"progressiveThreshold": 100,
"progressive": 400,
"label": {
"emphasis": {
"show": false
}
},
"roam": true,
"itemStyle": {
"normal": {
"areaColor": "#E7A060", //连接线的颜色
"borderColor": "#ff9900" //移动飞线的颜色
},
"emphasis": {
"areaColor": "#F300FF" //
}
}
}
设置飞线数据
let deviceList = [{
deviceCount: 1,
lat: 30.6799428454,
lng: 104.067923463,
province: "四川省",
provinceId: "22",
},
{
deviceCount: 1,
lat: 26.6299067414,
lng: 106.709177096,
province: "贵州省",
provinceId: "23",
},
{
deviceCount: 18,
lat: 22.8064929356,
lng: 108.297233556,
province: "广西壮族自治区",
provinceId: "25",
}
]
let pointData = []
let lineData = []
for (var i = 0; i < deviceList.length; i++) {
let device = deviceList[i];
if(!device.lng|| !device.lat){
continue;
}
let toName = device.province?device.province:"";
lineData.push({ "fromName":"总部","toName":toName,"coords":[ [device.lng,device.lat],[116.3,39.9]]});
pointData.push({"name":toName,"value":[device.lng,device.lat,device.deviceCount]});
}
加载飞线图
var myChart = echarts.init(document.getElementById('main'));
var option = {
//百度地图样式
bmap: {
center: [104.114129, 37.550339],
zoom: 4,
roam: true,
mapStyle: mapStyle
},
tooltip : {
trigger: 'item',
"formatter": function(res){
if(res.seriesType==="effectScatter"){
return res.name+" "+res.value[2]+' 台';
}
}
},
dataRange: {
show:false,
min : 0,
max : 100,
calculable : true,
color: ['#ff3333', 'orange', 'yellow','lime','aqua'],
textStyle:{
color:'#fff'
}
},
// 地图飞线样式选项
geo: geo,
series: [
{
//飞线样式
"name": "",
"type": "lines",
"coordinateSystem": "bmap",
// "zlevel": 2,
"symbol": ['none', 'arrow'],
// "symbolSize": 20,
"effect": {
symbolSize: 5,
"show": true,
"scaleSize": 2,
"period": 20,
"color": '#FFF',
"shadowBlur": 10,
constantSpeed: 50
// "show": true,
// "period": 6,
// "trailLength": 0,
// // "symbol": "path://M128 724.224c0 42.432 19.2 80.192 48 103.744l0 84.864C176 941.12 195.2 960 224 960l48 0C300.8 960 320 941.12 320 912.832l0-47.168 384 0 0 47.168C704 941.12 723.2 960 752 960l48 0c28.8 0 48-18.88 48-47.168l0-84.864C876.8 804.352 896 766.656 896 724.224L896 252.608C896 87.552 723.2 64 512 64 300.8 64 128 87.552 128 252.608L128 724.224zM296 771.392c-38.4 0-72-33.024-72-70.72 0-37.696 33.6-70.72 72-70.72 38.4 0 72 33.024 72 70.72C368 738.368 334.4 771.392 296 771.392zM728 771.392c-38.4 0-72-33.024-72-70.72 0-37.696 33.6-70.72 72-70.72s72 33.024 72 70.72C800 738.368 766.4 771.392 728 771.392zM800 488.448l-576 0L224 252.608l576 0L800 488.448z",
// "symbolSize": 8 //动画图大小
},
"lineStyle": {
"normal": {
"color": new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
offset: 0,
color: '#58B3CC'
}, {
offset: 1,
color: '#ffbf31'
}], false),
"width": 2, //飞线粗细
"opacity": 0.3,
"curveness": 0.3
},
// normal:{
// borderColor:'rgba(100,149,237,1)',
// borderWidth:0.5,
// areaStyle:{
// color: '#1b1b1b'
// }
// }
},
// "itemStyle": {
// "normal": {
// "borderWidth":1,
// "lineStyle": {
// "type": 'solid',
// "shadowBlur": 10
// }
// }
// },
"data":lineData,
},
{
//终点点位样式
"name": "",
"type": "effectScatter",
"coordinateSystem": "bmap",
// "zlevel": 2,
"rippleEffect": {
period: 5,
scale: 3,
"brushType": "stroke"
},
// symbol:'emptyCircle',
symbolSize : 10,
// effect : {
// show: true,
// shadowBlur : 0
// },
itemStyle:{
normal:{
"color": "#FF4040"
},
},
"label": {
"normal": {
"show": false,
"position": "right",
"formatter": function(res){
if(res.seriesType==="effectScatter"){
return '';
}
}
}
},
// "itemStyle": {
// // "normal": {
// // "color": "#ff00ff",
// // }
// "normal":{
// "label":{ "show" :true},
// symbolSize: 1000,
// "color": "#FF4040"
// },
// "emphasis": {
// "label":{ "position":'top'}
// }
// },
//出发点和终点坐标
"data": pointData,
}
]
};
// 使用刚指定的配置项和数据显示图表。
myChart.setOption(option);
