本文基于 go1.15.2 darwin/amd64

作用介绍

context的目的是实现主协程对子协程的控制，作用包括取消执行、设置超时时间、携带键值对等。下面是一个使用context防止协程泄露的例子。不使用context，创建了goroutine之后没有办法取消，在程序退出之前，会一直打印"in go loop"。

// 协程泄露的例子
func TestRoutine1(t *testing.T) {
	// 创建了go routine，没有办法取消
	go func() {
		for {
			fmt.Print("in go loop\n")
		}
	}()
	time.Sleep(2 * time.Second)
}

为了实现对子协程的控制，一般在goroutine中添加对context信号的等待。

func TestRoutine2(t *testing.T) {
	ctx, cancel := context.WithCancel(context.Background())
	go func(ctx context.Context) {
		for {
			select {
			case <-ctx.Done():
				fmt.Print("context control\n")
				return
			default:
				fmt.Print("in go loop\n")
				time.Sleep(500 * time.Millisecond)
			}
		}
	}(ctx)
	time.Sleep(2 * time.Second)
	cancel()
}

Context 内部结构

context包里面，有接口Context，对应四个实现emptyCtx, cancelCtx, timerCtx,valueCtx。

Context接口

type Context interface {
	Deadline() (deadline time.Time, ok bool)

	Done() <-chan struct{}

	Err() error

	Value(key interface{}) interface{}
}

Deadline：获取到期时间。如果没有到期时间，ok返回false。
Done：返回一个channel，表示取消的信号。如果通道关闭则代表该 Context 已经被取消；如果返回的为 nil，则代表该 Context 是一个永远不会被取消的 Context。
Err：返回该 Context 被取消的原因。如果只使用 Context 包的 Context 类型的话，那么只可能返回 Canceled （代表被明确取消）或者 DeadlineExceeded （因超时而取消）。
Value：获取Context中的键值对。

emptyCtx

emptyCtx是int类型的重新定义，它不是空的struct{}是因为每个这种类型的变量需要用不同的内存地址。 emptyCtx没有过期时间，不能被取消。

// An emptyCtx is never canceled, has no values, and has no deadline. It is not
// struct{}, since vars of this type must have distinct addresses.
type emptyCtx int

func (*emptyCtx) Deadline() (deadline time.Time, ok bool) {
	return
}

func (*emptyCtx) Done() <-chan struct{} {
	return nil
}

func (*emptyCtx) Err() error {
	return nil
}

func (*emptyCtx) Value(key interface{}) interface{} {
	return nil
}

emptyCtx的作用是作为Context树的根节点。

var (
	background = new(emptyCtx)
	todo       = new(emptyCtx)
)

// Background returns a non-nil, empty Context. It is never canceled, has no
// values, and has no deadline. It is typically used by the main function,
// initialization, and tests, and as the top-level Context for incoming
// requests.
func Background() Context {
	return background
}

// TODO returns a non-nil, empty Context. Code should use context.TODO when
// it's unclear which Context to use or it is not yet available (because the
// surrounding function has not yet been extended to accept a Context
// parameter).
func TODO() Context {
	return todo
}

cancelCtx

cancelFunc

type CancelFunc func()

调用函数WithCancel,WithTimeout,WithDeadline都会返回新的子Context和CancelFunc类型的函数。 CancelFunc用于取消的操作。

cancenler接口

// A canceler is a context type that can be canceled directly. The
// implementations are *cancelCtx and *timerCtx.
type canceler interface {
	cancel(removeFromParent bool, err error)
	Done() <-chan struct{}
}

可以被取消的context都实现了这个接口。

cancelCtx内部结构

type cancelCtx struct {
	Context

	mu       sync.Mutex            // protects following fields
	done     chan struct{}         // created lazily, closed by first cancel call
	children map[canceler]struct{} // set to nil by the first cancel call
	err      error                 // set to non-nil by the first cancel call
}

func (c *cancelCtx) Done() <-chan struct{} {
   c.mu.Lock()
   if c.done == nil {
      c.done = make(chan struct{})
   }
   d := c.done
   c.mu.Unlock()
   return d
}

cancelCtx每个字段作用：

包含了一个Context类型的值，存储了当前cancelCtx的父Context的指针。
done作为取消信号的channel，子协程监听该通道了解到是否需要取消任务。
children存储了当前Context衍生的所有可取消类型的子Context。
err 会被第一次取消的时候设置

cancelCtx实现了canceler接口。下面看一下cancel(removeFromParent bool, err error) 方法。

// cancel closes c.done, cancels each of c's children, and, if
// removeFromParent is true, removes c from its parent's children.
func (c *cancelCtx) cancel(removeFromParent bool, err error) {
	if err == nil {
		panic("context: internal error: missing cancel error")
	}
	c.mu.Lock()
	if c.err != nil {
		c.mu.Unlock()
		return // already canceled
	}
	c.err = err
	if c.done == nil {
		c.done = closedchan
	} else {
		close(c.done)
	}
	for child := range c.children {
		// NOTE: acquiring the child's lock while holding parent's lock.
		child.cancel(false, err)
	}
	c.children = nil
	c.mu.Unlock()

	if removeFromParent {
		removeChild(c.Context, c)
	}
}

如果cancelCtx(父协程)被调用cancel方法，cancel会调用childeren里面每个子Context（子协程）的cancel方法。
如果当前的cancelCtx是一个子Context,它被取消了，其父 Context 的children中也就没有必要再存储该子Context了。这通过调用了removeChild来实现：根据存储的父 Context 向上一层层的找（由 parentCancelCtx 实现），如果父Context是已知的 cancelCtx和timerCtx类型就从children中删除，如果是valueCtx类型则继续向上层查找其父Context。

// parentCancelCtx returns the underlying *cancelCtx for parent.
// It does this by looking up parent.Value(&cancelCtxKey) to find
// the innermost enclosing *cancelCtx and then checking whether
// parent.Done() matches that *cancelCtx. (If not, the *cancelCtx
// has been wrapped in a custom implementation providing a
// different done channel, in which case we should not bypass it.)
func parentCancelCtx(parent Context) (*cancelCtx, bool) {
	done := parent.Done()
	if done == closedchan || done == nil {
		return nil, false
	}
	p, ok := parent.Value(&cancelCtxKey).(*cancelCtx)
	if !ok {
		return nil, false
	}
	p.mu.Lock()
	ok = p.done == done
	p.mu.Unlock()
	if !ok {
		return nil, false
	}
	return p, true
}

// removeChild removes a context from its parent.
func removeChild(parent Context, child canceler) {
	p, ok := parentCancelCtx(parent)
	if !ok {
		return
	}
	p.mu.Lock()
	if p.children != nil {
		delete(p.children, child)
	}
	p.mu.Unlock()
}

WithCancel方法

WithCancel帮助创建一个子cancelCtx，并保证父Context取消时该新建的子cancelCtx也能被通知取消。

propagateCancel 根据传入的父Context值沿着树向上查找到cancelCtx类型的节点，将新建的子cancelCtx加入到该节点的 children中。如果发现父 Context 已经取消了，那么会立刻将当前新产生的子 Context 也取消掉。
如果找不到cancelCtx类型的节点的话，那么就要新启一个协程等待父Context被取消的时候明确调用新产生的子 cancelCtx的取消函数，从而将parent和子cancelCtx组织成一树形结构。

// WithCancel returns a copy of parent with a new Done channel. The returned
// context's Done channel is closed when the returned cancel function is called
// or when the parent context's Done channel is closed, whichever happens first.
//
// Canceling this context releases resources associated with it, so code should
// call cancel as soon as the operations running in this Context complete.
func WithCancel(parent Context) (ctx Context, cancel CancelFunc) {
	if parent == nil {
		panic("cannot create context from nil parent")
	}
	c := newCancelCtx(parent)
	propagateCancel(parent, &c)
	return &c, func() { c.cancel(true, Canceled) }
}

// propagateCancel arranges for child to be canceled when parent is.
func propagateCancel(parent Context, child canceler) {
	done := parent.Done()
	if done == nil {
		return // parent is never canceled
	}

	select {
	case <-done:
		// parent is already canceled
		child.cancel(false, parent.Err())
		return
	default:
	}

	if p, ok := parentCancelCtx(parent); ok {
        p.mu.Lock()
        // 找到父 cancelCtx
		if p.err != nil {
			// parent has already been canceled
			child.cancel(false, p.err)
		} else {
			if p.children == nil {
				p.children = make(map[canceler]struct{})
			}
			p.children[child] = struct{}{}
		}
		p.mu.Unlock()
	} else {
        atomic.AddInt32(&goroutines, +1)
        // 找不到父 cancelCtx，新建goroutine去等待
		go func() {
			select {
			case <-parent.Done():
				child.cancel(false, parent.Err())
			case <-child.Done():
			}
		}()
	}
}

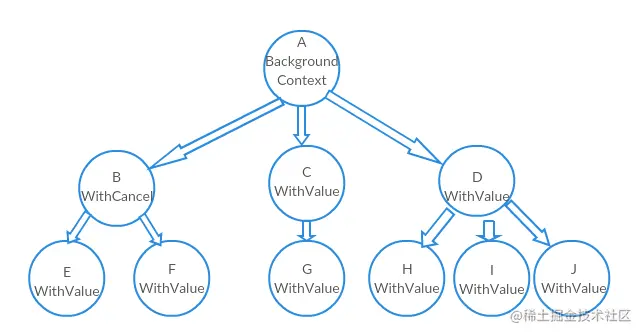

Context树:

timerCtx

timerCtx是超时自动取消的Context，内部使用cancelCtx实现取消功能，它增加了定时器Timer，定时调用cancle函数实现该功能。但是如果其父 Context 也有超时过期的取消功能，且父 Context 的超时时间点在传入的时间点之前，那么就没有必要再使用 timerCtx 生成子 Context 了，使用 WithCancel 就可以了。

// A timerCtx carries a timer and a deadline. It embeds a cancelCtx to
// implement Done and Err. It implements cancel by stopping its timer then
// delegating to cancelCtx.cancel.
type timerCtx struct {
	cancelCtx
	timer *time.Timer // Under cancelCtx.mu.

	deadline time.Time
}

func (c *timerCtx) Deadline() (deadline time.Time, ok bool) {
	return c.deadline, true
}

func (c *timerCtx) cancel(removeFromParent bool, err error) {
	c.cancelCtx.cancel(false, err)
	if removeFromParent {
		// Remove this timerCtx from its parent cancelCtx's children.
		removeChild(c.cancelCtx.Context, c)
	}
	c.mu.Lock()
	if c.timer != nil {
		c.timer.Stop()
		c.timer = nil
	}
	c.mu.Unlock()
}

下面是WithTimeOut和WithCancel函数。

// WithTimeout returns WithDeadline(parent, time.Now().Add(timeout)).
func WithTimeout(parent Context, timeout time.Duration) (Context, CancelFunc) {
	return WithDeadline(parent, time.Now().Add(timeout))
}

// WithDeadline returns a copy of the parent context with the deadline adjusted
// to be no later than d. If the parent's deadline is already earlier than d,
// WithDeadline(parent, d) is semantically equivalent to parent. The returned
// context's Done channel is closed when the deadline expires, when the returned
// cancel function is called, or when the parent context's Done channel is
// closed, whichever happens first.
func WithDeadline(parent Context, d time.Time) (Context, CancelFunc) {
	if parent == nil {
		panic("cannot create context from nil parent")
	}
	if cur, ok := parent.Deadline(); ok && cur.Before(d) {
		// The current deadline is already sooner than the new one.
		return WithCancel(parent)
	}
	c := &timerCtx{
		cancelCtx: newCancelCtx(parent),
		deadline:  d,
	}
	propagateCancel(parent, c)
	dur := time.Until(d)
	if dur <= 0 {
		c.cancel(true, DeadlineExceeded) // deadline has already passed
		return c, func() { c.cancel(false, Canceled) }
	}
	c.mu.Lock()
	defer c.mu.Unlock()
	if c.err == nil {
		c.timer = time.AfterFunc(dur, func() {
			c.cancel(true, DeadlineExceeded)
		})
	}
	return c, func() { c.cancel(true, Canceled) }
}

valueCtx

valueCtx内部仍然使用Context存储父Context的指针，并用interface{}存储键值。如果当前valueCtx找不到需要的key，会沿着树向上一直查找直到根节点，类似链表的搜索。

// A valueCtx carries a key-value pair. It implements Value for that key and
// delegates all other calls to the embedded Context.
type valueCtx struct {
	Context
	key, val interface{}
}

func (c *valueCtx) Value(key interface{}) interface{} {
	if c.key == key {
		return c.val
	}
	return c.Context.Value(key)
}

使用WithValue创建时，会判断key是否实现Comparable接口。如果没有实现，会触发panic。

// Use context Values only for request-scoped data that transits processes and
// APIs, not for passing optional parameters to functions.
//
// The provided key must be comparable and should not be of type
// string or any other built-in type to avoid collisions between
// packages using context. Users of WithValue should define their own
// types for keys. To avoid allocating when assigning to an
// interface{}, context keys often have concrete type
// struct{}. Alternatively, exported context key variables' static
// type should be a pointer or interface.
func WithValue(parent Context, key, val interface{}) Context {
	if parent == nil {
		panic("cannot create context from nil parent")
	}
	if key == nil {
		panic("nil key")
	}
	if !reflectlite.TypeOf(key).Comparable() {
		panic("key is not comparable")
	}
	return &valueCtx{parent, key, val}
}

注释里写了，key的类类型不应该是内置类型，以避免冲突。使用的时候应该自定义类型：

func main() {
	ProcessRequest("jane","abc123")
}

type ctxKey int

const (
	ctxUserID ctxKey = iota
	ctxAuthToken
)

func UserID(c context.Context)string{
	return c.Value(ctxUserID).(string)
}

func AuthToken(c context.Context)string{
	return c.Value(ctxAuthToken).(string)
}

func ProcessRequest(userID,authToken string){
	ctx := context.WithValue(context.Background(),ctxUserID,userID)
	ctx = context.WithValue(ctx,ctxAuthToken,authToken)
	HandleRequest(ctx)
}

func HandleRequest(ctx context.Context){
	fmt.Printf("handling response for %v (%v)",
		UserID(ctx),
		AuthToken(ctx),
	)
}

参考文档
