学习笔记——Retrofit要点总结

基本使用

public final class SimpleService {
  public static final String API_URL = "https://api.github.com";

  public static class Contributor {
    public final String login;
    public final int contributions;

    public Contributor(String login, int contributions) {
      this.login = login;
      this.contributions = contributions;
    }
  }

  public interface GitHub {
    @GET("/repos/{owner}/{repo}/contributors")
    Call<List<Contributor>> contributors(@Path("owner") String owner, @Path("repo") String repo);
  }

  public static void main(String... args) throws IOException {
    // Create a very simple REST adapter which points the GitHub API.
    Retrofit retrofit =
        new Retrofit.Builder()
            .baseUrl(API_URL)
            .addConverterFactory(GsonConverterFactory.create())
            .build();

    // Create an instance of our GitHub API interface.
    GitHub github = retrofit.create(GitHub.class);

    // Create a call instance for looking up Retrofit contributors.
    Call<List<Contributor>> call = github.contributors("square", "retrofit");

    // Fetch and print a list of the contributors to the library.
    List<Contributor> contributors = call.execute().body();
    for (Contributor contributor : contributors) {
      System.out.println(contributor.login + " (" + contributor.contributions + ")");
    }
  }
}

Retrofit

动态代理实现网络请求（注解）的解析和封装（ServiceMethod，其子类HttpServiceMethod具体实现，不同版本存在调用adapt的差异），第一次解析之后，就会通过一个list将这些内容缓存起来。create方法

Retrofit类：
 public <T> T create(final Class<T> service) {
    validateServiceInterface(service);
    //使用动态代理解析接口
    return (T)
        Proxy.newProxyInstance(
            service.getClassLoader(),
            new Class<?>[] {service},
            new InvocationHandler() {
              private final Platform platform = Platform.get();
              private final Object[] emptyArgs = new Object[0];

              @Override
              public @Nullable Object invoke(Object proxy, Method method, @Nullable Object[] args)
                  throws Throwable {
                // If the method is a method from Object then defer to normal invocation.
                if (method.getDeclaringClass() == Object.class) {
                  return method.invoke(this, args);
                }
                args = args != null ? args : emptyArgs;
                return platform.isDefaultMethod(method)
                    ? platform.invokeDefaultMethod(method, service, proxy, args)
                    : loadServiceMethod(method).invoke(args);
              }
            });
  }

 ServiceMethod<?> loadServiceMethod(Method method) {
    //检查是否有缓存
    ServiceMethod<?> result = serviceMethodCache.get(method);
    if (result != null) return result;

    synchronized (serviceMethodCache) {
      result = serviceMethodCache.get(method);
      //没有缓存开始解析
      if (result == null) {
        result = ServiceMethod.parseAnnotations(this, method);
        serviceMethodCache.put(method, result);
      }
    }
    return result;
  }

解析接口的源码

ServiceMethod文件：

abstract class ServiceMethod<T> {
  static <T> ServiceMethod<T> parseAnnotations(Retrofit retrofit, Method method) {

    //使用RequestFactory解析注解并保存相关参数
    RequestFactory requestFactory = RequestFactory.parseAnnotations(retrofit, method);

    Type returnType = method.getGenericReturnType();
    if (Utils.hasUnresolvableType(returnType)) {
      throw methodError(
          method,
          "Method return type must not include a type variable or wildcard: %s",
          returnType);
    }
    if (returnType == void.class) {
      throw methodError(method, "Service methods cannot return void.");
    }

    //构造Http请求相关方法，CallAdapterFactor和ConverterFactory也是在此处创建
    return HttpServiceMethod.parseAnnotations(retrofit, method, requestFactory);
  }

  abstract @Nullable T invoke(Object[] args);
}

RequestFactory类：

 Builder(Retrofit retrofit, Method method) {
      this.retrofit = retrofit;
      this.method = method;
      //获取方法注解
      this.methodAnnotations = method.getAnnotations();
      this.parameterTypes = method.getGenericParameterTypes();
      //获取参数注解
      this.parameterAnnotationsArray = method.getParameterAnnotations();
    }

 RequestFactory build() {
      for (Annotation annotation : methodAnnotations) {
        //解析方法注解
        parseMethodAnnotation(annotation);
      }
      ...
      int parameterCount = parameterAnnotationsArray.length;
      parameterHandlers = new ParameterHandler<?>[parameterCount];
      //解析参数注解
      for (int p = 0, lastParameter = parameterCount - 1; p < parameterCount; p++) {
        parameterHandlers[p] =
            parseParameter(p, parameterTypes[p], parameterAnnotationsArray[p], p == lastParameter);
      }
      ...
      return new RequestFactory(this);
    }

//方法注解解析流程
private void parseMethodAnnotation(Annotation annotation) {
      if (annotation instanceof DELETE) {
        parseHttpMethodAndPath("DELETE", ((DELETE) annotation).value(), false);
      } else if (annotation instanceof GET) {
        parseHttpMethodAndPath("GET", ((GET) annotation).value(), false);
      } else if (annotation instanceof HEAD) {
        parseHttpMethodAndPath("HEAD", ((HEAD) annotation).value(), false);
      } else if (annotation instanceof PATCH) {
        parseHttpMethodAndPath("PATCH", ((PATCH) annotation).value(), true);
      } else if (annotation instanceof POST) {
        parseHttpMethodAndPath("POST", ((POST) annotation).value(), true);
      } else if (annotation instanceof PUT) {
        parseHttpMethodAndPath("PUT", ((PUT) annotation).value(), true);
      } else if (annotation instanceof OPTIONS) {
        parseHttpMethodAndPath("OPTIONS", ((OPTIONS) annotation).value(), false);
      } else if (annotation instanceof HTTP) {
        HTTP http = (HTTP) annotation;
        parseHttpMethodAndPath(http.method(), http.path(), http.hasBody());
      } else if (annotation instanceof retrofit2.http.Headers) {
        String[] headersToParse = ((retrofit2.http.Headers) annotation).value();
        if (headersToParse.length == 0) {
          throw methodError(method, "@Headers annotation is empty.");
        }
        headers = parseHeaders(headersToParse);
      } else if (annotation instanceof Multipart) {
        if (isFormEncoded) {
          throw methodError(method, "Only one encoding annotation is allowed.");
        }
        isMultipart = true;
      } else if (annotation instanceof FormUrlEncoded) {
        if (isMultipart) {
          throw methodError(method, "Only one encoding annotation is allowed.");
        }
        isFormEncoded = true;
      }
    }

//参数直接解析流程
private @Nullable ParameterHandler<?> parseParameter(
        int p, Type parameterType, @Nullable Annotation[] annotations, boolean allowContinuation) {
      ParameterHandler<?> result = null;
      if (annotations != null) {
        for (Annotation annotation : annotations) {
          ParameterHandler<?> annotationAction =
              parseParameterAnnotation(p, parameterType, annotations, annotation);

      ...
          result = annotationAction;
        }
      }
	...
      return result;
    }

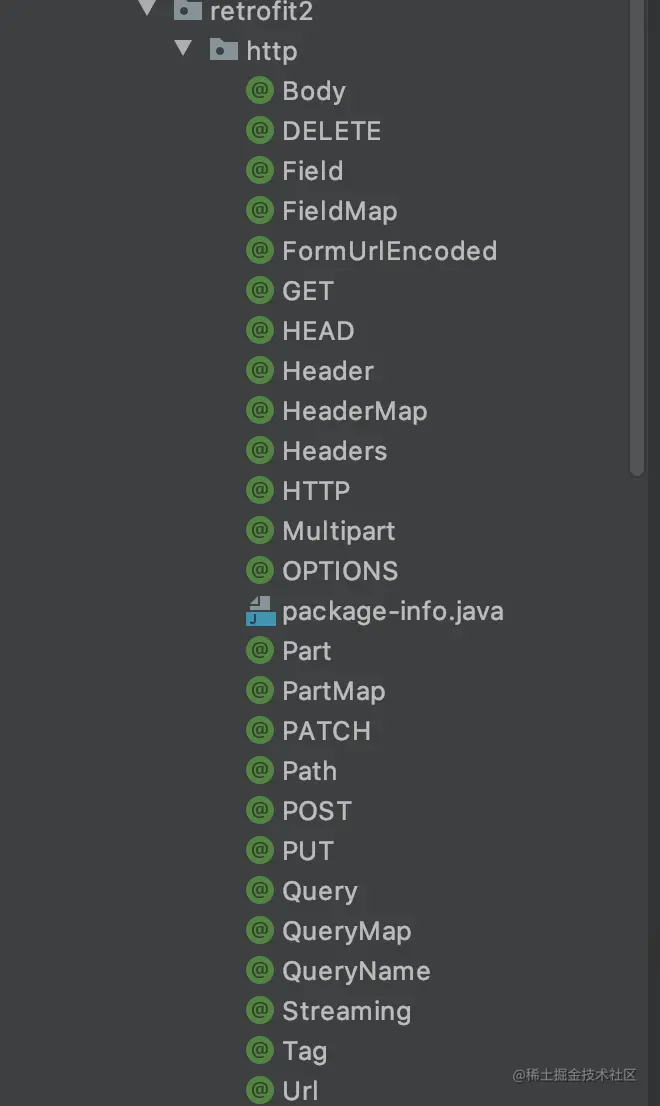

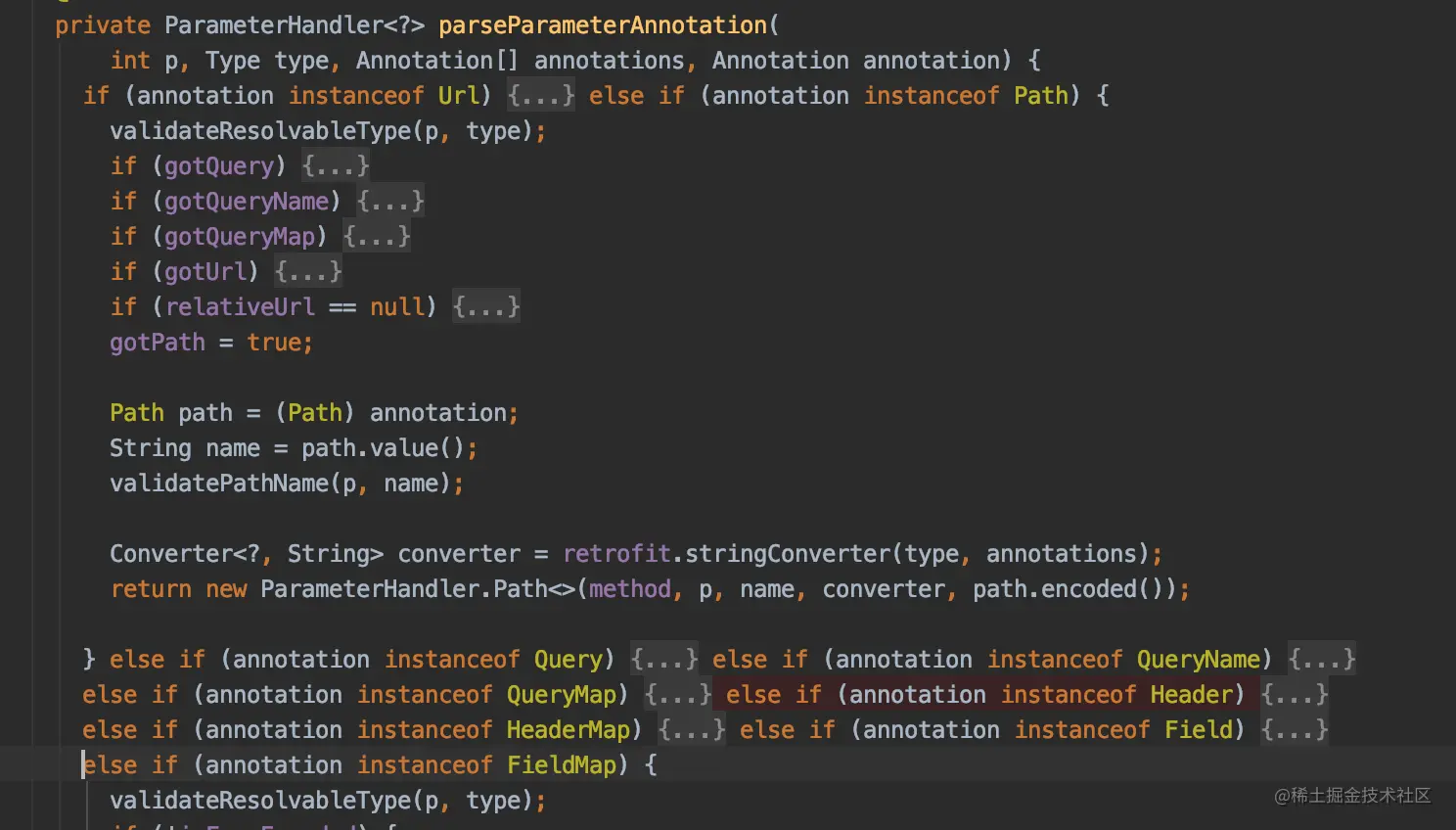

截取部分parseParameterAnnotation的代码如下 可以发现其通过if进行匹配解析，而这些注解正是retrofit中定义的：

在adapter里使用call（okhttp）发起网络请求

适配器和数据转换器的解析

使用addCallAdapterFactory自定义那个adapter可以使用liveData、rxJava、协程等。无论是否添加自定义CallAdapter，默认adapter都会存在。具体选择使用哪个adapter是在第一步（ServiceMethod）解析接口时通过for循环遍历所有适配器匹配。create方法->loadServiceMethod->nextCallAdapterresponseConverter同理 请求适配器和数据转换器的解析如下

static <ResponseT, ReturnT> HttpServiceMethod<ResponseT, ReturnT> parseAnnotations(
      Retrofit retrofit, Method method, RequestFactory requestFactory) {
    ...

    Annotation[] annotations = method.getAnnotations();
    Type adapterType = method.getGenericReturnType();


    //获取callAdapter适配器
    CallAdapter<ResponseT, ReturnT> callAdapter =
        createCallAdapter(retrofit, method, adapterType, annotations);
    Type responseType = callAdapter.responseType();

    //获取数据转换器
    Converter<ResponseBody, ResponseT> responseConverter =
        createResponseConverter(retrofit, method, responseType);
    ...
  }

以createCallAdapter为例追溯其在Retrofi文件中的代码如下：

public CallAdapter<?, ?> nextCallAdapter(
      @Nullable CallAdapter.Factory skipPast, Type returnType, Annotation[] annotations) {
    Objects.requireNonNull(returnType, "returnType == null");
    Objects.requireNonNull(annotations, "annotations == null");

    int start = callAdapterFactories.indexOf(skipPast) + 1;
    for (int i = start, count = callAdapterFactories.size(); i < count; i++) {
      CallAdapter<?, ?> adapter = callAdapterFactories.get(i).get(returnType, annotations, this);
      if (adapter != null) {
        return adapter;
      }
    }
    ...
  }

其中callAdapterFactories是通过addCallAdapterFactory添加的自定义adapter，而在Rrtrofit的bulid方法中会添加默认的适配器： callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));

public interface CallAdapter<R, T> {

  //讲Http response转换为适配器定义的数据类型并返回
  Type responseType();

  //返回一个委托给call（okhttp）的实例，可以理解为在此处发起网络请求
  T adapt(Call<R> call);


  abstract class Factory {

    //用于比对适配器类型，选择合适的适配器
    public abstract @Nullable CallAdapter<?, ?> get(
        Type returnType, Annotation[] annotations, Retrofit retrofit);


    protected static Type getParameterUpperBound(int index, ParameterizedType type) {
      return Utils.getParameterUpperBound(index, type);
    }

    protected static Class<?> getRawType(Type type) {
      return Utils.getRawType(type);
    }
  }
}

callAdapter的实现和网络请求的发起

首先看默认adapter的实现：

 if (callbackExecutor == null) {
        callbackExecutor = platform.defaultCallbackExecutor();
}
callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));

跟踪源码：

final class DefaultCallAdapterFactory extends CallAdapter.Factory {
  private final @Nullable Executor callbackExecutor;

  DefaultCallAdapterFactory(@Nullable Executor callbackExecutor) {
    this.callbackExecutor = callbackExecutor;
  }

  @Override
  public @Nullable CallAdapter<?, ?> get(
      Type returnType, Annotation[] annotations, Retrofit retrofit) {
     //创建CallAdapter实例
    return new CallAdapter<Object, Call<?>>() {
      @Override
      public Type responseType() {
        return responseType;
      }

      @Override
      public Call<Object> adapt(Call<Object> call) {
        return executor == null ? call : new ExecutorCallbackCall<>(executor, call);
      }
    };
  }

  static final class ExecutorCallbackCall<T> implements Call<T> {

    @Override
    public void enqueue(final Callback<T> callback) {
      Objects.requireNonNull(callback, "callback == null");

    //使用okHttp发起网络请求
      delegate.enqueue(
          new Callback<T>() {
            @Override
            public void onResponse(Call<T> call, final Response<T> response) {
              callbackExecutor.execute(
                  () -> {
                    if (delegate.isCanceled()) {
                      // Emulate OkHttp's behavior of throwing/delivering an IOException on
                      // cancellation.
                      callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
                    } else {
                      callback.onResponse(ExecutorCallbackCall.this, response);
                    }
                  });
            }

            @Override
            public void onFailure(Call<T> call, final Throwable t) {
              callbackExecutor.execute(() -> callback.onFailure(ExecutorCallbackCall.this, t));
            }
          });
    }

  }
}

而platfrom的源码删减如下：

class Platform {
  private static final Platform PLATFORM = findPlatform();

  static Platform get() {
    return PLATFORM;
  }

  private static Platform findPlatform() {
    switch (System.getProperty("java.vm.name")) {
      case "Dalvik":
        return new Android();
      case "RoboVM":
        return new Platform(false);
      default:
        return new Platform(true);
    }
  }

  static final class Android extends Platform {
    Android() {
      super(Build.VERSION.SDK_INT >= 24);
    }

    @Override
    public Executor defaultCallbackExecutor() {
      return new MainThreadExecutor();
    }

    @Nullable
    @Override
    Object invokeDefaultMethod(
        Method method, Class<?> declaringClass, Object object, Object... args) throws Throwable {
      if (Build.VERSION.SDK_INT < 26) {
        throw new UnsupportedOperationException(
            "Calling default methods on API 24 and 25 is not supported");
      }
      return super.invokeDefaultMethod(method, declaringClass, object, args);
    }

    static final class MainThreadExecutor implements Executor {
      private final Handler handler = new Handler(Looper.getMainLooper());

      @Override
      public void execute(Runnable r) {
        handler.post(r);
      }
    }
  }
}

可以看到默认适配器还是使用handler将线程切换到子线程。 再来看看RxJava2CallAdapter的实现：

final class RxJava2CallAdapter<R> implements CallAdapter<R, Object> {


  @Override
  public Type responseType() {
    return responseType;
  }

  @Override
  public Object adapt(Call<R> call) {
    Observable<Response<R>> responseObservable =
        isAsync ? new CallEnqueueObservable<>(call) : new CallExecuteObservable<>(call);

    Observable<?> observable;
    if (isResult) {
      observable = new ResultObservable<>(responseObservable);
    } else if (isBody) {
      observable = new BodyObservable<>(responseObservable);
    } else {
      observable = responseObservable;
    }

    if (scheduler != null) {
      observable = observable.subscribeOn(scheduler);
    }

    if (isFlowable) {
      return observable.toFlowable(BackpressureStrategy.LATEST);
    }
    if (isSingle) {
      return observable.singleOrError();
    }
    if (isMaybe) {
      return observable.singleElement();
    }
    if (isCompletable) {
      return observable.ignoreElements();
    }
    return RxJavaPlugins.onAssembly(observable);
  }
}

RxJava2CallAdapter中则是使用Observable去切换线程
