慢速查找
当objc_msgSend在缓存cache中找不到方法时，即源码中执行CheckMiss和JumpMiss，就会进行慢速查找。

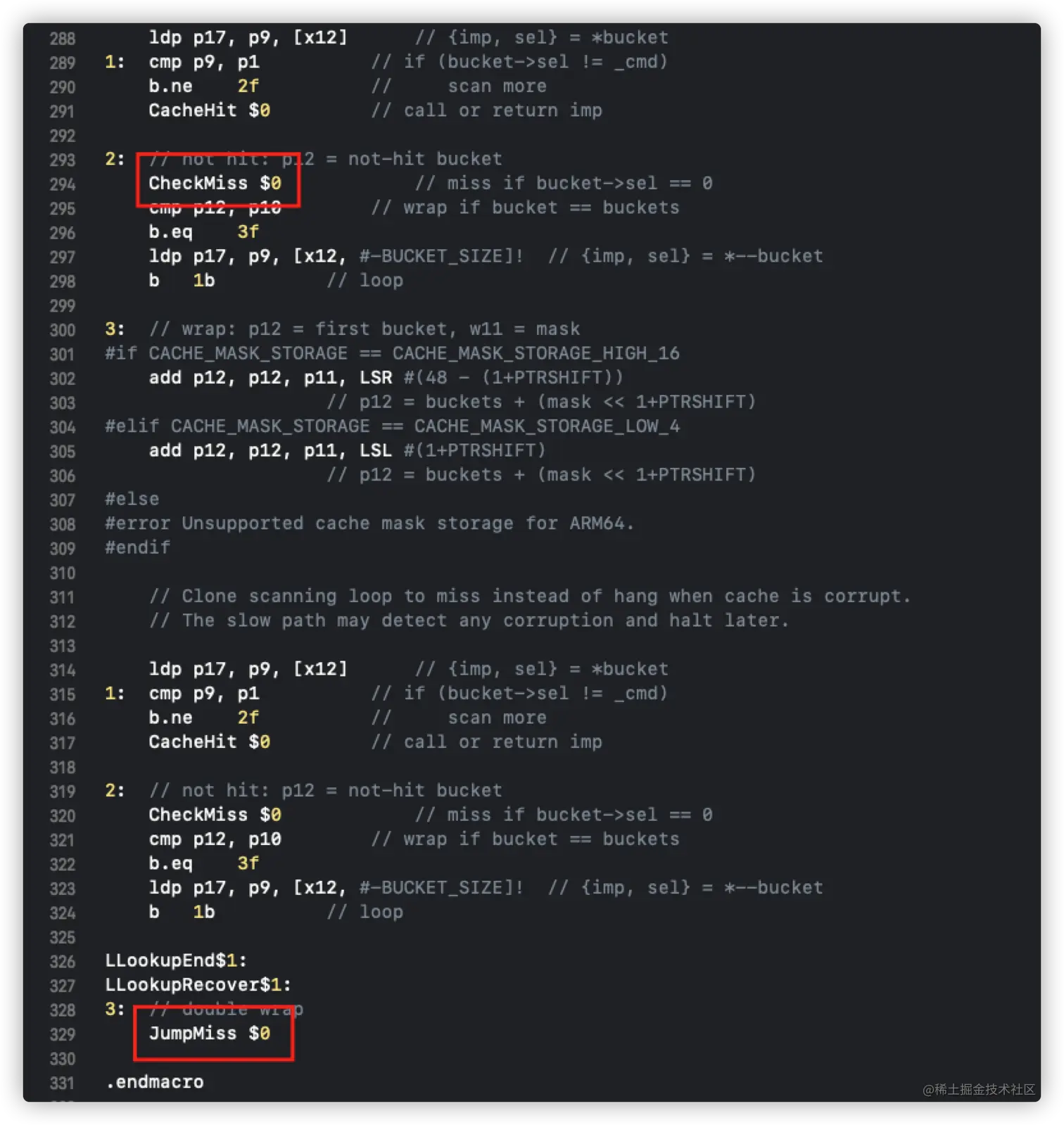

CheckMiss 为loop循环中，
bucket->sel未命中时调用的方法。JumpMiss为结束递归后，仍旧查找到了第一个bucket时，进行调用的方法。

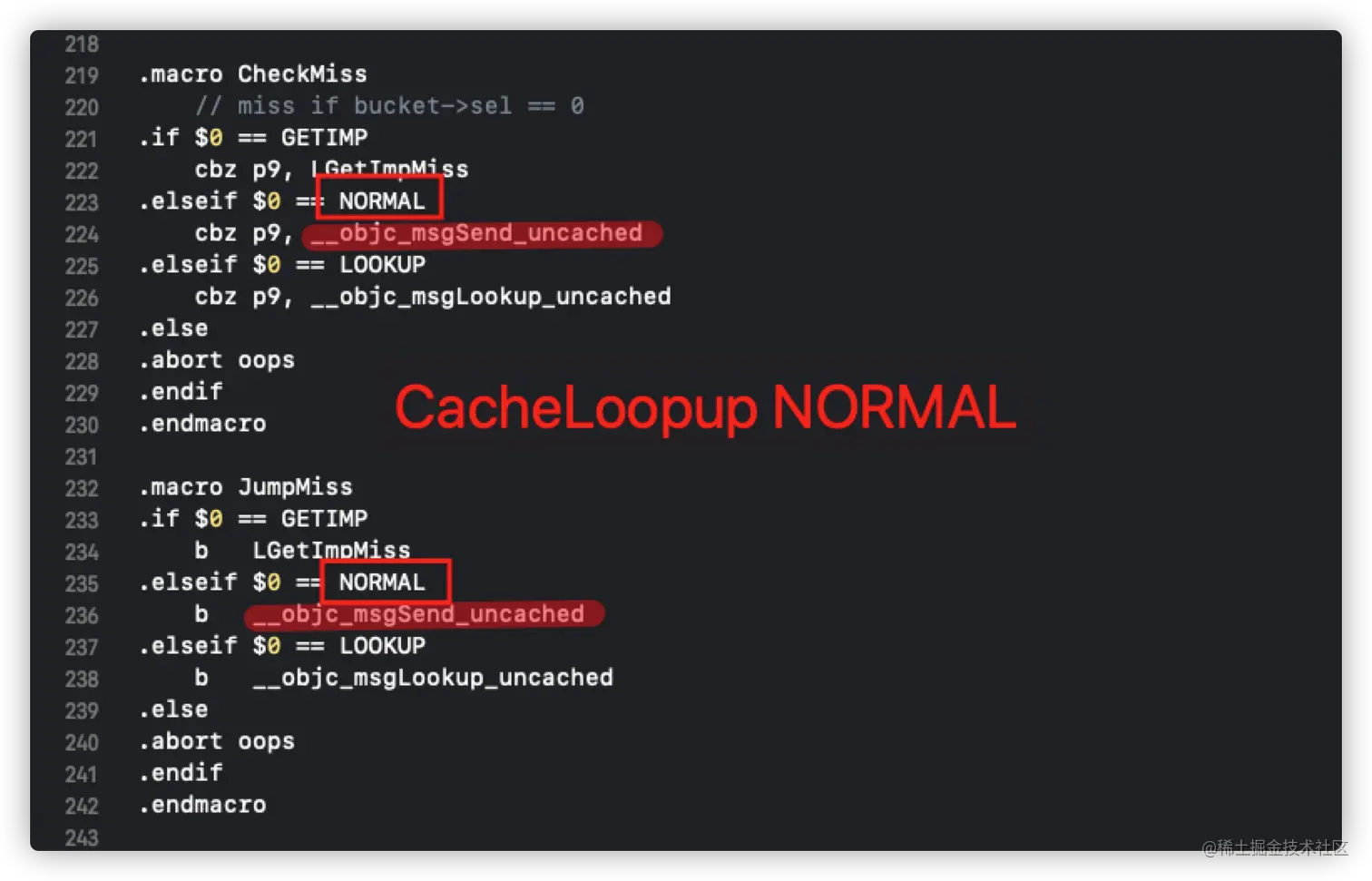

CheckMiss和JumpMiss源码中，都会因NORMAL而进行__objc_msgSend_uncached的操作。
查找__objc_msgSend_uncached实现：

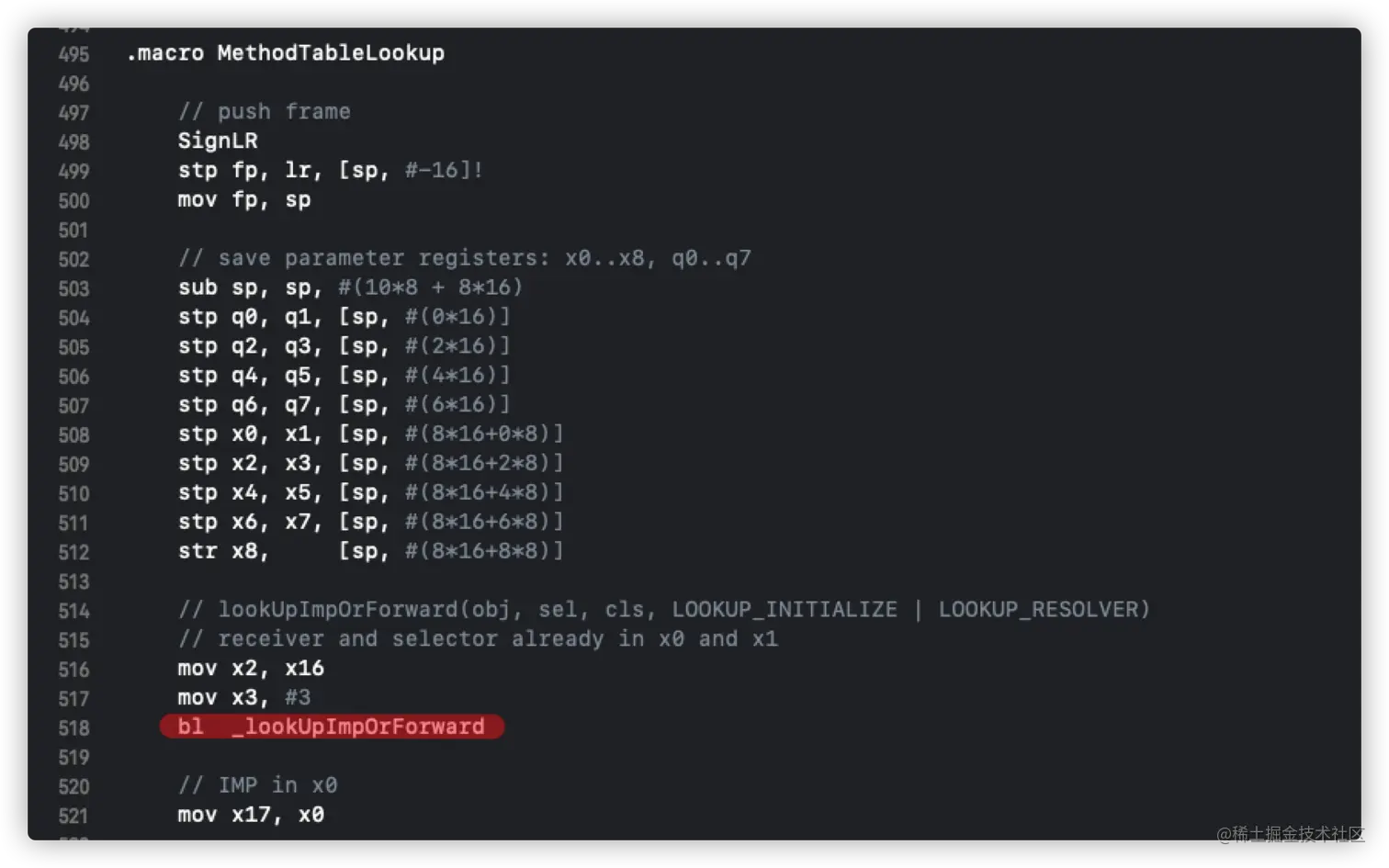

继续查找MethodTableLookup：
当查询到_lookUpImpOrForward时，就继续搜索不到了。是因为从底层汇编往上层C/C++的代码进行调用实现，即进行慢速查找过程。
快速查找是在缓存中进行方法的查找；慢速查找是从类信息data()中，及其父类链中进行方法的查找。
lookUpImpOrForward解析
全局搜一下lookUpImpOrForward：
IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
const IMP forward_imp = (IMP)_objc_msgForward_impcache;
IMP imp = nil;
Class curClass;
runtimeLock.assertUnlocked();
// Optimistic cache lookup
if (fastpath(behavior & LOOKUP_CACHE)) {
imp = cache_getImp(cls, sel);
if (imp) goto done_nolock;
}
// runtimeLock is held during isRealized and isInitialized checking
// to prevent races against concurrent realization.
// runtimeLock is held during method search to make
// method-lookup + cache-fill atomic with respect to method addition.
// Otherwise, a category could be added but ignored indefinitely because
// the cache was re-filled with the old value after the cache flush on
// behalf of the category.
runtimeLock.lock();
// We don't want people to be able to craft a binary blob that looks like
// a class but really isn't one and do a CFI attack.
//
// To make these harder we want to make sure this is a class that was
// either built into the binary or legitimately registered through
// objc_duplicateClass, objc_initializeClassPair or objc_allocateClassPair.
//
// TODO: this check is quite costly during process startup.
checkIsKnownClass(cls);
if (slowpath(!cls->isRealized())) {
// 如果当前类没有实现，先要确认类及其父类链和方法属性等
cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
// runtimeLock may have been dropped but is now locked again
}
if (slowpath((behavior & LOOKUP_INITIALIZE) && !cls->isInitialized())) {
cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
// runtimeLock may have been dropped but is now locked again
// If sel == initialize, class_initialize will send +initialize and
// then the messenger will send +initialize again after this
// procedure finishes. Of course, if this is not being called
// from the messenger then it won't happen. 2778172
}
runtimeLock.assertLocked();
curClass = cls;
// The code used to lookpu the class's cache again right after
// we take the lock but for the vast majority of the cases
// evidence shows this is a miss most of the time, hence a time loss.
//
// The only codepath calling into this without having performed some
// kind of cache lookup is class_getInstanceMethod().
for (unsigned attempts = unreasonableClassCount();;) {
// curClass method list.
Method meth = getMethodNoSuper_nolock(curClass, sel);
if (meth) {
imp = meth->imp;
goto done;
}
if (slowpath((curClass = curClass->superclass) == nil)) {
// No implementation found, and method resolver didn't help.
// Use forwarding.
imp = forward_imp;
break;
}
// Halt if there is a cycle in the superclass chain.
if (slowpath(--attempts == 0)) {
_objc_fatal("Memory corruption in class list.");
}
// Superclass cache.
imp = cache_getImp(curClass, sel);
if (slowpath(imp == forward_imp)) {
// Found a forward:: entry in a superclass.
// Stop searching, but don't cache yet; call method
// resolver for this class first.
break;
}
if (fastpath(imp)) {
// Found the method in a superclass. Cache it in this class.
goto done;
}
}
// No implementation found. Try method resolver once.
if (slowpath(behavior & LOOKUP_RESOLVER)) {
behavior ^= LOOKUP_RESOLVER;
return resolveMethod_locked(inst, sel, cls, behavior);
}
done:
log_and_fill_cache(cls, imp, sel, inst, curClass);
runtimeLock.unlock();
done_nolock:
if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
return nil;
}
return imp;
}
1.
if (fastpath(behavior & LOOKUP_CACHE)) {
imp = cache_getImp(cls, sel);
if (imp) goto done_nolock;
}
该判断，是为了防止在多线程操作时，刚好调用到lookUpImpOrForward时，缓存中insert了要查找的方法，那么可以直接从缓存获取imp，并goto done_nolock,毕竟慢速查找是个耗时的过程，苹果尽量不想太过耗时。
2.
runtimeLock.lock();
加锁，从注释也可以看到，是为了保证操作时的线程安全问题。
3.
checkIsKnownClass(cls);
确保传入的类是合法注册的类，是否已经加载过。
4.
if (slowpath(!cls->isRealized())) {

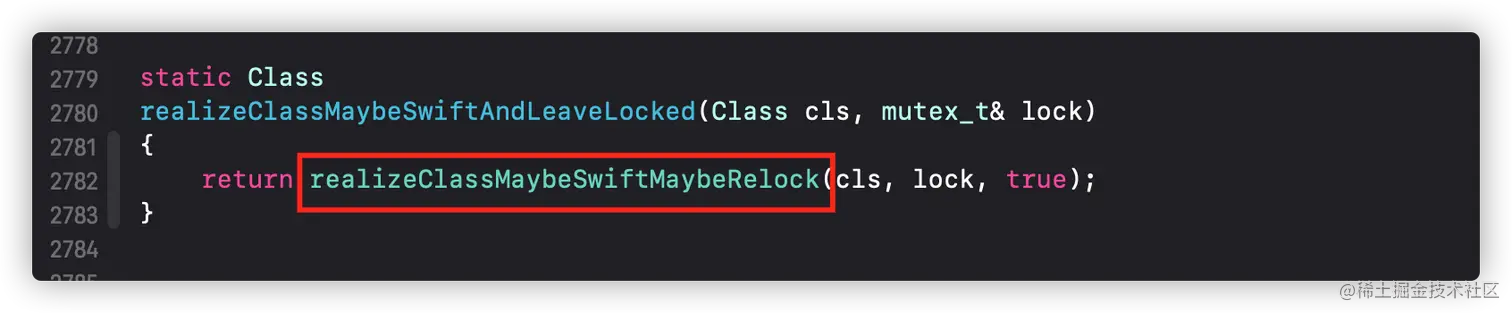

cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
}
如果当前类没有实现，如果没有，则要实现并确认其父类链和方法属性等。

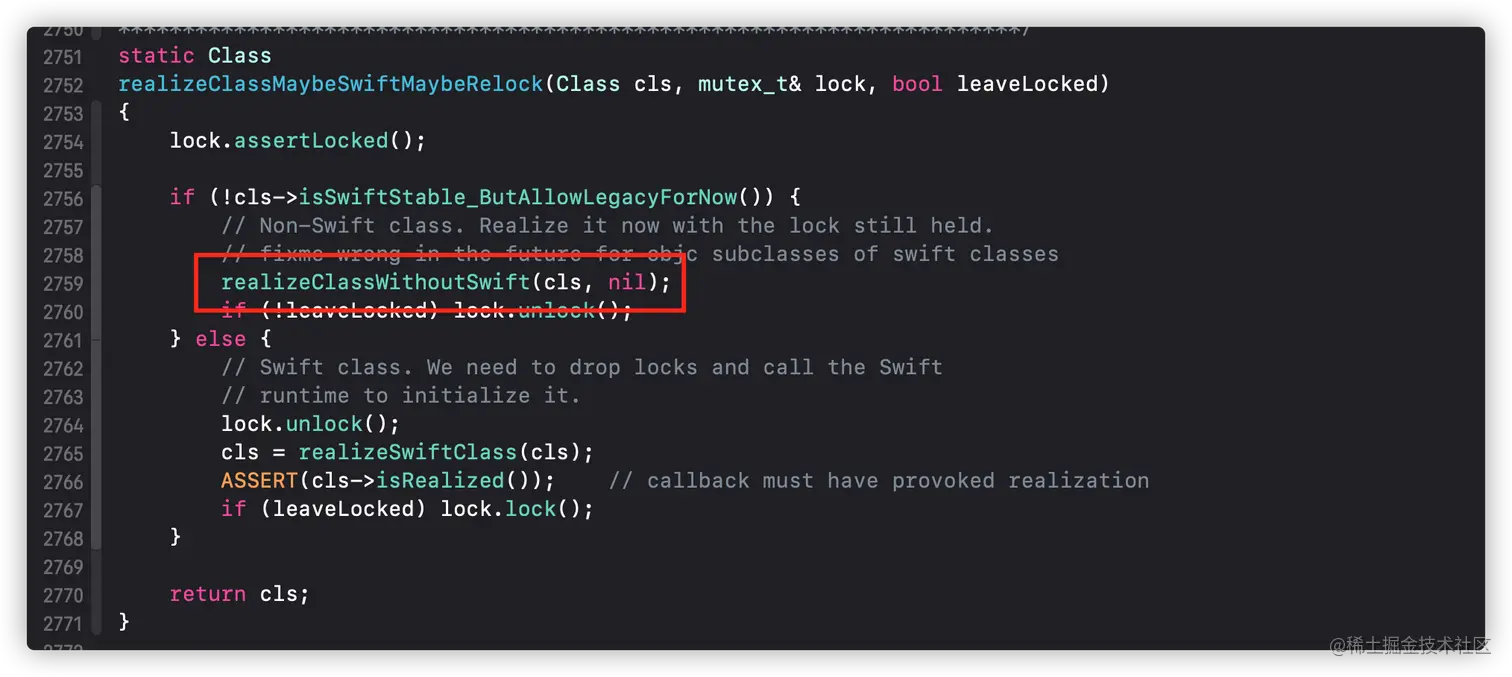

而在realizeClassWithoutSwift方法中，会确认当前类的父类链
...
supercls = realizeClassWithoutSwift(remapClass(cls->superclass), nil);
metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil);
...
cls->superclass = supercls;
cls->initClassIsa(metacls);
...
// Connect this class to its superclass's subclass lists
if (supercls) {
addSubclass(supercls, cls);
} else {
addRootClass(cls);
}

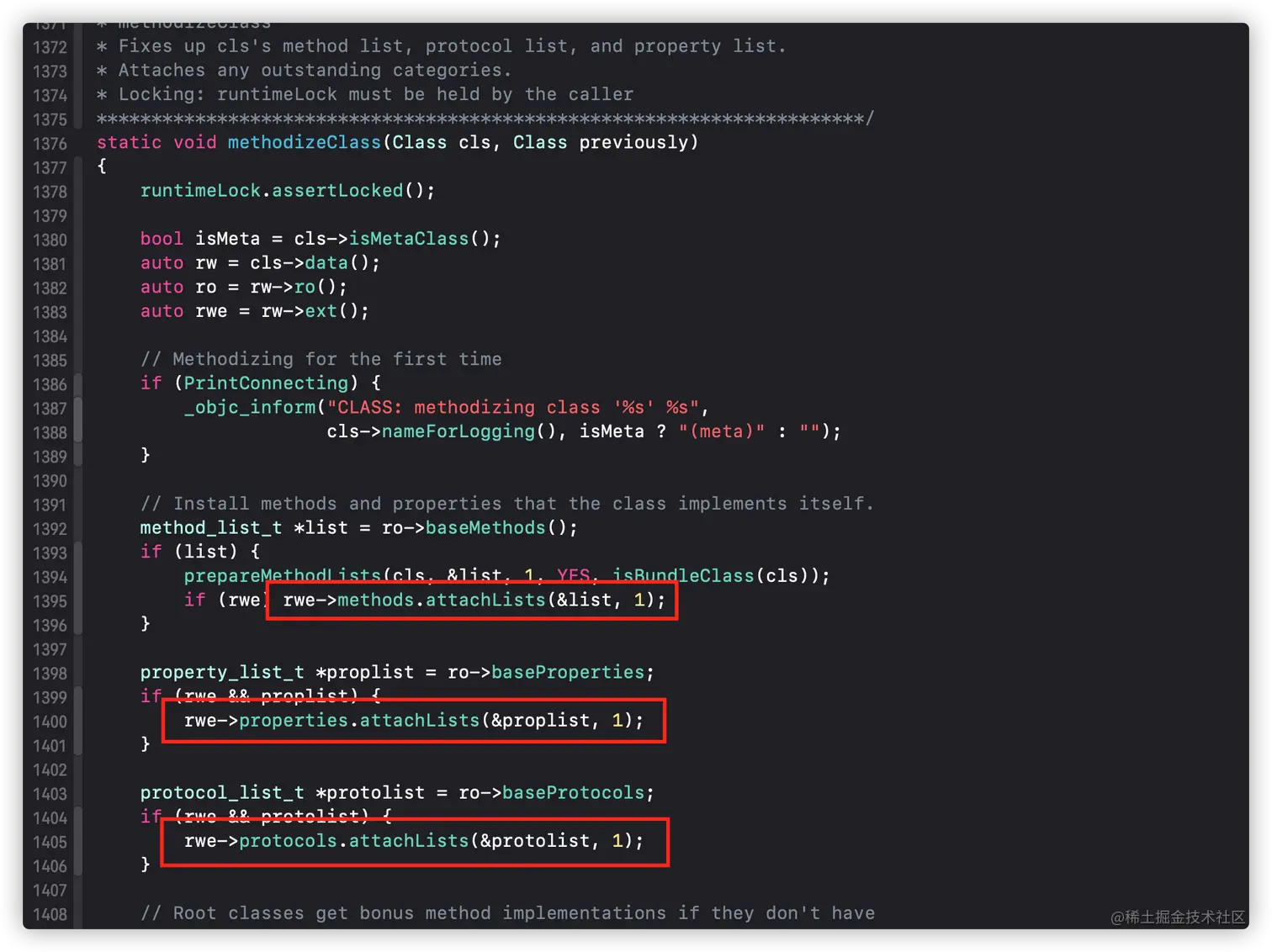

并且会调用到methodizeClass，关联类信息中的数据。
5.
if (slowpath((behavior & LOOKUP_INITIALIZE) && !cls->isInitialized())) {
cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
}

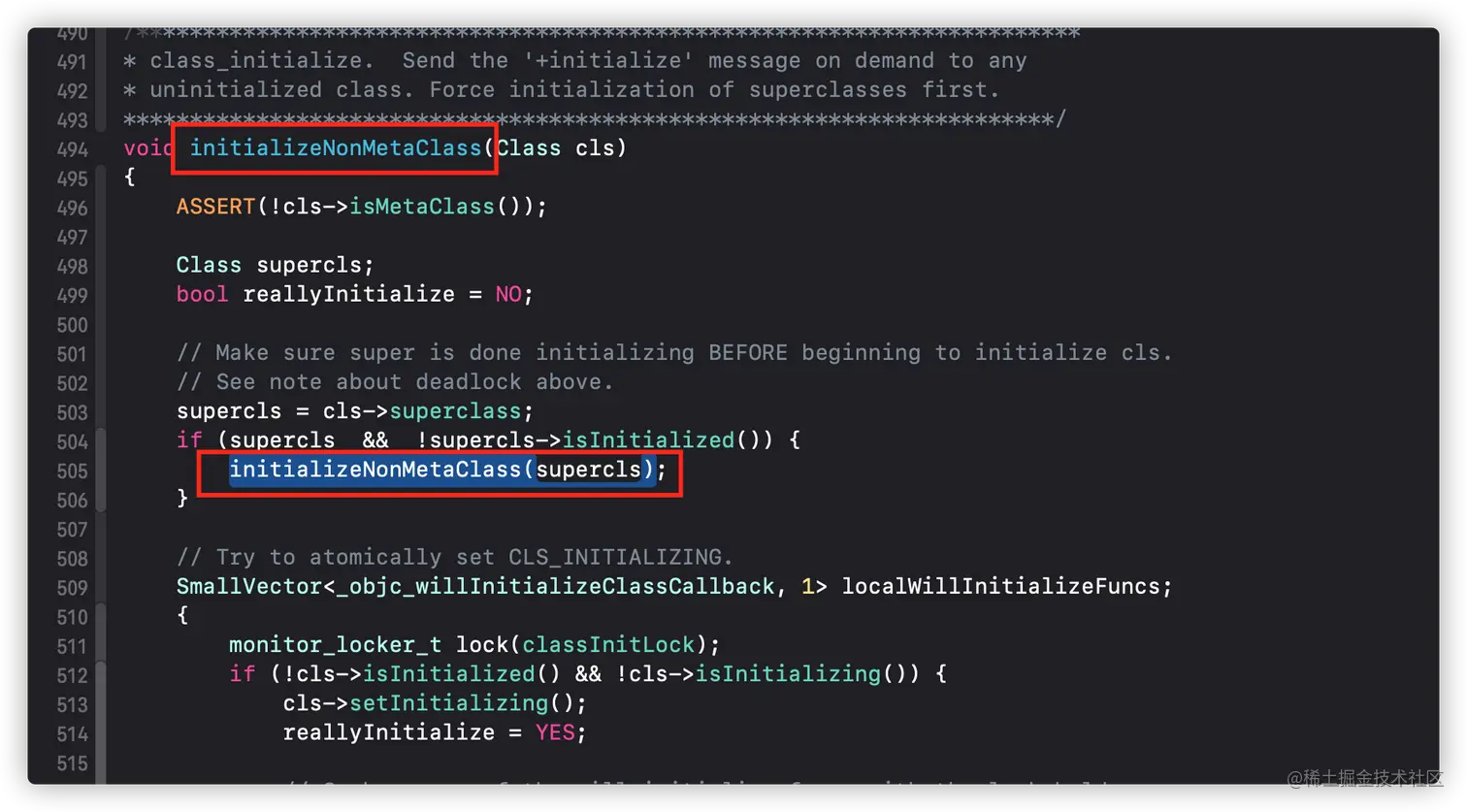

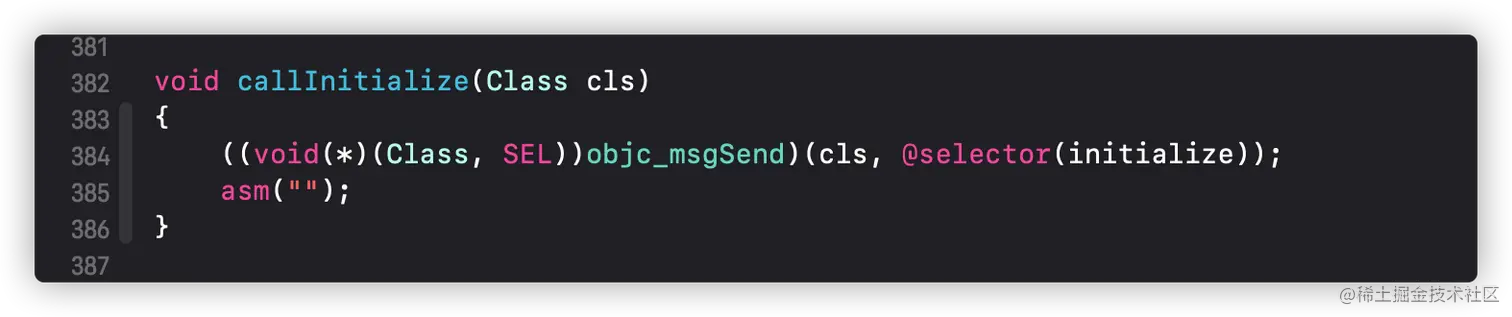

内部会有一个递归函数，判断类及其父类是否实现isInitialized，没有则会先进行类的初始化。
以上前几段代码，都是慢速查找的准备工作，此后的for死循环是关键部分。
慢速查找for循环
for (unsigned attempts = unreasonableClassCount();;) 这个for循环没有判断条件等，它是个死循环。
1.
Method meth = getMethodNoSuper_nolock(curClass, sel);

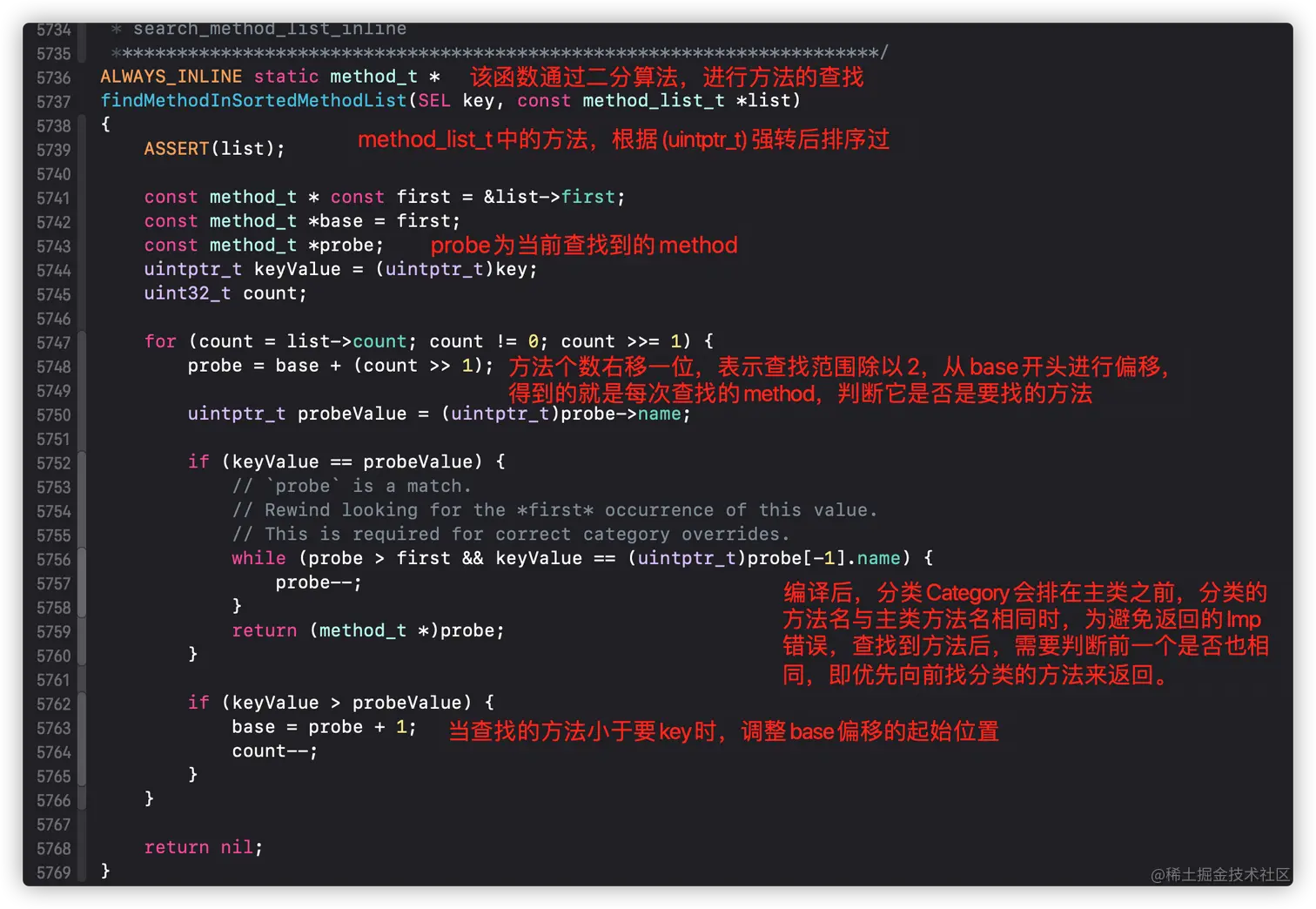

通过getMethodNoSuper_nolock -> search_method_list_inline -> findMethodInSortedMethodList
2.
if (meth) {
imp = meth->imp;
goto done;
}
...
done:
log_and_fill_cache(cls, imp, sel, inst, curClass);
runtimeLock.unlock();
当二分查找到方法时，会调用到log_and_fill_cache。

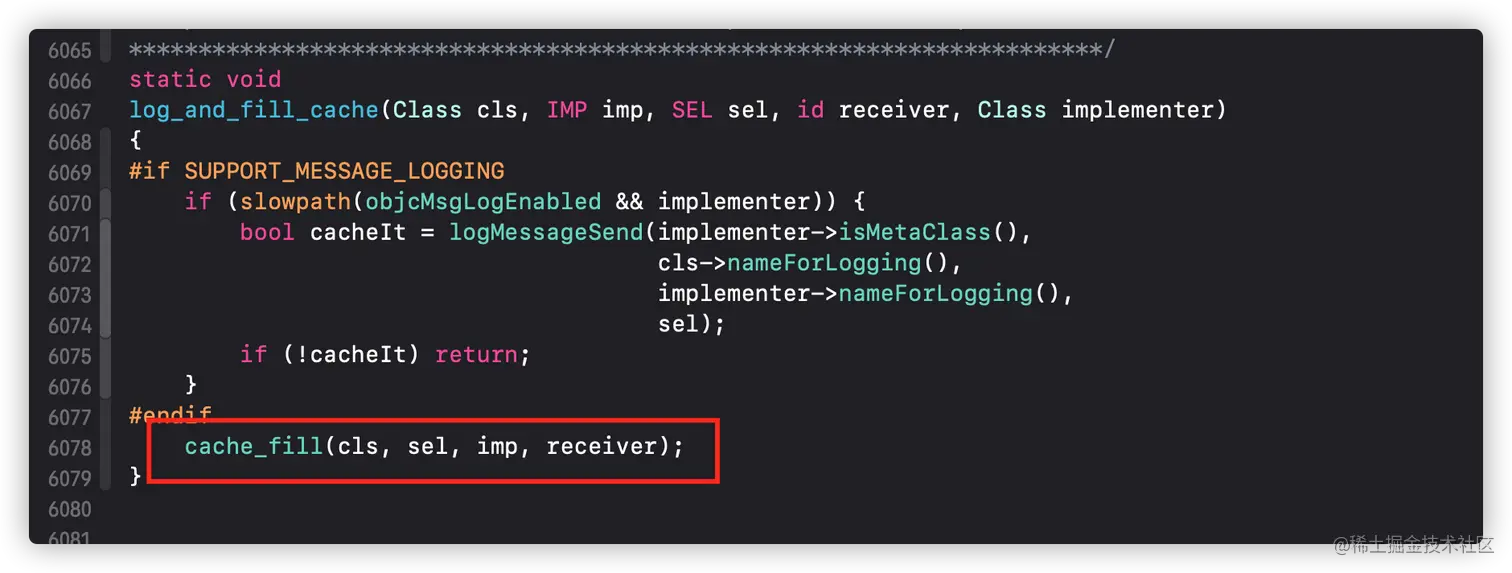

log_and_fill_cache会调用到cache_fill缓存填充，而在cache_fill中，会调用到cache->insert方法。
在类结构cache中详述了方法插入到缓存的过程。
3
if (slowpath((curClass = curClass->superclass) == nil)) {
// No implementation found, and method resolver didn't help.
// Use forwarding.
imp = forward_imp;
break;
}
当二分查找没有找到时，此时curClass会被赋值它的父类superclass，并判断是否为nil，是的话imp被赋值forward_imp后跳出循环，否则继续向下。

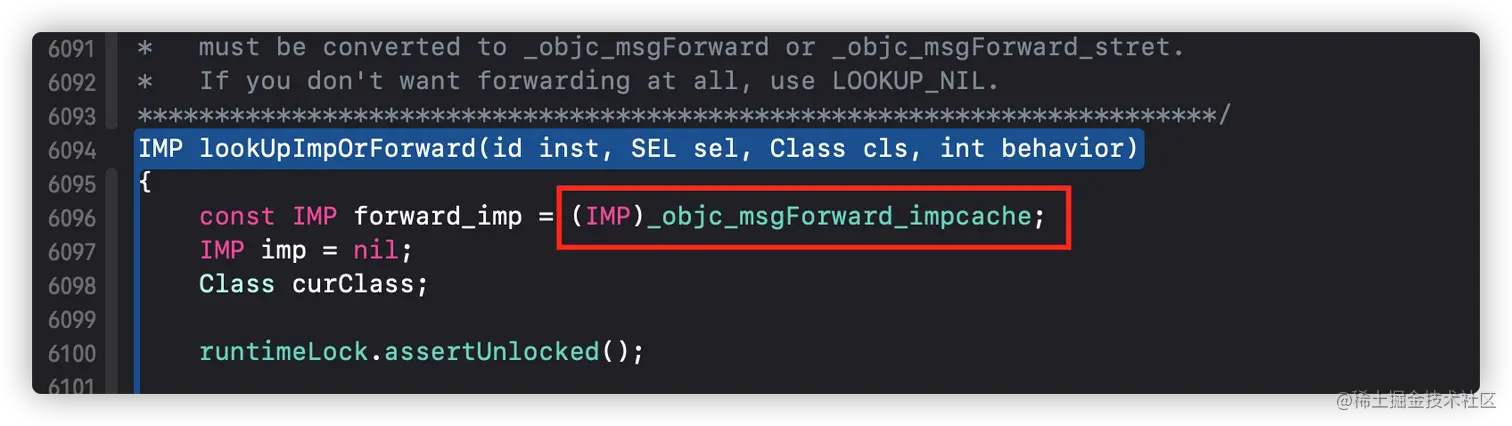

往上看forward_imp

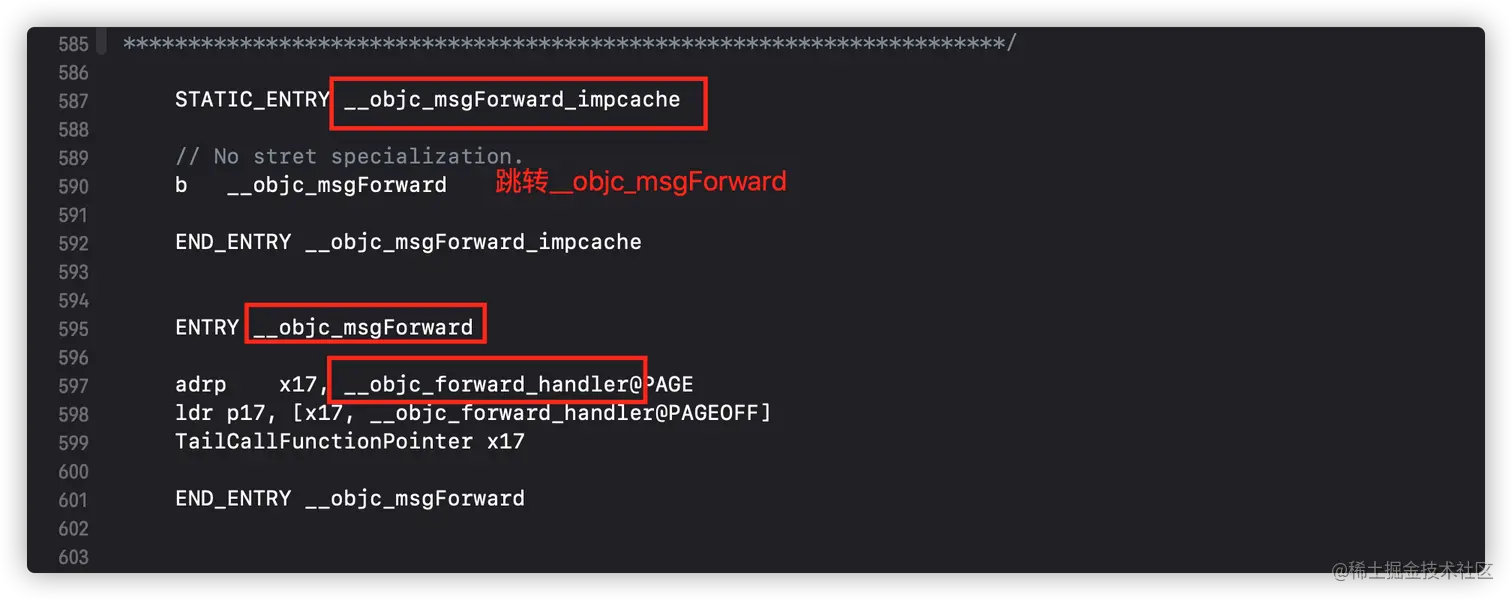

全局搜_objc_msgForward_impcache，在汇编代码objc-msg-arm64.s中
再查找到C++代码

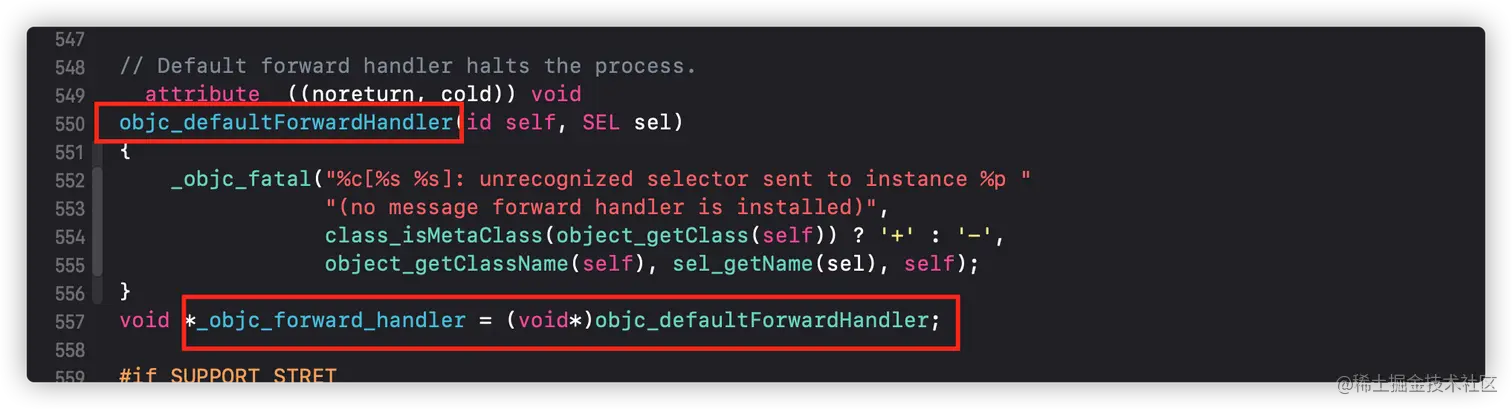

objc-runtime.mm中
看到了常见的
unrecognized selector sent to instance方法未找到。
那么该段代码的含义就是，当根据类及其父类直到根类，都没有找到方法时，objc_msgSend消息转发到了objc_defaultForwardHandler。
4. 重点中的重点
// Superclass cache.
imp = cache_getImp(curClass, sel);
由第三步，此时的curClass是被赋值了它的父类，并且父类不为nil。cache_getImp就会从父类的缓存中进行查找。cache中查找，同样我们需要到汇编中搜索其实现代码。

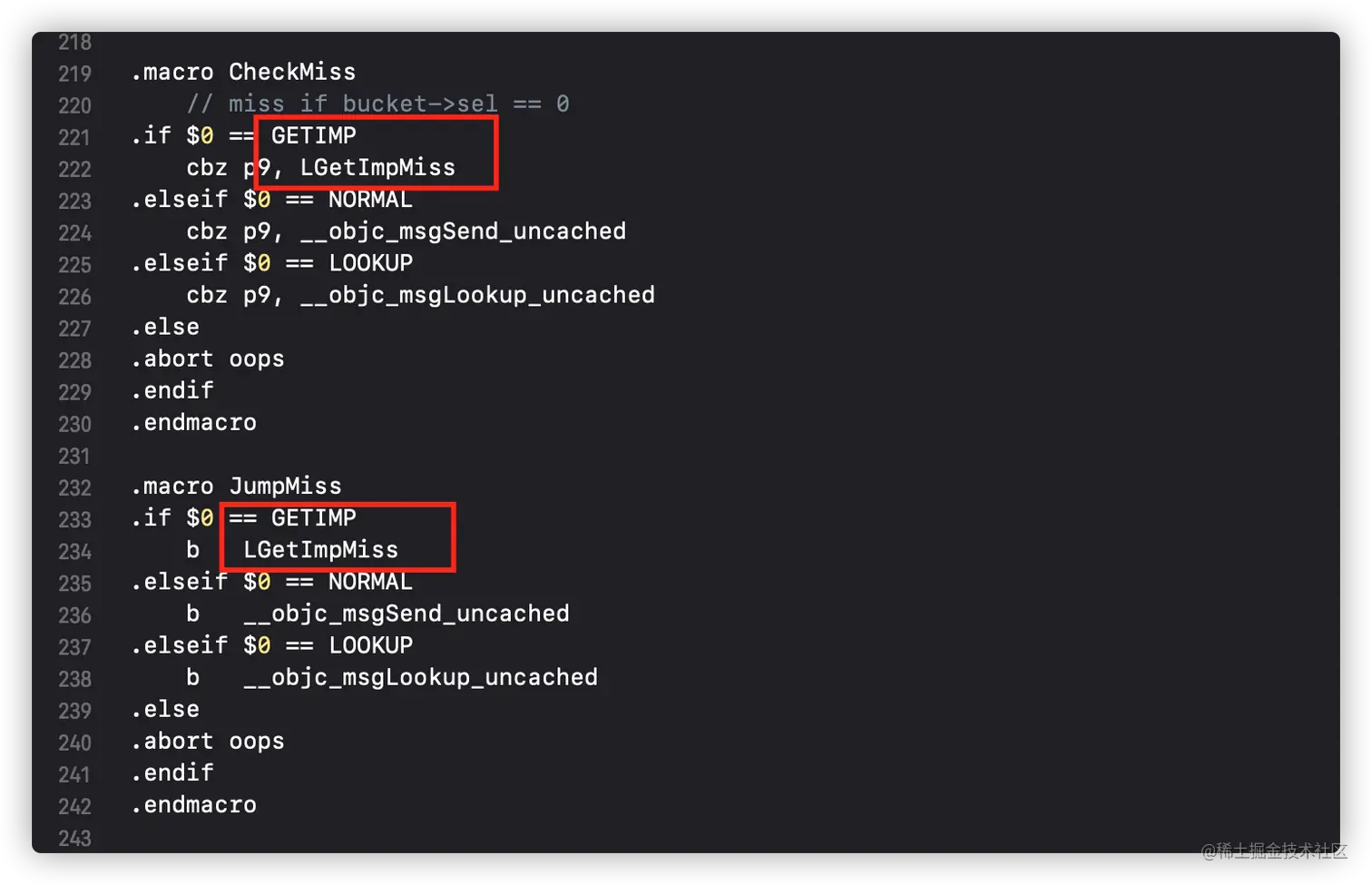

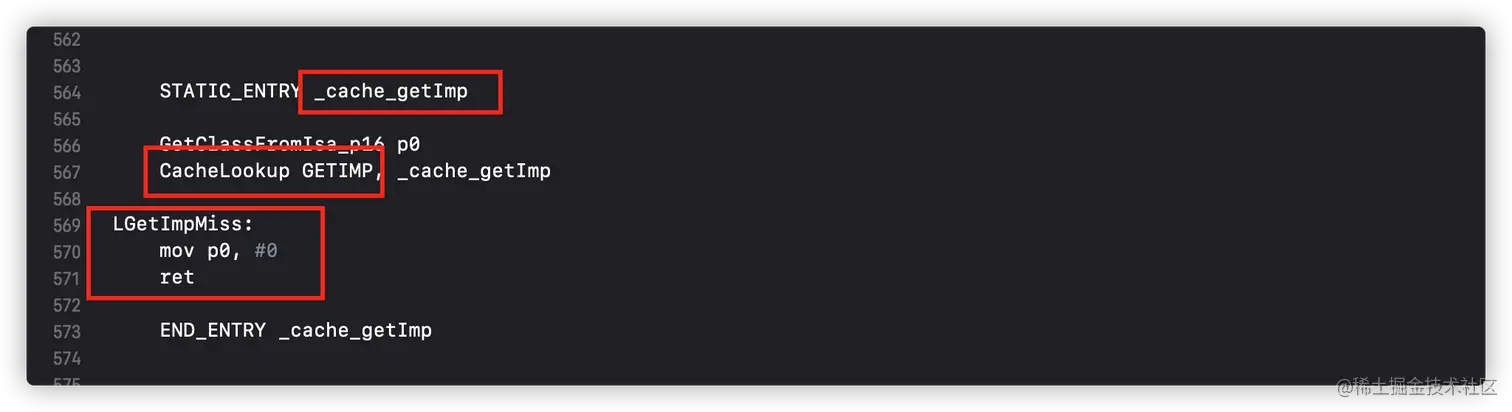

和快速查找类似，同样会调用到CacheLookup，不过传递的参数为GETIMP而不是快速查找时的NORMAL。CacheLoopup的过程不再赘述，重点看当在缓存中也找不到时，CheckMiss和JumpMiss都会跳转到LGetImpMiss，其中只有返回了空。
汇编cache_getImp返回空没有从父类的缓存中找到方法，则会继续for死循环，此时的curClass变成了最初类的父类，会再次调用到Method meth = getMethodNoSuper_nolock(curClass, sel);，从父类的类信息中进行慢速查找，直到找到跳出循环，或者找到根类的父类nil，进行消息转发到unrecognized selector sent to instance。

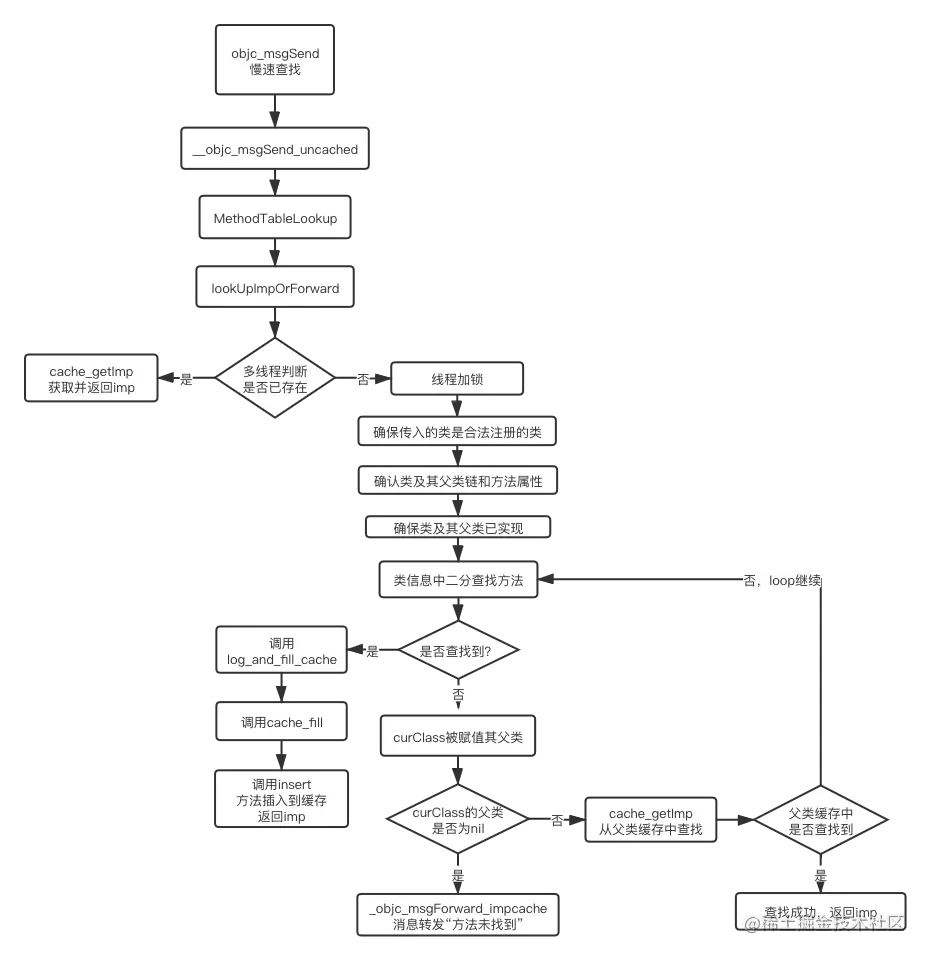

流程图总结：
