Chrome 谜一样卡死的排查方法

5,876 阅读4分钟

最近由于 Chrome 浏览器升级,触发了一个 Omega sdk 和 Golden sdk 的潜在问题,目前 Omega 和 Golden 方面已经跟进解决,详细原因可见文章《Chrome 83 下千帆工作台卡死的问题》

一切好像没什么问题,但是陆续有团队同学反馈,线上页面的确不卡了,测试环境某些操作仍然会出现卡死,而且卡死时正好会有 golden 或 omega 埋点处于 pending 状态。于是开始了排查之路~

一、线索排查

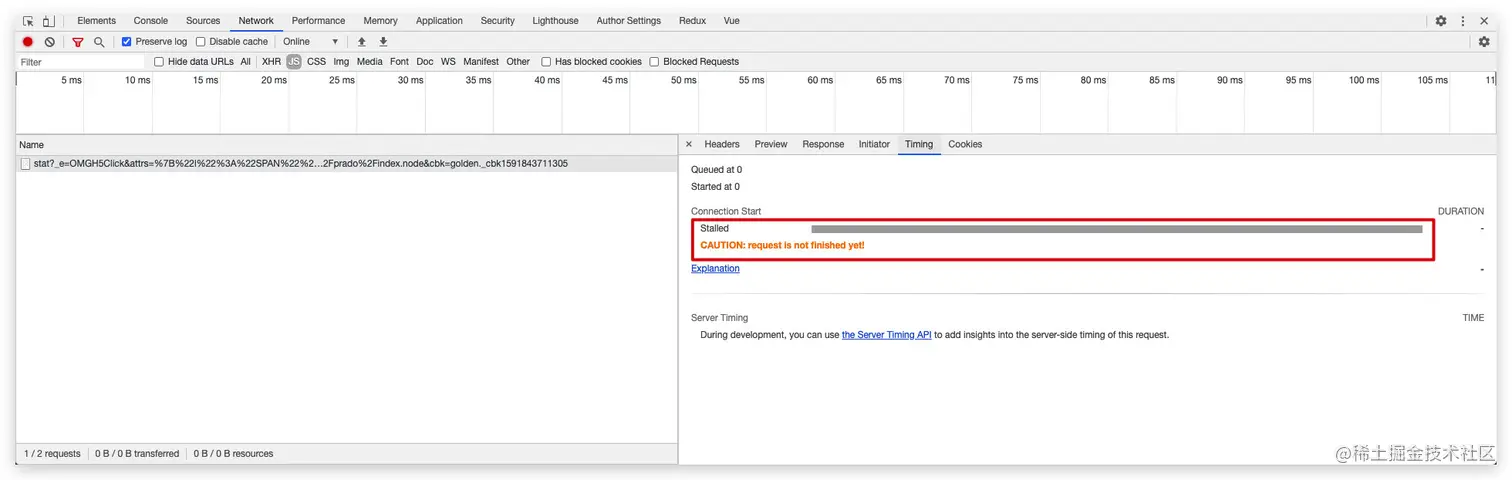

查看 pending 状态的请求:

image-20200611104915572

发现请求卡在了一个 "Stalled" 的状态,谷歌还贴心的给出了 "Explanation" 链接,解释如下:

Here's more information about each of the phases you may see in the Timing tab:

  • Queueing

    . The browser queues requests when:

    • There are higher priority requests.
    • There are already six TCP connections open for this origin, which is the limit. Applies to HTTP/1.0 and HTTP/1.1 only.
    • The browser is briefly allocating space in the disk cache
  • Stalled. The request could be stalled for any of the reasons described in Queueing.

  • DNS Lookup. The browser is resolving the request's IP address.

  • Initial connection. The browser is establishing a connection, including TCP handshakes/retries and negotiating an SSL.

  • Proxy negotiation. The browser is negotiating the request with a proxy server.

  • Request sent. The request is being sent.

  • ServiceWorker Preparation. The browser is starting up the service worker.

  • Request to ServiceWorker. The request is being sent to the service worker.

  • Waiting (TTFB). The browser is waiting for the first byte of a response. TTFB stands for Time To First Byte. This timing includes 1 round trip of latency and the time the server took to prepare the response.

  • Content Download. The browser is receiving the response.

  • Receiving Push. The browser is receiving data for this response via HTTP/2 Server Push.

  • Reading Push. The browser is reading the local data previously received.

也就是 Queueing 阶段的问题导致卡在 Stalled 状态,经查得知可以通过如下方式查看 Chrome 的运行日志,当然包括详细的网络日志。

各平台查看日志方式见 support.google.com/chrome/a/an…

  1. 以监听日志方式打开浏览器 /Applications/Google\ Chrome.app/Contents/MacOS/Google\ Chrome --enable-logging --v=1

  2. 实时查看日志:tail -f ~/Library/Application\ Support/Google/Chrome/chrome_debug.log

二、日志查看

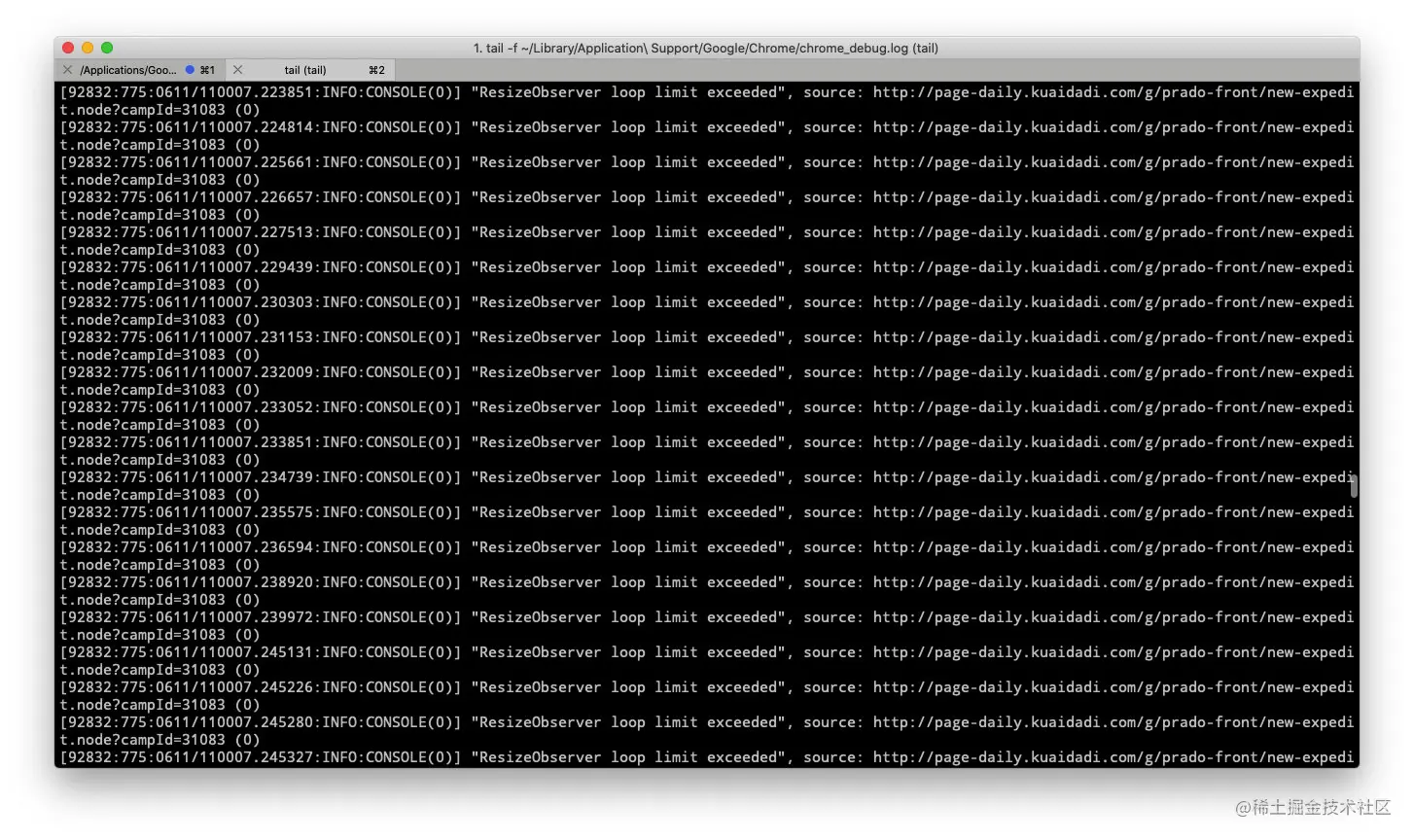

按上述方式打开浏览器,实时查看日志文件,一步一步复现步骤,日志打印如下:

image-20200611110030310

所以绕了一圈还是 "ResizeObserver" 的问题,原因在 Chrome 83 下千帆工作台卡死的问题 中也有提到,这里列两个 issue 大家有兴趣查看下:

三、推测

那么,为什么测试环境有问题,线上环境却没有呢?目前解决 Omega sdk 和 Golden sdk 问题的方法是通过如下方式重写 EventTarget.prototype.addEventListener 方法,达到过滤发送埋点请求的目的(也正是循环发送埋点请求,导致页面卡死)。

EventTarget.prototype.addEventListenerBase = EventTarget.prototype.addEventListener;
    EventTarget.prototype.addEventListener = function(type, baseListener, status) {
      if(type === 'error') {
        function myListener(e) {
          // 重写 addEventListener,为了过滤ResizeObserver 错误的上报。在 Chrome 83 无限上报会造成浏览器卡死
          if (e.message && e.message.indexOf('ResizeObserver') !== -1) {
            return;
          }
          baseListener.apply(this, arguments);
        }
        this.addEventListenerBase(type, myListener, status);
      } else {
        this.addEventListenerBase(type, baseListener, status);
      }
    };

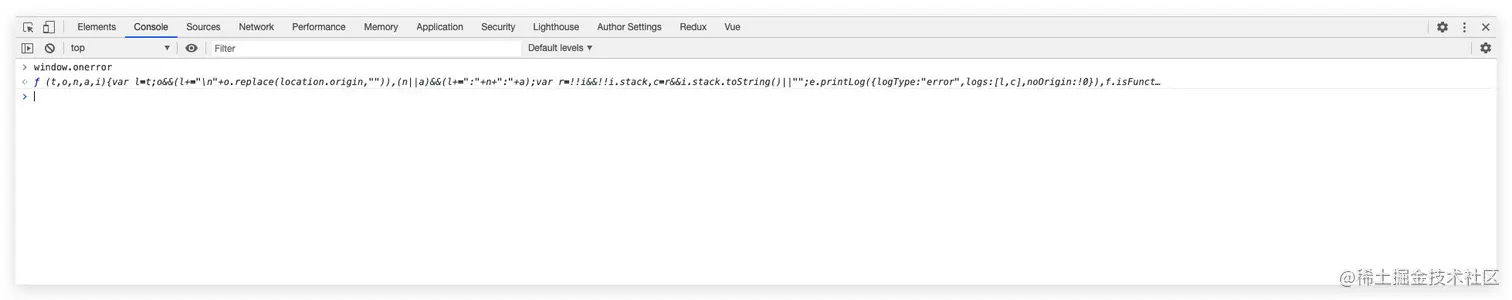

所以,还有除了 EventTarget.prototype.addEventListener 方法之外的监听没有被重写,我掐指一算,难道是 window.onerror,于是去当前卡死页面的调试控制台打印 window.onerror:

image-20200611110748856

真有这个监听,而且还有『字符串 replace 操作』,这要是无限循环调用这个回调,分分钟卡死!顺手点击这个打印结果,直接跳转到引用它的代码:

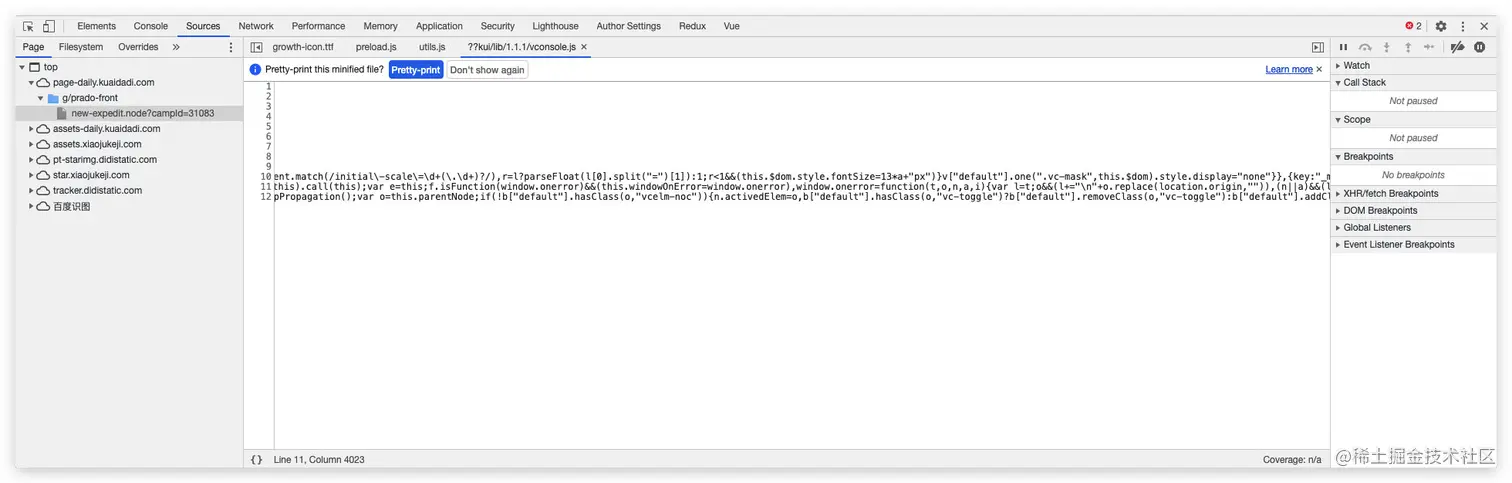

image-20200611111016154

竟然是 vConsole 监听的,前端同学都知道,这个 vConsole 是为了在移动端方便调试使用的,一般在测试环境使用,所以这端代码很可能是这个导致了测试环境卡死,而线上环境正常的罪魁祸首!

四、验证

接下来我们就验证下猜想,首先把 window.onerror 覆盖为 console.log,重复复现步骤,控制台便打印出:

image-20200611111513808

果不其然,不过这样还是卡住了,因为 console.log 也是同步操作。接着直接置空 window.onerror,执行 window.onerror = undefined,再来一次复现:

image-20200611112321755

页面已经不再卡死了!

五、解决

目前在 Chrome 和 ele-element 未跟进解决的情况下,解决方法有:

  1. 去除 vConsole,毕竟中台项目不需要 vConsole;
  2. 置空 window.onerror;
  3. 对 window.onerror 进行节流;

六、总结

此处总结下遇到莫名卡死问题,排查步骤应简化为:

  1. 监听 window.onerror 事件,这样能把一些内部的报错(即不会在控制台显示的错误)直接打印到控制台中
  2. 使用监听 Chrome 日志方式打开浏览器,从日志中查看线索
  3. 合理推测和验证
