介绍

这是一个系列

1. 探索 Golang 云原生游戏服务器开发，5 分钟上手 Nano 游戏服务器框架
2. 探索 Golang 云原生游戏服务器开发，根据官方示例实战 Gorilla WebSocket 的用法
3. 探索 Golang 云原生游戏服务器开发，Nano 内置分布式游戏服务器方案测试用例
4. 探索 Golang 云原生游戏服务器开发，Nano 分布式(集群)示例(Distributed Chat)

示例仓库

• 官方仓库：nanoserver
• 为方便使用 Docker Compose 进行二次开发，笔者改过的仓库：Hacker-Linner/nanoserver

服务器

编写 Dockerfile.dev

FROM golang:1.14
WORKDIR /workspace
# 阿里云
RUN go env -w GO111MODULE=on
RUN go env -w GOPROXY=https://mirrors.aliyun.com/goproxy/,direct
# debug
RUN go get github.com/go-delve/delve/cmd/dlv
# live reload
RUN go get -u github.com/cosmtrek/air
# copy modules manifests
COPY go.mod go.mod
COPY go.sum go.sum
# cache modules
RUN go mod download

构建本地开发 Image

docker build -f Dockerfile.dev -t scmj-server:dev .

编写 mysql.cnf

[client]
port = 3306
socket = /var/run/mysqld/mysql.sock
default-character-set = utf8mb4
[mysql]
prompt="MySQL [\d]> "
no-auto-rehash
[mysqld]
port = 3306
socket = /var/run/mysqld/mysql.sock
basedir = /usr/local/mysql
datadir = /var/lib/mysql
pid-file = /var/run/mysqld/mysql.pid
user = mysql
bind-address = 0.0.0.0
server-id = 1
init-connect = 'SET NAMES utf8mb4'
character-set-server = utf8mb4
skip-name-resolve
#skip-networking
back_log = 300
max_connections = 497
max_connect_errors = 6000
open_files_limit = 65535
table_open_cache = 128
max_allowed_packet = 500M
binlog_cache_size = 1M
max_heap_table_size = 8M
tmp_table_size = 16M
read_buffer_size = 2M
read_rnd_buffer_size = 8M
sort_buffer_size = 8M
join_buffer_size = 8M
key_buffer_size = 4M
thread_cache_size = 8
query_cache_type = 1
query_cache_size = 8M
query_cache_limit = 2M
ft_min_word_len = 4
log_bin = mysql-bin
binlog_format = mixed
expire_logs_days = 7
log_error = /var/lib/mysql/mysql-error.log
slow_query_log = 1
long_query_time = 1
slow_query_log_file = /var/lib/mysql/mysql-slow.log
general_log = 1
general_log_file = /var/lib/mysql/mysql.log
performance_schema = 0
explicit_defaults_for_timestamp
#lower_case_table_names = 1
skip-external-locking
default_storage_engine = InnoDB
innodb_file_per_table = 1
innodb_open_files = 500
innodb_buffer_pool_size = 64M
innodb_write_io_threads = 4
innodb_read_io_threads = 4
innodb_thread_concurrency = 0
innodb_purge_threads = 1
innodb_flush_log_at_trx_commit = 2
innodb_log_buffer_size = 2M
innodb_log_file_size = 32M
innodb_log_files_in_group = 3
innodb_max_dirty_pages_pct = 90
innodb_lock_wait_timeout = 120
bulk_insert_buffer_size = 8M
myisam_sort_buffer_size = 8M
myisam_max_sort_file_size = 10G
myisam_repair_threads = 1
interactive_timeout = 28800
wait_timeout = 28800
[mysqldump]
quick
max_allowed_packet = 500M
[myisamchk]
key_buffer_size = 8M
sort_buffer_size = 8M
read_buffer = 4M
write_buffer = 4M

编写 docker-compose.mysql.yaml

version: "3.7"
services:
  db:
    image: mysql:5.7
    volumes:
      - db_data:/var/lib/mysql
      - ./mysql.cnf:/etc/mysql/my.cnf
    networks:
      - db_network
    ports:
      - "3306:3306"
    restart: always
    environment:
      MYSQL_ROOT_PASSWORD: 123456
      MYSQL_DATABASE: scmj
      MYSQL_USER: scmj
      MYSQL_PASSWORD: scmj
      TZ: Asia/Shanghai
  adminer:
    depends_on:
      - db
    image: adminer
    restart: always
    networks:
      - db_network
    ports:
      - 8086:8080
networks:
  db_network:
    driver: "bridge"
volumes:
    db_data: {}

一键启动 MySql 和 Adminer

docker-compose -f docker-compose.mysql.yaml up -d

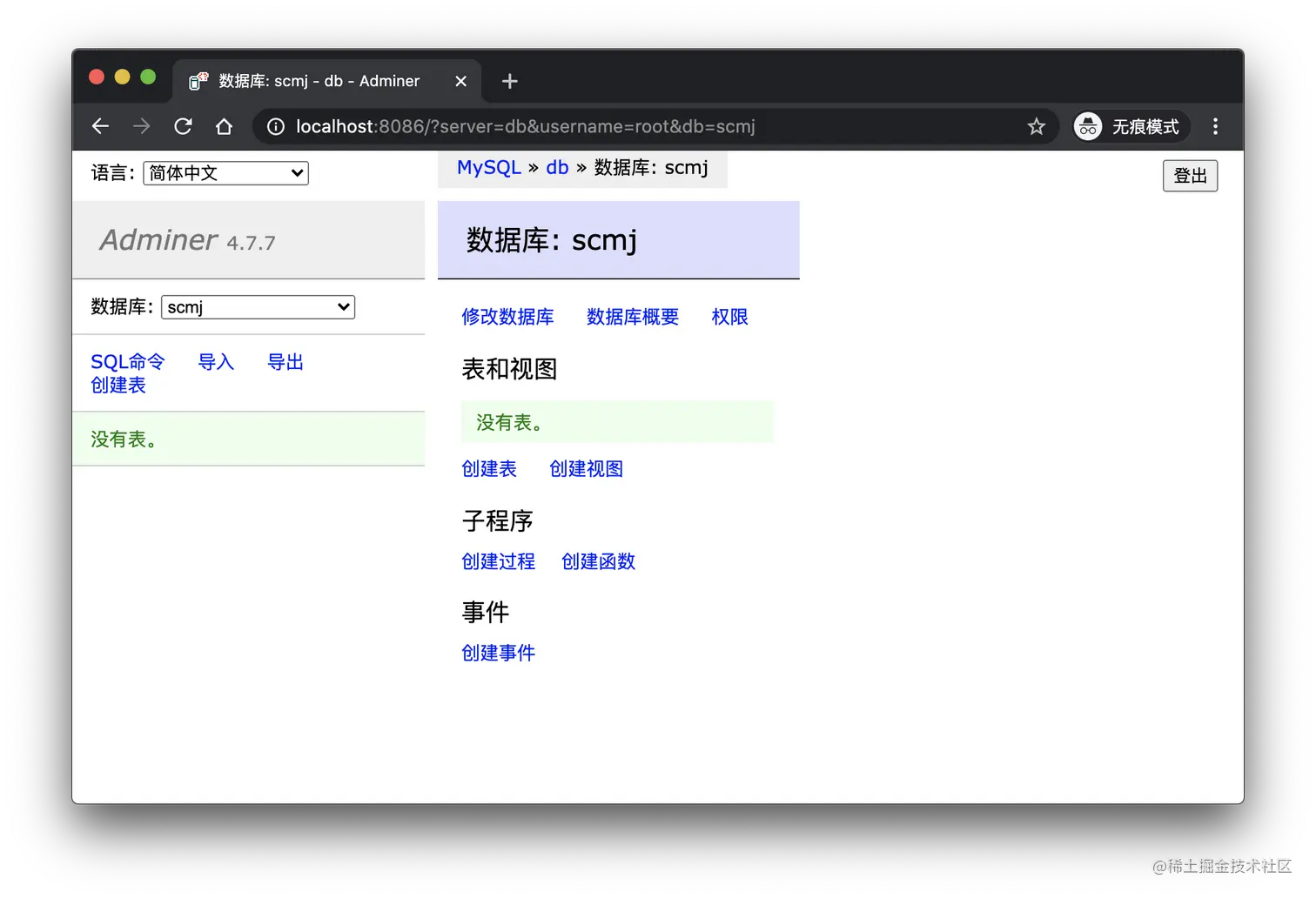

登录 Adminer 管理界面

我们进入 http://localhost:8086，使用如下配置登录：

• 系统：MySQL
• 服务器：db
• 用户名：root
• 密码：123456
• 数据库：scmj

加入 launch.json

方便 VSCode 调试

{
  "version": "0.2.0",
  "configurations": [
      {
          "name": "nanoserver",
          "type": "go",
          "request": "launch",
          "mode": "remote",
          "remotePath":"/workspace/app",
          "port": 2345,
          "program": "${workspaceFolder}",
          "env": {
              "GO111MODULE":"on"
          },
          "args": [],
          "trace": "log",
          "showLog": true
      }
  ]
}

加入 .air.toml

# Config file for [Air](https://github.com/cosmtrek/air) in TOML format

# Working directory
# . or absolute path, please note that the directories following must be under root.
root = "."
tmp_dir = "tmp"

[build]
# Just plain old shell command. You could use `make` as well.
cmd = "go build -o ./tmp/main ."
# Binary file yields from `cmd`.
bin = "tmp/main"
# Customize binary.
full_bin = "APP_ENV=dev APP_USER=air ./tmp/main"
# Watch these filename extensions.
include_ext = ["go", "tpl", "tmpl", "html"]
# Ignore these filename extensions or directories.
exclude_dir = ["assets", "tmp", "vendor", "frontend/node_modules"]
# Watch these directories if you specified.
include_dir = []
# Exclude files.
exclude_file = []
# This log file places in your tmp_dir.
log = "air.log"
# It's not necessary to trigger build each time file changes if it's too frequent.
delay = 1000 # ms
# Stop running old binary when build errors occur.
stop_on_error = true
# Send Interrupt signal before killing process (windows does not support this feature)
send_interrupt = false
# Delay after sending Interrupt signal
kill_delay = 500 # ms

[log]
# Show log time
time = false

[color]
# Customize each part's color. If no color found, use the raw app log.
main = "magenta"
watcher = "cyan"
build = "yellow"
runner = "green"

[misc]
# Delete tmp directory on exit
clean_on_exit = true

编写 docker-compose.dev.yaml

version: "3.4"
services:
  scmj:
    image: scmj-server:dev
    command: >
      bash -c "cp ./go.mod ./go.sum app/
      && cd app/
      && ls -la
      && air -c .air.toml -d"
    volumes:
    - ./:/workspace/app
    networks:
      - db_network
    ports:
      - 12307:12307
      - 33251:33251
  scmj-debug:
    image: scmj-server:dev
    command: >
      bash -c "cp ./go.mod ./go.sum app/
      && cd app/
      && ls -la
      && dlv debug main.go --headless --log -l 0.0.0.0:2345 --api-version=2"
    volumes:
    - ./:/workspace/app
    networks:
      - db_network
    ports:
      - 12307:12307
      - 33251:33251
      - 2345:2345
    security_opt:
      - "seccomp:unconfined"
networks:
  db_network:
    driver: "bridge"

使用 docker-compose 调试

docker-compose -f docker-compose.dev.yaml up scmj-debug

使用 docker-compose 开发

docker-compose -f docker-compose.dev.yaml up scmj

因为 nanoserver 使用了 xorm，它会自动的根据定义的 model 生成数据库表 schema。

XORM 同步数据库

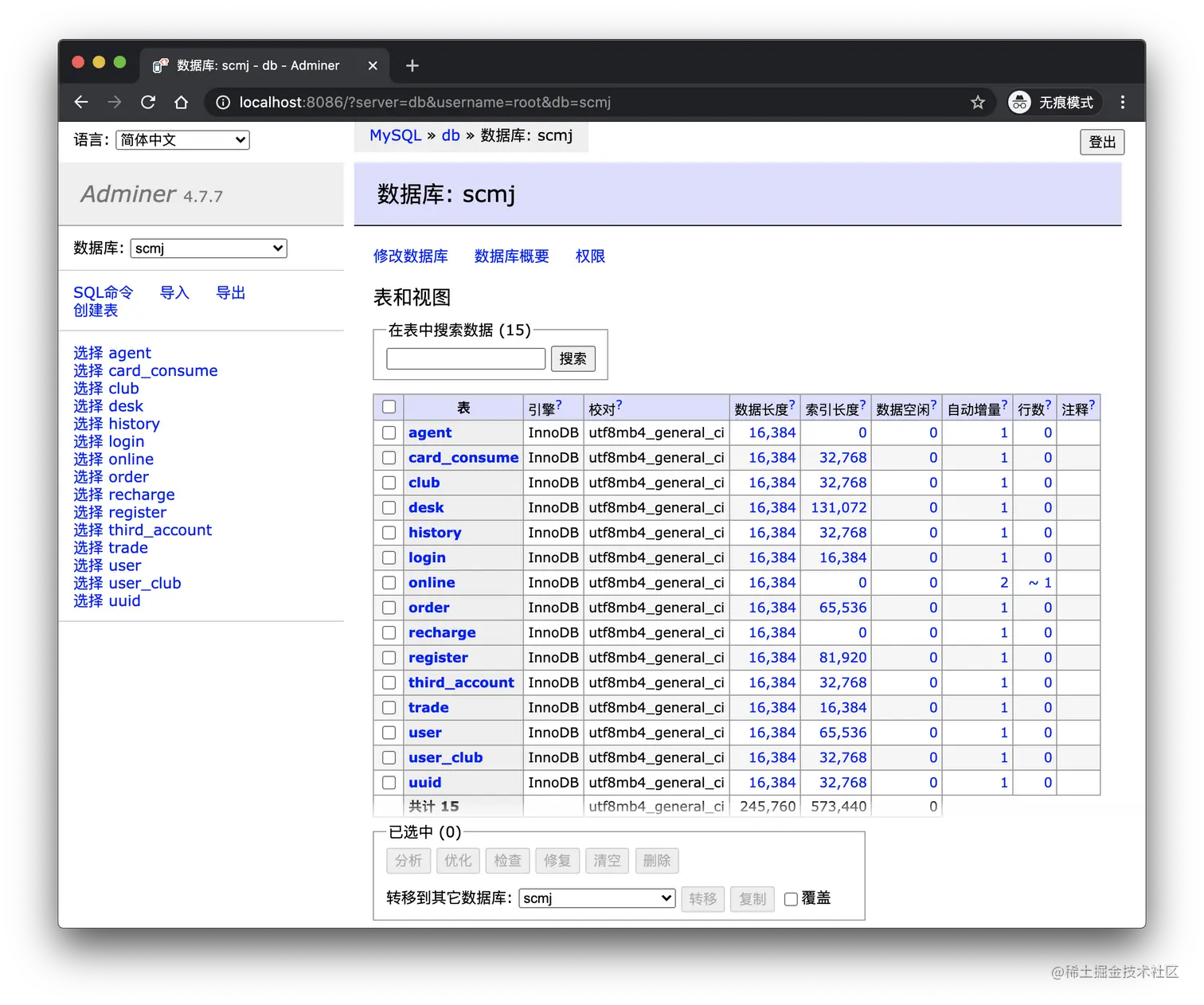

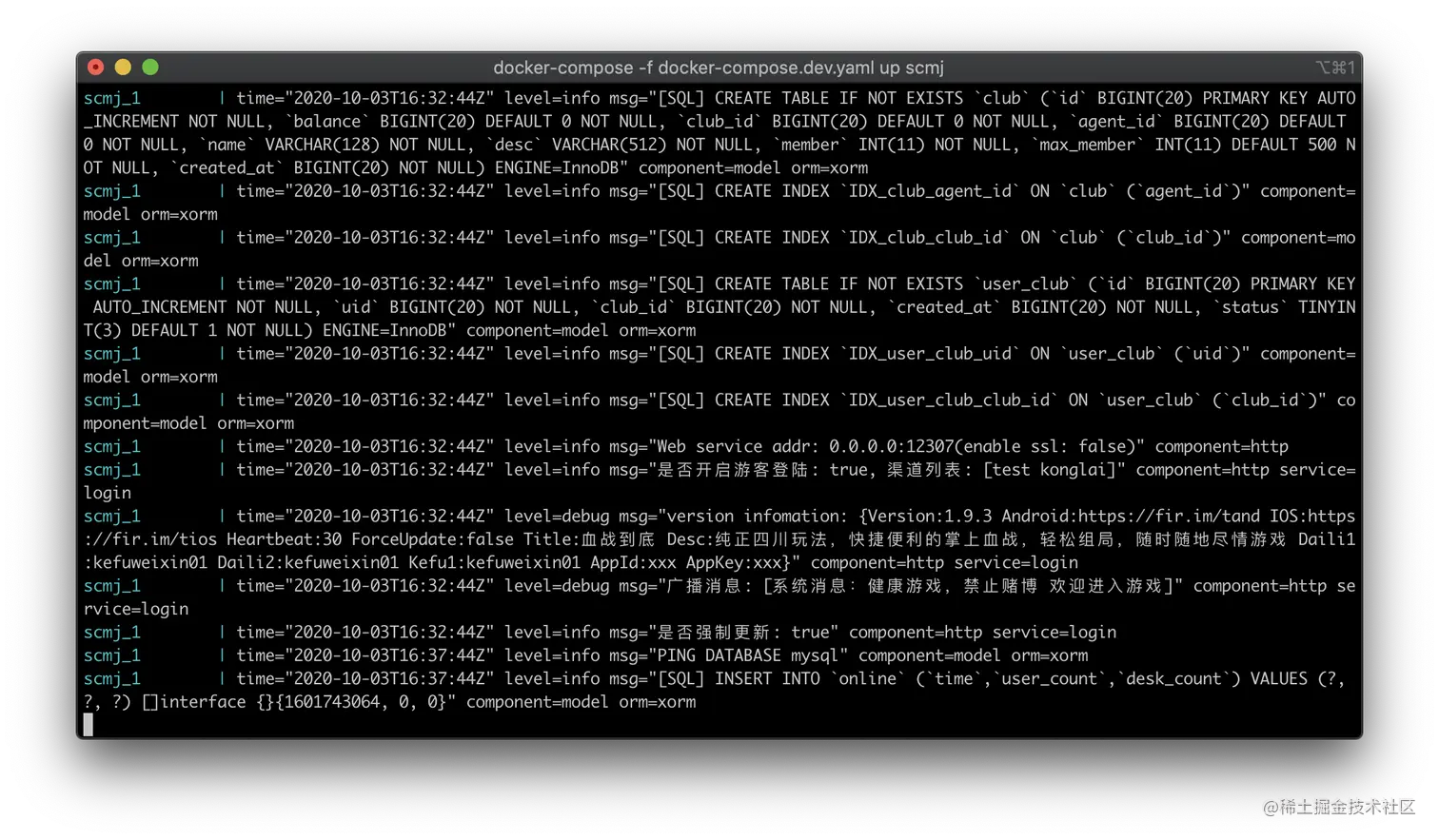

重新查看 Adminer，发现在 scmj 数据库中，xorm 已经为我们生成了表。

相关代码是：

....
func syncSchema() {
	database.StoreEngine("InnoDB").Sync2(
		new(model.Agent),
		new(model.CardConsume),
		new(model.Desk),
		new(model.History),
		new(model.Login),
		new(model.Online),
		new(model.Order),
		new(model.Recharge),
		new(model.Register),
		new(model.ThirdAccount),
		new(model.Trade),
		new(model.User),
		new(model.Uuid),
		new(model.Club),
		new(model.UserClub),
	)
}
...

客户端

这里我们直接使用 nanoserver 作者提供的 apk。

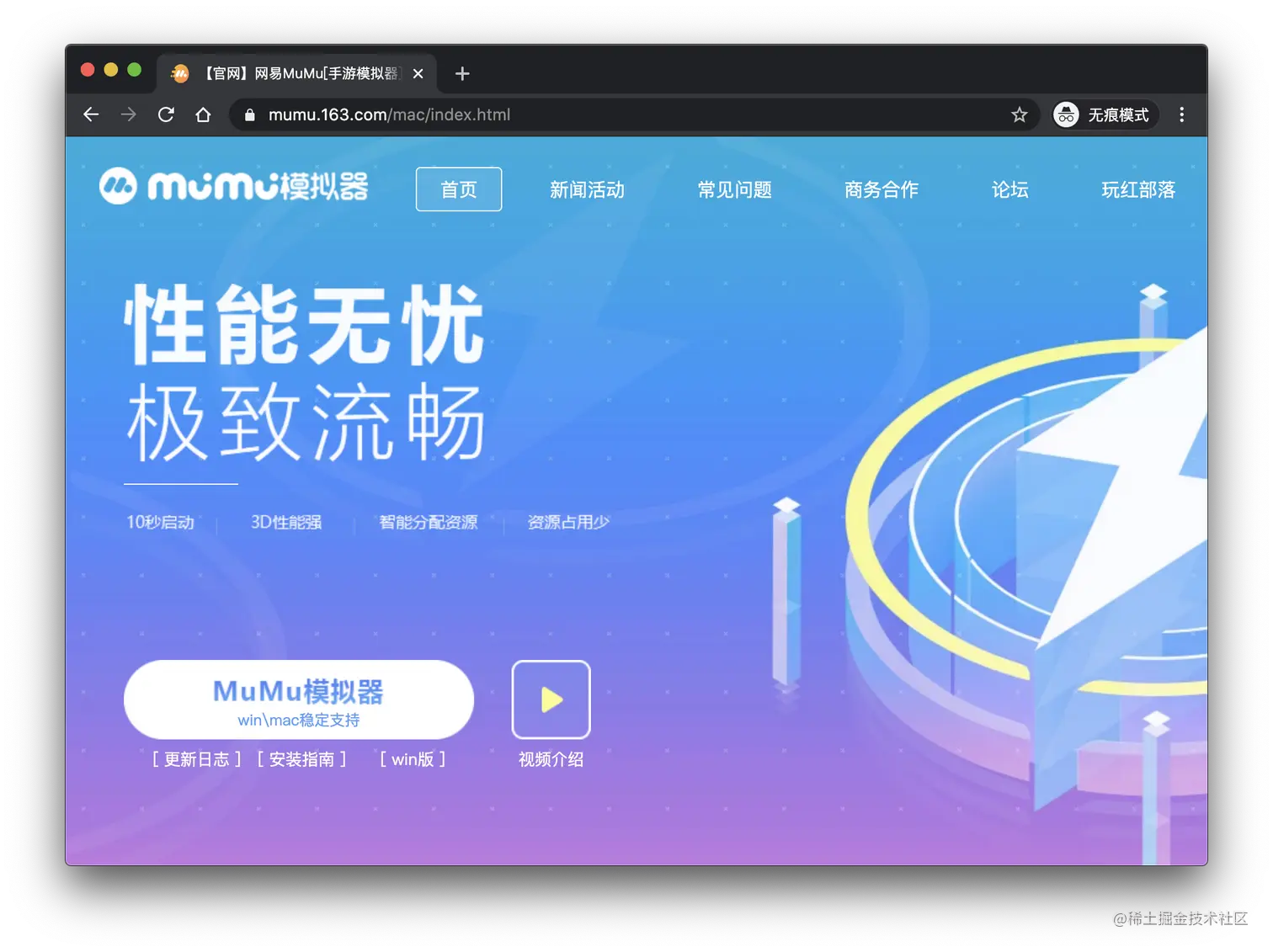

安装安卓模拟器

这里我推荐网易的 MuMu模拟器。

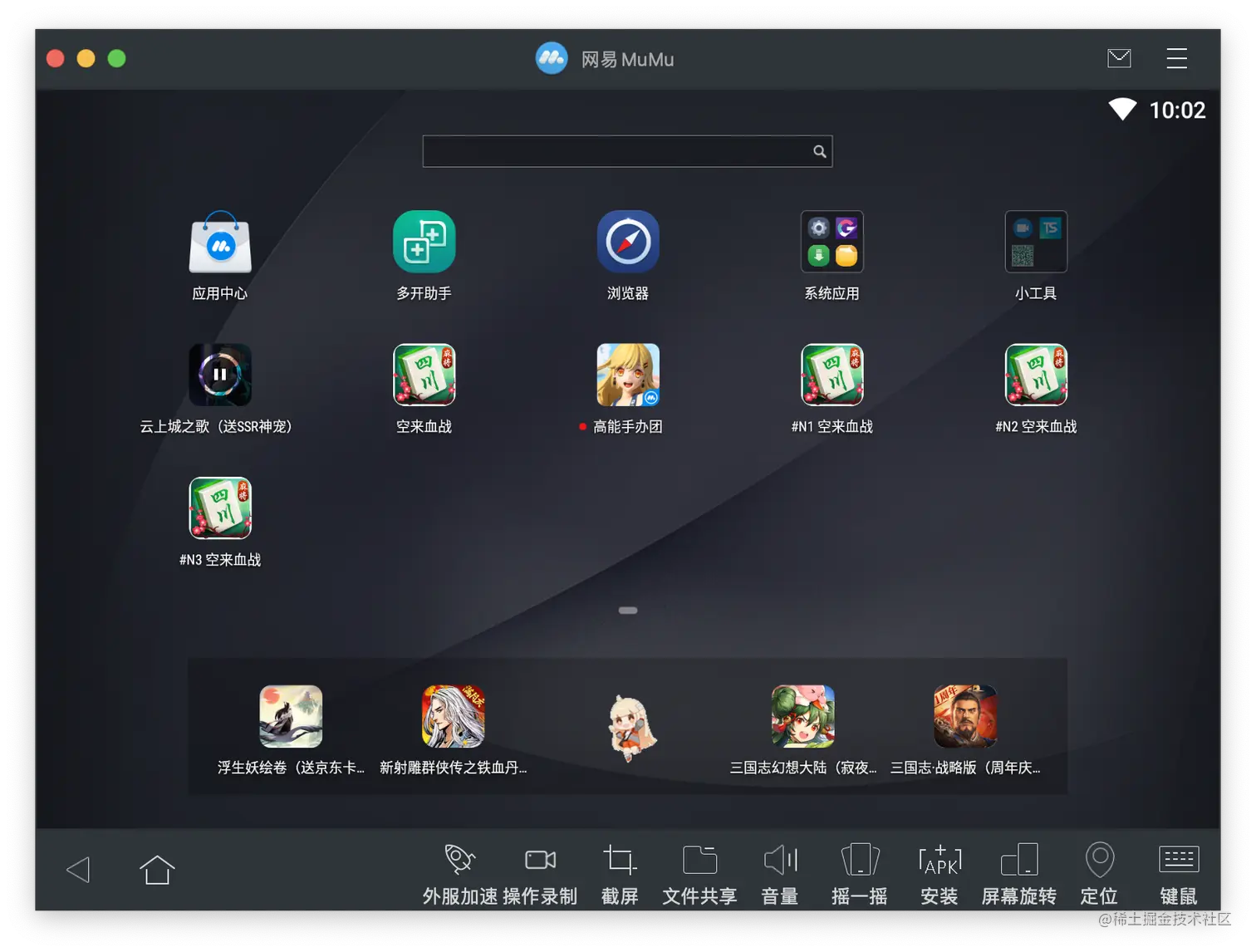

安装 APK

mahjong.apk，已经放到笔者修改过的项目中。这里我们使用多开助手，开4个空来血战。

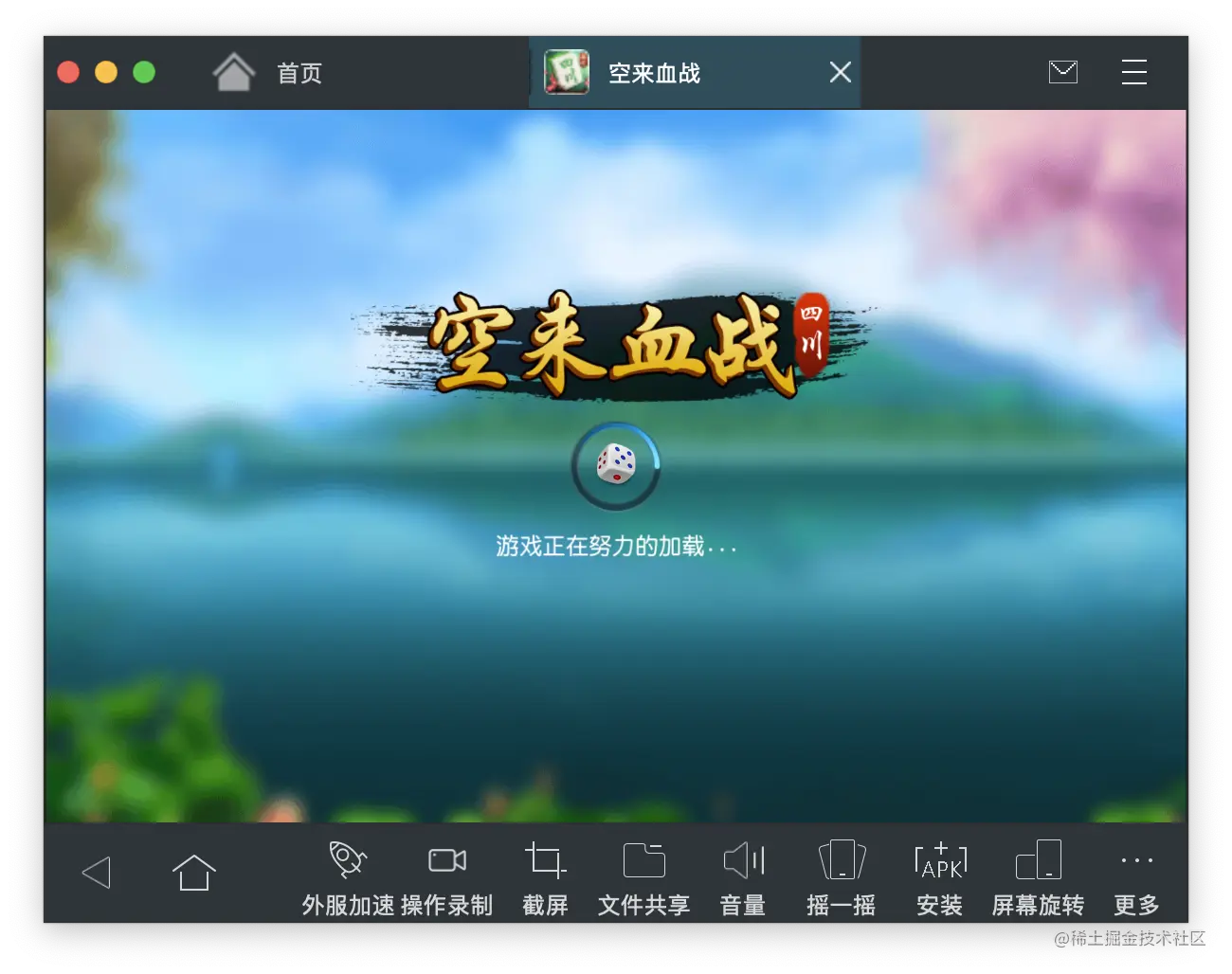

客户端登录

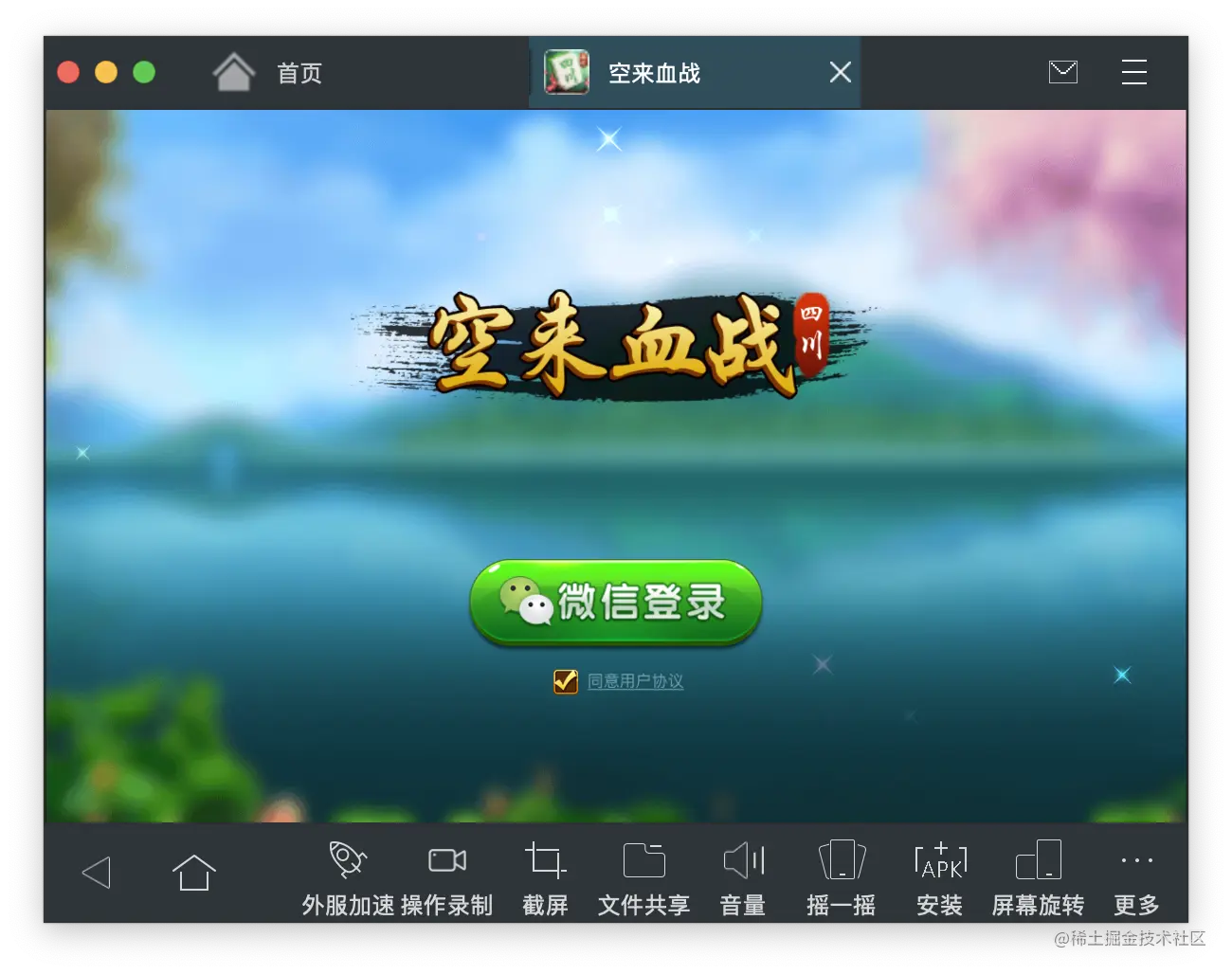

我们点击微信登录。

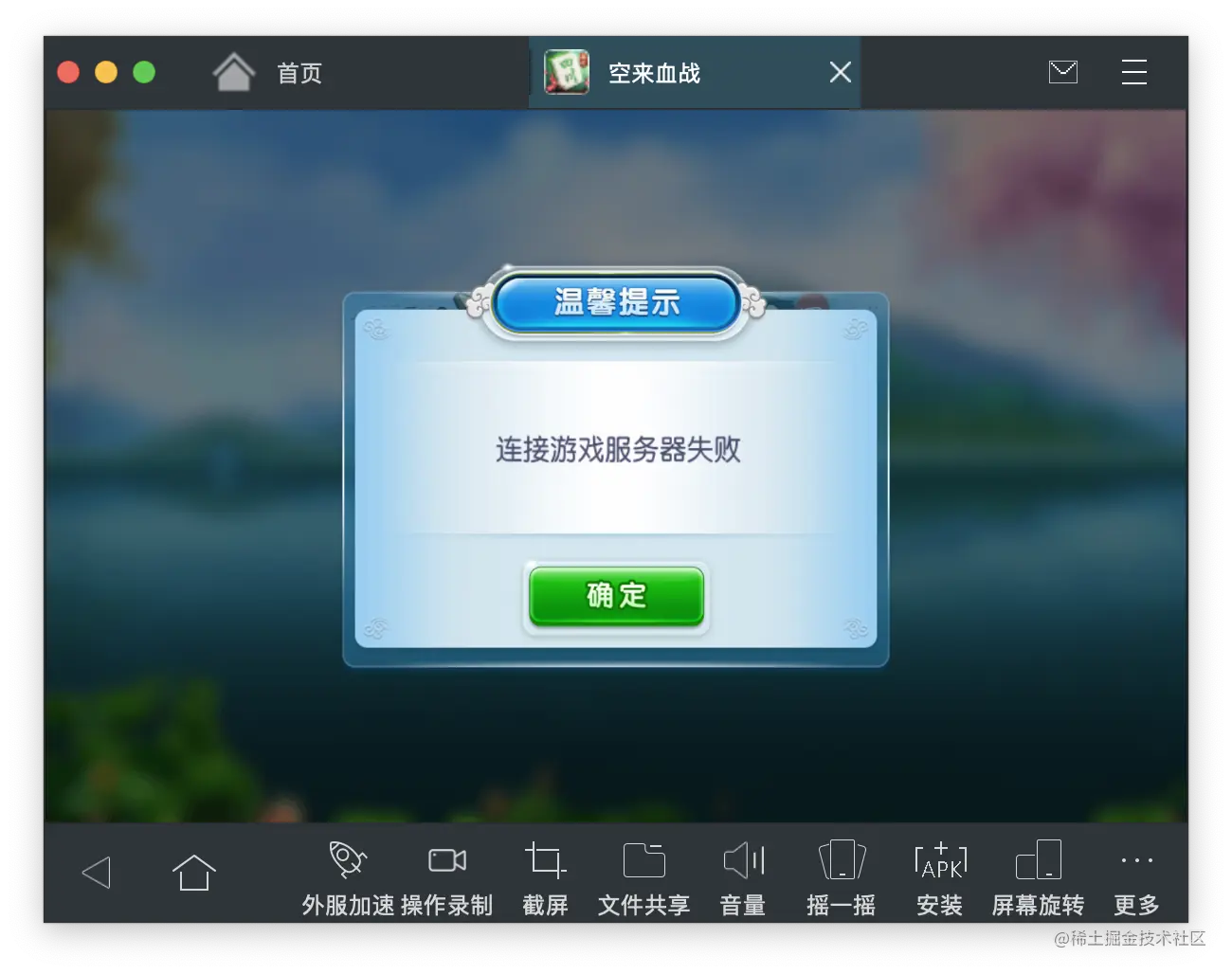

发现登录失败……

解决客户端登录失败问题

当然这问题，也好解决：

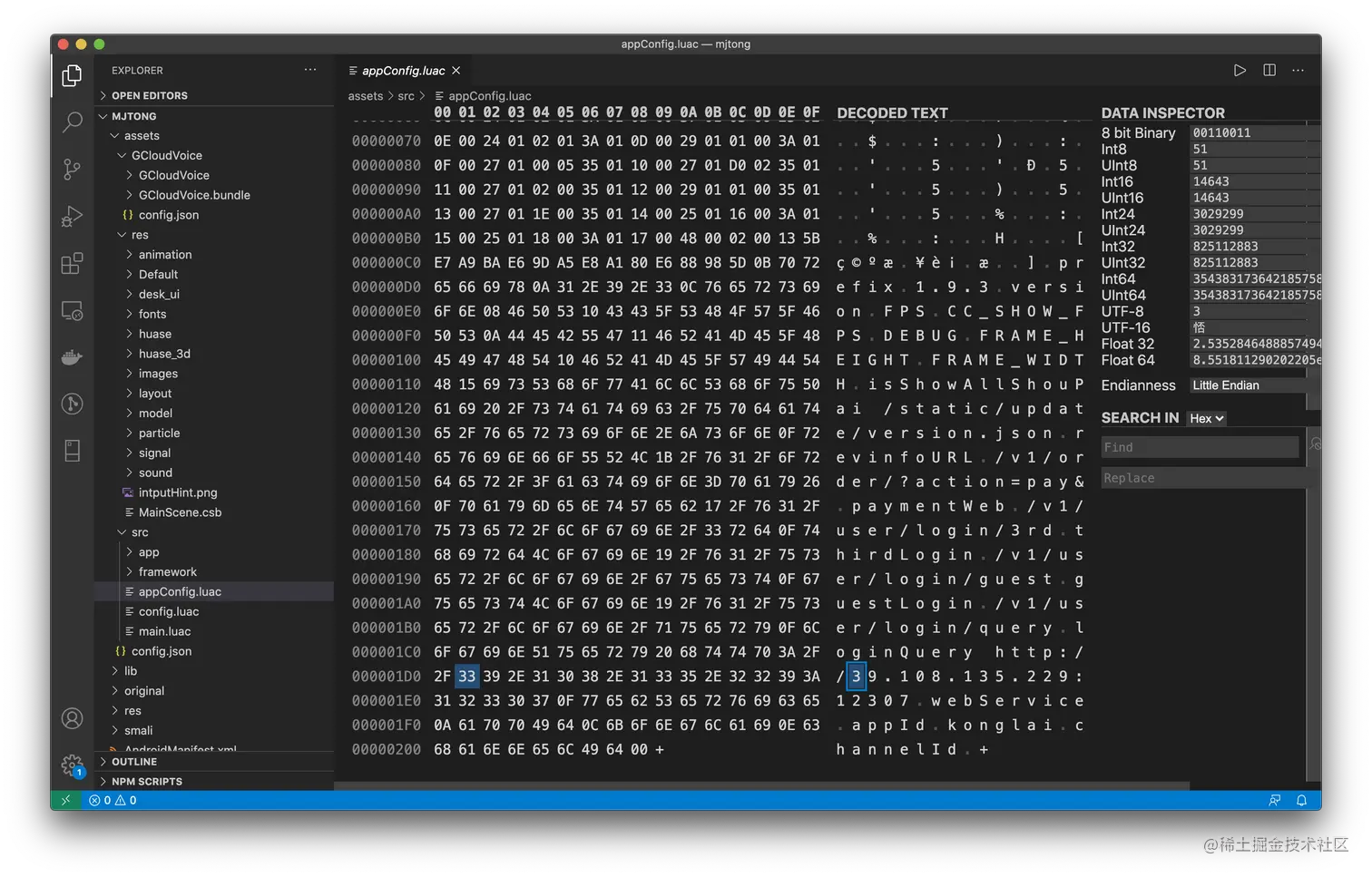

1. 按作者所说那样，反编译 apk，找到 appConfig.luac，使用二进制编辑器改完服务器地址，然后重新打包。

2. 直接使用代理，如 Charles 进行请求地址转发。（本地调试服务器程序完全够了）

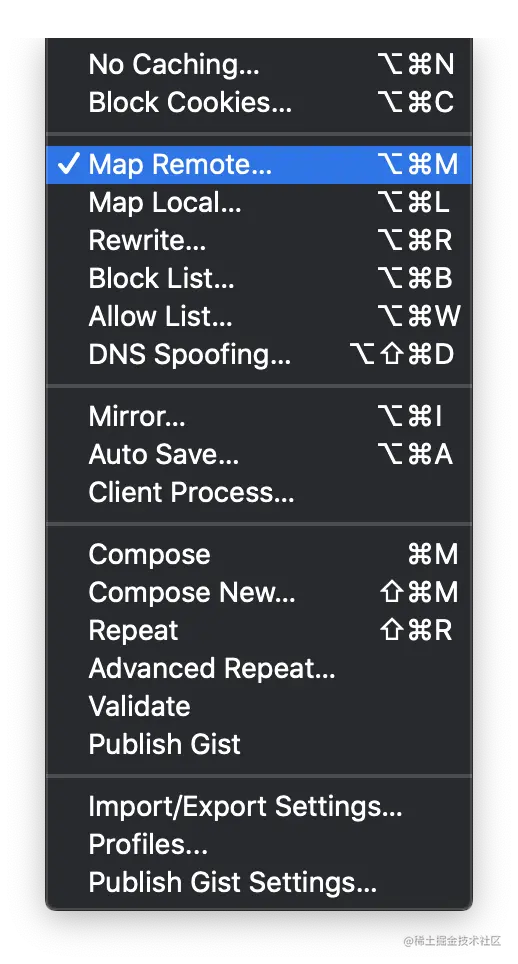

Charles 对客户端请求地址转发

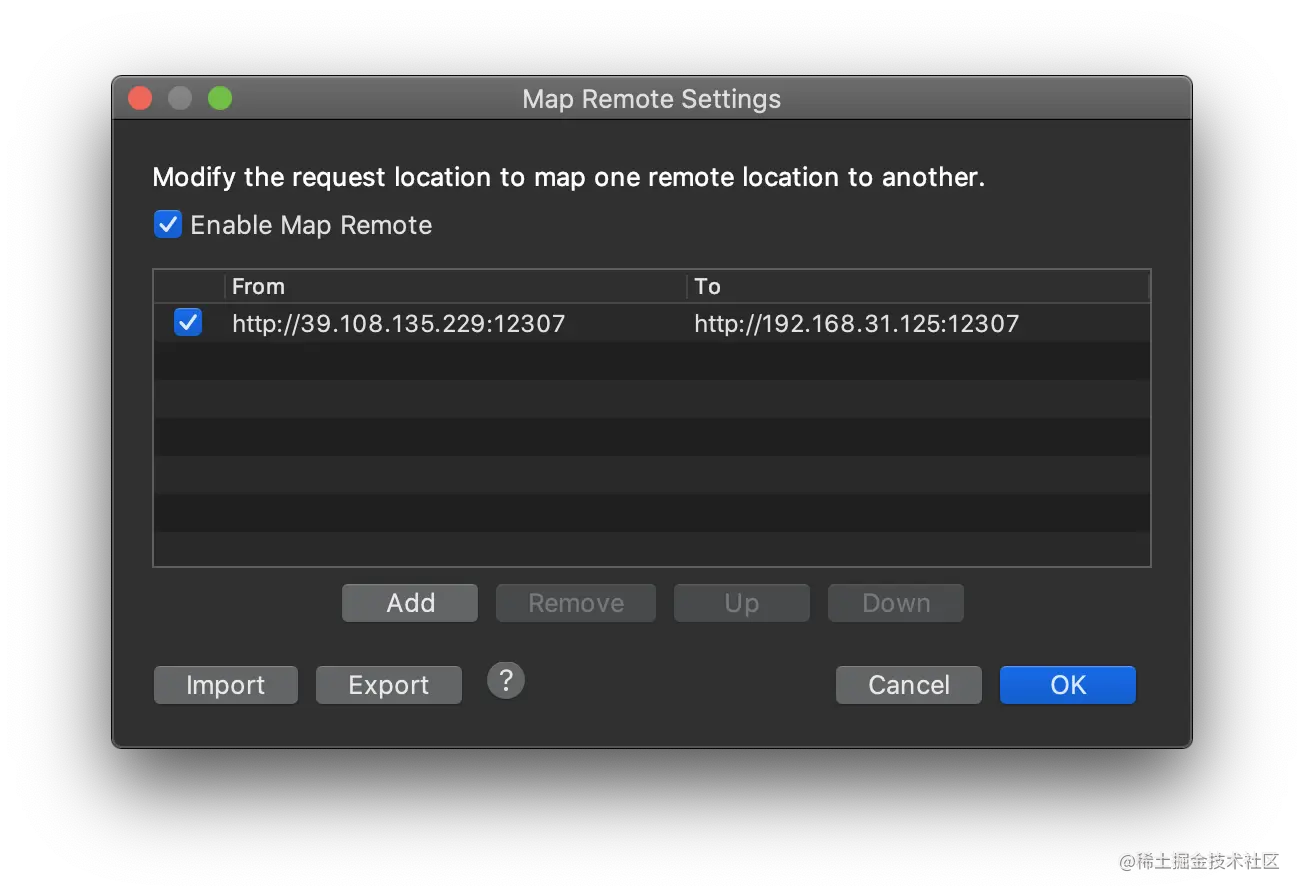

使用 Map Remote 映射到你本机调试的地址就完全够了。

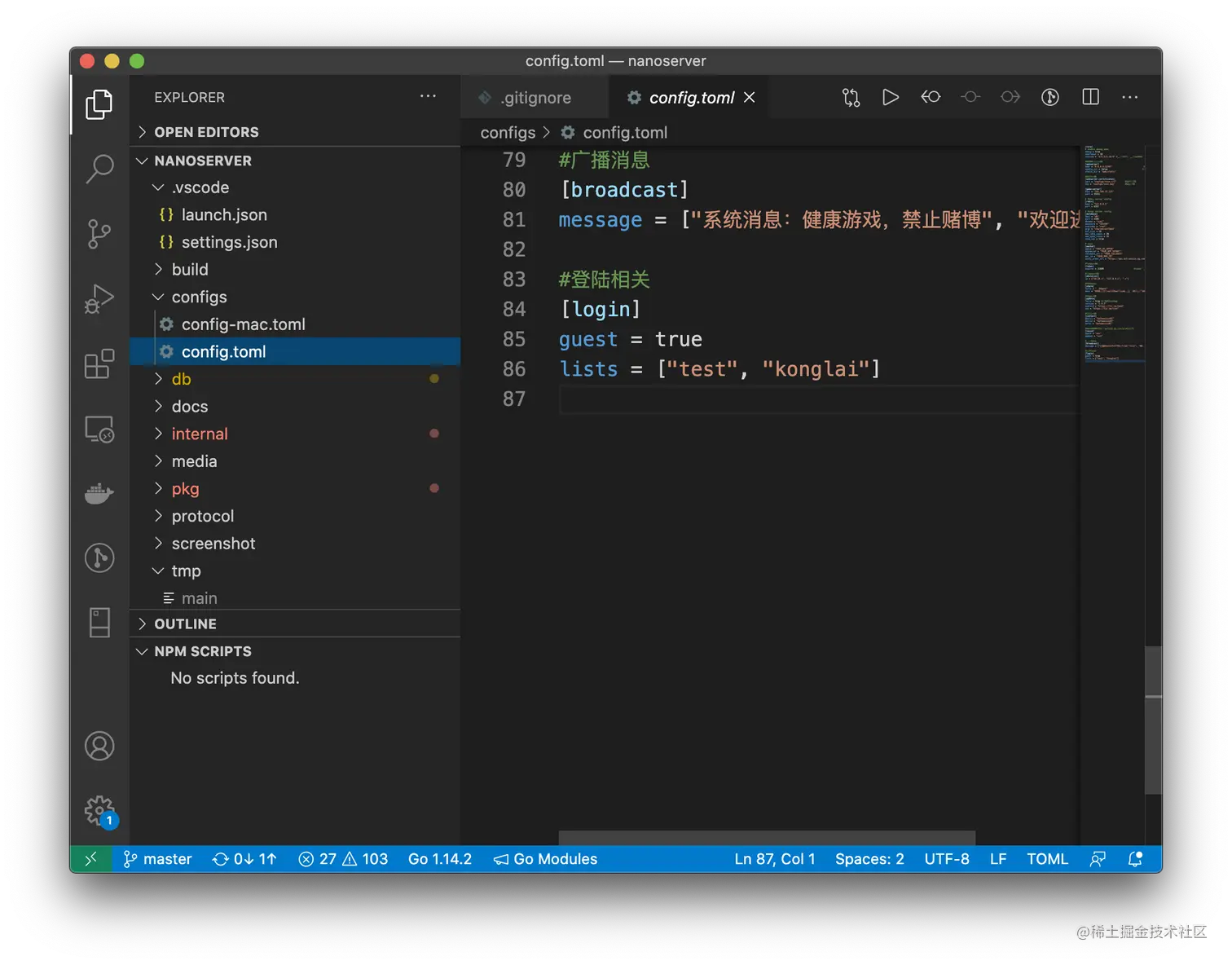

加入 guest 测试渠道 konglai

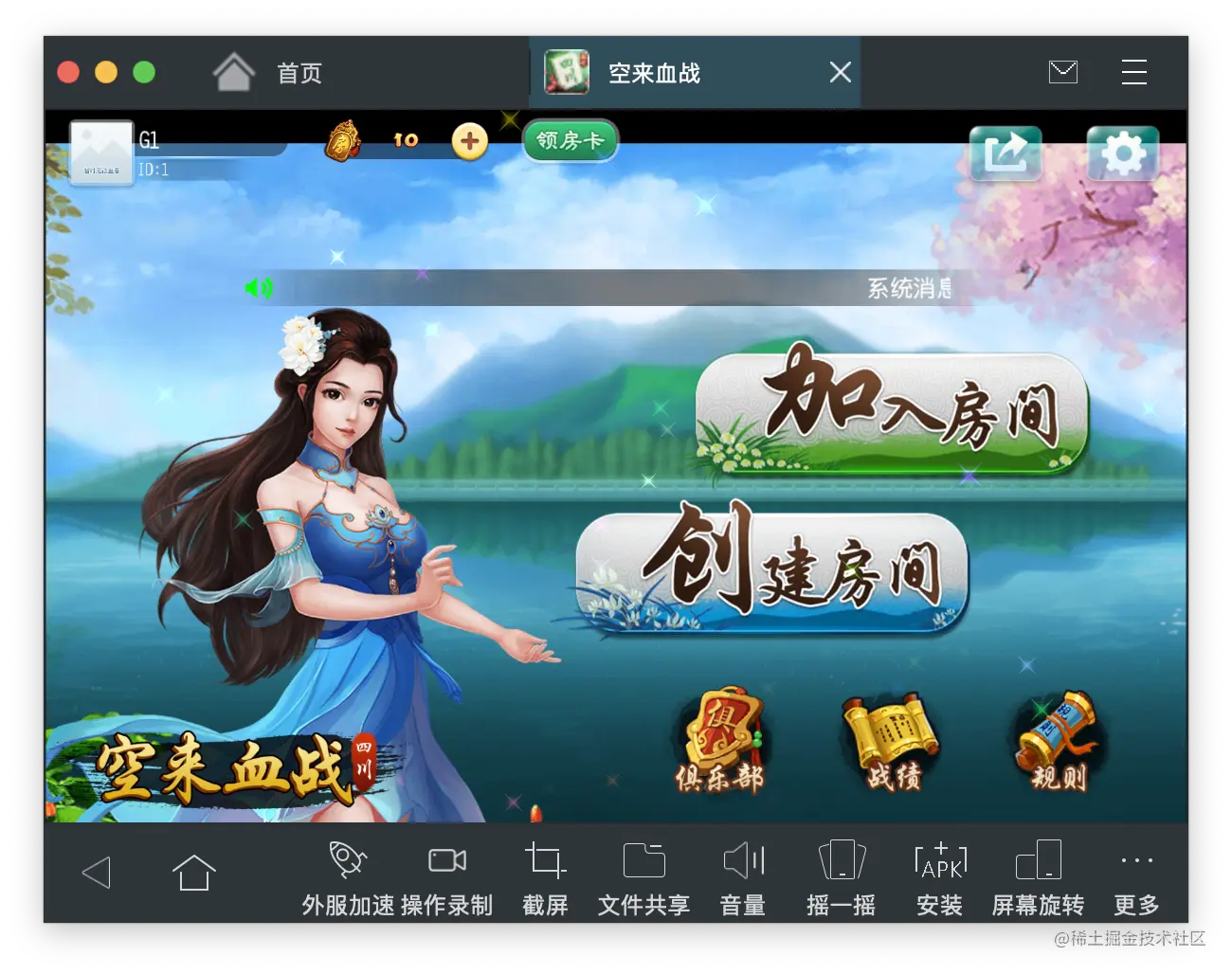

重新登录进入游戏

完美，搞定。

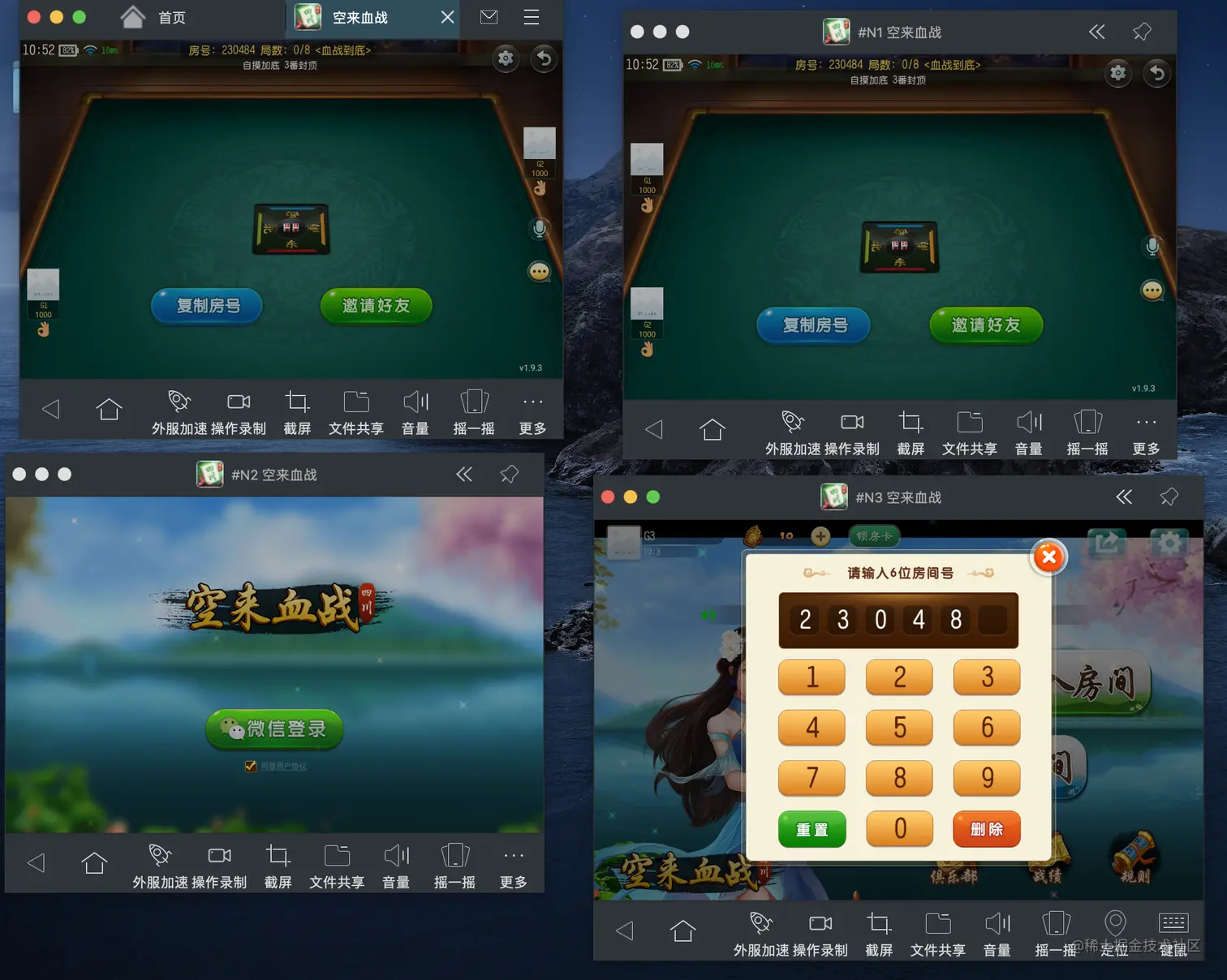

测试并凑一局血战到底

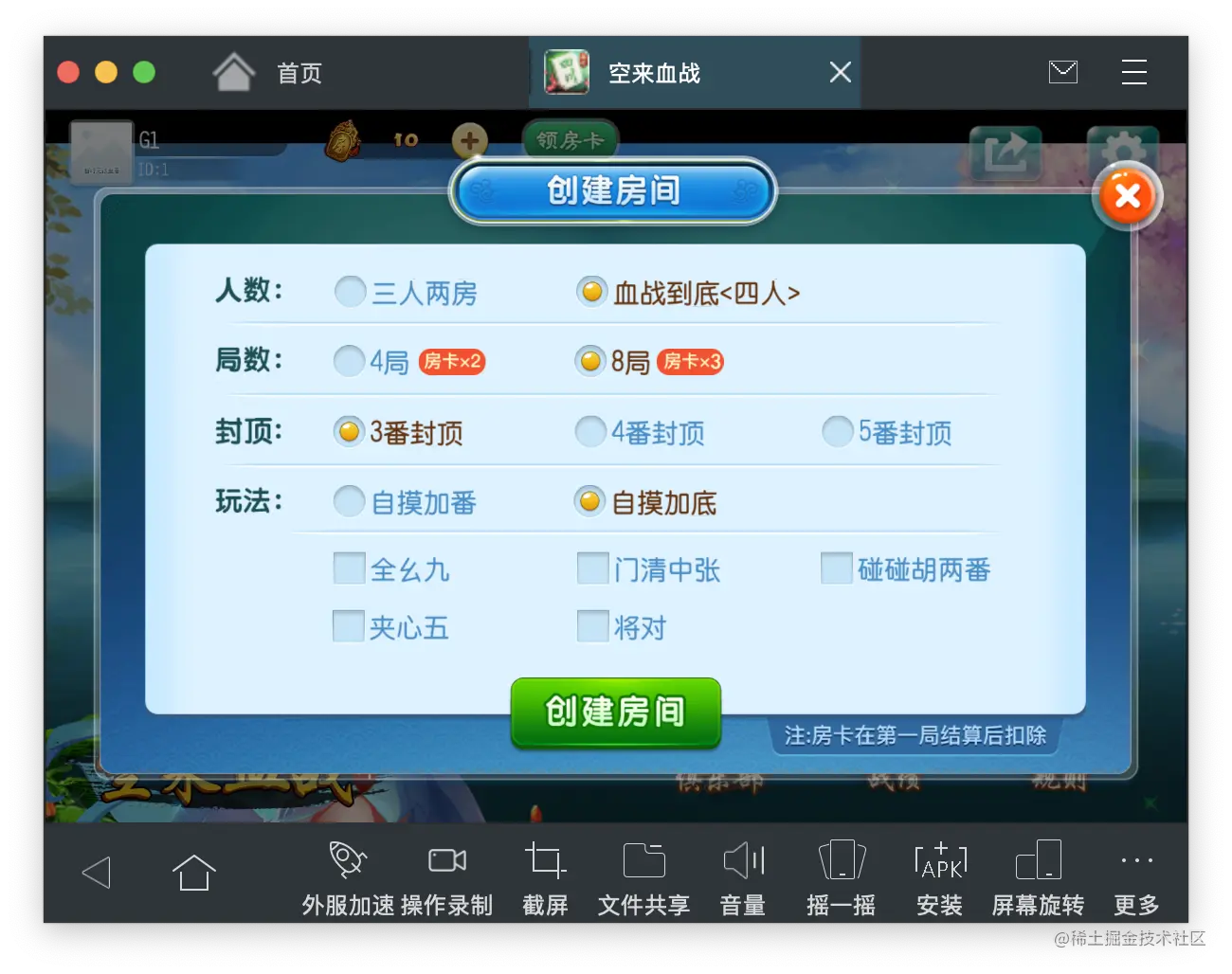

创建房间

加入房间

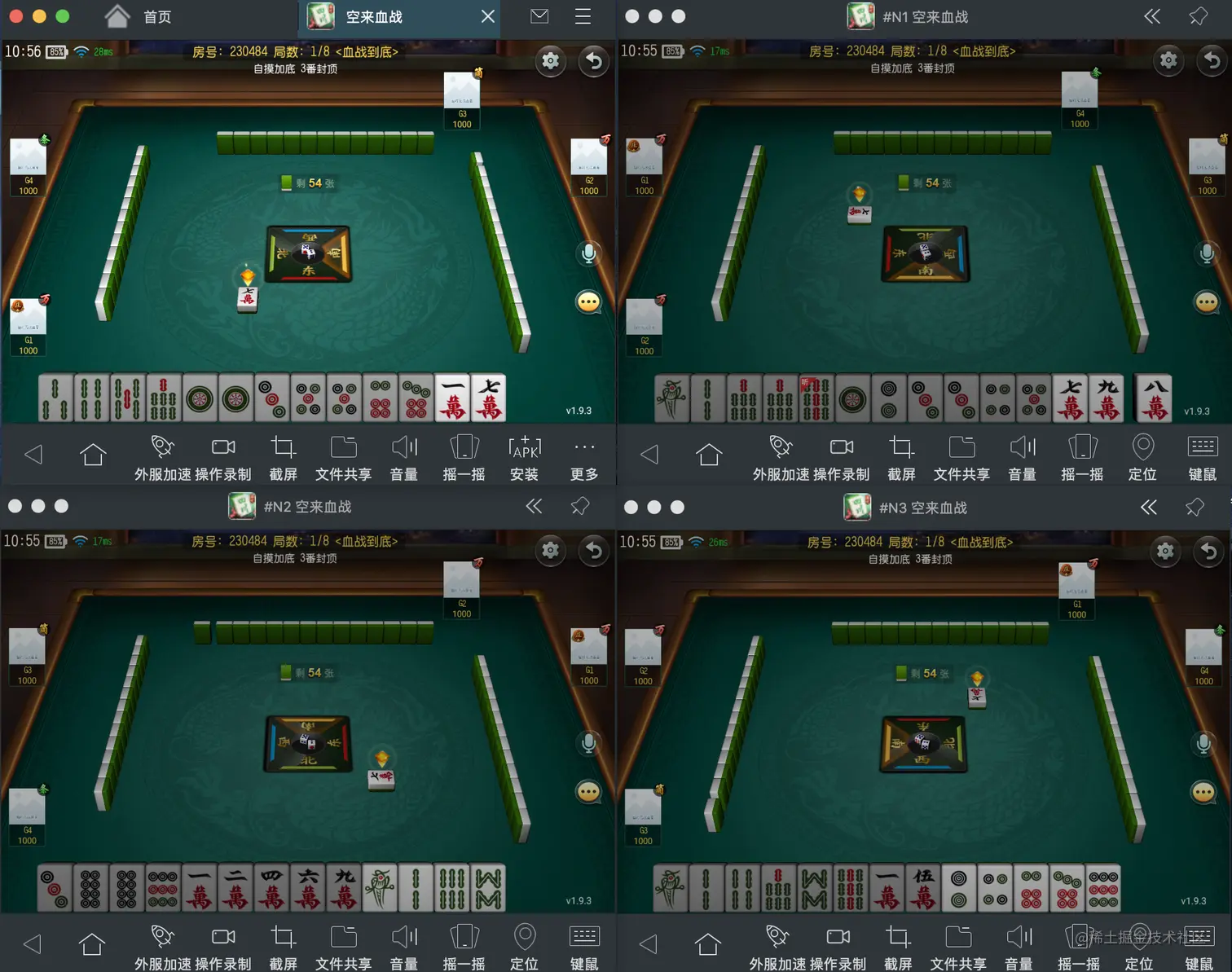

开始游戏

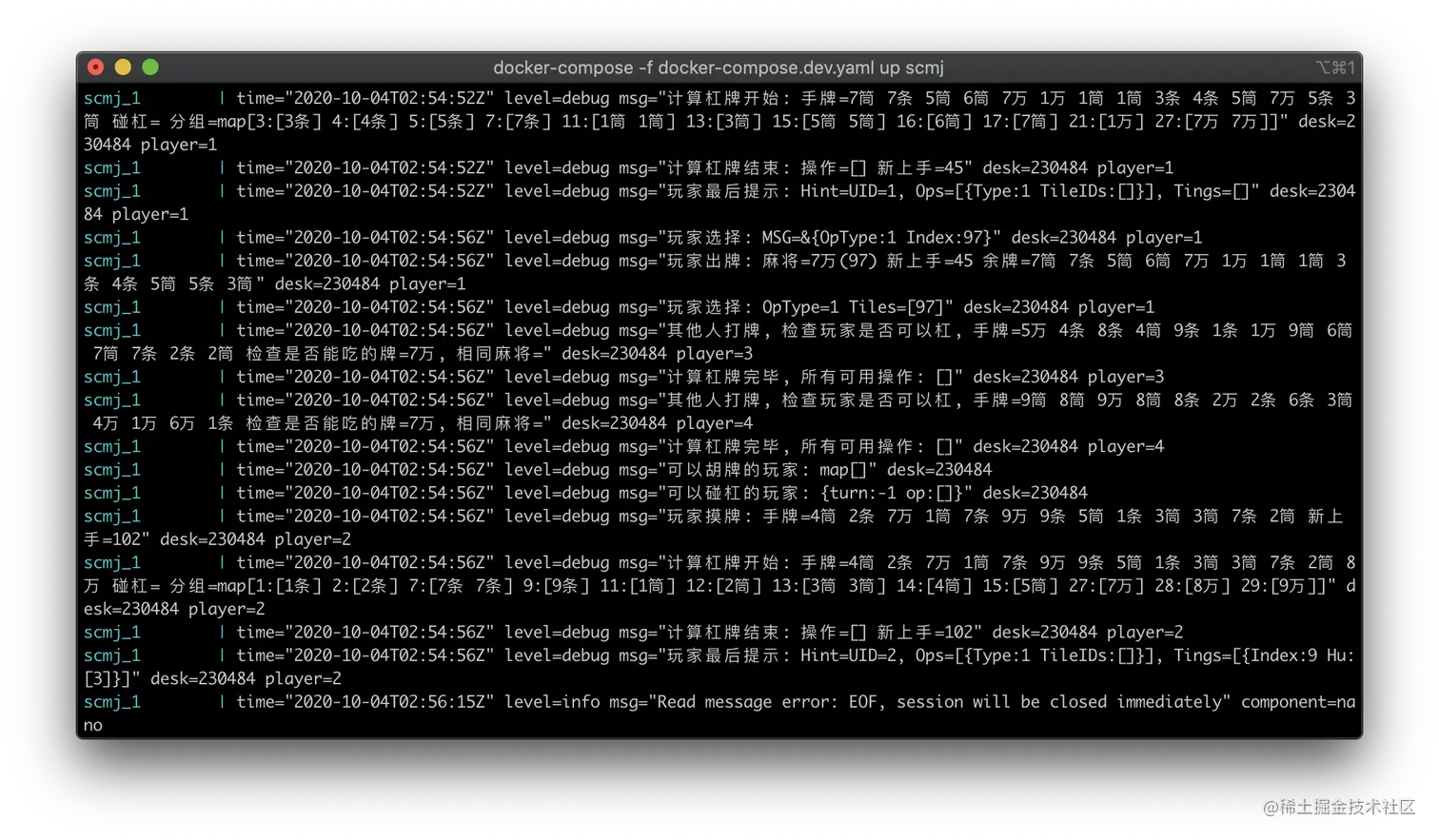

查看服务器日志
