1. 先 安装
npm install vue-amap --save
2. 在main.js中引入 下载的地图插件
import VueAMap from 'vue-amap';
Vue.use(VueAMap);VueAMap.initAMapApiLoader({
key: '2c9d59fc06dxxxxxxxxxxxxxxxxxxx', // 高德地图key
plugin: [
'AMap.Scale', // 地图比例尺插件
'AMap.OverView', // 地图鹰眼插件，默认在地图右下角显示缩略图
'AMap.ToolBar', // 地图工具条插件，可以用来控制地图的缩放和平移
'AMap.MapType', // 地图类型切换插件，用来切换固定的几个常用图层
'AMap.PlaceSearch', // 输入提示插件
'AMap.Geolocation', // 定位插件，整合了浏览器定位、精确IP定位、sdk辅助定位多种手段
'AMap.Geocoder', // 地址编码服务(地理编码和逆地理编码)
],
v: '1.4.4', // 高德SDK的版本
uiVersion: '1.0', // UI库的版本
});
3. 在 子组件中 gdMap.vue 里面调用
<template>
<el-dialog
:close-on-click-modal="false"
:close-on-press-escape="false"
style="padding-top: 35vh"
:visible.sync="visible"
v-if="visible">
<template>
<div class="container">
<div class="closed">
<span>添加打卡范围</span>
<i style="float: right" class="el-icon-close" @click="closeGd"></i>
</div>
<div class="search-box">
<input v-model="searchKey" type="search" id="search">
<button @click="searchByHand">搜索</button>
<div class="tip-box" id="searchTip"></div>
</div>
<!-- amap-manager： 地图管理对象
vid：地图容器节点的ID
zooms： 地图显示的缩放级别范围，在PC上，默认范围[3,18]，取值范围[3-18]；在移动设备上，默认范围[3-19]，取值范围[3-19]
center： 地图中心点坐标值
plugin：地图使用的插件
events： 事件 -->
<el-amap class="amap-box"
:amap-manager="amapManager"
:vid="'amap-vue'"
:zoom="zoom"
:plugin="plugin"
:center="center"
:events="events">
<el-amap-circle
v-for="(circle,index) in circles"
:key="index"
<!-- center 圆心位置 -->
:center="circle.center"
<!-- center 圆半径 -->
:radius="circle.radius"
<!-- fillColor 圆形填充颜色 --> :fill-color="circle.fillColor"
<!-- fillOpacity 圆形填充透明度，取值范围[0,1]，0表示完全透明，1表示不透明。默认为0.9 -->
:fill-opacity="circle.fillOpacity"
<!-- strokeWeight 轮廓线宽度 --> :stroke-weight="circle.strokeWeight"
<!-- strokeColor 设置线条颜色 -->
:stroke-color="circle.strokeColor"
:events="circle.events">
</el-amap-circle>
</el-amap>
<div class="footer">
<span class="preservation" @click="preservation">确认</span>
<span class="cancel" @click="cancel">取消</span>
</div>
</div>
</template>
</el-dialog>
</template>
<script>
import {AMapManager, lazyAMapApiLoaderInstance} from 'vue-amap'
let amapManager = new AMapManager()
export default {
name: 'gdAmap',
props: {
text: {
type: String,
default: ''
},
visible: {
type: Boolean,
default: false,
},
range: {
type: String,
default: '',
},
},
watch: {
range(val) {
this.circles[0].radius = val
}
},
data () {
let self = this
return {
active: false,
address: null,
searchKey: '',
amapManager,
markers: [],
circles: [
{
center: [118.78, 32.07],
radius: 100,
fillOpacity: 0.2,
fillColor:'#2587F6',
strokeWeight: 1,
strokeColor: '#2587F6',
events: {
click(e){
self.markers = []
let {lng, lat} = e.lnglat
self.lng = lng
self.lat = lat
self.center = [lng, lat]
self.circles[0].center = [lng, lat]
self.markers.push([lng, lat])
// 这里通过高德 SDK 完成。
let geocoder = new AMap.Geocoder({
radius: self.range,
extensions: 'all'
})
geocoder.getAddress([lng, lat], function (status, result) {
if (status === 'complete' && result.info === 'OK') {
if (result && result.regeocode) {
self.address = result.regeocode.formattedAddress
self.searchKey = result.regeocode.formattedAddress
self.$nextTick()
}
}
})
}
}
}
],
searchOption: {
city: '全国',
citylimit: true
},
radius: 100,
center: [118.78, 32.07],
zoom: 17,
lng: 0,
lat: 0,
loaded: false,
events: {
init () {
lazyAMapApiLoaderInstance.load().then(() => {
self.initSearch()
})
},
// 点击获取地址的数据
click (e) {
self.markers = []
let {lng, lat} = e.lnglat
self.lng = lng
self.lat = lat
self.center = [lng, lat]
self.circles[0].center = [lng, lat]
self.markers.push([lng, lat])
// 这里通过高德 SDK 完成。
let geocoder = new AMap.Geocoder({
radius: self.range,
extensions: 'all'
})
geocoder.getAddress([lng, lat], function (status, result) {
if (status === 'complete' && result.info === 'OK') {
if (result && result.regeocode) {
self.address = result.regeocode.formattedAddress
self.searchKey = result.regeocode.formattedAddress
self.$nextTick()
}
}
})
}
},
// 一些工具插件
plugin: [
{
pName: 'Geocoder',
events: {
init (o) {
}
}
},
{
// 默认定位
pName: 'Geolocation',
events: {
init (o) {
// o是高德地图定位插件实例
o.getCurrentPosition((status, result) => {
if (result && result.position) {
// 获取地点名称
self.address = result.formattedAddress
self.searchKey = result.formattedAddress
// 设置经度
self.lng = result.position.lng
// 设置维度
self.lat = result.position.lat
// 设置坐标
self.center = [self.lng, self.lat]
self.circles[0].center = [self.lng, self.lat]
self.markers.push([self.lng, self.lat])
// load
self.loaded = true
// 页面渲染好后
// self.$nextTick()
}
})
}
}
},
{
// 工具栏
pName: 'ToolBar',
events: {
init (instance) {
}
}
},
{
// 鹰眼--小地图
pName: 'OverView',
events: {
init (instance) {
}
}
},
{
// 搜索
pName: 'PlaceSearch',
events: {
init (instance) {
}
}
}
]
}
},
methods: {
// 关闭
closeGd () {
this.$emit('update:visible', false);
},
// 确认
preservation () {
this.$emit('address', this.searchKey)
this.$emit('position', this.circles[0].center)
this.$emit('update:visible', false);
},
// 取消
cancel () {
this.$emit('update:visible', false);
},
initSearch () {
let vm = this
let map = this.amapManager.getMap()
AMapUI.loadUI(['misc/PoiPicker'],
function (PoiPicker) {
var poiPicker = new PoiPicker({
input: 'search',
placeSearchOptions: {
map: map,
pageSize: 10
},
suggestContainer: 'searchTip',
searchResultsContainer: 'searchTip'
})
vm.poiPicker = poiPicker
// 监听poi选中信息
poiPicker.on('poiPicked', function (poiResult) {
let source = poiResult.source
let poi = poiResult.item
if (source !== 'search') {
poiPicker.searchByKeyword(poi.name)
} else {
poiPicker.clearSearchResults()
vm.markers = []
let lng = poi.location.lng
let lat = poi.location.lat
let address = poi.cityname + poi.adname + poi.name
vm.center = [lng, lat]
vm.markers.push([lng, lat])
vm.lng = lng
vm.lat = lat
vm.address = address
vm.searchKey = address
vm.circles[0].center = [lng, lat]
}
})
})
},
searchByHand () {
if (this.searchKey !== '') {
this.poiPicker.searchByKeyword(this.searchKey)
}
}
}
}
</script>
<style scoped lang="scss">
.el-dialog__wrapper /deep/ { .el-dialog { width: 699px; } } .container { width: 700px; height: 500px; position: absolute; left: 50%; top: 50%; transform: translate3d(-50%, -50%, 0); /*border: 1px solid #999;*/ } .closed { position: absolute; top: -35px; z-index: 999999; cursor: pointer; width: 100%; padding: 10px 10px; background: #e9e9e9; border-radius: 5px 5px 0 0; border: 1px solid #999; border-bottom: 0; color: #333333; } .search-box { position: absolute; z-index: 5; width: 70%; left: 13%; top: 15px; height: 30px; } .search-box input { float: left; width: 80%; height: 100%; border: 1px solid #30ccc1; padding: 0 8px; outline: none; } .search-box button { float: left; width: 20%; height: 100%; background: #30ccc1; border: 1px solid #30ccc1; color: #fff; outline: none; } .amap-box { border: solid 1px #999; border-top: 0; } .footer /deep/ { background: #e9e9e9; width: 100%; position: absolute; padding: 14px 20px; bottom: -44px; border: 1px solid #999; border-top: 0; border-radius: 0 0 5px 5px; font-size: 14px; text-align: right; .preservation { padding: 5px 14px; background: #2587f6; border-radius: 3px; color: #ffffff; margin: 0 10px; cursor: pointer; } .cancel { margin: 0 10px; cursor: pointer; color: rgba(0, 0, 0, 0.65); } } .tip-box { width: 100%; max-height: 260px; position: absolute; top: 30px; overflow-y: auto; background-color: #fff; }
</style>
4. 在父组件中调用 gdMap.vue 子组件
<template>
<div>
<el-input style="width: 350px"
disabled
v-model="region"
placeholder="请定位打卡位置">
</el-input>
<span class="position" @click="positionAddress">定位</span><iMap @address="address"
@position="positions"
:visible.sync="isShow"
:text="region"
:range="range">
</iMap></div></template>
<script>
import iMap from './gdAmap.vue';
export default {
name: 'addAttendance',
components: { iMap},
data() {
return {
isShow: false,
region: '', // 当前位置的文字
regionPosition: { lng: '', lat: '',}, // 经纬度lng,lat
range: '100', // 范围
}
},
methods: {
// 从组件中获取地理位置并放在input框里
address(val) { this.ruleForm.region = val;},
// 从组件中获取 经纬度
positions(val) {
this.ruleForm.regionPosition = {
lng: val[0],
lat: val[1],
};
},
// 打开地图组件
positionAddress() { this.isShow = true;},
} }
</script>
5. 在esLintrc.js 中引用globals
module.exports = {
globals: {
AMap: false,
AMapUI: false,
},
};
6. 效果演示
6.1 父组件

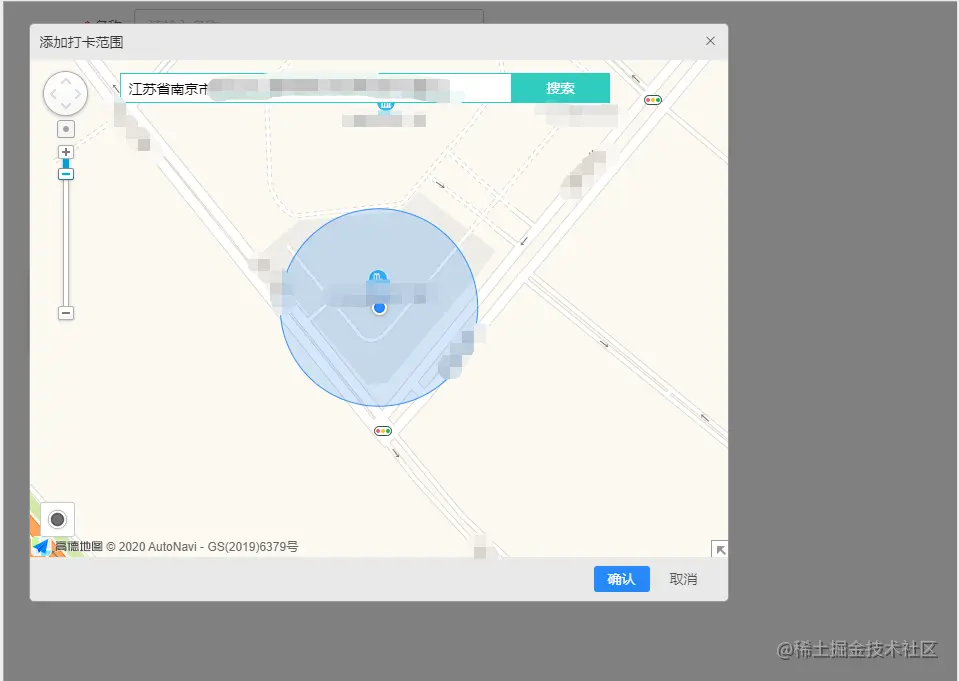

6.2 点击定位按钮，子组件地图展示
6.3 点击确认后 传回给父组件
