nginx配置https访问

396 阅读1分钟

编译

准备依赖库

安装gcc g++ 的依赖库

apt-get install build-essential
apt-get install libtool

安装pcre依赖库

apt-get install libpcre3 libpcre3-dev

安装zlib依赖库

apt-get install zlib1g-dev

安装openssl

apt-get install openssl libssl-dev

编译nginx

./configure --with-debug --with-http_ssl_module
make -j 8
make install

编译完验证是否存在ssl模块

nginx version: nginx/1.18.0
built by gcc 7.5.0 (Ubuntu 7.5.0-3ubuntu1~18.04)
built with OpenSSL 1.1.1  11 Sep 2018
TLS SNI support enabled
configure arguments: --with-debug --with-http_ssl_module

可以看到
built with OpenSSL 1.1.1 11 Sep 2018
TLS SNI support enabled
等字样,则说明nginx已经将ssl模块编译进去了。

生成ssl需要的私钥和证书

cd /usr/local/nginx/conf/ssl
openssl genrsa -des3 -out server.key 1024
openssl req -new -key server.key -out server.csr
cp server.key server.key.org
openssl rsa -in server.key.org -out server.key
openssl x509 -req -days 365 -in server.csr -signkey server.key -out server.crt

server.key 为私钥
server.crt 为证书

nginx.conf配置文件

#user  nobody;
worker_processes  4;

error_log  logs/debug.log  debug;

events {
    worker_connections  1024;
}

http {
    #include       mime.types;
    #default_type  application/octet-stream;

    sendfile        on;
    #tcp_nopush     on;
    keepalive_timeout  60;

    server {
        client_max_body_size 4G;
        listen 443 ssl;
        server_name www.haha.com;
        root /data;

		# 证书文件
		ssl_certificate         ssl/server.crt;
		# 私钥文件
		ssl_certificate_key     ssl/server.key;

        location / {
            autoindex on;
            autoindex_exact_size on;
            autoindex_localtime on;
        }
    }
}

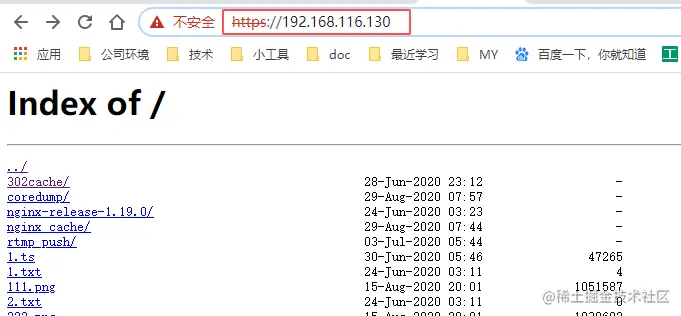

浏览器访问测试

可以看到使用https可以访问。

参考

nginx中文官方文档
