protocol【协议层】概述

协议通常是涉及到多方相互协作为实现某功能而遵守的规则
常见通讯协议如：网络七层协议【OSI】、HTTP协议、TCP协议、UDP协议
网络七层协议【OSI】：应用层、表示层、会话层、传输层、网络层、数据链路层、物理层；规定了网络通讯顶层大框架，只有接口【很抽象】
HTTP协议：大概会想到应用层协议、URL格式、httpheader、httpbody、get|post...【较具象】
TCP协议：大概会想到传输层协议、三次握手/四次挥手、可靠性协议...【较具象】
不论那种通讯协议都是指定了网络通讯中某些【或全部】环节具体规则
dubbo框架有很多通讯协议可供选择，不同通讯协议相当于实现RPC功能的不同路径
将RPC功能类比成：“从A城市到B城市” 这么一件事情
多种协议可类比成从A到B 有多种可选择的交通工具
选择一种具体交通工具就决定了：买什么票、司机是谁、舒适度、交通线路 ...
dubbo的任何一种协议也规定【或默认】了序列化方式、【长|短】链接、底层协议【http|tcp】、同步或异步、消息处理线程模型 ...

dubbo中的Protocol

org.apache.dubbo.rpc.Protocol#export; provider 暴露invoker对象
核心功能1: 启动xxxServer，将服务执行对象【invoker】暴露在网络中
org.apache.dubbo.rpc.Protocol#refer ; consumer 将URL转换成invoker对象

核心功能2: 创建xxxClient，封装为调用对象【invoker】供consumer调用

// 默认rpc层协议采用：DubboProtocol
@SPI("dubbo")
public interface Protocol {

    // provider 暴露服务阶段调用
    // invoker：rpc接口实现类[impl]转成invoker对象
    // 通过调用org.apache.dubbo.rpc.ProxyFactory#getInvoker进行【impl与invoker】 转换
    // provider方法执行链：【.. -> Invoker#invoker -> Wrapper#invokeMethod -> Impl#xxx】
    //-------------------invoker 说明 end------------------------
    // 例：http协议暴露服务：启动http服务器，将对应接口实现类暴露成http 服务
    //     服务暴露URL 例 : http://127.0.0.1:49178/org.apache.dubbo.rpc.protocol.http.HttpService?version=1.0.0
    // 例：dubbo协议暴露服务：默认启动netty server进行
    @Adaptive
    <T> Exporter<T> export(Invoker<T> invoker) throws RpcException;

    // consumer 引用服务阶段执行
    // 根据接口类型type，与远程服务url生成invoker对象
    // consumer方法调用链：rpcInterface#xxx -> proxy#xxx -> invoker#invoker -> nettyClient#send【默认】
    @Adaptive
    <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException;

    void destroy();
    。。。
}

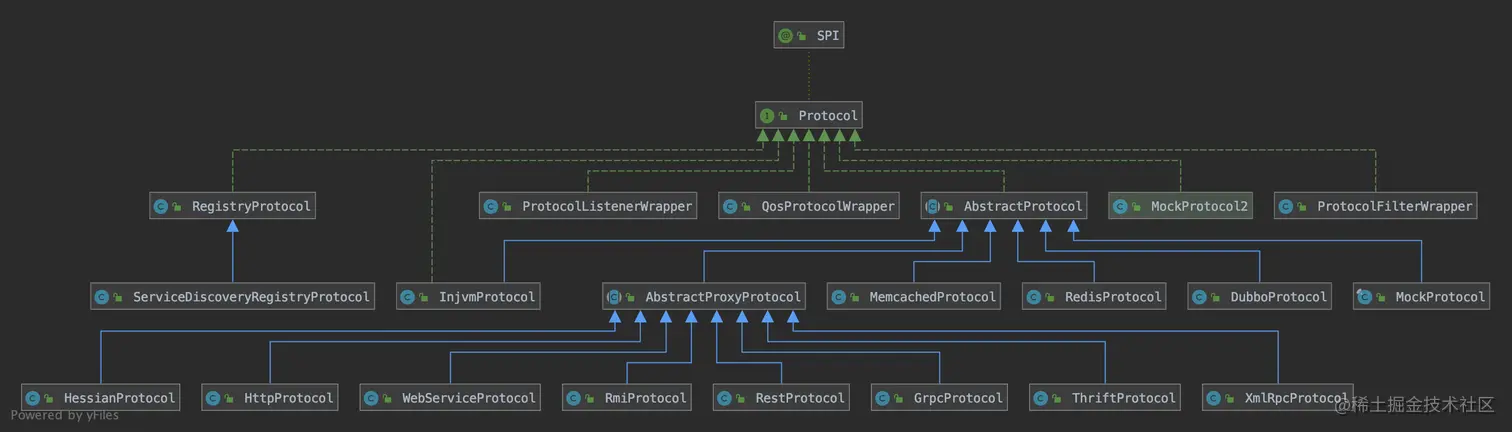

Protocol 简图

AbstractProtocol 以及相关子类协议都在dubbo-rpc模块下
DubboProtocol、RedisProtocol、MemcacheProtocol 直接继承AbstractProtocol
其他常见dubbo-rpc包下协议需要继承AbstractProxyProtocol
RegistryProtocol 服务注册监听阶段功能处理【本文暂不分析】

ProtocolFilterWrapper, ProtocolListenerWrapper 协议包装【代理】类

public abstract class AbstractProtocol implements Protocol {
    // 服务暴露map对象
    protected final Map<String, Exporter<?>> exporterMap = new ConcurrentHashMap<String, Exporter<?>>();

    @Override
    public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
        // 异步转同步invoker
        return new AsyncToSyncInvoker<>(protocolBindingRefer(type, url));
    }

    // 子类【服务引用】实现该方法
    protected abstract <T> Invoker<T> protocolBindingRefer(Class<T> type, URL url) throws RpcException;
    。。。
}

AbstractProtocol 中定义了服务暴露exporterMap属性
定义新服务引用抽象方法：protocolBindingRefer

dubbo-rpc模块中协议分类

代理协议

AbstractProxyProtocol
核型功能： rpc接口代理类对象与invoker对象之间进行转换【阅读完该类代码后，发现类名称很形象】
Protocol定义的export与refer方法对应的参数与返回值与 AbstractProxyProtocol子类对应 doExport, doRefer 参数与返回值类型不一样；
AbstractProxyProtocol 中的 export与refer，会调用子类的doExport 与 doRefer, 并进行 proxy【接口代理类对象】与 invoker对象之间转换
那么AbstractProxyProtocol 子类就不能直接接收或返回与Protocol export或refer相同类型的参数或返回值么？或者自己进行转换？答案：不能直接接收或返回相同的参数或返回值【下文可以看到对应子类实现】；子类可以在内部转换，但每个子类都需要转换，所以相同功能可以抽到父类处理
【DubboProtocol 服务暴露与引用少了一次转换】

    public abstract class AbstractProxyProtocol extends AbstractProtocol {

        private final List<Class<?>> rpcExceptions = new CopyOnWriteArrayList<Class<?>>();

        // 代理工厂
        protected ProxyFactory proxyFactory;

        public AbstractProxyProtocol() {
        }

        public AbstractProxyProtocol(Class<?>... exceptions) {
            for (Class<?> exception : exceptions) {
                addRpcException(exception);
            }
        }

        public ProxyFactory getProxyFactory() {
            return proxyFactory;
        }

        public void setProxyFactory(ProxyFactory proxyFactory) {
            this.proxyFactory = proxyFactory;
        }

        // 对应子类实现该服务暴露方法时 需传入rpc接口实现类impl【或实现代理类】
        // 而Protocol接口方法是 ： <T> Exporter<T> export(Invoker<T> invoker)；
        // 所以需要该代理协议 实现 invoker 与 代理实现类impl的转换
        protected abstract <T> Runnable doExport(T impl, Class<T> type, URL url) throws RpcException;

        // 对应子类实现该引用服务方法时 返回值类型是 ： rpc接口代理类
        // 而Protocol接口方法： <T> Invoker<T> refer(Class<T> type, URL url)；
        // 所以需要该代理协议 实现 invoker 与 rpc接口代理类的转换
        protected abstract <T> T doRefer(Class<T> type, URL url) throws RpcException;

        @Override
        @SuppressWarnings("unchecked")
        public <T> Exporter<T> export(final Invoker<T> invoker) throws RpcException {
            final String uri = serviceKey(invoker.getUrl());
            Exporter<T> exporter = (Exporter<T>) exporterMap.get(uri);
            if (exporter != null) {
                // When modifying the configuration through override, you need to re-expose the newly modified service.
                if (Objects.equals(exporter.getInvoker().getUrl(), invoker.getUrl())) {
                    return exporter;
                }
            }
            // 服务暴露阶段将invoker对象转换成接口代理类对象进行暴露
            // 【DubboProtocol没有这一次转换】
            final Runnable runnable = doExport(proxyFactory.getProxy(invoker, true), invoker.getInterface(), invoker.getUrl());
            exporter = new AbstractExporter<T>(invoker) {
                @Override
                public void unexport() {
                    super.unexport();
                    exporterMap.remove(uri);
                    if (runnable != null) {
                        try {
                            runnable.run();
                        } catch (Throwable t) {
                            logger.warn(t.getMessage(), t);
                        }
                    }
                }
            };
            exporterMap.put(uri, exporter);
            return exporter;
        }

        @Override
        protected <T> Invoker<T> protocolBindingRefer(final Class<T> type, final URL url) throws RpcException {
            // 服务引用阶段 多一次invoker 与 接口实现代理类的转换
            // 【DubboProtocol没有这一次转换】
            final Invoker<T> target = proxyFactory.getInvoker(doRefer(type, url), type, url);
            Invoker<T> invoker = new AbstractInvoker<T>(type, url) {
                @Override
                protected Result doInvoke(Invocation invocation) throws Throwable {
                    try {
                        Result result = target.invoke(invocation);
                        // FIXME result is an AsyncRpcResult instance.
                        Throwable e = result.getException();
                        if (e != null) {
                            for (Class<?> rpcException : rpcExceptions) {
                                if (rpcException.isAssignableFrom(e.getClass())) {
                                    throw getRpcException(type, url, invocation, e);
                                }
                            }
                        }
                        return result;
                    } catch (RpcException e) {
                        if (e.getCode() == RpcException.UNKNOWN_EXCEPTION) {
                            e.setCode(getErrorCode(e.getCause()));
                        }
                        throw e;
                    } catch (Throwable e) {
                        throw getRpcException(type, url, invocation, e);
                    }
                }
            };
            invokers.add(invoker);
            return invoker;
        }

        。。。
    }
    ```

功能分类

单链接、长链接，NIO异步传输，TCP

DubboProtocol 【非代理协议】
服务暴露会调用Exchangers.bind(url, requestHandler);方法【指定requestHandler】
服务引用会调用Exchangers.connect(url, requestHandler);方法【指定requestHandler】
requestHandler：请求处理handler，同时也处理回调请求【服务端回调客户端】
dubbo中其他rpc模块下的协议类均没看到回调处理【均没有回调处理】
服务暴露与服务引用阶段不需要创建rpc接口代理对象【与AbstractProxyProtocol子协议代码结构上的一个不同点】
Exchangers 内部指定了【netty | mina | grizzly】java nio框架
服务暴露使用使用nettyServer, 服务引用采用minaClient【netty | mina | grizzly三者之间选择】
默认采用hessian2序列化方式，dubbo自定义数据包结构

默认服务引用方创建一个长链接

public class DubboProtocol extends AbstractProtocol {

    // 请求处理handler
    // 回调请求也在该handler 处理
    private ExchangeHandler requestHandler = new ExchangeHandlerAdapter() {

        @Override
        public CompletableFuture<Object> reply(ExchangeChannel channel, Object message) throws RemotingException {

            Invocation inv = (Invocation) message;
            Invoker<?> invoker = getInvoker(channel, inv);
            // 是否有回调CallBack 处理
            // need to consider backward-compatibility if it's a callback
            if (Boolean.TRUE.toString().equals(inv.getObjectAttachments().get(IS_CALLBACK_SERVICE_INVOKE))) {
                String methodsStr = invoker.getUrl().getParameters().get("methods");
               。。。
                }
            }
            RpcContext.getContext().setRemoteAddress(channel.getRemoteAddress());
            Result result = invoker.invoke(inv);
            return result.thenApply(Function.identity());
        }
        。。。
    };

    // 直接将invoker对象进行暴露
    // 没有生成接口实现代理对象【与AbstractProxyProtocol不同】
    // 在openServer(url);方法中指定了requestHander进行处理所有请求
    @Override
    public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
        URL url = invoker.getUrl();

        // export service.
        String key = serviceKey(url);
        DubboExporter<T> exporter = new DubboExporter<T>(invoker, key, exporterMap);
        exporterMap.put(key, exporter);

        //export an stub service for dispatching event
        Boolean isStubSupportEvent = url.getParameter(STUB_EVENT_KEY, DEFAULT_STUB_EVENT);
        Boolean isCallbackservice = url.getParameter(IS_CALLBACK_SERVICE, false);
        if (isStubSupportEvent && !isCallbackservice) {
            String stubServiceMethods = url.getParameter(STUB_EVENT_METHODS_KEY);
            if (stubServiceMethods == null || stubServiceMethods.length() == 0) {
                if (logger.isWarnEnabled()) {
                    logger.warn(new IllegalStateException("consumer [" + url.getParameter(INTERFACE_KEY) +
                            "], has set stubproxy support event ,but no stub methods founded."));
                }

            }
        }

        // 启动server
        openServer(url);
        optimizeSerialization(url);

        return exporter;
    }

    private void openServer(URL url) {
        // find server.
        String key = url.getAddress();
        //client can export a service which's only for server to invoke
        boolean isServer = url.getParameter(IS_SERVER_KEY, true);
        if (isServer) {
            // serverMap 为AbstractProtocol中属性，
            // 可当作服务server缓存
            // 并可保证接口暴露幂等性
            ProtocolServer server = serverMap.get(key);
            if (server == null) {
                synchronized (this) {
                    server = serverMap.get(key);
                    if (server == null) {
                        serverMap.put(key, createServer(url));
                    }
                }
            } else {
                // server supports reset, use together with override
                server.reset(url);
            }
        }
    }

    private ProtocolServer createServer(URL url) {
        url = URLBuilder.from(url)
                // send readonly event when server closes, it's enabled by default
                .addParameterIfAbsent(CHANNEL_READONLYEVENT_SENT_KEY, Boolean.TRUE.toString())
                // enable heartbeat by default
                .addParameterIfAbsent(HEARTBEAT_KEY, String.valueOf(DEFAULT_HEARTBEAT))
                .addParameter(CODEC_KEY, DubboCodec.NAME)
                .build();
        String str = url.getParameter(SERVER_KEY, DEFAULT_REMOTING_SERVER);

        if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) {
            throw new RpcException("Unsupported server type: " + str + ", url: " + url);
        }

        ExchangeServer server;
        try {
            // 指定 requestHandler 来接收请求消息处理器
            // dubboProtocol 创建server或指定处理器，不需要接口代理类与invoker转换
            server = Exchangers.bind(url, requestHandler);
        } catch (RemotingException e) {
            throw new RpcException("Fail to start server(url: " + url + ") " + e.getMessage(), e);
        }

        str = url.getParameter(CLIENT_KEY);
        if (str != null && str.length() > 0) {
            Set<String> supportedTypes = ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions();
            if (!supportedTypes.contains(str)) {
                throw new RpcException("Unsupported client type: " + str);
            }
        }

        return new DubboProtocolServer(server);
    }

    // 继承AbstractProtocol 服务引用方法
    @Override
    public <T> Invoker<T> protocolBindingRefer(Class<T> serviceType, URL url) throws RpcException {
        optimizeSerialization(url);

        // create rpc invoker.
        // 创建client
        DubboInvoker<T> invoker = new DubboInvoker<T>(serviceType, url, getClients(url), invokers);
        invokers.add(invoker);

        return invoker;
    }

    private ExchangeClient[] getClients(URL url) {
        boolean useShareConnect = false;
        int connections = url.getParameter(CONNECTIONS_KEY, 0);
        List<ReferenceCountExchangeClient> shareClients = null;
        // if not configured, connection is shared, otherwise, one connection for one service
        if (connections == 0) {
            useShareConnect = true;

            String shareConnectionsStr = url.getParameter(SHARE_CONNECTIONS_KEY, (String) null);
            connections = Integer.parseInt(StringUtils.isBlank(shareConnectionsStr) ? ConfigUtils.getProperty(SHARE_CONNECTIONS_KEY,
                    DEFAULT_SHARE_CONNECTIONS) : shareConnectionsStr);
            // 通常引用一个服务只启动一个client【tcp长链接】
            shareClients = getSharedClient(url, connections);
        }

        // 通过connections 参数控制启动多个client【tcp长链接】
        ExchangeClient[] clients = new ExchangeClient[connections];
        for (int i = 0; i < clients.length; i++) {
            if (useShareConnect) {
                clients[i] = shareClients.get(i);

            } else {
                clients[i] = initClient(url);
            }
        }

        return clients;
    }

    private ExchangeClient initClient(URL url) {

        // client type setting.
        String str = url.getParameter(CLIENT_KEY, url.getParameter(SERVER_KEY, DEFAULT_REMOTING_CLIENT));

        url = url.addParameter(CODEC_KEY, DubboCodec.NAME);
        // enable heartbeat by default
        url = url.addParameterIfAbsent(HEARTBEAT_KEY, String.valueOf(DEFAULT_HEARTBEAT));

        // BIO is not allowed since it has severe performance issue.
        if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) {
            throw new RpcException("Unsupported client type: " + str + "," +
                    " supported client type is " + StringUtils.join(ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions(), " "));
        }

        ExchangeClient client;
        try {
            // connection should be lazy
            if (url.getParameter(LAZY_CONNECT_KEY, false)) {
                client = new LazyConnectExchangeClient(url, requestHandler);

            } else {
                // 创建client也需要指定requestHandler
                // 此处的requestHandler 处理回调callback请求处理【provider回调consumer】
                client = Exchangers.connect(url, requestHandler);
            }

        } catch (RemotingException e) {
            throw new RpcException("Fail to create remoting client for service(" + url + "): " + e.getMessage(), e);
        }

        return client;
    }
    。。。。。
}

多链接、短链接，同步传输，HTTP | TCP

HttpProtocol、HessionProtocol、RestProtocol、RmiProtocol、WebServiceProtocol、XmlRpcProtocol【代理协议子类】
每个协议类：创建server并启动，创建client，指定请求处理器handler
server 与 client都采用开源组件创建
各代理子类创建server或client对象都依赖到接口实现类【或接口代理实现类】
Protocol接口中export与refer方法需要传入或返回invoker对象
AbstractProxyProtocol 中export 与 refer 方法有实现接口代理实现类对象与 invoker互转
采用通用的序列化方式【json 或 hessian】
RmiProtocol 采用TCP协议，其他协议都采用HTTP协议
dubbo 默认采用jetty作为http web服务器
无回调callback处理

源码示例

public class HttpProtocol extends AbstractProxyProtocol {
    public static final String ACCESS_CONTROL_ALLOW_ORIGIN_HEADER = "Access-Control-Allow-Origin";
    public static final String ACCESS_CONTROL_ALLOW_METHODS_HEADER = "Access-Control-Allow-Methods";
    public static final String ACCESS_CONTROL_ALLOW_HEADERS_HEADER = "Access-Control-Allow-Headers";

    private final Map<String, JsonRpcServer> skeletonMap = new ConcurrentHashMap<>();

    private HttpBinder httpBinder;

    public HttpProtocol() {
        super(HttpException.class, JsonRpcClientException.class);
    }

    public void setHttpBinder(HttpBinder httpBinder) {
        this.httpBinder = httpBinder;
    }

    @Override
    public int getDefaultPort() {
        return 80;
    }

    // 消息处理器
    private class InternalHandler implements HttpHandler {

        private boolean cors;

        public InternalHandler(boolean cors) {
            this.cors = cors;
        }

        @Override
        public void handle(HttpServletRequest request, HttpServletResponse response)
                throws ServletException {
            String uri = request.getRequestURI();
            JsonRpcServer skeleton = skeletonMap.get(uri);
            if (cors) {
                response.setHeader(ACCESS_CONTROL_ALLOW_ORIGIN_HEADER, "*");
                response.setHeader(ACCESS_CONTROL_ALLOW_METHODS_HEADER, "POST");
                response.setHeader(ACCESS_CONTROL_ALLOW_HEADERS_HEADER, "*");
            }
            if (request.getMethod().equalsIgnoreCase("OPTIONS")) {
                response.setStatus(200);
            } else if (request.getMethod().equalsIgnoreCase("POST")) {

                RpcContext.getContext().setRemoteAddress(request.getRemoteAddr(), request.getRemotePort());
                try {
                    // skeleton： com.googlecode.jsonrpc4j.JsonRpcServer
                    // 采用JSON序列化
                    skeleton.handle(request.getInputStream(), response.getOutputStream());
                } catch (Throwable e) {
                    throw new ServletException(e);
                }
            } else {
                response.setStatus(500);
            }
        }

    }

    @Override
    protected <T> Runnable doExport(final T impl, Class<T> type, URL url) throws RpcException {
        String addr = getAddr(url);
        ProtocolServer protocolServer = serverMap.get(addr);
        if (protocolServer == null) {
            // 指定消息处理器handler
            RemotingServer remotingServer = httpBinder.bind(url, new InternalHandler(url.getParameter("cors", false)));
            serverMap.put(addr, new ProxyProtocolServer(remotingServer));
        }
        final String path = url.getAbsolutePath();
        final String genericPath = path + "/" + GENERIC_KEY;
        // 创建 server
        JsonRpcServer skeleton = new JsonRpcServer(impl, type);
        // 创建com.googlecode.jsonrpc4j.JsonRpcServer 需要传入rpc接口实现【或代理类】对象
        JsonRpcServer genericServer = new JsonRpcServer(impl, GenericService.class);
        skeletonMap.put(path, skeleton);
        skeletonMap.put(genericPath, genericServer);
        return () -> {
            skeletonMap.remove(path);
            skeletonMap.remove(genericPath);
        };
    }

    @SuppressWarnings("unchecked")
    @Override
    protected <T> T doRefer(final Class<T> serviceType, URL url) throws RpcException {
        final String generic = url.getParameter(GENERIC_KEY);
        final boolean isGeneric = ProtocolUtils.isGeneric(generic) || serviceType.equals(GenericService.class);
        /********* com.googlecode.jsonrpc4j.spring.JsonProxyFactoryBean 创建代理对象过程【rpc-client】 **************/
        JsonProxyFactoryBean jsonProxyFactoryBean = new JsonProxyFactoryBean();
        JsonRpcProxyFactoryBean jsonRpcProxyFactoryBean = new JsonRpcProxyFactoryBean(jsonProxyFactoryBean);
        jsonRpcProxyFactoryBean.setRemoteInvocationFactory((methodInvocation) -> {
            RemoteInvocation invocation = new JsonRemoteInvocation(methodInvocation);
            if (isGeneric) {
                invocation.addAttribute(GENERIC_KEY, generic);
            }
            return invocation;
        });
        String key = url.setProtocol("http").toIdentityString();
        if (isGeneric) {
            key = key + "/" + GENERIC_KEY;
        }

        jsonRpcProxyFactoryBean.setServiceUrl(key);
        // 指定服务接口
        jsonRpcProxyFactoryBean.setServiceInterface(serviceType);

        jsonProxyFactoryBean.afterPropertiesSet();
        // 创建客户端代理类，该代理类实现rpc接口，并返回
        // Protocol#refer 方法返回值类型为Invoker
        // AbstractProxyProtocol 会将proxy 转成 Invoker 对象
        // 【DubboProtocol 服务引用方法没有创建接口实现代理类】
        return (T) jsonProxyFactoryBean.getObject();
         /********* com.googlecode.jsonrpc4j.spring.JsonProxyFactoryBean 创建代理对象过程【rpc-client】 **************/
    }
    。。。
}

HessianProtocol 源码

public class HessianProtocol extends AbstractProxyProtocol {

    private final Map<String, HessianSkeleton> skeletonMap = new ConcurrentHashMap<String, HessianSkeleton>();

    private HttpBinder httpBinder;

    public HessianProtocol() {
        super(HessianException.class);
    }

    public void setHttpBinder(HttpBinder httpBinder) {
        this.httpBinder = httpBinder;
    }

    @Override
    public int getDefaultPort() {
        return 80;
    }

    // 消息处理handler
    private class HessianHandler implements HttpHandler {

        @Override
        public void handle(HttpServletRequest request, HttpServletResponse response)
                throws IOException, ServletException {
            String uri = request.getRequestURI();
            // com.caucho.hessian.server.HessianSkeleton
            HessianSkeleton skeleton = skeletonMap.get(uri);
            if (!"POST".equalsIgnoreCase(request.getMethod())) {
                response.setStatus(500);
            } else {
                RpcContext.getContext().setRemoteAddress(request.getRemoteAddr(), request.getRemotePort());

                Enumeration<String> enumeration = request.getHeaderNames();
                while (enumeration.hasMoreElements()) {
                    String key = enumeration.nextElement();
                    if (key.startsWith(DEFAULT_EXCHANGER)) {
                        RpcContext.getContext().setAttachment(key.substring(DEFAULT_EXCHANGER.length()),
                                request.getHeader(key));
                    }
                }

                try {
                    skeleton.invoke(request.getInputStream(), response.getOutputStream());
                } catch (Throwable e) {
                    throw new ServletException(e);
                }
            }
        }

    }

    @Override
    protected <T> Runnable doExport(T impl, Class<T> type, URL url) throws RpcException {
        String addr = getAddr(url);
        ProtocolServer protocolServer = serverMap.get(addr);
        if (protocolServer == null) {
           // 指定消息处理handler
           // 创建server
            RemotingServer remotingServer = httpBinder.bind(url, new HessianHandler());
            serverMap.put(addr, new ProxyProtocolServer(remotingServer));
        }
        final String path = url.getAbsolutePath();
        // hessian框架服务提供方核型类： com.caucho.hessian.server.HessianSkeleton
        // 创建 com.caucho.hessian.server.HessianSkeleton 对需要传入rpc接口实现【或代理类】对象
        final HessianSkeleton skeleton = new HessianSkeleton(impl, type);
        skeletonMap.put(path, skeleton);

        final String genericPath = path + "/" + GENERIC_KEY;
        skeletonMap.put(genericPath, new HessianSkeleton(impl, GenericService.class));

        return new Runnable() {
            @Override
            public void run() {
                skeletonMap.remove(path);
                skeletonMap.remove(genericPath);
            }
        };
    }

    @Override
    @SuppressWarnings("unchecked")
    protected <T> T doRefer(Class<T> serviceType, URL url) throws RpcException {
        String generic = url.getParameter(GENERIC_KEY);
        boolean isGeneric = ProtocolUtils.isGeneric(generic) || serviceType.equals(GenericService.class);
        if (isGeneric) {
            RpcContext.getContext().setAttachment(GENERIC_KEY, generic);
            url = url.setPath(url.getPath() + "/" + GENERIC_KEY);
        }
        /********* com.caucho.hessian.client.HessianProxyFactory 创建代理对象过程【rpc-client】 **************/
        HessianProxyFactory hessianProxyFactory = new HessianProxyFactory();
        boolean isHessian2Request = url.getParameter(HESSIAN2_REQUEST_KEY, DEFAULT_HESSIAN2_REQUEST);
        hessianProxyFactory.setHessian2Request(isHessian2Request);
        boolean isOverloadEnabled = url.getParameter(HESSIAN_OVERLOAD_METHOD_KEY, DEFAULT_HESSIAN_OVERLOAD_METHOD);
        hessianProxyFactory.setOverloadEnabled(isOverloadEnabled);
        String client = url.getParameter(CLIENT_KEY, DEFAULT_HTTP_CLIENT);
        if ("httpclient".equals(client)) {
            HessianConnectionFactory factory = new HttpClientConnectionFactory();
            factory.setHessianProxyFactory(hessianProxyFactory);
            hessianProxyFactory.setConnectionFactory(factory);
        } else if (client != null && client.length() > 0 && !DEFAULT_HTTP_CLIENT.equals(client)) {
            throw new IllegalStateException("Unsupported http protocol client=\"" + client + "\"!");
        } else {
            HessianConnectionFactory factory = new DubboHessianURLConnectionFactory();
            factory.setHessianProxyFactory(hessianProxyFactory);
            hessianProxyFactory.setConnectionFactory(factory);
        }
        int timeout = url.getParameter(TIMEOUT_KEY, DEFAULT_TIMEOUT);
        hessianProxyFactory.setConnectTimeout(timeout);
        hessianProxyFactory.setReadTimeout(timeout);
        // 创建客户端代理类，该代理类实现rpc接口，并返回
        // Protocol#refer 方法返回值类型为Invoker
        // AbstractProxyProtocol 会将proxy 转成 Invoker 对象
        // 【DubboProtocol 服务引用方法没有创建接口实现代理类】
        return (T) hessianProxyFactory.create(serviceType, url.setProtocol("http").toJavaURL(), Thread.currentThread().getContextClassLoader());
         /********* com.caucho.hessian.client.HessianProxyFactory 创建代理对象过程【rpc-client】 **************/
    }

   。。。
}

只有服务引用，没有服务暴露

RedisProtocol、MemcacheProtocol【非代理协议】
都有第三方【缓存】服务器
consumer只能调用对应get(k)、set(k,v)、delete(k) 三个方法, 与redis| memcache 交互
该协议就是对缓存基础方法的封装，感觉实用价值不大

RedisProtocol 源码【MemcacheProtocol代码类似】

public class RedisProtocol extends AbstractProtocol {

    public static final int DEFAULT_PORT = 6379;
   。。。

    @Override
    protected <T> Invoker<T> protocolBindingRefer(final Class<T> type, final URL url) throws RpcException {
        try {
            GenericObjectPoolConfig config = new GenericObjectPoolConfig();
            config.setTestOnBorrow(url.getParameter("test.on.borrow", true));
            config.setTestOnReturn(url.getParameter("test.on.return", false));
            config.setTestWhileIdle(url.getParameter("test.while.idle", false));
            if (url.getParameter("max.idle", 0) > 0) {
                config.setMaxIdle(url.getParameter("max.idle", 0));
            }
            if (url.getParameter("min.idle", 0) > 0) {
                config.setMinIdle(url.getParameter("min.idle", 0));
            }
            if (url.getParameter("max.active", 0) > 0) {
                config.setMaxTotal(url.getParameter("max.active", 0));
            }
            if (url.getParameter("max.total", 0) > 0) {
                config.setMaxTotal(url.getParameter("max.total", 0));
            }
            if (url.getParameter("max.wait", 0) > 0) {
                config.setMaxWaitMillis(url.getParameter("max.wait", 0));
            }
            if (url.getParameter("num.tests.per.eviction.run", 0) > 0) {
                config.setNumTestsPerEvictionRun(url.getParameter("num.tests.per.eviction.run", 0));
            }
            if (url.getParameter("time.between.eviction.runs.millis", 0) > 0) {
                config.setTimeBetweenEvictionRunsMillis(url.getParameter("time.between.eviction.runs.millis", 0));
            }
            if (url.getParameter("min.evictable.idle.time.millis", 0) > 0) {
                config.setMinEvictableIdleTimeMillis(url.getParameter("min.evictable.idle.time.millis", 0));
            }
            final JedisPool jedisPool = new JedisPool(config, url.getHost(), url.getPort(DEFAULT_PORT),
                    url.getParameter(TIMEOUT_KEY, DEFAULT_TIMEOUT),
                    StringUtils.isBlank(url.getPassword()) ? null : url.getPassword(),
                    url.getParameter("db.index", 0));
            final int expiry = url.getParameter("expiry", 0);
            // 可指定类似get的方法名
            final String get = url.getParameter("get", "get");
            // 可指定类似set的方法名
            final String set = url.getParameter("set", Map.class.equals(type) ? "put" : "set");
            // 可指定类似delete的方法名
            final String delete = url.getParameter("delete", Map.class.equals(type) ? "remove" : "delete");
            return new AbstractInvoker<T>(type, url) {
                @Override
                protected Result doInvoke(Invocation invocation) throws Throwable {
                    Jedis jedis = null;
                    try {
                        jedis = jedisPool.getResource();

                        if (get.equals(invocation.getMethodName())) {
                            // 不是get(k) 则报错
                            if (invocation.getArguments().length != 1) {
                                throw new IllegalArgumentException("The redis get method arguments mismatch, must only one arguments. interface: " + type.getName() + ", method: " + invocation.getMethodName() + ", url: " + url);
                            }
                            byte[] value = jedis.get(String.valueOf(invocation.getArguments()[0]).getBytes());
                            if (value == null) {
                                return AsyncRpcResult.newDefaultAsyncResult(invocation);
                            }
                            ObjectInput oin = getSerialization(url).deserialize(url, new ByteArrayInputStream(value));
                            return AsyncRpcResult.newDefaultAsyncResult(oin.readObject(), invocation);
                        } else if (set.equals(invocation.getMethodName())) {
                            // 不是set(k, v) 则报错
                            if (invocation.getArguments().length != 2) {
                                throw new IllegalArgumentException("The redis set method arguments mismatch, must be two arguments. interface: " + type.getName() + ", method: " + invocation.getMethodName() + ", url: " + url);
                            }
                            byte[] key = String.valueOf(invocation.getArguments()[0]).getBytes();
                            ByteArrayOutputStream output = new ByteArrayOutputStream();
                            ObjectOutput value = getSerialization(url).serialize(url, output);
                            value.writeObject(invocation.getArguments()[1]);
                            jedis.set(key, output.toByteArray());
                            if (expiry > 1000) {
                                jedis.expire(key, expiry / 1000);
                            }
                            return AsyncRpcResult.newDefaultAsyncResult(invocation);
                        } else if (delete.equals(invocation.getMethodName())) {
                            // 不是delete(k) 则报错
                            if (invocation.getArguments().length != 1) {
                                throw new IllegalArgumentException("The redis delete method arguments mismatch, must only one arguments. interface: " + type.getName() + ", method: " + invocation.getMethodName() + ", url: " + url);
                            }
                            jedis.del(String.valueOf(invocation.getArguments()[0]).getBytes());
                            return AsyncRpcResult.newDefaultAsyncResult(invocation);
                        } else {
                           // 其余方法一律不支持
                            throw new UnsupportedOperationException("Unsupported method " + invocation.getMethodName() + " in redis service.");
                        }
                    } catch (Throwable t) {
                        RpcException re = new RpcException("Failed to invoke redis service method. interface: " + type.getName() + ", method: " + invocation.getMethodName() + ", url: " + url + ", cause: " + t.getMessage(), t);
                        if (t instanceof TimeoutException || t instanceof SocketTimeoutException) {
                            re.setCode(RpcException.TIMEOUT_EXCEPTION);
                        } else if (t instanceof JedisConnectionException || t instanceof IOException) {
                            re.setCode(RpcException.NETWORK_EXCEPTION);
                        } else if (t instanceof JedisDataException) {
                            re.setCode(RpcException.SERIALIZATION_EXCEPTION);
                        }
                        throw re;
                    } finally {
                        if (jedis != null) {
                            try {
                                jedis.close();
                            } catch (Throwable t) {
                                logger.warn("returnResource error: " + t.getMessage(), t);
                            }
                        }
                    }
                }

                @Override
                public void destroy() {
                    super.destroy();
                    try {
                        jedisPool.destroy();
                    } catch (Throwable e) {
                        logger.warn(e.getMessage(), e);
                    }
                }
            };
        } catch (Throwable t) {
            throw new RpcException("Failed to refer redis service. interface: " + type.getName() + ", url: " + url + ", cause: " + t.getMessage(), t);
        }
    }
}

扩展第三方RPC服务协议

GrpcProtocol,ThriftProtocol【代理协议子类】
【暂时没研究，贴一些概念】
gRPC 是一个高性能、开源和通用的 RPC 框架，面向移动和 HTTP/2 设计, ThriftProtocol
Thrift是一种接口描述语言和二进制通讯协议，它被用来定义和创建跨语言的服务。它被当作一个远程过程调用（RPC）框架来使用，是由Facebook为“大规模跨语言服务开发”而开发的。

非RPC层协议

QosProtocolWrapper：服务健康检查、质量探测会用到该协议
RegistryProtocol：注册阶段使用，在服务注册文章中重点分析
ProtocolFilterWrapper：filter协议包装类, 可参考dubbo filter加载，extension Wrapper扩展

dubbo 协议层【Protocol】分析

protocol【协议层】概述

dubbo中的Protocol

Protocol 简图

dubbo-rpc模块中协议分类

代理协议

功能分类

单链接、长链接，NIO异步传输，TCP

多链接、短链接，同步传输，HTTP | TCP

只有服务引用，没有服务暴露

扩展第三方RPC服务协议

非RPC层协议
