UICollectionview 跨区间 section，拖放操作

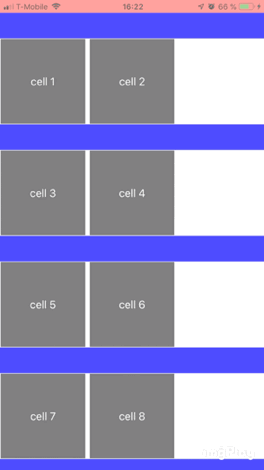

目标效果:

通过 iOS 的 Drag & Drop 可以实现，具体就是 UICollection 的两个协议，

UICollectionViewDragDelegate 和 UICollectionViewDropDelegate

然后实现拖和放的代理方法:

拖动的代理 UICollectionViewDragDelegate

一般用下面 4 个代理方法，

识别到拖动，添加拖动任务，还有两个处理拖动任务的时机

extension Controller: UICollectionViewDragDelegate {

     // 识别到拖动
     // 下面的代码，一次拖动一个
     // 一次拖动多个，需要选中多个
    func collectionView(_ collectionView: UICollectionView, itemsForBeginning session: UIDragSession, at indexPath: IndexPath) -> [UIDragItem] {
        let itemProvider = NSItemProvider(object: "\(indexPath)" as NSString)
        let dragItem = UIDragItem(itemProvider: itemProvider)
        dragItem.localObject = data[indexPath.section][indexPath.row]
        return [dragItem]
    }


    // 添加拖动的任务
    // 下面的代码，一次拖动一个
    // 可以通过这个方法，开始拖动后，继续添加拖动的任务
    func collectionView(_ collectionView: UICollectionView, itemsForAddingTo session: UIDragSession, at indexPath: IndexPath, point: CGPoint) -> [UIDragItem] {
        let itemProvider = NSItemProvider(object: "\(indexPath)" as NSString)
        let dragItem = UIDragItem(itemProvider: itemProvider)
        dragItem.localObject = data[indexPath.section][indexPath.row]
        return [dragItem]
    }


    func collectionView(_ collectionView: UICollectionView, dragSessionWillBegin session: UIDragSession) {
        // 拖动开始的时机
    }

    func collectionView(_ collectionView: UICollectionView, dragSessionDidEnd session: UIDragSession) {
        // 拖动结束的时机
    }


}

放置的代理 UICollectionViewDropDelegate

一般用下面 3 个代理方法，

能不能放置，放置的策略，具体怎样放置

• 通过放置的策略，自动管理拖拽时的 UI

• 具体怎样放置里面，手动管理拖拽结束时候的 UI 和模型

extension Controller: UICollectionViewDropDelegate {

    // 能不能放置
    func collectionView(_ collectionView: UICollectionView, canHandle session: UIDropSession) -> Bool {
        return true
    }



    // 放置的策略. 一般有 3 类
    // move 移动，copy 拷贝，
    // forbidden 禁止， 即不能放置


    // 细分选项有
    // .insertAtDestinationIndexPath， 挤到一边去
    // .insertIntoDestinationIndexPath， 取代

    func collectionView(_ collectionView: UICollectionView, dropSessionDidUpdate session: UIDropSession, withDestinationIndexPath destinationIndexPath: IndexPath?) -> UICollectionViewDropProposal {
        if collectionView.hasActiveDrag, let destinationIndexPath = destinationIndexPath {
           switch data[destinationIndexPath.section][destinationIndexPath.row] {
               case .simple:
                  return UICollectionViewDropProposal(operation: .move, intent: .insertAtDestinationIndexPath)
               case .availableToDropAtEnd:
                  return UICollectionViewDropProposal(operation: .move, intent: .insertIntoDestinationIndexPath)
           }
         }
         else { return UICollectionViewDropProposal(operation: .forbidden) }
     }


     // 拿到了结束放置时候的 indexPath

     //	coordinator.destinationIndexPath 一定存在
     // 因为上面的策略是，没有 destinationIndexPath， 不准放置

     func collectionView(_ collectionView: UICollectionView, performDropWith coordinator: UICollectionViewDropCoordinator) {
        if let destinationIndexPath = coordinator.destinationIndexPath, case UIDropOperation.move = coordinator.proposal.operation{
            reorderItems(coordinator: coordinator, destinationIndexPath:destinationIndexPath, collectionView: collectionView)
        }
    }

注意事项:

跨区间 section 拖放操作, 拖出结尾的时候，coordinator.destinationIndexPath 是没有的。

• 如果格子视图，只有一个区间 section,

没有 coordinator.destinationIndexPath ,就强行指定到最后一格

        let destinationIndexPath: IndexPath
        if let indexPath = coordinator.destinationIndexPath {
            destinationIndexPath = indexPath
        } else {
            let section = collectionView.numberOfSections - 1
            let row = collectionView.numberOfItems(inSection: section)
            destinationIndexPath = IndexPath(row: row, section: section)
        }

• 多区间， sections,

就用到了下面两个拖动的代理方法，

开始拖动，每个区间最后，补一个格子，

结束拖动，每个区间把补的格子，删除

因为未拖动，补充的格子，不存在。

所以不会拖动补充的格子

    func collectionView(_ collectionView: UICollectionView, dragSessionWillBegin session: UIDragSession) {
        // 拖动开始的时机
    }

    func collectionView(_ collectionView: UICollectionView, dragSessionDidEnd session: UIDragSession) {
        // 拖动结束的时机
    }

代码：

Controller 部分：

import UIKit

enum CellModel {
    case simple(text: String)
    case availableToDrop
}

class ViewController: UIViewController {

    private lazy var cellIdentifier = "cellIdentifier"
    private lazy var supplementaryViewIdentifier = "supplementaryViewIdentifier"
    private lazy var sections = 10
    private lazy var itemsInSection = 2
    private lazy var numberOfElementsInRow = 3

    private lazy var data: [[CellModel]] = {
        var count = 0
        return (0 ..< sections).map { _ in
            return (0 ..< itemsInSection).map { _ -> CellModel in
                count += 1
                return .simple(text: "cell \(count)")
            }
        }
    }()

    override func viewDidLoad() {
        super.viewDidLoad()

        let collectionViewFlowLayout = UICollectionViewFlowLayout()
        collectionViewFlowLayout.minimumLineSpacing = 5
        collectionViewFlowLayout.minimumInteritemSpacing = 5
        let _numberOfElementsInRow = CGFloat(numberOfElementsInRow)
        let allWidthBetwenCells = _numberOfElementsInRow == 0 ? 0 : collectionViewFlowLayout.minimumInteritemSpacing*(_numberOfElementsInRow-1)
        let width = (view.frame.width - allWidthBetwenCells)/_numberOfElementsInRow
        collectionViewFlowLayout.itemSize = CGSize(width: width, height: width)
        collectionViewFlowLayout.headerReferenceSize = CGSize(width: 0, height: 40)

        let collectionView = UICollectionView(frame: .zero, collectionViewLayout: collectionViewFlowLayout)
        collectionView.backgroundColor = .white
        view.addSubview(collectionView)
        collectionView.translatesAutoresizingMaskIntoConstraints = false
        collectionView.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor).isActive = true
        collectionView.bottomAnchor.constraint(equalTo: view.safeAreaLayoutGuide.bottomAnchor).isActive = true
        collectionView.leftAnchor.constraint(equalTo: view.safeAreaLayoutGuide.leftAnchor).isActive = true
        collectionView.rightAnchor.constraint(equalTo: view.safeAreaLayoutGuide.rightAnchor).isActive = true

        collectionView.register(CollectionViewCell.self, forCellWithReuseIdentifier: cellIdentifier)
        collectionView.register(SupplementaryView.self,
                                forSupplementaryViewOfKind: UICollectionView.elementKindSectionHeader,
                                withReuseIdentifier: supplementaryViewIdentifier)

        collectionView.dragInteractionEnabled = true
        collectionView.reorderingCadence = .fast
        collectionView.dropDelegate = self
        collectionView.dragDelegate = self

        collectionView.delegate = self
        collectionView.dataSource = self
    }
}

extension ViewController: UICollectionViewDelegate { }
extension ViewController: UICollectionViewDataSource {

    func numberOfSections(in collectionView: UICollectionView) -> Int { return data.count }
    func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
        return data[section].count
    }

    func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
        switch data[indexPath.section][indexPath.item] {
            case .simple(let text):
                let cell = collectionView.dequeueReusableCell(withReuseIdentifier: cellIdentifier, for: indexPath) as! CollectionViewCell
                cell.label?.text = text
                cell.backgroundColor = .gray
                return cell
            case .availableToDrop:
                let cell = collectionView.dequeueReusableCell(withReuseIdentifier: cellIdentifier, for: indexPath) as! CollectionViewCell
                cell.backgroundColor = UIColor.green.withAlphaComponent(0.3)
                return cell
        }
    }

    func collectionView(_ collectionView: UICollectionView, viewForSupplementaryElementOfKind kind: String, at indexPath: IndexPath) -> UICollectionReusableView {
        let headerView = collectionView.dequeueReusableSupplementaryView(ofKind: kind, withReuseIdentifier: supplementaryViewIdentifier, for: indexPath as IndexPath) as! SupplementaryView
        return headerView
    }
}

extension ViewController: UICollectionViewDragDelegate {

    func collectionView(_ collectionView: UICollectionView, itemsForBeginning session: UIDragSession, at indexPath: IndexPath) -> [UIDragItem] {
        let itemProvider = NSItemProvider(object: "\(indexPath)" as NSString)
        let dragItem = UIDragItem(itemProvider: itemProvider)
        dragItem.localObject = data[indexPath.section][indexPath.row]
        return [dragItem]
    }

    func collectionView(_ collectionView: UICollectionView, itemsForAddingTo session: UIDragSession, at indexPath: IndexPath, point: CGPoint) -> [UIDragItem] {
        let itemProvider = NSItemProvider(object: "\(indexPath)" as NSString)
        let dragItem = UIDragItem(itemProvider: itemProvider)
        dragItem.localObject = data[indexPath.section][indexPath.row]
        return [dragItem]
    }


    func collectionView(_ collectionView: UICollectionView, dragSessionWillBegin session: UIDragSession) {
        var itemsToInsert = [IndexPath]()
        (0 ..< data.count).forEach {
            itemsToInsert.append(IndexPath(item: data[$0].count, section: $0))
            data[$0].append(.availableToDrop)
        }
        collectionView.insertItems(at: itemsToInsert)
    }

    func collectionView(_ collectionView: UICollectionView, dragSessionDidEnd session: UIDragSession) {
        var removeItems = [IndexPath]()
        for section in 0..<data.count {
            for item in  0..<data[section].count {
                switch data[section][item] {
                    case .availableToDrop: removeItems.append(IndexPath(item: item, section: section))
                    case .simple: break
                }
            }
        }
        removeItems.forEach { data[$0.section].remove(at: $0.item) }
        collectionView.deleteItems(at: removeItems)
    }
}

extension ViewController: UICollectionViewDropDelegate {
    func collectionView(_ collectionView: UICollectionView, performDropWith coordinator: UICollectionViewDropCoordinator) {
        let destinationIndexPath: IndexPath
        if let indexPath = coordinator.destinationIndexPath {
            destinationIndexPath = indexPath
        } else {
            let section = collectionView.numberOfSections - 1
            let row = collectionView.numberOfItems(inSection: section)
            destinationIndexPath = IndexPath(row: row, section: section)
        }

        switch coordinator.proposal.operation {
            case .move:
                reorderItems(coordinator: coordinator, destinationIndexPath:destinationIndexPath, collectionView: collectionView)
            case .copy:
                copyItems(coordinator: coordinator, destinationIndexPath: destinationIndexPath, collectionView: collectionView)
            default: return
        }
    }

    func collectionView(_ collectionView: UICollectionView, canHandle session: UIDropSession) -> Bool { return true }
    func collectionView(_ collectionView: UICollectionView, dropSessionDidUpdate session: UIDropSession, withDestinationIndexPath destinationIndexPath: IndexPath?) -> UICollectionViewDropProposal {
        if collectionView.hasActiveDrag, let destinationIndexPath = destinationIndexPath {
            switch data[destinationIndexPath.section][destinationIndexPath.row] {
                case .simple:
                    return UICollectionViewDropProposal(operation: .move, intent: .insertAtDestinationIndexPath)
                case .availableToDrop:
                    return UICollectionViewDropProposal(operation: .move, intent: .insertIntoDestinationIndexPath)
            }
        } else { return UICollectionViewDropProposal(operation: .forbidden) }
    }

    private func reorderItems(coordinator: UICollectionViewDropCoordinator, destinationIndexPath: IndexPath, collectionView: UICollectionView) {
        let items = coordinator.items
        if  items.count == 1, let item = items.first,
            let sourceIndexPath = item.sourceIndexPath,
            let localObject = item.dragItem.localObject as? CellModel {

            collectionView.performBatchUpdates ({
                data[sourceIndexPath.section].remove(at: sourceIndexPath.item)
                data[destinationIndexPath.section].insert(localObject, at: destinationIndexPath.item)
                collectionView.deleteItems(at: [sourceIndexPath])
                collectionView.insertItems(at: [destinationIndexPath])
            })
        }
    }

    private func copyItems(coordinator: UICollectionViewDropCoordinator, destinationIndexPath: IndexPath, collectionView: UICollectionView) {
        collectionView.performBatchUpdates({
            var indexPaths = [IndexPath]()
            for (index, item) in coordinator.items.enumerated() {
                if let localObject = item.dragItem.localObject as? CellModel {
                    let indexPath = IndexPath(row: destinationIndexPath.row + index, section: destinationIndexPath.section)
                    data[indexPath.section].insert(localObject, at: indexPath.row)
                    indexPaths.append(indexPath)
                }
            }
            collectionView.insertItems(at: indexPaths)
        })
    }
}

Cell 部分：

import UIKit

class CollectionViewCell: UICollectionViewCell {
    weak var label: UILabel?

    override init(frame: CGRect) {
        super.init(frame: frame)
        clipsToBounds = true
        let label = UILabel(frame: .zero)
        label.contentMode = .scaleAspectFill
        addSubview(label)
        label.translatesAutoresizingMaskIntoConstraints = false
        label.topAnchor.constraint(equalTo: topAnchor).isActive = true
        label.bottomAnchor.constraint(equalTo: bottomAnchor).isActive = true
        label.leftAnchor.constraint(equalTo: leftAnchor).isActive = true
        label.rightAnchor.constraint(equalTo: rightAnchor).isActive = true
        label.textAlignment = .center
        label.textColor = .white
        self.label = label
        layer.borderWidth = 1
        layer.borderColor = UIColor.white.cgColor
        backgroundColor = .white
    }

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
    }

    override func prepareForReuse() {
        super.prepareForReuse()
        label?.text = nil
        backgroundColor = .white
    }
}




class SupplementaryView: UICollectionReusableView {

    weak var label: UILabel?
    override init(frame: CGRect) {
        super.init(frame: frame)
        backgroundColor = UIColor.blue.withAlphaComponent(0.7)
    }

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
    }
}

github 链接
