分享 vxe-grid 的基本使用

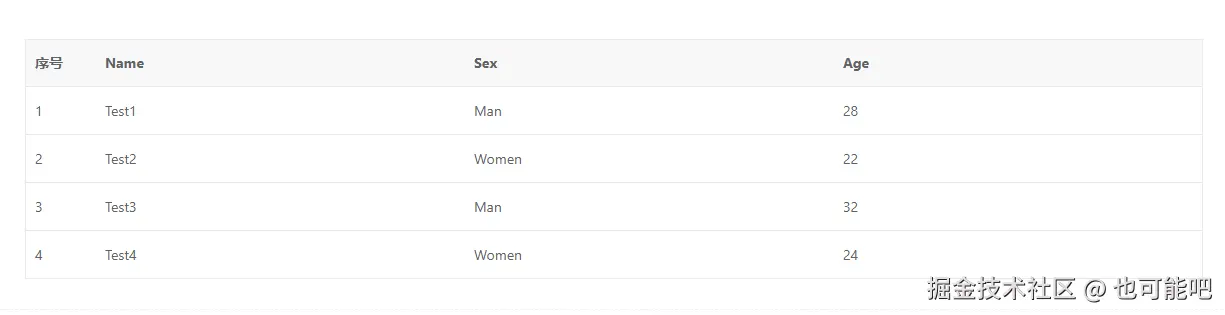

vxe-grid 的基本使用

查看 vxe-table 官网文档
github gitee

<vxe-grid v-bind="gridOptions1"></vxe-grid>

export default {
  data () {
    return {
      gridOptions1: {
        border: true,
        showOverflow: true,
        height: 300,
        columnConfig: {
          resizable: true
        },
        columns: [
          { type: 'seq', width: 50 },
          { field: 'name', title: 'Name' },
          { field: 'sex', title: 'Sex' },
          { field: 'address', title: 'Address' }
        ],
        data: [
          { id: 10001, name: 'Test1', nickname: 'T1', role: 'Develop', sex: 'Man', age: 0, address: 'Shenzhen' },
          { id: 10002, name: 'Test2', nickname: 'T2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
          { id: 10003, name: 'Test3', nickname: 'T3', role: 'PM', sex: 'Man', age: 100, address: 'Shanghai' },
          { id: 10004, name: 'Test4', nickname: 'T4', role: 'Designer', sex: 'Women', age: 70, address: 'Shenzhen' },
          { id: 10005, name: 'Test5', nickname: 'T5', role: 'Develop', sex: 'Women', age: 10, address: 'Shanghai' },
          { id: 10006, name: 'Test6', nickname: 'T6', role: 'Designer', sex: 'Women', age: 90, address: 'Shenzhen' },
          { id: 10007, name: 'Test7', nickname: 'T7', role: 'Test', sex: 'Man', age: 5, address: 'Shenzhen' },
          { id: 10008, name: 'Test8', nickname: 'T8', role: 'Develop', sex: 'Man', age: 80, address: 'Shenzhen' }
        ]
      }
    }
  }
}

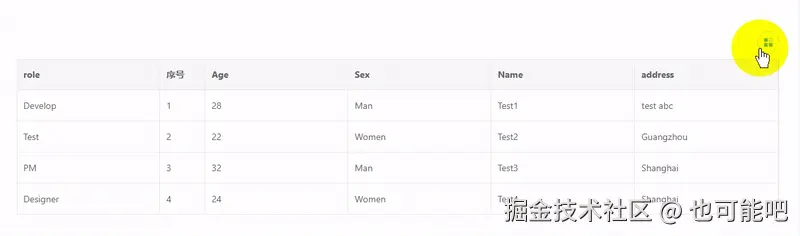

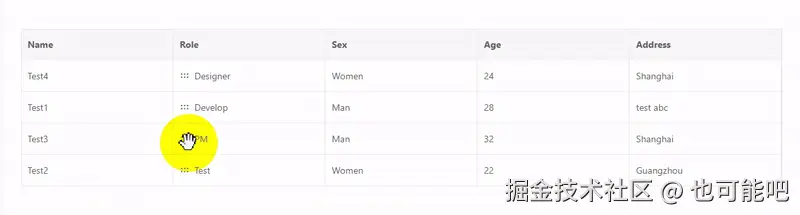

拖拽列与行调整顺序

<template>
  <div>
    <vxe-grid v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive } from 'vue'

const gridOptions = reactive({
  border: true,
  rowConfig: {
    useKey: true,
    drag: true
  },
  columnConfig: {
    useKey: true
  },
  columns: [
    { field: 'name', title: 'Name' },
    { field: 'role', title: 'Role', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Women', age: 24, address: 'Shanghai' }
  ]
})
</script>

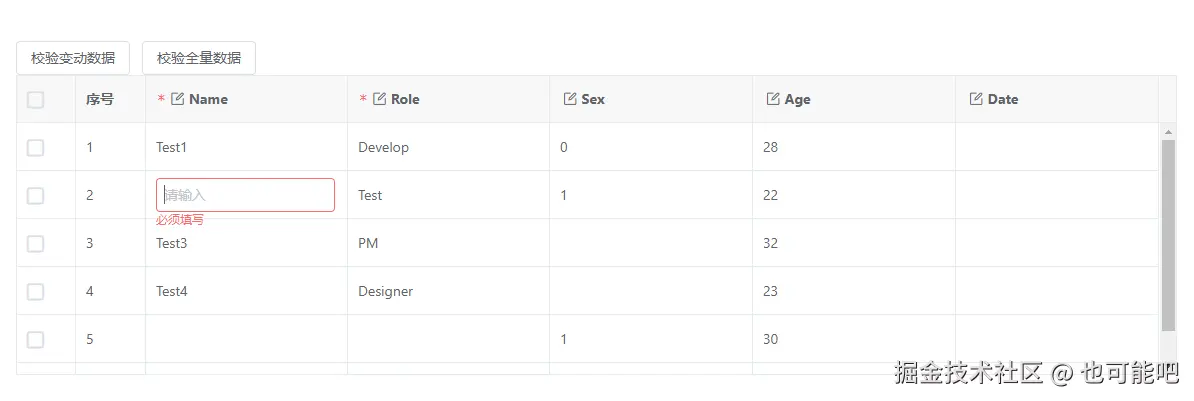

编辑与校验

<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>

    <vxe-table
      border
      show-overflow
      keep-source
      height="300"
      ref="tableRef"
      :data="tableData"
      :edit-rules="validRules"
      :edit-config="{trigger: 'click', mode: 'cell', showStatus: true}">
      <vxe-column type="checkbox" width="60"></vxe-column>
      <vxe-column type="seq" width="70"></vxe-column>
      <vxe-column field="name" title="Name" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="role" title="Role" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="sex" title="Sex" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="age" title="Age" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="date" title="Date" :edit-render="{name: 'VxeInput'}"></vxe-column>
    </vxe-table>
  </div>
</template>

<script lang="jsx" setup>
import { ref } from 'vue'
import { VxeUI } from 'vxe-table'
const tableRef = ref()
const tableData = ref([
  { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
  { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
  { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
  { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
  { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
  { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
])
const validRules = ref({
  name: [
    { required: true, message: '必须填写' }
  ],
  role: [
    { required: true, message: '必须填写' }
  ]
})
const validEvent = async () => {
  const $table = tableRef.value
  if ($table) {
    const errMap = await $table.validate()
    if (errMap) {
      VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
    } else {
      VxeUI.modal.message({ status: 'success', content: '校验成功！' })
    }
  }
}
const fullValidEvent = async () => {
  const $table = tableRef.value
  if ($table) {
    const errMap = await $table.validate(true)
    if (errMap) {
      VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
    } else {
      VxeUI.modal.message({ status: 'success', content: '校验成功！' })
    }
  }
}

</script>
