Spark on Yarn集群环境搭建及example运行一篇搞定环境准备机器准备Linux（CentOS7）虚拟机软件

环境准备

机器准备 Linux（CentOS7）虚拟机

10.58.12.170
10.58.12.171
10.58.10.129
tdops

软件版本
- jdk 1.8.0_60
- scala 2.11.12
- hadoop 3.1.3
- spark 2.4.6
- livy 0.7.0

配置hosts

sudo vim /etc/hosts

// 添加如下host配置
10.58.12.171 ailoan-vip-d-012171.hz.td
10.58.12.170 ailoan-vip-d-012170.hz.td
10.58.10.129 ailoan-vip-d-010129.hz.td

配置三台机器免密登录

安装openssh-server
```
sudo yum install openssh-server
```
生成公钥
```
ssh-keygen -t rsa # 一路回车
```
公钥互相追加到authorized_keys

测试是否成功

// 170机器上执行如下，如果成功表示配置完成
170 > ssh ailoan-vip-d-012171.hz.td

安装JDK

安装Scala

下载安装包
downloads.lightbend.com/scala/2.11.…

将安装包拷贝到目标机器

scp {username}@localip:/Users/{username}/Downloads/大数据软件/scala-2.11.12.tgz /usr/install/bigdata

解压到目标文件
```
sudo tar -zxvf scala-2.11.12.tgz .
```

配置环境变量

# 编辑环境变量
sudo vim /etc/profile

# 添加如下配置
export SCALA_HOME=/usr/install/bigdata/scala-2.11.12
export PATH=$PATH:$JAVA_HOME/bin:$SCALA_HOME/bin

# 使配置生效
source /etc/profile

测试安装结果

scala -version
# 输出以下内容表示成功
Welcome to Scala 2.11.12 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_60).

安装Hadoop

下载软件包

cd /usr/install/bigdata

wget https://mirrors.tuna.tsinghua.edu.cn/apache/hadoop/common/hadoop-3.1.3/hadoop-3.1.3.tar.gz

解压到指定目录
```
sudo tar -zxvf hadoop-3.1.3.tar.gz
```

给hadoop目录制定用户

cd /usr/install/bigdata

# 改变用户及用户组，使得启动hadoop无障碍
sudo chown -R tdops:users hadoop-3.1.3

配置环境变量及应用配置

配置hadoop-env.sh

# 跳转到hadoop安装目录的配置目录下
cd /usr/install/bigdata/hadoop-3.1.3/etc/hadoop

vim hadoop-env.sh

# 添加jdk主目录
export JAVA_HOME=/usr/install/jdk1.8.0_60
export HADOOP_LOG_DIR=/home/tdops/spark/hadoop-3.1.3/logs

配置yarn-evn.sh

vim yarn-env.sh

# 添加jdk主目录配置
export JAVA_HOME=/usr/install/jdk1.8.0_60

配置core-site.xml

<configuration>
    <property>
        <name>fs.defaultFS</name>
        <!--master的hostname-->
        <value>hdfs://ailoan-vip-d-012170.hz.td:9000/</value>
    </property>
    <property>
         <name>hadoop.tmp.dir</name>
         <value>/home/tdops/spark/hadoop-3.1.3/tmp</value>
    </property>
</configuration>

配置hdfs-site.xml

<configuration>
    <property>
        <name>dfs.namenode.secondary.http-address</name>
        <value>ailoan-vip-d-012170.hz.td:50090</value>
    </property>
    <property>
        <name>dfs.namenode.name.dir</name>
        <value>/home/tdops/spark/hadoop-3.1.3/dfs/name</value>
    </property>
    <property>
        <name>dfs.datanode.data.dir</name>
        <value>/home/tdops/spark/hadoop-3.1.3/dfs/data</value>
    </property>
    <property>
        <name>dfs.replication</name>
        <value>3</value>
    </property>
</configuration>

配置mapred-site.xml

<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
</configuration>

配置yarn-site.xml

<property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
</property>
<property>
    <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
    <value>org.apache.hadoop.mapred.ShuffleHandler</value>
</property>
<!--这个配置临时加入解决yarn模式运行demo异常终止的问题
https://stackoverflow.com/questions/41468833/why-does-spark-exit-with-exitcode-16
-->
<property>
    <name>yarn.nodemanager.vmem-check-enabled</name>
    <value>false</value>
</property>
<property>
    <name>yarn.resourcemanager.address</name>
    <value>ailoan-vip-d-012170.hz.td:8032</value>
</property>
<property>
    <name>yarn.resourcemanager.scheduler.address</name>
    <value>ailoan-vip-d-012170.hz.td:8030</value>
</property>
<property>
    <name>yarn.resourcemanager.resource-tracker.address</name>
    <value>ailoan-vip-d-012170.hz.td:8031</value>
</property>
<property>
    <name>yarn.resourcemanager.admin.address</name>
    <value>ailoan-vip-d-012170.hz.td:8033</value>
</property>
<property>
    <name>yarn.resourcemanager.webapp.address</name>
    <value>ailoan-vip-d-012170.hz.td:8090</value>
</property>

验证安装结果

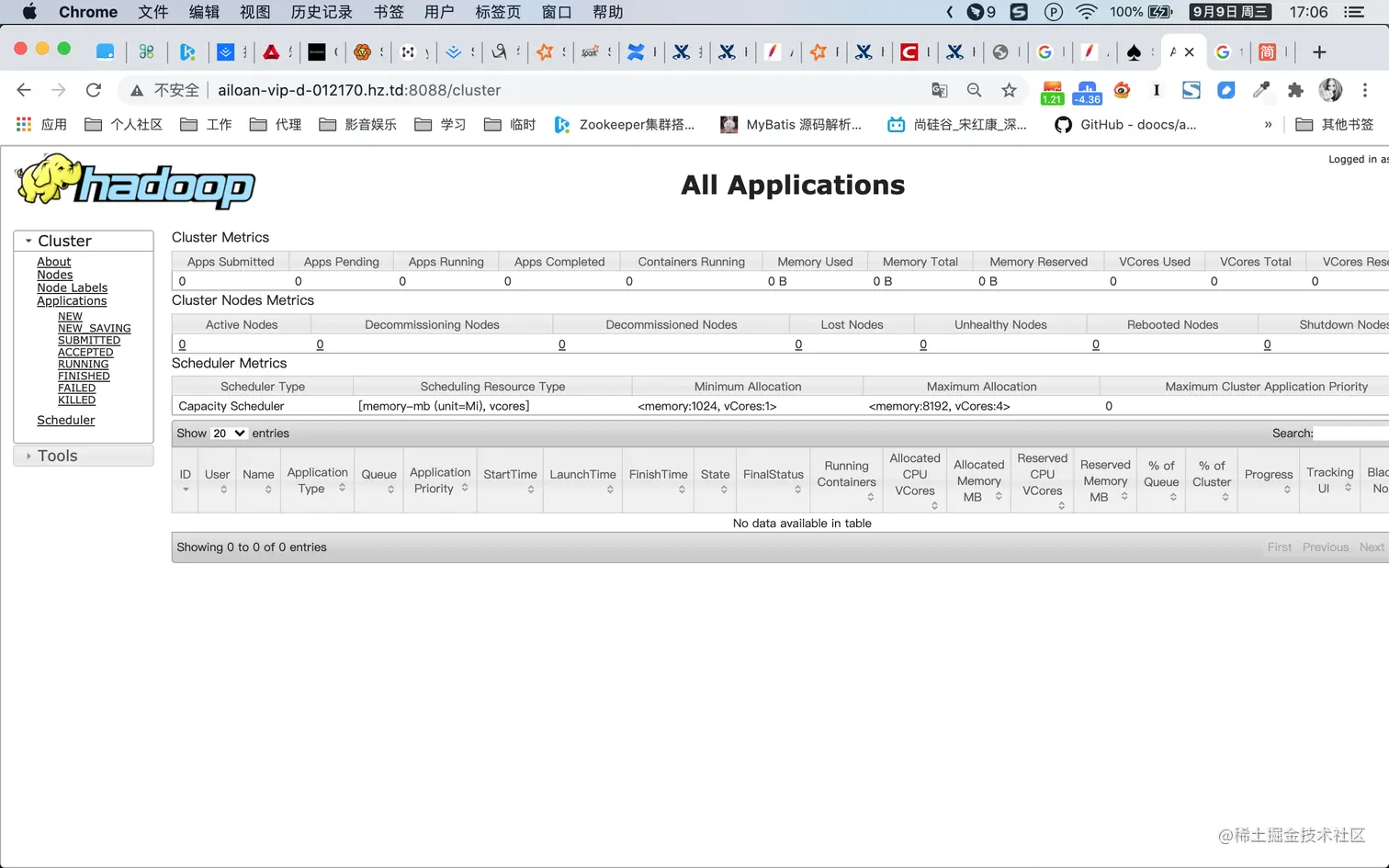

访问ailoan-vip-d-012170.hz.td:8090如下界面
访问hadoop hdfs webUI解密地址：ailoan-vip-d-012170.hz.td:9870/

安装Spark

下载spark包
- 官网下载spark.apache.org/downloads.h…
- 并上传到准备的服务上
- scp {username}@localip:/Users/{username}/Downloads/大数据软件/spark-2.4.6-bin-hadoop2.7.tgz /usr/install/bigdata

解压到指定目录

sudo tar -zxvf spark-2.4.6-bin-hadoop2.7.tgz

修改所属用户及组

sudo chown -R tdops:users spark-2.4.6-bin-hadoop2.7

配置环境变量及属性

配置$SPARK_HOME/conf下spark-env.sh

export SCALA_HOME=/usr/install/bigdata/scala-2.11.12
export JAVA_HOME=/usr/install/jdk1.8.0_60
export HADOOP_HOME=/usr/install/bigdata/hadoop-3.1.3
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
export SPARK_LOG_DIR=/home/tdops/spark/spark-2.4.6/logs

SPARK_MASTER_IP=ailoan-vip-d-012170.hz.td
SPARK_LOCAL_DIRS=/usr/install/bigdata/spark-2.4.6-bin-hadoop2.7
SPARK_DRIVER_MEMORY=512M

配置$SPARK_HOME/conf下slaves文件

// 将准备好的两台机器host作为salve
ailoan-vip-d-012171.hz.td
ailoan-vip-d-010129.hz.td

启动spark
```
cd $SPARK_HOME/sbin

./start-all.sh
```
验证安装结果

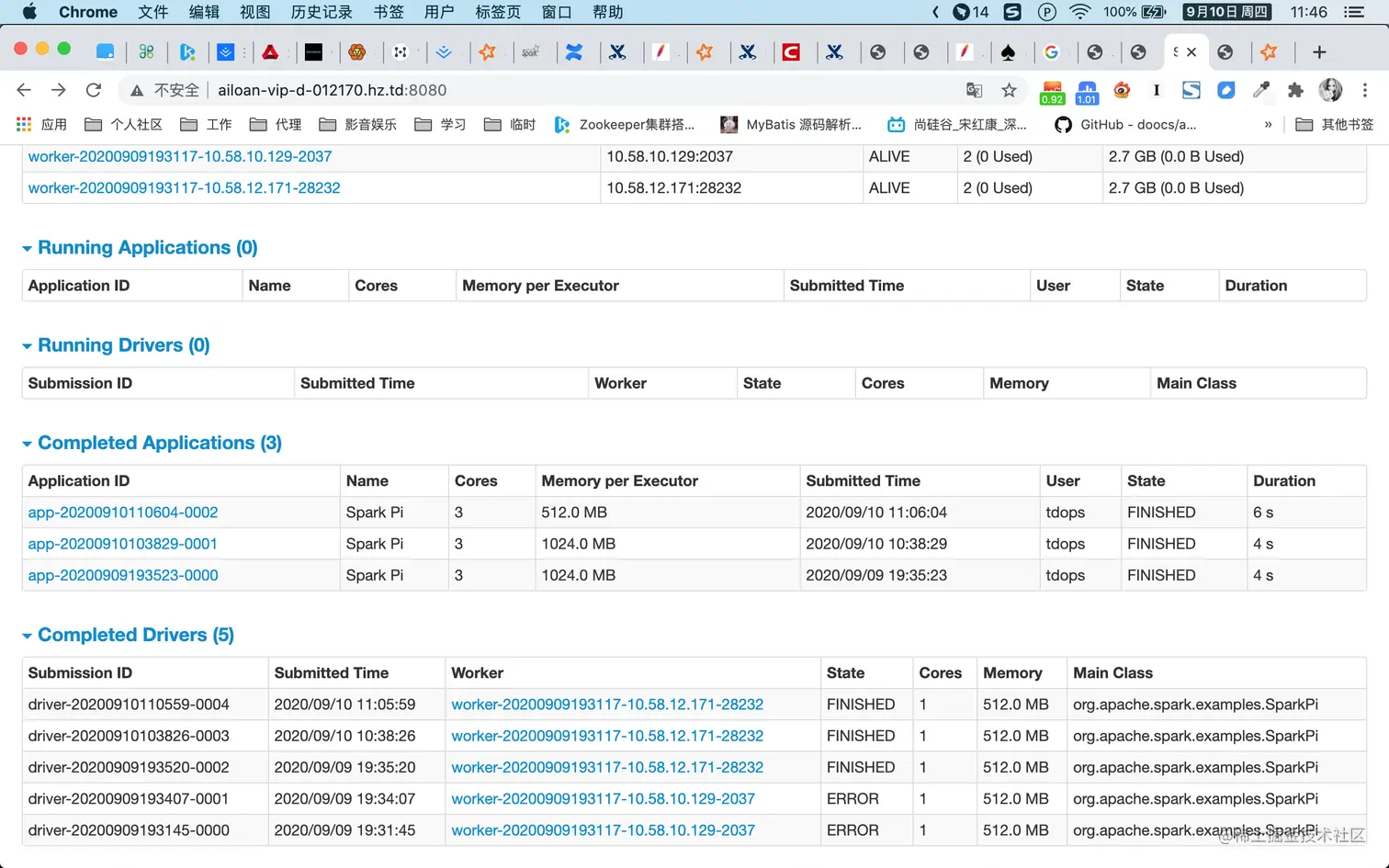

- ailoan-vip-d-012170.hz.td:8080/
- jps 查看是否master有master进程，slave有worker进程
- 执行如下官网demo程序
```
 ./spark-submit --master spark://ailoan-vip-d-012170.hz.td:7077 --class org.apache.spark.examples.SparkPi --deploy-mode cluster file:/tmp/spark-examples_2.11-2.4.6.jar
```

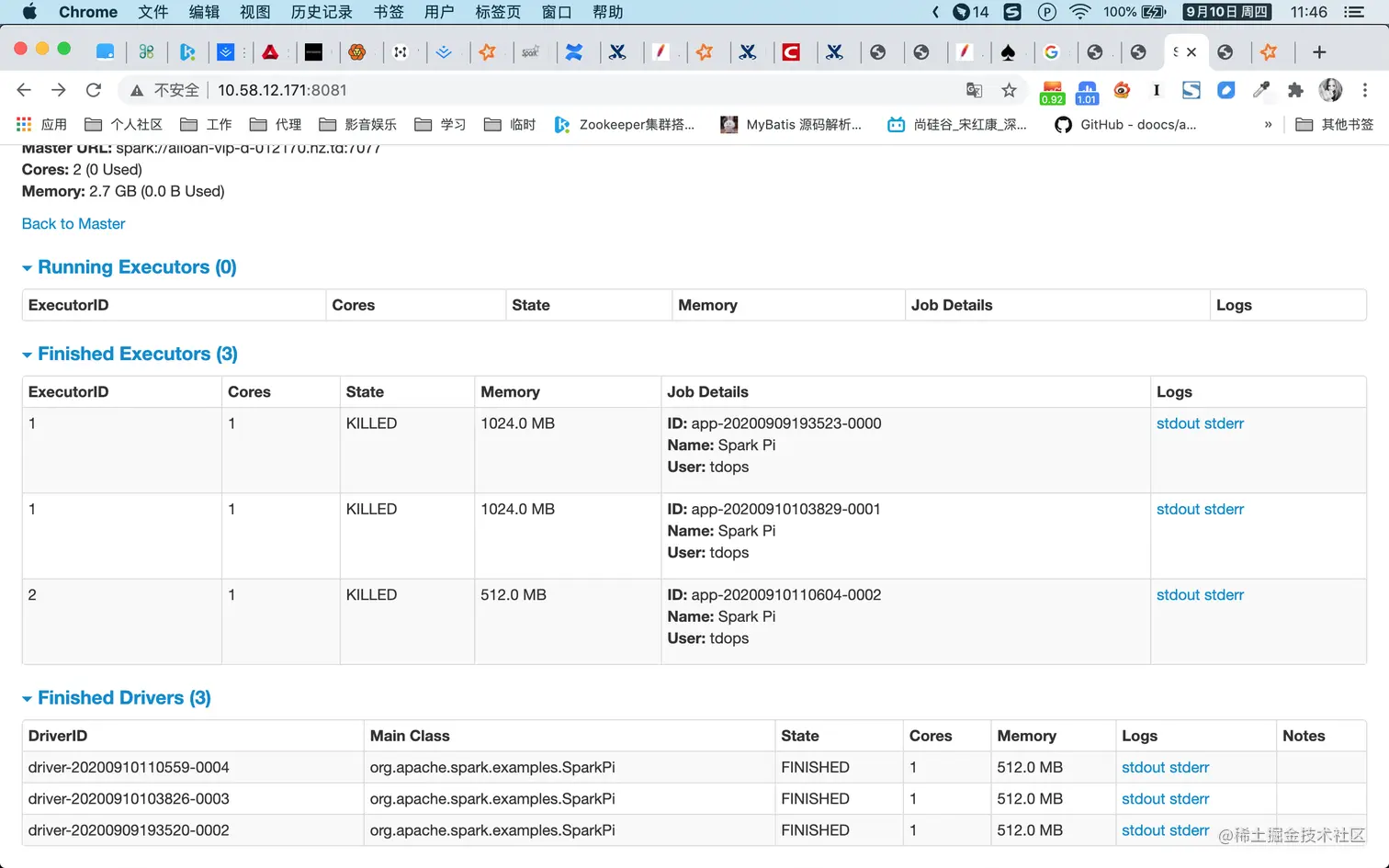

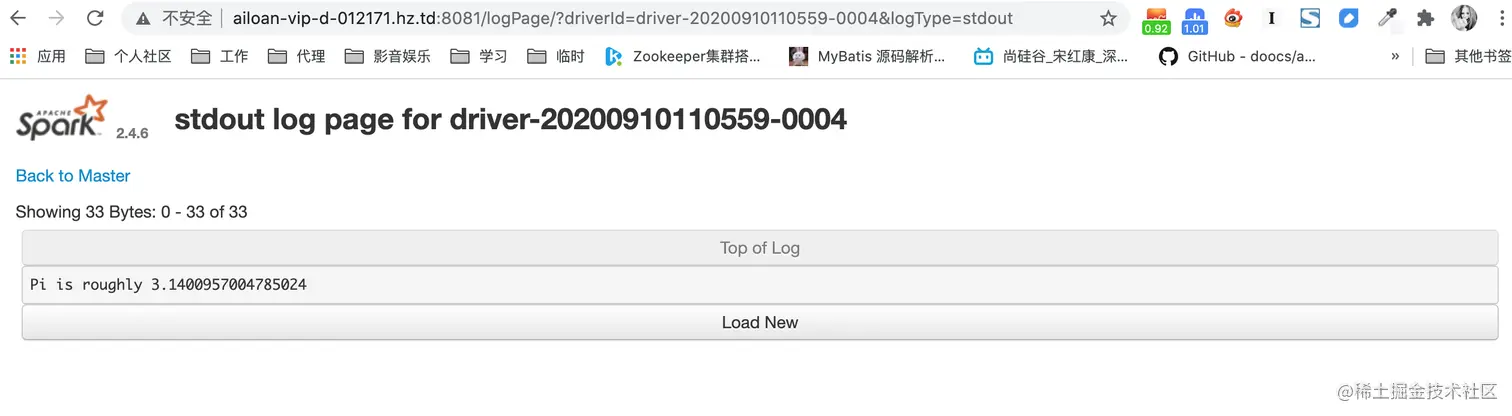

- 在webUI端查看spark执行结果如下图

安装livy

下载软件包

# 直接wget下载
wget https://www.apache.org/dyn/closer.lua/incubator/livy/0.7.0-incubating/apache-livy-0.7.0-incubating-bin.zip

解压到指定目录

// 下载安装unzip解压指令软件
sudo yum install unzip

// 解压软件
unzip apache-livy-0.7.0-incubating-bin.zip apache-livy-0.7.0

配置文件修改

添加并配置livy-env.sh

// 拷贝模板配置
sudo cp livy-env.sh.template livy-env.sh

// 编辑配置文件，添加如下内容
sudo vim livy-env.sh

JAVA_HOME=/usr/install/jdk1.8.0_60
HADOOP_CONF_DIR=/usr/install/bigdata/hadoop-3.1.3/etc/hadoop
SPARK_HOME=/usr/install/bigdata/spark-2.4.6-bin-hadoop2.7
LIVY_LOG_DIR=/home/tdops/spark/livy/logs

添加并配置livy.conf

// 拷贝模板配置
sudo cp livy.conf.template livy.conf

// 编辑配置文件，添加如下内容
sudo vim livy.conf

livy.spark.deploy-mode=cluster
livy.spark.master=spark://ailoan-vip-d-012170.hz.td:7077
livy.file.local-dir-whitelist=/tmp

启动livy
```
cd $LIVY_HOME/bin

./livy-server start
```

查看并验证livy

浏览器打开ailoan-vip-d-012170.hz.td:8998
使用postman或者java代码执行一段demo

package cn.xxx.yuntu.common.util.livy.core;


import cn.xxx.yuntu.common.util.dto.ApiResult;
import cn.xxx.yuntu.common.util.livy.vo.LivyArg;
import cn.xxx.yuntu.common.util.livy.vo.LivyStatus;
import cn.xxx.yuntu.common.util.livy.vo.LivyResult;
import cn.xxx.yuntu.common.util.util.HttpUtil;
import cn.xxx.yuntu.common.util.util.LogUtil;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.apache.commons.lang3.StringUtils;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author li.minqiang
 * @date 2019/12/5
 */
public class LivyClient {

    public static final String DELETED = "deleted";
    public static final String LIVY_BATCH_URI = "%s/batches/%s";
    public static final String MSG = "msg";
    public static final String NOT_FOUND = "not found";
    public static final String SESSION = "Session";
    private final static String STARTING = "starting";
    private LivyArg livyArg;

    private LivyClient() {
    }

    public static LivyClient getInstance(LivyArg livyArg) {
        LivyClient livyClient = new LivyClient();
        livyClient.setLivyArg(livyArg);
        return livyClient;
    }


    public ApiResult submitSparkJar() {
        JSONObject data = new JSONObject();
        data.put("file", livyArg.getJarPath());
        data.put("className", livyArg.getClassName());
        data.put("name", "testLivy" + System.currentTimeMillis());
        data.put("executorCores", livyArg.getExecutorCores());
        data.put("executorMemory", livyArg.getExecutorMemory());
        data.put("driverCores", livyArg.getDriverCores());
        data.put("driverMemory", livyArg.getDriverMemory());
        data.put("numExecutors", livyArg.getNumExecutors());
        data.put("conf", livyArg.getConf());
        data.put("args", livyArg.getArgs());

        ApiResult apiResult = HttpUtil.postJson(String.format("%s/batches", livyArg.getLivyServer()), data);

        JSONObject obj = (JSONObject) apiResult.getResult();

        if (!apiResult.isSuccess() || StringUtils.isEmpty(obj.getString("state"))) {
            LogUtil.error("make livy request error:{}", JSON.toJSONString(apiResult));
            return ApiResult.failure("提交livy任务失败");
        }

        LogUtil.info("livy submit result:{}", JSON.toJSONString(apiResult, true));
        return ApiResult.successWithResult(obj.getString("id"));
    }

    private String getLivyUrl() {
        return String.format("%s/ui/batch/%s/log", livyArg.getLivyServer(), livyArg.getTaskId());
    }

    private List<String> makeListLogs(JSONArray logs) {
        List<String> mlogs = new ArrayList<String>();
        if (logs == null) {
            return mlogs;
        }
        for (int i = 0; i < logs.size(); i++) {
            mlogs.add(logs.getString(i));
        }
        return mlogs;
    }

    private List<String> getLivyServerLogs() {
        String url = String.format("%s/batches/%s/log?size=-1", livyArg.getLivyServer(), livyArg.getTaskId());
        ApiResult apiResult = HttpUtil.get(url);
        if (apiResult.isSuccess()) {
            JSONObject r = (JSONObject) apiResult.getResult();
            return makeListLogs(r.getJSONArray("log"));
        }
        return new ArrayList<String>();
    }

    public LivyArg getLivyArg() {
        return livyArg;
    }

    public void setLivyArg(LivyArg livyArg) {
        this.livyArg = livyArg;
    }

    public static void main(String[] args) {
//        JavaWordCount();
        SparkPi();
    }

    public static void SparkPi() {
        LivyClient livyClient = new LivyClient();
        LivyArg livyArg = new LivyArg();
        livyArg.setLivyServer("http://ailoan-vip-d-012170.hz.td:8998");
        livyArg.setJarPath("hdfs://ailoan-vip-d-012170.hz.td:9000/example/spark-examples_2.11-2.4.6.jar");
        livyArg.setClassName("org.apache.spark.examples.SparkPi");
        livyArg.setExecutorCores(1);
        livyArg.setDriverCores(1);
        livyArg.setExecutorMemory("512M");
        livyArg.setDriverMemory("512M");

        livyClient.setLivyArg(livyArg);

        ApiResult apiResult = livyClient.submitSparkJar();
        System.out.println(apiResult.getCode() + "-" + apiResult.getReason());
        System.out.println(apiResult);
    }

    public static void JavaWordCount() {
        LivyClient livyClient = new LivyClient();
        LivyArg livyArg = new LivyArg();
        livyArg.setLivyServer("http://ailoan-vip-d-012170.hz.td/:8998");
        livyArg.setJarPath("hdfs://ailoan-vip-d-012170.hz.td:9000/example/spark-examples_2.11-2.4.6.jar");
        livyArg.setClassName("org.apache.spark.examples.JavaWordCount");
        livyArg.setExecutorCores(1);
        livyArg.setDriverCores(1);
        livyArg.setExecutorMemory("512M");
        livyArg.setDriverMemory("512M");
        List<String> args = new ArrayList<>();
        args.add("hdfs://ailoan-vip-d-012170.hz.td:9000/example/wordCount.txt");
        livyArg.setArgs(args);

        livyClient.setLivyArg(livyArg);

        ApiResult apiResult = livyClient.submitSparkJar();
        System.out.println(apiResult.getCode() + "-" + apiResult.getReason());
        System.out.println(apiResult);
    }
}

同样查看sparkWebUI查看提交记录及结果
