问题产生原因
圆角imageview 因为各种原因吧，往往各自项目都有各自自己的实现，比如有的支持给4个角中的某个角设置圆角，大家往往都不会使用glide自带的transform功能去完成一个 复杂的圆角实现。 尤其当碰上gif的时候 场景更加复杂。 今天就碰到一个问题：
一个自定义的imageview 无法 通过glide 展示gif。 只能展示gif的第一帧。 但是如果使用 系统默认的imageview则可以展示gif。 为了演示方便，我们可以直接使用腾讯的qmui中的圆角imageview 来完成这个场景（用腾讯的圆角view 配合glide使用 是无法展示gif图片的，虽然圆角还在）。
源码如下：
/*
* Tencent is pleased to support the open source community by making QMUI_Android available.
*
* Copyright (C) 2017-2018 THL A29 Limited, a Tencent company. All rights reserved.
*
* Licensed under the MIT License (the "License"); you may not use this file except in
* compliance with the License. You may obtain a copy of the License at
*
* http://opensource.org/licenses/MIT
*
* Unless required by applicable law or agreed to in writing, software distributed under the License is
* distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND,
* either express or implied. See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.qmuiteam.qmui.widget;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Bitmap;
import android.graphics.BitmapShader;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.ColorFilter;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.PorterDuff;
import android.graphics.PorterDuffColorFilter;
import android.graphics.RectF;
import android.graphics.Shader;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.ColorDrawable;
import android.graphics.drawable.Drawable;
import android.net.Uri;
import android.os.Build;
import android.util.AttributeSet;
import android.view.MotionEvent;
import com.qmuiteam.qmui.R;
import androidx.annotation.ColorInt;
import androidx.annotation.NonNull;
import androidx.appcompat.widget.AppCompatImageView;
/**
* 提供为图片添加圆角、边框、剪裁到圆形或其他形状等功能。
* shown radius image in view, is different to {@link QMUIRadiusImageView2}
*
* @author cginechen
* @date 2015-07-09
*/
public class QMUIRadiusImageView extends AppCompatImageView {
private static final int DEFAULT_BORDER_COLOR = Color.GRAY;
private static final Bitmap.Config BITMAP_CONFIG = Bitmap.Config.ARGB_8888;
private static final int COLOR_DRAWABLE_DIMEN = 2;
private boolean mIsSelected = false;
private boolean mIsOval = false;
private boolean mIsCircle = false;
private int mBorderWidth;
private int mBorderColor;
private int mSelectedBorderWidth;
private int mSelectedBorderColor;
private int mSelectedMaskColor;
private boolean mIsTouchSelectModeEnabled = true;
private int mCornerRadius;
private Paint mBitmapPaint;
private Paint mBorderPaint;
private ColorFilter mColorFilter;
private ColorFilter mSelectedColorFilter;
private BitmapShader mBitmapShader;
private boolean mNeedResetShader = false;
private RectF mRectF = new RectF();
private RectF mDrawRectF = new RectF();
private Bitmap mBitmap;
private Matrix mMatrix;
private int mWidth;
private int mHeight;
private ScaleType mLastCalculateScaleType;
public QMUIRadiusImageView(Context context) {
this(context, null, R.attr.QMUIRadiusImageViewStyle);
}
public QMUIRadiusImageView(Context context, AttributeSet attrs) {
this(context, attrs, R.attr.QMUIRadiusImageViewStyle);
}
public QMUIRadiusImageView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
mBorderPaint = new Paint();
mBorderPaint.setAntiAlias(true);
mBorderPaint.setStyle(Paint.Style.STROKE);
mMatrix = new Matrix();
setScaleType(ScaleType.CENTER_CROP);
TypedArray array = context.obtainStyledAttributes(
attrs, R.styleable.QMUIRadiusImageView, defStyleAttr, 0);
mBorderWidth = array.getDimensionPixelSize(R.styleable.QMUIRadiusImageView_qmui_border_width, 0);
mBorderColor = array.getColor(R.styleable.QMUIRadiusImageView_qmui_border_color, DEFAULT_BORDER_COLOR);
mSelectedBorderWidth = array.getDimensionPixelSize(
R.styleable.QMUIRadiusImageView_qmui_selected_border_width, mBorderWidth);
mSelectedBorderColor = array.getColor(
R.styleable.QMUIRadiusImageView_qmui_selected_border_color, mBorderColor);
mSelectedMaskColor = array.getColor(
R.styleable.QMUIRadiusImageView_qmui_selected_mask_color, Color.TRANSPARENT);
if (mSelectedMaskColor != Color.TRANSPARENT) {
mSelectedColorFilter = new PorterDuffColorFilter(mSelectedMaskColor, PorterDuff.Mode.DARKEN);
}
mIsTouchSelectModeEnabled = array.getBoolean(
R.styleable.QMUIRadiusImageView_qmui_is_touch_select_mode_enabled, true);
mIsCircle = array.getBoolean(R.styleable.QMUIRadiusImageView_qmui_is_circle, false);
if (!mIsCircle) {
mIsOval = array.getBoolean(R.styleable.QMUIRadiusImageView_qmui_is_oval, false);
}
if (!mIsOval) {
mCornerRadius = array.getDimensionPixelSize(
R.styleable.QMUIRadiusImageView_qmui_corner_radius, 0);
}
array.recycle();
}
@Override
public void setAdjustViewBounds(boolean adjustViewBounds) {
if (adjustViewBounds) {
throw new IllegalArgumentException("不支持adjustViewBounds");
}
}
public void setBorderWidth(int borderWidth) {
if (mBorderWidth != borderWidth) {
mBorderWidth = borderWidth;
invalidate();
}
}
public void setBorderColor(@ColorInt int borderColor) {
if (mBorderColor != borderColor) {
mBorderColor = borderColor;
invalidate();
}
}
public void setCornerRadius(int cornerRadius) {
if (mCornerRadius != cornerRadius) {
mCornerRadius = cornerRadius;
if (!mIsCircle && !mIsOval) {
invalidate();
}
}
}
public void setSelectedBorderColor(@ColorInt int selectedBorderColor) {
if (mSelectedBorderColor != selectedBorderColor) {
mSelectedBorderColor = selectedBorderColor;
if (mIsSelected) {
invalidate();
}
}
}
public void setSelectedBorderWidth(int selectedBorderWidth) {
if (mSelectedBorderWidth != selectedBorderWidth) {
mSelectedBorderWidth = selectedBorderWidth;
if (mIsSelected) {
invalidate();
}
}
}
public void setSelectedMaskColor(@ColorInt int selectedMaskColor) {
if (mSelectedMaskColor != selectedMaskColor) {
mSelectedMaskColor = selectedMaskColor;
if (mSelectedMaskColor != Color.TRANSPARENT) {
mSelectedColorFilter = new PorterDuffColorFilter(mSelectedMaskColor, PorterDuff.Mode.DARKEN);
} else {
mSelectedColorFilter = null;
}
if (mIsSelected) {
invalidate();
}
}
mSelectedMaskColor = selectedMaskColor;
}
public void setCircle(boolean isCircle) {
if (mIsCircle != isCircle) {
mIsCircle = isCircle;
requestLayout();
invalidate();
}
}
public void setOval(boolean isOval) {
boolean forceUpdate = false;
if (isOval) {
if (mIsCircle) {
// 必须先取消圆形
mIsCircle = false;
forceUpdate = true;
}
}
if (mIsOval != isOval || forceUpdate) {
mIsOval = isOval;
requestLayout();
invalidate();
}
}
public int getBorderColor() {
return mBorderColor;
}
public int getBorderWidth() {
return mBorderWidth;
}
public int getCornerRadius() {
return mCornerRadius;
}
public int getSelectedBorderColor() {
return mSelectedBorderColor;
}
public int getSelectedBorderWidth() {
return mSelectedBorderWidth;
}
public int getSelectedMaskColor() {
return mSelectedMaskColor;
}
public boolean isCircle() {
return mIsCircle;
}
public boolean isOval() {
return !mIsCircle && mIsOval;
}
public boolean isSelected() {
return mIsSelected;
}
public void setSelected(boolean isSelected) {
if (mIsSelected != isSelected) {
mIsSelected = isSelected;
invalidate();
}
}
public void setTouchSelectModeEnabled(boolean touchSelectModeEnabled) {
mIsTouchSelectModeEnabled = touchSelectModeEnabled;
}
public boolean isTouchSelectModeEnabled() {
return mIsTouchSelectModeEnabled;
}
public void setSelectedColorFilter(ColorFilter cf) {
if (mSelectedColorFilter == cf) {
return;
}
mSelectedColorFilter = cf;
if (mIsSelected) {
invalidate();
}
}
@Override
public void setColorFilter(ColorFilter cf) {
if (mColorFilter == cf) {
return;
}
mColorFilter = cf;
if (!mIsSelected) {
invalidate();
}
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (widthMode == MeasureSpec.EXACTLY && heightMode == MeasureSpec.EXACTLY) {
setMeasuredDimension(widthSize, heightSize);
return;
}
if (mIsCircle) {
if (widthMode == MeasureSpec.EXACTLY) {
setMeasuredDimension(widthSize, widthSize);
} else if (heightMode == MeasureSpec.EXACTLY) {
setMeasuredDimension(heightSize, heightSize);
} else {
if (mBitmap == null) {
setMeasuredDimension(0, 0);
} else {
int w = Math.min(mBitmap.getWidth(), widthSize);
int h = Math.min(mBitmap.getHeight(), heightSize);
int size = Math.min(w, h);
setMeasuredDimension(size, size);
}
}
return;
}
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
}
@Override

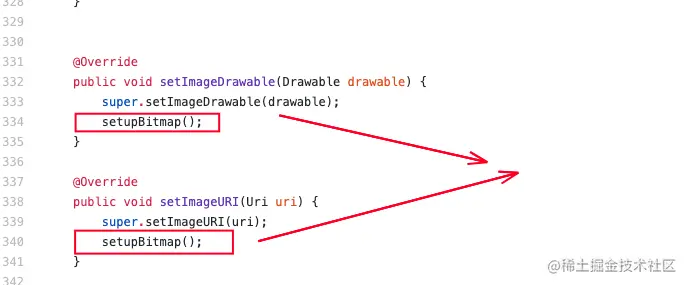

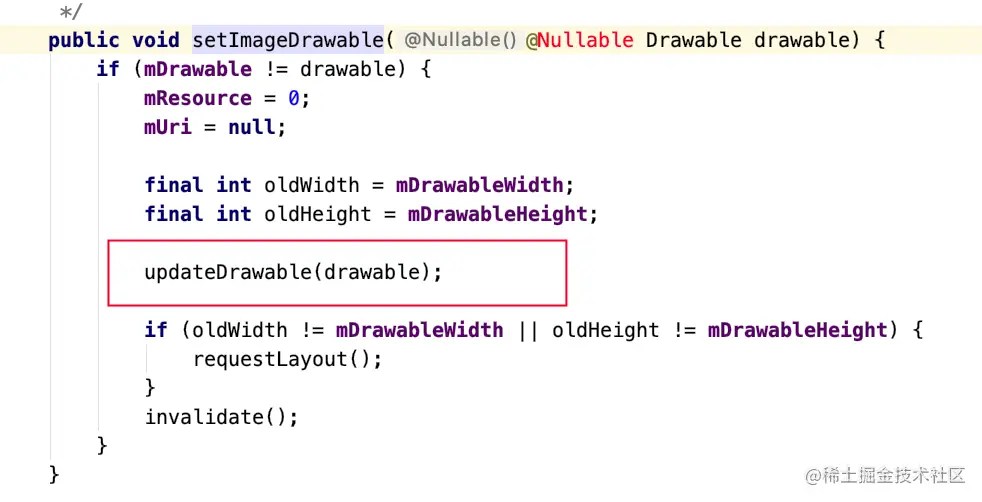

public void setImageDrawable(Drawable drawable) {
super.setImageDrawable(drawable);
setupBitmap();
}
@Override
public void setImageURI(Uri uri) {
super.setImageURI(uri);
setupBitmap();
}
private Bitmap getBitmap() {
Drawable drawable = getDrawable();
if (drawable == null) {
return null;
}
if (drawable instanceof BitmapDrawable) {
Bitmap bitmap = ((BitmapDrawable) drawable).getBitmap();
if (bitmap == null) {
return null;
}
float bmWidth = bitmap.getWidth(), bmHeight = bitmap.getHeight();
if (bmWidth == 0 || bmHeight == 0) {
return null;
}
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN) {
// ensure minWidth and minHeight
float minScaleX = getMinimumWidth() / bmWidth, minScaleY = getMinimumHeight() / bmHeight;
if (minScaleX > 1 || minScaleY > 1) {
float scale = Math.max(minScaleX, minScaleY);
Matrix matrix = new Matrix();
matrix.postScale(scale, scale);
return Bitmap.createBitmap(
bitmap, 0, 0, (int) bmWidth, (int) bmHeight, matrix, false);
}
}
return bitmap;
}
try {
Bitmap bitmap;
if (drawable instanceof ColorDrawable) {
bitmap = Bitmap.createBitmap(COLOR_DRAWABLE_DIMEN, COLOR_DRAWABLE_DIMEN, BITMAP_CONFIG);
} else {
bitmap = Bitmap.createBitmap(
drawable.getIntrinsicWidth(), drawable.getIntrinsicHeight(), BITMAP_CONFIG);
}
Canvas canvas = new Canvas(bitmap);
drawable.setBounds(0, 0, canvas.getWidth(), canvas.getHeight());
drawable.draw(canvas);
return bitmap;
} catch (Exception e) {
e.printStackTrace();
return null;
}
}
public void setupBitmap() {
Bitmap bm = getBitmap();
if (bm == mBitmap) {
return;
}
mBitmap = bm;
if (mBitmap == null) {
mBitmapShader = null;
invalidate();
return;
}
mNeedResetShader = true;
mBitmapShader = new BitmapShader(mBitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP);
if (mBitmapPaint == null) {
mBitmapPaint = new Paint();
mBitmapPaint.setAntiAlias(true);
}
mBitmapPaint.setShader(mBitmapShader);
requestLayout();
invalidate();
}
private void updateBitmapShader() {
mMatrix.reset();
mNeedResetShader = false;
if (mBitmapShader == null || mBitmap == null) {
return;
}
updateMatrix(mMatrix, mBitmap, mRectF);
mBitmapShader.setLocalMatrix(mMatrix);
mBitmapPaint.setShader(mBitmapShader);
}
private void updateMatrix(@NonNull Matrix matrix, @NonNull Bitmap bitmap, RectF drawRect) {
final float bmWidth = bitmap.getWidth();
final float bmHeight = bitmap.getHeight();
final ScaleType scaleType = getScaleType();
if (scaleType == ScaleType.MATRIX) {
updateScaleTypeMatrix(matrix, bitmap, drawRect);
} else if (scaleType == ScaleType.CENTER) {
float left = (mWidth - bmWidth) / 2;
float top = (mHeight - bmHeight) / 2;
matrix.postTranslate(left, top);
drawRect.set(
Math.max(0, left),
Math.max(0, top),
Math.min(left + bmWidth, mWidth),
Math.min(top + bmHeight, mHeight));
} else if (scaleType == ScaleType.CENTER_CROP) {
float scaleX = mWidth / bmWidth, scaleY = mHeight / bmHeight;
final float scale = Math.max(scaleX, scaleY);
matrix.setScale(scale, scale);
matrix.postTranslate(-(scale * bmWidth - mWidth) / 2, -(scale * bmHeight - mHeight) / 2);
drawRect.set(0, 0, mWidth, mHeight);
} else if (scaleType == ScaleType.CENTER_INSIDE) {
float scaleX = mWidth / bmWidth, scaleY = mHeight / bmHeight;
if (scaleX >= 1 && scaleY >= 1) {
float left = (mWidth - bmWidth) / 2;
float top = (mHeight - bmHeight) / 2;
matrix.postTranslate(left, top);
drawRect.set(left, top, left + bmWidth, top + bmHeight);
} else {
float scale = Math.min(scaleX, scaleY);
matrix.setScale(scale, scale);
float bw = bmWidth * scale, bh = bmHeight * scale;
float left = (mWidth - bw) / 2;
float top = (mHeight - bh) / 2;
matrix.postTranslate(left, top);
drawRect.set(left, top, left + bw, top + bh);
}
} else if (scaleType == ScaleType.FIT_XY) {
float scaleX = mWidth / bmWidth, scaleY = mHeight / bmHeight;
matrix.setScale(scaleX, scaleY);
drawRect.set(0, 0, mWidth, mHeight);
} else {
float scaleX = mWidth / bmWidth, scaleY = mHeight / bmHeight;
float scale = Math.min(scaleX, scaleY);
matrix.setScale(scale, scale);
float bw = bmWidth * scale, bh = bmHeight * scale;
if (scaleType == ScaleType.FIT_START) {
drawRect.set(0, 0, bw, bh);
} else if (scaleType == ScaleType.FIT_CENTER) {
float left = (mWidth - bw) / 2;
float top = (mHeight - bh) / 2;
matrix.postTranslate(left, top);
drawRect.set(left, top, left + bw, top + bh);
} else {
matrix.postTranslate(mWidth - bw, mHeight - bh);
drawRect.set(mWidth - bw, mHeight - bh, mWidth, mHeight);
}
}
}
protected void updateScaleTypeMatrix(@NonNull Matrix matrix, @NonNull Bitmap bitmap, RectF drawRect) {
matrix.set(getImageMatrix());
drawRect.set(0, 0, mWidth, mHeight);
}
private void drawBitmap(Canvas canvas, int borderWidth) {
final float halfBorderWidth = borderWidth * 1.0f / 2;
mBitmapPaint.setColorFilter(mIsSelected ? mSelectedColorFilter : mColorFilter);
if (mIsCircle) {
canvas.drawCircle(mRectF.centerX(), mRectF.centerY(), (Math.min(mRectF.width() / 2, mRectF.height() / 2)) - halfBorderWidth, mBitmapPaint);
} else {
mDrawRectF.left = mRectF.left + halfBorderWidth;
//noinspection SuspiciousNameCombination
mDrawRectF.top = mRectF.top + halfBorderWidth;
mDrawRectF.right = mRectF.right - halfBorderWidth;
mDrawRectF.bottom = mRectF.bottom - halfBorderWidth;
if (mIsOval) {
canvas.drawOval(mDrawRectF, mBitmapPaint);
} else {
canvas.drawRoundRect(mDrawRectF, mCornerRadius, mCornerRadius, mBitmapPaint);
}
}
}
private void drawBorder(Canvas canvas, int borderWidth) {
if (borderWidth <= 0) {
return;
}
final float halfBorderWidth = borderWidth * 1.0f / 2;
mBorderPaint.setColor(mIsSelected ? mSelectedBorderColor : mBorderColor);
mBorderPaint.setStrokeWidth(borderWidth);
if (mIsCircle) {
canvas.drawCircle(mRectF.centerX(), mRectF.centerY(),
Math.min(mRectF.width(), mRectF.height()) / 2 - halfBorderWidth, mBorderPaint);
} else {
mDrawRectF.left = mRectF.left + halfBorderWidth;
//noinspection SuspiciousNameCombination
mDrawRectF.top = mRectF.top + halfBorderWidth;
mDrawRectF.right = mRectF.right - halfBorderWidth;
mDrawRectF.bottom = mRectF.bottom - halfBorderWidth;
if (mIsOval) {
canvas.drawOval(mDrawRectF, mBorderPaint);
} else {
canvas.drawRoundRect(mDrawRectF, mCornerRadius, mCornerRadius, mBorderPaint);
}
}
}
@Override
protected void onDraw(Canvas canvas) {
int width = getWidth(), height = getHeight();
if (width <= 0 || height <= 0) {
return;
}
int borderWidth = mIsSelected ? mSelectedBorderWidth : mBorderWidth;
if (mBitmap == null || mBitmapShader == null) {
drawBorder(canvas, borderWidth);
return;
}
if (mWidth != width || mHeight != height
|| mLastCalculateScaleType != getScaleType() || mNeedResetShader) {
mWidth = width;
mHeight = height;
mLastCalculateScaleType = getScaleType();
updateBitmapShader();
}
drawBitmap(canvas, borderWidth);
drawBorder(canvas, borderWidth);
}
@Override
public boolean onTouchEvent(MotionEvent event) {
if (!this.isClickable()) {
this.setSelected(false);
return super.onTouchEvent(event);
}
if (!mIsTouchSelectModeEnabled) {
return super.onTouchEvent(event);
}
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
this.setSelected(true);
break;
case MotionEvent.ACTION_UP:
case MotionEvent.ACTION_SCROLL:
case MotionEvent.ACTION_OUTSIDE:
case MotionEvent.ACTION_CANCEL:
this.setSelected(false);
break;
}
return super.onTouchEvent(event);
}
}
圆角的实现方式 就不多说了， 网上一搜一堆，今天我们主要看看 为啥使用这种自定义的imageview的时候 就无法通过glide来展示gif了。
glide 如何 展示 一张 gif图片
这个问题 网上一搜 有一些答案，但是都讲的太差了，压根没讲清楚。其实搞清楚这个问题， 我们上面的bug 也就能解决了。 我们首先从glide的 调用流程开始入手：

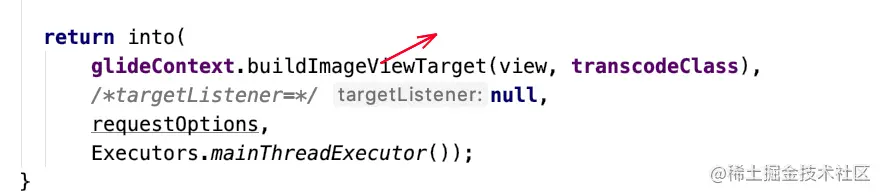

我们重点关注这个into方法 因为into方法传递的就是我们的imageview（不管是默认的imageview还是自定义的imageview）

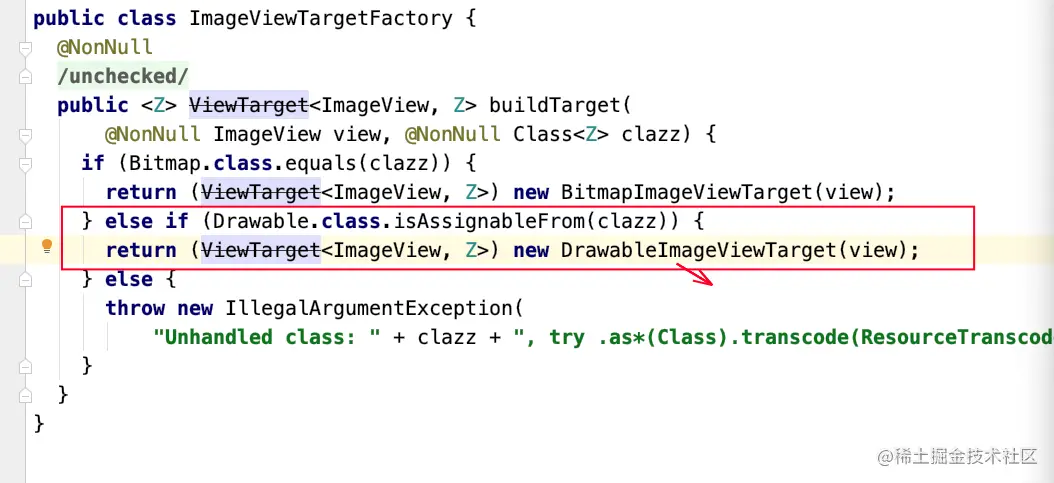

再看一下这个：

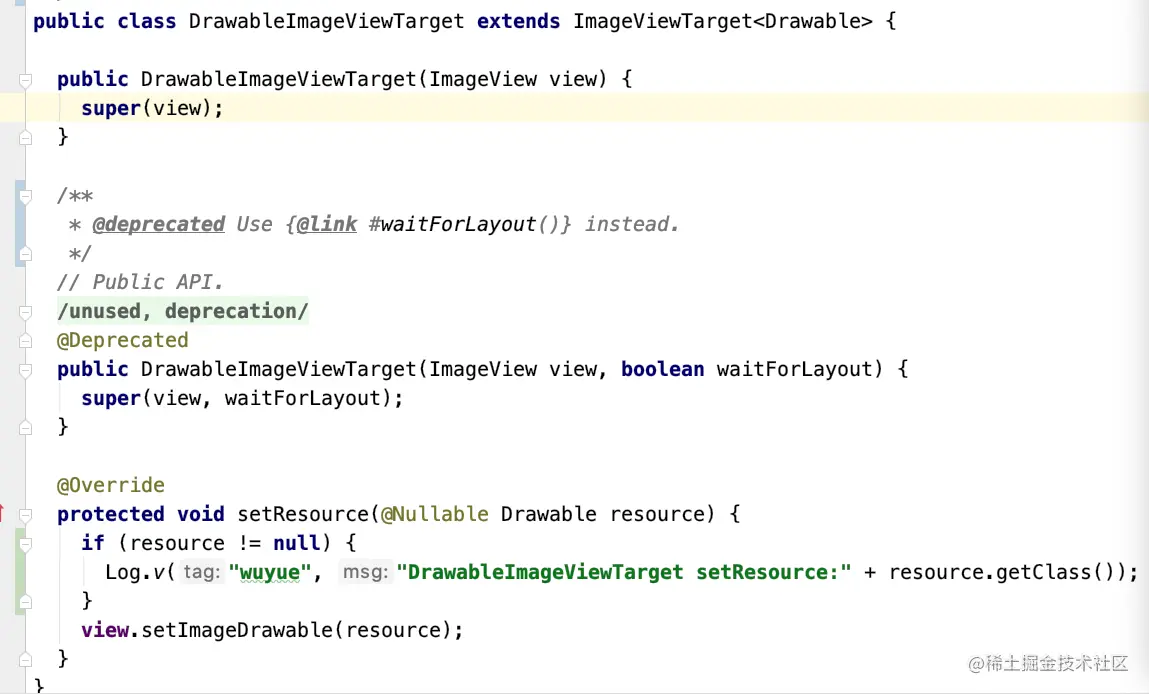

我们最终都是会走到这个DrawableImageViewTarget中 注意 参数这个view 就是我们穿进去的imageview
我们跟进去看看这里有什么玄机：
通过日志我们可以发现，glide在加载图片的时候 也是直接调用的这个setReource方法，从而调用到我们imageview的 setImageDrawable方法 来展示图片。
且通过resource的class 我们可以得知 当展示 gif图片的时候 这个Drawable就是 GifDrawable 这个类。
在这里要说一下，Drawable 和bitmap最大的区别就是 drawable是可以直接操作canvas来绘制bitmap的。 而bitmap 就仅仅是个bitmap而已。
也就是说 glide在展示图片 尤其是展示 gif图片的时候 核心的绘制的代码 都在这个GifDrawable中。 这与网上很多自定义的gifview 是直接把绘制逻辑写在view的ondraw方法里有本质的不同。
但是不管你用哪种方法，展示gif的核心逻辑 都是 一帧一帧的刷新bitmap canvas不停的draw最新的bitmap
有了这个基础 我们再去看GifDrawable的逻辑 就简单了很多。

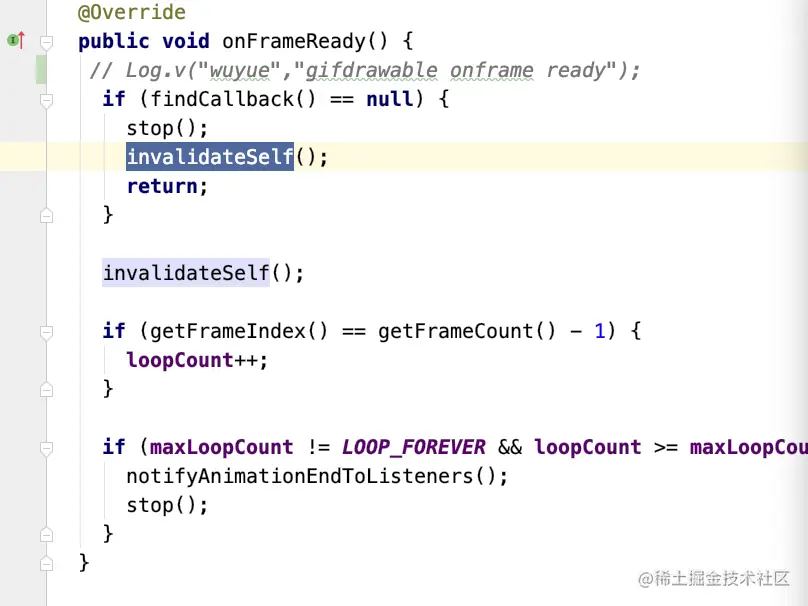

重点看这个方法：
讲白了，每次准备好新的一帧的时候 总会调用invalidateSelf这个方法。

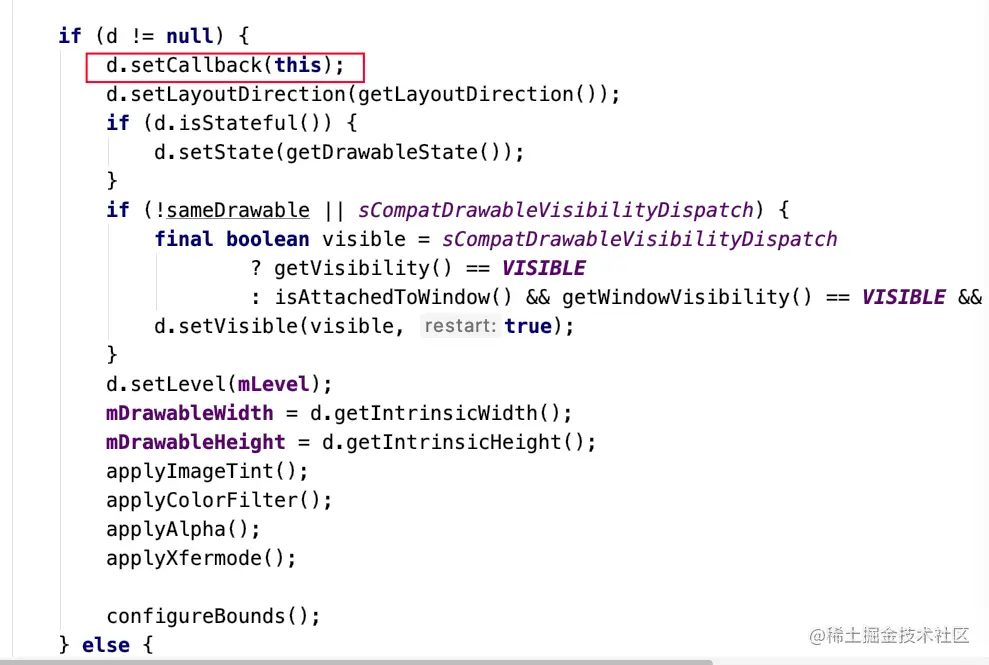

详细看一下这个方法， 大概就是调用了一下callback的 invalidate的方法。啥？ 这个drawable还有个callback？ 那每次给imageview setDrawable的时候 是不是也set了这个drawable的callback？ 带着这个疑问 我们去看了一下imageview的源码

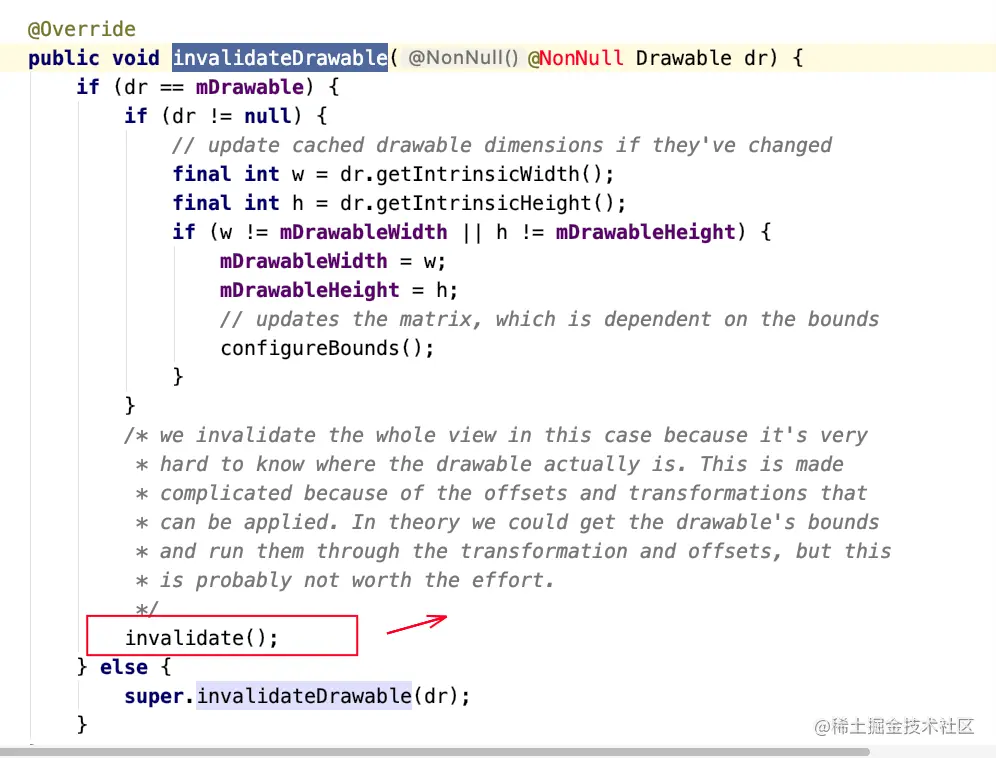

原来如此，每个imageview 都是对应drawable的 callback 那我们直接看一下 这个imageview的 invalidateDrawable方法就可以了
到这应该整个调用链就清楚了， glide通过自定义的gifdrawable， 每次刷新一帧的时候 通过invalidateSelf方法 最终回调到imageview的 invalidate方法 ， 都走到view的 invalidate 方法了，自然也会走到imageview的ondraw方法了，从而也就完成了对imageview的刷新，看起来就好像在不停的给imageview set新的drawable或者bitmap一样。 这也就是为什么 glide 可以 展示gif的 原因了。整个流程都很清晰。
如何解决这个问题？
有了 对glide展示gif图片的基础认识，我们就可以来看看怎么解决类似的问题了。 我们回头再看看腾讯的qmui源码

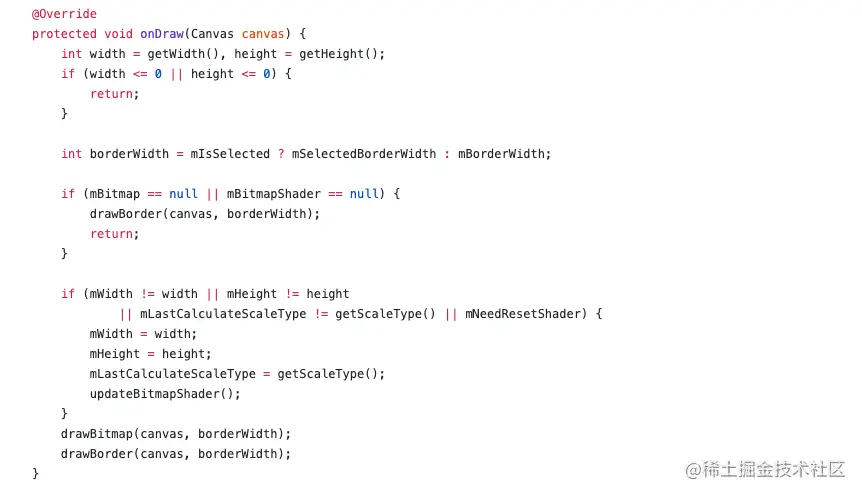

这里可以看到这个自定义的onDraw方法是被重写了，并没有调用 super.draw 方法，也就是说canvas的绘制 都是这个自定义view自己来控制的，并没有使用任何系统imageview的自带的onDraw。 现在无法展示gif图片的现象就是 虽然 gifdrawable 每一帧都调用到了这个自定义view的onDraw方法， 但是因为bitmap 一直是老的第一帧的bitmap 所以你每次绘制的bitmap 也就是第一帧的bitmap了。自然的 这个gif图片 看起来就是一直展示一个静态的图片了。
所以要改起来也很简单 我们只要在每次drawbitmap方法之前 更新一下我们的bitmap 不就不行了？
更新bitmap也很简单 再看下这个自定义view的源码：
他取bitmap 不也是这样取的吗？ （其实内部就是通过getDrawable 来获取到最新的bitmap ）

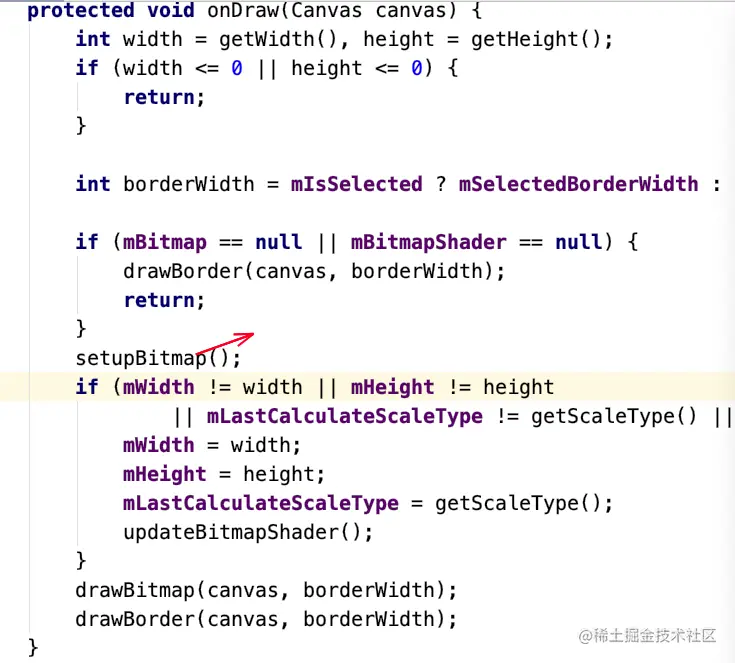

最终解决方案就是加一行代码即可
大家可以理一下这个解决问题的思路 当碰到glide和你的自定义view不兼容的时候 照着这个顺序去阅读源码 找问题原因即可。
