分类添加属性的原理

1、问题

分类中不能直接添加成员变量。
从下边分类的实现中可以看到，里边没有成员变量数组。所以他无法直接添加

struct category_t {
    const char *name;
    classref_t cls;
    struct method_list_t *instanceMethods;
    struct method_list_t *classMethods;
    struct protocol_list_t *protocols;
    struct property_list_t *instanceProperties;

    method_list_t *methodsForMeta(bool isMeta) {
        if (isMeta) return classMethods;
        else return instanceMethods;
    }

    property_list_t *propertiesForMeta(bool isMeta) {
        if (isMeta) return nil; // classProperties;
        else return instanceProperties;
    }
};

2、解决方案

1、不可以用全局变量，因为无法应对多个实例的情况；
2、可以做个字典；
代码简写如下

- (void)setWeight:(int)weight {
    NSString *key = [NSString stringWithFormat:@"%p", self];
    names_[key] = @(weight);
}
- (int)weight {
    NSString *key = [NSString stringWithFormat:@"%p", self];
    return [names_[key] intValue];
}

如此可以基本实现分类中写属性的能力
但他有线程安全的问题。
如果在项目中使用的话，要再加上线程安全相关的代码。

3、关联对象方法
此方法没有线程安全的问题

- (void)setAge:(int)age {
    objc_setAssociatedObject(self, @selector(age), @(age), OBJC_ASSOCIATION_COPY_NONATOMIC);
}
- (int)age {
    return [objc_getAssociatedObject(self, @selector(age)) intValue];
}

不管字典还是关联对象，都不是真的把属性添加到了类对象/实例对象中。

3、关联对象的原理

用到的类：

• AssociationsManager
• AssociationsHashMap
• ObjcAssociation
• ObjectAssociationMap

底层实现

///set方法
void
objc_setAssociatedObject(id object, const void *key, id value,
                         objc_AssociationPolicy policy)
{
    objc_setAssociatedObject_non_gc(object, key, value, policy);
}

void objc_setAssociatedObject_non_gc(id object, const void *key, id value, objc_AssociationPolicy policy) {
    _object_set_associative_reference(object, (void *)key, value, policy);
}

void _object_set_associative_reference(id object, void *key, id value, uintptr_t policy) {
    // retain the new value (if any) outside the lock.
    ObjcAssociation old_association(0, nil);
    id new_value = value ? acquireValue(value, policy) : nil;
    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.associations());
        disguised_ptr_t disguised_object = DISGUISE(object);
        if (new_value) {
            // break any existing association.
            AssociationsHashMap::iterator i = associations.find(disguised_object);
            if (i != associations.end()) {
                // secondary table exists
                ObjectAssociationMap *refs = i->second;
                ObjectAssociationMap::iterator j = refs->find(key);
                if (j != refs->end()) {
                    old_association = j->second;
                    j->second = ObjcAssociation(policy, new_value);
                } else {
                    (*refs)[key] = ObjcAssociation(policy, new_value);
                }
            } else {
                // create the new association (first time).
                ObjectAssociationMap *refs = new ObjectAssociationMap;
                associations[disguised_object] = refs;
                (*refs)[key] = ObjcAssociation(policy, new_value);
                object->setHasAssociatedObjects();
            }
        } else {
            // setting the association to nil breaks the association.
            AssociationsHashMap::iterator i = associations.find(disguised_object);
            if (i !=  associations.end()) {
                ObjectAssociationMap *refs = i->second;
                ObjectAssociationMap::iterator j = refs->find(key);
                if (j != refs->end()) {
                    old_association = j->second;
                    refs->erase(j);
                }
            }
        }
    }
    // release the old value (outside of the lock).
    if (old_association.hasValue()) ReleaseValue()(old_association);
}

///get方法
id
objc_getAssociatedObject(id object, const void *key)
{
    return objc_getAssociatedObject_non_gc(object, key);
}
id objc_getAssociatedObject_non_gc(id object, const void *key) {
    return _object_get_associative_reference(object, (void *)key);
}

id _object_get_associative_reference(id object, void *key) {
    id value = nil;
    uintptr_t policy = OBJC_ASSOCIATION_ASSIGN;
    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.associations());
        disguised_ptr_t disguised_object = DISGUISE(object);
        AssociationsHashMap::iterator i = associations.find(disguised_object);
        if (i != associations.end()) {
            ObjectAssociationMap *refs = i->second;
            ObjectAssociationMap::iterator j = refs->find(key);
            if (j != refs->end()) {
                ObjcAssociation &entry = j->second;
                value = entry.value();
                policy = entry.policy();
                if (policy & OBJC_ASSOCIATION_GETTER_RETAIN) ((id(*)(id, SEL))objc_msgSend)(value, SEL_retain);
            }
        }
    }
    if (value && (policy & OBJC_ASSOCIATION_GETTER_AUTORELEASE)) {
        ((id(*)(id, SEL))objc_msgSend)(value, SEL_autorelease);
    }
    return value;
}

从源码可以看出来，他也是通过hash_map来实现的关联。
一个object对应一个ObjectAssociationMap
map中是对应的key和ObjcAssociation

最终的值存在 ObjcAssociation 中

class ObjcAssociation {
        uintptr_t _policy;
        id _value;
    public:
        ObjcAssociation(uintptr_t policy, id value) : _policy(policy), _value(value) {}
        ObjcAssociation() : _policy(0), _value(nil) {}

        uintptr_t policy() const { return _policy; }
        id value() const { return _value; }

        bool hasValue() { return _value != nil; }
    };

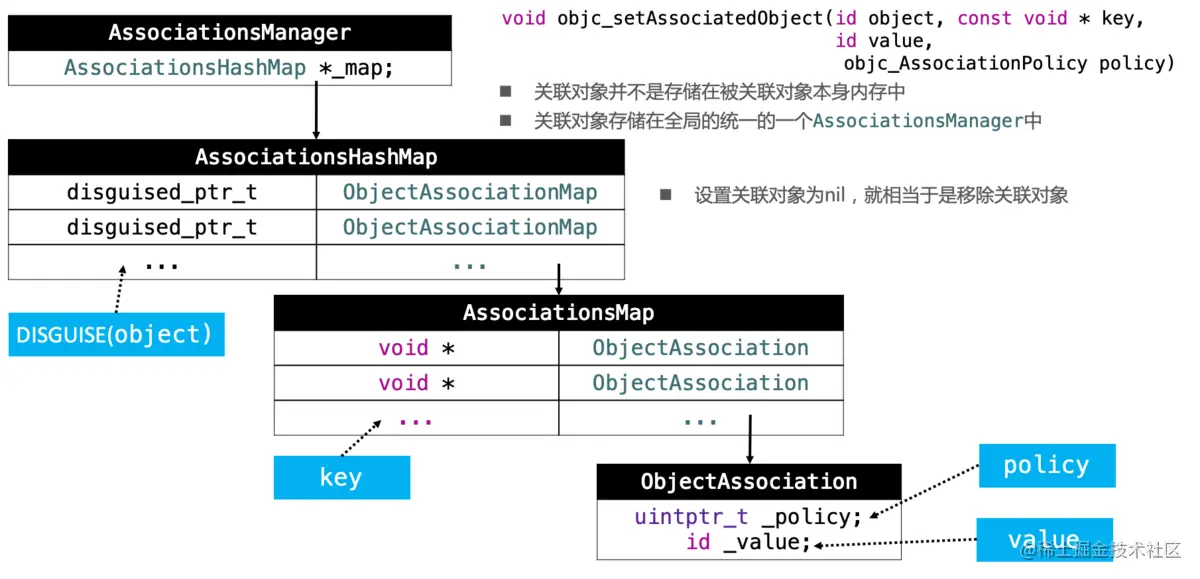

直观一点的表述如下

4、总结

他其实也是通过字典来实现了关联，只不过他使用了多层map，并且传入了实例变量，巧妙的避免了很多问题。

• 关联对象并不是存储在被关联对象内存中
• 关联对象存储在全局同意的一个 AssociationsManager 中
• 设置对象为nil，就是相当于移除关联对象（实现如下）。

// setting the association to nil breaks the association.
AssociationsHashMap::iterator i = associations.find(disguised_object);
    if (i !=  associations.end()) {
        ObjectAssociationMap *refs = i->second;
        ObjectAssociationMap::iterator j = refs->find(key);
        if (j != refs->end()) {
            old_association = j->second;
            refs->erase(j);
        }
    }

• 没有弱引用的效果

其他：
移除所有

void _object_remove_assocations(id object) {
    vector< ObjcAssociation,ObjcAllocator<ObjcAssociation> > elements;
    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.associations());
        if (associations.size() == 0) return;
        disguised_ptr_t disguised_object = DISGUISE(object);
        AssociationsHashMap::iterator i = associations.find(disguised_object);
        if (i != associations.end()) {
            // copy all of the associations that need to be removed.
            ObjectAssociationMap *refs = i->second;
            for (ObjectAssociationMap::iterator j = refs->begin(), end = refs->end(); j != end; ++j) {
                elements.push_back(j->second);
            }
            // remove the secondary table.
            delete refs;
            associations.erase(i);
        }
    }
    // the calls to releaseValue() happen outside of the lock.
    for_each(elements.begin(), elements.end(), ReleaseValue());
}
