face-api.js实现浏览器人脸识别登录

人脸识别登录大致分为两步，第一步识别人脸，第二步人脸比对

设计思路

• 准备一个人脸数据库，上传照片，并打上标签
• 提取人脸数据库中的照片和标签进行量化处理，转化成一堆数字进行比较

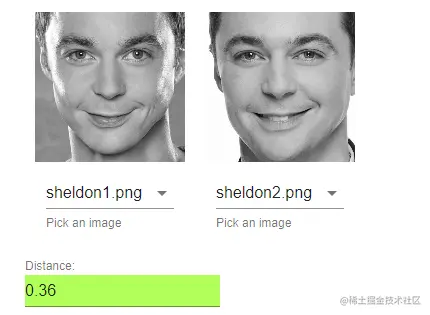

• 使用一张照片来测试一下匹配程度
• 调起浏览器摄像头进行脸部识别比对

代码实现

主要用到的库face-api.js

clone

	git clone https://github.com/justadudewhohacks/face-api.js.git

    cd face-api.js/examples/examples-browser
    npm i
    npm start
    // localhost://3000

    //node
   cd face-api.js/examples/examples-nodejs
   npm i

   // ts-node examples
   ts-node faceDetection.ts

代码

	function dodetecpic(){
    	$.message.progress();
        //加载训练好的模型（weight,bias)
        // ageGenderNet 识别性别和年龄
        // faceExpressionNet 识别表情，开心，沮丧，普通
        // faceLandmark68TinyNet 识别脸脖特征用于tiny算法
        // faceRecognitionNet 识别人脸
        // ssdMobilenetV1 google开源Ai
        // tinyFaceDetector 比Google的mobilenet更轻量级，速度更快一点
        Promise.all([
             faceapi.nets.faceRecognitionNet.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
             faceapi.nets.faceLandmark68Net.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
             faceapi.nets.faceLandmark68TinyNet.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
			 faceapi.nets.ssdMobilenetv1.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
             faceapi.nets.tinyFaceDetector.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
             faceapi.nets.mtcnn.loadFromUri('https://raw.githubusercontent.com/justadudewhohacks/face-api.js/master/weights'),
             )].then(async()=>{
             // 在原来的图片容器添加一层用于识别的蓝色框框
             const container = document.createElement('div')
             container.style.position = 'relative'
             $('#picmodal').prepend(container)
             // 先加载维护好的人脸数据(用于后面比对)
             const labeledFaceDescriptors = await loadLabeledImages()
             // 比对人脸特征数据
 		     const faceMatcher = new faceapi.FaceMatcher(labeledFaceDescriptors, 0.6)
             // 获取输入图片
             let image = document.getElementById('testpic')
             // 根据图片大小创建一个图层，用于显示方框
             let canvas = faceapi.createCanvasFromMedia(image)
        	 container.prepend(canvas)
        	 const displaySize = { width: image.width, height: image.height }
          	 faceapi.matchDimensions(canvas, displaySize)
            //设置需要使用什么算法和参数进行扫描识别图片的人脸特征
            const options = new faceapi.SsdMobilenetv1Options({ minConfidence: 0.38 })
            //const options = new faceapi.TinyFaceDetectorOptions()
            //const options = new faceapi.MtcnnOptions()
            //开始获取图片中每一张人脸的特征数据
            const detections = await faceapi.detectAllFaces(image, options).withFaceLandmarks().withFaceDescriptors()
            //根据人脸轮廓的大小，调整方框的大小
            const resizedDetections = faceapi.resizeResults(detections, displaySize)
            //开始和事先准备的标签库比对，找出最符合的那个标签
            const results = resizedDetections.map(d => faceMatcher.findBestMatch(d.descriptor))
            console.log(results)
            results.forEach((result, i) => {

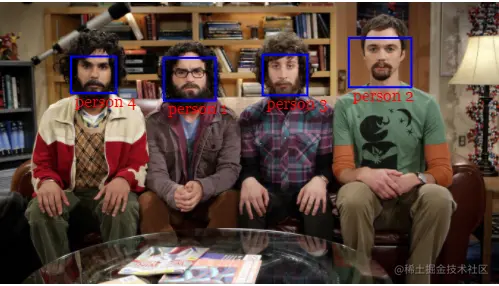

              //显示比对的结果
              const box = resizedDetections[i].detection.box
              const drawBox = new faceapi.draw.DrawBox(box, { label: result.toString() })
              drawBox.draw(canvas)
              console.log(box, drawBox)
        	})
			$.messager.progress('close');
      	})
     }

// 读取人脸标签数据
	async function loadLabeledIamges(){
    	//获取人脸图片数据，包含：图片+标签
        const data = await $.get('/FaceLibs/GetImgData'
        //对图片按标签进行分类
        const labels = [...new Set(data.map(item=>item.Label))]
        retrun Promise.all(
        	labels.map(async label => {
            const descriptions = []
            const imgs = data.filter(item => item.Label = label)
            const item = imgs[i]
            const img = await faceapi.fetchImage(`${item.ImgUrl}`)
            // 识别人脸的初始化参数
            const options = new faceapi.SsdMobilenetv1Options({minConfidence:0.38})
            // 扫描图片中人脸的轮廓数据
            const detections = await faceapi.detectSingleFace(img, options).withFaceLandmarks().withFaceDescriptor()

			if (detections) {
              descriptions.push(detections.descriptor)
            } else {
              console.warn('Unrecognizable face')
            }
          }
          console.log(label, descriptions);
          return new faceapi.LabeledFaceDescriptors(label, descriptions)
		})
       )
	}

 // 最常用的图片识别方法，直接调用相应的方法
 // all faces

await faceapi.detectAllFaces(input)
await faceapi.detectAllFaces(input).withFaceExpressions()
await faceapi.detectAllFaces(input).withFaceLandmarks()
await faceapi.detectAllFaces(input).withFaceLandmarks().withFaceExpressions()
await faceapi.detectAllFaces(input).withFaceLandmarks().withFaceExpressions().withFaceDescriptors()
await faceapi.detectAllFaces(input).withFaceLandmarks().withAgeAndGender().withFaceDescriptors()
await faceapi.detectAllFaces(input).withFaceLandmarks().withFaceExpressions().withAgeAndGender().withFaceDescriptors()


// single face

await faceapi.detectSingleFace(input)
await faceapi.detectSingleFace(input).withFaceExpressions()
await faceapi.detectSingleFace(input).withFaceLandmarks()
await faceapi.detectSingleFace(input).withFaceLandmarks().withFaceExpressions()
await faceapi.detectSingleFace(input).withFaceLandmarks().withFaceExpressions().withFaceDescriptor()
await faceapi.detectSingleFace(input).withFaceLandmarks().withAgeAndGender().withFaceDescriptor()
await faceapi.detectSingleFace(input).withFaceLandmarks().withFaceExpressions().withAgeAndGender().withFaceDescriptor()
