题目
分值：300
题目描述：
使用 sysbench、go-ycsb 和 go-tpc 分别对
TiDB 进行测试并且产出测试报告。
测试报告需要包括以下内容：
* 部署环境的机器配置(CPU、内存、磁盘规格型号)，拓扑结构(TiDB、TiKV 各部署于哪些节点)
* 调整过后的 TiDB 和 TiKV 配置
* 测试输出结果
* 关键指标的监控截图
* TiDB Query Summary 中的 qps 与 duration
* TiKV Details 面板中 Cluster 中各 server 的 CPU 以及 QPS 指标
* TiKV Details 面板中 grpc 的 qps 以及 duration
输出：写出你对该配置与拓扑环境和 workload 下 TiDB 集群负载的分析，提出你认为的 TiDB 的性能的瓶颈所在(能提出大致在哪个模块即 可)
截止时间：下周二（8.25）24:00:00(逾期提交不给分)
学习资料
学习过程
本周学习还是挺顺利的，之前已经通过operator搭建了3.0版本的tidb集群，所以这次也通过Operator搭建4.0集群。
环境配置
搭建Tidb集群详见官方文档 =》 Kubernetes 上使用 TiDB Operator 快速上手
|宿主|配置|操作系统|CPU型号| |------|------------|--|--|--| |IDC1 H1|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz| |IDC1 H2|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz| |IDC2 H1|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz| |IDC2 H2|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz| |IDC3 H1|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz| |IDC3 H2|32核/128G/4562G|CentOS Linux release 7.4.1708 (Core)|Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz|
Operator搭建
| 组件 | 版本 |
|---|---|
| Operator | v1.1.2 |
| tidb镜像 | pingcap/tidb:v4.0.4 |
| tikv镜像 | pingcap/tikv:v4.0.4 |
| pd镜像 | pingcap/pd:v4.0.4 |
组件配置
| 组件 | 副本数 | CPU | 内存 | 拓扑结构 |
|---|---|---|---|---|
| tidb | 1 | 28 | 100G | IDC1 H2 |
| tikv | 3 | 28 | 100G | IDC1 H1、IDC2 H1、IDC3 H1 |
| pd | 1 | 28 | 60G | IDC2 H2 |
| sysbench | Mac电脑 |
Config 配置
tidb
compatible-kill-query: true
log:
expensive-threshold: 10000
file:
max-backups: 300
max-days: 30
max-size: 300
level: info
query-log-max-len: 30000
slow-threshold: 1000
mem-quota-query: 209715200
oom-action: log
pessimistic-txn:
enable: true
max-retry-count: 256
tikv-client:
commit-timeout: 41s
grpc-connection-count: 16
grpc-keepalive-time: 10
grpc-keepalive-timeout: 3
token-limit: 10000
tikv
raftstore:
apply-pool-size: 2
raft-base-tick-interval: 2s
store-pool-size: 2
readpool:
coprocessor:
high-concurrency: 6
low-concurrency: 6
normal-concurrency: 6
storage:
high-concurrency: 6
low-concurrency: 6
max-tasks-per-worker-high: 24000
max-tasks-per-worker-low: 24000
max-tasks-per-worker-normal: 24000
normal-concurrency: 6
rocksdb:
defaultcf:
dynamic-level-bytes: true
level0-file-num-compaction-trigger: 4
level0-slowdown-writes-trigger: 40
level0-stop-writes-trigger: 60
max-background-jobs: 8
max-sub-compactions: 3
writecf:
dynamic-level-bytes: true
level0-file-num-compaction-trigger: 4
level0-slowdown-writes-trigger: 40
level0-stop-writes-trigger: 60
server:
grpc-compression-type: none
grpc-concurrency: 4
grpc-keepalive-time: 12s
storage:
block-cache:
capacity: "3.0"
scheduler-concurrency: 2048000
准备数据
由于下载比较慢建议翻墙下载[尴尬]
# 安装sysbench
brew install sysbench
pod_ip=${xx} # 输入pod ip
# 优化数据导入
mysql -P4000 -uroot -h$pod_ip
create database sbtest;
set global tidb_disable_txn_auto_retry = off;
set global tidb_txn_mode="optimistic";
# 准备sysbench的config
mkdir sysbench
cd sysbench
cat > config << EOF
mysql-host=$pod_ip
mysql-port=4000
mysql-user=root
mysql-password=
mysql-db=sbtest
time=600
threads=16
report-interval=10
db-driver=mysql
EOF

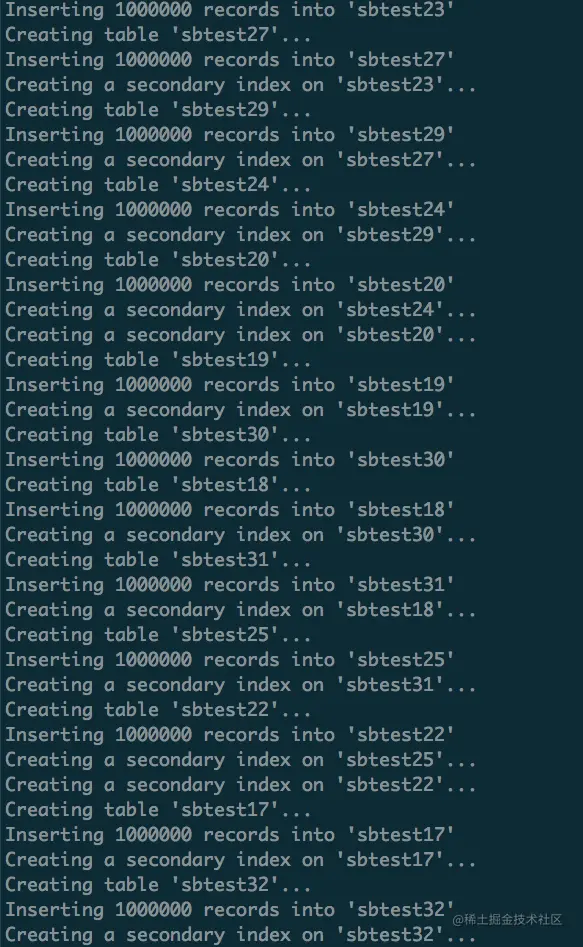

# 写入数据
sysbench --config-file=config oltp_point_select --tables=32 --table-size=1000000 prepare
经过近2个多小时终于完成了数据的写入
sysbench 压测
# 调整回悲观事务
set global tidb_txn_mode="pessimistic" ;
Point select 测试命
sysbench --config-file=config oltp_point_select --threads=16 --tables=32 --table-size=5000000 run --time=120
SQL statistics:
queries performed:
read: 101778
write: 0
other: 0
total: 101778
transactions: 101778 (848.06 per sec.)
queries: 101778 (848.06 per sec.)
ignored errors: 0 (0.00 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 120.0110s
total number of events: 101778
Latency (ms):
min: 7.60
avg: 18.86
max: 1083.14
95th percentile: 19.29
sum: 1919977.27
Threads fairness:
events (avg/stddev): 6361.1250/129.63
execution time (avg/stddev): 119.9986/0.00
Update index 测试
sysbench --config-file=config oltp_update_index --threads=16 --tables=32 --table-size=5000000 run --time=120
SQL statistics:
queries performed:
read: 0
write: 1
other: 116131
total: 116132
transactions: 116132 (967.65 per sec.)
queries: 116132 (967.65 per sec.)
ignored errors: 0 (0.00 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 120.0135s
total number of events: 116132
Latency (ms):
min: 10.24
avg: 16.53
max: 625.93
95th percentile: 17.63
sum: 1919998.24
Threads fairness:
events (avg/stddev): 7258.2500/178.74
execution time (avg/stddev): 119.9999/0.00
Read-only 测试
sysbench --config-file=config oltp_read_only --threads=16 --tables=32 --table-size=5000000 run --time=120
SQL statistics:
queries performed:
read: 72548
write: 0
other: 10364
total: 82912
transactions: 5182 (43.08 per sec.)
queries: 82912 (689.28 per sec.)
ignored errors: 0 (0.00 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 120.2874s
total number of events: 5182
Latency (ms):
min: 153.68
avg: 371.17
max: 2499.93
95th percentile: 909.80
sum: 1923412.99
Threads fairness:
events (avg/stddev): 323.8750/4.85
execution time (avg/stddev): 120.2133/0.06
go-ycsb 测试
git clone https://github.com/pingcap/go-ycsb
cd go-ycsb
make
运行
host=
./bin/go-ycsb load mysql -P workloads/workloada -p recordcount=10000000 -p mysql.host=$host -p mysql.port=4000 --threads 16
...
NSERT - Takes(s): 24240.0, Count: 9981062, OPS: 411.8, Avg(us): 38654, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 723000, 99.99th(us): 1154000
INSERT - Takes(s): 24250.0, Count: 9983405, OPS: 411.7, Avg(us): 38651, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 723000, 99.99th(us): 1154000
INSERT - Takes(s): 24260.0, Count: 9985757, OPS: 411.6, Avg(us): 38648, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 723000, 99.99th(us): 1154000
INSERT - Takes(s): 24270.0, Count: 9987497, OPS: 411.5, Avg(us): 38647, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 723000, 99.99th(us): 1154000
INSERT - Takes(s): 24280.0, Count: 9989750, OPS: 411.4, Avg(us): 38644, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 723000, 99.99th(us): 1154000
INSERT - Takes(s): 24290.0, Count: 9991808, OPS: 411.4, Avg(us): 38643, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24300.0, Count: 9993949, OPS: 411.3, Avg(us): 38640, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24310.0, Count: 9996145, OPS: 411.2, Avg(us): 38638, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24320.0, Count: 9998363, OPS: 411.1, Avg(us): 38635, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24330.0, Count: 9999734, OPS: 411.0, Avg(us): 38633, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24340.0, Count: 10000000, OPS: 410.8, Avg(us): 38633, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
INSERT - Takes(s): 24350.0, Count: 10000000, OPS: 410.7, Avg(us): 38633, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
Run finished, takes 6h45m55.595477627s
INSERT - Takes(s): 24355.6, Count: 10000000, OPS: 410.6, Avg(us): 38633, Min(us): 11143, Max(us): 8813451, 99th(us): 448000, 99.9th(us): 722000, 99.99th(us): 1154000
go-tpc 测试
curl --proto '=https' --tlsv1.2 -sSf https://raw.githubusercontent.com/pingcap/go-tpc/master/install.sh | sh
准备数据
go-tpc -H 10.48.80.33 tpcc --warehouses 4 --parts 4 prepare
# 输出
....
begin to check warehouse 4 at condition 3.3.2.2
begin to check warehouse 4 at condition 3.3.2.9
Finished
运行
go-tpc -H 10.48.80.33 tpcc --warehouses 4 run
#输出
Finished
DELIVERY - Takes(s): 3302.8, Count: 10945, TPM: 198.8, Sum(ms): 5672222, Avg(ms): 518, 95th(ms): 1000, 99th(ms): 1500, 99.9th(ms): 2000
NEW_ORDER - Takes(s): 3303.0, Count: 124460, TPM: 2260.8, Sum(ms): 26087451, Avg(ms): 209, 95th(ms): 512, 99th(ms): 512, 99.9th(ms): 1000
NEW_ORDER_ERR - Takes(s): 15.1, Count: 11, TPM: 43.8, Sum(ms): 318799, Avg(ms): 28981, 95th(ms): 16000, 99th(ms): 16000, 99.9th(ms): 16000
ORDER_STATUS - Takes(s): 3302.9, Count: 10987, TPM: 199.6, Sum(ms): 634410, Avg(ms): 57, 95th(ms): 80, 99th(ms): 96, 99.9th(ms): 512
PAYMENT - Takes(s): 3303.1, Count: 119181, TPM: 2164.9, Sum(ms): 19114865, Avg(ms): 160, 95th(ms): 512, 99th(ms): 512, 99.9th(ms): 1000
PAYMENT_ERR - Takes(s): 0.0, Count: 4, TPM: 423520.9, Sum(ms): 121224, Avg(ms): 30306, 95th(ms): 16000, 99th(ms): 16000, 99.9th(ms): 16000
STOCK_LEVEL - Takes(s): 3303.0, Count: 11206, TPM: 203.6, Sum(ms): 715604, Avg(ms): 63, 95th(ms): 80, 99th(ms): 96, 99.9th(ms): 512
STOCK_LEVEL_ERR - Takes(s): 0.0, Count: 1, TPM: 130504.9, Sum(ms): 30153, Avg(ms): 30153, 95th(ms): 16000, 99th(ms): 16000, 99.9th(ms): 16000
监控截图

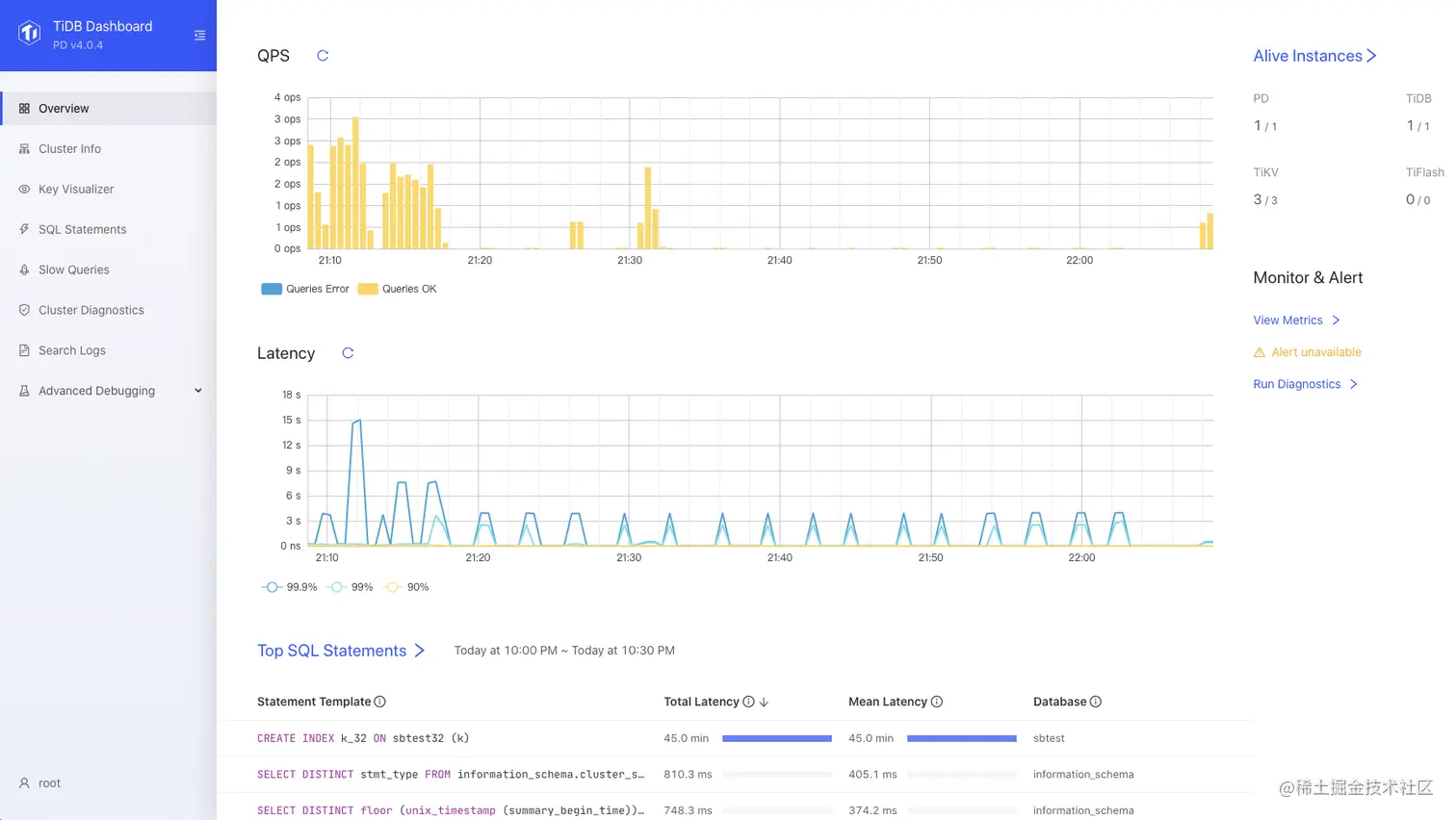

TiDB Query Summary 中的 qps 与 duration

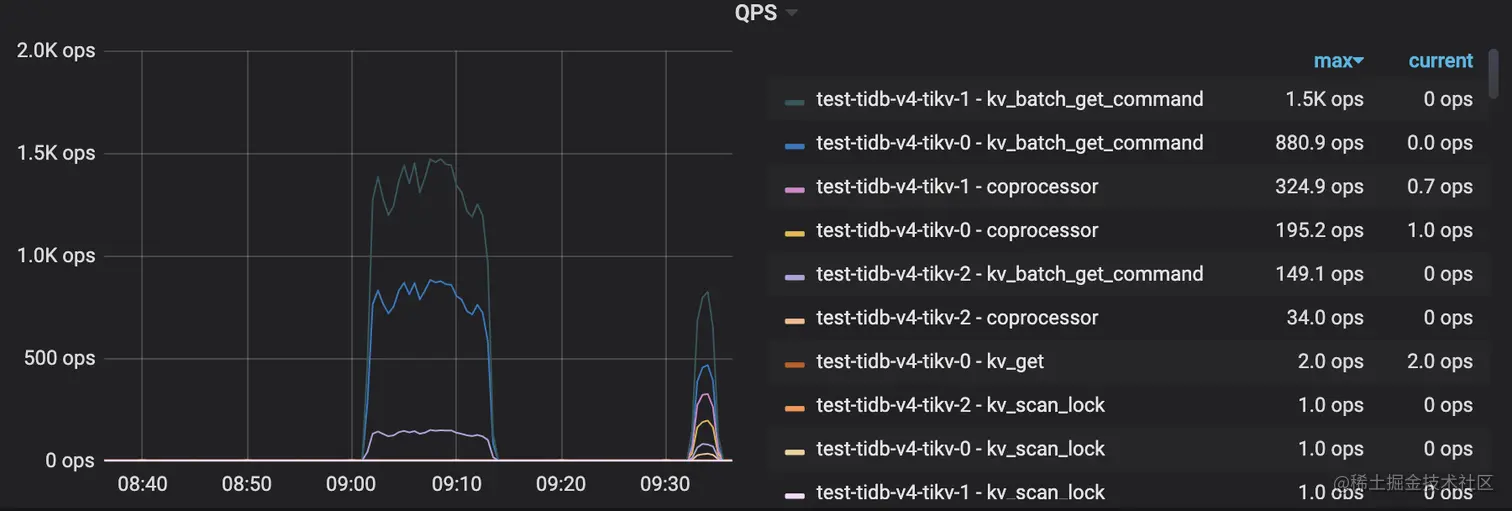

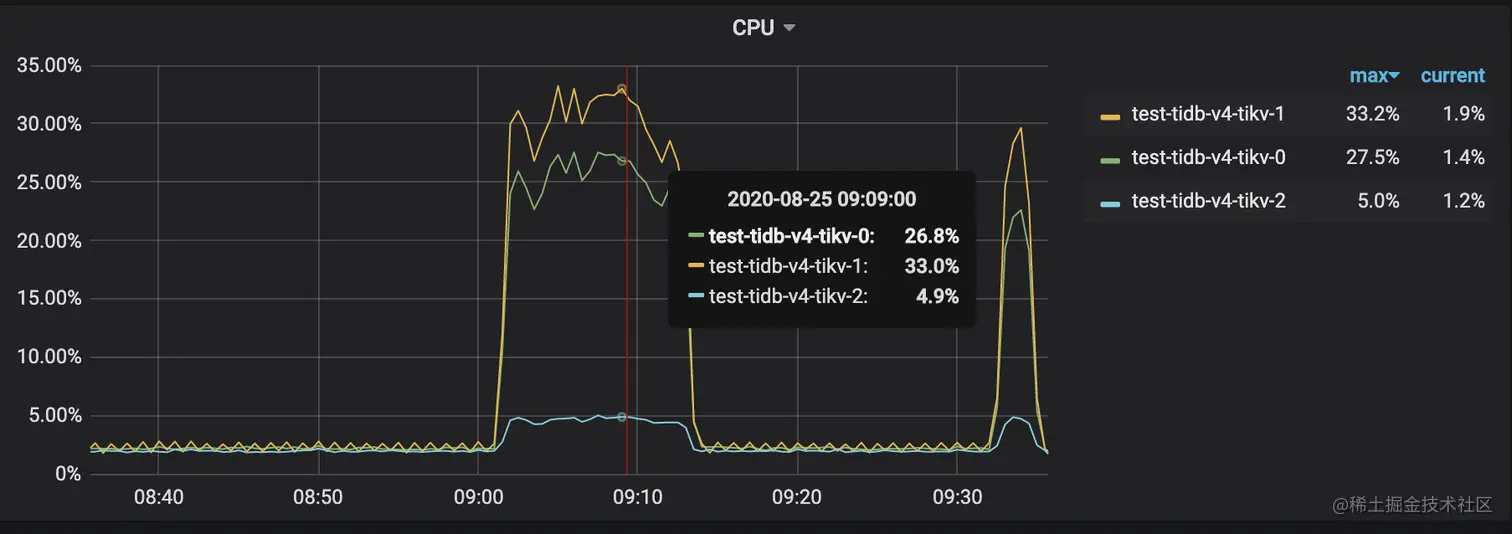

TiKV Details 面板中 Cluster 中各 server 的 CPU 以及 QPS 指标

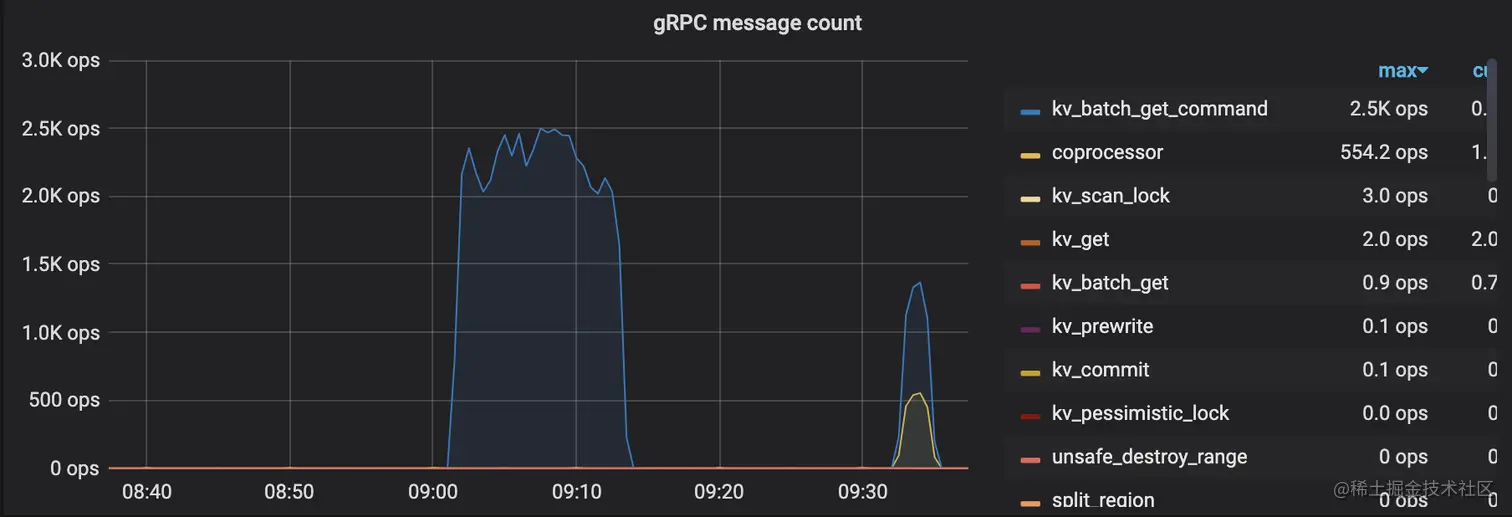

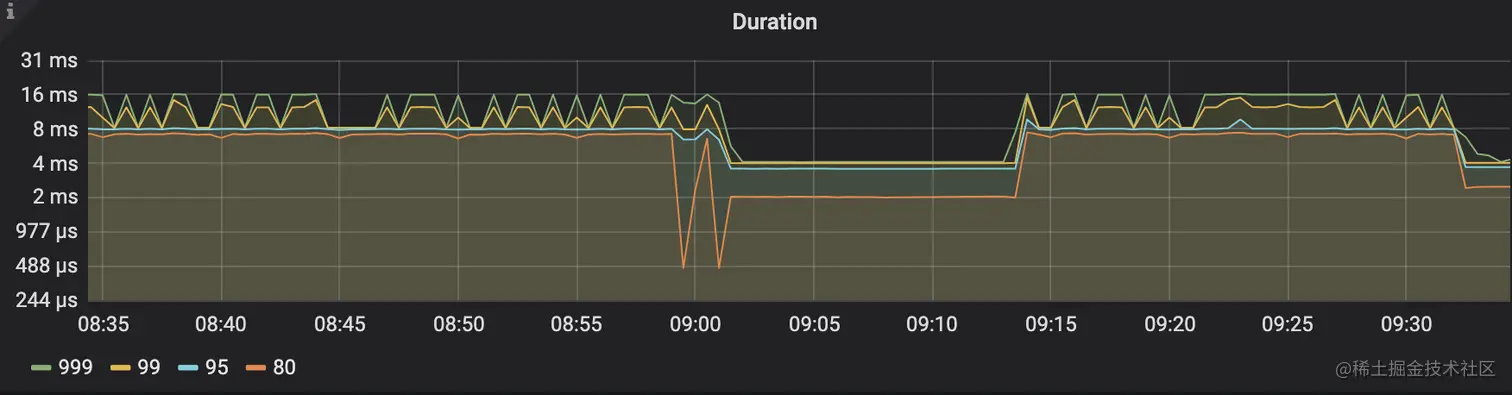

TiKV Details 面板中 grpc 的 qps 以及 duration
性能分析
这块还在学习中，不同场景应该需要使用不同的配置：
- 导数据：开启乐观锁；
- 写多读少：瓶颈可能在Raft线程池及Compaction
