Android硬件加速引起的显存异常增高问题
问题

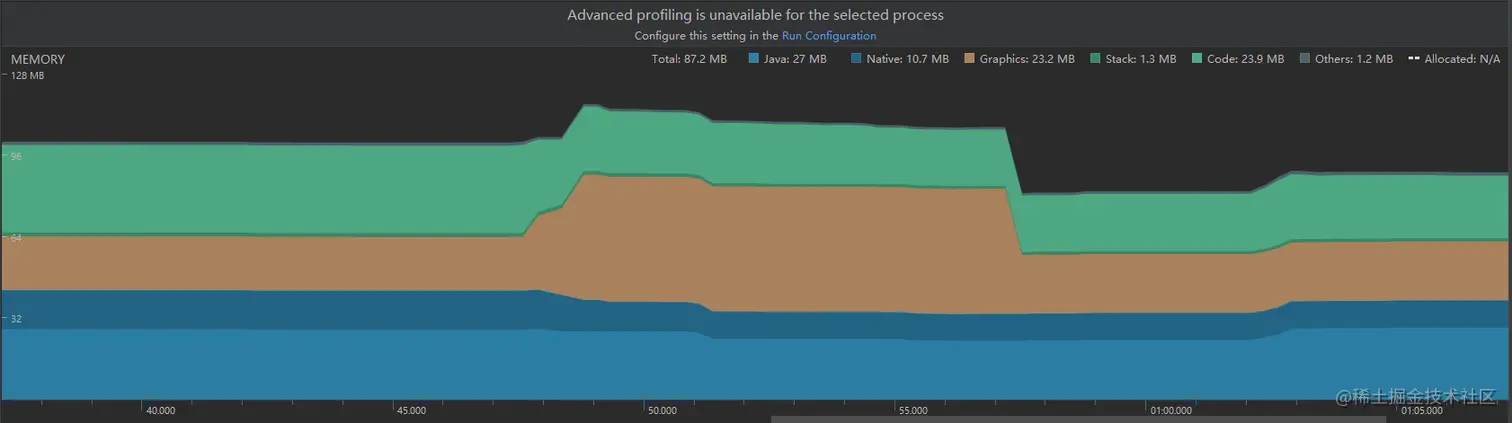

如图所示，这是打开模式切换Dialog时，内存变化的截图，从这个图中可以看到，进入这个Dialog显存的变化分为两个阶段 22MB ~ 34MB 以及 34MB ~ 49MB，第一个阶段是Dialog显示的显存，而第二个阶段则是动画引起的显存变化。
为什么动画消耗的显存会比Dialog显示时的显存要大，而且这部分显存在动画结束之后仍然没有回收？这个似乎跟我们平常的认知不太一样。
原因
经过测试验证，发现这部分显存增长与__硬件加速__有关，并且也与动画中包含__透明度变化__有关，最后在Google的源码中找到了答案：
Promote RenderProperties with an alpha to have a RenderLayer
+ LayerType effectiveLayerType() const {
+ LayerType type = mLayerProperties.mType;
+ if (type == LayerType::None
+ && !MathUtils::isZero(mPrimitiveFields.mAlpha)
+ && mPrimitiveFields.mAlpha < 1
+ && mPrimitiveFields.mHasOverlappingRendering) {
+ return LayerType::RenderLayer;
+ }
+ return type;
+ }
Google在这个commit添加了一个关键更改：即使View设置的 mLayerType 是 LAYER_TYPE_NONE，如果该View是半透明状态的 (0 < mAlpha < 1)，且其 hasOverlappingRendering() 方法返回值是 true (默认为true)，那么也会为该View创建一个 Layer。
回到上面这个问题，当Dialog显示的时候，此时只有一个__Layer__，因此显存增加了 12MB 左右；而当动画启动之后，由于该动画包含有透明度，因此系统为这个View ( 1920x960 ) 也创建了一个__Layer (对应有一个FBO即Frame Buffer Object)__，导致显存再增大 15MB，当然这 15MB 应该还包括动画附带的其他显存消耗。
解决
Google官方后来也发现了类似的问题，因此在原来基础上增加了一些限制:
Revert to save-layer based alpha if layer would be too large
bool promotedToLayer() const {
+ const int maxTextureSize = Caches::getInstance().maxTextureSize;
return mLayerProperties.mType == LayerType::None
&& !MathUtils::isZero(mPrimitiveFields.mAlpha)
&& mPrimitiveFields.mAlpha < 1
- && mPrimitiveFields.mHasOverlappingRendering;
+ && mPrimitiveFields.mHasOverlappingRendering
+ && mPrimitiveFields.mWidth <= maxTextureSize
+ && mPrimitiveFields.mHeight <= maxTextureSize;
}
实际上，就是对layer的大小做了一个限制。这个值应该是大于屏幕尺寸的，因此这个限制对我们并无用处。
当然，从源代码可以看出，我们似乎可以通过覆写View类的 hasOverlappingRendering() 方法来跳过这个逻辑，不妨一试:
这个截图显示的就是覆写 hasOverlappingRendering() 方法之后测试的内存变化趋势，从图中可以看出，从Dialog显示到动画结束的整个过程，显存变化为 22MB ~ 35MB，少了 14MB 左右。
但是 hasOverlappingRendering() 方法并不是可以随便覆写的，我们来看一下 hasOverlappingRendering() 方法的注释：
/**
* This function, intended to be overridden by specific View types, is an optimization when
* alpha is set on a view. If rendering overlaps in a view with alpha < 1, that view is drawn to
* an offscreen buffer and then composited into place, which can be expensive. If the view has
* no overlapping rendering, the view can draw each primitive with the appropriate alpha value
* directly.
*/
@ViewDebug.ExportedProperty(category = "drawing")
public boolean hasOverlappingRendering() {
return true;
}
简而言之，就是 hasOverlappingRendering(...) 这个函数与绘制过程有关：
-
如果函数返回是 true ，那么就会先绘制到 offscreen buffer，然后再计算透明度并绘制到canvas；对于开启硬件加速的时候，这个 offscreen buffer 也许就是layer。
-
而如果函数返回的是false，那么就会分别计算透明度并绘制到canvas中。
以颜色叠加为例，先叠加再计算透明度 与 分别计算透明度再叠加的效果可能是完全不一样。因此我们只能在确认安全的情况下才可以覆写这个方法。
目前来看没有完美的办法可以解决这个问题，能做的只有：当动画涉及透明度的时候，应尽量减小其尺寸(比如分拆)，当然也可以适当考虑覆写 hasOverlappingRendering() 方法。
附注
严格意义上来说这不是个内存泄漏问题，因为虽然这部分显存没有被回收，但是这部分显存是保存在LRU缓存中，可以循环复用的。这部分显存被回收时机包括：
- 页面退出或者不可见的时候
- LRU缓存到达最大值的时候
- 内存资源紧张的时候
附：显存回收(非释放)过程
void RenderNode::deleteDisplayListData() {
if (mDisplayListData) {
for (size_t i = 0; i < mDisplayListData->children().size(); i++) {
mDisplayListData->children()[i]->mRenderNode->decParentRefCount();
}
if (mDisplayListData->functors.size()) {
Caches::getInstance().unregisterFunctors(mDisplayListData->functors.size());
}
}
delete mDisplayListData;
mDisplayListData = nullptr;
}
void RenderNode::decParentRefCount() {
LOG_ALWAYS_FATAL_IF(!mParentCount, "already 0!");
mParentCount--;
if (!mParentCount) {
// If a child of ours is being attached to our parent then this will incorrectly
// destroy its hardware resources. However, this situation is highly unlikely
// and the failure is "just" that the layer is re-created, so this should
// be safe enough
destroyHardwareResources();
}
}
void RenderNode::destroyHardwareResources() {
if (mLayer) {
LayerRenderer::destroyLayer(mLayer);
mLayer = nullptr;
}
if (mDisplayListData) {
for (size_t i = 0; i < mDisplayListData->children().size(); i++) {
mDisplayListData->children()[i]->mRenderNode->destroyHardwareResources();
}
if (mNeedsDisplayListDataSync) {
// Next prepare tree we are going to push a new display list, so we can
// drop our current one now
deleteDisplayListData();
}
}
}
父节点释放子节点引用的时候，即会清除子节点及其子节点的HardwareResources；当然还有另一种情况就是 LayerType 或 尺寸 发生变化并重绘的时候。
void LayerRenderer::destroyLayer(Layer* layer) {
if (layer) {
ATRACE_FORMAT("Destroy %ux%u HW Layer", layer->getWidth(), layer->getHeight());
LAYER_RENDERER_LOGD("Recycling layer, %dx%d fbo = %d",
layer->getWidth(), layer->getHeight(), layer->getFbo());
if (!Caches::getInstance().layerCache.put(layer)) {
LAYER_RENDERER_LOGD(" Destroyed!");
layer->decStrong(nullptr);
} else {
LAYER_RENDERER_LOGD(" Cached!");
#if DEBUG_LAYER_RENDERER
Caches::getInstance().layerCache.dump();
#endif
layer->removeFbo();
layer->region.clear();
}
}
}
系统先尝试将缓存 layer，如果失败了则释放layer资源。
bool LayerCache::put(Layer* layer) {
if (!layer->isCacheable()) return false;
const uint32_t size = layer->getWidth() * layer->getHeight() * 4;
// Don't even try to cache a layer that's bigger than the cache
if (size < mMaxSize) {
// TODO: Use an LRU
while (mSize + size > mMaxSize) {
size_t position = 0;
#if LAYER_REMOVE_BIGGEST_FIRST
position = mCache.size() - 1;
#endif
Layer* victim = mCache.itemAt(position).mLayer;
deleteLayer(victim);
mCache.removeAt(position);
LAYER_LOGD(" Deleting layer %.2fx%.2f", victim->layer.getWidth(),
victim->layer.getHeight());
}
layer->cancelDefer();
LayerEntry entry(layer);
mCache.add(entry);
mSize += size;
layer->state = Layer::kState_InCache;
return true;
}
layer->state = Layer::kState_FailedToCache;
return false;
}
LayerCache首先尝试过滤掉大小超限制的layer，其次再更新LRU缓存，然后缓存该layer。
附：显存复用过程
void RenderNode::pushLayerUpdate(TreeInfo& info) {
LayerType layerType = properties().effectiveLayerType();
// If we are not a layer OR we cannot be rendered (eg, view was detached)
// we need to destroy any Layers we may have had previously
if (CC_LIKELY(layerType != LayerType::RenderLayer) || CC_UNLIKELY(!isRenderable())) {
if (CC_UNLIKELY(mLayer)) {
LayerRenderer::destroyLayer(mLayer);
mLayer = nullptr;
}
return;
}
bool transformUpdateNeeded = false;
if (!mLayer) {
mLayer = LayerRenderer::createRenderLayer(info.renderState, getWidth(), getHeight());
applyLayerPropertiesToLayer(info);
damageSelf(info);
transformUpdateNeeded = true;
} else if (mLayer->layer.getWidth() != getWidth() || mLayer->layer.getHeight() != getHeight()) {
if (!LayerRenderer::resizeLayer(mLayer, getWidth(), getHeight())) {
LayerRenderer::destroyLayer(mLayer);
mLayer = nullptr;
}
damageSelf(info);
transformUpdateNeeded = true;
}
......
}
页面刷新重绘的时候才会真正创建layer，在这里我们也看到如果 LayerType 不支持创建 layer，则会回收原来的 layer，另外对于尺寸不合适的 layer，会尝试重新分配其大小，如果失败了才回收该layer。
Layer* LayerRenderer::createRenderLayer(RenderState& renderState, uint32_t width, uint32_t height) {
ATRACE_FORMAT("Allocate %ux%u HW Layer", width, height);
LAYER_RENDERER_LOGD("Requesting new render layer %dx%d", width, height);
Caches& caches = Caches::getInstance();
GLuint fbo = caches.fboCache.get();
if (!fbo) {
ALOGW("Could not obtain an FBO");
return nullptr;
}
caches.textureState().activateTexture(0);
Layer* layer = caches.layerCache.get(renderState, width, height);
if (!layer) {
ALOGW("Could not obtain a layer");
return nullptr;
}
......
return layer;
}
这里我们看到，系统会优先从LRU缓存中查找有没有合适的layer缓存，如果没有才去创建一个新的layer。
Layer* LayerCache::get(RenderState& renderState, const uint32_t width, const uint32_t height) {
Layer* layer = nullptr;
LayerEntry entry(width, height);
ssize_t index = mCache.indexOf(entry);
if (index >= 0) {
entry = mCache.itemAt(index);
mCache.removeAt(index);
layer = entry.mLayer;
layer->state = Layer::kState_RemovedFromCache;
mSize -= layer->getWidth() * layer->getHeight() * 4;
LAYER_LOGD("Reusing layer %dx%d", layer->getWidth(), layer->getHeight());
} else {
LAYER_LOGD("Creating new layer %dx%d", entry.mWidth, entry.mHeight);
layer = new Layer(Layer::kType_DisplayList, renderState, entry.mWidth, entry.mHeight);
layer->setBlend(true);
layer->generateTexture();
layer->bindTexture();
layer->setFilter(GL_NEAREST);
layer->setWrap(GL_CLAMP_TO_EDGE, false);
glPixelStorei(GL_UNPACK_ALIGNMENT, 4);
#if DEBUG_LAYERS
dump();
#endif
}
return layer;
}
附：显存清除过程
void destroyHardwareResources() {
if (mAttachInfo.mHardwareRenderer != null) {
mAttachInfo.mHardwareRenderer.destroyHardwareResources(mView);
mAttachInfo.mHardwareRenderer.destroy();
}
}
页面退出或者不可见的时候，会调用ViewRootImpl的destroyHardwareResources方法，清除HardwareResources。
@Override
void destroyHardwareResources(View view) {
destroyResources(view);
nDestroyHardwareResources(mNativeProxy);
}
android_view_ThreadedRenderer.cpp
static void android_view_ThreadedRenderer_destroyHardwareResources(JNIEnv* env, jobject clazz,
jlong proxyPtr) {
RenderProxy* proxy = reinterpret_cast<RenderProxy*>(proxyPtr);
proxy->destroyHardwareResources();
}
CREATE_BRIDGE1(destroyHardwareResources, CanvasContext* context) {
args->context->destroyHardwareResources();
return nullptr;
}
void RenderProxy::destroyHardwareResources() {
SETUP_TASK(destroyHardwareResources);
args->context = mContext;
post(task);
}
void CanvasContext::destroyHardwareResources() {
stopDrawing();
if (mEglManager.hasEglContext()) {
freePrefetechedLayers();
mRootRenderNode->destroyHardwareResources();
Caches& caches = Caches::getInstance();
// Make sure to release all the textures we were owning as there won't
// be another draw
caches.textureCache.resetMarkInUse(this);
caches.flush(Caches::kFlushMode_Layers);
}
}
void CanvasContext::trimMemory(RenderThread& thread, int level) {
// No context means nothing to free
if (!thread.eglManager().hasEglContext()) return;
ATRACE_CALL();
if (level >= TRIM_MEMORY_COMPLETE) {
Caches::getInstance().flush(Caches::kFlushMode_Full);
thread.eglManager().destroy();
} else if (level >= TRIM_MEMORY_UI_HIDDEN) {
Caches::getInstance().flush(Caches::kFlushMode_Moderate);
}
}
void Caches::flush(FlushMode mode) {
FLUSH_LOGD("Flushing caches (mode %d)", mode);
switch (mode) {
case kFlushMode_Full:
textureCache.clear();
patchCache.clear();
dropShadowCache.clear();
gradientCache.clear();
fontRenderer->clear();
fboCache.clear();
dither.clear();
// fall through
case kFlushMode_Moderate:
fontRenderer->flush();
textureCache.flush();
pathCache.clear();
tessellationCache.clear();
// fall through
case kFlushMode_Layers:
layerCache.clear();
renderBufferCache.clear();
break;
}
clearGarbage();
glFinish();
// Errors during cleanup should be considered non-fatal, dump them and
// and move on. TODO: All errors or just errors like bad surface?
GLUtils::dumpGLErrors();
}
