源码
cmd/kube-apiserver/apiserver.go 中
func main() {
...
command := app.NewAPIServerCommand()
...
if err := command.Execute(); err != nil {
os.Exit(1)
}
}
cmd/kube-apiserver/app/server.go 中
func NewAPIServerCommand() *cobra.Command {
s := options.NewServerRunOptions()
cmd := &cobra.Command{
...
RunE: func(cmd *cobra.Command, args []string) error {
...
completedOptions, err := Complete(s)
if err != nil {
return err
}
...
return Run(completedOptions, genericapiserver.SetupSignalHandler())
},
...
}
...
}

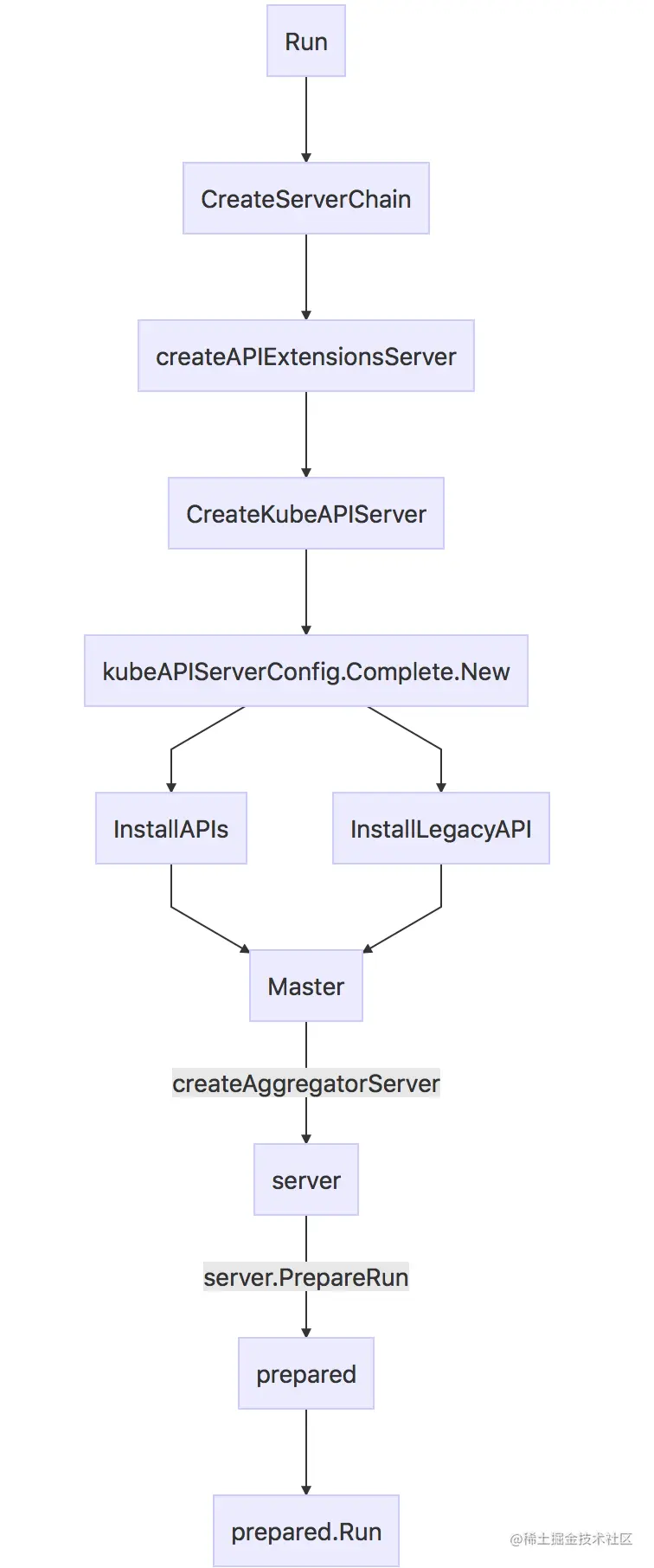

func Run(completeOptions completedServerRunOptions, stopCh <-chan struct{}) error {
server, err := CreateServerChain(completeOptions, stopCh)
if err != nil {
return err
}
prepared, err := server.PrepareRun()
if err != nil {
return err
}
return prepared.Run(stopCh)
}
func CreateServerChain(completedOptions completedServerRunOptions, stopCh <-chan struct{}) (*aggregatorapiserver.APIAggregator, error) {
nodeTunneler, proxyTransport, err := CreateNodeDialer(completedOptions)
if err != nil {
return nil, err
}
kubeAPIServerConfig, insecureServingInfo, serviceResolver, pluginInitializer, err := CreateKubeAPIServerConfig(completedOptions, nodeTunneler, proxyTransport)
if err != nil {
return nil, err
}
apiExtensionsConfig, err := createAPIExtensionsConfig(*kubeAPIServerConfig.GenericConfig, kubeAPIServerConfig.ExtraConfig.VersionedInformers, pluginInitializer, completedOptions.ServerRunOptions, completedOptions.MasterCount,
serviceResolver, webhook.NewDefaultAuthenticationInfoResolverWrapper(proxyTransport, kubeAPIServerConfig.GenericConfig.EgressSelector, kubeAPIServerConfig.GenericConfig.LoopbackClientConfig))
if err != nil {
return nil, err
}
apiExtensionsServer, err := createAPIExtensionsServer(apiExtensionsConfig, genericapiserver.NewEmptyDelegate())
if err != nil {
return nil, err
}
kubeAPIServer, err := CreateKubeAPIServer(kubeAPIServerConfig, apiExtensionsServer.GenericAPIServer)
if err != nil {
return nil, err
}
aggregatorConfig, err := createAggregatorConfig(*kubeAPIServerConfig.GenericConfig, completedOptions.ServerRunOptions, kubeAPIServerConfig.ExtraConfig.VersionedInformers, serviceResolver, proxyTransport, pluginInitializer)
if err != nil {
return nil, err
}
aggregatorServer, err := createAggregatorServer(aggregatorConfig, kubeAPIServer.GenericAPIServer, apiExtensionsServer.Informers)
if err != nil {
return nil, err
}
if insecureServingInfo != nil {
insecureHandlerChain := kubeserver.BuildInsecureHandlerChain(aggregatorServer.GenericAPIServer.UnprotectedHandler(), kubeAPIServerConfig.GenericConfig)
if err := insecureServingInfo.Serve(insecureHandlerChain, kubeAPIServerConfig.GenericConfig.RequestTimeout, stopCh); err != nil {
return nil, err
}
}
return aggregatorServer, nil
}
func CreateKubeAPIServer(kubeAPIServerConfig *master.Config, delegateAPIServer genericapiserver.DelegationTarget) (*master.Master, error) {
kubeAPIServer, err := kubeAPIServerConfig.Complete().New(delegateAPIServer)
if err != nil {
return nil, err
}
return kubeAPIServer, nil
}
pkg/master/master.go 中
func (c *Config) Complete() CompletedConfig {
cfg := completedConfig{
c.GenericConfig.Complete(c.ExtraConfig.VersionedInformers),
&c.ExtraConfig,
}
...
return CompletedConfig{&cfg}
}
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Master, error) {
...
s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
if err != nil {
return nil, err
}
if c.ExtraConfig.EnableLogsSupport {
routes.Logs{}.Install(s.Handler.GoRestfulContainer)
}
...
m := &Master{
GenericAPIServer: s,
ClusterAuthenticationInfo: c.ExtraConfig.ClusterAuthenticationInfo,
}
if c.ExtraConfig.APIResourceConfigSource.VersionEnabled(apiv1.SchemeGroupVersion) {
legacyRESTStorageProvider := corerest.LegacyRESTStorageProvider{
StorageFactory: c.ExtraConfig.StorageFactory,
ProxyTransport: c.ExtraConfig.ProxyTransport,
KubeletClientConfig: c.ExtraConfig.KubeletClientConfig,
EventTTL: c.ExtraConfig.EventTTL,
ServiceIPRange: c.ExtraConfig.ServiceIPRange,
SecondaryServiceIPRange: c.ExtraConfig.SecondaryServiceIPRange,
ServiceNodePortRange: c.ExtraConfig.ServiceNodePortRange,
LoopbackClientConfig: c.GenericConfig.LoopbackClientConfig,
ServiceAccountIssuer: c.ExtraConfig.ServiceAccountIssuer,
ExtendExpiration: c.ExtraConfig.ExtendExpiration,
ServiceAccountMaxExpiration: c.ExtraConfig.ServiceAccountMaxExpiration,
APIAudiences: c.GenericConfig.Authentication.APIAudiences,
}
if err := m.InstallLegacyAPI(&c, c.GenericConfig.RESTOptionsGetter, legacyRESTStorageProvider); err != nil {
return nil, err
}
}
...
restStorageProviders := []RESTStorageProvider{
authenticationrest.RESTStorageProvider{Authenticator: c.GenericConfig.Authentication.Authenticator, APIAudiences: c.GenericConfig.Authentication.APIAudiences},
authorizationrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer, RuleResolver: c.GenericConfig.RuleResolver},
autoscalingrest.RESTStorageProvider{},
batchrest.RESTStorageProvider{},
certificatesrest.RESTStorageProvider{},
coordinationrest.RESTStorageProvider{},
discoveryrest.StorageProvider{},
extensionsrest.RESTStorageProvider{},
networkingrest.RESTStorageProvider{},
noderest.RESTStorageProvider{},
policyrest.RESTStorageProvider{},
rbacrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer},
schedulingrest.RESTStorageProvider{},
settingsrest.RESTStorageProvider{},
storagerest.RESTStorageProvider{},
flowcontrolrest.RESTStorageProvider{},
appsrest.StorageProvider{},
admissionregistrationrest.RESTStorageProvider{},
eventsrest.RESTStorageProvider{TTL: c.ExtraConfig.EventTTL},
}
if err := m.InstallAPIs(c.ExtraConfig.APIResourceConfigSource, c.GenericConfig.RESTOptionsGetter, restStorageProviders...); err != nil {
return nil, err
}
...
return m, nil
}
func (m *Master) InstallAPIs(apiResourceConfigSource serverstorage.APIResourceConfigSource, restOptionsGetter generic.RESTOptionsGetter, restStorageProviders ...RESTStorageProvider) error {
apiGroupsInfo := []*genericapiserver.APIGroupInfo{}
for _, restStorageBuilder := range restStorageProviders {
groupName := restStorageBuilder.GroupName()
if !apiResourceConfigSource.AnyVersionForGroupEnabled(groupName) {
continue
}
apiGroupInfo, enabled, err := restStorageBuilder.NewRESTStorage(apiResourceConfigSource, restOptionsGetter)
if err != nil {
return fmt.Errorf("problem initializing API group %q : %v", groupName, err)
}
if !enabled {
klog.Warningf("API group %q is not enabled, skipping.", groupName)
continue
}
apiGroupsInfo = append(apiGroupsInfo, &apiGroupInfo)
}
if err := m.GenericAPIServer.InstallAPIGroups(apiGroupsInfo...); err != nil {
return fmt.Errorf("error in registering group versions: %v", err)
}
return nil
}
func (m *Master) InstallLegacyAPI(c *completedConfig, restOptionsGetter generic.RESTOptionsGetter, legacyRESTStorageProvider corerest.LegacyRESTStorageProvider) error {
legacyRESTStorage, apiGroupInfo, err := legacyRESTStorageProvider.NewLegacyRESTStorage(restOptionsGetter)
if err != nil {
return fmt.Errorf("error building core storage: %v", err)
}
controllerName := "bootstrap-controller"
coreClient := corev1client.NewForConfigOrDie(c.GenericConfig.LoopbackClientConfig)
bootstrapController := c.NewBootstrapController(legacyRESTStorage, coreClient, coreClient, coreClient, coreClient.RESTClient())
m.GenericAPIServer.AddPostStartHookOrDie(controllerName, bootstrapController.PostStartHook)
m.GenericAPIServer.AddPreShutdownHookOrDie(controllerName, bootstrapController.PreShutdownHook)
if err := m.GenericAPIServer.InstallLegacyAPIGroup(genericapiserver.DefaultLegacyAPIPrefix, &apiGroupInfo); err != nil {
return fmt.Errorf("error in registering group versions: %v", err)
}
return nil
}
k8s.io/apiserver/pkg/server/genericapiserver.go 中
func (s *GenericAPIServer) InstallLegacyAPIGroup(apiPrefix string, apiGroupInfo *APIGroupInfo) error {
if !s.legacyAPIGroupPrefixes.Has(apiPrefix) {
return fmt.Errorf("%q is not in the allowed legacy API prefixes: %v", apiPrefix, s.legacyAPIGroupPrefixes.List())
}
openAPIModels, err := s.getOpenAPIModels(apiPrefix, apiGroupInfo)
if err != nil {
return fmt.Errorf("unable to get openapi models: %v", err)
}
if err := s.installAPIResources(apiPrefix, apiGroupInfo, openAPIModels); err != nil {
return err
}
s.Handler.GoRestfulContainer.Add(discovery.NewLegacyRootAPIHandler(s.discoveryAddresses, s.Serializer, apiPrefix).WebService())
return nil
}
func (s *GenericAPIServer) installAPIResources(apiPrefix string, apiGroupInfo *APIGroupInfo, openAPIModels openapiproto.Models) error {
for _, groupVersion := range apiGroupInfo.PrioritizedVersions {
if len(apiGroupInfo.VersionedResourcesStorageMap[groupVersion.Version]) == 0 {
continue
}
apiGroupVersion := s.getAPIGroupVersion(apiGroupInfo, groupVersion, apiPrefix)
if apiGroupInfo.OptionsExternalVersion != nil {
apiGroupVersion.OptionsExternalVersion = apiGroupInfo.OptionsExternalVersion
}
apiGroupVersion.OpenAPIModels = openAPIModels
apiGroupVersion.MaxRequestBodyBytes = s.maxRequestBodyBytes
if err := apiGroupVersion.InstallREST(s.Handler.GoRestfulContainer); err != nil {
return fmt.Errorf("unable to setup API %v: %v", apiGroupInfo, err)
}
}
return nil
}
k8s.io/apiserver/pkg/endpoints/groupversion.go 中
func (g *APIGroupVersion) InstallREST(container *restful.Container) error {
prefix := path.Join(g.Root, g.GroupVersion.Group, g.GroupVersion.Version)
installer := &APIInstaller{
group: g,
prefix: prefix,
minRequestTimeout: g.MinRequestTimeout,
}
apiResources, ws, registrationErrors := installer.Install()
versionDiscoveryHandler := discovery.NewAPIVersionHandler(g.Serializer, g.GroupVersion, staticLister{apiResources})
versionDiscoveryHandler.AddToWebService(ws)
container.Add(ws)
return utilerrors.NewAggregate(registrationErrors)
}
k8s.io/apiserver/pkg/endpoints/installer.go 中
func (a *APIInstaller) Install() ([]metav1.APIResource, *restful.WebService, []error) {
var apiResources []metav1.APIResource
var errors []error
ws := a.newWebService()
paths := make([]string, len(a.group.Storage))
var i int = 0
for path := range a.group.Storage {
paths[i] = path
i++
}
sort.Strings(paths)
for _, path := range paths {
apiResource, err := a.registerResourceHandlers(path, a.group.Storage[path], ws)
if err != nil {
errors = append(errors, fmt.Errorf("error in registering resource: %s, %v", path, err))
}
if apiResource != nil {
apiResources = append(apiResources, *apiResource)
}
}
return apiResources, ws, errors
}
func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, error) {
...
creater, isCreater := storage.(rest.Creater)
...
case "POST": // Create a resource.
var handler restful.RouteFunction
if isNamedCreater {
handler = restfulCreateNamedResource(namedCreater, reqScope, admit)
} else {
handler = restfulCreateResource(creater, reqScope, admit)
}
handler = metrics.InstrumentRouteFunc(action.Verb, group, version, resource, subresource, requestScope, metrics.APIServerComponent, deprecated, removedRelease, handler)
if enableWarningHeaders {
handler = utilwarning.AddWarningsHandler(handler, warnings)
}
article := GetArticleForNoun(kind, " ")
doc := "create" + article + kind
if isSubresource {
doc = "create " + subresource + " of" + article + kind
}
route := ws.POST(action.Path).To(handler).
Doc(doc).
Param(ws.QueryParameter("pretty", "If 'true', then the output is pretty printed.")).
Operation("create"+namespaced+kind+strings.Title(subresource)+operationSuffix).
Produces(append(storageMeta.ProducesMIMETypes(action.Verb), mediaTypes...)...).
Returns(http.StatusOK, "OK", producedObject).
// TODO: in some cases, the API may return a v1.Status instead of the versioned object
// but currently go-restful can't handle multiple different objects being returned.
Returns(http.StatusCreated, "Created", producedObject).
Returns(http.StatusAccepted, "Accepted", producedObject).
Reads(defaultVersionedObject).
Writes(producedObject)
if err := AddObjectParams(ws, route, versionedCreateOptions); err != nil {
return nil, err
}
addParams(route, action.Params)
routes = append(routes, route)
for _, route := range routes {
route.Metadata(ROUTE_META_GVK, metav1.GroupVersionKind{
Group: reqScope.Kind.Group,
Version: reqScope.Kind.Version,
Kind: reqScope.Kind.Kind,
})
route.Metadata(ROUTE_META_ACTION, strings.ToLower(action.Verb))
ws.Route(route)
}
...
}
func restfulCreateResource(r rest.Creater, scope handlers.RequestScope, admit admission.Interface) restful.RouteFunction {
return func(req *restful.Request, res *restful.Response) {
handlers.CreateResource(r, &scope, admit)(res.ResponseWriter, req.Request)
}
}
pkg/registry/core/rest/storage_core.go 中
func (c LegacyRESTStorageProvider) NewLegacyRESTStorage(restOptionsGetter generic.RESTOptionsGetter) (LegacyRESTStorage, genericapiserver.APIGroupInfo, error) {
apiGroupInfo := genericapiserver.APIGroupInfo{
PrioritizedVersions: legacyscheme.Scheme.PrioritizedVersionsForGroup(""),
VersionedResourcesStorageMap: map[string]map[string]rest.Storage{},
Scheme: legacyscheme.Scheme,
ParameterCodec: legacyscheme.ParameterCodec,
NegotiatedSerializer: legacyscheme.Codecs,
}
var podDisruptionClient policyclient.PodDisruptionBudgetsGetter
if policyGroupVersion := (schema.GroupVersion{Group: "policy", Version: "v1beta1"}); legacyscheme.Scheme.IsVersionRegistered(policyGroupVersion) {
var err error
podDisruptionClient, err = policyclient.NewForConfig(c.LoopbackClientConfig)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
}
restStorage := LegacyRESTStorage{}
podTemplateStorage, err := podtemplatestore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
eventStorage, err := eventstore.NewREST(restOptionsGetter, uint64(c.EventTTL.Seconds()))
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
limitRangeStorage, err := limitrangestore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
resourceQuotaStorage, resourceQuotaStatusStorage, err := resourcequotastore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
secretStorage, err := secretstore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
persistentVolumeStorage, persistentVolumeStatusStorage, err := pvstore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
persistentVolumeClaimStorage, persistentVolumeClaimStatusStorage, err := pvcstore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
configMapStorage, err := configmapstore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
namespaceStorage, namespaceStatusStorage, namespaceFinalizeStorage, err := namespacestore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
endpointsStorage, err := endpointsstore.NewREST(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
nodeStorage, err := nodestore.NewStorage(restOptionsGetter, c.KubeletClientConfig, c.ProxyTransport)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
podStorage, err := podstore.NewStorage(
restOptionsGetter,
nodeStorage.KubeletConnectionInfo,
c.ProxyTransport,
podDisruptionClient,
)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
var serviceAccountStorage *serviceaccountstore.REST
if c.ServiceAccountIssuer != nil && utilfeature.DefaultFeatureGate.Enabled(features.TokenRequest) {
serviceAccountStorage, err = serviceaccountstore.NewREST(restOptionsGetter, c.ServiceAccountIssuer, c.APIAudiences, c.ServiceAccountMaxExpiration, podStorage.Pod.Store, secretStorage.Store, c.ExtendExpiration)
} else {
serviceAccountStorage, err = serviceaccountstore.NewREST(restOptionsGetter, nil, nil, 0, nil, nil, false)
}
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
var serviceClusterIPRegistry rangeallocation.RangeRegistry
serviceClusterIPRange := c.ServiceIPRange
if serviceClusterIPRange.IP == nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, fmt.Errorf("service clusterIPRange is missing")
}
serviceStorageConfig, err := c.StorageFactory.NewConfig(api.Resource("services"))
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
serviceClusterIPAllocator, err := ipallocator.NewAllocatorCIDRRange(&serviceClusterIPRange, func(max int, rangeSpec string) (allocator.Interface, error) {
mem := allocator.NewAllocationMap(max, rangeSpec)
// TODO etcdallocator package to return a storage interface via the storageFactory
etcd, err := serviceallocator.NewEtcd(mem, "/ranges/serviceips", api.Resource("serviceipallocations"), serviceStorageConfig)
if err != nil {
return nil, err
}
serviceClusterIPRegistry = etcd
return etcd, nil
})
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, fmt.Errorf("cannot create cluster IP allocator: %v", err)
}
restStorage.ServiceClusterIPAllocator = serviceClusterIPRegistry
// allocator for secondary service ip range
var secondaryServiceClusterIPAllocator ipallocator.Interface
if utilfeature.DefaultFeatureGate.Enabled(features.IPv6DualStack) && c.SecondaryServiceIPRange.IP != nil {
var secondaryServiceClusterIPRegistry rangeallocation.RangeRegistry
secondaryServiceClusterIPAllocator, err = ipallocator.NewAllocatorCIDRRange(&c.SecondaryServiceIPRange, func(max int, rangeSpec string) (allocator.Interface, error) {
mem := allocator.NewAllocationMap(max, rangeSpec)
// TODO etcdallocator package to return a storage interface via the storageFactory
etcd, err := serviceallocator.NewEtcd(mem, "/ranges/secondaryserviceips", api.Resource("serviceipallocations"), serviceStorageConfig)
if err != nil {
return nil, err
}
secondaryServiceClusterIPRegistry = etcd
return etcd, nil
})
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, fmt.Errorf("cannot create cluster secondary IP allocator: %v", err)
}
restStorage.SecondaryServiceClusterIPAllocator = secondaryServiceClusterIPRegistry
}
var serviceNodePortRegistry rangeallocation.RangeRegistry
serviceNodePortAllocator, err := portallocator.NewPortAllocatorCustom(c.ServiceNodePortRange, func(max int, rangeSpec string) (allocator.Interface, error) {
mem := allocator.NewAllocationMap(max, rangeSpec)
// TODO etcdallocator package to return a storage interface via the storageFactory
etcd, err := serviceallocator.NewEtcd(mem, "/ranges/servicenodeports", api.Resource("servicenodeportallocations"), serviceStorageConfig)
if err != nil {
return nil, err
}
serviceNodePortRegistry = etcd
return etcd, nil
})
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, fmt.Errorf("cannot create cluster port allocator: %v", err)
}
restStorage.ServiceNodePortAllocator = serviceNodePortRegistry
controllerStorage, err := controllerstore.NewStorage(restOptionsGetter)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
serviceRESTStorage, serviceStatusStorage, err := servicestore.NewGenericREST(restOptionsGetter, serviceClusterIPRange, secondaryServiceClusterIPAllocator != nil)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
serviceRest, serviceRestProxy := servicestore.NewREST(serviceRESTStorage,
endpointsStorage,
podStorage.Pod,
serviceClusterIPAllocator,
secondaryServiceClusterIPAllocator,
serviceNodePortAllocator,
c.ProxyTransport)
restStorageMap := map[string]rest.Storage{
"pods": podStorage.Pod,
"pods/attach": podStorage.Attach,
"pods/status": podStorage.Status,
"pods/log": podStorage.Log,
"pods/exec": podStorage.Exec,
"pods/portforward": podStorage.PortForward,
"pods/proxy": podStorage.Proxy,
"pods/binding": podStorage.Binding,
"bindings": podStorage.LegacyBinding,
"podTemplates": podTemplateStorage,
"replicationControllers": controllerStorage.Controller,
"replicationControllers/status": controllerStorage.Status,
"services": serviceRest,
"services/proxy": serviceRestProxy,
"services/status": serviceStatusStorage,
"endpoints": endpointsStorage,
"nodes": nodeStorage.Node,
"nodes/status": nodeStorage.Status,
"nodes/proxy": nodeStorage.Proxy,
"events": eventStorage,
"limitRanges": limitRangeStorage,
"resourceQuotas": resourceQuotaStorage,
"resourceQuotas/status": resourceQuotaStatusStorage,
"namespaces": namespaceStorage,
"namespaces/status": namespaceStatusStorage,
"namespaces/finalize": namespaceFinalizeStorage,
"secrets": secretStorage,
"serviceAccounts": serviceAccountStorage,
"persistentVolumes": persistentVolumeStorage,
"persistentVolumes/status": persistentVolumeStatusStorage,
"persistentVolumeClaims": persistentVolumeClaimStorage,
"persistentVolumeClaims/status": persistentVolumeClaimStatusStorage,
"configMaps": configMapStorage,
"componentStatuses": componentstatus.NewStorage(componentStatusStorage{c.StorageFactory}.serversToValidate),
}
if legacyscheme.Scheme.IsVersionRegistered(schema.GroupVersion{Group: "autoscaling", Version: "v1"}) {
restStorageMap["replicationControllers/scale"] = controllerStorage.Scale
}
if legacyscheme.Scheme.IsVersionRegistered(schema.GroupVersion{Group: "policy", Version: "v1beta1"}) {
restStorageMap["pods/eviction"] = podStorage.Eviction
}
if serviceAccountStorage.Token != nil {
restStorageMap["serviceaccounts/token"] = serviceAccountStorage.Token
}
if utilfeature.DefaultFeatureGate.Enabled(features.EphemeralContainers) {
restStorageMap["pods/ephemeralcontainers"] = podStorage.EphemeralContainers
}
apiGroupInfo.VersionedResourcesStorageMap["v1"] = restStorageMap
return restStorage, apiGroupInfo, nil
}
k8s.io/apiserver/pkg/endpoints/handlers/create.go 中
func CreateResource(r rest.Creater, scope *RequestScope, admission admission.Interface) http.HandlerFunc {
return createHandler(&namedCreaterAdapter{r}, scope, admission, false)
}
func createHandler(r rest.NamedCreater, scope *RequestScope, admit admission.Interface, includeName bool) http.HandlerFunc {
return func(w http.ResponseWriter, req *http.Request) {
// For performance tracking purposes.
trace := utiltrace.New("Create", utiltrace.Field{Key: "url", Value: req.URL.Path}, utiltrace.Field{Key: "user-agent", Value: &lazyTruncatedUserAgent{req}}, utiltrace.Field{Key: "client", Value: &lazyClientIP{req}})
defer trace.LogIfLong(500 * time.Millisecond)
if isDryRun(req.URL) && !utilfeature.DefaultFeatureGate.Enabled(features.DryRun) {
scope.err(errors.NewBadRequest("the dryRun feature is disabled"), w, req)
return
}
// TODO: we either want to remove timeout or document it (if we document, move timeout out of this function and declare it in api_installer)
timeout := parseTimeout(req.URL.Query().Get("timeout"))
namespace, name, err := scope.Namer.Name(req)
if err != nil {
if includeName {
// name was required, return
scope.err(err, w, req)
return
}
// otherwise attempt to look up the namespace
namespace, err = scope.Namer.Namespace(req)
if err != nil {
scope.err(err, w, req)
return
}
}
ctx, cancel := context.WithTimeout(req.Context(), timeout)
defer cancel()
ctx = request.WithNamespace(ctx, namespace)
outputMediaType, _, err := negotiation.NegotiateOutputMediaType(req, scope.Serializer, scope)
if err != nil {
scope.err(err, w, req)
return
}
gv := scope.Kind.GroupVersion()
s, err := negotiation.NegotiateInputSerializer(req, false, scope.Serializer)
if err != nil {
scope.err(err, w, req)
return
}
decoder := scope.Serializer.DecoderToVersion(s.Serializer, scope.HubGroupVersion)
body, err := limitedReadBody(req, scope.MaxRequestBodyBytes)
if err != nil {
scope.err(err, w, req)
return
}
options := &metav1.CreateOptions{}
values := req.URL.Query()
if err := metainternalversionscheme.ParameterCodec.DecodeParameters(values, scope.MetaGroupVersion, options); err != nil {
err = errors.NewBadRequest(err.Error())
scope.err(err, w, req)
return
}
if errs := validation.ValidateCreateOptions(options); len(errs) > 0 {
err := errors.NewInvalid(schema.GroupKind{Group: metav1.GroupName, Kind: "CreateOptions"}, "", errs)
scope.err(err, w, req)
return
}
options.TypeMeta.SetGroupVersionKind(metav1.SchemeGroupVersion.WithKind("CreateOptions"))
defaultGVK := scope.Kind
original := r.New()
trace.Step("About to convert to expected version")
obj, gvk, err := decoder.Decode(body, &defaultGVK, original)
if err != nil {
err = transformDecodeError(scope.Typer, err, original, gvk, body)
scope.err(err, w, req)
return
}
if gvk.GroupVersion() != gv {
err = errors.NewBadRequest(fmt.Sprintf("the API version in the data (%s) does not match the expected API version (%v)", gvk.GroupVersion().String(), gv.String()))
scope.err(err, w, req)
return
}
trace.Step("Conversion done")
ae := request.AuditEventFrom(ctx)
admit = admission.WithAudit(admit, ae)
audit.LogRequestObject(ae, obj, scope.Resource, scope.Subresource, scope.Serializer)
userInfo, _ := request.UserFrom(ctx)
// On create, get name from new object if unset
if len(name) == 0 {
_, name, _ = scope.Namer.ObjectName(obj)
}
trace.Step("About to store object in database")
admissionAttributes := admission.NewAttributesRecord(obj, nil, scope.Kind, namespace, name, scope.Resource, scope.Subresource, admission.Create, options, dryrun.IsDryRun(options.DryRun), userInfo)
requestFunc := func() (runtime.Object, error) {
return r.Create(
ctx,
name,
obj,
rest.AdmissionToValidateObjectFunc(admit, admissionAttributes, scope),
options,
)
}
result, err := finishRequest(timeout, func() (runtime.Object, error) {
if scope.FieldManager != nil {
liveObj, err := scope.Creater.New(scope.Kind)
if err != nil {
return nil, fmt.Errorf("failed to create new object (Create for %v): %v", scope.Kind, err)
}
obj = scope.FieldManager.UpdateNoErrors(liveObj, obj, managerOrUserAgent(options.FieldManager, req.UserAgent()))
}
if mutatingAdmission, ok := admit.(admission.MutationInterface); ok && mutatingAdmission.Handles(admission.Create) {
if err := mutatingAdmission.Admit(ctx, admissionAttributes, scope); err != nil {
return nil, err
}
}
result, err := requestFunc()
// If the object wasn't committed to storage because it's serialized size was too large,
// it is safe to remove managedFields (which can be large) and try again.
if isTooLargeError(err) {
if accessor, accessorErr := meta.Accessor(obj); accessorErr == nil {
accessor.SetManagedFields(nil)
result, err = requestFunc()
}
}
return result, err
})
if err != nil {
scope.err(err, w, req)
return
}
trace.Step("Object stored in database")
code := http.StatusCreated
status, ok := result.(*metav1.Status)
if ok && err == nil && status.Code == 0 {
status.Code = int32(code)
}
transformResponseObject(ctx, scope, trace, req, w, code, outputMediaType, result)
}
}
pkg/registry/core/pod/storage/storage.go中
func NewStorage(optsGetter generic.RESTOptionsGetter, k client.ConnectionInfoGetter, proxyTransport http.RoundTripper, podDisruptionBudgetClient policyclient.PodDisruptionBudgetsGetter) (PodStorage, error) {
store := &genericregistry.Store{
NewFunc: func() runtime.Object { return &api.Pod{} },
NewListFunc: func() runtime.Object { return &api.PodList{} },
PredicateFunc: registrypod.MatchPod,
DefaultQualifiedResource: api.Resource("pods"),
CreateStrategy: registrypod.Strategy,
UpdateStrategy: registrypod.Strategy,
DeleteStrategy: registrypod.Strategy,
ReturnDeletedObject: true,
TableConvertor: printerstorage.TableConvertor{TableGenerator: printers.NewTableGenerator().With(printersinternal.AddHandlers)},
}
options := &generic.StoreOptions{
RESTOptions: optsGetter,
AttrFunc: registrypod.GetAttrs,
TriggerFunc: map[string]storage.IndexerFunc{"spec.nodeName": registrypod.NodeNameTriggerFunc},
Indexers: registrypod.Indexers(),
}
if err := store.CompleteWithOptions(options); err != nil {
return PodStorage{}, err
}
statusStore := *store
statusStore.UpdateStrategy = registrypod.StatusStrategy
ephemeralContainersStore := *store
ephemeralContainersStore.UpdateStrategy = registrypod.EphemeralContainersStrategy
bindingREST := &BindingREST{store: store}
return PodStorage{
Pod: &REST{store, proxyTransport},
Binding: &BindingREST{store: store},
LegacyBinding: &LegacyBindingREST{bindingREST},
Eviction: newEvictionStorage(store, podDisruptionBudgetClient),
Status: &StatusREST{store: &statusStore},
EphemeralContainers: &EphemeralContainersREST{store: &ephemeralContainersStore},
Log: &podrest.LogREST{Store: store, KubeletConn: k},
Proxy: &podrest.ProxyREST{Store: store, ProxyTransport: proxyTransport},
Exec: &podrest.ExecREST{Store: store, KubeletConn: k},
Attach: &podrest.AttachREST{Store: store, KubeletConn: k},
PortForward: &podrest.PortForwardREST{Store: store, KubeletConn: k},
}, nil
}
k8s.io/apiserver/pkg/registry/generic/registry/store.go中
func (e *Store) CompleteWithOptions(options *generic.StoreOptions) error {
if e.DefaultQualifiedResource.Empty() {
return fmt.Errorf("store %#v must have a non-empty qualified resource", e)
}
if e.NewFunc == nil {
return fmt.Errorf("store for %s must have NewFunc set", e.DefaultQualifiedResource.String())
}
if e.NewListFunc == nil {
return fmt.Errorf("store for %s must have NewListFunc set", e.DefaultQualifiedResource.String())
}
if (e.KeyRootFunc == nil) != (e.KeyFunc == nil) {
return fmt.Errorf("store for %s must set both KeyRootFunc and KeyFunc or neither", e.DefaultQualifiedResource.String())
}
if e.TableConvertor == nil {
return fmt.Errorf("store for %s must set TableConvertor; rest.NewDefaultTableConvertor(e.DefaultQualifiedResource) can be used to output just name/creation time", e.DefaultQualifiedResource.String())
}
var isNamespaced bool
switch {
case e.CreateStrategy != nil:
isNamespaced = e.CreateStrategy.NamespaceScoped()
case e.UpdateStrategy != nil:
isNamespaced = e.UpdateStrategy.NamespaceScoped()
default:
return fmt.Errorf("store for %s must have CreateStrategy or UpdateStrategy set", e.DefaultQualifiedResource.String())
}
if e.DeleteStrategy == nil {
return fmt.Errorf("store for %s must have DeleteStrategy set", e.DefaultQualifiedResource.String())
}
if options.RESTOptions == nil {
return fmt.Errorf("options for %s must have RESTOptions set", e.DefaultQualifiedResource.String())
}
attrFunc := options.AttrFunc
if attrFunc == nil {
if isNamespaced {
attrFunc = storage.DefaultNamespaceScopedAttr
} else {
attrFunc = storage.DefaultClusterScopedAttr
}
}
if e.PredicateFunc == nil {
e.PredicateFunc = func(label labels.Selector, field fields.Selector) storage.SelectionPredicate {
return storage.SelectionPredicate{
Label: label,
Field: field,
GetAttrs: attrFunc,
}
}
}
err := validateIndexers(options.Indexers)
if err != nil {
return err
}
opts, err := options.RESTOptions.GetRESTOptions(e.DefaultQualifiedResource)
if err != nil {
return err
}
// ResourcePrefix must come from the underlying factory
prefix := opts.ResourcePrefix
if !strings.HasPrefix(prefix, "/") {
prefix = "/" + prefix
}
if prefix == "/" {
return fmt.Errorf("store for %s has an invalid prefix %q", e.DefaultQualifiedResource.String(), opts.ResourcePrefix)
}
// Set the default behavior for storage key generation
if e.KeyRootFunc == nil && e.KeyFunc == nil {
if isNamespaced {
e.KeyRootFunc = func(ctx context.Context) string {
return NamespaceKeyRootFunc(ctx, prefix)
}
e.KeyFunc = func(ctx context.Context, name string) (string, error) {
return NamespaceKeyFunc(ctx, prefix, name)
}
} else {
e.KeyRootFunc = func(ctx context.Context) string {
return prefix
}
e.KeyFunc = func(ctx context.Context, name string) (string, error) {
return NoNamespaceKeyFunc(ctx, prefix, name)
}
}
}
// We adapt the store's keyFunc so that we can use it with the StorageDecorator
// without making any assumptions about where objects are stored in etcd
keyFunc := func(obj runtime.Object) (string, error) {
accessor, err := meta.Accessor(obj)
if err != nil {
return "", err
}
if isNamespaced {
return e.KeyFunc(genericapirequest.WithNamespace(genericapirequest.NewContext(), accessor.GetNamespace()), accessor.GetName())
}
return e.KeyFunc(genericapirequest.NewContext(), accessor.GetName())
}
if e.DeleteCollectionWorkers == 0 {
e.DeleteCollectionWorkers = opts.DeleteCollectionWorkers
}
e.EnableGarbageCollection = opts.EnableGarbageCollection
if e.ObjectNameFunc == nil {
e.ObjectNameFunc = func(obj runtime.Object) (string, error) {
accessor, err := meta.Accessor(obj)
if err != nil {
return "", err
}
return accessor.GetName(), nil
}
}
if e.Storage.Storage == nil {
e.Storage.Codec = opts.StorageConfig.Codec
var err error
e.Storage.Storage, e.DestroyFunc, err = opts.Decorator(
opts.StorageConfig,
prefix,
keyFunc,
e.NewFunc,
e.NewListFunc,
attrFunc,
options.TriggerFunc,
options.Indexers,
)
if err != nil {
return err
}
e.StorageVersioner = opts.StorageConfig.EncodeVersioner
if opts.CountMetricPollPeriod > 0 {
stopFunc := e.startObservingCount(opts.CountMetricPollPeriod)
previousDestroy := e.DestroyFunc
e.DestroyFunc = func() {
stopFunc()
if previousDestroy != nil {
previousDestroy()
}
}
}
}
return nil
}
func (e *Store) Create(ctx context.Context, obj runtime.Object, createValidation rest.ValidateObjectFunc, options *metav1.CreateOptions) (runtime.Object, error) {
if err := rest.BeforeCreate(e.CreateStrategy, ctx, obj); err != nil {
return nil, err
}
// at this point we have a fully formed object. It is time to call the validators that the apiserver
// handling chain wants to enforce.
if createValidation != nil {
if err := createValidation(ctx, obj.DeepCopyObject()); err != nil {
return nil, err
}
}
name, err := e.ObjectNameFunc(obj)
if err != nil {
return nil, err
}
key, err := e.KeyFunc(ctx, name)
if err != nil {
return nil, err
}
qualifiedResource := e.qualifiedResourceFromContext(ctx)
ttl, err := e.calculateTTL(obj, 0, false)
if err != nil {
return nil, err
}
out := e.NewFunc()
if err := e.Storage.Create(ctx, key, obj, out, ttl, dryrun.IsDryRun(options.DryRun)); err != nil {
err = storeerr.InterpretCreateError(err, qualifiedResource, name)
err = rest.CheckGeneratedNameError(e.CreateStrategy, err, obj)
if !apierrors.IsAlreadyExists(err) {
return nil, err
}
if errGet := e.Storage.Get(ctx, key, storage.GetOptions{}, out); errGet != nil {
return nil, err
}
accessor, errGetAcc := meta.Accessor(out)
if errGetAcc != nil {
return nil, err
}
if accessor.GetDeletionTimestamp() != nil {
msg := &err.(*apierrors.StatusError).ErrStatus.Message
*msg = fmt.Sprintf("object is being deleted: %s", *msg)
}
return nil, err
}
if e.AfterCreate != nil {
if err := e.AfterCreate(out); err != nil {
return nil, err
}
}
if e.Decorator != nil {
if err := e.Decorator(out); err != nil {
return nil, err
}
}
return out, nil
}
k8s.io/apiserver/pkg/registry/generic/registry/dryrun.go中
func (s *DryRunnableStorage) Create(ctx context.Context, key string, obj, out runtime.Object, ttl uint64, dryRun bool) error {
if dryRun {
if err := s.Storage.Get(ctx, key, storage.GetOptions{}, out); err == nil {
return storage.NewKeyExistsError(key, 0)
}
return s.copyInto(obj, out)
}
return s.Storage.Create(ctx, key, obj, out, ttl)
}
cmd/kube-apiserver/app/aggregator.go
func createAggregatorConfig(
kubeAPIServerConfig genericapiserver.Config,
commandOptions *options.ServerRunOptions,
externalInformers kubeexternalinformers.SharedInformerFactory,
serviceResolver aggregatorapiserver.ServiceResolver,
proxyTransport *http.Transport,
pluginInitializers []admission.PluginInitializer,
) (*aggregatorapiserver.Config, error) {
// make a shallow copy to let us twiddle a few things
// most of the config actually remains the same. We only need to mess with a couple items related to the particulars of the aggregator
genericConfig := kubeAPIServerConfig
genericConfig.PostStartHooks = map[string]genericapiserver.PostStartHookConfigEntry{}
genericConfig.RESTOptionsGetter = nil
// override genericConfig.AdmissionControl with kube-aggregator's scheme,
// because aggregator apiserver should use its own scheme to convert its own resources.
err := commandOptions.Admission.ApplyTo(
&genericConfig,
externalInformers,
genericConfig.LoopbackClientConfig,
feature.DefaultFeatureGate,
pluginInitializers...)
if err != nil {
return nil, err
}
// copy the etcd options so we don't mutate originals.
etcdOptions := *commandOptions.Etcd
etcdOptions.StorageConfig.Paging = utilfeature.DefaultFeatureGate.Enabled(features.APIListChunking)
etcdOptions.StorageConfig.Codec = aggregatorscheme.Codecs.LegacyCodec(v1beta1.SchemeGroupVersion, v1.SchemeGroupVersion)
etcdOptions.StorageConfig.EncodeVersioner = runtime.NewMultiGroupVersioner(v1beta1.SchemeGroupVersion, schema.GroupKind{Group: v1beta1.GroupName})
genericConfig.RESTOptionsGetter = &genericoptions.SimpleRestOptionsFactory{Options: etcdOptions}
// override MergedResourceConfig with aggregator defaults and registry
if err := commandOptions.APIEnablement.ApplyTo(
&genericConfig,
aggregatorapiserver.DefaultAPIResourceConfigSource(),
aggregatorscheme.Scheme); err != nil {
return nil, err
}
var certBytes, keyBytes []byte
if len(commandOptions.ProxyClientCertFile) > 0 && len(commandOptions.ProxyClientKeyFile) > 0 {
certBytes, err = ioutil.ReadFile(commandOptions.ProxyClientCertFile)
if err != nil {
return nil, err
}
keyBytes, err = ioutil.ReadFile(commandOptions.ProxyClientKeyFile)
if err != nil {
return nil, err
}
}
aggregatorConfig := &aggregatorapiserver.Config{
GenericConfig: &genericapiserver.RecommendedConfig{
Config: genericConfig,
SharedInformerFactory: externalInformers,
},
ExtraConfig: aggregatorapiserver.ExtraConfig{
ProxyClientCert: certBytes,
ProxyClientKey: keyBytes,
ServiceResolver: serviceResolver,
ProxyTransport: proxyTransport,
},
}
// we need to clear the poststarthooks so we don't add them multiple times to all the servers (that fails)
aggregatorConfig.GenericConfig.PostStartHooks = map[string]genericapiserver.PostStartHookConfigEntry{}
return aggregatorConfig, nil
}
k8s.io/apiserver/pkg/server/options/etcd.go 中
func (f *SimpleRestOptionsFactory) GetRESTOptions(resource schema.GroupResource) (generic.RESTOptions, error) {
ret := generic.RESTOptions{
StorageConfig: &f.Options.StorageConfig,
Decorator: generic.UndecoratedStorage,
EnableGarbageCollection: f.Options.EnableGarbageCollection,
DeleteCollectionWorkers: f.Options.DeleteCollectionWorkers,
ResourcePrefix: resource.Group + "/" + resource.Resource,
CountMetricPollPeriod: f.Options.StorageConfig.CountMetricPollPeriod,
}
if f.Options.EnableWatchCache {
sizes, err := ParseWatchCacheSizes(f.Options.WatchCacheSizes)
if err != nil {
return generic.RESTOptions{}, err
}
size, ok := sizes[resource]
if ok && size > 0 {
klog.Warningf("Dropping watch-cache-size for %v - watchCache size is now dynamic", resource)
}
if ok && size <= 0 {
ret.Decorator = generic.UndecoratedStorage
} else {
ret.Decorator = genericregistry.StorageWithCacher()
}
}
return ret, nil
}
k8s.io/apiserver/pkg/registry/generic/storage_decorator.go 中
func UndecoratedStorage(
config *storagebackend.Config,
resourcePrefix string,
keyFunc func(obj runtime.Object) (string, error),
newFunc func() runtime.Object,
newListFunc func() runtime.Object,
getAttrsFunc storage.AttrFunc,
trigger storage.IndexerFuncs,
indexers *cache.Indexers) (storage.Interface, factory.DestroyFunc, error) {
return NewRawStorage(config)
}
func NewRawStorage(config *storagebackend.Config) (storage.Interface, factory.DestroyFunc, error) {
return factory.Create(*config)
}
k8s.io/apiserver/pkg/storage/storagebackend/factory/factory.go 中
func Create(c storagebackend.Config) (storage.Interface, DestroyFunc, error) {
switch c.Type {
case "etcd2":
return nil, nil, fmt.Errorf("%v is no longer a supported storage backend", c.Type)
case storagebackend.StorageTypeUnset, storagebackend.StorageTypeETCD3:
return newETCD3Storage(c)
default:
return nil, nil, fmt.Errorf("unknown storage type: %s", c.Type)
}
}
k8s.io/apiserver/pkg/storage/storagebackend/factory/etcd3.go 中
func newETCD3Storage(c storagebackend.Config) (storage.Interface, DestroyFunc, error) {
stopCompactor, err := startCompactorOnce(c.Transport, c.CompactionInterval)
if err != nil {
return nil, nil, err
}
client, err := newETCD3Client(c.Transport)
if err != nil {
stopCompactor()
return nil, nil, err
}
stopDBSizeMonitor, err := startDBSizeMonitorPerEndpoint(client, c.DBMetricPollInterval)
if err != nil {
return nil, nil, err
}
var once sync.Once
destroyFunc := func() {
// we know that storage destroy funcs are called multiple times (due to reuse in subresources).
// Hence, we only destroy once.
// TODO: fix duplicated storage destroy calls higher level
once.Do(func() {
stopCompactor()
stopDBSizeMonitor()
client.Close()
})
}
transformer := c.Transformer
if transformer == nil {
transformer = value.IdentityTransformer
}
return etcd3.New(client, c.Codec, c.Prefix, transformer, c.Paging), destroyFunc, nil
}
vendor/k8s.io/apiserver/pkg/server/config.go中
func (c completedConfig) New(name string, delegationTarget DelegationTarget) (*GenericAPIServer, error) {
...
apiServerHandler := NewAPIServerHandler(name, c.Serializer, handlerChainBuilder, delegationTarget.UnprotectedHandler())
s := &GenericAPIServer{
...
Handler: apiServerHandler,
...
}
...
return s, nil
}
vendor/k8s.io/kube-aggregator/pkg/apiserver/apiserver.go中
func (s *APIAggregator) PrepareRun() (preparedAPIAggregator, error) {
...
prepared := s.GenericAPIServer.PrepareRun()
...
return prepared
}
vendor/k8s.io/apiserver/pkg/server/genericapiserver.go中
func (s *GenericAPIServer) PrepareRun() preparedGenericAPIServer {
...
return preparedGenericAPIServer{s}
}
func (s preparedGenericAPIServer) Run(stopCh <-chan struct{}) error {
...
stoppedCh, err := s.NonBlockingRun(delayedStopCh)
if err != nil {
return err
}
...
}
func (s preparedGenericAPIServer) NonBlockingRun(stopCh <-chan struct{}) (<-chan struct{}, error) {
...
if s.SecureServingInfo != nil && s.Handler != nil {
var err error
stoppedCh, err = s.SecureServingInfo.Serve(s.Handler, s.ShutdownTimeout, internalStopCh)
if err != nil {
close(internalStopCh)
close(auditStopCh)
return nil, err
}
}
...
}
