机器准备
开始学习下k8s，从最简单平台搭建开始，一步一步来，下面说明下使用kubeadm工具来快速搭建一个练习平台，非高可用版本。
主要分为：
- 环境信息
- 配置主机名称
- 防火墙
- 关闭selinux
- 关闭swap
- 内核设置
- docker安装
- kubeadm安装
- kubeadm配置
- flannel网络配置
- node节点加入
- deployment实例验证

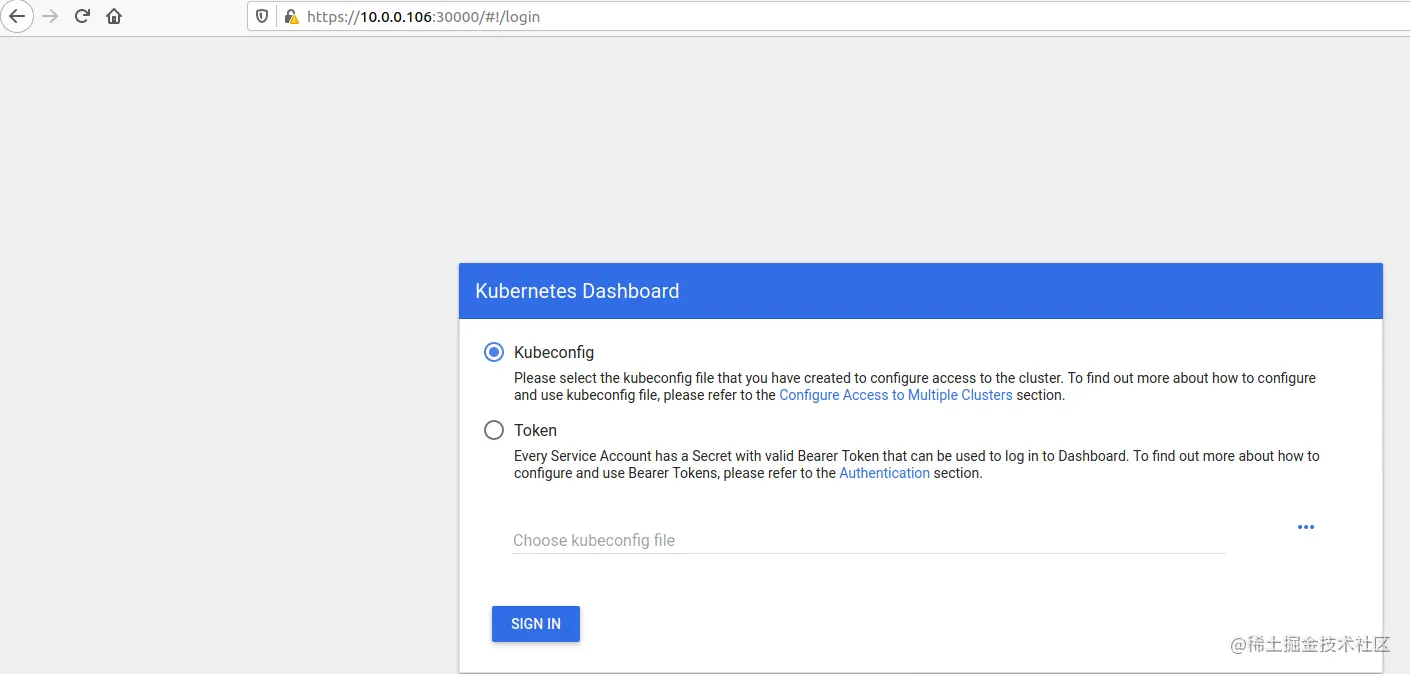

- dashboard图形界面配置
环境信息
| 机器名称 | 内外IP | 外网IP | 操作系统 | k8s版本 | docker版本 |
|---|---|---|---|---|---|
| master01 | 10.0.0.106 | 192.168.1.9 | CentOS Linux release 7.8.2003 | v1.15.2 | 18.09.7 |
| node01 | 10.0.0.107 | 192.168.1.11 | CentOS Linux release 7.8.2003 | v1.15.2 | 18.09.7 |
| node02 | 10.0.0.108 | 192.168.1.15 | CentOS Linux release 7.8.2003 | v1.15.2 | 18.09.7 |
配置主机名称
#分别修改主机名称
hostnamectl set-hostname master01
hostnamectl set-hostname node01
hostnamectl set-hostname node02
#添加名称解析
cat <<EOF >>/etc/hosts
10.0.0.106 master01
10.0.0.107 node01
10.0.0.108 node02
EOF
检查防火墙
systemctl status firewalld
#如果没有关闭，需要关闭
systemctl disable firewalld
systemctl stop firewalld
检查selinux是否关闭
[root@node02 ~]# getenforce
Disabled
#重启会失效
[root@master ~]# setenforce 0
#永久关闭
[root@master ~]# vi /etc/selinux/config
SELINUX=disabled
关闭swap
#关闭swap swapoff -a;sed -i '/swap/s/^/#/' /etc/fstab
[root@node02 ~]# free -m
total used free shared buff/cache available
Mem: 1837 102 1571 8 164 1590
Swap: 2047 0 2047
[root@node02 ~]# swapo
swapoff swapon
[root@node02 ~]# swapoff -a
[root@node02 ~]# free -m
total used free shared buff/cache available
Mem: 1837 101 1572 8 164 1591
Swap: 0 0 0
[root@node02 ~]#
[root@node02 ~]# grep swap /etc/fstab
/dev/mapper/centos-swap swap swap defaults 0 0
[root@node02 ~]# sed -i '/swap/s/^/#/' /etc/fstab
[root@node02 ~]# grep swap /etc/fstab
#/dev/mapper/centos-swap swap swap defaults 0 0
[root@node02 ~]#
内核设置
#创建k8s.conf文件
cat <<EOF > /etc/sysctl.d/k8s.conf
#文件内容
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
vm.swappiness=0
EOF
sysctl -p
docker 安装
#使用阿里云镜像，安装docker
yum -y install yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce-18.09.7 docker-ce-cli-18.09.7 containerd.io
#配置存储卷
[root@node01 ~]# cat <<EOF>/etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"]
}
EOF
#开启自动启动
[root@node01 ~]# systemctl restart docker;systemctl enable docker;docker info | grep Cgroup
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
Cgroup Driver: systemd
kubeadm安装
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
#安装包
yum -y makecache
yum -y install kubelet-1.15.2 kubeadm-1.15.2 kubectl-1.15.2
#检查是否成功
rpm -aq kubeadm kubelet kubectl
#加入自动启动
systemctl enable kubelet.service;systemctl enable kubelet
kubeadm 配置
#master01上创建第一个节点
kubeadm init --kubernetes-version=v1.15.2 --image-repository registry.aliyuncs.com/google_containers --pod-network-cidr=10.244.0.0/16 --service-cidr=10.96.0.0/12
#输出信息：
[init] Using Kubernetes version: v1.15.2
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Activating the kubelet service
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [master01 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.1.9]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [master01 localhost] and IPs [192.168.1.9 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [master01 localhost] and IPs [192.168.1.9 127.0.0.1 ::1]
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 39.007909 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.15" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master01 as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node master01 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[kubelet-check] Initial timeout of 40s passed.
[bootstrap-token] Using token: xknie1.dm76a39ntgnwkyid
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.1.9:6443 --token xknie1.dm76a39ntgnwkyid \
--discovery-token-ca-cert-hash sha256:76896f39087f6fa66a43a0c336c081649ae65a781c80d140ba492b57bb038df9
#按照提示配置
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
#查看到拉取的镜像：
[root@master01 ~]# docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.aliyuncs.com/google_containers/kube-proxy v1.15.2 167bbf6c9338 12 months ago 82.4MB
registry.aliyuncs.com/google_containers/kube-apiserver v1.15.2 34a53be6c9a7 12 months ago 207MB
registry.aliyuncs.com/google_containers/kube-controller-manager v1.15.2 9f5df470155d 12 months ago 159MB
registry.aliyuncs.com/google_containers/kube-scheduler v1.15.2 88fa9cb27bd2 12 months ago 81.1MB
registry.aliyuncs.com/google_containers/coredns 1.3.1 eb516548c180 19 months ago 40.3MB
registry.aliyuncs.com/google_containers/etcd 3.3.10 2c4adeb21b4f 20 months ago 258MB
registry.aliyuncs.com/google_containers/pause 3.1 da86e6ba6ca1 2 years ago 742kB
[root@master01 ~]#
#查看node节点
[root@master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master01 NotReady master 3m19s v1.15.2
[root@master01 ~]#
#需要安装flannel模块后，会变为Ready
#翻墙下载
wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
#创建flannel网络
[root@master01 ~]# kubectl apply -f kube-flannel.yml
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds-amd64 created
daemonset.apps/kube-flannel-ds-arm64 created
daemonset.apps/kube-flannel-ds-arm created
daemonset.apps/kube-flannel-ds-ppc64le created
daemonset.apps/kube-flannel-ds-s390x created
[root@master01 ~]#
#镜像失败
[root@master01 ~]# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-bccdc95cf-pfgls 0/1 Pending 0 15m
coredns-bccdc95cf-qcb4d 0/1 Pending 0 15m
etcd-master01 1/1 Running 0 14m
kube-apiserver-master01 1/1 Running 0 14m
kube-controller-manager-master01 1/1 Running 0 15m
kube-flannel-ds-amd64-jdmjs 0/1 Init:ErrImagePull 0 93s
kube-proxy-bx8jv 1/1 Running 0 15m
kube-scheduler-master01 1/1 Running 0 15m
[root@master01 ~]#
#更改镜像重试：
sponse from daemon: Get https://quay.io/v2/coreos/flannel/manifests/v0.12.0-amd64: net/http: TLS handshake timeout
Normal Pulling 52s (x3 over 2m25s) kubelet, master01 Pulling image "quay.io/coreos/flannel:v0.12.0-amd64"
Warning Failed 39s (x3 over 119s) kubelet, master01 Error: ErrImagePull
Warning Failed 39s kubelet, master01 Failed to pull image "quay.io/coreos/flannel:v0.12.0-amd64": rpc error: code = Unknown desc = Error response from daemon: Get https://quay.io/v2/: net/http: TLS handshake timeout
Normal BackOff 1s (x5 over 118s) kubelet, master01 Back-off pulling image "quay.io/coreos/flannel:v0.12.0-amd64"
Warning Failed 1s (x5 over 118s) kubelet, master01 Error: ImagePullBackOff
[root@master01 ~]#
#解决
docker pull registry.cn-hangzhou.aliyuncs.com/chentging/flannel:v0.12.0-amd64
#已经启动：
[root@master01 ~]# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-bccdc95cf-pfgls 1/1 Running 0 23m
coredns-bccdc95cf-qcb4d 1/1 Running 0 23m
etcd-master01 1/1 Running 0 22m
kube-apiserver-master01 1/1 Running 0 22m
kube-controller-manager-master01 1/1 Running 0 22m
kube-flannel-ds-amd64-jdmjs 1/1 Running 0 8m44s
kube-proxy-bx8jv 1/1 Running 0 23m
kube-scheduler-master01 1/1 Running 0 22m
#已经变为：
[root@master01 ~]# kubectl get node
NAME STATUS ROLES AGE VERSION
master01 Ready master 23m v1.15.2
[root@master01 ~]#
node节点加入
#参入node01，node02
kubeadm join 192.168.1.9:6443 --token xknie1.dm76a39ntgnwkyid \
--discovery-token-ca-cert-hash sha256:76896f39087f6fa66a43a0c336c081649ae65a781c80d140ba492b57bb038df9
#输出日志如下：
[root@node01 ~]# kubeadm join 192.168.1.9:6443 --token xknie1.dm76a39ntgnwkyid \
> --discovery-token-ca-cert-hash sha256:76896f39087f6fa66a43a0c336c081649ae65a781c80d140ba492b57bb038df9
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.15" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Activating the kubelet service
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node01 ~]#
#检查状态
[root@master01 ~]# kubectl get node
NAME STATUS ROLES AGE VERSION
master01 Ready master 33m v1.15.2
node01 Ready <none> 7m30s v1.15.2
node02 Ready <none> 5m20s v1.15.2
[root@master01 ~]#
#如果成功后，那么就会正常
[root@node02 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
quay.io/coreos/flannel v0.12.0-amd64 4e9f801d2217 4 months ago 52.8MB
registry.aliyuncs.com/google_containers/kube-proxy v1.15.2 167bbf6c9338 12 months ago 82.4MB
registry.aliyuncs.com/google_containers/pause 3.1 da86e6ba6ca1 2 years ago 742kB
[root@node02 ~]#
验证
#创建一个deployment测试
[root@master01 ~]# kubectl create deployment nginx --image=nginx
root@master01 ~]# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-554b9c67f9-bbrm5 1/1 Running 0 89s 10.244.1.2 node01 <none> <none>
#访问验证已经成功了
[root@master01 ~]# curl http://10.244.1.2
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
body {
width: 35em;
margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif;
}
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
图形界面安装
下载文件，需要翻墙，raw.githubusercontent.com/kubernetes/…
[root@master01 ~]# kubectl apply -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
[root@master01 ~]#
[root@master01 ~]# kubectl get pod -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
dashboard-metrics-scraper-76679bc5b9-2psr7 1/1 Running 0 52s
kubernetes-dashboard-65bb64d6cb-wvw5m 1/1 Running 0 52s
[root@master01 ~]#
#运行：
[root@master01 ~]# kubectl proxy
Starting to serve on 127.0.0.1:8001
web访问
https://10.0.0.106:30000/#!/login
创建权限
kubectl create serviceaccount dashboard-admin -n kube-system
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
#获取token
[root@master01 ~]# kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')
Name: dashboard-admin-token-4m5bz
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: dashboard-admin
kubernetes.io/service-account.uid: 026851ee-43da-4de4-9b36-a1a739dc2fc5
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1025 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tNG01YnoiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiMDI2ODUxZWUtNDNkYS00ZGU0LTliMzYtYTFhNzM5ZGMyZmM1Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.N54WwjiD4Acho_7GStW0jxJ3aQLhRXOOQOT-EMyGF93Hu1hJpR4H3jpyArPeS-zP4BKYyv9aDd5OTSvVOQGh6t0jSKMiOm0ZK6HNFanQNf4AxgAdDtV1dFRwHozn5MtVorPrdgeiVzh3wkbj55fISdWn3Q5E2BF5PubKG1vXZETK8XuCvkSxmuiDZtCR45majTEg-axnUO33uUnfxlxtPCsVaxsj5vNhZfzU_901yFytAKDfdLNNI1Qz3fC7BjQcTGKxAdLj-F64gKo_Dx6xADcHYyyfBdKAhUytK0WMGH-eVBfuruZNXi1R2kCTaCefUAx8j-bq81YImphYxswPBQ
[root@master01 ~]#
最后结果如图：
