css:尺寸设置百分比基于的是width/height吗?

326 阅读7分钟

关于尺寸和百分比

  • 宽/高的百分比计算不是使用父元素的宽/高,而是父元素的content

content、padding、border、margin这几个概念是绝对的,而width、height的概念的相对的
box-sizing=border-box时,宽高=content+padding+border
box-sizing=content-box时,宽高=content

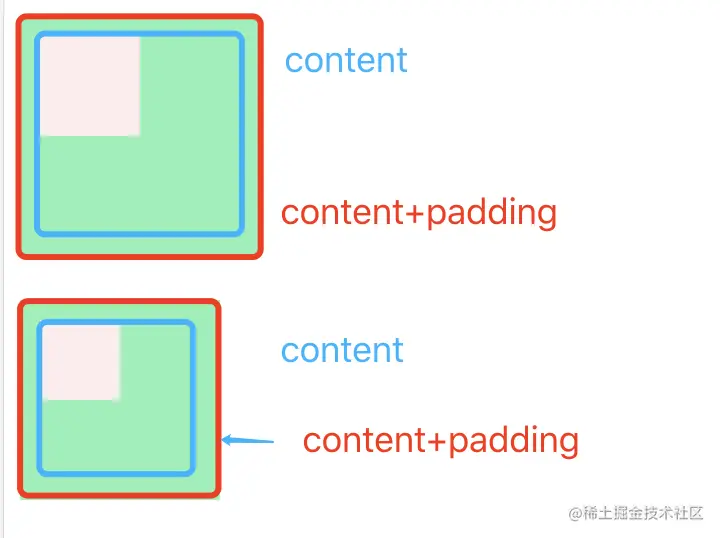

两个父元素宽高都是100px子元素都是50%。把父元素的box-sizing设为不同的值,子元素大小却不同,因为它相对的父元素的content。

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <style>
      .parent {
        height100px;
        width100px;
        padding10px;
        background-colorrgb(135242183);
      }
      .son {
        height50%;
        width50%;
        background-colorrgb(252237237);
      }
      .border-box {
        box-sizing: border-box;
      }
      .content-box {
        box-sizing: content-box;
      }
    </style>
  </head>
  <body>
    <div class="parent content-box">
      <div class="son"></div>
    </div>
    <br />
    <div class="parent border-box">
      <div class="son"></div>
    </div>
  </body>
</html>

现代的浏览默认box-sizng:content-box,所以一般可以直接用父元素的宽高计算

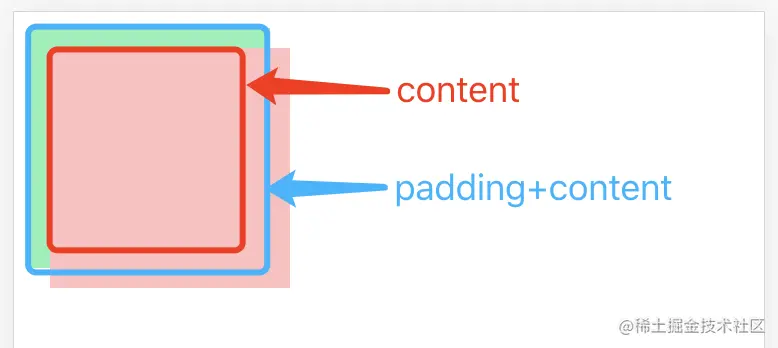

  • 使用绝对定位时,子元素的宽高不再是其基准的content,而是padding-box(content+padding)

子元素的基准即第一个position不为static的元素。

将子元素的宽高设为父元素的100%,尺寸并不是和content 一样。

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <style>
      .parent {
        height100px;
        width100px;
        padding10px;
        background-colorrgb(135242183);
        position: absolute;
      }
      .son {
        height100%;
        width100%;
        background-colorrgb(255192192);
        position: absolute;
      }
    </style>
  </head>
  <body>
    <div class="parent">
      <div class="son"></div>
    </div>
    <br />
  </body>
</html>
  • 显式指定了min-height,子元素的百分比也会不生效

高和宽不一样,一定要显示的确定父元素的尺寸,才有能生效的百分比。

width、height的默认值是auto,对于块级元素来说,width:auto是充分利用可用空间,height:auto是由子元素撑开

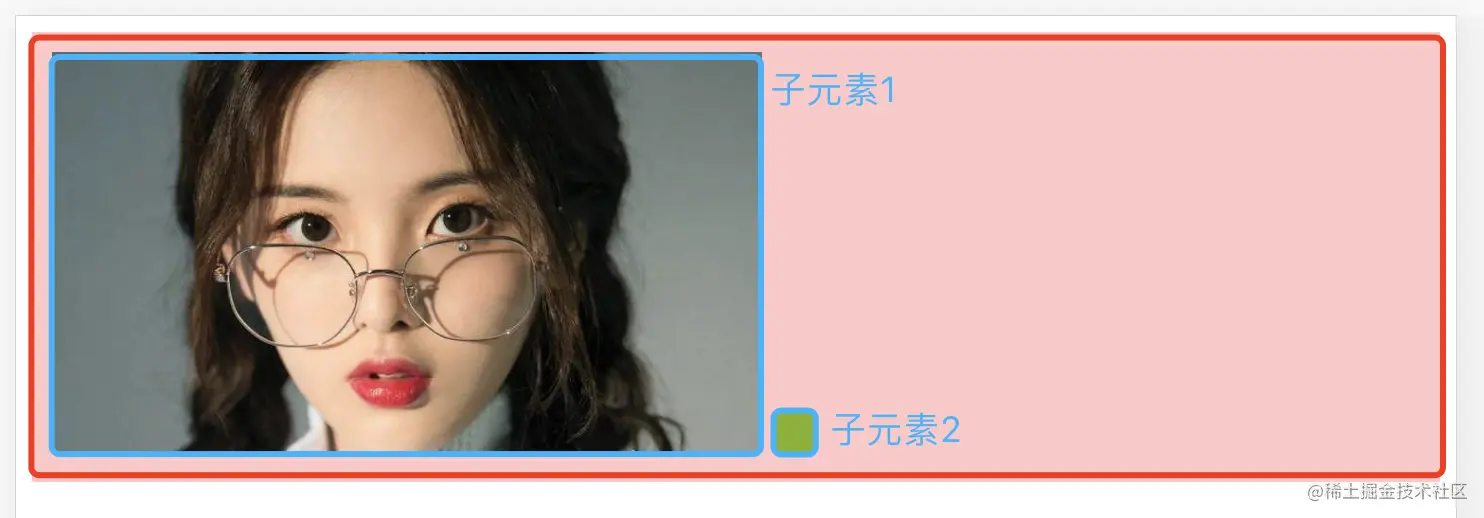

比如现在父元素的高没有设置,子元素1的height200px,子元素2height为20px。这个父元素的高就是靠1撑开的。 如果把子元素2的height设为百分比,就无法生效,因为一定要显示指定父元素的高(就是有一个确定的值,比如一个多少px,或者是一个可以生效的百分比)。

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <style>
      .parent {
        padding10px;
        background-colorrgb(255200200);
      }
      .img {
        height200px;
      }
      .son {
        height20px;
        width20px;
        background-colorrgb(13217924);
        display: inline-block;
      }
    </style>
  </head>
  <body>
    <div class="parent">
      <img
        class="img"
        src="https://timgsa.baidu.com/timg?image&quality=80&size=b9999_10000&sec=1596882437264&di=e70edbb0544750fdc173a63bd0c93271&imgtype=0&src=http%3A%2F%2Fy.gtimg.cn%2Fmusic%2Fphoto_new%2FT023R750x750M000002kr00c3YLF3h.jpg%3Fmax_age%3D2592000"
        alt="小羊"
      />
      <div class="son"></div>
    </div>
    <br />
  </body>
</html>

如果只是显示指定了min-heigth(比如多少px),子元素的百分比依旧不会生效,因为子元素的百分比是基于父元素的宽/高,而不是min/max宽高。(即:子元素宽高=父元素宽高X百分比)

P.S:min子元素宽高=父元素宽高X百分比,而不是:min子元素宽高=min父元素宽高X百分比

  • 当min/max/尺寸冲突时,约束力min>max>尺寸

关于弹性布局

弹性布局的子元素通过flex:1可以充分利用父元素的剩余空间。

flex是三个属性的简写 flex-grow、flex-shrink、flex-basis,默认值是0,1,auto,其分别决定了父元素中出现剩余、溢出、基础的尺寸。

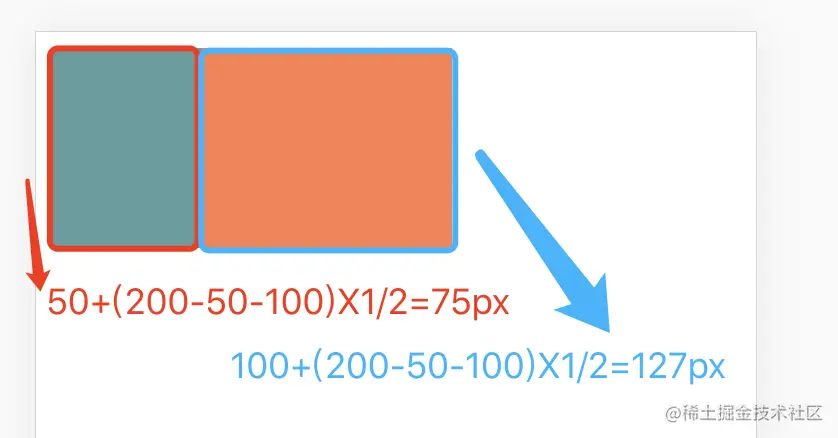

  • flex-grow相对于剩余空间的分配比例

父元素的宽是200px,子元素1是50px,子元素2是100px。将flex-grow都设置为1。

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <style>
      .parent {
        width200px;
        display: flex;
        flex-direction: row;
        background-color: bisque;
        height100px;
      }
      .son1 {
        flex1 1 50px;
        background-color: cadetblue;
        height100px;
      }
      .son2 {
        flex1 1 100px;
        background-color: coral;
        height100px;
      }
    </style>
  </head>
  <body>
    <div class="parent">
      <div class="son1"></div>
      <div class="son2"></div>
    </div>
    <br />
  </body>
</html>

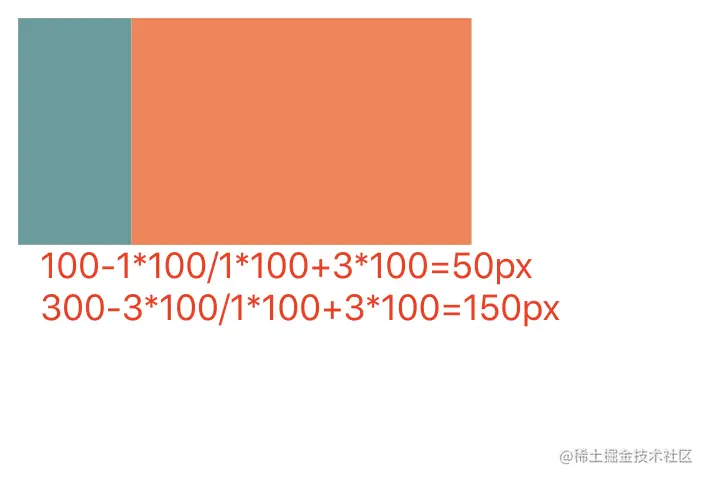

  • flex-shrink是相对于自身尺寸的收缩比例

父元素宽为200px,子元素1是100px,子元素2是300px,溢出200px。flex-shrink都为1

  • flex-basis即宽/高,但优先级更大
