iOS eSIM开发

#iOS eSIM开发步骤

• 申请eSIMAPI使用权限

• 配置项目

• 使用eSIMAPI

##一.申请eSIMAPI使用权限

申请地址： developer.apple.com/contact/req…

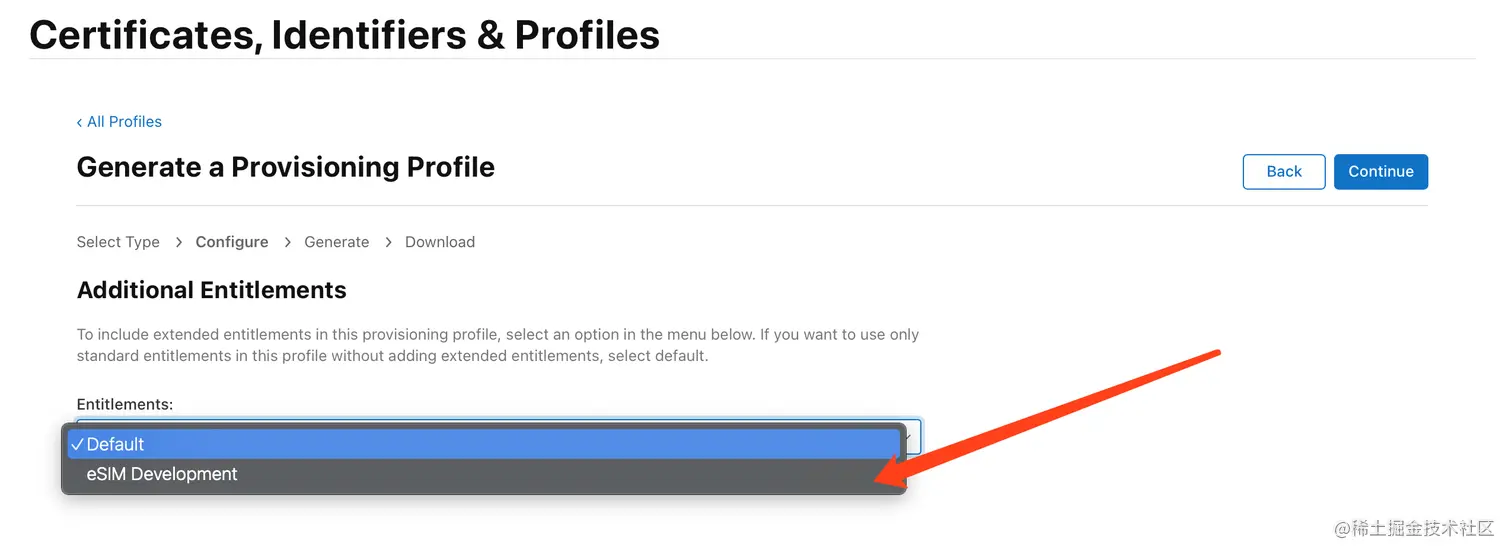

申请通过后在开发者后台会出现如下选项：

##二.配置项目 info.plist

<key>com.apple.security.network.server</key>
<true/>
<key>com.apple.security.network.client</key>
<true/>
<key>com.apple.CommCenter.fine-grained</key>
<array>
    <string>spi</string>
    <string>sim-authentication</string>
    <string>identity</string>
</array>
<key>com.apple.wlan.authentication</key>
<true/>
<key>keychain-access-groups</key>
<array>
    <string>apple</string>
    <string>com.apple.identities</string>
    <string>com.apple.certificates</string>
</array>
<key>com.apple.private.system-keychain</key>
<true/>

设置支持运营商列表 www.mcc-mnc.com

经测试 中可以没有内容（添加MCC/MNC的目的还不知道是为了什么，知道的同学可以指点一下），但一定要有CarrierDescriptors这个key 否则这个方法 [[CTCellularPlanProvisioning new] supportsCellularPlan] 不会去请求Apple服务器，一直返回false。

<key>CarrierDescriptors</key>
	<array>
		<dict>
			<key>MCC</key>
			<string>460</string>
			<key>MNC</key>
			<string>00</string>
		</dict>
	</array>

{appname}.entitlements

<key>com.apple.CommCenter.fine-grained</key>
   <array>
   	<string>public-cellular-plan</string>
   </array>

重新生成包含eSIM Entitlements的profile

##三.使用eSIMAPI

检测设备是否支持eSIM

+ (BOOL)supportsCellularPlan{
   if (@available(iOS 12.0, *)) {
       return [[CTCellularPlanProvisioning new] supportsCellularPlan];
   } else {
       return NO;
   }
}

下载安装eSIM配置

+ (void)addPlanWithAddress:(NSString*)address matchingID:(NSString*)matchingID confirmationCode:(NSString*)confirmationCode completionHandler:(void (^)(CTCellularPlanProvisioningAddPlanResult result))completionHandler  API_AVAILABLE(ios(12.0)){

   CTCellularPlanProvisioningRequest *provisioningRequest = [CTCellularPlanProvisioningRequest new];
   provisioningRequest.address = address;
   provisioningRequest.matchingID = matchingID;
   provisioningRequest.confirmationCode = confirmationCode;
   [[CTCellularPlanProvisioning new] addPlanWith:provisioningRequest completionHandler:^(CTCellularPlanProvisioningAddPlanResult result) {
       completionHandler(result);
       switch (result) {
           case CTCellularPlanProvisioningAddPlanResultUnknown:
               NSLog(@"Unknown");
               break;
           case CTCellularPlanProvisioningAddPlanResultFail:
               NSLog(@"Fail");
               break;
           case CTCellularPlanProvisioningAddPlanResultSuccess:
               NSLog(@"Success");
               break;
       }
   }];

}

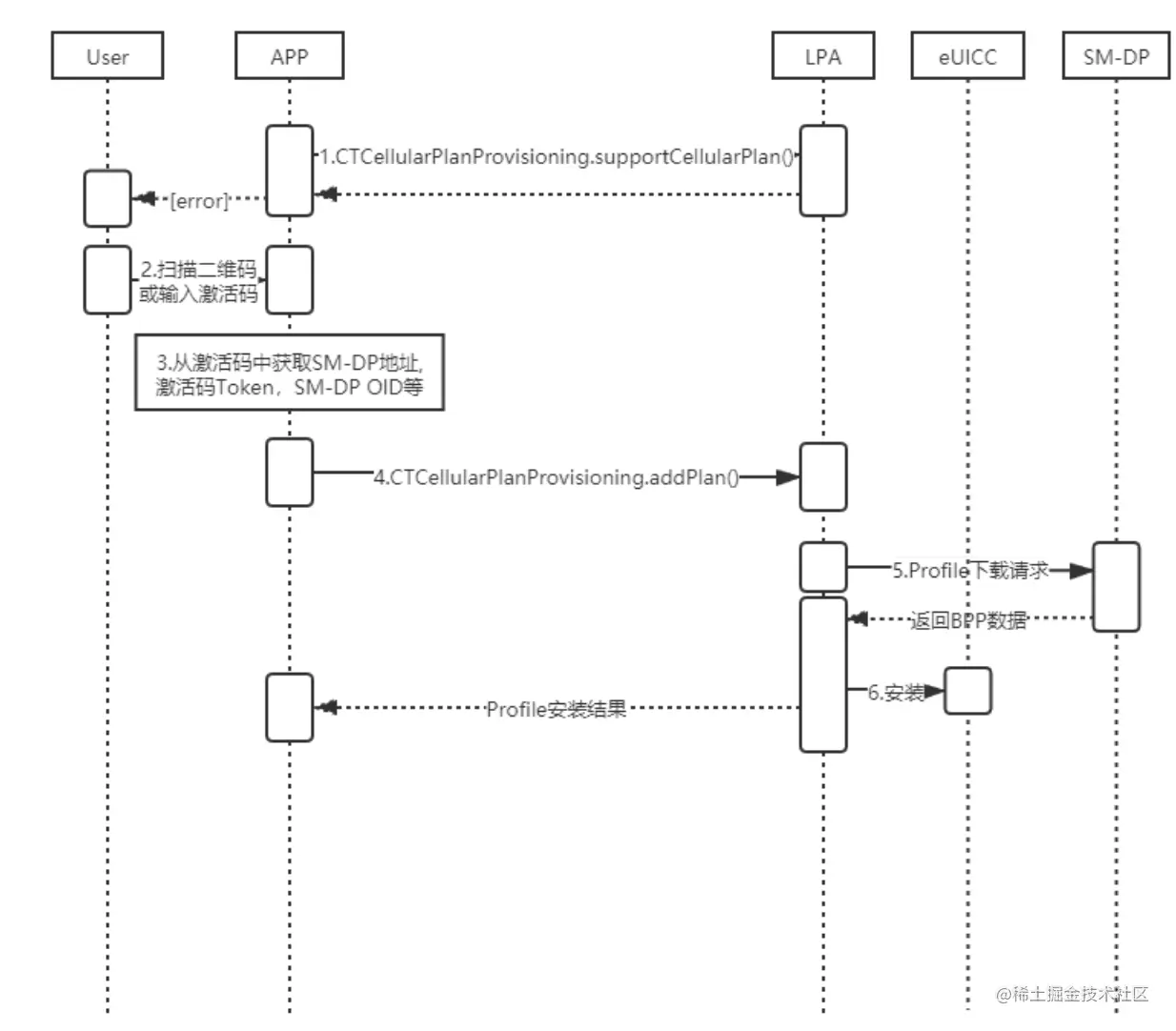

##eSIM安装流程图

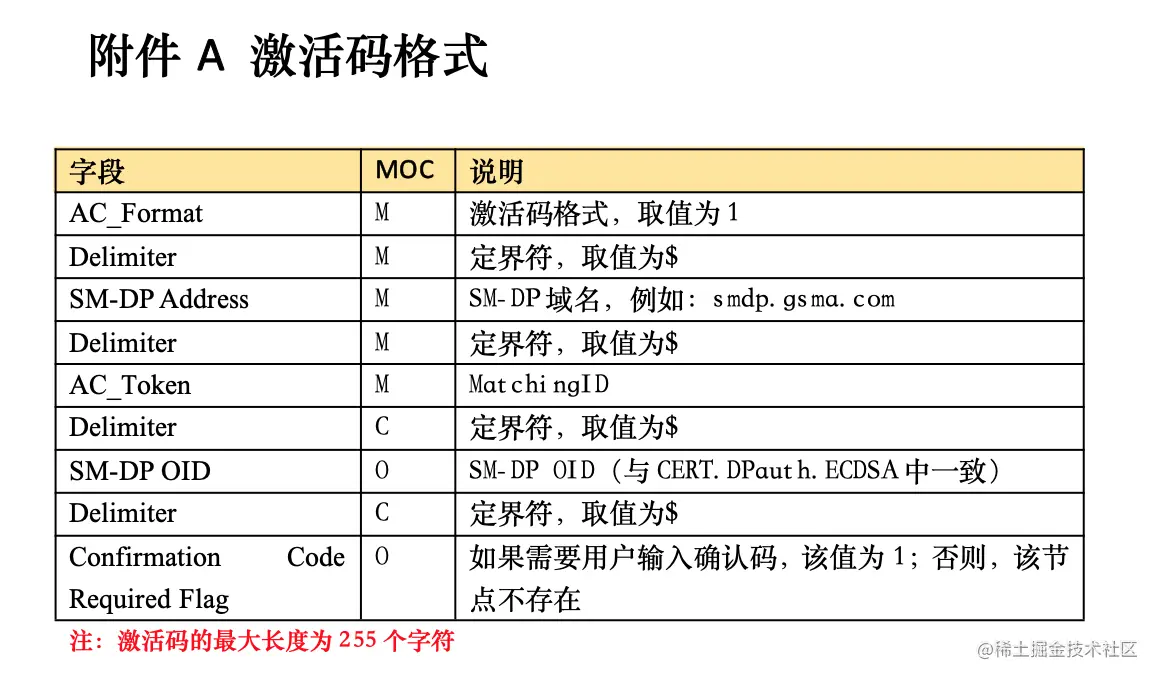

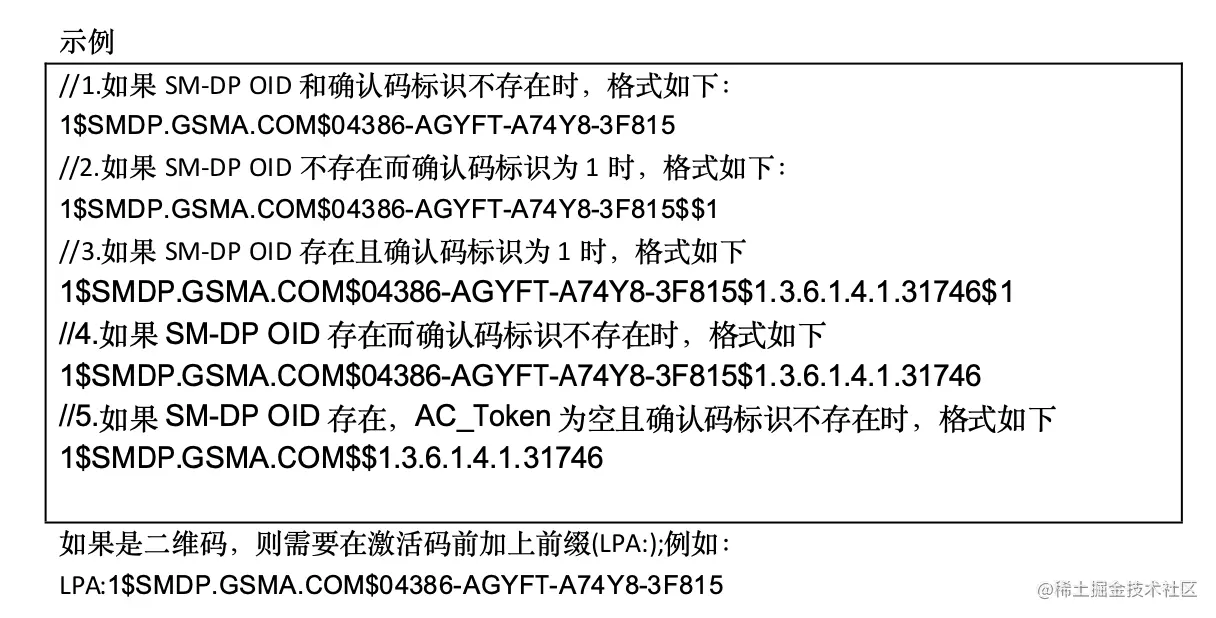

##eSIM激活码规则

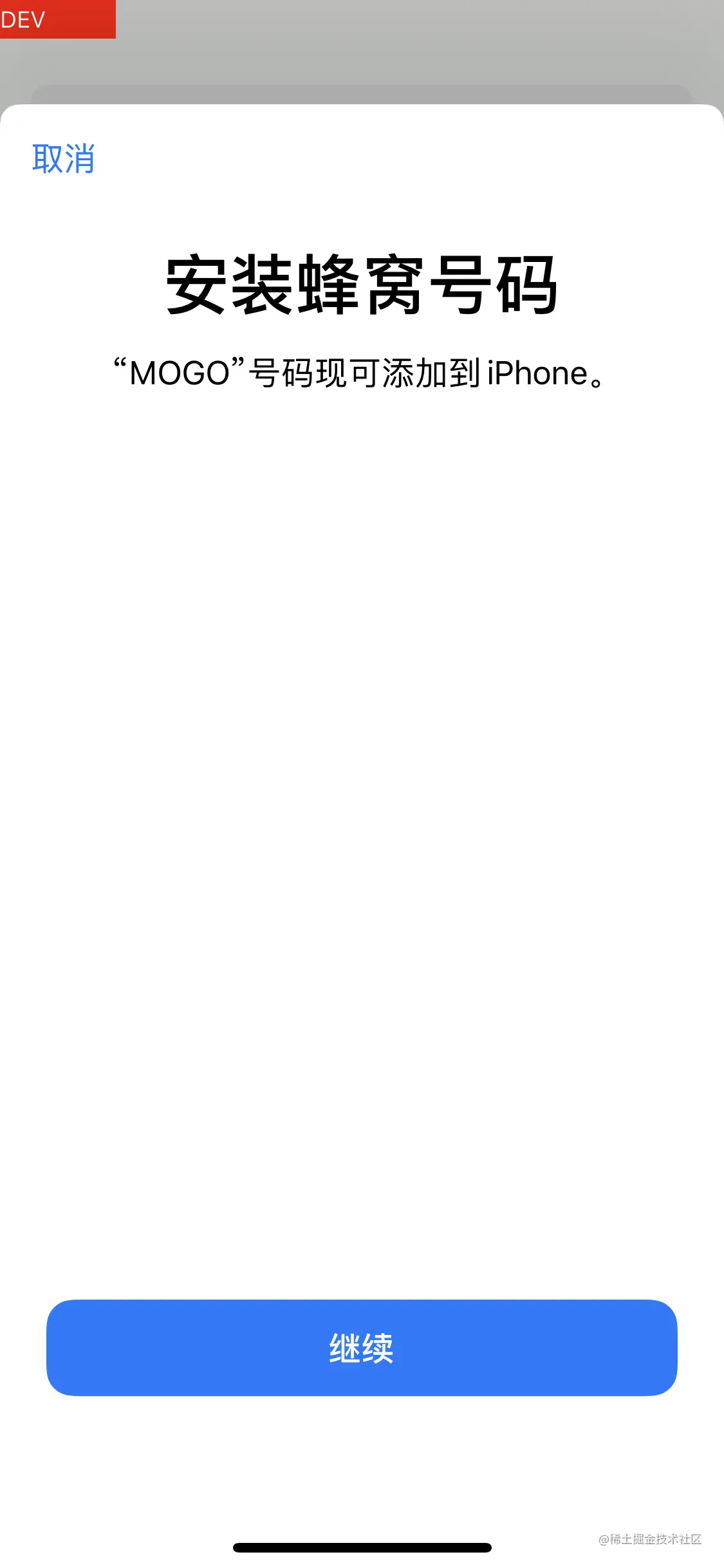

安装流程以及效果截图
