左右固定宽,中间自适应(三栏布局)的方法

257 阅读2分钟

简述:定高100px,左右宽度均为200px,中间自适应。

公共代码块

*{padding: 0; margin: 0;}
html, body {padding: 0; margin: 0;}
.wrap {margin-bottom: 10px;}

1、浮动—float

<style>
	.wrap > div {height: 200px; text-align: center; line-height: 200px; }
    .float .left {
      width: 200px;
      float: left;
      background-color: #f00;
    }
    .float .center {
      background-color: green;
    }
    .float .right {
      width: 200px;
      float: right;
      background-color: #ff0;
    }
</style>
<div class="wrap float">
    <div class="left">我是左边栏</div>
    <div class="right">我是右边栏</div>
    <div class="center">我是float</div>
</div>

float介绍

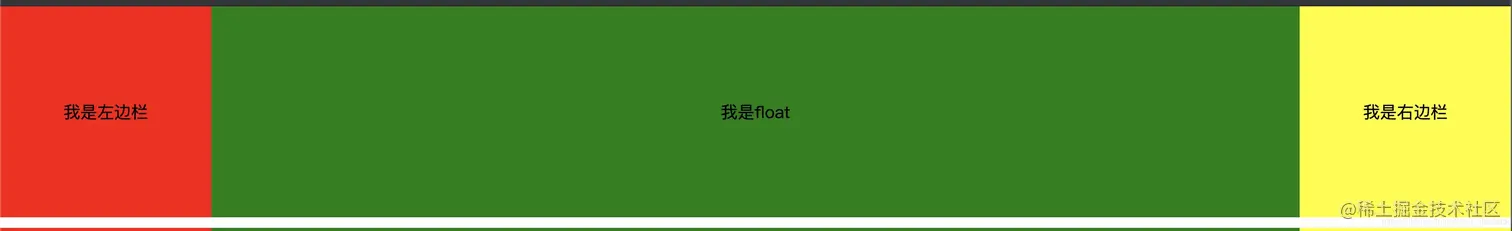

代码以及浏览器展示效果如上,浏览器拉伸也不会影响,可实现效果。但有两点需要注意:

1、页面布局的结构需如上,如果结构变动,所需效果不会实现。
2、注意清除浮动,否则会影响页面其他的结构。
3、若处理得当,兼容性非常好。

2、定位—position

<style>
	.position .left {
        width: 200px;
        position: absolute;
        left: 0;
        background-color: #f00;
      }
      .position .center {
        background-color: green;
        position: absolute;
        left: 200px;
        right: 200px;
      }
      .position .right {
        width: 200px;
        position: absolute;
        right: 0;
        background-color: #ff0;
      }
</style>
<div class="wrap position">
	 <div class="left">我是左边栏</div>
     <div class="center">我是position</div>
	 <div class="right">我是右边栏</div>
</div>

position介绍

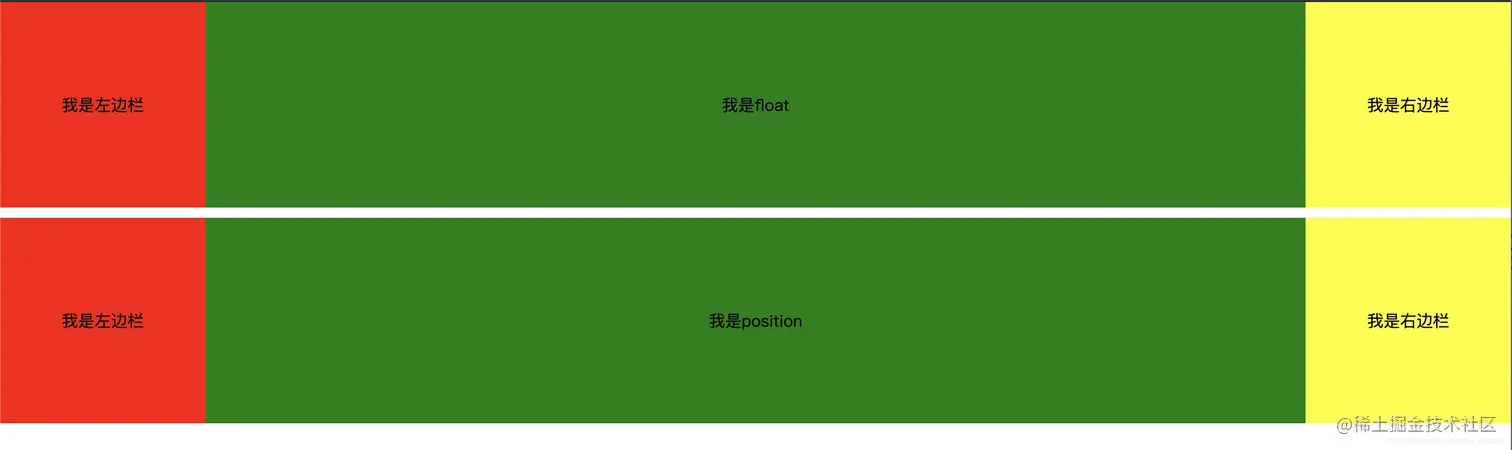

代码以及浏览器展示效果如上,浏览器拉伸也不会影响,可实现效果。但有两点需要注意:

1、页面布局的结构可正常写,如果布局中间位置与右部分对调,那么中间样式无需定位。
2、文案脱离文档流,实际应用是需要注意。

3、弹性盒子布局—flex

<style>
	.flexbox {display: flex; margin-top: 220px;}
    .flexbox .left {
        width: 200px;
        background-color: #f00;
     }
    .flexbox .center {
        flex: 1;
        background-color: green;
    }
    .flexbox .right {
      width: 200px;
      background-color: #ff0;
    }
</style>
<div class="wrap flexbox">
    <div class="left">我是左边栏</div>
   	<div class="center">flexbox</div>
    <div class="right">我是右边栏</div>
</div>

flex

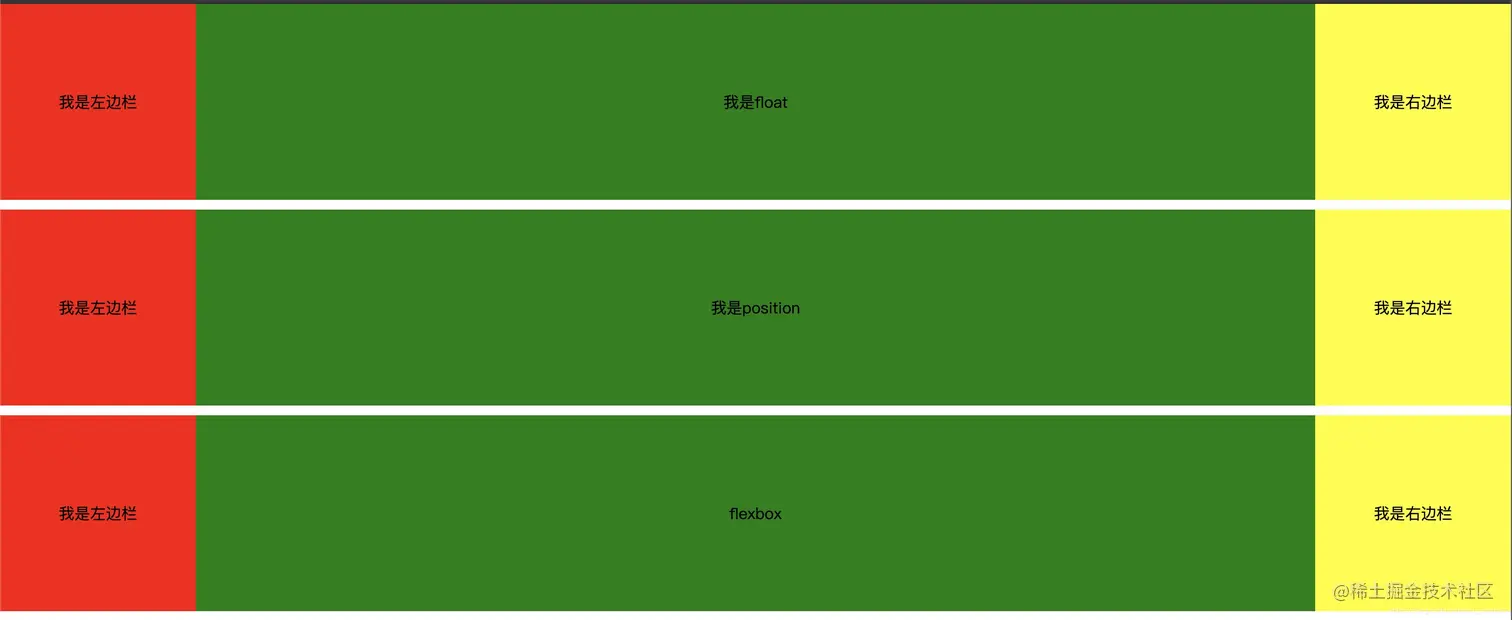

代码以及浏览器展示效果如上,浏览器拉伸也不会影响,可实现效果。需要注意:

1、不兼容ie8以下版本,若不考虑该情况,flex是不错的选择。
2、由于受第二种定位的方法影响,所以设置margin-top;否则会被盖住。

4、表格布局—table

<style>
	.table {display: table; width: 100%;}
   	.table > div {display: table-cell}
    .table .left {
      width: 200px;
      background-color: #f00;
    }
    .table .center {
      background-color: green;
    }
    .table .right {
      width: 200px;
      background-color: #ff0;
    }
</style>
<div class="wrap table">
   	<div class="left">我是左边栏</div>
    <div class="center">table</div>
    <div class="right">我是右边栏</div>
</div>

table介绍

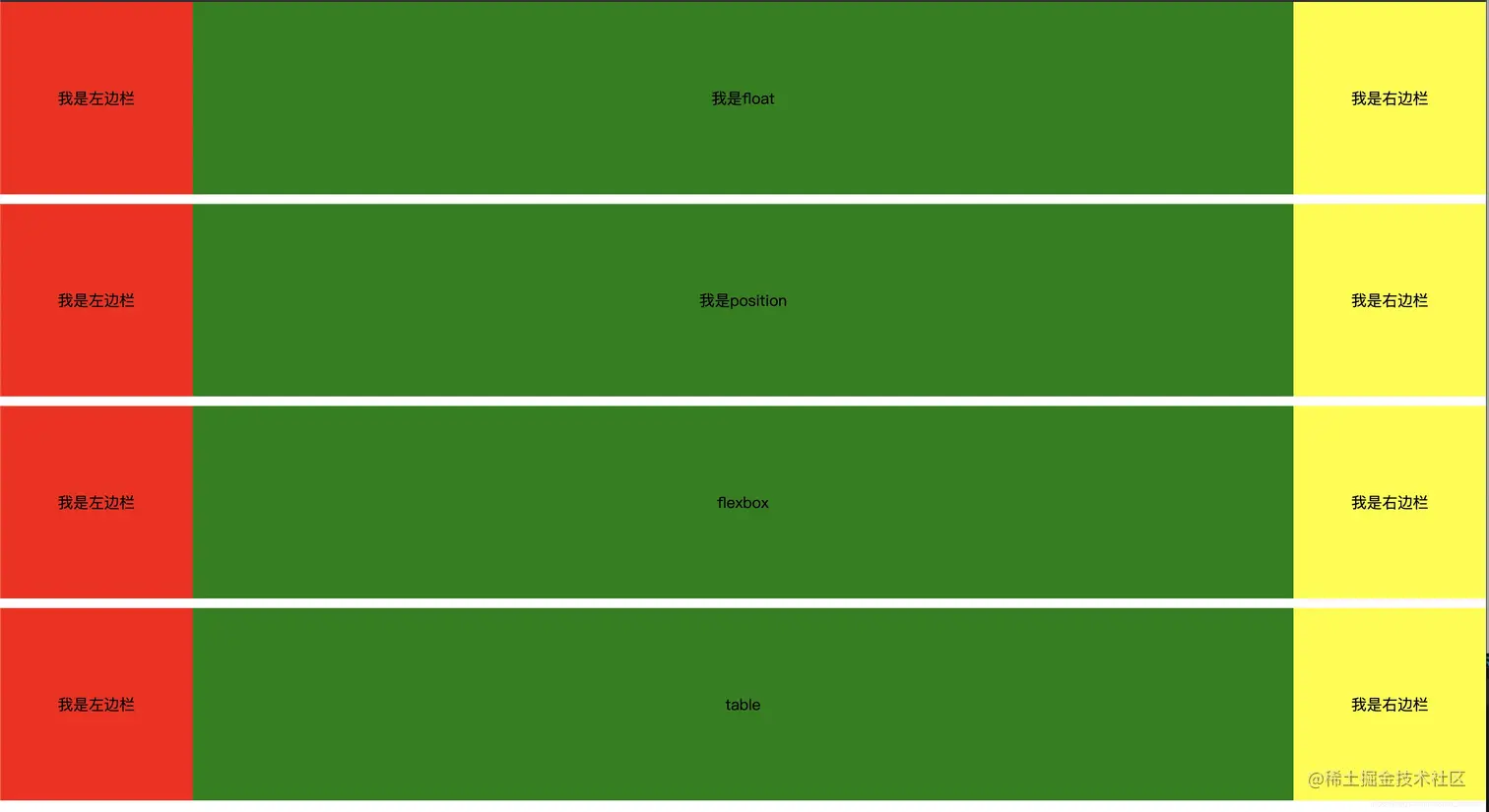

代码以及浏览器展示效果如上,浏览器拉伸也不会影响,可实现效果,而且兼容性相对很好。

5、网格布局—grid

<style>
	.grid {
		display: grid;
		width: 100%;
		grid-template-rows: 200px;
		grid-template-columns: 200px auto 200px;
	}
    .grid .left {
      background-color: #f00;
    }
    .grid .center {
      background-color: green;
    }
    .grid .right {
      background-color: #ff0;
    }
</style>
<div class="wrap grid">
	 <div class="left">我是左边栏</div>
	 <div class="center">grid</div>
	 <div class="right">我是右边栏</div>
</div>

grid网格布局介绍

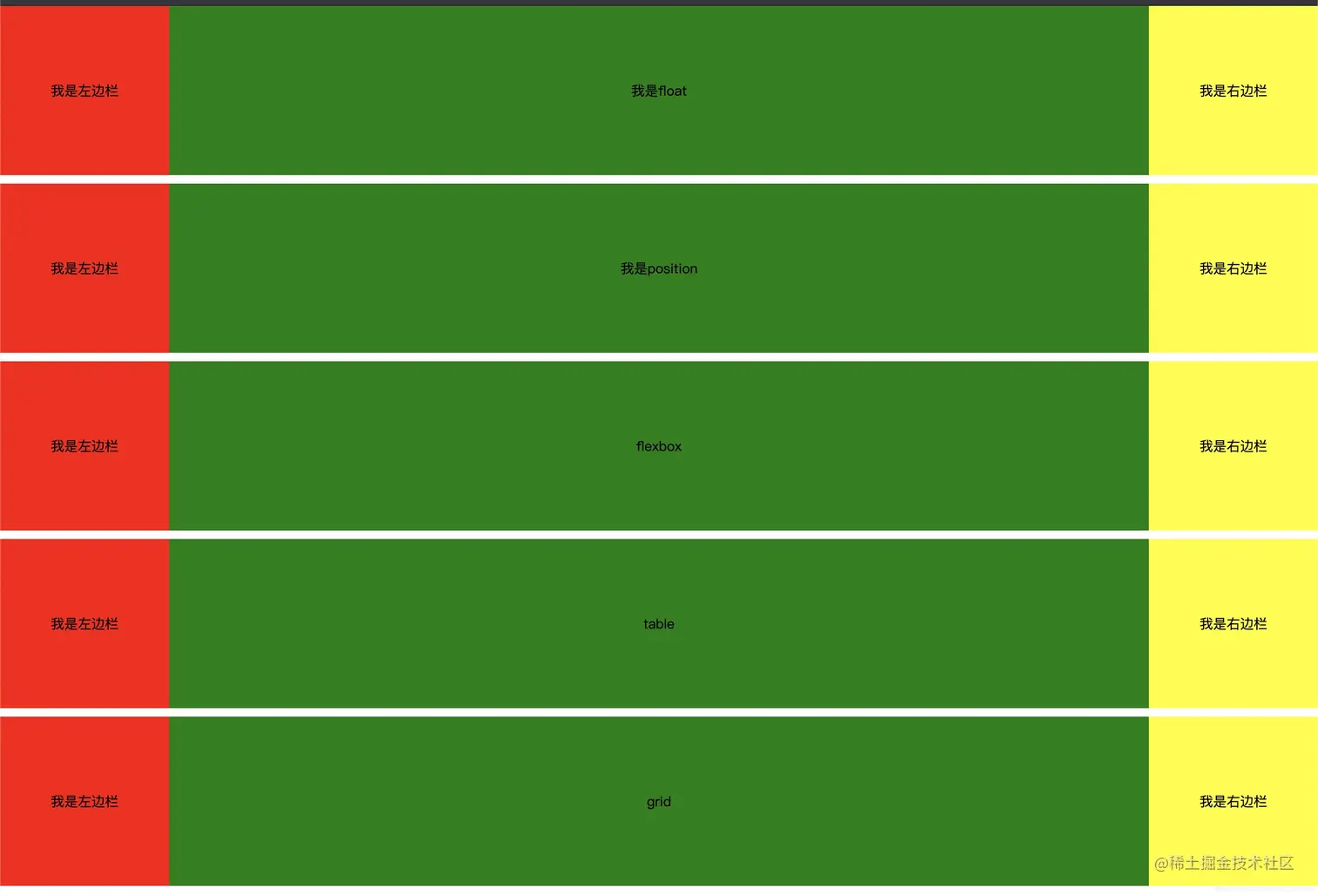

代码以及浏览器展示效果如上,浏览器拉伸也不会影响,可实现效果,CSS3属性,若不考虑IE8,可以使用,而且网格布局有很多种形式,九宫格之类的样式都可以实现。

总结

以上为5种实现效果,各有利弊,开发过程中可根据实际情况使用对应的方法。
