2:零散的点
- 静态代理简单实现 :个人客户通过房产中介买房
public interface BuyHouse{
public void buyHouse();
}
public class Customer implements BuyHouse{
@Override
public void buyHouse(){
L.d("Customer buyHouse");
}
}
public class Agent implements BuyHouse{
private BuyHouse realBuyer;
public Agent(){
realBuyer = new Customer();
}
@Override
public void buyHouse(){
L.d("Agent buyHouse 开始");
if(realBuyer != null){
realBuyer.buyHouse();
}
L.d("Agent buyHouse 结束");
}
}
BuyHouse agent = new Agent();
agent.buyHouse();
3:动态代理
- 动态代理简单实现
public interface Buyer {
public void buy();
}
public class Buyer1 implements Buyer {
@Override
public void buy() {
L.d("Buyer","Buyer1 buy:买苹果");
}
}
public class Buyer2 implements Buyer {
@Override
public void buy() {
L.d("Buyer","Buyer2 buy:买香蕉");
}
}
public class DynamicProxy implements InvocationHandler {
private Object realObject;
public Object newProxyInstance(Object realObject){
this.realObject = realObject;
return Proxy.newProxyInstance(realObject.getClass().getClassLoader(),realObject.getClass().getInterfaces(),this);
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if(this.realObject != null){
return method.invoke(realObject,args);
}
return null;
}
}
调用:
public void func1(View view) {
DynamicProxy proxy = new DynamicProxy();
Buyer buyer1 = new Buyer1();
Buyer buyer1_proxy = (Buyer) proxy.newProxyInstance(buyer1);
buyer1_proxy.buy();
Buyer buyer2 = new Buyer2();
Buyer buyer2_proxy = (Buyer) proxy.newProxyInstance(buyer2);
buyer2_proxy.buy();
}
log打印:
2020-08-03 17:22:42.809 2488-2488/? D/Buyer: Buyer1 buy:买苹果
2020-08-03 17:22:42.809 2488-2488/? D/Buyer: Buyer2 buy:买香蕉

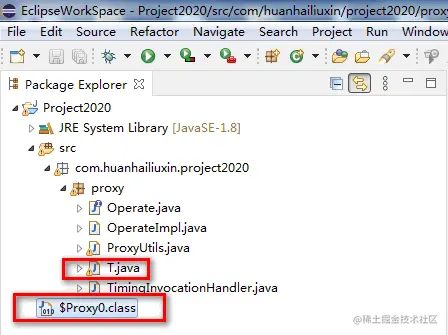

- 动态代理生成的类结构
public interface Operate { public void operateMethod1(); public void operateMethod2(); public void operateMethod3(); } public class OperateImpl implements Operate { @Override public void operateMethod1() { System.out.println("Invoke operateMethod1"); sleep(110); } @Override public void operateMethod2() { System.out.println("Invoke operateMethod2"); sleep(120); } @Override public void operateMethod3() { System.out.println("Invoke operateMethod3"); sleep(130); } private static void sleep(long millSeconds) { try { Thread.sleep(millSeconds); } catch (InterruptedException e) { e.printStackTrace(); } } } public class TimingInvocationHandler implements InvocationHandler { private Object target; public TimingInvocationHandler() {} public TimingInvocationHandler(Object target) { this.target = target; } @Override public Object invoke(Object proxy, Method method, Object[] args) throws Throwable { long start = System.currentTimeMillis(); Object obj = method.invoke(target, args); System.out.println(method.getName() + " cost time is:" + (System.currentTimeMillis() - start)); return obj; } } public class ProxyUtils { /** * Save proxy class to path * * @param path path to save proxy class * @param proxyClassName name of proxy class * @param interfaces interfaces of proxy class * @return */ public static boolean saveProxyClass(String path, String proxyClassName, Class[] interfaces) { if (proxyClassName == null || path == null) { return false; } // get byte of proxy class // 关键:通过 ProxyGenerator byte[] classFile = ProxyGenerator.generateProxyClass(proxyClassName, interfaces); FileOutputStream out = null; try { out = new FileOutputStream(path); out.write(classFile); out.flush(); return true; } catch (Exception e) { e.printStackTrace(); } finally { try { out.close(); } catch (IOException e) { e.printStackTrace(); } } return false; } }调用,查看生成的动态代理类实际结构 public class T { public static void main(String[] args) { TimingInvocationHandler timingInvocationHandler = new TimingInvocationHandler(new OperateImpl()); Operate operate = (Operate)(Proxy.newProxyInstance(Operate.class.getClassLoader(), new Class[] {Operate.class}, timingInvocationHandler)); // call proxy instance method operate.operateMethod1(); System.out.println(); operate.operateMethod2(); System.out.println(); operate.operateMethod3(); // print info of proxy class System.out.println("proxy class is: " + operate.getClass().getName()); System.out.println("\r\nsuper class of proxy class is: " + operate.getClass().getSuperclass().getName()); System.out.println("\r\ninterfaces of proxy class are: "); for (Class inter : operate.getClass().getInterfaces()) { System.out.println("\t" + inter.getName()); } System.out.println("\r\nmethods of proxy class are: "); for (Method method : operate.getClass().getMethods()) { System.out.println("\t" + method.getName()); } // save proxy class to root of this project, you can use jd-gui to see content of the saved file //String saveFileName = "$Proxy0.class"; String saveFileName = "$Proxy0.txt"; ProxyUtils.saveProxyClass(saveFileName, operate.getClass().getSimpleName(), operate.getClass().getInterfaces()); System.out.println("\r\nContent of " + operate.getClass().getSimpleName() + ".class has saved to file " + saveFileName + " at root of this project"); } } Invoke operateMethod1 operateMethod1 cost time is:111 Invoke operateMethod2 operateMethod2 cost time is:120 Invoke operateMethod3 operateMethod3 cost time is:130 proxy class is: com.sun.proxy.$Proxy0 super class of proxy class is: java.lang.reflect.Proxy interfaces of proxy class are: com.huanhailiuxin.project2020.proxy.Operate methods of proxy class are: operateMethod1 operateMethod2 operateMethod3 equals toString hashCode getInvocationHandler getProxyClass newProxyInstance isProxyClass wait wait wait getClass notify notifyAll Content of $Proxy0.class has saved to file $Proxy0.class at root of this project- 使用 jadx-gui-1.0.0.exe 查看class.

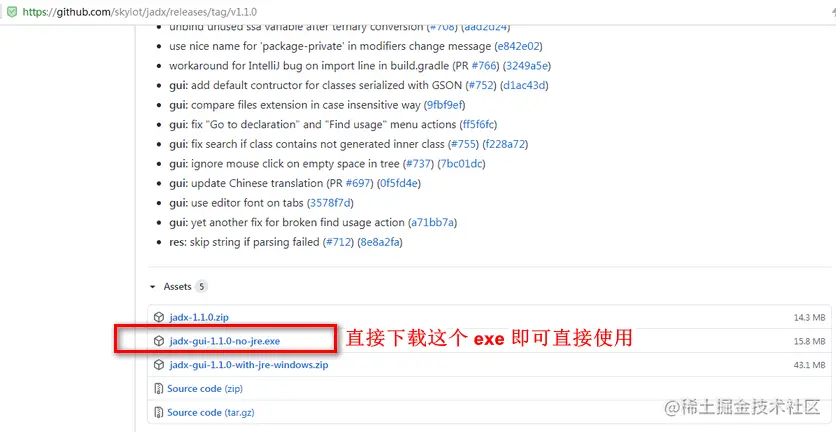

- 下载及使用 jadx :github.com/skylot/jadx…
package defpackage; import com.huanhailiuxin.project2020.proxy.Operate; import java.lang.reflect.InvocationHandler; import java.lang.reflect.Method; import java.lang.reflect.Proxy; import java.lang.reflect.UndeclaredThrowableException; /* renamed from: $Proxy0 reason: invalid class name and default package */ public final class C$Proxy0 extends Proxy implements Operate { private static Method m0; private static Method m1; private static Method m2; private static Method m3; private static Method m4; private static Method m5; static { try { m1 = Class.forName("java.lang.Object").getMethod("equals", new Class[]{Class.forName("java.lang.Object")}); m2 = Class.forName("java.lang.Object").getMethod("toString", new Class[0]); m4 = Class.forName("com.huanhailiuxin.project2020.proxy.Operate").getMethod("operateMethod2", new Class[0]); m5 = Class.forName("com.huanhailiuxin.project2020.proxy.Operate").getMethod("operateMethod3", new Class[0]); m0 = Class.forName("java.lang.Object").getMethod("hashCode", new Class[0]); m3 = Class.forName("com.huanhailiuxin.project2020.proxy.Operate").getMethod("operateMethod1", new Class[0]); } catch (NoSuchMethodException e) { throw new NoSuchMethodError(e.getMessage()); } catch (ClassNotFoundException e2) { throw new NoClassDefFoundError(e2.getMessage()); } } public C$Proxy0(InvocationHandler invocationHandler) { super(invocationHandler); } public final boolean equals(Object obj) { try { return ((Boolean) this.h.invoke(this, m1, new Object[]{obj})).booleanValue(); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } public final int hashCode() { try { return ((Integer) this.h.invoke(this, m0, null)).intValue(); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } public final void operateMethod1() { try { this.h.invoke(this, m3, null); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } public final void operateMethod2() { try { this.h.invoke(this, m4, null); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } public final void operateMethod3() { try { this.h.invoke(this, m5, null); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } public final String toString() { try { return (String) this.h.invoke(this, m2, null); } catch (Error | RuntimeException e) { throw e; } catch (Throwable th) { throw new UndeclaredThrowableException(th); } } } - Proxy.newProxyInstance
//仅保留关键代码
public static Object newProxyInstance(ClassLoader loader,
Class<?>[] interfaces,
InvocationHandler h)
throws IllegalArgumentException
{
//1:查询或生成 动态代理类 的Class
//关注点1
Class<?> cl = getProxyClass0(loader, interfaces);
//2:获取 动态代理类 的构造函数
final Constructor<?> cons = cl.getConstructor(constructorParams);
final InvocationHandler ih = h;
//2:通过构造函数,以传入参数 h 构造Object数组作为参数,创建 动态代理类实例
return cons.newInstance(new Object[]{h});
}
可见,重点在于如何获取动态代理类的Class.
-->
关注点1:
Class<?> cl = getProxyClass0(loader, interfaces);
private static Class<?> getProxyClass0(ClassLoader loader,
Class<?>... interfaces) {
if (interfaces.length > 65535) {
throw new IllegalArgumentException("interface limit exceeded");
}
// If the proxy class defined by the given loader implementing
// the given interfaces exists, this will simply return the cached copy;
// otherwise, it will create the proxy class via the ProxyClassFactory
// 如果 指定的(类加载器 + 接口class数组) 对应的 动态代理类Class 已存在,则直接返回;
// 若不存在,则通过 ProxyClassFactory 生成Class后返回.
return proxyClassCache.get(loader, interfaces);
}
刚刚获取,肯定是不存在的,直接看 通过 ProxyClassFactory 生成Class 的逻辑.
-->
proxyClassCache:
private static final WeakCache<ClassLoader, Class<?>[], Class<?>>
proxyClassCache = new WeakCache<>(new KeyFactory(), new ProxyClassFactory());
-->
new ProxyClassFactory():
-->
ProxyClassFactory:
private static final class ProxyClassFactory
implements BiFunction<ClassLoader, Class<?>[], Class<?>>
{
// 所有动态代理类名称前缀都是 "$Proxy"
private static final String proxyClassNamePrefix = "$Proxy";
// next number to use for generation of unique proxy class names
private static final AtomicLong nextUniqueNumber = new AtomicLong();
//生成动态代理类Class的方法
@Override
public Class<?> apply(ClassLoader loader, Class<?>[] interfaces) {
Map<Class<?>, Boolean> interfaceSet = new IdentityHashMap<>(interfaces.length);
***
//动态代理类的包名
String proxyPkg = null; // package to define proxy class in
int accessFlags = Modifier.PUBLIC | Modifier.FINAL;
// 获取非public接口所在包,生成的动态代理类会和非public接口在同一个包内.
// proxyPkg
// 需要所有的非public接口都处于同一个包内.否则会抛出异常.
for (Class<?> intf : interfaces) {
int flags = intf.getModifiers();
if (!Modifier.isPublic(flags)) {
accessFlags = Modifier.FINAL;
String name = intf.getName();
int n = name.lastIndexOf('.');
String pkg = ((n == -1) ? "" : name.substring(0, n + 1));
if (proxyPkg == null) {
proxyPkg = pkg;
} else if (!pkg.equals(proxyPkg)) {
//非public接口处于不同包,则抛出异常
throw new IllegalArgumentException(
"non-public interfaces from different packages");
}
}
}
if (proxyPkg == null) {
// 如果没有非public接口,则 保持为null,为其赋默认值 "com.sun.proxy."
proxyPkg = ReflectUtil.PROXY_PACKAGE + ".";
}
//动态代理类名称数字后缀
//private static final AtomicLong nextUniqueNumber = new AtomicLong();
//说明多次调用 Proxy.newProxyInstance ,生成的动态代理类名称后缀依次是 0,1,2,**
long num = nextUniqueNumber.getAndIncrement();
//动态代理类名称: 包名 + "$Proxy" + 数字(0,1,2 依次累加)
String proxyName = proxyPkg + proxyClassNamePrefix + num;
//获取动态代理类的byte数组
//关注点2
byte[] proxyClassFile = ProxyGenerator.generateProxyClass(proxyName, interfaces, accessFlags);
//根据动态代理类的byte数组,获取对应的Class实例返回
return defineClass0(loader, proxyName, proxyClassFile, 0, proxyClassFile.length);
}
}
可见,重点在于 ProxyGenerator.generateProxyClass 的实现逻辑.如果获取动态代理类的byte数组.
-->
关注点2:
byte[] proxyClassFile = ProxyGenerator.generateProxyClass(proxyName, interfaces, accessFlags);
-->
ProxyGenerator可以通过Android Studio看源码.
ProxyGenerator:
public class ProxyGenerator {
//构造函数
//动态代理类类名, 动态代理类需要实现的所有接口Class数组
private ProxyGenerator(String var1, Class<?>[] var2, int var3) {
this.className = var1;
this.interfaces = var2;
this.accessFlags = var3;
}
public static byte[] generateProxyClass(final String var0, Class<?>[] var1, int var2) {
//创建 ProxyGenerator 实例
ProxyGenerator var3 = new ProxyGenerator(var0, var1, var2);
//调用其 generateClassFile 方法, 获取byte[]
//关注点3
final byte[] var4 = var3.generateClassFile();
***
//返回 byte[]
return var4;
}
}
-->
关注点3:
private Map<String, List<ProxyGenerator.ProxyMethod>> proxyMethods = new HashMap();
//3.1
//addProxyMethod
private void addProxyMethod(Method var1, Class<?> var2) {
//获取方法各个属性
String var3 = var1.getName();
Class[] var4 = var1.getParameterTypes();
Class var5 = var1.getReturnType();
Class[] var6 = var1.getExceptionTypes();
String var7 = var3 + getParameterDescriptors(var4);
//根据方法关联属性,获取对应的 List<ProxyGenerator.ProxyMethod>实例 var8 是否存在
Object var8 = (List)this.proxyMethods.get(var7);
if (var8 != null) {
//var8存在则说明对应的方法之前添加过,直接return
***
reuturn
} else {
//var8不存在,则创建对应ArrayList
//并将 var8 存储到 proxyMethods 映射中
var8 = new ArrayList(3);
this.proxyMethods.put(var7, var8);
}
//创建新的new ProxyGenerator.ProxyMethod实例,添加到 var8 中
//new ProxyGenerator.ProxyMethod(var3, var4, var5, var6, var2)
((List)var8).add(new ProxyGenerator.ProxyMethod(var3, var4, var5, var6, var2));
}
//3.2
private List<ProxyGenerator.MethodInfo> methods = new ArrayList();
//3.3
private List<ProxyGenerator.FieldInfo> fields = new ArrayList();
//可见: methods存储了所有方法, fields存储了所有成员变量/属性.
private byte[] generateClassFile() {
//看addProxyMethod
//3.1
this.addProxyMethod(hashCodeMethod, Object.class);
this.addProxyMethod(equalsMethod, Object.class);
this.addProxyMethod(toStringMethod, Object.class);
Class[] var1 = this.interfaces;
int var2 = var1.length;
int var3;
Class var4;
for(var3 = 0; var3 < var2; ++var3) {
var4 = var1[var3];
Method[] var5 = var4.getMethods();
int var6 = var5.length;
for(int var7 = 0; var7 < var6; ++var7) {
Method var8 = var5[var7];
//将所有接口中的方法都存储到 proxyMethods 中.
this.addProxyMethod(var8, var4);
}
}
//上面已经将所有接口中的方法存储到 proxyMethods 中
//现在遍历 proxyMethods .
Iterator var11 = this.proxyMethods.values().iterator();
List var12;
while(var11.hasNext()) {
var12 = (List)var11.next();
checkReturnTypes(var12);
}
Iterator var15;
try {
//3.2
//this.methods
//向methods中添加构造方法信息
//3.2.1
//构造方法
this.methods.add(this.generateConstructor());
var11 = this.proxyMethods.values().iterator();
while(var11.hasNext()) {
var12 = (List)var11.next();
var15 = var12.iterator();
while(var15.hasNext()) {
ProxyGenerator.ProxyMethod var16 = (ProxyGenerator.ProxyMethod)var15.next();
//3.3
//this.fields
//向fields中添加成员变量信息.每一个原始的接口方法,都对应1个成员变量
this.fields.add(new ProxyGenerator.FieldInfo(var16.methodFieldName, "Ljava/lang/reflect/Method;", 10));
//向methods中添加方法,每一个接口中的方法信息,都添加到methods中
//3.2.3
//关注每个 MethodInfo 生成逻辑
this.methods.add(var16.generateMethod());
}
}
//将static初始化代码块对应的 MethodInfo 添加到 methods 中
//3.2.2
this.methods.add(this.generateStaticInitializer());
} catch (IOException var10) {
throw new InternalError("unexpected I/O Exception", var10);
}
//方法数量 和 成员变量 的数量添加限制: <= 65535
if (this.methods.size() > 65535) {
throw new IllegalArgumentException("method limit exceeded");
} else if (this.fields.size() > 65535) {
throw new IllegalArgumentException("field limit exceeded");
} else {
this.cp.getClass(dotToSlash(this.className));
this.cp.getClass("java/lang/reflect/Proxy");
var1 = this.interfaces;
var2 = var1.length;
for(var3 = 0; var3 < var2; ++var3) {
var4 = var1[var3];
this.cp.getClass(dotToSlash(var4.getName()));
}
this.cp.setReadOnly();
//3.3
//var13 var14
ByteArrayOutputStream var13 = new ByteArrayOutputStream();
DataOutputStream var14 = new DataOutputStream(var13);
try {
var14.writeInt(-889275714);
var14.writeShort(0);
var14.writeShort(49);
this.cp.write(var14);
//var14写入 public , protected , **
var14.writeShort(this.accessFlags);
//var14写入 类名
var14.writeShort(this.cp.getClass(dotToSlash(this.className)));
//var14写入 继承于 Proxy
var14.writeShort(this.cp.getClass("java/lang/reflect/Proxy"));
//var14写入 实现的接口的数量
var14.writeShort(this.interfaces.length);
Class[] var17 = this.interfaces;
int var18 = var17.length;
for(int var19 = 0; var19 < var18; ++var19) {
Class var22 = var17[var19];
//var14写入 实现的每个接口的名称
var14.writeShort(this.cp.getClass(dotToSlash(var22.getName())));
}
//var14写入 成员变量的数量
var14.writeShort(this.fields.size());
var15 = this.fields.iterator();
while(var15.hasNext()) {
ProxyGenerator.FieldInfo var20 = (ProxyGenerator.FieldInfo)var15.next();
//var14写入 每个成员变量
var20.write(var14);
}
//var14写入 方法的数量
var14.writeShort(this.methods.size());
var15 = this.methods.iterator();
while(var15.hasNext()) {
ProxyGenerator.MethodInfo var21 = (ProxyGenerator.MethodInfo)var15.next();
//var14写入 每个方法
var21.write(var14);
}
var14.writeShort(0);
//DataOutputStream var14 = new DataOutputStream(var13);
//var14写入的所有数据,通过var13,返回byte[]
return var13.toByteArray();
} catch (IOException var9) {
throw new InternalError("unexpected I/O Exception", var9);
}
}
}
-->
//3.2.1
//构造方法
private ProxyGenerator.MethodInfo generateConstructor() throws IOException {
//"(Ljava/lang/reflect/InvocationHandler;)V"
//猜的:代表构造函数的参数类型是 InvocationHandler
//这就解释了为什么动态代理类构造参数是 InvocationHandler 实例
ProxyGenerator.MethodInfo var1 = new ProxyGenerator.MethodInfo("<init>", "(Ljava/lang/reflect/InvocationHandler;)V", 1);
DataOutputStream var2 = new DataOutputStream(var1.code);
this.code_aload(0, var2);
this.code_aload(1, var2);
var2.writeByte(183);
var2.writeShort(this.cp.getMethodRef("java/lang/reflect/Proxy", "<init>", "(Ljava/lang/reflect/InvocationHandler;)V"));
var2.writeByte(177);
var1.maxStack = 10;
var1.maxLocals = 2;
var1.declaredExceptions = new short[0];
return var1;
}
//3.2.2
//static初始化代码块对应的 MethodInfo
//generateStaticInitializer能看到生成的动态代理类静态初始代码块的结构
//proxyMethods中存储的每个方法信息，都有对应的静态初始化代码;
private ProxyGenerator.MethodInfo generateStaticInitializer() throws IOException {
ProxyGenerator.MethodInfo var1 = new ProxyGenerator.MethodInfo("<clinit>", "()V", 8);
***
DataOutputStream var6 = new DataOutputStream(var1.code);
//遍历 proxyMethods
Iterator var7 = this.proxyMethods.values().iterator();
while(var7.hasNext()) {
List var8 = (List)var7.next();
Iterator var9 = var8.iterator();
while(var9.hasNext()) {
//获取到 proxyMethods 中存储的每个方法信息
ProxyGenerator.ProxyMethod var10 = (ProxyGenerator.ProxyMethod)var9.next();
//将每个方法信息写入 var6
//3.2.2.1
//codeFieldInitialization
var10.codeFieldInitialization(var6);
}
}
var6.write***
***
}
-->
//3.2.2.1
//codeFieldInitialization
private void codeFieldInitialization(DataOutputStream var1) throws IOException {
//向var1写入 该方法源于哪个类
ProxyGenerator.this.codeClassForName(this.fromClass, var1);
//向var1写入 该方法方法名
ProxyGenerator.this.code_ldc(ProxyGenerator.this.cp.getString(this.methodName), var1);
//向var1写入 该方法参数长度
ProxyGenerator.this.code_ipush(this.parameterTypes.length, var1);
var1.writeByte(189);
var1.writeShort(ProxyGenerator.this.cp.getClass("java/lang/Class"));
//遍历每个方法参数
for(int var2 = 0; var2 < this.parameterTypes.length; ++var2) {
var1.writeByte(89);
//向var1写入 当前参数索引值
ProxyGenerator.this.code_ipush(var2, var1);
**
//向var1写入 当前参数所属的Class
ProxyGenerator.this.codeClassForName(this.parameterTypes[var2], var1);
**
var1.writeByte(83);
}
var1.writeByte(182);
var1.writeShort(ProxyGenerator.this.cp.getMethodRef("java/lang/Class", "getMethod", "(Ljava/lang/String;[Ljava/lang/Class;)Ljava/lang/reflect/Method;"));
var1.writeByte(179);
var1.writeShort(ProxyGenerator.this.cp.getFieldRef(ProxyGenerator.dotToSlash(ProxyGenerator.this.className), this.methodFieldName, "Ljava/lang/reflect/Method;"));
}
//3.2.3
//关注每个 MethodInfo 生成逻辑
//只看关键逻辑
private ProxyGenerator.MethodInfo generateMethod() throws IOException {
String var1 = ProxyGenerator.getMethodDescriptor(this.parameterTypes, this.returnType);
ProxyGenerator.MethodInfo var2 = ProxyGenerator.this.new MethodInfo(this.methodName, var1, 17);
***
DataOutputStream var9 = new DataOutputStream(var2.code);
***
//获取到成员变量h，h属于InvocationHandler
var9.writeShort(ProxyGenerator.this.cp.getFieldRef("java/lang/reflect/Proxy", "h", "Ljava/lang/reflect/InvocationHandler;"));
***
//向var9写入 方法名
var9.writeShort(ProxyGenerator.this.cp.getFieldRef(ProxyGenerator.dotToSlash(ProxyGenerator.this.className), this.methodFieldName, "Ljava/lang/reflect/Method;"));
//遍历方法参数
if (this.parameterTypes.length > 0) {
ProxyGenerator.this.code_ipush(this.parameterTypes.length, var9);
var9.writeByte(189);
var9.writeShort(ProxyGenerator.this.cp.getClass("java/lang/Object"));
for(int var10 = 0; var10 < this.parameterTypes.length; ++var10) {
var9.writeByte(89);
ProxyGenerator.this.code_ipush(var10, var9);
//向var9写入 当前参数类型，当前参数索引值
this.codeWrapArgument(this.parameterTypes[var10], var3[var10], var9);
var9.writeByte(83);
}
} else {
var9.writeByte(1);
}
//向var9写入 执行InvocationHandler的invoke方法
//这里就解释了生成的动态代理类，为什么每个方法内部，都是执行 InvocationHandler.invoke(Object var1, Method var2, Object[] var3)方法。
var9.writeShort(ProxyGenerator.this.cp.getInterfaceMethodRef("java/lang/reflect/InvocationHandler", "invoke", "(Ljava/lang/Object;Ljava/lang/reflect/Method;[Ljava/lang/Object;)Ljava/lang/Object;"));
***
}
generateClassFile总结:
- proxyMethods 中存储了:
- 动态代理类需实现的所有接口中的所有方法
- Object的 hashCode,equals,toString 3个方法;
- proxyMethods 存储完毕开始遍历
- 2.1:methods
- methods中添加 构造函数方法
- methods中添加 proxyMethods中的每个方法
- methods中添加 静态初始化代码块
- 2.2:fields
- fields中添加 proxyMethods中的每个方法对应的成员变量
- 2.1:methods
- generateConstructor 生成的构造函数，以InvocationHandler作为参数，这就解释了为什么生成动态代理类实例需要传入InvocationHandler实例。
- generateStaticInitializer 中对proxyMethods进行遍历，proxyMethods中每个方法都有对应的静态初始化代码。
- 动态代理类所有相关信息写入var14,var14和var13相关联,通过var13返回该动态代理类对应的byte数组.
- 5.1:简略
ByteArrayOutputStream var13 = new ByteArrayOutputStream();
DataOutputStream var14 = new DataOutputStream(var13);
return var13.toByteArray();
- 5.2:var14具体写入过程
//var14写入 public , protected , **
//var14写入 类名
//var14写入 继承于 Proxy
//var14写入 实现的接口的数量
//var14写入 实现的每个接口的名称
//var14写入 成员变量的数量
//var14写入 每个成员变量
//var14写入 方法的数量
//var14写入 每个方法
JDK动态代理[4]---ProxyGenerator生成代理类的字节码文件解析 这篇文章也是这个方法的解析,明天看一下
