手把手教你用策略模式写echarts的配置项option前言：策略模式和适配器模式很像但前者策略的接口和相关类会暴露

前言：策略模式和适配器模式很像但前者策略的接口和相关类会暴露出来，并且每个策略的“计算内容”都不同【常用于计算】。

一、研究下echarts官网的重要配置

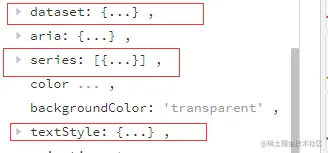

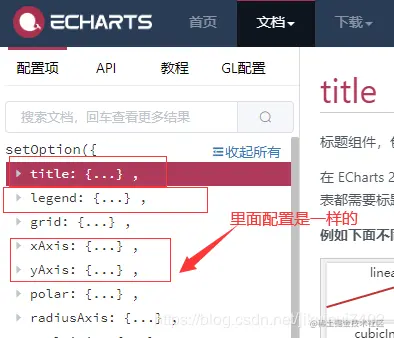

1.1 常用项主要有title legend xAxis yAxis legend dataset series textStyle 如下图所示

二、建立Echarts的option类我在此命名为EchartsOption 【注：后面一般option下直接属性 java命名前缀都是Echarts】

package com.ken.sys.common.entity.echarts.option;

import com.ken.sys.common.entity.echarts.axis.EchartsXYAxis; import com.ken.sys.common.entity.echarts.dataset.EchartDataset; import com.ken.sys.common.entity.echarts.legend.EchartsLegend; import com.ken.sys.common.entity.echarts.series.EchartBaseSeries; import com.ken.sys.common.entity.echarts.textStyle.EchartsTextStyle; import com.ken.sys.common.entity.echarts.title.EchartsTitle;

import java.util.List;

/** *

@author swc
@date 2020/7/3 0003 下午 13:43 */ public class EchartsOption { //标题 private EchartsTitle title;

//图例组件。 //图例组件展现了不同系列的标记(symbol)，颜色和名字。可以通过点击图例控制哪些系列不显示。 private EchartsLegend legend;

//直角坐标系 grid 中的 x 轴， private EchartsXYAxis xAxis;

//直角坐标系 grid 中的 y 轴，[x轴和y轴属性是一样的] private EchartsXYAxis yAxis;

//默认颜色值全局 private Object color =new String[]{"#c23531","#2f4554", "#61a0a8", "#d48265", "#91c7ae","#749f83", "#ca8622", "#bda29a","#6e7074", "#546570", "#c4ccd3"};

//全局的字体样式。 private EchartsTextStyle textStyle;

//系列列表。每个系列通过 type 决定自己的图表类型 private List series;

//注意 //Charts 4 开始支持了数据集（dataset）组件用于单独的数据集声明， // 从而数据可以单独管理，被多个组件复用，并且可以自由指定数据到视觉的映射。这在不少场景下能带来使用上的方便。 private EchartDataset dataset;

//省略get set方法

} 2.1 以title 为例子写相关的java类EchartsTitle

/****************************************************************************** * * *

*****************************************************************************/ package com.ken.sys.common.entity.echarts.title;

/**

- Title= EchartsTitle
- Description= TODO
- Copyright= Copyright (c) 2018
- Company= http=//www.jiangqiaotech.com/
@author swc
@date 2020/7/3 0003 下午 13=54 */ public class EchartsTitle {

private String id ;

//是否显示标题组件 private boolean show= true ;

//主标题文本，支持使用 \n 换行。 private String text= "" ;

private String link= "" ;

private String target= "blank" ;

private Object textStyle;

private String subtext= "" ;

private String sublink= "" ;

private String subtarget= "blank" ;

private String subtextStyle; //可选值："auto"、"left"、"right"、"center"。 private String textAlign= "auto" ;

private String textVerticalAlign= "auto" ;

private boolean triggerEvent= false ;

//number /Array //5 or [5,10,2,20] private Object padding= 5 ;

private Integer itemGap= 10 ;

private Integer zlevel= 0 ;

private Integer z= 2 ;

//string | number private Object left= "auto" ;

//string | number private Object top= "auto" ;

//string | number private Object right= "auto" ;

//string | number private Object bottom= "auto" ;

//Color private Object backgroundColor= "transparent" ;

//Color private Object borderColor= "#ccc" ;

private Integer borderWidth= 0 ;

private Integer borderRadius= 0 ;

private Integer shadowBlur ;

//Color private Object shadowColor ;

private Integer shadowOffsetX= 0 ;

private Integer shadowOffsetY= 0 ;

//省略get set方法 }

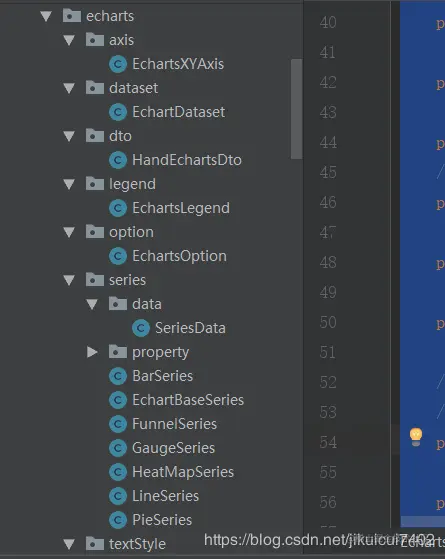

file 其他相关类在此不做赘述

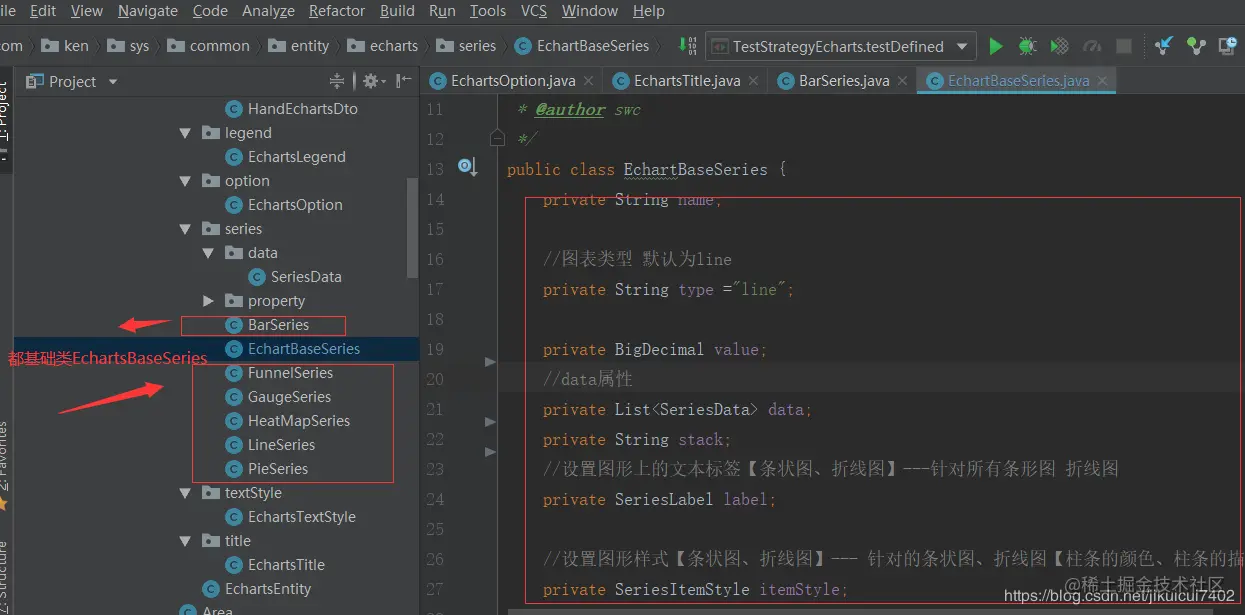

这里简单说一下 series 使用基类【EchartBaseSeries】其他如饼图折线图等的series都是集成EchartBaseSeries

三、编写策略类【策略模式】

3.1 主要分为三部分，一是策略接口【EchartsStrategy】二是策略的上下文对外暴露匹配不同的策略行使不同的方案

三是工厂类将策略注入做到匹配不同的类型的策略

3.1.1 策略接口【EchartsStrategy】

public interface EchartsStrategy { // //创建option EchartsOption createOption(IEchartSeries iEchartSeries, List list, HandEchartsDto handEchartsDto);

//会创建多个option
<T>List<EchartsOption> createMulOption(IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto);

} 3.1.2 策略上下文【EchartStrategyContext】

package com.ken.sys.common.strategycontext.echarts;

import com.ken.sys.common.entity.echarts.dto.HandEchartsDto; import com.ken.sys.common.entity.echarts.option.EchartsOption; import com.ken.sys.common.ifs.IEchartSeries; import com.ken.sys.common.strategy.echarts.base.EchartsStrategy;

import java.util.List;

/**

- Title: EchartStrategyContext
@author swc
@date 2020/7/3 0003 下午 14:54 */ public class EchartStrategyContext {

//echart 的生成策略 private EchartsStrategy echartsStrategy;

public EchartsOption createOption(IEchartSeries iEchartSeries, List list,HandEchartsDto echartsDto){ if (echartsStrategy != null) { return echartsStrategy.createOption(iEchartSeries,list,echartsDto); } return null; }

//会创建多个option public List createMulOption(IEchartSeries iEchartSeries, List list,HandEchartsDto echartsDto){ if (echartsStrategy != null) { return echartsStrategy.createMulOption(iEchartSeries,list,echartsDto); } return null; }

public EchartStrategyContext(EchartsStrategy echartsStrategy) { this.echartsStrategy = echartsStrategy; }

private EchartStrategyContext() { }

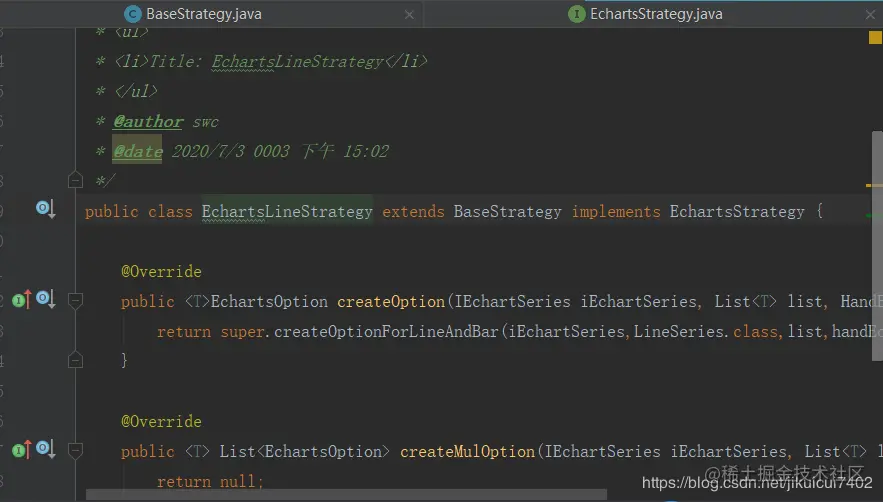

} 3.1.3 策略的工厂类【EchartsStrategyFactory】

/****************************************************************************** * * *

***************************************************************************/ package com.ken.sys.common.factory.echarts; import com.ken.sys.common.constant.EchartsConstant; import com.ken.sys.common.strategy.echarts.*; import com.ken.sys.common.strategy.echarts.base.EchartsStrategy; import java.util.HashMap; import java.util.Map; /

- Title: EchartsStrategyFactory
- Description: TODO
- Copyright: Copyright (c) 2018
- 微信:tianji_vip
@author swc
@date 2020/7/3 0003 下午 15:07 */ public class EchartsStrategyFactory { public static Map<String,EchartsStrategy> hashMap; static { hashMap = new HashMap<String,EchartsStrategy>(); hashMap.put(EchartsConstant.LINE,new EchartsLineStrategy()); hashMap.put(EchartsConstant.BAR,new EchartsBarStrategy()); hashMap.put(EchartsConstant.PIE,new EchartsPieStrategy()); hashMap.put(EchartsConstant.FUNNEL,new EchartsFunnelStrategy()); hashMap.put(EchartsConstant.GAUGE,new EchartsGaugeStrategy()); hashMap.put(EchartsConstant.HEATMAP,new EchartsHeatMapStrategy()); } public static EchartsStrategy getEchartsStrategy(String type) { return hashMap.get(type); } } 四、部分策略内容展示【这里是把策略封装在BaseStrategy里面作为公共部分】

BaseStrategy的相关方法 package com.ken.sys.common.strategy.echarts.base;

import com.ken.sys.common.entity.echarts.axis.EchartsXYAxis; import com.ken.sys.common.entity.echarts.dto.HandEchartsDto; import com.ken.sys.common.entity.echarts.legend.EchartsLegend; import com.ken.sys.common.entity.echarts.option.EchartsOption; import com.ken.sys.common.entity.echarts.series.EchartBaseSeries; import com.ken.sys.common.entity.echarts.series.HeatMapSeries; import com.ken.sys.common.entity.echarts.series.data.SeriesData; import com.ken.sys.common.entity.echarts.series.property.SeriesAreaStyle; import com.ken.sys.common.entity.echarts.series.property.SeriesItemStyle; import com.ken.sys.common.entity.echarts.series.property.SeriesLabel; import com.ken.sys.common.entity.echarts.series.property.SeriesLineStyle; import com.ken.sys.common.entity.echarts.title.EchartsTitle; import com.ken.sys.common.ifs.IEchartSeries; import com.ken.sys.common.util.EmptyUtils; import com.ken.sys.common.util.ReflectUtils;

import java.util.*;

/**

- Title: BaseStrategy
- Description: TODO
@author swc

@date 2020/7/3 0003 下午 15:57 */ public class BaseStrategy {

//针对line和bar图像 public EchartsOption createOptionForLineAndBar(IEchartSeries iEchartSeries,Class<? extends EchartBaseSeries> seriesClass, List list, HandEchartsDto handEchartsDto){ String xyAxisName = handEchartsDto.getxAxisDataName();

 Object[] legends = handEchartsDto.getLegends();

 Object[] fields =  handEchartsDto.getFields();

 List[] saveList = handEchartsDto.getSaveList();

 EchartsOption option =new EchartsOption();
 List<Object> xAxisDataList =new ArrayList<Object>();
 Map<String,List<Object>> map =new HashMap<String,List<Object>>();
 Number value =null;
 SeriesData data=null;
 String nameValue =null;
try {
    for(T t:list){
        nameValue = ReflectUtils.getFieldValue(t,xyAxisName).toString();
        xAxisDataList.add(nameValue);

        for(int ind=0;ind<fields.length;ind++){
            value = (Number) ReflectUtils.getFieldValue(t,(String)fields[ind]);
            value = EmptyUtils.isNullOrEmpty(value)?0:value;
            data =new SeriesData();
            data.setValue(value);
            //设置单个数据 样式
            if(!EmptyUtils.isNullOrEmpty(iEchartSeries)){
                iEchartSeries.setSeriesDataProp(data,new SeriesLabel(),new SeriesItemStyle(),new SeriesAreaStyle(),new SeriesLineStyle());
            }
            saveList[ind].add(data);
        }
    }

    //多个series
    List<EchartBaseSeries> mulseries =new ArrayList<EchartBaseSeries>();

    commonSetSeries(iEchartSeries, seriesClass, legends, fields, mulseries, saveList);

    EchartsLegend legend = new EchartsLegend();
    legend.setData(Arrays.asList(legends));

    EchartsXYAxis xAxis = new EchartsXYAxis();
    xAxis.setData(xAxisDataList);

    option.setLegend(legend);
    option.setxAxis(xAxis);
    option.setSeries(mulseries);
}catch (Exception e){
     //实际换成日志打印
    e.printStackTrace();
}
 return option;

}

//针对漏斗图、仪器图和饼图图像 public EchartsOption createOptionFGP(IEchartSeries iEchartSeries, Class<? extends EchartBaseSeries> seriesClass, List list, HandEchartsDto handEchartsDto){ EchartsOption option =new EchartsOption(); String xyAxisName = handEchartsDto.getxAxisDataName();

 Object[] legends = handEchartsDto.getLegends();

 Object[] fields =  handEchartsDto.getFields();

 List[] saveList = handEchartsDto.getSaveList();

 boolean requireXAxis = handEchartsDto.getRequireXAxis();

 List<Object> xAxisDataList =new ArrayList<Object>();
 Map<String,List<Object>> map =new HashMap<String,List<Object>>();
 Number value =null;
 SeriesData data=null;
 String xAxisDataValue =null;

 try {
     for(T t:list){
         xAxisDataValue = ReflectUtils.getFieldValue(t,xyAxisName).toString();
         for(int ind=0;ind<fields.length;ind++){
             value = (Number) ReflectUtils.getFieldValue(t,(String)fields[ind]);
             value = EmptyUtils.isNullOrEmpty(value)?0:value;

             data =new SeriesData();
             data.setValue(value);

             data.setName(xAxisDataValue);
             xAxisDataList.add(xAxisDataValue);

             //设置单个数据 样式
             if(!EmptyUtils.isNullOrEmpty(iEchartSeries)){
                 iEchartSeries.setSeriesDataProp(data,new SeriesLabel(),new SeriesItemStyle(),new SeriesAreaStyle(),new SeriesLineStyle());
             }
             saveList[ind].add(data);
         }
     }

     List<EchartBaseSeries> mulseries =new ArrayList<EchartBaseSeries>();
     commonSetSeries(iEchartSeries, seriesClass, legends, fields, mulseries, saveList);

     EchartsLegend legend =new EchartsLegend();
     legend.setData(Arrays.asList(legends));

     EchartsXYAxis xAxis =new EchartsXYAxis();
     xAxis.setData(xAxisDataList);

     //需要x轴
     if(requireXAxis){
         option.setxAxis(xAxis);
     }
     option.setLegend(legend);
     option.setSeries(mulseries);
 }catch (Exception e){
     e.printStackTrace();
 }
 return option;

}

/**

功能描述: 创建热力图的option
@param iEchartSeries 接口
@param t 对象 // * @param titleFieldName // * @param subFieldName 对象里面需要处理的list数据 // * @param xDimension 维度x轴 // * @param yDimension 维度y // * @param xAxisDataName x轴需要展示的信息 // * @param yAxisDataName y轴需要展示的信息 // * @param showValField 需要展示数据的列
@return: java.util.Map<java.lang.String,java.lang.Object>
@author: swc
@date: 2020/7/2 0002 下午 12:52 */ public static EchartsOption createHeatMapOption(IEchartSeries iEchartSeries, T t, HandEchartsDto handEchartsDto) { EchartsOption option =new EchartsOption(); List seriesList =new ArrayList();

String titleFieldName = handEchartsDto.getTitleFieldName();

String subFieldName = handEchartsDto.getSubFieldName();

String xDimension = handEchartsDto.getxDimension();

String yDimension = handEchartsDto.getyDimension();

String xAxisDataName = handEchartsDto.getxAxisDataName();

String yAxisDataName = handEchartsDto.getyAxisDataName();

String showValField = handEchartsDto.getShowValField();

String showDateField = handEchartsDto.getShowDateField();

String coordinateSystem = handEchartsDto.getCoordinateSystem();

Map<String,Object> map =new HashMap<String,Object>();

//标题 String titleName =null; if(!EmptyUtils.isNullOrEmpty(titleFieldName)){ titleName = ReflectUtils.getFieldValue(t,titleFieldName).toString(); }

List subList = (List)ReflectUtils.getFieldValue(t,subFieldName);

Set xAxisData =new TreeSet();

Set yAxisData =new TreeSet();

//数据值---单个数据 List seriesDataValue ;

EchartBaseSeries echartBaseSeries = new HeatMapSeries();

if("calendar".equals(coordinateSystem)){ ((HeatMapSeries)echartBaseSeries).setCoordinateSystem("calendar"); ((HeatMapSeries)echartBaseSeries).setCalendarIndex(handEchartsDto.getCalendarIndex()); }

List seriesDataList = new ArrayList(); SeriesData seriesData =null;

String xAxisValue =null; String yAxisValue =null; // 维度X String xDim = null; // 维度y String yDim = null; for(int i=0;i<subList.size();i++){ seriesData =new SeriesData();
```
 if(!EmptyUtils.isNullOrEmpty(xDimension)){
     // 维度X
     xDim =  ReflectUtils.getFieldValue(subList.get(i),xDimension).toString();
 }

 if(!EmptyUtils.isNullOrEmpty(xDimension)){
     // 维度y
     yDim =  ReflectUtils.getFieldValue(subList.get(i),yDimension).toString();
 }


 //x轴的值
 if(!EmptyUtils.isNullOrEmpty(xAxisDataName)){
     xAxisValue =  ReflectUtils.getFieldValue(subList.get(i),xAxisDataName).toString();
     xAxisData.add(xAxisValue);
 }

 //y轴的值
 if(!EmptyUtils.isNullOrEmpty(yAxisDataName)){
     yAxisValue =  ReflectUtils.getFieldValue(subList.get(i),yAxisDataName).toString();
     yAxisData.add(yAxisValue);
 }

 seriesDataValue =new ArrayList();

 //目前支持cartesian2d出现x-y维度
 if("cartesian2d".equals(coordinateSystem)){
     seriesDataValue.add(xDim);
     seriesDataValue.add(yDim);
 }

 //coordinateSystem为calendar series里面的data-[value]为时间+某项值的数组
 if("calendar".equals(coordinateSystem)){
     Object showDate =EmptyUtils.isNullOrEmpty(showDateField)?0:ReflectUtils.getFieldValue(subList.get(i),showDateField);
     seriesDataValue.add(showDate);
 }


 Object showVal =EmptyUtils.isNullOrEmpty(showValField)?0:ReflectUtils.getFieldValue(subList.get(i),showValField);
 seriesDataValue.add(showVal);

 seriesDataValue.add(subList.get(i));

 //设置值
 seriesData.setValue(seriesDataValue);
```

// seriesData.setVisualMap(false);

        if(!EmptyUtils.isNullOrEmpty(iEchartSeries)){
            iEchartSeries.setSeriesDetailProp(echartBaseSeries,new SeriesLabel(),new SeriesItemStyle(),new SeriesAreaStyle(),new SeriesLineStyle());
            iEchartSeries.setSeriesDataProp(seriesData,new SeriesLabel(),new SeriesItemStyle(),new SeriesAreaStyle(),new SeriesLineStyle());
        }

        seriesDataList.add(seriesData);
        echartBaseSeries.setData(seriesDataList);
    }

    seriesList.add(echartBaseSeries);
    EchartsTitle title =new EchartsTitle();
    title.setText(titleName);

    EchartsXYAxis xAxis =new EchartsXYAxis();
    xAxis.setData(new ArrayList(xAxisData));
    option.setxAxis(xAxis);

    EchartsXYAxis yAxis =new EchartsXYAxis();
    yAxis.setData(new ArrayList(yAxisData));
    option.setyAxis(yAxis);

    option.setSeries(seriesList);

    return option;
}


/**
 * 功能描述:
 * @param iEchartSeries 接口
 * @param list 对象
//     * @param titleFieldName
//     * @param subFieldName 对象里面需要处理的list数据
//     * @param xDimension 维度x轴
//     * @param yDimension 维度y
//     * @param xAxisDataName x轴需要展示的信息
//     * @param yAxisDataName y轴需要展示的信息
//     * @param showValField 需要展示数据的列
 * @return: java.util.Map<java.lang.String,java.lang.Object>
 * @author: swc
 * @date: 2020/7/2 0002 下午 12:52
 */
public static <T> List<EchartsOption> createHeatMapOption(IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto) {
    List<EchartsOption> optionList =new ArrayList<EchartsOption>();
    String coordinateSystem =  handEchartsDto.getCoordinateSystem();

    //拼接不同年份日历的series的值
    List<EchartBaseSeries> seriesList =new ArrayList<EchartBaseSeries>();
    EchartsOption option = null;


    for(int i=0;i<list.size();i++){
        handEchartsDto.setCalendarIndex(i);
        //如果coordinateSystem 是 cartesian2d  默认为 多个[option]热力图
        if("cartesian2d".equalsIgnoreCase(coordinateSystem)){
            optionList.add(createHeatMapOption(iEchartSeries,list.get(i),handEchartsDto));
        }
        //如果coordinateSystem 是 calendar  默认为 日历 则是一个option的热力图  series的值为多个 而不是一个
        if("calendar".equalsIgnoreCase(coordinateSystem)){
            option = createHeatMapOption(iEchartSeries, list.get(i), handEchartsDto);
            seriesList.addAll(option.getSeries());
        }
    }

    if("calendar".equalsIgnoreCase(coordinateSystem)){
        option.setSeries(seriesList);
        optionList.add(option);
    }

    return optionList;
}





//公告的设置多个series的方法
private void commonSetSeries(IEchartSeries iEchartSeries, Class<? extends EchartBaseSeries> seriesClass, Object[] legends, Object[] fields, List<EchartBaseSeries> mulseries, List[] saveList) throws InstantiationException, IllegalAccessException {
    EchartBaseSeries echartBaseSeries;
    for (int ind = 0; ind < fields.length; ind++) {
        //获取指定的series
        echartBaseSeries = seriesClass.newInstance();
        echartBaseSeries.setName((String) legends[ind]);
        echartBaseSeries.setData(saveList[ind]);
        //设置整体样式[如一条折线或条状图的样式]
        if (!EmptyUtils.isNullOrEmpty(iEchartSeries)) {
            iEchartSeries.setSeriesDetailProp(echartBaseSeries, new SeriesLabel(), new SeriesItemStyle(), new SeriesAreaStyle(), new SeriesLineStyle());
        }
        mulseries.add(echartBaseSeries);
    }
}

} 五、为了方便最后写了工具类【EChartsNewUtil】把策略调用进行封装

注：1.这里主要看有注释的方法因为参数是最全的 2.关于IEchartSeries ,EchartsStrategy 这两类，IEchartSeries 是针对series的数据处理或添加修改样式（毕竟每个公司 /每个系统业务多多少少会有些不同），EchartsStrategy 这个是自定义你自己业务需求的策略（需要继承EchartsStrategy ，这个完全是重新定义这个方法 IEchartSeries 再次不起作用除非你自动代码回调到它）

5.1 HandEchartsDto是封装的参数，用于反射数据源的属性或处理部分业务

/****************************************************************************** * * *

***************************************************************************/ package com.ken.sys.common.entity.echarts.dto; import java.util.List; /

- Title: HandEchartsDto
- Description: TODO
- Copyright: Copyright (c) 2018
- 微信:tianji_vip
@author swc
@date 2020/7/2 0002 下午 13:44 */ public class HandEchartsDto { // 该系列使用的坐标系，可选： // 'cartesian2d' // 使用二维的直角坐标系（也称笛卡尔坐标系），通过 xAxisIndex, yAxisIndex指定相应的坐标轴组件。 // 'geo' // 使用地理坐标系，通过 geoIndex 指定相应的地理坐标系组件。 // ‘calendar’ // 使用日历坐标系 private String coordinateSystem ="cartesian2d"; //标题[主-列名] private String titleFieldName; //子对象的属性名[列名] private String subFieldName; //维度x轴[列名] private String xDimension; //维度y轴[列名] private String yDimension; //x轴需要展示的信息[列名] private String xAxisDataName; //y轴需要展示的信息[列名] private String yAxisDataName; //需要展示数据的列的属性名[时间列] private String showDateField; //需要展示数据的列的属性名[列名] private String showValField; //使用的日历坐标系的 index，在单个图表实例中存在多个日历坐标系的时候有用。 private int calendarIndex; //legend的值 private Object[] legends; //一般为legend 一一对应的属性项的值 private Object[] fields; //一般为fields 一一对应的列的单个serie的data里面的value值一般为数组 private List[] saveList; //是否需要x轴 private boolean requireXAxis =true; //此处省略get set方法

} package com.ken.sys.common.util; import com.ken.sys.common.entity.echarts.dto.HandEchartsDto; import com.ken.sys.common.entity.echarts.option.EchartsOption; import com.ken.sys.common.factory.echarts.EchartsStrategyFactory; import com.ken.sys.common.ifs.IEchartSeries; import com.ken.sys.common.strategy.echarts.base.EchartsStrategy; import com.ken.sys.common.strategycontext.echarts.EchartStrategyContext;

import java.util.*;

public class EChartsNewUtil {

/**
 * 功能描述:
 * @param type 图形类别
 * @param iEchartSeries 外部接口 用于重写参数 或 样式等
 * @param list  数据源
 * @param handEchartsDto  需要处理的相应字段【list或list的子集里面】
 * @return: com.ken.sys.common.entity.echarts.option.EchartsOption
 * @param strategy  自定义的策略
 * @author: swc
 * @date: 2020/7/4 0:48
*/
public static <T>EchartsOption creatOption(String type, IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto, EchartsStrategy strategy) {
    //获取匹配的策略
    if(EmptyUtils.isNullOrEmpty(strategy)){
        strategy =EchartsStrategyFactory.getEchartsStrategy(type);
    }
    EchartStrategyContext context = new EchartStrategyContext(strategy);
    return context.createOption(iEchartSeries,list,handEchartsDto);
}

public static <T>EchartsOption creatOption(String type, List<T> list, HandEchartsDto handEchartsDto) {
    return creatOption(type,null,list,handEchartsDto,null);
}

public static <T>EchartsOption creatOption(String type, List<T> list, HandEchartsDto handEchartsDto,EchartsStrategy strategy) {
    return creatOption(type,null,list,handEchartsDto,strategy);
}

public static <T>EchartsOption creatOption(String type,IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto) {
    return creatOption(type,iEchartSeries,list,handEchartsDto,null);
}

/**
 * 功能描述:
 * @param type 图形类别
 * @param iEchartSeries 外部接口 用于重写参数 或 样式等
 * @param list  数据源
 * @param handEchartsDto  需要处理的相应字段【list或list的子集里面】
 * @param strategy  自定义的策略
 * @return: com.ken.sys.common.entity.echarts.option.EchartsOption
 * @author: swc
 * @date: 2020/7/4 0:48
 */
public static <T>List<EchartsOption> creatMulOptionForHeatMap(String type, IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto,EchartsStrategy strategy) {
    //获取匹配的策略
    if(EmptyUtils.isNullOrEmpty(strategy)){
        strategy =EchartsStrategyFactory.getEchartsStrategy(type);
    }
    EchartStrategyContext context = new EchartStrategyContext(strategy);
    return context.createMulOption(iEchartSeries,list,handEchartsDto);
}

public static <T>List<EchartsOption> creatMulOptionForHeatMap(String type, IEchartSeries iEchartSeries, List<T> list, HandEchartsDto handEchartsDto) {
    return creatMulOptionForHeatMap(type,iEchartSeries,list,handEchartsDto,null);
}


public static <T>List<EchartsOption> creatMulOptionForHeatMap(String type, List<T> list, HandEchartsDto handEchartsDto, EchartsStrategy strategy) {
    return creatMulOptionForHeatMap(type,null,list,handEchartsDto,strategy);
}

public static <T>List<EchartsOption> creatMulOptionForHeatMap(String type, List<T> list, HandEchartsDto handEchartsDto) {
    return creatMulOptionForHeatMap(type,null,list,handEchartsDto,null);
}

}

六、测试数据和测试该工具类

部分代码

//柱状图 折线图
@Test
public void barOrLine()throws Exception{
    String type=EChartsUtil.LINE;//BAR
    List<EchartsEntity> list= getData();

    Object[] legends ={"总金额","实付金额"};
    Object[] fields ={"nums1","nums2"};

    List[] saveList =new List[]{new ArrayList<BigDecimal>(),new ArrayList<BigDecimal>()};

    HandEchartsDto dto =new HandEchartsDto();

    dto.setxAxisDataName("name");
    dto.setLegends(legends);
    dto.setFields(fields);
    dto.setSaveList(saveList);

    EchartsOption option = EChartsNewUtil.creatOption(type, new IEchartSeries() {
        @Override
        public void setSeriesDetailProp(EchartBaseSeries series, SeriesLabel label, SeriesItemStyle itemStyle, SeriesAreaStyle areaStyle, SeriesLineStyle lineStyle) {

// ((BarSeries) series).setBarMaxWidth("60%"); // label.setShow(true); // label.setPosition("top"); // series.setLabel(label); }

        @Override
        public void setSeriesDataProp(SeriesData seriesData, SeriesLabel label, SeriesItemStyle itemStyle, SeriesAreaStyle areaStyle, SeriesLineStyle lineStyle) {

        }
    }, list, dto);
    option.setSeries(null);

}

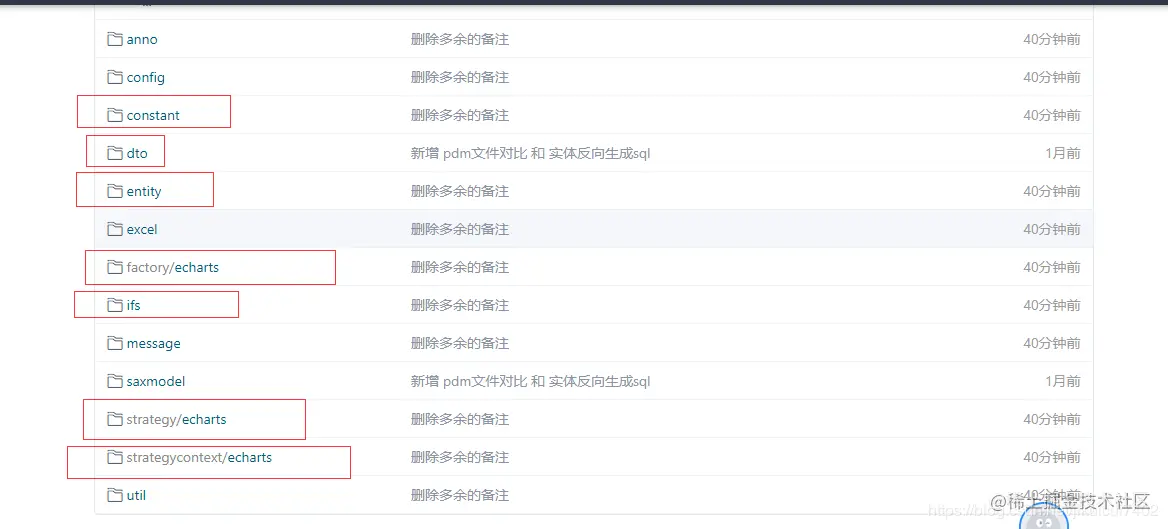

源码:gitee.com/ten-ken/jav… [先找测试类TestStrategyEcharts]

微信: tianji_vip

手把手教你用策略模式 写echarts的配置项option

手把手教你用策略模式写echarts的配置项option
