vue源码分析

1数据响应式原理分析

1关键原理

Object.defineProperty,从get方法中添加监听依赖，在set方法中触发依赖

2 结合源码，详细分析

1. 在vue初始化的时候，会触发initData函数，拿到this.$option.data值，此时的data并不是一个对象，而是函数，需要通过getData将其转成对象的形式，在根据在methods、props是否已经有申明了data对象的值，对其进行校验，之后就是通过observe函数进行监听。observe(data, true /* asRootData */)

   // state.js
   function initData (vm: Component) {
     let data = vm.$options.data // 拿到vue的data函数
     // 这里的data如果是函数的话，会在getData中执行，data.call(vm,vm)，返回一个对象
     // {name: '小明'}
     data = vm._data = typeof data === 'function'
       ? getData(data, vm)
       : data || {}
     if (!isPlainObject(data)) {
       data = {}
       process.env.NODE_ENV !== 'production' && warn(
         'data functions should return an object:\n' +
         'https://vuejs.org/v2/guide/components.html#data-Must-Be-a-Function',
         vm
       )
     }
     // proxy data on instance
     const keys = Object.keys(data)
     const props = vm.$options.props
     const methods = vm.$options.methods
     let i = keys.length
     while (i--) {
       const key = keys[i]
       if (process.env.NODE_ENV !== 'production') {
         if (methods && hasOwn(methods, key)) {
           warn(
             `Method "${key}" has already been defined as a data property.`,
             vm
           )
         }
       }
       if (props && hasOwn(props, key)) {
         process.env.NODE_ENV !== 'production' && warn(
           `The data property "${key}" is already declared as a prop. ` +
           `Use prop default value instead.`,
           vm
         )
       } else if (!isReserved(key)) {
         proxy(vm, `_data`, key)
       }
     }
     // observe data 进行数据监听
     observe(data, true /* asRootData */)
   }


2. observe函数，主要是判断data是否已经标志为观察了，如果没有，则实例化new Observe(value)

   // observe/index.js
   export function observe (value: any, asRootData: ?boolean): Observer | void {
     // 如果data不是对象的话，就返回
     if (!isObject(value) || value instanceof VNode) {
       return
     }
     let ob: Observer | void
     // 是否已经标志为监听对象了
     if (hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
       ob = value.__ob__
     } else if (
       shouldObserve &&
       !isServerRendering() &&
       (Array.isArray(value) || isPlainObject(value)) &&
       Object.isExtensible(value) &&
       !value._isVue
     ) {
       // 若没有观察，则触发观察函数
       ob = new Observer(value)
     }
     if (asRootData && ob) {
       // 计数累加
       ob.vmCount++
     }
     return ob
   }


3. 在Observe类中，实例化后会注册Dep()实例，Array.isArray(value)判断是否是数组，是的话执行observeArray,还是遍历执行observe函数，深度观察数组。对象则直接调用defineReactive(obj, key)，即重新定义对象数据

   // observe/index.js
   class Observer {
     value: any;
     dep: Dep;
     vmCount: number; // number of vms that have this object as root $data

     constructor (value: any) {
       this.value = value
       this.dep = new Dep()
       this.vmCount = 0
       def(value, '__ob__', this)
       // Array.isArray(value)判断是否是数组，是的话执行observeArray,还是遍历执行observe函数，对象则直接调用defineReactive(obj, key)
       if (Array.isArray(value)) {
         if (hasProto) {
           protoAugment(value, arrayMethods)
         } else {
           copyAugment(value, arrayMethods, arrayKeys)
         }
         this.observeArray(value) // 深度观察数组
       } else {
         this.walk(value)
       }
     }

     /**
      * Walk through all properties and convert them into
      * getter/setters. This method should only be called when
      * value type is Object.
      */
     walk (obj: Object) {
       const keys = Object.keys(obj)
       for (let i = 0; i < keys.length; i++) {
         defineReactive(obj, keys[i]) // 重新定义对象类型-> 响应式数据
       }
     }

     /**
      * Observe a list of Array items.
      */
     observeArray (items: Array<any>) {
       for (let i = 0, l = items.length; i < l; i++) {
         observe(items[i])
       }
     }
   }


4. defineReactive重新定义响应式数据，定义Object.defineProperty,获取数据时，触发dep.depend,修改数据时，触发对应数值更新dep.notify()

   export function defineReactive (
     obj: Object,
     key: string,
     val: any,
     customSetter?: ?Function,
     shallow?: boolean
   ) {
     const dep = new Dep() // 实例化一个Dep，监视器

     const property = Object.getOwnPropertyDescriptor(obj, key)
     if (property && property.configurable === false) {
       return
     }

     // cater for pre-defined getter/setters
     const getter = property && property.get
     const setter = property && property.set
     if ((!getter || setter) && arguments.length === 2) {
       val = obj[key]
     }

     let childOb = !shallow && observe(val) // 递归，如果是还是对象，则继续执行observe
     Object.defineProperty(obj, key, {
       enumerable: true,
       configurable: true,
       get: function reactiveGetter () {
         const value = getter ? getter.call(obj) : val
         if (Dep.target) {
           dep.depend() // 收集依赖watcher
           if (childOb) {
             childOb.dep.depend() // 收集依赖watcher
             if (Array.isArray(value)) {
               dependArray(value)
             }
           }
         }
         return value
       },
       set: function reactiveSetter (newVal) {
         const value = getter ? getter.call(obj) : val
         /* eslint-disable no-self-compare */
         if (newVal === value || (newVal !== newVal && value !== value)) {
           return
         }
         /* eslint-enable no-self-compare */
         if (process.env.NODE_ENV !== 'production' && customSetter) {
           customSetter()
         }
         // #7981: for accessor properties without setter
         if (getter && !setter) return
         if (setter) {
           setter.call(obj, newVal)
         } else {
           val = newVal
         }
         childOb = !shallow && observe(newVal)
         dep.notify() // 触发对应数值更新
       }
     })
   }


5. 解决疑难点。

   这里为什么会判断Dep.target?

   if (Dep.target) {
       dep.depend() // 收集依赖watcher
       if (childOb) {
       	childOb.dep.depend() // 收集依赖watcher
       	if (Array.isArray(value)) {
       		dependArray(value)
       	}    }
   }

   // 这里的`Dep.target`为`true`是因为前面`notify()`调用了`pushTarget`

   function pushTarget (target: ?Watcher) {
     targetStack.push(target)
     Dep.target = target
   }

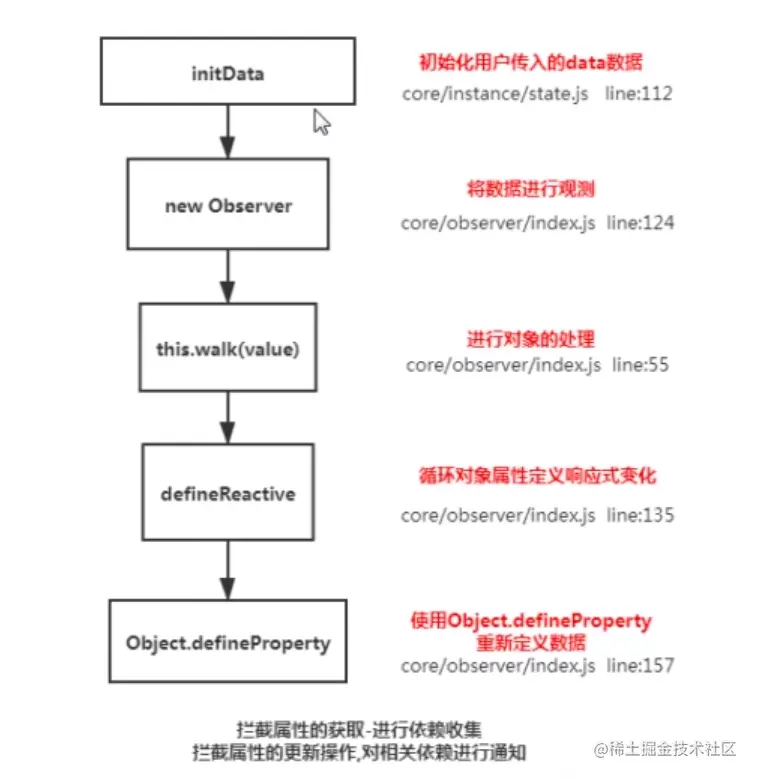

3 总结

2数组是如何被监测的

1关键原理

• 在VUE原型链上重写了数组的方法push、pop等方法，这样在调用数组API的时候，会进行数据监测，通知依赖更新。如果数组中含有引用类型，会对引用类型进行监测。

2结合源码，详细分析

1. Observe实例中，如果new Observer(value)，则会对value进行判断,如果为数组的话，会对数组的操作方法进行重写

   // observe/index.js
   // Observe类中一截
   if (Array.isArray(value)) {
         if (hasProto) {
           protoAugment(value, arrayMethods)
         } else {
           copyAugment(value, arrayMethods, arrayKeys) // arrayMethods为重写的数组的方法
         }
         this.observeArray(value) // 深度遍历数组，如果数组中还有对象，则继续走observe
       } else {
         this.walk(value)
       }

   // observeArray方法
   observeArray (items: Array<any>) {
       for (let i = 0, l = items.length; i < l; i++) {
         observe(items[i])
       }
     }


2. 对数组方法重写，调用时触发dep.notify(),进行视图更新

   // observe/array.js
   const arrayProto = Array.prototype
   export const arrayMethods = Object.create(arrayProto)

   const methodsToPatch = [
     'push',
     'pop',
     'shift',
     'unshift',
     'splice',
     'sort',
     'reverse'
   ]

   /**
    * Intercept mutating methods and emit events
    */
   // 对原来的数组的方法进行重写，保留了原来的方法，扩展了观察。手动调用dep.notify(),更新视图
   methodsToPatch.forEach(function (method) {
     // cache original method
     const original = arrayProto[method]
     def(arrayMethods, method, function mutator (...args) {
       const result = original.apply(this, args)
       const ob = this.__ob__
       let inserted
       switch (method) {
         case 'push':
         case 'unshift':
           inserted = args
           break
         case 'splice':
           inserted = args.slice(2)
           break
       }
       if (inserted) ob.observeArray(inserted)
       // notify change
       ob.dep.notify()
       return result
     })
   })


vue异步渲染原理

1. 特点

vue如果不进行异步更新的话，会在每次数据更新时，重新渲染组件，造成性能问题。

2. 结合源码，详细分析

1. dep.notify(),触发数据更新,通知watcher

   // dep.js中
   // 执行watcher中的update方法
   notify () {
       // stabilize the subscriber list first
       const subs = this.subs.slice()
       if (process.env.NODE_ENV !== 'production' && !config.async) {
         // subs aren't sorted in scheduler if not running async
         // we need to sort them now to make sure they fire in correct
         // order
         subs.sort((a, b) => a.id - b.id)
       }
       // 遍历subs，触发watcher.js中的update
       // subs中存放的是多个watcher，会一并触发。
       for (let i = 0, l = subs.length; i < l; i++) {
         subs[i].update()
       }
     }


2. watcher类中的update触发,会将watch放在queueWatcher队列中

   update () {
       /* istanbul ignore else */
       if (this.lazy) {
         this.dirty = true
       } else if (this.sync) {
         this.run()
       } else {
         queueWatcher(this)
       }
     }


3. queueWatcher中主要是过滤watcher，根据plushing状态去区分push到queue中，还是移除。最后执行nextTick(flushSchedulerQueue)

   function queueWatcher (watcher: Watcher) {
     const id = watcher.id // 过滤watcher的id，如果存在则不处理，不存在则标记
     if (has[id] == null) {
       has[id] = true
       if (!flushing) { // 如果状态是!flushing的，则放入queue队列中
         queue.push(watcher)
       } else {
         // if already flushing, splice the watcher based on its id
         // if already past its id, it will be run next immediately.
         let i = queue.length - 1
         while (i > index && queue[i].id > watcher.id) {
           i--
         }
         queue.splice(i + 1, 0, watcher) // flushing则移除
       }
       // queue the flush
       if (!waiting) {
         waiting = true

         if (process.env.NODE_ENV !== 'production' && !config.async) {
           flushSchedulerQueue()
           return
         }
         nextTick(flushSchedulerQueue)
       }
     }
   }


4. ``nextTick(flushSchedulerQueue)中执行watcher.run()`

   function flushSchedulerQueue () {
     currentFlushTimestamp = getNow()
     flushing = true
     let watcher, id

     // Sort queue before flush.
     // This ensures that:
     // 1. Components are updated from parent to child. (because parent is always
     //    created before the child)
     // 2. A component's user watchers are run before its render watcher (because
     //    user watchers are created before the render watcher)
     // 3. If a component is destroyed during a parent component's watcher run,
     //    its watchers can be skipped.
     queue.sort((a, b) => a.id - b.id)

     // do not cache length because more watchers might be pushed
     // as we run existing watchers
     for (index = 0; index < queue.length; index++) {
       watcher = queue[index]
       if (watcher.before) {
         watcher.before()
       }
       id = watcher.id
       has[id] = null
       watcher.run()
       // in dev build, check and stop circular updates.
       if (process.env.NODE_ENV !== 'production' && has[id] != null) {
         circular[id] = (circular[id] || 0) + 1
         if (circular[id] > MAX_UPDATE_COUNT) {
           warn(
             'You may have an infinite update loop ' + (
               watcher.user
                 ? `in watcher with expression "${watcher.expression}"`
                 : `in a component render function.`
             ),
             watcher.vm
           )
           break
         }
       }
     }

     // keep copies of post queues before resetting state
     const activatedQueue = activatedChildren.slice()
     const updatedQueue = queue.slice()

     resetSchedulerState()

     // call component updated and activated hooks
     callActivatedHooks(activatedQueue)
     callUpdatedHooks(updatedQueue)

     // devtool hook
     /* istanbul ignore if */
     if (devtools && config.devtools) {
       devtools.emit('flush')
     }
   }


3总结

• 调用 notify() 方法，通知watcher 进行更新操作
• 依次调用watcher 的 update 方法
• 对watcher 进行去重操作（通过id），放到队列里
• 执行完后异步清空这个队列， nextTick(flushSchedulerQueue) 进行批量更新操作
