Zuul，官网介绍：
Zuul is the front door for all requests from devices and web sites to the backend of the Netflix streaming application. As an edge service application, Zuul is built to enable dynamic routing, monitoring, resiliency and security.
Zuul 作为Api网关前端控制器，所有请求的入口，特性有动态路由，监控，韧性（限流）和安全。
本文是基于1.x版本进行介绍
请求流程：
具体是如何实现的呢？
首先写个测试的简单例子
分别创建注册中心Eureka-server,Api网关服务service-zuul,服务提供者service-hi。service-zuul启动后会注册到Eureka-server，我们请求service-zuul服务service-zuul会把请求转发到service-hi，service-hi输出结果。
service-zuul配置如下：
eureka:
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/
server:
port: 8769
spring:
application:
name: service-zuul
zuul:
routes:
api-a:
path: /api-a/**
serviceId: service-ribbon
api-b:
path: /api-b/**
serviceId: service-hi
service-zuul添加MyFilter作为测试：
@Component
public class MyFilter extends ZuulFilter {
private static Logger log = LoggerFactory.getLogger(MyFilter.class);
@Override
public String filterType() {
return "pre";
}
@Override
public int filterOrder() {
return 0;
}
@Override
public boolean shouldFilter() {
return true;
}
@Override
public Object run() {
RequestContext ctx = RequestContext.getCurrentContext();
HttpServletRequest request = ctx.getRequest();
log.info(String.format("%s >>> %s", request.getMethod(), request.getRequestURL().toString()));
Object accessToken = request.getParameter("token");
if(accessToken == null) {
log.warn("token is empty");
ctx.setSendZuulResponse(false);
ctx.setResponseStatusCode(401);
try {
ctx.getResponse().getWriter().write("token is empty");
}catch (Exception e){}
return null;
}
log.info("ok");
return null;
}
}
service-hi的Controller如下：
@SpringBootApplication
@EnableEurekaClient
@EnableDiscoveryClient
@RestController
public class ServiceHiApplication {
public static void main(String[] args) {
SpringApplication.run( ServiceHiApplication.class, args );
}
@RequestMapping("/hi")
public String home(@RequestParam(value = "name", defaultValue = "xxx") String name) {
return "hi " + name";
}
}
开始请求测试：
浏览器打开 http://localhost:8769/api-b/hi?name=x&token="998"
打断点，一步步看过程。

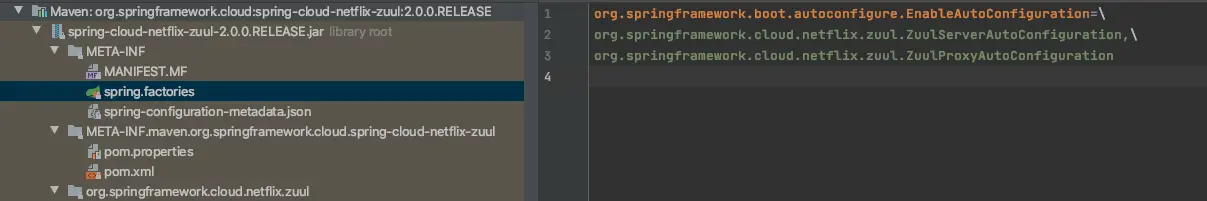

Springboot集成Zuul后，会在启动时自动加载配置类如下：
@Configuration
@EnableConfigurationProperties({ ZuulProperties.class })
@ConditionalOnClass(ZuulServlet.class)
@ConditionalOnBean(ZuulServerMarkerConfiguration.Marker.class)
// Make sure to get the ServerProperties from the same place as a normal web app would
// FIXME @Import(ServerPropertiesAutoConfiguration.class)
public class ZuulServerAutoConfiguration {
//省略代码
...
@Bean
public ZuulHandlerMapping zuulHandlerMapping(RouteLocator routes) {
//生成ZuulHandlerMapping，后面用来生成处理执行链
ZuulHandlerMapping mapping = new ZuulHandlerMapping(routes, zuulController());
mapping.setErrorController(this.errorController);
return mapping;
}
...
@Configuration
protected static class ZuulFilterConfiguration {
@Autowired

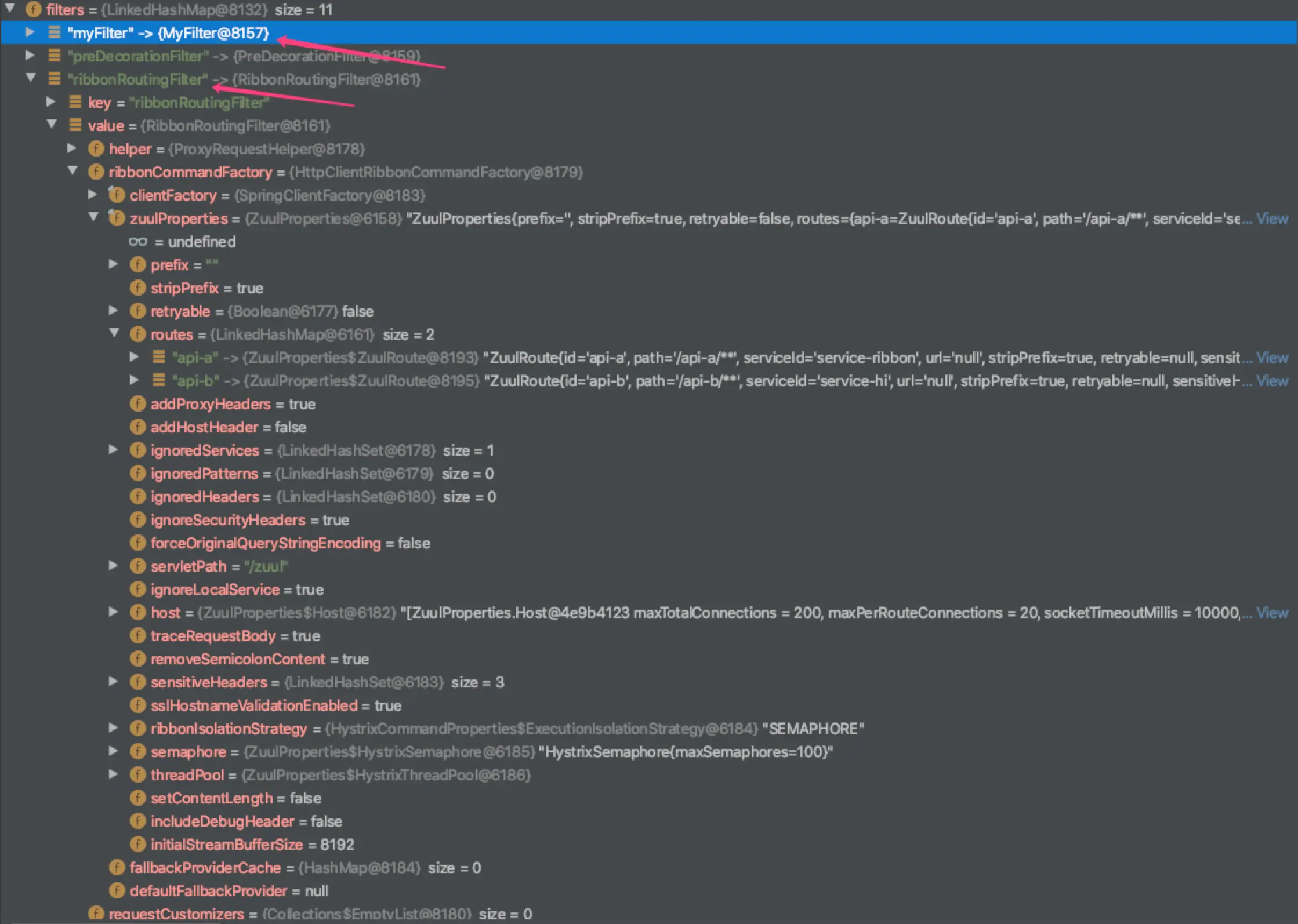

private Map<String, ZuulFilter> filters;//保存所有的过滤器
@Bean
public ZuulFilterInitializer zuulFilterInitializer( CounterFactory counterFactory, TracerFactory tracerFactory) {
FilterLoader filterLoader = FilterLoader.getInstance();
//FilterRegistry 单例用来保存过滤器，包括请求也被包装成一种过滤器
FilterRegistry filterRegistry = FilterRegistry.instance();
return new ZuulFilterInitializer(this.filters, counterFactory, tracerFactory, filterLoader, filterRegistry);
}
}
...
}
/**
* Initializes various Zuul components including {@link ZuulFilter}.
*
* @author Spencer Gibb
*
*/
public class ZuulFilterInitializer {
private static final Log log = LogFactory.getLog(ZuulFilterInitializer.class);
private final Map<String, ZuulFilter> filters;
private final CounterFactory counterFactory;
private final TracerFactory tracerFactory;
private final FilterLoader filterLoader;
private final FilterRegistry filterRegistry;
public ZuulFilterInitializer(Map<String, ZuulFilter> filters,
CounterFactory counterFactory,
TracerFactory tracerFactory,
FilterLoader filterLoader,
FilterRegistry filterRegistry) {
this.filters = filters;
this.counterFactory = counterFactory;
this.tracerFactory = tracerFactory;
this.filterLoader = filterLoader;
this.filterRegistry = filterRegistry;
}
@PostConstruct
public void contextInitialized() {
log.info("Starting filter initializer");
TracerFactory.initialize(tracerFactory);
CounterFactory.initialize(counterFactory);
for (Map.Entry<String, ZuulFilter> entry : this.filters.entrySet()) {
//保存操作
filterRegistry.put(entry.getKey(), entry.getValue());
}
}
...
}
public class FilterRegistry {
private static final FilterRegistry INSTANCE = new FilterRegistry();
public static final FilterRegistry instance() {
return INSTANCE;
}
private final ConcurrentHashMap<String, ZuulFilter> filters = new ConcurrentHashMap<String, ZuulFilter>();
private FilterRegistry() {
}
public ZuulFilter remove(String key) {
return this.filters.remove(key);
}
public ZuulFilter get(String key) {
return this.filters.get(key);
}
public void put(String key, ZuulFilter filter) {
this.filters.putIfAbsent(key, filter);
}
public int size() {
return this.filters.size();
}
//"Route"（Routing，如上流程图）类过滤器，用这个方法获取请求数据
public Collection<ZuulFilter> getAllFilters() {
return this.filters.values();
}
}
ZuulServerAutoConfiguration会生成ZuulHandlerMapping对应的Bean,DispatcherServlet初始化的时候，调用initHandlerMappings加载到handlerMappings。
DispatcherServlet类
/** List of HandlerMappings used by this servlet */
private List<HandlerMapping> handlerMappings;
...
/**
* Initialize the HandlerMappings used by this class.
* <p>If no HandlerMapping beans are defined in the BeanFactory for this namespace,
* we default to BeanNameUrlHandlerMapping.
*/
private void initHandlerMappings(ApplicationContext context) {
this.handlerMappings = null;
if (this.detectAllHandlerMappings) {
// Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
Map<String, HandlerMapping> matchingBeans =
BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
if (!matchingBeans.isEmpty()) {
this.handlerMappings = new ArrayList<HandlerMapping>(matchingBeans.values());
// We keep HandlerMappings in sorted order.
AnnotationAwareOrderComparator.sort(this.handlerMappings);
}
}
else {
try {
HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
this.handlerMappings = Collections.singletonList(hm);
}
catch (NoSuchBeanDefinitionException ex) {
// #Ignore, we'll add a default HandlerMapping later.
}
}
// Ensure we have at least one HandlerMapping, by registering
// a default HandlerMapping if no other mappings are found.
if (this.handlerMappings == null) {
this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
if (logger.isDebugEnabled()) {
logger.debug("No HandlerMappings found in servlet '" + getServletName() + "': using default");
}
}
}
handlerAdapters同理。
根据SpringMVC,请求会由DispatcherServlet做分发。
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
//执行链
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.
//1.根据请求生成并返回执行链（SpringMVC内容）
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
//2.根据执行链生成适配处理器（SpringMVC内容）
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (logger.isDebugEnabled()) {
logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
}
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.
//3.实际调用
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
applyDefaultViewName(processedRequest, mv);
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// #As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
/**
* Return the HandlerExecutionChain for this request.
* <p>Tries all handler mappings in order.
* @param request current HTTP request
* @return the HandlerExecutionChain, or {@code null} if no handler could be found
*/
@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
if (this.handlerMappings != null) {
for (HandlerMapping hm : this.handlerMappings) {
if (logger.isTraceEnabled()) {
logger.trace(
"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
}
//hm就是ZuulHandlerMapping
HandlerExecutionChain handler = hm.getHandler(request);
if (handler != null) {
return handler;
}
}
}
return null;
}

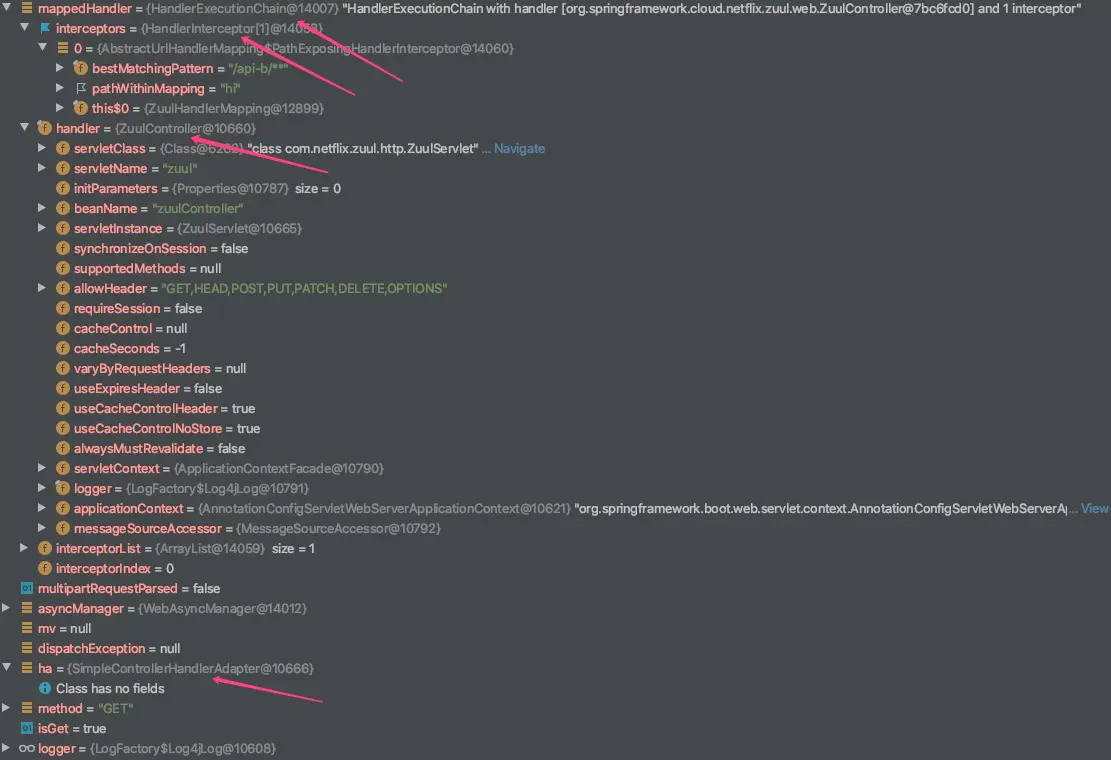

看一下doDispatch方法里面的mappedHandler和HandlerAdapter运行时的数据结构
public class ZuulController extends ServletWrappingController {
public ZuulController() {
setServletClass(ZuulServlet.class);
setServletName("zuul");
setSupportedMethods((String[]) null); // Allow all
}
@Override
public ModelAndView handleRequest(HttpServletRequest request, HttpServletResponse response) throws Exception {
try {
// #We don't care about the other features of the base class, just want to
// handle the request
return super.handleRequestInternal(request, response);
}
finally {
// @see com.netflix.zuul.context.ContextLifecycleFilter.doFilter
RequestContext.getCurrentContext().unset();
}
}
}
接着来到ZuulServlet重点方法:
/**
* Core Zuul servlet which intializes and orchestrates zuulFilter execution
*
* @author Mikey Cohen
* Date: 12/23/11
* Time: 10:44 AM
*/
public class ZuulServlet extends HttpServlet {
...
@Override
public void service(javax.servlet.ServletRequest servletRequest, javax.servlet.ServletResponse servletResponse) throws ServletException, IOException {
try {
init((HttpServletRequest) servletRequest, (HttpServletResponse) servletResponse);
// Marks this request as having passed through the "Zuul engine", as opposed to servlets
// explicitly bound in web.xml, for which requests will not have the same data attached
RequestContext context = RequestContext.getCurrentContext();
context.setZuulEngineRan();
try {
// 1.前置过滤器，前面写的MyFilter类型为“pre”,所以会在这里面执行
preRoute();
} catch (ZuulException e) {
error(e);
postRoute();
return;
}
try {
//2.执行实际服务转发，把它封装为过滤器优势？
route();
} catch (ZuulException e) {
error(e);
postRoute();
return;
}
try {
//3.后置过滤器
postRoute();
} catch (ZuulException e) {
error(e);
return;
}
} catch (Throwable e) {
error(new ZuulException(e, 500, "UNHANDLED_EXCEPTION_" + e.getClass().getName()));
} finally {
RequestContext.getCurrentContext().unset();
}
}
...
}
1.前置过滤器

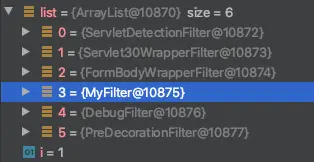

前置有5个默认的过滤器，MyFilter为自定义过滤器
INFO 84524 --- [io-8769-exec-10] com.forezp.servicezuul.filter.MyFilter : GET >>> http://localhost:8769/api-b/hi
过程：
ZuulServlet的preRoute()封装了ZuulRunner类的preRoute()
/**
* executes "pre" filters
*
* @throws ZuulException
*/
void preRoute() throws ZuulException {
zuulRunner.preRoute();
}
ZuulRunner类
/**
* This class initializes servlet requests and responses into the RequestContext and wraps the FilterProcessor calls
* to preRoute(), route(), postRoute(), and error() methods
//该类初始化servlet的requests 和 responses到该请求上下文单例对象并包装FilterProcessor的一系列调用方法
*
* @author mikey@netflix.com
* @version 1.0
*/
public class ZuulRunner {
...
/**
* executes "post" filterType ZuulFilters
*
* @throws ZuulException
*/
public void postRoute() throws ZuulException {
FilterProcessor.getInstance().postRoute();
}
/**
* executes "route" filterType ZuulFilters
*
* @throws ZuulException
*/
public void route() throws ZuulException {
FilterProcessor.getInstance().route();
}
/**
* executes "pre" filterType ZuulFilters
*
* @throws ZuulException
*/
public void preRoute() throws ZuulException {
FilterProcessor.getInstance().preRoute();
}
...
}
FilterProcessor类：runFilters() -> 遍历Filters -> 逐个执行processZuulFilter，最后执行ZuulServlet的runFilter，并返回ZuulFilterResult对象
/**
* This the the core class to execute filters.
*/
public class FilterProcessor {
...
/**
* runs all "pre" filters. These filters are run before routing to the orgin.
*
* @throws ZuulException
*/
public void preRoute() throws ZuulException {
try {
runFilters("pre");
} catch (ZuulException e) {
throw e;
} catch (Throwable e) {
throw new ZuulException(e, 500, "UNCAUGHT_EXCEPTION_IN_PRE_FILTER_" + e.getClass().getName());
}
}
/**
* Runs all "route" filters. These filters route calls to an origin.
*
* @throws ZuulException if an exception occurs.
*/
public void route() throws ZuulException {
try {
runFilters("route");
} catch (ZuulException e) {
throw e;
} catch (Throwable e) {
throw new ZuulException(e, 500, "UNCAUGHT_EXCEPTION_IN_ROUTE_FILTER_" + e.getClass().getName());
}
}
...
/**
* runs all filters of the filterType sType/ Use this method within filters to run custom filters by type
*
* @param sType the filterType.
* @return
* @throws Throwable throws up an arbitrary exception
*/
public Object runFilters(String sType) throws Throwable {
if (RequestContext.getCurrentContext().debugRouting()) {
Debug.addRoutingDebug("Invoking {" + sType + "} type filters");
}
boolean bResult = false;
//FilterLoader.getInstance()获取单例，查出对应filters
List<ZuulFilter> list = FilterLoader.getInstance().getFiltersByType(sType);
if (list != null) {
for (int i = 0; i < list.size(); i++) {
ZuulFilter zuulFilter = list.get(i);
//如果是请求，对应的是RibbonRoutingFilter
Object result = processZuulFilter(zuulFilter);
if (result != null && result instanceof Boolean) {
bResult |= ((Boolean) result);
}
}
}
return bResult;
}
...
/**
* Processes an individual ZuulFilter. This method adds Debug information. Any uncaught Thowables are caught by this method and converted to a ZuulException with a 500 status code.
*
* @param filter
* @return the return value for that filter
* @throws ZuulException
*/
public Object processZuulFilter(ZuulFilter filter) throws ZuulException {
RequestContext ctx = RequestContext.getCurrentContext();
boolean bDebug = ctx.debugRouting();
final String metricPrefix = "zuul.filter-";
long execTime = 0;
String filterName = "";
try {
long ltime = System.currentTimeMillis();
filterName = filter.getClass().getSimpleName();
RequestContext copy = null;
Object o = null;
Throwable t = null;
if (bDebug) {
Debug.addRoutingDebug("Filter " + filter.filterType() + " " + filter.filterOrder() + " " + filterName);
copy = ctx.copy();
}
ZuulFilterResult result = filter.runFilter();
ExecutionStatus s = result.getStatus();
execTime = System.currentTimeMillis() - ltime;
switch (s) {
case FAILED:
t = result.getException();
ctx.addFilterExecutionSummary(filterName, ExecutionStatus.FAILED.name(), execTime);
break;
case SUCCESS:
o = result.getResult();
ctx.addFilterExecutionSummary(filterName, ExecutionStatus.SUCCESS.name(), execTime);
if (bDebug) {
Debug.addRoutingDebug("Filter {" + filterName + " TYPE:" + filter.filterType() + " ORDER:" + filter.filterOrder() + "} Execution time = " + execTime + "ms");
Debug.compareContextState(filterName, copy);
}
break;
default:
break;
}
if (t != null) throw t;
usageNotifier.notify(filter, s);
return o;
} catch (Throwable e) {
if (bDebug) {
Debug.addRoutingDebug("Running Filter failed " + filterName + " type:" + filter.filterType() + " order:" + filter.filterOrder() + " " + e.getMessage());
}
usageNotifier.notify(filter, ExecutionStatus.FAILED);
if (e instanceof ZuulException) {
throw (ZuulException) e;
} else {
ZuulException ex = new ZuulException(e, "Filter threw Exception", 500, filter.filterType() + ":" + filterName);
ctx.addFilterExecutionSummary(filterName, ExecutionStatus.FAILED.name(), execTime);
throw ex;
}
}
}
ZuulServlet的runFilter()方法
/**
* runFilter checks !isFilterDisabled() and shouldFilter(). The run() method is invoked if both are true.
*
* @return the return from ZuulFilterResult
*/
public ZuulFilterResult runFilter() {
ZuulFilterResult zr = new ZuulFilterResult();
if (!isFilterDisabled()) {
if (shouldFilter()) {
Tracer t = TracerFactory.instance().startMicroTracer("ZUUL::" + this.getClass().getSimpleName());
try {
//实际执行Filter中的run()
Object res = run();
zr = new ZuulFilterResult(res, ExecutionStatus.SUCCESS);
} catch (Throwable e) {
t.setName("ZUUL::" + this.getClass().getSimpleName() + " failed");
zr = new ZuulFilterResult(ExecutionStatus.FAILED);
zr.setException(e);
} finally {
t.stopAndLog();
}
} else {
zr = new ZuulFilterResult(ExecutionStatus.SKIPPED);
}
}
return zr;
}
到这一步，preRoute的过滤器就执行完了。
2.请求转发过程：

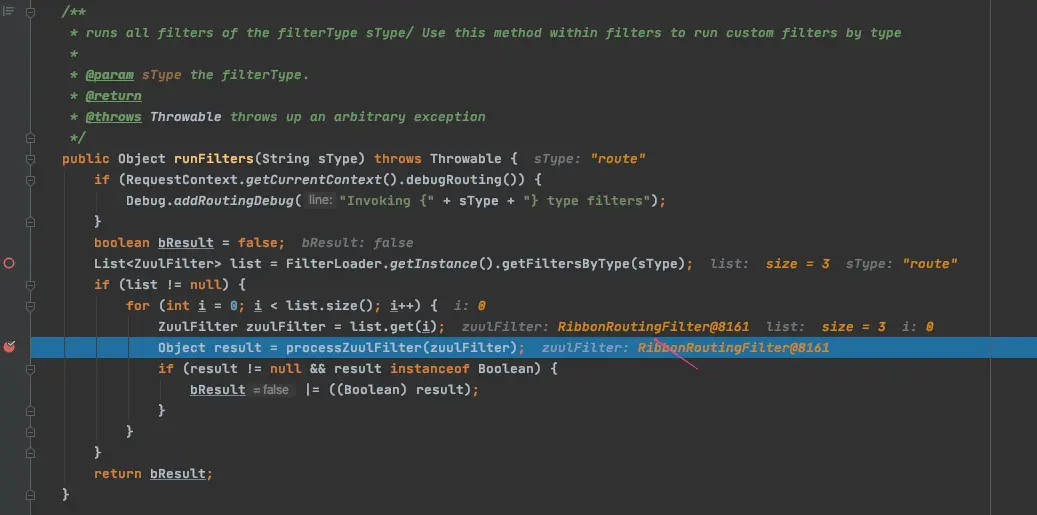

从ZuulServlet的Route()方法开始，同样的步骤，只是过滤器类型为"Route"和filter为RibbonRoutingFilter。另外两个是会跳过，可配置
@Override
public Object run() {
RequestContext context = RequestContext.getCurrentContext();
this.helper.addIgnoredHeaders();
try {
RibbonCommandContext commandContext = buildCommandContext(context);
//http请求转发
ClientHttpResponse response = forward(commandContext);
setResponse(response);
return response;
}
catch (ZuulException ex) {
throw new ZuulRuntimeException(ex);
}
catch (Exception ex) {
throw new ZuulRuntimeException(ex);
}
}
protected ClientHttpResponse forward(RibbonCommandContext context) throws Exception {
Map<String, Object> info = this.helper.debug(context.getMethod(),
context.getUri(), context.getHeaders(), context.getParams(),
context.getRequestEntity());
RibbonCommand command = this.ribbonCommandFactory.create(context);
try {
ClientHttpResponse response = command.execute();
this.helper.appendDebug(info, response.getRawStatusCode(), response.getHeaders());
return response;
}
catch (HystrixRuntimeException ex) {
return handleException(info, ex);
}
}
/**
* Used for synchronous execution of command.
*
* @return R
* Result of {@link #run()} execution or a fallback from {@link #getFallback()} if the command fails for any reason.
* @throws HystrixRuntimeException
* if a failure occurs and a fallback cannot be retrieved
* @throws HystrixBadRequestException
* if invalid arguments or state were used representing a user failure, not a system failure
* @throws IllegalStateException
* if invoked more than once
*/
public R execute() {
try {
return queue().get();
} catch (Exception e) {
throw Exceptions.sneakyThrow(decomposeException(e));
}
}

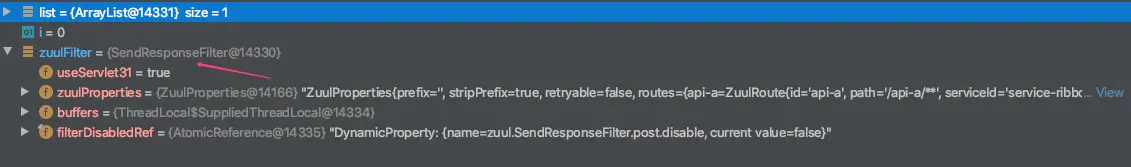

3.postRoute系统过滤器
@Override
public Object run() {
try {
addResponseHeaders();
writeResponse();
}
catch (Exception ex) {
ReflectionUtils.rethrowRuntimeException(ex);
}
return null;
}
请求结束并输出：hi x
总结： Zuul,处理服务请求分为三个阶段，pre,route,post。请求转发在Route阶段，通过RibbonRoutingFilter类执行。
