什么是Thrift？

Thrift是一个轻量级、跨语言的远程服务调用框架，支持C++、Java、Python、PHP、Ruby等。通过代码生成引擎自动生成RPC接口Thrift IDL文件对应的各种主流语言的RPC服务端/客户端模板代码，省去自定义和维护接口编解码、消息传输、服务器多线程模型等基础工作，服务端只需要编写接口实现类，客户端根据服务对象调用远端服务。

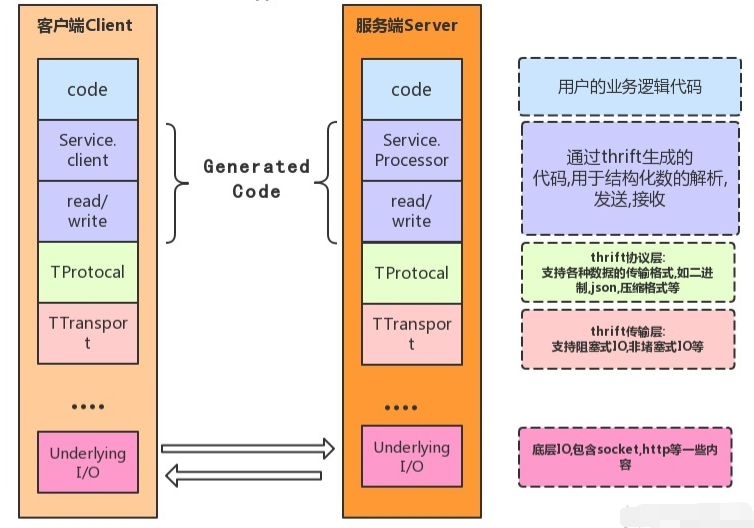

Thrift架构

Thrift架构从下往上为传输层、协议层、处理层和服务层。

传输层主要负责从网络中读/写数据，定义了网络传输协议。
协议层定义了数据传输格式，负责处理网络数据的序列化和反序列化。
处理层由IDL生成，封装具体的底层网络传输和序列化方式，并委托给用户实现的Handle进行处理。
服务层提供网络I/O服务模型。

Thrift协议有哪些？

Thrift可以让用户选择客户端与服务端之间传输通信协议的类别。

TBinaryProtocol：使用二进制编码格式传输，Thrift的默认传输协议。
TCompactProtocol：使用压缩格式传输。
TJSONProtocol：使用JSON格式传输。
TDebugProtocol：使用文本格式传输，便于debug。
TSimpleJSONProtocol：提供JSON只写的协议，适用于通过脚本语言解析。

Thrift传输层有哪些？

TSocket：阻塞式I/O，用在客户端。
TServerSocket：非阻塞式I/O，用于服务器端监听TSocket。
TNonblockingSocket：非阻塞式I/O，用于构建异步客户端。
TMemoryInputTransport：封装了一个字节数组byte[]做输入流。
TFramedTransport：非阻塞式I/O，按块的大小进行传输（类似于NIO）。

Thrift服务器端有哪些？

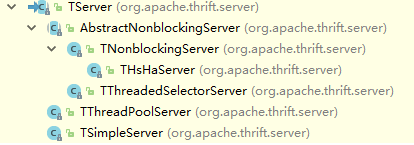

TServer

TServer定义了静态内部类Args，Args继承自抽象类AbstractServerArgs。AbstractServerArgs采用了建造者模式，向TServer提供各种工厂。

属性	类型	作用
processorFactory	TProcessorFactory	处理层工厂类，用于创建TProcessor对象
inputTransportFactory	TTransportFactory	传输层输入工厂类，用于创建TTransport对象
outputTransportFactory	TTransportFactory	传输层输出工厂类，用于创建TTransport对象
inputProtocolFactory	TProtocolFactory	协议层输入工厂类，用于创建TProtocol对象
outputProtocolFactory	TProtocolFactory	协议层输出工厂类，用于创建TProtocol对象

TServer核心方法：

serve()：启动服务。serve()为抽象方法，不同实现类的启动方式不一样，可各自实现。
stop()：关闭服务。
isServing()：检测服务状态（启动/关闭）。
setServing(boolean serving)：设置服务状态。

TSimpleServer

1. 特点

单线程，阻塞I/O。

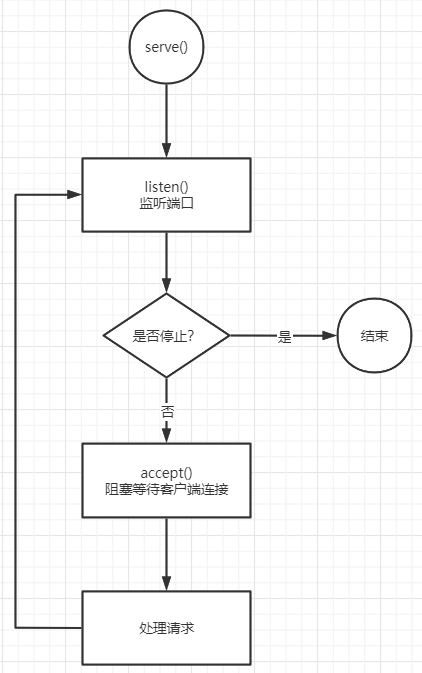

2. 设计思想

由主线程负责监听、数据读写、业务处理（一次只能接收和处理一个socket连接）。

3. 使用

客户端：

public class HelloClient {
    private static final Logger LOGGER = Logger.getLogger(HelloClient.class.getName());
    public static void main(String[] args) {
        TTransport transport = null;
        try {
            //传输层使用阻塞I/O
            transport = new TSocket("127.0.0.1", 9090);
            transport.open();
            //使用二进制协议传输数据
            TProtocol protocol = new TBinaryProtocol(transport);
            //使用同步客户端
            GreetingService.Client client = new GreetingService.Client(protocol);
            String name = "XuDT";
            LOGGER.info("HelloClient 请求参数[name]=" + name);
            //调用接口
            String result = client.sayHello(name);
            LOGGER.info("Server 返回结果为" + result);
        } catch (TException e) {
            e.printStackTrace();
        } finally {
            transport.close();
        }
    }
}

服务端：

public class SimpleServer {
    private static final Logger LOGGER = Logger.getLogger(SimpleServer.class.getName());
    public static void main(String[] args) {
        try {
            //监听端口9090
            TServerSocket serverTransport = new TServerSocket(9090);
            //使用二进制协议传输数据
            TBinaryProtocol.Factory proFactory = new TBinaryProtocol.Factory();
            //关联处理器与HelloService服务实现
            TProcessor processor = new HelloService.Processor(new HelloServiceImpl());
            TSimpleServer.Args serverArgs = new TSimpleServer.Args(serverTransport);
            serverArgs.processor(processor);
            serverArgs.protocolFactory(proFactory);
            //使用TSimpleServer服务端
            TServer server = new TSimpleServer(serverArgs);
            LOGGER.info("Start SimpleServer on port 9090...");
            //启动服务
            server.serve();
        } catch (TTransportException e) {
            e.printStackTrace();
        }
    }
}

Processor为HelloService的内部类，调用HelloService.Processor(new HelloServiceImpl())会生成一个processMap，key为接口名称，value为该方法调用对象，后续TBaseProcessor.process()就是通过对processMap进行processMap.get(接口名称)操作获取接口。

4. TSimpleServer源码分析

TSimpleServer继承了TServer，实现了TServer的serve()和stop()方法。

public class TSimpleServer extends TServer {

  private static final Logger LOGGER = LoggerFactory.getLogger(TSimpleServer.class.getName());

  public TSimpleServer(AbstractServerArgs args) {
    super(args);
  }

  /**
   * 启动服务
   */
  public void serve() {
    try {
      //监听端口
      serverTransport_.listen();
    } catch (TTransportException ttx) {
      LOGGER.error("Error occurred during listening.", ttx);
      return;
    }

    // Run the preServe event
    if (eventHandler_ != null) {
      eventHandler_.preServe();
    }
    //开启服务
    setServing(true);
    //循环等待客户端请求
    while (!stopped_) {
      TTransport client = null;
      TProcessor processor = null;
      TTransport inputTransport = null;
      TTransport outputTransport = null;
      TProtocol inputProtocol = null;
      TProtocol outputProtocol = null;
      ServerContext connectionContext = null;
      try {
        //接受连接
        client = serverTransport_.accept();
        if (client != null) {
          //TProcessorFactory处理器
          processor = processorFactory_.getProcessor(client);
          //获取客户端输入通道
          inputTransport = inputTransportFactory_.getTransport(client);
          //获取客户端输出通道
          outputTransport = outputTransportFactory_.getTransport(client);
          //获取客户端输入协议
          inputProtocol = inputProtocolFactory_.getProtocol(inputTransport);
          //获取客户端输出协议
          outputProtocol = outputProtocolFactory_.getProtocol(outputTransport);
          if (eventHandler_ != null) {
            connectionContext = eventHandler_.createContext(inputProtocol, outputProtocol);
          }
          //处理请求
          while (true) {
            if (eventHandler_ != null) {
              eventHandler_.processContext(connectionContext, inputTransport, outputTransport);
            }
            //处理请求
            processor.process(inputProtocol, outputProtocol);
          }
        }
      } catch (TTransportException ttx) {
        // Client died, just move on
      } catch (TException tx) {
        if (!stopped_) {
          LOGGER.error("Thrift error occurred during processing of message.", tx);
        }
      } catch (Exception x) {
        if (!stopped_) {
          LOGGER.error("Error occurred during processing of message.", x);
        }
      }
      if (eventHandler_ != null) {
        //删除事件
        eventHandler_.deleteContext(connectionContext, inputProtocol, outputProtocol);
      }
      //关闭输入通道
      if (inputTransport != null) {
        inputTransport.close();
      }
      //关闭输出通道
      if (outputTransport != null) {
        outputTransport.close();
      }
    }
    //关闭服务
    setServing(false);
  }

 /**
   * 停止服务
   */
  public void stop() {
    stopped_ = true;
    serverTransport_.interrupt();
  }
}

TBaseProcessor.process()：调用接口处理请求。首先获取请求的信息，包括请求参数、调用函数名等，然后根据调用函数名从processMap中获取对应的接口调用对象调用接口处理请求。

  public void process(TProtocol in, TProtocol out) throws TException {
    //获取请求信息：参数、调用函数名等
    TMessage msg = in.readMessageBegin();
    //根据函数名获取处理函数
    ProcessFunction fn = processMap.get(msg.name);
    //异常处理
    if (fn == null) {
      TProtocolUtil.skip(in, TType.STRUCT);
      in.readMessageEnd();
      TApplicationException x = new TApplicationException(TApplicationException.UNKNOWN_METHOD, "Invalid method name: '"+msg.name+"'");
      out.writeMessageBegin(new TMessage(msg.name, TMessageType.EXCEPTION, msg.seqid));
      x.write(out);
      out.writeMessageEnd();
      out.getTransport().flush();
    } else {
      //处理请求
      fn.process(msg.seqid, in, out, iface);
    }
  }

ProcessFunction是一个抽象类，子类也是根据IDL自动生成，与IDL中的函数一一对应，为代理处理器。

ProcessFunction.process()：调用接口处理业务请求并返回结果。首先封装请求参数，根据参数和接口定义调用对应的接口并获得请求处理结果，再讲请求处理结果返回给客户端。

public final void process(int seqid, TProtocol iprot, TProtocol oprot, I iface) throws TException {
    //获取一个空的参数封装
    T args = getEmptyArgsInstance();
    try {
      //从inputProtocol中获取参数赋给args
      args.read(iprot);
    } catch (TProtocolException e) {
      //异常处理
    }
    iprot.readMessageEnd();
    TSerializable result = null;
    byte msgType = TMessageType.REPLY;
    try {
      //根据参数args调用接口
      result = getResult(iface, args);
    } catch (TTransportException ex) {
      //异常处理
    }
    if(!isOneway()) {
      //输出调用结果到outputProtocol
      oprot.writeMessageBegin(new TMessage(getMethodName(), msgType, seqid));
      result.write(oprot);
      oprot.writeMessageEnd();
      oprot.getTransport().flush();
    }
  }

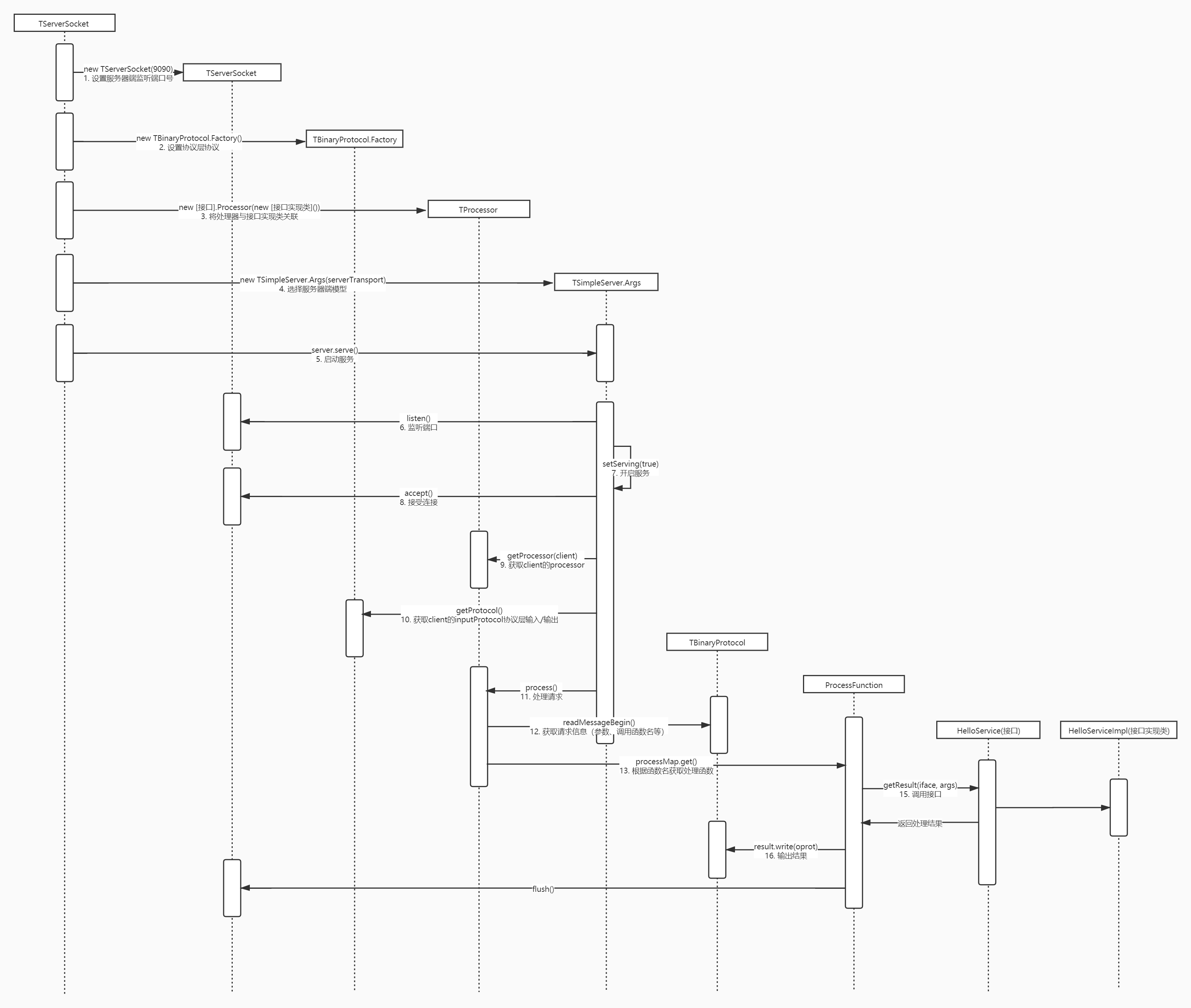

5. 时序图

6. 不足

TSimpleServer一次只能处理一个socket连接，效率较低。

TThreadPoolServer

1. 特点

多线程，阻塞I/O。

2. 设计思想

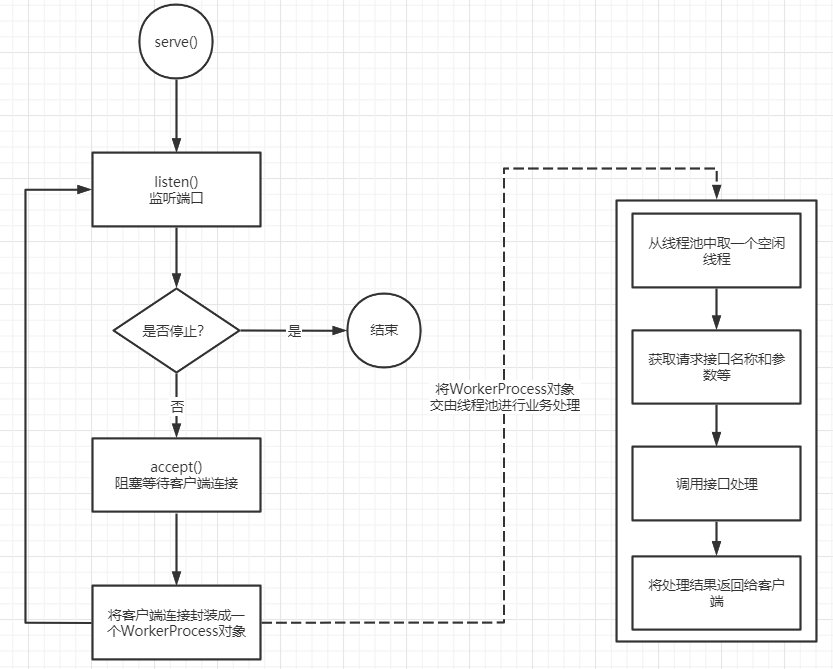

主线程负责阻塞监听socket，当有socket就绪时，将其封装成一个WorkerProcess对象提交到线程池，由线程池负责数据读写和业务处理后将结果返回给客户端。

线程池默认最小线程数为5，最大线程数为Integer.MAX_VALUE。

3. 使用

客户端同TSimpleServer。

服务端：

public class ThreadPoolServer {
    private static final Logger LOGGER = Logger.getLogger(ThreadPoolServer.class.getName());

    public static void main(String[] args) {
        try {
            //监听端口9090
            TServerSocket serverTransport = new TServerSocket(9090);
            //使用二进制协议传输数据
            TBinaryProtocol.Factory proFactory = new TBinaryProtocol.Factory();
            //关联处理器与HelloService服务实现
            TProcessor processor = new HelloService.Processor(new HelloServiceImpl());
            TThreadPoolServer.Args serverArgs = new TThreadPoolServer.Args(serverTransport);
            serverArgs.processor(processor);
            serverArgs.protocolFactory(proFactory);
            //使用TThreadPoolServer服务端
            TServer server = new TThreadPoolServer(serverArgs);
            LOGGER.info("Start ThreadPoolServer on port 9090...");
            //启动服务
            server.serve();
        } catch (TTransportException e) {
            e.printStackTrace();
        }
    }
}

4. 源码分析

TThreadPoolServer继承了TServer，实现了TServer的serve()和stop()方法。

public class TThreadPoolServer extends TServer {
  private static final Logger LOGGER = LoggerFactory.getLogger(TThreadPoolServer.class.getName());
  //参数初始化
  public static class Args extends AbstractServerArgs<Args> {
  	//线程池参数
    public int minWorkerThreads = 5;
    public int maxWorkerThreads = Integer.MAX_VALUE;
    public ExecutorService executorService;
    public int stopTimeoutVal = 60;
    public TimeUnit stopTimeoutUnit = TimeUnit.SECONDS;
    public int requestTimeout = 20;
    public TimeUnit requestTimeoutUnit = TimeUnit.SECONDS;
    public int beBackoffSlotLength = 100;
    public TimeUnit beBackoffSlotLengthUnit = TimeUnit.MILLISECONDS;

    public Args(TServerTransport transport) {
      super(transport);
    }
    public Args minWorkerThreads(int n) {
      minWorkerThreads = n;
      return this;
    }
    public Args maxWorkerThreads(int n) {
      maxWorkerThreads = n;
      return this;
    }
    public Args stopTimeoutVal(int n) {
      stopTimeoutVal = n;
      return this;
    }
    public Args stopTimeoutUnit(TimeUnit tu) {
      stopTimeoutUnit = tu;
      return this;
    }
    public Args requestTimeout(int n) {
      requestTimeout = n;
      return this;
    }
    public Args requestTimeoutUnit(TimeUnit tu) {
      requestTimeoutUnit = tu;
      return this;
    }
    //Binary exponential backoff slot length
    public Args beBackoffSlotLength(int n) {
      beBackoffSlotLength = n;
      return this;
    }
    //Binary exponential backoff slot time unit
    public Args beBackoffSlotLengthUnit(TimeUnit tu) {
      beBackoffSlotLengthUnit = tu;
      return this;
    }
    public Args executorService(ExecutorService executorService) {
      this.executorService = executorService;
      return this;
    }
  }
  //工作线程池
  private ExecutorService executorService_;
  private final TimeUnit stopTimeoutUnit;
  private final long stopTimeoutVal;
  private final TimeUnit requestTimeoutUnit;
  private final long requestTimeout;
  private final long beBackoffSlotInMillis;
  private Random random = new Random(System.currentTimeMillis());

  //TThreadPoolServer构造函数会实例化一个线程池
  public TThreadPoolServer(Args args) {
    super(args);
    stopTimeoutUnit = args.stopTimeoutUnit;
    stopTimeoutVal = args.stopTimeoutVal;
    requestTimeoutUnit = args.requestTimeoutUnit;
    requestTimeout = args.requestTimeout;
    beBackoffSlotInMillis = args.beBackoffSlotLengthUnit.toMillis(args.beBackoffSlotLength);
    //实例化线程池（可以选择自己创建线程池后以参数形式传进来或者由TThreadPoolServer创建）
    executorService_ = args.executorService != null ?
        args.executorService : createDefaultExecutorService(args);
  }

  //创建线程池
  private static ExecutorService createDefaultExecutorService(Args args) {
    //线程池等待队列
    SynchronousQueue<Runnable> executorQueue =
      new SynchronousQueue<Runnable>();
    return new ThreadPoolExecutor(args.minWorkerThreads,
                                  args.maxWorkerThreads,
                                  args.stopTimeoutVal,
                                  args.stopTimeoutUnit,
                                  executorQueue);
  }

  protected ExecutorService getExecutorService() {
    return executorService_;
  }

  //开启服务器进行监听
  protected boolean preServe() {
  	try {
  	  //监听端口9090
      serverTransport_.listen();
    } catch (TTransportException ttx) {
      LOGGER.error("Error occurred during listening.", ttx);
      return false;
    }

    // Run the preServe event
    if (eventHandler_ != null) {
      eventHandler_.preServe();
    }
    stopped_ = false;
    //开启服务
    setServing(true);

    return true;
  }

  //启动服务
  public void serve() {
  	if (!preServe()) {
  		return;
  	}
    //处理请求
  	execute();
  	//服务停止后关闭线程池
  	waitForShutdown();
    //关闭服务
    setServing(false);
  }

  //处理请求
  protected void execute() {
    int failureCount = 0;
    //循环等待请求
    while (!stopped_) {
      try {
        //接受连接
        TTransport client = serverTransport_.accept();
        //将客户端请求封装成一个WorkerProcess对象后丢给线程池进行处理
        WorkerProcess wp = new WorkerProcess(client);
        //记录加入线程池的重试次数
        int retryCount = 0;
        //剩余的重试时间
        long remainTimeInMillis = requestTimeoutUnit.toMillis(requestTimeout);
        while(true) {
          try {
            //提交线程池处理请求
            executorService_.execute(wp);
            break;
          } catch(Throwable t) {
            //抛异常则重试
            if (t instanceof RejectedExecutionException) {
              retryCount++;
              try {
                if (remainTimeInMillis > 0) {
                  //do a truncated 20 binary exponential backoff sleep
                  long sleepTimeInMillis = ((long) (random.nextDouble() *
                      (1L << Math.min(retryCount, 20)))) * beBackoffSlotInMillis;
                  sleepTimeInMillis = Math.min(sleepTimeInMillis, remainTimeInMillis);
                  TimeUnit.MILLISECONDS.sleep(sleepTimeInMillis);
                  remainTimeInMillis = remainTimeInMillis - sleepTimeInMillis;
                } else {
                  client.close();
                  wp = null;
                  LOGGER.warn("Task has been rejected by ExecutorService " + retryCount
                      + " times till timedout, reason: " + t);
                  break;
                }
              } catch (InterruptedException e) {
                LOGGER.warn("Interrupted while waiting to place client on executor queue.");
                Thread.currentThread().interrupt();
                break;
              }
            } else if (t instanceof Error) {
              LOGGER.error("ExecutorService threw error: " + t, t);
              throw (Error)t;
            } else {
              //for other possible runtime errors from ExecutorService, should also not kill serve
              LOGGER.warn("ExecutorService threw error: " + t, t);
              break;
            }
          }
        }
      } catch (TTransportException ttx) {
        if (!stopped_) {
          ++failureCount;
          LOGGER.warn("Transport error occurred during acceptance of message.", ttx);
        }
      }
    }
  }

  //服务停止后关闭线程池
  protected void waitForShutdown() {
    //不再接受新的线程，等待之前提交的线程都处理完毕后关闭线程池
  	executorService_.shutdown();

    long timeoutMS = stopTimeoutUnit.toMillis(stopTimeoutVal);
    long now = System.currentTimeMillis();
    while (timeoutMS >= 0) {
      try {
        //阻塞，唤醒条件：所有任务执行完毕且shutdown请求被调用或timeoutMS时间到达或当前线程被中断
        executorService_.awaitTermination(timeoutMS, TimeUnit.MILLISECONDS);
        break;
      } catch (InterruptedException ix) {
        long newnow = System.currentTimeMillis();
        timeoutMS -= (newnow - now);
        now = newnow;
      }
    }
  }

  //停止服务
  public void stop() {
    stopped_ = true;
    serverTransport_.interrupt();
  }

  //WorkerProcess实现Runnable，在run()方法中进行具体的业务处理
  private class WorkerProcess implements Runnable {
    private TTransport client_;
    private WorkerProcess(TTransport client) {
      client_ = client;
    }

    //具体的业务处理（其实就是将TSimpleServer中业务处理部分剥离出来放到run()方法中）
    public void run() {
      TProcessor processor = null;
      TTransport inputTransport = null;
      TTransport outputTransport = null;
      TProtocol inputProtocol = null;
      TProtocol outputProtocol = null;
      TServerEventHandler eventHandler = null;
      ServerContext connectionContext = null;

      try {
        processor = processorFactory_.getProcessor(client_);
        inputTransport = inputTransportFactory_.getTransport(client_);
        outputTransport = outputTransportFactory_.getTransport(client_);
        inputProtocol = inputProtocolFactory_.getProtocol(inputTransport);
        outputProtocol = outputProtocolFactory_.getProtocol(outputTransport);

        eventHandler = getEventHandler();
        if (eventHandler != null) {
          connectionContext = eventHandler.createContext(inputProtocol, outputProtocol);
        }

        while (true) {
            if (eventHandler != null) {
              eventHandler.processContext(connectionContext, inputTransport, outputTransport);
            }

            if (stopped_) {
              break;
            }
            processor.process(inputProtocol, outputProtocol);
        }
      } catch (Exception x) {
        if (!isIgnorableException(x)) {
          LOGGER.error((x instanceof TException? "Thrift " : "") + "Error occurred during processing of message.", x);
        }
      } finally {
        if (eventHandler != null) {
          eventHandler.deleteContext(connectionContext, inputProtocol, outputProtocol);
        }
        if (inputTransport != null) {
          inputTransport.close();
        }
        if (outputTransport != null) {
          outputTransport.close();
        }
        if (client_.isOpen()) {
          client_.close();
        }
      }
    }
    ... ...
  }
}

5. 优点

TThreadPoolServer在TSimpleServer的基础上引入了线程池，主线程负责监听，由线程池负责数据读写和具体的业务处理，在并发量增加时也能够及时接受连接。适合服务端能预知最多有多少个客户端并发的情况。

6. 不足

TThreadPoolServer依然是阻塞的方式监听客户端连接，并且业务处理能力受限于线程池，当并发请求量超过线程池的线程数量时，新请求只能够阻塞等待。

TNonblockingServer

1. 特点

单线程，非阻塞I/O。

2. 设计思想

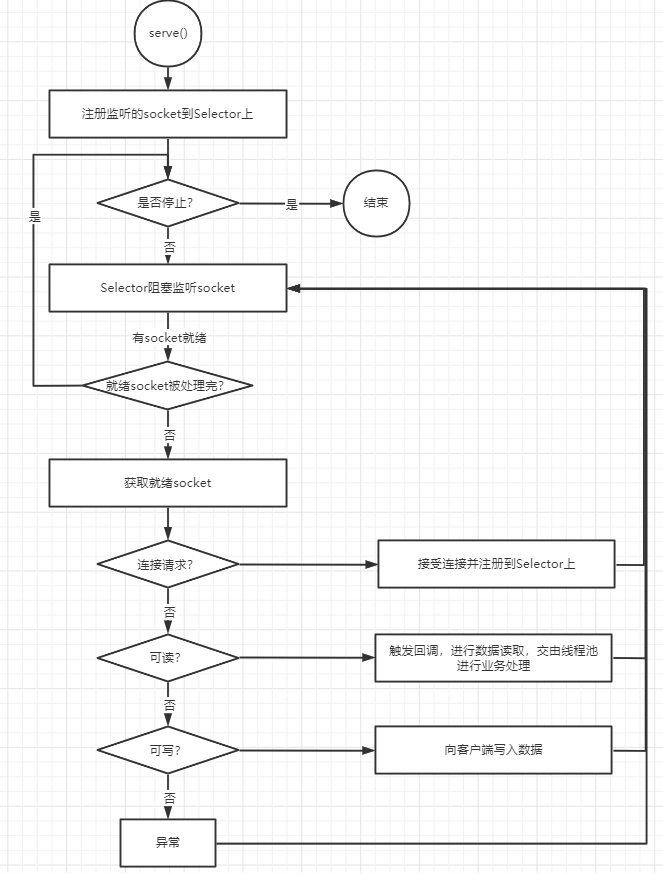

TNonblockingServer创建了一个SelectAcceptThread线程，通过NIO模式监听多个socket并读写数据。

通过将socket注册到Selector上实现一个线程监听多个socket，每次Selector.select()循环结束返回所有就绪socket：
- 对于可读的socket在数据读取完后触发回调函数进行相应的业务处理后将处理结果返回给客户端；
- 对于可写的socket进行数据写入操作；
- 对于客户端连接请求进行接受并注册到Selector上；

3. 使用

客户端：

public class HelloClient {
    private static final Logger LOGGER = Logger.getLogger(HelloClient.class.getName());
    public static void main(String[] args) {
        TTransport transport = null;
        try {
            //传输层使用非阻塞I/O
            transport = new TFramedTransport.Factory().getTransport(new TSocket("127.0.0.1", 9090));
            transport.open();
            //使用二进制协议传输数据
            TProtocol protocol = new TBinaryProtocol(transport);
            //使用同步客户端
            HelloService.Client client = new HelloService.Client(protocol);
            String name = "XuDT";
            LOGGER.info("HelloClient 请求参数[name]=" + name);
            //调用接口
            String result = client.sayHello(name);
            LOGGER.info("Server 返回结果为" + result);
        } catch (TException e) {
            e.printStackTrace();
        } finally {
            transport.close();
        }
    }
}

服务端：

public class NonblockingServer {
    private static final Logger LOGGER = Logger.getLogger(NonblockingServer.class.getName());

    public static void main(String[] args) {
        try {
            //监听端口9090
            TNonblockingServerSocket serverTransport = new TNonblockingServerSocket(9090);
            //使用二进制协议传输数据
            TBinaryProtocol.Factory proFactory = new TBinaryProtocol.Factory();
            //关联处理器与HelloService服务实现
            TProcessor processor = new HelloService.Processor(new HelloServiceImpl());
            TNonblockingServer.Args serverArgs = new TNonblockingServer.Args(serverTransport);
            serverArgs.processor(processor);
            serverArgs.protocolFactory(proFactory);
            serverArgs.transportFactory(new TFramedTransport.Factory());
            //使用TNonblockingServer服务端
            TServer server = new TNonblockingServer(serverArgs);
            LOGGER.info("Start NonblockingServer on port 9090...");
            //启动服务
            server.serve();
        } catch (TTransportException e) {
            e.printStackTrace();
        }
    }
}

TNonblockingServer传输层只能使用TFramedTransport。

4. 源码分析

TNonblockingServer继承了AbstractNonblockingServer，AbstractNonblockingServer继承了TServer。

AbstractNonblockingServer：

public abstract class AbstractNonblockingServer extends TServer {
  protected final Logger LOGGER = LoggerFactory.getLogger(getClass().getName());

  public static abstract class AbstractNonblockingServerArgs<T extends AbstractNonblockingServerArgs<T>> extends AbstractServerArgs<T> {
    public long maxReadBufferBytes = 256 * 1024 * 1024;

    public AbstractNonblockingServerArgs(TNonblockingServerTransport transport) {
      super(transport);
      transportFactory(new TFramedTransport.Factory());
    }
  }

  final long MAX_READ_BUFFER_BYTES;
  final AtomicLong readBufferBytesAllocated = new AtomicLong(0);

  public AbstractNonblockingServer(AbstractNonblockingServerArgs args) {
    super(args);
    MAX_READ_BUFFER_BYTES = args.maxReadBufferBytes;
  }

  /**
   * 启动服务
   */
  public void serve() {
    //启动SelectAcceptThread线程
    if (!startThreads()) {
      return;
    }
    //启动监听
    if (!startListening()) {
      return;
    }
    //开启服务
    setServing(true);
    //阻塞等待请求并处理
    waitForShutdown();
    //关闭服务
    setServing(false);
    //停止监听，关闭ServerSocket
    stopListening();
  }
  //启动SelectAcceptThread线程
  protected abstract boolean startThreads();
  //阻塞等待请求并处理
  protected abstract void waitForShutdown();
  //启动监听
  protected boolean startListening() {
    try {
      serverTransport_.listen();
      return true;
    } catch (TTransportException ttx) {
      LOGGER.error("Failed to start listening on server socket!", ttx);
      return false;
    }
  }
  //停止监听，关闭ServerSocket
  protected void stopListening() {
    serverTransport_.close();
  }
  //业务处理回调方法
  protected abstract boolean requestInvoke(FrameBuffer frameBuffer);

  /**
   * AbstractSelectThread继承了Thread
   */
  protected abstract class AbstractSelectThread extends Thread {
    protected Selector selector;

    protected final Set<FrameBuffer> selectInterestChanges = new HashSet<FrameBuffer>();

    public AbstractSelectThread() throws IOException {
      this.selector = SelectorProvider.provider().openSelector();
    }

	//唤醒阻塞在Selector.select()上的线程
    public void wakeupSelector() {
      selector.wakeup();
    }

    public void requestSelectInterestChange(FrameBuffer frameBuffer) {
      synchronized (selectInterestChanges) {
        selectInterestChanges.add(frameBuffer);
      }
      selector.wakeup();
    }

	//改变事件所感兴趣的类型，比如从读转为写(读取了客户端的请求，执行完相应的业务处理后，要将数据返回给客户端)，从写转为读(要将数据返回给客户端后，重新开始接受客户端新的的请求)
    protected void processInterestChanges() {
      synchronized (selectInterestChanges) {
        for (FrameBuffer fb : selectInterestChanges) {
          fb.changeSelectInterests();
        }
        selectInterestChanges.clear();
      }
    }

    //读取客户端数据
    protected void handleRead(SelectionKey key) {
      FrameBuffer buffer = (FrameBuffer) key.attachment();
      //读取客户端数据失败，则清除该selectionKey
      if (!buffer.read()) {
        cleanupSelectionKey(key);
        return;
      }

      //读取客户端数据成功
      if (buffer.isFrameFullyRead()) {
        //触发回调(调用相应的方法进行业务处理)
        if (!requestInvoke(buffer)) {
          //清除该selectionKey
          cleanupSelectionKey(key);
        }
      }
    }

    //向客户端写入数据
    protected void handleWrite(SelectionKey key) {
      FrameBuffer buffer = (FrameBuffer) key.attachment();
      if (!buffer.write()) {
        cleanupSelectionKey(key);
      }
    }

    //清除selectionKey
    protected void cleanupSelectionKey(SelectionKey key) {
      FrameBuffer buffer = (FrameBuffer) key.attachment();
      if (buffer != null) {
        buffer.close();
      }
      key.cancel();
    }
  }
  ... ...
}

TNonblockingServer：

public class TNonblockingServer extends AbstractNonblockingServer {

  public static class Args extends AbstractNonblockingServerArgs<Args> {
    public Args(TNonblockingServerTransport transport) {
      super(transport);
    }
  }

  //监听线程
  private SelectAcceptThread selectAcceptThread_;

  public TNonblockingServer(AbstractNonblockingServerArgs args) {
    super(args);
  }

  /**
   * 重写AbstractNonblockingServer.startThreads()方法，开启线程处理客户端请求
   */
  @Override
  protected boolean startThreads() {
    try {
      //实例化selectAcceptThread_
      selectAcceptThread_ = new SelectAcceptThread((TNonblockingServerTransport)serverTransport_);
      //启动线程
      selectAcceptThread_.start();
      return true;
    } catch (IOException e) {
      LOGGER.error("Failed to start selector thread!", e);
      return false;
    }
  }

  //重写AbstractNonblockingServer.waitForShutdown()，主线程阻塞等待SelectAcceptThread线程返回
  @Override
  protected void waitForShutdown() {
    joinSelector();
  }

  /**
   * 启动Selector监听线程
   */
  protected void joinSelector() {
    try {
      //主线程阻塞等待selectAcceptThread线程返回
      selectAcceptThread_.join();
    } catch (InterruptedException e) {
      LOGGER.debug("Interrupted while waiting for accept thread", e);
      Thread.currentThread().interrupt();
    }
  }

  /**
   * 停止服务
   */
  @Override
  public void stop() {
    stopped_ = true;
    if (selectAcceptThread_ != null) {
      selectAcceptThread_.wakeupSelector();
    }
  }

  /**
   * 客户端可读时触发的回调方法，具体回调操作定义在AbstractNonblockingServer的内部类FrameBuffer.invoke()，invoke()通过处理器TProcessorFactory的processorFactory_.getProcessor(inTrans_).process(inProt_, outProt_)方法进行连接数据读取、接口调用、处理结果返回客户端等
   */
  @Override
  protected boolean requestInvoke(FrameBuffer frameBuffer) {
    frameBuffer.invoke();
    return true;
  }

  public boolean isStopped() {
    return selectAcceptThread_.isStopped();
  }

  /**
   * SelectAcceptThread继承了AbstractSelectThread，AbstractSelectThread继承了Thread，AbstractSelectThread是AbstractNonblockingServer的内部类
   */
  protected class SelectAcceptThread extends AbstractSelectThread {

    //服务端传输通道serverTransport
    private final TNonblockingServerTransport serverTransport;

    public SelectAcceptThread(final TNonblockingServerTransport serverTransport)
    throws IOException {
      this.serverTransport = serverTransport;
      //将服务端通道serverTransport注册到Selector实现一个线程监听多个通道，Selector定义在AbstractSelectThread
      serverTransport.registerSelector(selector);
    }

    public boolean isStopped() {
      return stopped_;
    }

    /**
     * 处理请求
     */
    public void run() {
      try {
        if (eventHandler_ != null) {
          eventHandler_.preServe();
        }
        //循环等待请求
        while (!stopped_) {
          //阻塞监听所有注册在Selector上的socket，并处理就绪socket
          select();
          //处理读写事件切换
          processInterestChanges();
        }
        //服务端停止后删除Selector中的所有监听的selectionKey
        for (SelectionKey selectionKey : selector.keys()) {
          cleanupSelectionKey(selectionKey);
        }
      } catch (Throwable t) {
        LOGGER.error("run() exiting due to uncaught error", t);
      } finally {
        try {
          selector.close();
        } catch (IOException e) {
          LOGGER.error("Got an IOException while closing selector!", e);
        }
        stopped_ = true;
      }
    }

    /**
     * 阻塞监听所有注册在Selector上的socket
     */
    private void select() {
      try {
        //阻塞监听请求，每次select()结束获取所有就绪socket
        selector.select();

        //获取所有就绪socket
        Iterator<SelectionKey> selectedKeys = selector.selectedKeys().iterator();
        //处理就绪socket
        while (!stopped_ && selectedKeys.hasNext()) {
          SelectionKey key = selectedKeys.next();
          selectedKeys.remove();
          // skip if not valid
          if (!key.isValid()) {
            cleanupSelectionKey(key);
            continue;
          }
          if (key.isAcceptable()) {
            //接受连接
            handleAccept();
          } else if (key.isReadable()) {
            //读取数据
            handleRead(key);
          } else if (key.isWritable()) {
            //写数据
            handleWrite(key);
          } else {
            LOGGER.warn("Unexpected state in select! " + key.interestOps());
          }
        }
      } catch (IOException e) {
        LOGGER.warn("Got an IOException while selecting!", e);
      }
    }

    protected FrameBuffer createFrameBuffer(final TNonblockingTransport trans,
        final SelectionKey selectionKey,
        final AbstractSelectThread selectThread) {
        return processorFactory_.isAsyncProcessor() ?
                  new AsyncFrameBuffer(trans, selectionKey, selectThread) :
                  new FrameBuffer(trans, selectionKey, selectThread);
    }

    /**
     * 处理客户端连接请求
     */
    private void handleAccept() throws IOException {
      SelectionKey clientKey = null;
      TNonblockingTransport client = null;
      try {
        //接受客户端连接请求
        client = (TNonblockingTransport)serverTransport.accept();
        //将客户端连接注册到Selector上，为了后续处理该客户端连接上的请求
        clientKey = client.registerSelector(selector, SelectionKey.OP_READ);
        //实例化FrameBuffer
        FrameBuffer frameBuffer = createFrameBuffer(client, clientKey, SelectAcceptThread.this);
        //将frameBuffer添加到clientKey，后续handleRead()和handleWrite()读写数据都是基于这个frameBuffer
        clientKey.attach(frameBuffer);
      } catch (TTransportException tte) {
        // something went wrong accepting.
        LOGGER.warn("Exception trying to accept!", tte);
        if (clientKey != null) cleanupSelectionKey(clientKey);
        if (client != null) client.close();
      }
    }
  }
}

5. 优点

通过I/O多路复用实现了一个线程监听多个socket。

6. 不足

TNonblockingServer使用单线程阻塞的进行数据读写、业务处理，业务处理复杂/耗时的时候会导致服务阻塞，效率不高。

THsHaServer

1. 特点

半同步半异步，非阻塞I/O。

2. 设计思想

同步非阻塞：通过一个SelectAcceptThread线程通过NIO实现监听（非阻塞I/O）、数据读写（同步）。异步：通过一个线程池进行业务处理。

3. 使用

客户端同TNonblockingServer。

服务端：

public class HsHaServer {
    private static final Logger LOGGER = Logger.getLogger(HsHaServer.class.getName());

    public static void main(String[] args) {
        try {
            //监听端口9090
            TNonblockingServerSocket serverTransport = new TNonblockingServerSocket(9090);
            //使用二进制协议传输数据
            TBinaryProtocol.Factory proFactory = new TBinaryProtocol.Factory();
            //关联处理器与HelloService服务实现
            TProcessor processor = new HelloService.Processor(new HelloServiceImpl());
            THsHaServer.Args serverArgs = new THsHaServer.Args(serverTransport);
            serverArgs.processor(processor);
            serverArgs.protocolFactory(proFactory);
            serverArgs.transportFactory(new TFramedTransport.Factory());
            //使用THsHaServer服务端
            TServer server = new THsHaServer(serverArgs);
            LOGGER.info("Start HsHaServer on port 9090...");
            //启动服务
            server.serve();
        } catch (TTransportException e) {
            e.printStackTrace();
        }
    }
}

4. 源码分析

THsHaServer继承了TNonblockingServer。

public class THsHaServer extends TNonblockingServer {

  public static class Args extends AbstractNonblockingServerArgs<Args> {
	//设置线程池参数
    public int minWorkerThreads = 5;
    public int maxWorkerThreads = Integer.MAX_VALUE;
    private int stopTimeoutVal = 60;
    private TimeUnit stopTimeoutUnit = TimeUnit.SECONDS;
    private ExecutorService executorService = null;

    public Args(TNonblockingServerTransport transport) {
      super(transport);
    }

	//设置线程池最少线程数
    public Args minWorkerThreads(int n) {
      minWorkerThreads = n;
      return this;
    }

	//设置线程池最大线程数
    public Args maxWorkerThreads(int n) {
      maxWorkerThreads = n;
      return this;
    }

	//获取线程池最少线程数
    public int getMinWorkerThreads() {
      return minWorkerThreads;
    }

	//获取线程池最大线程数
    public int getMaxWorkerThreads() {
      return maxWorkerThreads;
    }

    public int getStopTimeoutVal() {
      return stopTimeoutVal;
    }

    public Args stopTimeoutVal(int stopTimeoutVal) {
      this.stopTimeoutVal = stopTimeoutVal;
      return this;
    }

    public TimeUnit getStopTimeoutUnit() {
      return stopTimeoutUnit;
    }

    public Args stopTimeoutUnit(TimeUnit stopTimeoutUnit) {
      this.stopTimeoutUnit = stopTimeoutUnit;
      return this;
    }

    public ExecutorService getExecutorService() {
      return executorService;
    }

    public Args executorService(ExecutorService executorService) {
      this.executorService = executorService;
      return this;
    }
  }


  //指向工作线程池，方便Selector调用工作线程
  private final ExecutorService invoker;

  private final Args args;

  public THsHaServer(Args args) {
    super(args);
	//线程池可以自己定义后以参数的形式传入或者由THsHaServer创建
    invoker = args.executorService == null ? createInvokerPool(args) : args.executorService;
    this.args = args;
  }

  //重写AbstractNonblockingServer.waitForShutdown()
  @Override
  protected void waitForShutdown() {
	//主线程阻塞等待SelectAcceptThread线程返回，调用的是TNonblockingServer.joinSelector()
    joinSelector();
	//关闭线程池
    gracefullyShutdownInvokerPool();
  }

  //创建线程池
  protected static ExecutorService createInvokerPool(Args options) {
    int minWorkerThreads = options.minWorkerThreads;
    int maxWorkerThreads = options.maxWorkerThreads;
    int stopTimeoutVal = options.stopTimeoutVal;
    TimeUnit stopTimeoutUnit = options.stopTimeoutUnit;

    LinkedBlockingQueue<Runnable> queue = new LinkedBlockingQueue<Runnable>();
    ExecutorService invoker = new ThreadPoolExecutor(minWorkerThreads,
      maxWorkerThreads, stopTimeoutVal, stopTimeoutUnit, queue);

    return invoker;
  }

  protected ExecutorService getInvoker() {
    return invoker;
  }

  //关闭线程池
  protected void gracefullyShutdownInvokerPool() {
	//shutdown()会等待正在处理的任务结束后再关闭线程池
    invoker.shutdown();

    long timeoutMS = args.stopTimeoutUnit.toMillis(args.stopTimeoutVal);
    long now = System.currentTimeMillis();
    while (timeoutMS >= 0) {
      try {
		//awaitTermination()会一直等待直到线程池状态为TERMINATED或者超时时间到
        invoker.awaitTermination(timeoutMS, TimeUnit.MILLISECONDS);
        break;
      } catch (InterruptedException ix) {
        long newnow = System.currentTimeMillis();
        timeoutMS -= (newnow - now);
        now = newnow;
      }
    }
  }

  //重写AbstractNonblockingServer.requestInvoke()，调用线程池执行业务处理
  @Override
  protected boolean requestInvoke(FrameBuffer frameBuffer) {
    try {
	  //获取要执行的业务处理
      Runnable invocation = getRunnable(frameBuffer);
	  //执行业务处理
      invoker.execute(invocation);
      return true;
    } catch (RejectedExecutionException rx) {
      LOGGER.warn("ExecutorService rejected execution!", rx);
      return false;
    }
  }

  protected Runnable getRunnable(FrameBuffer frameBuffer){
    return new Invocation(frameBuffer);
  }
}


class Invocation implements Runnable {
  private final FrameBuffer frameBuffer;

  public Invocation(final FrameBuffer frameBuffer) {
    this.frameBuffer = frameBuffer;
  }

  public void run() {
	//调用的是AbstractNonblockingServer的内部类FrameBuffer..invoke()
    frameBuffer.invoke();
  }
}

5. 优点

THsHaServer在TNonblockingServer的基础上引入了线程池，当数据读取完成后，交由线程池进行业务处理，主线程直接返回进行下一次循环监听，大大提升了效率。

6. 不足

THsHaServer仍然由一个SelectAcceptThread线程负责监听、数据读写，当请求并发量大时，请求可能不能被及时接受。

TThreadedSelectorServer

1. 特点

多线程，非阻塞I/O。

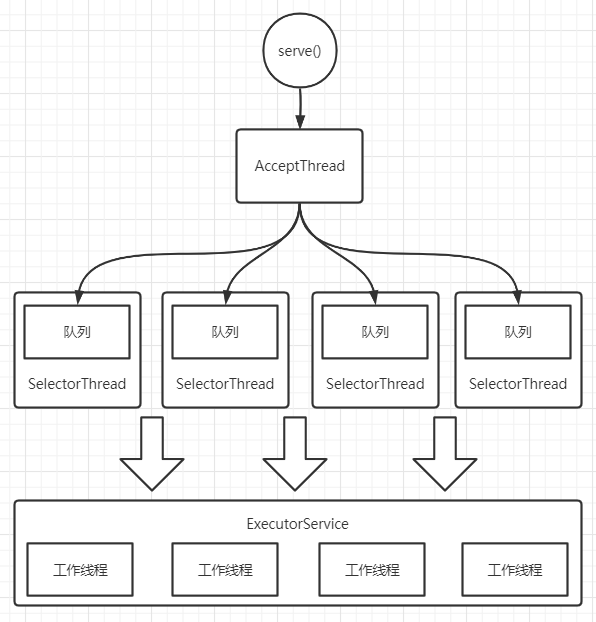

2. 设计思想

将监听、数据读写、业务处理进行拆分：

一个AcceptThread线程对象专门用于监听客户端连接请求；
多个SelectorThread线程对象（默认2个）用于读写数据；
一个负载均衡器SelectorThreadLoadBalancer对象用于将AcceptThread线程接收到的新连接请求分配给SelectorThread线程。
一个ExecutorService线程池用于业务处理。当SelectorThread线程对象读取完数据后触发回调方法requestInvoke()将请求交由线程池进行业务处理。

3. 使用

客户端同TNonblockingServer。

服务端：

public class ThreadedSelectorServer {
    private static final Logger LOGGER = Logger.getLogger(ThreadedSelectorServer.class.getName());

    public static void main(String[] args) {
        try {
            //监听端口9090
            TNonblockingServerSocket serverTransport = new TNonblockingServerSocket(9090);
            //使用二进制协议传输数据
            TBinaryProtocol.Factory proFactory = new TBinaryProtocol.Factory();
            //关联处理器与HelloService服务实现
            TProcessor processor = new HelloService.Processor(new HelloServiceImpl());
            TThreadedSelectorServer.Args serverArgs = new TThreadedSelectorServer.Args(serverTransport);
            serverArgs.processor(processor);
            serverArgs.protocolFactory(proFactory);
            //使用TThreadedSelectorServer服务端
            TServer server = new TThreadedSelectorServer(serverArgs);
            LOGGER.info("Start ThreadedSelectorServer on port 9090...");
            //启动服务，调用到的是AbstractNonblockingServer.serve()
            server.serve();
        } catch (TTransportException e) {
            e.printStackTrace();
        }
    }
}

4. 源码分析

TThreadedSelectorServer继承了AbstractNonblockingServer，包含了内部类AcceptThread、SelectorThread、SelectorThreadLoadBalancer。

TThreadedSelectorServer：

public class TThreadedSelectorServer extends AbstractNonblockingServer {
  private static final Logger LOGGER = LoggerFactory.getLogger(TThreadedSelectorServer.class.getName());

  public static class Args extends AbstractNonblockingServerArgs<Args> {
	//selectorThreads线程数
    public int selectorThreads = 2;
	//工作线程池核心线程数，如果设置为0则业务处理会交由selectorThreads负责
    private int workerThreads = 5;
    private int stopTimeoutVal = 60;
    private TimeUnit stopTimeoutUnit = TimeUnit.SECONDS;
	//工作线程池
    private ExecutorService executorService = null;
	//selectorThreads缓存队列大小
    private int acceptQueueSizePerThread = 4;

    public static enum AcceptPolicy {
      FAIR_ACCEPT,
	  //立即接受请求
      FAST_ACCEPT
    }

    private AcceptPolicy acceptPolicy = AcceptPolicy.FAST_ACCEPT;

    public Args(TNonblockingServerTransport transport) {
      super(transport);
    }

    public Args selectorThreads(int i) {
      selectorThreads = i;
      return this;
    }

    public int getSelectorThreads() {
      return selectorThreads;
    }

    public Args workerThreads(int i) {
      workerThreads = i;
      return this;
    }

    public int getWorkerThreads() {
      return workerThreads;
    }

    public int getStopTimeoutVal() {
      return stopTimeoutVal;
    }

    public Args stopTimeoutVal(int stopTimeoutVal) {
      this.stopTimeoutVal = stopTimeoutVal;
      return this;
    }

    public TimeUnit getStopTimeoutUnit() {
      return stopTimeoutUnit;
    }

    public Args stopTimeoutUnit(TimeUnit stopTimeoutUnit) {
      this.stopTimeoutUnit = stopTimeoutUnit;
      return this;
    }

    public ExecutorService getExecutorService() {
      return executorService;
    }

    public Args executorService(ExecutorService executorService) {
      this.executorService = executorService;
      return this;
    }

    public int getAcceptQueueSizePerThread() {
      return acceptQueueSizePerThread;
    }

    public Args acceptQueueSizePerThread(int acceptQueueSizePerThread) {
      this.acceptQueueSizePerThread = acceptQueueSizePerThread;
      return this;
    }

    public AcceptPolicy getAcceptPolicy() {
      return acceptPolicy;
    }

    public Args acceptPolicy(AcceptPolicy acceptPolicy) {
      this.acceptPolicy = acceptPolicy;
      return this;
    }

	//参数校验
    public void validate() {
      if (selectorThreads <= 0) {
        throw new IllegalArgumentException("selectorThreads must be positive.");
      }
      if (workerThreads < 0) {
        throw new IllegalArgumentException("workerThreads must be non-negative.");
      }
      if (acceptQueueSizePerThread <= 0) {
        throw new IllegalArgumentException("acceptQueueSizePerThread must be positive.");
      }
    }
  }

  //监听线程
  private AcceptThread acceptThread;
  //数据读写线程
  private final Set<SelectorThread> selectorThreads = new HashSet<SelectorThread>();
  //工作线程池
  private final ExecutorService invoker;

  private final Args args;

  public TThreadedSelectorServer(Args args) {
    super(args);
	//参数校验
    args.validate();
	//线程池可以自己定义后以参数的形式传入或者由TThreadedSelectorServer创建
    invoker = args.executorService == null ? createDefaultExecutor(args) : args.executorService;
    this.args = args;
  }

  //重写AbstractNonblockingServer.startThreads()，启动AcceptThread、SelectorThread线程
  @Override
  protected boolean startThreads() {
    try {
	  //实例化SelectorThread线程并放进一个Set集合中
      for (int i = 0; i < args.selectorThreads; ++i) {
        selectorThreads.add(new SelectorThread(args.acceptQueueSizePerThread));
      }
	  //实例化AcceptThread线程
      acceptThread = new AcceptThread((TNonblockingServerTransport) serverTransport_,
        createSelectorThreadLoadBalancer(selectorThreads));
	  //启动SelectorThread线程
      for (SelectorThread thread : selectorThreads) {
        thread.start();
      }
	  //启动AcceptThread线程
      acceptThread.start();
      return true;
    } catch (IOException e) {
      LOGGER.error("Failed to start threads!", e);
      return false;
    }
  }

  //重写AbstractNonblockingServer.waitForShutdown()
  @Override
  protected void waitForShutdown() {
    try {
	  //阻塞主线程等待AcceptThread、SelectorThread线程返回
      joinThreads();
    } catch (InterruptedException e) {
      LOGGER.error("Interrupted while joining threads!", e);
    }
	//关闭线程池
    gracefullyShutdownInvokerPool();
  }

  //阻塞主线程等待AcceptThread、SelectorThread线程返回
  protected void joinThreads() throws InterruptedException {
    acceptThread.join();
    for (SelectorThread thread : selectorThreads) {
      thread.join();
    }
  }

  //重写AbstractNonblockingServer.stop()，wakeupSelector()调用了Selector.wakeup()，将会唤醒Selector执行select()时阻塞的线程，进行新的循环，Selector.select()的循环条件是while (!stopped_ )，stopped_已被设置为true，所以新的一次循环将会跳出，从而停止SelectorThread、AcceptThread线程
  @Override
  public void stop() {
    stopped_ = true;
	//停止监听
    stopListening();
	//关闭AcceptThread线程
    if (acceptThread != null) {
	  //wakeupSelector()
      acceptThread.wakeupSelector();
    }
	//关闭SelectorThread线程
    if (selectorThreads != null) {
      for (SelectorThread thread : selectorThreads) {
        if (thread != null)
          thread.wakeupSelector();
      }
    }
  }

  //关闭线程池
  protected void gracefullyShutdownInvokerPool() {
    invoker.shutdown();

    long timeoutMS = args.stopTimeoutUnit.toMillis(args.stopTimeoutVal);
    long now = System.currentTimeMillis();
    while (timeoutMS >= 0) {
      try {
        invoker.awaitTermination(timeoutMS, TimeUnit.MILLISECONDS);
        break;
      } catch (InterruptedException ix) {
        long newnow = System.currentTimeMillis();
        timeoutMS -= (newnow - now);
        now = newnow;
      }
    }
  }

  //重写AbstractNonblockingServer.requestInvoke()，调用线程池执行业务处理
  @Override
  protected boolean requestInvoke(FrameBuffer frameBuffer) {
    Runnable invocation = getRunnable(frameBuffer);
    if (invoker != null) {
      try {
        invoker.execute(invocation);
        return true;
      } catch (RejectedExecutionException rx) {
        LOGGER.warn("ExecutorService rejected execution!", rx);
        return false;
      }
    } else {
      invocation.run();
      return true;
    }
  }

  protected Runnable getRunnable(FrameBuffer frameBuffer) {
    return new Invocation(frameBuffer);
  }

  //创建线程池
  protected static ExecutorService createDefaultExecutor(Args options) {
    return (options.workerThreads > 0) ? Executors.newFixedThreadPool(options.workerThreads) : null;
  }

  private static BlockingQueue<TNonblockingTransport> createDefaultAcceptQueue(int queueSize) {
    if (queueSize == 0) {
      return new LinkedBlockingQueue<TNonblockingTransport>();
    }
    return new ArrayBlockingQueue<TNonblockingTransport>(queueSize);
  }

  //创建一个负载均衡器
  protected SelectorThreadLoadBalancer createSelectorThreadLoadBalancer(Collection<? extends SelectorThread> threads) {
    return new SelectorThreadLoadBalancer(threads);
  }
}

AcceptThread：监听客户端连接

  //监听连接线程
  protected class AcceptThread extends Thread {
	//获取客户端传输通道
    private final TNonblockingServerTransport serverTransport;
	//NIO选择器
    private final Selector acceptSelector;
	//负载均衡器
    private final SelectorThreadLoadBalancer threadChooser;


    public AcceptThread(TNonblockingServerTransport serverTransport,
        SelectorThreadLoadBalancer threadChooser) throws IOException {
      this.serverTransport = serverTransport;
      this.threadChooser = threadChooser;
	  //实例化Selector
      this.acceptSelector = SelectorProvider.provider().openSelector();
	  //将客户端传输通道注册到Selector上
      this.serverTransport.registerSelector(acceptSelector);
    }

	//监听客户端请求
    public void run() {
      try {
        if (eventHandler_ != null) {
          eventHandler_.preServe();
        }
		//循环监听等待客户端请求
        while (!stopped_) {
          select();
        }
      } catch (Throwable t) {
        LOGGER.error("run() on AcceptThread exiting due to uncaught error", t);
      } finally {
        try {
          acceptSelector.close();
        } catch (IOException e) {
          LOGGER.error("Got an IOException while closing accept selector!", e);
        }
        TThreadedSelectorServer.this.stop();
      }
    }

	//关闭线程
    public void wakeupSelector() {
      acceptSelector.wakeup();
    }

	//监听客户端请求
    private void select() {
      try {
		//接收客户端请求
        acceptSelector.select();

        Iterator<SelectionKey> selectedKeys = acceptSelector.selectedKeys().iterator();
        while (!stopped_ && selectedKeys.hasNext()) {
          SelectionKey key = selectedKeys.next();
          selectedKeys.remove();

          if (!key.isValid()) {
            continue;
          }
		  //如果是连接请求则调用handleAccept()进行处理，否则不做任何处理
          if (key.isAcceptable()) {
            handleAccept();
          } else {
            LOGGER.warn("Unexpected state in select! " + key.interestOps());
          }
        }
      } catch (IOException e) {
        LOGGER.warn("Got an IOException while selecting!", e);
      }
    }

	//接受客户端连接请求
    private void handleAccept() {
	  //获取客户端传输通道
      final TNonblockingTransport client = doAccept();
      if (client != null) {
        final SelectorThread targetThread = threadChooser.nextThread();
		//接受连接
        if (args.acceptPolicy == Args.AcceptPolicy.FAST_ACCEPT || invoker == null) {
		  //
          doAddAccept(targetThread, client);
        } else {
          try {
            invoker.submit(new Runnable() {
              public void run() {
                doAddAccept(targetThread, client);
              }
            });
          } catch (RejectedExecutionException rx) {
            LOGGER.warn("ExecutorService rejected accept registration!", rx);

            client.close();
          }
        }
      }
    }

	//获取客户端传输通道
    private TNonblockingTransport doAccept() {
      try {
        return (TNonblockingTransport) serverTransport.accept();
      } catch (TTransportException tte) {

        LOGGER.warn("Exception trying to accept!", tte);
        return null;
      }
    }

	//接受连接（将客户端通道加入SelectorThread的缓存队列中）
    private void doAddAccept(SelectorThread thread, TNonblockingTransport client) {
	  //调用SelectorThread.addAcceptedConnection()
      if (!thread.addAcceptedConnection(client)) {
        client.close();
      }
    }
  }

SelectorThread：监听读写事件

  //读写数据线程
  protected class SelectorThread extends AbstractSelectThread {
	//缓存队列
    private final BlockingQueue<TNonblockingTransport> acceptedQueue;

    public SelectorThread() throws IOException {
      this(new LinkedBlockingQueue<TNonblockingTransport>());
    }

    public SelectorThread(int maxPendingAccepts) throws IOException {
      this(createDefaultAcceptQueue(maxPendingAccepts));
    }


    public SelectorThread(BlockingQueue<TNonblockingTransport> acceptedQueue) throws IOException {
      this.acceptedQueue = acceptedQueue;
    }

	//将客户端通道加入SelectorThread的缓存队列中（如果队列满了将会阻塞线程）
    public boolean addAcceptedConnection(TNonblockingTransport accepted) {
      try {
		//通过队列的put()方法放入队列中
        acceptedQueue.put(accepted);
      } catch (InterruptedException e) {
        LOGGER.warn("Interrupted while adding accepted connection!", e);
        return false;
      }
	  //唤醒阻塞在Selector.select()上的线程
      selector.wakeup();
      return true;
    }

	//读写数据
    public void run() {
      try {
		//循环监听I/O事件
        while (!stopped_) {
		  //处理就绪的可读写事件
          select();
		  //处理客户端连接
          processAcceptedConnections();
		  //监听客户端读写切换，调用的是AbstractNonblockingServer.processInterestChanges()
          processInterestChanges();
        }
        for (SelectionKey selectionKey : selector.keys()) {
          cleanupSelectionKey(selectionKey);
        }
      } catch (Throwable t) {
        LOGGER.error("run() on SelectorThread exiting due to uncaught error", t);
      } finally {
        try {
          selector.close();
        } catch (IOException e) {
          LOGGER.error("Got an IOException while closing selector!", e);
        }
        TThreadedSelectorServer.this.stop();
      }
    }

	//处理就绪的可读写事件
    private void select() {
      try {
        doSelect();
        Iterator<SelectionKey> selectedKeys = selector.selectedKeys().iterator();
        while (!stopped_ && selectedKeys.hasNext()) {
          SelectionKey key = selectedKeys.next();
          selectedKeys.remove();

          if (!key.isValid()) {
            cleanupSelectionKey(key);
            continue;
          }

          if (key.isReadable()) {
			//处理可读事件
            handleRead(key);
          } else if (key.isWritable()) {
			//处理可写事件
            handleWrite(key);
          } else {
            LOGGER.warn("Unexpected state in select! " + key.interestOps());
          }
        }
      } catch (IOException e) {
        LOGGER.warn("Got an IOException while selecting!", e);
      }
    }

	//解决epoll空轮询导致的CPU 100%bug
    private void doSelect() throws IOException {
      long beforeSelect = System.currentTimeMillis();
      int selectedNums = selector.select();
      long afterSelect = System.currentTimeMillis();

      if (selectedNums == 0) {
        jvmBug++;
      } else {
        jvmBug = 0;
      }

      long selectedTime = afterSelect - beforeSelect;
      if (selectedTime >= MONITOR_PERIOD) {
        jvmBug = 0;
      } else if (jvmBug > SELECTOR_AUTO_REBUILD_THRESHOLD) {
        LOGGER.warn("In {} ms happen {} times jvm bug; rebuilding selector.", MONITOR_PERIOD, jvmBug);
        rebuildSelector();
        selector.selectNow();
        jvmBug = 0;
      }

    }

    private synchronized void rebuildSelector() {
      final Selector oldSelector = selector;
      if (oldSelector == null) {
        return;
      }
      Selector newSelector = null;
      try {
        newSelector = Selector.open();
        LOGGER.warn("Created new Selector.");
      } catch (IOException e) {
        LOGGER.error("Create new Selector error.", e);
      }

      for (SelectionKey key : oldSelector.selectedKeys()) {
        if (!key.isValid() && key.readyOps() == 0)
          continue;
        SelectableChannel channel = key.channel();
        Object attachment = key.attachment();

        try {
          if (attachment == null) {
            channel.register(newSelector, key.readyOps());
          } else {
            channel.register(newSelector, key.readyOps(), attachment);
          }
        } catch (ClosedChannelException e) {
          LOGGER.error("Register new selector key error.", e);
        }

      }

      selector = newSelector;
      try {
        oldSelector.close();
      } catch (IOException e) {
        LOGGER.error("Close old selector error.", e);
      }
      LOGGER.warn("Replace new selector success.");
    }

	//处理客户端连接
    private void processAcceptedConnections() {
	  //循环取出缓存队列中的客户端传输通道，并注册到Selector上
      while (!stopped_) {
        TNonblockingTransport accepted = acceptedQueue.poll();
        if (accepted == null) {
          break;
        }
        registerAccepted(accepted);
      }
    }

    protected FrameBuffer createFrameBuffer(final TNonblockingTransport trans,
        final SelectionKey selectionKey,
        final AbstractSelectThread selectThread) {
        return processorFactory_.isAsyncProcessor() ?
                  new AsyncFrameBuffer(trans, selectionKey, selectThread) :
                  new FrameBuffer(trans, selectionKey, selectThread);
    }

	//将客户端传输通道注册到Selector上
    private void registerAccepted(TNonblockingTransport accepted) {
      SelectionKey clientKey = null;
      try {
		//将客户端传输通道注册到Selector上
        clientKey = accepted.registerSelector(selector, SelectionKey.OP_READ);
		//创建一个FrameBuffer，后续这个客户端传输通道上的数据读写都是基于这个FrameBuffer
        FrameBuffer frameBuffer = createFrameBuffer(accepted, clientKey, SelectorThread.this);

        clientKey.attach(frameBuffer);
      } catch (IOException e) {
        LOGGER.warn("Failed to register accepted connection to selector!", e);
        if (clientKey != null) {
          cleanupSelectionKey(clientKey);
        }
        accepted.close();
      }
    }
  }

SelectorThreadLoadBalancer：负载均衡器

  //负载均衡器
  protected static class SelectorThreadLoadBalancer {
    private final Collection<? extends SelectorThread> threads;
    private Iterator<? extends SelectorThread> nextThreadIterator;

	//实例化一个SelectorThreadLoadBalancer，实例化时会将SelectorThread以参数形式传进来
    public <T extends SelectorThread> SelectorThreadLoadBalancer(Collection<T> threads) {
      if (threads.isEmpty()) {
        throw new IllegalArgumentException("At least one selector thread is required");
      }
      this.threads = Collections.unmodifiableList(new ArrayList<T>(threads));
      nextThreadIterator = this.threads.iterator();
    }

	//SelectorThreadLoadBalancer通过轮询的方式来选择SelectorThread线程
    public SelectorThread nextThread() {
      if (!nextThreadIterator.hasNext()) {
        nextThreadIterator = threads.iterator();
      }
      return nextThreadIterator.next();
    }
  }

5. 优点

TThreadedSelectorServer是Thrift最高级的Server，它将监听、数据读写、业务处理进行拆分：

有一个专门的AcceptThread线程用于处理连接请求，能够及时处理连接请求；
将I/O操作分散到多个SelectorThread线程，能够快读的读写数据；
通过线程池进行业务处理，提高并发处理的能力。

各个服务端比较

TSimpleServer：单线程阻塞I/O，主线程负责监听、数据读写、业务处理。
TThreadPoolServer：多线程阻塞I/O，主线程负责监听，数据读写和业务处理交由线程池负责。
TNonblockingServer：单线程非阻塞I/O，主线程使用NIO负责监听（非阻塞I/O）、数据读写、业务处理。
THsHaServer：半同步半异步，主线程使用NIO负责监听（非阻塞I/O）、数据读写，业务处理交由线程池负责。
TThreadedSelectorServer：多线程非阻塞I/O，一个AcceptThread线程使用NIO负责监听（非阻塞I/O），多个SelectorThread线程负责数据读写，一个线程池负责业务处理。

Thrift使用示例

创建服务接口文件（HelloService.thrift）：HelloService服务包含1个sayHello方法。

namespace java com.xudt.thrift.service
service HelloService {
  string sayHello(1:string name)
}

http://thrift.apache.org/download下载Thrift IDL编译器。
将thrift exe和HelloService.thrift放在同一个文件夹下，cmd进入该文件夹并执行命令thrift-0.13.0.exe -gen java hello.thrift，生成服务接口的HelloService.java文件。
创建一个thrift-demo Maven工程为父模块，再创建4个子模块：

thrift-demo-interface：存放HelloService.thrift服务文件产生的HelloService.java代码。
thrift-demo-service：实现服务接口。
thrift-demo-server：服务器端。
thrift-demo-client：客户端。

生成服务接口的.java文件包含：

同步服务端Iface
异步服务端AsyncIface
同步客户端Client
异步客户端AsyncClient

@SuppressWarnings({"cast", "rawtypes", "serial", "unchecked", "unused"})
@javax.annotation.Generated(value = "Autogenerated by Thrift Compiler (0.13.0)", date = "2020-07-04")
public class HelloService {

  /**
   * 同步服务端
   */
  public interface Iface {
    public String sayHello(String name) throws org.apache.thrift.TException;
  }
  /**
   * 异步服务端
   */
  public interface AsyncIface {
    public void sayHello(String name, org.apache.thrift.async.AsyncMethodCallback<String> resultHandler) throws org.apache.thrift.TException;
  }
  /**
   * 同步客户端
   */
  public static class Client extends org.apache.thrift.TServiceClient implements Iface {
    public static class Factory implements org.apache.thrift.TServiceClientFactory<Client> {
      public Factory() {}
      public Client getClient(org.apache.thrift.protocol.TProtocol prot) {
        return new Client(prot);
      }
      public Client getClient(org.apache.thrift.protocol.TProtocol iprot, org.apache.thrift.protocol.TProtocol oprot) {
        return new Client(iprot, oprot);
      }
    }

    public Client(org.apache.thrift.protocol.TProtocol prot) {
      super(prot, prot);
    }

    public Client(org.apache.thrift.protocol.TProtocol iprot, org.apache.thrift.protocol.TProtocol oprot) {
      super(iprot, oprot);
    }

    //调用sayHello接口并接收处理结果
    public String sayHello(String name) throws org.apache.thrift.TException {
      send_sayHello(name);
      return recv_sayHello();
    }

    //发送接口调用请求
    public void send_sayHello(String name) throws org.apache.thrift.TException {
      sayHello_args args = new sayHello_args();
      args.setName(name);
      sendBase("sayHello", args);
    }

    //接收接口调用结果
    public String recv_sayHello() throws org.apache.thrift.TException {
      sayHello_result result = new sayHello_result();
      receiveBase(result, "sayHello");
      if (result.isSetSuccess()) {
        return result.success;
      }
      throw new org.apache.thrift.TApplicationException(org.apache.thrift.TApplicationException.MISSING_RESULT, "sayHello failed: unknown result");
    }
  }
    /**
     * 处理器
     */
    public static class Processor<I extends Iface> extends org.apache.thrift.TBaseProcessor<I> implements org.apache.thrift.TProcessor {
    private static final org.slf4j.Logger _LOGGER = org.slf4j.LoggerFactory.getLogger(Processor.class.getName());
    //初始化processMap
    public Processor(I iface) {
      super(iface, getProcessMap(new java.util.HashMap<String, org.apache.thrift.ProcessFunction<I, ? extends org.apache.thrift.TBase>>()));
    }

    protected Processor(I iface, java.util.Map<String, org.apache.thrift.ProcessFunction<I, ? extends org.apache.thrift.TBase>> processMap) {
      super(iface, getProcessMap(processMap));
    }

    private static <I extends Iface> java.util.Map<String,  org.apache.thrift.ProcessFunction<I, ? extends org.apache.thrift.TBase>> getProcessMap(java.util.Map<String, org.apache.thrift.ProcessFunction<I, ? extends  org.apache.thrift.TBase>> processMap) {
      processMap.put("sayHello", new sayHello());
      return processMap;
    }

    public static class sayHello<I extends Iface> extends org.apache.thrift.ProcessFunction<I, sayHello_args> {
      public sayHello() {
        super("sayHello");
      }

      public sayHello_args getEmptyArgsInstance() {
        return new sayHello_args();
      }

      protected boolean isOneway() {
        return false;
      }

      @Override
      protected boolean rethrowUnhandledExceptions() {
        return false;
      }

      //调用接口（真正调用到HelloService的实现类HelloServiceImpl中sayHello()）
      public sayHello_result getResult(I iface, sayHello_args args) throws org.apache.thrift.TException {
        sayHello_result result = new sayHello_result();
        result.success = iface.sayHello(args.name);
        return result;
      }
    }
  }
  ... ...
}

网络编程(一)：Thrift详解

什么是Thrift？

Thrift架构

Thrift协议有哪些？

Thrift传输层有哪些？

Thrift服务器端有哪些？

TServer

TSimpleServer

1. 特点

2. 设计思想

3. 使用

4. TSimpleServer源码分析

5. 时序图

6. 不足

TThreadPoolServer

1. 特点

2. 设计思想

3. 使用

4. 源码分析

5. 优点

6. 不足

TNonblockingServer

1. 特点

2. 设计思想

3. 使用

4. 源码分析

5. 优点

6. 不足

THsHaServer

1. 特点

2. 设计思想

3. 使用

4. 源码分析

5. 优点

6. 不足

TThreadedSelectorServer

1. 特点

2. 设计思想

3. 使用

4. 源码分析

5. 优点

各个服务端比较

Thrift使用示例
