什么是状态机？

定义

状态机是有限状态机的简称，是现实事物运行规则抽象而成的一个数学模型。

解释

现实世界中，各种事物都是有状态的，例如人，健康状态、生病状态、痊愈中状态。再比如一个电梯，有停止状态，运行状态。这些状态的转变，都是由于机体的事件触发。人由健康状态到生病状态，会有很多事件，吃错东西了，吃错药，不规则的作息等等等；由生病状态到痊愈中状态，需要看医生事件，吃药事件等。电梯的停止状态到运行状态，需要乘客按下楼层按钮事件等。

本文主要是订单的流转状态来做演示。我们都知道一个电商项目，必然存在的主体就是订单，而一个订单又会有很多状态：待支付（创建）、待发货、待收货、完成、取消等等。

针对以上的状态变换，涉及事件：支付、发货、确认收货、取消。

怎么使用spring StateMachine？

基础配置

  1. 首先pom文件引入依赖

          <dependency>
            <groupId>org.springframework.statemachine</groupId>
            <artifactId>spring-statemachine-core</artifactId>
            <version>2.2.0.RELEASE</version>
       </dependency>

  2. 编写订单状态类

    package com.yezi.statemachinedemo.business.enums;

/**
 * @Description: 订单状态
 * @Author: yezi
 * @Date: 2020/6/19 14:01
 */
public enum TradeStatus {
    //待支付
    TO_PAY,
    //待发货
    TO_DELIVER,
    //待收货
    TO_RECIEVE,
    //完成
    COMPLETE,
    //取消
    VOID;
}

  3. 状态流转会涉及的到事件

    package com.yezi.statemachinedemo.business.enums;

/**
 * @Description: 订单事件
 * @Author: yezi
 * @Date: 2020/6/19 14:02
 */
public enum TradeEvent {
    PAY, //支付
    SHIP,//发货
    CONFIRM,//确认收货
    VOID//取消
}

  4. 编写订单实体

    package com.yezi.statemachinedemo.business.entity;

import com.yezi.statemachinedemo.business.enums.TradeStatus;
import lombok.Data;

import javax.persistence.*;
import java.time.LocalDateTime;

/**
 * @Description:
 * @Author: yezi
 * @Date: 2020/6/19 13:56
 */
@Data
@Entity
@Table(name = "trade")
public class Trade {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    /**
     * 订单状态
     */
    @Enumerated(value = EnumType.STRING)
    private TradeStatus status;

    /**
     * 订单号
     */
    private String tradeNo;

    /**
     * 创建时间
     */
    private LocalDateTime createTime;

}

核心配置

  1. 订单状态机构建器

    package com.yezi.statemachinedemo.fsm;

import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.statemachine.StateMachine;

/**
 * @Description: 订单状态机构建器
 * @Author: yezi
 * @Date: 2020/6/22 15:24
 */
public interface TradeFSMBuilder {

    /**
     * @return
     */
    TradeStatus supportState();

    /**
     * @param trade
     * @param beanFactory
     * @return
     * @throws Exception
     */
    StateMachine<TradeStatus, TradeEvent> build(Trade trade, BeanFactory beanFactory) throws Exception;
}

  2. 提供一个状态机工厂用以创建不同的状态机，这里spring会将状态机构建器的所有实现类自动注入tradeFSMBuilders,同时实现InitializingBean接口，在工厂类实例化同时将状态机构建起存入builderMap中。

    package com.yezi.statemachinedemo.fsm;


import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.statemachine.StateMachine;
import org.springframework.stereotype.Component;

import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.function.Function;
import java.util.stream.Collectors;

/**
 * @Description: 状态机工厂
 * @Author: yezi
 * @Date: 2020/6/19 17:13
 */
@Component
public class BuilderFactory implements InitializingBean {

    private Map<TradeStatus, TradeFSMBuilder> builderMap = new ConcurrentHashMap<>();


    @Autowired
    private List<TradeFSMBuilder> tradeFSMBuilders;


    @Autowired
    private BeanFactory beanFactory;


    public StateMachine<TradeStatus, TradeEvent> create(Trade trade) {
        TradeStatus tradeStatus = trade.getStatus();
        TradeFSMBuilder tradeFSMBuilder = builderMap.get(tradeStatus);
        if (tradeFSMBuilder == null) {
            throw new RuntimeException("构建器创建失败");
        }
        //创建订单状态机
        StateMachine<TradeStatus, TradeEvent> sm;
        try {
            sm = tradeFSMBuilder.build(trade, beanFactory);
            sm.start();
        } catch (Exception e) {
            throw new RuntimeException("状态机创建失败");
        }
        //将订单放入状态机
        sm.getExtendedState().getVariables().put(Trade.class, trade);
        return sm;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        builderMap = tradeFSMBuilders.stream().collect(Collectors.toMap(TradeFSMBuilder::supportState, Function.identity()));
    }
}

  3. 编写状态机服务类

    package com.yezi.statemachinedemo.fsm;

import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import com.yezi.statemachinedemo.service.TradeService;
import com.yezi.statemachinedemo.fsm.params.StateRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.statemachine.StateMachine;
import org.springframework.stereotype.Service;

import java.util.Objects;

/**
 * @Description: 订单状态机服务
 * @Author: yezi
 * @Date: 2020/6/22 15:24
 */
@Slf4j
@Service
public class TradeFSMService {

    @Autowired
    private TradeService tradeService;

    @Autowired
    private BuilderFactory builderFactory;

    /**
     * 订单状态变更
     *
     * @param request
     * @return
     */
    public boolean changeState(StateRequest request) {
        Trade trade = tradeService.findById(request.getTid());
        log.info("trade={}", trade);
        if (Objects.isNull(trade)) {
            log.error("创建订单状态机失败,无法从状态 {} 转向 => {}", trade.getStatus(), request.getEvent());
            throw new RuntimeException("订单不存在");
        }
        //1.根据订单创建状态机
        StateMachine<TradeStatus, TradeEvent> stateMachine = builderFactory.create(trade);
        //2.将参数传入状态机
        stateMachine.getExtendedState().getVariables().put(StateRequest.class, request);
        //3.发送当前请求的状态
        boolean isSend = stateMachine.sendEvent(request.getEvent());
        if (!isSend) {
            log.error("创建订单状态机失败,无法从状态 {} 转向 => {}", trade.getStatus(), request.getEvent());
            throw new RuntimeException("创建订单状态机失败");
        }
        //4. 判断处理过程中是否出现了异常
        Exception exception = stateMachine.getExtendedState().get(Exception.class, Exception.class);
        if (exception != null) {
            if (exception.getClass().isAssignableFrom(RuntimeException.class)) {
                throw (RuntimeException) exception;
            } else {
                throw new RuntimeException("状态机处理出现异常");
            }
        }
        return true;
    }
}

  4. 状态流转动作类

    package com.yezi.statemachinedemo.fsm;

import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import com.yezi.statemachinedemo.service.TradeService;
import com.yezi.statemachinedemo.fsm.params.StateRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.statemachine.StateContext;
import org.springframework.statemachine.action.Action;

import java.lang.reflect.UndeclaredThrowableException;

/**
 * @Description:
 * @Author: yezi
 * @Date: 2020/6/22 15:13
 */
@Slf4j
public abstract class TradeAction implements Action<TradeStatus, TradeEvent> {

    @Autowired
    private TradeService tradeService;

    @Override
    public void execute(StateContext<TradeStatus, TradeEvent> stateContext) {
        TradeStateContext tsc = new TradeStateContext(stateContext);
        try {
            evaluateInternal(tsc.getTrade(), tsc.getRequest(), tsc);
        } catch (Exception e) {
            //捕获此处异常，将异常信息放入订单状态机上下文
            tsc.put(Exception.class, e);
            if (e instanceof UndeclaredThrowableException) {
                //如果发生包装异常，需要获取包装异常中的具体异常信息
                Throwable undeclaredThrowable = ((UndeclaredThrowableException) e).getUndeclaredThrowable();
                undeclaredThrowable.printStackTrace();
                log.error(String.format("订单处理, 从状态[ %s ], 经过事件[ %s ], 到状态[ %s ], 出现异常[ %s ]", stateContext.getSource().getId(), stateContext.getEvent(), stateContext.getTarget().getId(), undeclaredThrowable));
            } else {
                e.printStackTrace();
                log.error(String.format("订单处理, 从状态[ %s ], 经过事件[ %s ], 到状态[ %s ], 出现异常[ %s ]", stateContext.getSource().getId(), stateContext.getEvent(), stateContext.getTarget().getId(), e));
            }

        }
    }


    /**
     * 更新订单
     *
     * @param trade
     */
    protected void update(Trade trade) {
        tradeService.update(trade);
    }


    protected abstract void evaluateInternal(Trade trade, StateRequest request, TradeStateContext tsc);
}

  5. 状态机上下文，对当前状态机上下文的包装，主要作用于存放订单处理过程中出现的异常信息

    package com.yezi.statemachinedemo.fsm;


import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import com.yezi.statemachinedemo.fsm.params.StateRequest;
import org.springframework.statemachine.StateContext;
import org.springframework.statemachine.StateMachine;

/**
 * @Description: 订单状态上下文：对当前状态机上下文的包装，主要作用于存放订单处理过程中出现的异常信息
 * @Author: yezi
 * @Date: 2020/6/22 15:13
 */
public class TradeStateContext {

    private StateContext<TradeStatus, TradeEvent> stateContext;

    public TradeStateContext(StateContext<TradeStatus, TradeEvent> stateContext) {
        this.stateContext = stateContext;
    }

    /**
     * 将订单处理过程中发生的异常放入订单状态上下文
     *
     * @param key
     * @param value
     * @return
     */
    public TradeStateContext put(Object key, Object value) {
        stateContext.getExtendedState().getVariables().put(key, value);
        return this;
    }

    /**
     * 获取当前状态机所处理的订单
     *
     * @return
     */
    public Trade getTrade() {
        return this.stateContext.getExtendedState().get(Trade.class, Trade.class);
    }

    /**
     * 获取当前状态机所处理的请求
     *
     * @return
     */
    public StateRequest getRequest() {
        return this.stateContext.getExtendedState().get(StateRequest.class, StateRequest.class);
    }

    /**
     * 获取操作人信息
     *
     * @return
     */
    public String getOperator() {
        return getRequest().getOperator();
    }

    /**
     * 请求数据
     *
     * @param <T>
     * @return
     */
    public <T> T getRequestData() {
        return (T) getRequest().getData();
    }

    /**
     * 当前状态机
     *
     * @return
     */
    public StateMachine<TradeStatus, TradeEvent> getStateMachine() {
        return this.stateContext.getStateMachine();
    }

    /**
     * 当前状态机上下文
     *
     * @return
     */
    public StateContext<TradeStatus, TradeEvent> getStateContext() {
        return stateContext;
    }
}

以上为本文用到的核心配置类，当中涉及一些设计模式，就不一一介绍了。

示例

由于订单的状态流转众多，为了演示，只选取其中一种做演示。下面以订单支付为例：

  1. 编写订单支付状态机构建器

    package com.yezi.statemachinedemo.fsm.builder;

import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeEvent;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import com.yezi.statemachinedemo.fsm.TradeFSMBuilder;
import com.yezi.statemachinedemo.fsm.action.CancelAction;
import com.yezi.statemachinedemo.fsm.action.PayAction;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.statemachine.StateMachine;
import org.springframework.statemachine.config.StateMachineBuilder;
import org.springframework.stereotype.Component;

import java.util.EnumSet;

/**
 * @Description:
 * @Author: yezi
 * @Date: 2020/6/19 17:13
 */
@Component
public class PayTradeFSMBuilder implements TradeFSMBuilder {


    @Autowired
    private PayAction payAction;

    @Autowired
    private CancelAction cancelAction;


    @Override
    public TradeStatus supportState() {
        return TradeStatus.TO_PAY;
    }


    @Override
    public StateMachine<TradeStatus, TradeEvent> build(Trade trade, BeanFactory beanFactory) throws Exception {
        StateMachineBuilder.Builder<TradeStatus, TradeEvent> builder = StateMachineBuilder.builder();

        builder.configureStates()
                .withStates()
                .initial(TradeStatus.TO_PAY)
                .states(EnumSet.allOf(TradeStatus.class));

        builder.configureTransitions()
                //待支付 -> 发货
                .withExternal()
                .source(TradeStatus.TO_PAY).target(TradeStatus.TO_DELIVER)
                .event(TradeEvent.PAY)
                .action(payAction)
                .and()
                //待支付 -> 取消
                .withExternal()
                .source(TradeStatus.TO_PAY).target(TradeStatus.VOID)
                .event(TradeEvent.VOID)
                .action(cancelAction);

        return builder.build();
    }
}

    待支付状态的订单当前有2种状态流转，一个是支付之后发货，一个只取消；2个状态是平行状态只是执行的动作不同。

    • initial(TradeStatus.TO_PAY)表示初始状态未TO_PAY。
    • source(TradeStatus.TO_PAY).target(TradeStatus.TO_DELIVER)表示由状态TO_PAY流转为TO_DELIVER。
    • event(TradeEvent.PAY)表示触发事件。
    • action(payAction)表示执行动作，也就是实际的业务逻辑。
    • 下面还有待支付到取消，如果一个状态会有多种状态流转，spring statemachine支持使用类似链式编程的方式，由不同事件出发不同动作。

  2. 编写订单支付动作

    package com.yezi.statemachinedemo.fsm.action;

import com.yezi.statemachinedemo.business.entity.Trade;
import com.yezi.statemachinedemo.business.enums.TradeStatus;
import com.yezi.statemachinedemo.fsm.TradeAction;
import com.yezi.statemachinedemo.fsm.TradeStateContext;
import com.yezi.statemachinedemo.fsm.params.StateRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

/**
 * @Description: 订单支付动作
 * @Author: yezi
 * @Date: 2020/6/22 15:22
 */
@Slf4j
@Component
public class PayAction extends TradeAction {


    @Override
    protected void evaluateInternal(Trade trade, StateRequest request, TradeStateContext tsc) {
        pay(trade);
    }

    /**
     * 待支付状态变更为待发货状态
     *
     * @param trade
     */
    private void pay(Trade trade) {
        trade.setStatus(TradeStatus.TO_DELIVER);
        update(trade);
        log.info("订单号{}，支付成功。", trade.getTradeNo());
    }
}

    此处为了做演示，此处逻辑只做简单的状态变更。

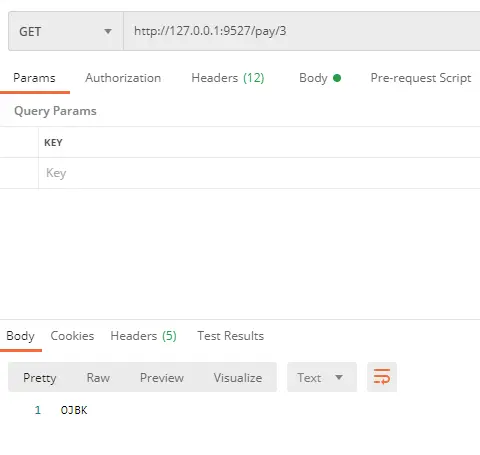

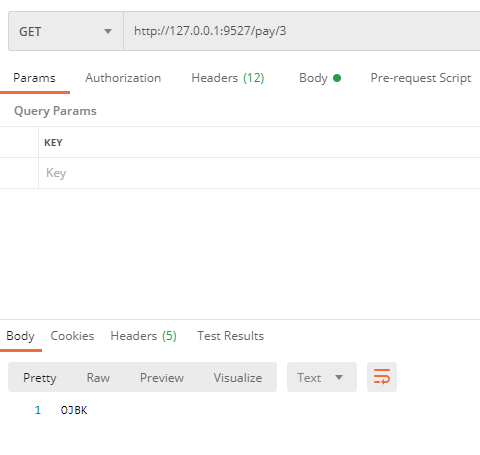

    发送支付请求:

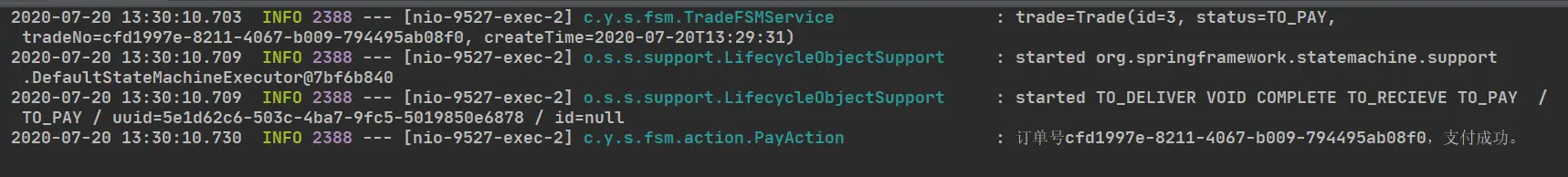

    结果：

avatar
文章
阅读
粉丝
