startActivity调用到startActivityForResult方法中，在startActivityForResult中调用了Instrumentation的execStartActivity方法。
@Override
public void startActivity(Intent intent) {
this.startActivity(intent, null);
}
@Override
public void startActivity(Intent intent, @Nullable Bundle options) {
if (options != null) {
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(Intent intent, int requestCode, @Nullable Bundle options) {
Instrumentation.ActivityResult ar =mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this,intent, requestCode, options);
}
Instrumentation的初始化过程是在ActivityThread的main方法attach成功之后。attach过程
public ActivityResult execStartActivity(Context who, IBinder contextThread, IBinder token,
Activity target,Intent intent, int requestCode, Bundle options) {
try {
int result = ActivityManagerNative.getDefault().startActivity(whoThread,who.getBasePackageName(),
intent,intent.resolveTypeIfNeeded(who.getContentResolver()),token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, options);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}
在这里与ActivityManagerService进行了跨进程的通讯。 获取到ActivityManagerProxy对象，调用代理的startActivity()。
static public IActivityManager getDefault() {
return gDefault.get();
}
private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
IBinder b = ServiceManager.getService("activity");
IActivityManager am = asInterface(b);
return am;
}
};
static public IActivityManager asInterface(IBinder obj) {
return new ActivityManagerProxy(obj);
}
public int startActivity(IApplicationThread caller, String callingPackage, Intent intent,
String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options) throws RemoteException {
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
mRemote.transact(START_ACTIVITY_TRANSACTION, data, reply, 0);
return result;
}
在远程端接收到该信息后，调用了startActivity方法。开启真正的启动一个activity的过程。
@Override
public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
throws RemoteException {
switch (code) {
case START_ACTIVITY_TRANSACTION:
{
int result = startActivity(app, callingPackage, intent, resolvedType,resultTo, resultWho, requestCode, startFlags, profilerInfo, options);
return true;
}
}
}
ActivityManagerService继承ActivityManagerNative,也实现了startActivity的具体的方法。
@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, options,
UserHandle.getCallingUserId());
}
@Override
public final int startActivityAsUser(IApplicationThread caller, String callingPackage,Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,int startFlags, ProfilerInfo profilerInfo, Bundle options, int userId) {
userId = handleIncomingUser(Binder.getCallingPid(), Binder.getCallingUid(), userId, false, ALLOW_FULL_ONLY, "startActivity", null);
return mStackSupervisor.startActivityMayWait(caller, -1, callingPackage, intent,
resolvedType, null, null, resultTo, resultWho, requestCode, startFlags,
profilerInfo, null, null, options, false, userId, null, null);
}
ActivityStackSupervisor
mStackSupervisor对象是在ActivityManagerService的构造中进行了初始化，负责所有Activity栈的管理
内部管理了mHomeStack、mFocusedStack和mLastFocusedStack三个Activity栈。
其中，mHomeStack管理的是Launcher相关的Activity栈；mFocusedStack管理的是当前显示在前台Activity的Activity栈；mLastFocusedStack管理的是上一次显示在前台Activity的Activity栈。
ActivityStackSupervisor类
final int startActivityMayWait(IApplicationThread caller, int callingUid,String callingPackage, Intent intent, String resolvedType,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor, IBinder resultTo, String resultWho, int requestCode, int startFlags,
ProfilerInfo profilerInfo, WaitResult outResult, Configuration config, Bundle options, boolean ignoreTargetSecurity, int userId,
IActivityContainer iContainer, TaskRecord inTask) {
//mService 是ActivityManagerService
synchronized (mService) {
// 执行这里，
int res = startActivityLocked(caller, intent, resolvedType, aInfo,
voiceSession, voiceInteractor, resultTo, resultWho,
requestCode, callingPid, callingUid, callingPackage,
realCallingPid, realCallingUid, startFlags, options, ignoreTargetSecurity,
componentSpecified, null, container, inTask);
return res;
}
}
在这里进行错误得判断，比如是否注册了Activity。如果没有问题则开始对栈进行处理。
final int startActivityLocked(IApplicationThread caller,Intent intent, String resolvedType, ActivityInfo aInfo,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor, IBinder resultTo, String resultWho, int requestCode,
int callingPid, int callingUid, String callingPackage, int realCallingPid, int realCallingUid, int startFlags, Bundle options,
boolean ignoreTargetSecurity, boolean componentSpecified, ActivityRecord[] outActivity,
ActivityContainer container, TaskRecord inTask) {
int err = ActivityManager.START_SUCCESS;
if (err == ActivityManager.START_SUCCESS && intent.getComponent() == null) {
err = ActivityManager.START_INTENT_NOT_RESOLVED;
}
if (err == ActivityManager.START_SUCCESS && aInfo == null) {
err = ActivityManager.START_CLASS_NOT_FOUND;
}
if (err == ActivityManager.START_SUCCESS && !isCurrentProfileLocked(userId) && (aInfo.flags & FLAG_SHOW_FOR_ALL_USERS) == 0) {
err = ActivityManager.START_NOT_CURRENT_USER_ACTIVITY;
}
// 启动目标activity信息保存记录者
ActivityRecord r = new ActivityRecord(mService, callerApp, callingUid, callingPackage, intent, resolvedType, aInfo, mService.mConfiguration, resultRecord, resultWho, requestCode, componentSpecified, voiceSession !=null, this, container, options);
// 执行这里，
err = startActivityUncheckedLocked(r, sourceRecord, voiceSession, voiceInteractor,startFlags, true, options, inTask);
return err;
}
处理启动模式和launchFlags，如果不需要创建则调用到onNewIntent。
final int startActivityUncheckedLocked(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor, int startFlags,
boolean doResume, Bundle options, TaskRecord inTask) {
final Intent intent = r.intent;
final int callingUid = r.launchedFromUid;
// 启动模式
final boolean launchSingleTop = r.launchMode == ActivityInfo.LAUNCH_SINGLE_TOP;
final boolean launchSingleInstance = r.launchMode == ActivityInfo.LAUNCH_SINGLE_INSTANCE;
final boolean launchSingleTask = r.launchMode == ActivityInfo.LAUNCH_SINGLE_TASK;
int launchFlags = intent.getFlags();
ActivityInfo newTaskInfo = null;
Intent newTaskIntent = null;
ActivityStack sourceStack;
boolean movedHome = false;
ActivityStack targetStack;
intent.setFlags(launchFlags);
if (((launchFlags & Intent.FLAG_ACTIVITY_NEW_TASK) != 0 && (launchFlags & Intent.FLAG_ACTIVITY_MULTIPLE_TASK) == 0) || launchSingleInstance || launchSingleTask) {
if (inTask == null && r.resultTo == null) {
ActivityRecord intentActivity = !launchSingleInstance ? findTaskLocked(r) : findActivityLocked(intent, r.info);
if (intentActivity != null) {
if ((launchFlags & (FLAG_ACTIVITY_NEW_TASK | FLAG_ACTIVITY_CLEAR_TASK)) == (FLAG_ACTIVITY_NEW_TASK | FLAG_ACTIVITY_CLEAR_TASK)) {
reuseTask = intentActivity.task;
reuseTask.performClearTaskLocked();
reuseTask.setIntent(r);
} else if ((launchFlags & FLAG_ACTIVITY_CLEAR_TOP) != 0 || launchSingleInstance || launchSingleTask) {
// 如果是 launchSingleInstance 或者 launchSingleTask， 清除上面的activity
ActivityRecord top = intentActivity.task.performClearTaskLocked(r, launchFlags);
}
}
}
}
if (r.packageName != null) {
ActivityStack topStack = mFocusedStack;
ActivityRecord top = topStack.topRunningNonDelayedActivityLocked(notTop);
if (top != null && r.resultTo == null) {
if (top.realActivity.equals(r.realActivity) && top.userId == r.userId) {
if (top.app != null && top.app.thread != null) {
if ((launchFlags & Intent.FLAG_ACTIVITY_SINGLE_TOP) != 0 || launchSingleTop || launchSingleTask) {
//如果是launchSingleTop或者 launchSingleTask，直接调用onNewIntent方法
top.deliverNewIntentLocked(callingUid, r.intent, r.launchedFromPackage);
return ActivityManager.START_DELIVERED_TO_TOP;
}
}
}
}
}
// 执行这里，创建新的Activity
targetStack.startActivityLocked(r, newTask, doResume, keepCurTransition, options);
return ActivityManager.START_SUCCESS;
}
final void startActivityLocked(ActivityRecord r, boolean newTask,boolean doResume, boolean keepCurTransition, Bundle options) {
if (doResume) {// 执行这里，
mStackSupervisor.resumeTopActivitiesLocked(this, r, options);
}
}
boolean resumeTopActivitiesLocked(ActivityStack targetStack, ActivityRecord target, Bundle targetOptions) {
boolean result = false;
if (isFrontStack(targetStack)) {
// 执行这里，
result = targetStack.resumeTopActivityLocked(target, targetOptions);
}
return result;
}
final boolean resumeTopActivityLocked(ActivityRecord prev, Bundle options) {
boolean result = false;
result = resumeTopActivityInnerLocked(prev, options);
return result;
}
进行了各种判断，比如 先调用上面的activity的pause;如果存在实例不去创建，反而调用onstart和onResume等。
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, Bundle options) {
boolean pausing = mStackSupervisor.pauseBackStacks(userLeaving, true, dontWaitForPause);
if (mResumedActivity != null) {
if (DEBUG_STATES) Slog.d(TAG_STATES,"resumeTopActivityLocked: Pausing " + mResumedActivity);
// 先暂停上面的activity的pause ----- A启动B 先暂停A
pausing |= startPausingLocked(userLeaving, false, true, dontWaitForPause);
}
ActivityStack lastStack = mStackSupervisor.getLastStack();
if (next.app != null && next.app.thread != null) {
try {
// Deliver all pending results.
ArrayList<ResultInfo> a = next.results;
if (a != null) {
final int N = a.size();
if (!next.finishing && N > 0) {
next.app.thread.scheduleSendResult(next.appToken, a);
}
}
if (next.newIntents != null) {
next.app.thread.scheduleNewIntent(next.newIntents, next.appToken);
}
next.sleeping = false;
mService.showAskCompatModeDialogLocked(next);
next.app.pendingUiClean = true;
next.app.forceProcessStateUpTo(mService.mTopProcessState);
next.clearOptionsLocked();
next.app.thread.scheduleResumeActivity(next.appToken, next.app.repProcState,mService.isNextTransitionForward(), resumeAnimOptions);
mStackSupervisor.checkReadyForSleepLocked();
} catch (Exception e) {
next.state = lastState;
if (lastStack != null) {
lastStack.mResumedActivity = lastResumedActivity;
}
Slog.i(TAG, "Restarting because process died: " + next);
if (!next.hasBeenLaunched) {
next.hasBeenLaunched = true;
} else if (SHOW_APP_STARTING_PREVIEW && lastStack != null && mStackSupervisor.isFrontStack(lastStack)) {
mWindowManager.setAppStartingWindow(next.appToken, next.packageName, next.theme,mService.compatibilityInfoForPackageLocked(next.info.applicationInfo),
next.nonLocalizedLabel, next.labelRes, next.icon, next.logo,next.windowFlags, null, true);
}
mStackSupervisor.startSpecificActivityLocked(next, true, false);
return true;
}
next.stopped = false;
}else {
if (!next.hasBeenLaunched) {
next.hasBeenLaunched = true;
} else {
if (SHOW_APP_STARTING_PREVIEW) {
mWindowManager.setAppStartingWindow(next.appToken, next.packageName, next.theme,mService.compatibilityInfoForPackageLocked(next.info.applicationInfo),
next.nonLocalizedLabel,next.labelRes, next.icon, next.logo, next.windowFlags,null, true);
}
}
if (DEBUG_STATES) Slog.d(TAG_STATES, "resumeTopActivityLocked: Restarting " + next);
//真实得开始启动新的activity
mStackSupervisor.startSpecificActivityLocked(next, true, true);
}
return true;
}
void startSpecificActivityLocked(ActivityRecord r,boolean andResume, boolean checkConfig) {
ProcessRecord app = mService.getProcessRecordLocked(r.processName, r.info.applicationInfo.uid, true);
r.task.stack.setLaunchTime(r);
if (app != null && app.thread != null) {
try {
//真实得启动activity
realStartActivityLocked(r, app, andResume, checkConfig);
return;
} catch (RemoteException e) {
}
}
mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0,"activity", r.intent.getComponent(), false, false, true);
}
final boolean realStartActivityLocked(ActivityRecord r,ProcessRecord app, boolean andResume, boolean checkConfig)throws RemoteException {
app.thread.scheduleLaunchActivity(new Intent(r.intent), r.appToken,
System.identityHashCode(r), r.info, new Configuration(mService.mConfiguration),
new Configuration(stack.mOverrideConfig), r.compat, r.launchedFromPackage,
task.voiceInteractor, app.repProcState, r.icicle, r.persistentState, results,
newIntents, !andResume, mService.isNextTransitionForward(), profilerInfo);
return true;
}
ActivityThread类
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo) {
updateProcessState(procState, false);
ActivityClientRecord r = new ActivityClientRecord();
r.token = token;
r.ident = ident;
r.intent = intent;
r.referrer = referrer;
r.voiceInteractor = voiceInteractor;
r.activityInfo = info;
r.compatInfo = compatInfo;
r.state = state;
r.persistentState = persistentState;
r.pendingResults = pendingResults;
r.pendingIntents = pendingNewIntents;
r.startsNotResumed = notResumed;
r.isForward = isForward;
r.profilerInfo = profilerInfo;
r.overrideConfig = overrideConfig;
updatePendingConfiguration(curConfig);
sendMessage(H.LAUNCH_ACTIVITY, r);
}
case LAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
final ActivityClientRecord r = (ActivityClientRecord) msg.obj;
r.packageInfo = getPackageInfoNoCheck(r.activityInfo.applicationInfo, r.compatInfo);
handleLaunchActivity(r, null);
}
// 开始启动activity

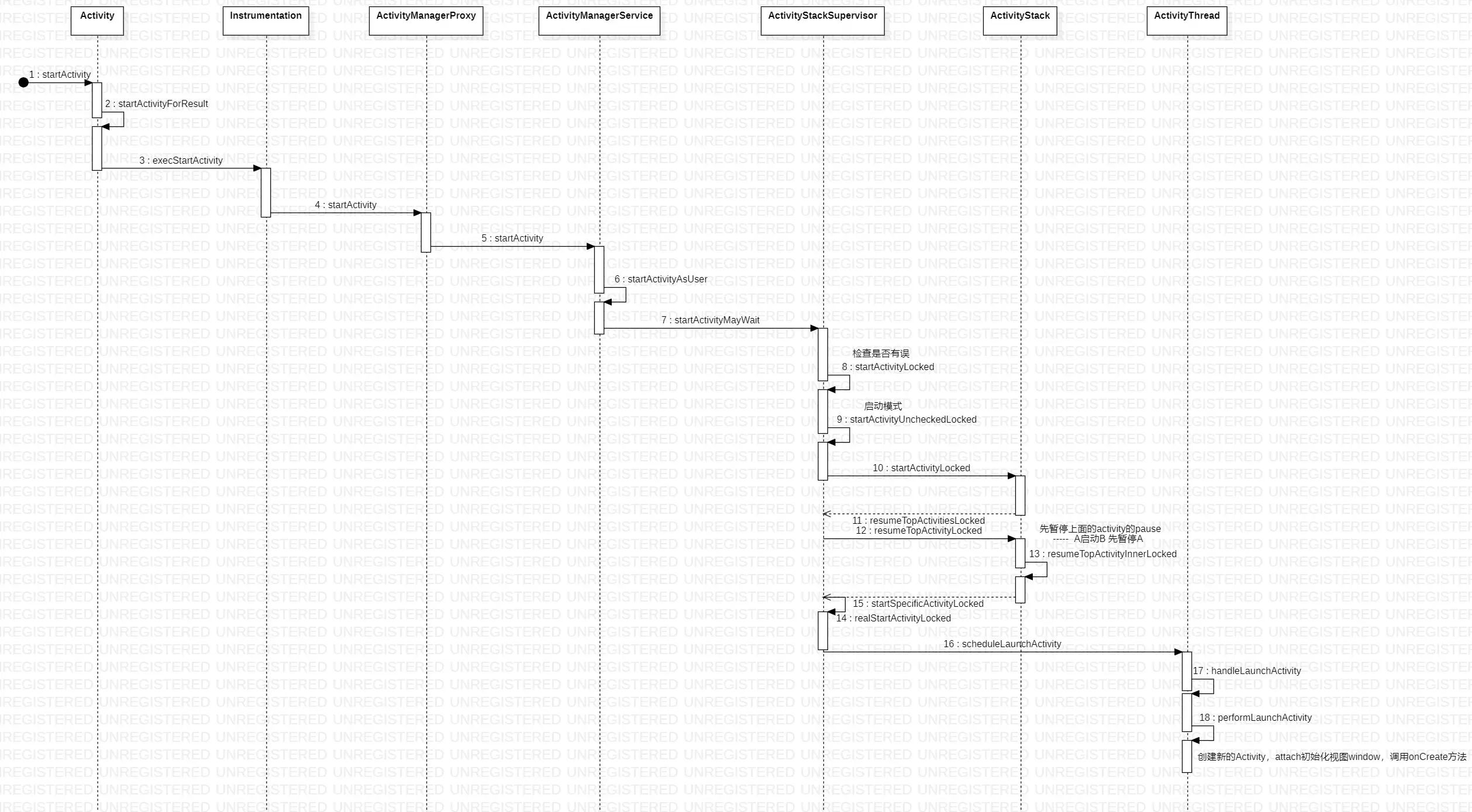

private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {
Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
handleResumeActivity(r.token, false, r.isForward,!r.activity.mFinished && !r.startsNotResumed);
}
}
创建Activity，并调用attach方法。然后调用了onCreate方法。
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// 创建新的activity
Activity activity = null;
try {
java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
activity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);
} catch (Exception e) {
}
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (activity != null) {
Context appContext = createBaseContextForActivity(r, activity);
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
activity.attach(appContext, this, getInstrumentation(), r.token,r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config, r.referrer, r.voiceInteractor);
// 调用activity得oncreate方法
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
r.activity = activity;
r.stopped = true;
if (!r.activity.mFinished) {
activity.performStart();
r.stopped = false;
}
if (!r.activity.mFinished) {
if (r.isPersistable()) {
if (r.state != null || r.persistentState != null) {
mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state, r.persistentState);
}
} else if (r.state != null) { mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state);
}
}
if (!r.activity.mFinished) {
activity.mCalled = false;
if (r.isPersistable()) {
mInstrumentation.callActivityOnPostCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnPostCreate(activity, r.state);
}
}
}
r.paused = true;
mActivities.put(r.token, r);
}
return activity;
}
