OC中的方法调用，其实都是转换为objc_msgSend函数的调用

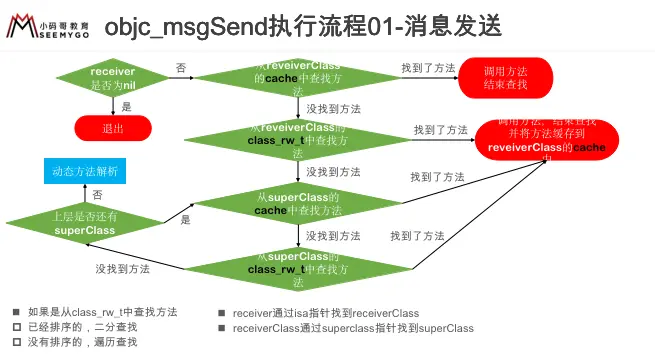

objc_msgSend的执行流程可以分为3大阶段。
- 消息发送
- 动态方法解析
- 消息转发
本节内容主要讲消息发送。

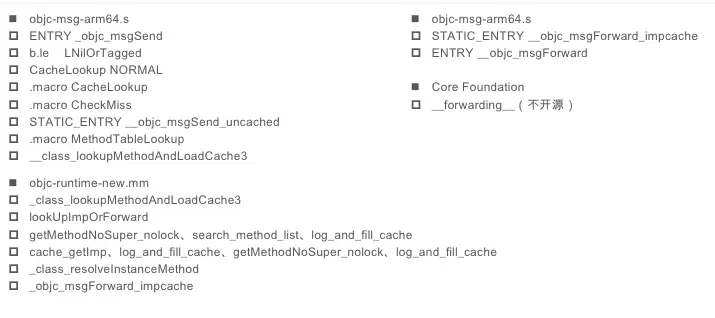

源码
这里所讲源码为 objc4-723
搜索objc_msgSend. 找到：objc-msg-arm64.s 304行到346
ENTRY _objc_msgSend
UNWIND _objc_msgSend, NoFrame
MESSENGER_START
//cmp 寄存器 x0,第一个参数，也就是消息接收者receiver
cmp x0, #0 // nil check and tagged pointer check
//b开头的一般都是跳入，le是 <=
b.le LNilOrTagged // (MSB tagged pointer looks negative)
ldr x13, [x0] // x13 = isa
and x16, x13, #ISA_MASK // x16 = class
LGetIsaDone:
CacheLookup NORMAL // calls imp or objc_msgSend_uncached
LNilOrTagged:
b.eq LReturnZero // nil check
// tagged
mov x10, #0xf000000000000000
cmp x0, x10
b.hs LExtTag
adrp x10, _objc_debug_taggedpointer_classes@PAGE
add x10, x10, _objc_debug_taggedpointer_classes@PAGEOFF
ubfx x11, x0, #60, #4
ldr x16, [x10, x11, LSL #3]
b LGetIsaDone
LExtTag:
// ext tagged
adrp x10, _objc_debug_taggedpointer_ext_classes@PAGE
add x10, x10, _objc_debug_taggedpointer_ext_classes@PAGEOFF
ubfx x11, x0, #52, #8
ldr x16, [x10, x11, LSL #3]
b LGetIsaDone
LReturnZero:
// x0 is already zero
mov x1, #0
movi d0, #0
movi d1, #0
movi d2, #0
movi d3, #0
MESSENGER_END_NIL
ret // return
END_ENTRY _objc_msgSend
// .macro是宏 相当于#define NETRY 进入
.macro ENTRY /* name */
.text
.align 5
.globl $0
$0:
.endmacro
.macro CacheLookup
// x1 = SEL, x16 = isa
ldp x10, x11, [x16, #CACHE] // x10 = buckets, x11 = occupied|mask
and w12, w1, w11 // x12 = _cmd & mask
add x12, x10, x12, LSL #4 // x12 = buckets + ((_cmd & mask)<<4)
ldp x9, x17, [x12] // {x9, x17} = *bucket
1: cmp x9, x1 // if (bucket->sel != _cmd)
b.ne 2f // scan more
CacheHit $0 // call or return imp
2: // not hit: x12 = not-hit bucket
CheckMiss $0 // miss if bucket->sel == 0
cmp x12, x10 // wrap if bucket == buckets
b.eq 3f
ldp x9, x17, [x12, #-16]! // {x9, x17} = *--bucket
b 1b // loop
3: // wrap: x12 = first bucket, w11 = mask
add x12, x12, w11, UXTW #4 // x12 = buckets+(mask<<4)
// Clone scanning loop to miss instead of hang when cache is corrupt.
// The slow path may detect any corruption and halt later.
ldp x9, x17, [x12] // {x9, x17} = *bucket
1: cmp x9, x1 // if (bucket->sel != _cmd)
b.ne 2f // scan more
CacheHit $0 // call or return imp
2: // not hit: x12 = not-hit bucket
CheckMiss $0 // miss if bucket->sel == 0
cmp x12, x10 // wrap if bucket == buckets
b.eq 3f
ldp x9, x17, [x12, #-16]! // {x9, x17} = *--bucket
b 1b // loop
3: // double wrap
JumpMiss $0
.endmacro
.macro CheckMiss
// miss if bucket->sel == 0
.if $0 == GETIMP
cbz x9, LGetImpMiss
.elseif $0 == NORMAL
cbz x9, __objc_msgSend_uncached
.elseif $0 == LOOKUP
cbz x9, __objc_msgLookup_uncached
.else
.abort oops
.endif
.endmacro
.macro JumpMiss
.if $0 == GETIMP
b LGetImpMiss
.elseif $0 == NORMAL
b __objc_msgSend_uncached
.elseif $0 == LOOKUP
b __objc_msgLookup_uncached
.else
.abort oops
.endif
.endmacro
STATIC_ENTRY __objc_msgSend_uncached
UNWIND __objc_msgSend_uncached, FrameWithNoSaves
// THIS IS NOT A CALLABLE C FUNCTION
// Out-of-band x16 is the class to search
MethodTableLookup
br x17
END_ENTRY __objc_msgSend_uncached
.macro MethodTableLookup
// push frame
stp fp, lr, [sp, #-16]!
mov fp, sp
// save parameter registers: x0..x8, q0..q7
sub sp, sp, #(10*8 + 8*16)
stp q0, q1, [sp, #(0*16)]
stp q2, q3, [sp, #(2*16)]
stp q4, q5, [sp, #(4*16)]
stp q6, q7, [sp, #(6*16)]
stp x0, x1, [sp, #(8*16+0*8)]
stp x2, x3, [sp, #(8*16+2*8)]
stp x4, x5, [sp, #(8*16+4*8)]
stp x6, x7, [sp, #(8*16+6*8)]
str x8, [sp, #(8*16+8*8)]
// receiver and selector already in x0 and x1
mov x2, x16
bl __class_lookupMethodAndLoadCache3
// imp in x0
mov x17, x0
// restore registers and return
ldp q0, q1, [sp, #(0*16)]
ldp q2, q3, [sp, #(2*16)]
ldp q4, q5, [sp, #(4*16)]
ldp q6, q7, [sp, #(6*16)]
ldp x0, x1, [sp, #(8*16+0*8)]
ldp x2, x3, [sp, #(8*16+2*8)]
ldp x4, x5, [sp, #(8*16+4*8)]
ldp x6, x7, [sp, #(8*16+6*8)]
ldr x8, [sp, #(8*16+8*8)]
mov sp, fp
ldp fp, lr, [sp], #16
.endmacro
- 如果receiver为nil，直接return
- receiver不为nil,进入CacheLookUp(传参数NORMAL),查找缓存。如果找到CacheHit，call or return imp.
- 如果找不到进入CheckMiss(传参数NORMAL)，进入
__objc_msgSend_uncached,进入__objc_msgSend_uncached - 进入MethodTableLookup，方法表中查找。
- 进入
__class_lookupMethodAndLoadCache3.搜索不到，应该是C方法。全局搜索_class_lookupMethodAndLoadCache3(注意最开始的下划线去掉，c方法转成汇编后前面会增加一个下划线)
下面代码为 objc-runtime-new.mm中源码：
IMP _class_lookupMethodAndLoadCache3(id obj, SEL sel, Class cls)
{
return lookUpImpOrForward(cls, sel, obj,
YES/*initialize*/, NO/*cache*/, YES/*resolver*/);
}
IMP lookUpImpOrForward(Class cls, SEL sel, id inst,
bool initialize, bool cache, bool resolver)
{
IMP imp = nil;
bool triedResolver = NO;
runtimeLock.assertUnlocked();
// Optimistic cache lookup
if (cache) {
imp = cache_getImp(cls, sel);
if (imp) return imp;
}
// runtimeLock is held during isRealized and isInitialized checking
// to prevent races against concurrent realization.
// runtimeLock is held during method search to make
// method-lookup + cache-fill atomic with respect to method addition.
// Otherwise, a category could be added but ignored indefinitely because
// the cache was re-filled with the old value after the cache flush on
// behalf of the category.
runtimeLock.read();
if (!cls->isRealized()) {
// Drop the read-lock and acquire the write-lock.
// realizeClass() checks isRealized() again to prevent
// a race while the lock is down.
runtimeLock.unlockRead();
runtimeLock.write();
realizeClass(cls);
runtimeLock.unlockWrite();
runtimeLock.read();
}
if (initialize && !cls->isInitialized()) {
runtimeLock.unlockRead();
_class_initialize (_class_getNonMetaClass(cls, inst));
runtimeLock.read();
// If sel == initialize, _class_initialize will send +initialize and
// then the messenger will send +initialize again after this
// procedure finishes. Of course, if this is not being called
// from the messenger then it won't happen. 2778172
}
retry:
runtimeLock.assertReading();
// Try this class's cache.
imp = cache_getImp(cls, sel);
if (imp) goto done;
// Try this class's method lists.
{
Method meth = getMethodNoSuper_nolock(cls, sel);
if (meth) {
log_and_fill_cache(cls, meth->imp, sel, inst, cls);
imp = meth->imp;
goto done;
}
}
// Try superclass caches and method lists.
{
unsigned attempts = unreasonableClassCount();
for (Class curClass = cls->superclass;
curClass != nil;
curClass = curClass->superclass)
{
// Halt if there is a cycle in the superclass chain.
if (--attempts == 0) {
_objc_fatal("Memory corruption in class list.");
}
// Superclass cache.
imp = cache_getImp(curClass, sel);
if (imp) {
if (imp != (IMP)_objc_msgForward_impcache) {
// Found the method in a superclass. Cache it in this class.
log_and_fill_cache(cls, imp, sel, inst, curClass);
goto done;
}
else {
// Found a forward:: entry in a superclass.
// Stop searching, but don't cache yet; call method
// resolver for this class first.
break;
}
}
// Superclass method list.
Method meth = getMethodNoSuper_nolock(curClass, sel);
if (meth) {
log_and_fill_cache(cls, meth->imp, sel, inst, curClass);
imp = meth->imp;
goto done;
}
}
}
// No implementation found. Try method resolver once.
if (resolver && !triedResolver) {
runtimeLock.unlockRead();
_class_resolveMethod(cls, sel, inst);
runtimeLock.read();
// Don't cache the result; we don't hold the lock so it may have
// changed already. Re-do the search from scratch instead.
triedResolver = YES;
goto retry;
}
// No implementation found, and method resolver didn't help.
// Use forwarding.
imp = (IMP)_objc_msgForward_impcache;
cache_fill(cls, sel, imp, inst);
done:
runtimeLock.unlockRead();
return imp;
}
- 因为cache传的是NO,首先跳过缓存查找cache_getImp
- 接着加锁等行为（猜测）
- 接着又去缓存找。（因为在执行代码过程中可能此时缓存已有）
- 找到了直接返回ipm.
- 找不到去class(传进来的，可能是类对象也可能是元类对象)方法表里找。
getMethodNoSuper_nolock,找到后存在自己的缓存里·log_and_fill_cache - 如果找不到，就去superClass的cache和mathod lists里查找。一直找下去。
getMethodNoSuper_nolock
static method_t *
getMethodNoSuper_nolock(Class cls, SEL sel)
{
runtimeLock.assertLocked();
assert(cls->isRealized());
// fixme nil cls?
// fixme nil sel?
for (auto mlists = cls->data()->methods.beginLists(),
end = cls->data()->methods.endLists();
mlists != end;
++mlists)
{
method_t *m = search_method_list(*mlists, sel);
if (m) return m;
}
return nil;
}
static method_t *search_method_list(const method_list_t *mlist, SEL sel)
{
int methodListIsFixedUp = mlist->isFixedUp();
int methodListHasExpectedSize = mlist->entsize() == sizeof(method_t);
if (__builtin_expect(methodListIsFixedUp && methodListHasExpectedSize, 1)) {
return findMethodInSortedMethodList(sel, mlist);
} else {
// Linear search of unsorted method list
for (auto& meth : *mlist) {
if (meth.name == sel) return &meth;
}
}
#if DEBUG
// sanity-check negative results
if (mlist->isFixedUp()) {
for (auto& meth : *mlist) {
if (meth.name == sel) {
_objc_fatal("linear search worked when binary search did not");
}
}
}
#endif
return nil;
}
- 方法表是有序的，进入findMethodInSortedMethodList。可以看出是二分查找
- 如果是无序的直接查找。
