Merge通过合并多个Observable为1个，但是不保证它们间的发射顺序。如果期望保持Observable的发射顺序，请用concat操作符。
以如下demo为例
final String[] listFirst = {"A1", "A2", "A3", "A4"};
final String[] listSecond = {"B1", "B2", "B3"};
final Observable<String> odds = Observable.fromArray(listFirst);
final Observable<String> even = Observable.fromArray(listSecond);
Observable
.merge(odds,even)
.subscribe(new Consumer<Integer>() {
@Override
public void accept(Integer integer) throws Exception {
Log.d(TAG, "accept: " + integer);
}
});
merge操作符
public static <T> Observable<T> merge(ObservableSource<? extends T> source1, ObservableSource<? extends T> source2) {
//省略
return fromArray(source1, source2).flatMap((Function)Functions.identity(), false, 2);
}
public static <T> Observable<T> fromArray(T... items) {
//省略
**** 将两个Observable(ObservableFromArray),生成一个新的ObservableFromArray
return RxJavaPlugins.onAssembly(new ObservableFromArray<T>(items));
}
public final <R> Observable<R> flatMap(Function<? super T, ? extends ObservableSource<? extends R>> mapper, boolean delayErrors, int maxConcurrency) {
return flatMap(mapper, delayErrors, maxConcurrency, bufferSize());
}
@CheckReturnValue
@SchedulerSupport(SchedulerSupport.NONE)
public final <R> Observable<R> flatMap(Function<? super T, ? extends ObservableSource<? extends R>> mapper,
boolean delayErrors, int maxConcurrency, int bufferSize) {
//省略
**** 将上述生成的ObservableFromArray,包装成ObservableFlatMap
return RxJavaPlugins.onAssembly(new ObservableFlatMap<T, R>(this, mapper, delayErrors, maxConcurrency, bufferSize));
}
ObservableFlatMap.java
public ObservableFlatMap(ObservableSource<T> source,
Function<? super T, ? extends ObservableSource<? extends U>> mapper,
boolean delayErrors, int maxConcurrency, int bufferSize) {
super(source);
this.mapper = mapper;
this.delayErrors = delayErrors;
this.maxConcurrency = maxConcurrency;
this.bufferSize = bufferSize;
}

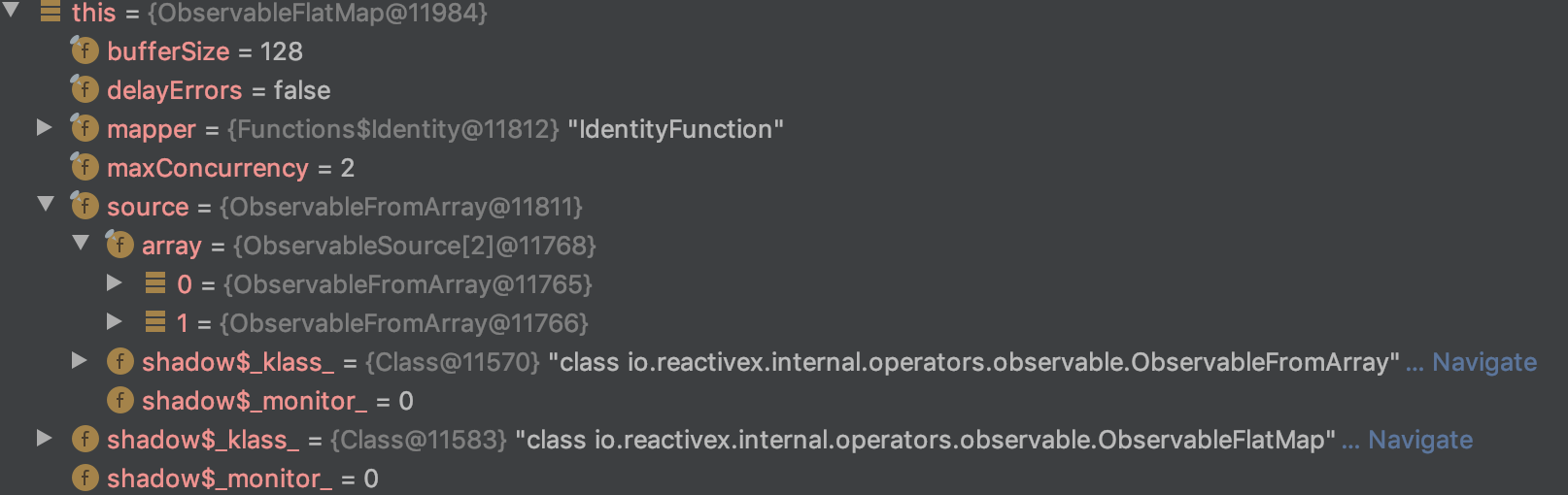

到此，Observable是ObservableFlatMap，它的结构如下
解析subscribe方法
****Consumer变为onNext
public final Disposable subscribe(Consumer<? super T> onNext) {
return subscribe(onNext, Functions.ON_ERROR_MISSING, Functions.EMPTY_ACTION, Functions.emptyConsumer());
}
public final Disposable subscribe(Consumer<? super T> onNext, Consumer<? super Throwable> onError,
Action onComplete, Consumer<? super Disposable> onSubscribe) {
//省略
LambdaObserver<T> ls = new LambdaObserver<T>(onNext, onError, onComplete, onSubscribe);
subscribe(ls)
return ls;
}
- 将Consumer包装成LambdaObserver
- 调用subscribe，也就是ObservableFlatMap ObservableFlatMap的subscribeActual方法
@Override
public void subscribeActual(Observer<? super U> t) {
source.subscribe(new MergeObserver<T, U>(t, mapper, delayErrors, maxConcurrency, bufferSize));
}
- 将
1中生成的LambdaObserver包装成MergeObserver，然后调用ObservableFromArray的方法
- ObservableFromArray的subscribeActual方法
@Override
public void subscribeActual(Observer<? super T> observer) {
FromArrayDisposable<T> d = new FromArrayDisposable<T>(observer, array);
observer.onSubscribe(d);
if (d.fusionMode) {
return;
}
d.run();
}
4-1 将MergeObserver包装成FromArrayDisposable，array为demo中odds和evens 4-2 调用MergeObserver的onSubscribe方法
@Override
public void onSubscribe(Disposable d) {
if (DisposableHelper.validate(this.upstream, d)) {
**** upstream 是传入的FromArrayDisposable
this.upstream = d;
downstream.onSubscribe(this);
}
}
4-3 调用FromArrayDisposable的run方法
void run() {
T[] a = array;
int n = a.length;
for (int i = 0; i < n && !isDisposed(); i++) {
T value = a[i];
if (value == null) {
downstream.onError(new NullPointerException("The " + i + "th element is null"));
return;
}
****downstream 是MergeObserver
downstream.onNext(value);
}
if (!isDisposed()) {
downstream.onComplete();
}
}
所以这里遍历odds 和even，然后分别调用downstream，也就是MergeObserver的onNext方法 4-3-1 MergeObserver的onNext方法
@Override
public void onNext(T t) {
//省略
****p =mapper.apply(t),因为转换未写，所以还是一个ObservableFromArray
subscribeInner(p);
}
void subscribeInner(ObservableSource<? extends U> p) {
for (;;) {
****将MergeObserver 和uniqueId 包装成InnerObserver
InnerObserver<T, U> inner = new InnerObserver<T, U>(this, uniqueId++);
****将inner添加到observers中，后面会用到
if (addInner(inner)) {
**** 调用ObservableFromArray的subscribe方法
p.subscribe(inner);
}
break;
}
}
4-3-2 ObservableFromArray的subscribe，和上述一样，只是此时的observer是InnerObserver
@Override
public void subscribeActual(Observer<? super T> observer) {
FromArrayDisposable<T> d = new FromArrayDisposable<T>(observer, array);
observer.onSubscribe(d);
if (d.fusionMode) {
return;
}
d.run();
}
查看InnerObserver的onSubscribe方法
public void onSubscribe(Disposable d) {
if (DisposableHelper.setOnce(this, d)) {
if (d instanceof QueueDisposable) {
@SuppressWarnings("unchecked")
QueueDisposable<U> qd = (QueueDisposable<U>) d;
int m = qd.requestFusion(QueueDisposable.ANY | QueueDisposable.BOUNDARY);
if (m == QueueDisposable.SYNC) {
fusionMode = m;
**** 将q存入到queue中
queue = qd;
done = true;
**** parent 上述创建的时候传入了，是MergeObserver
parent.drain();
return;
}
}
}
}

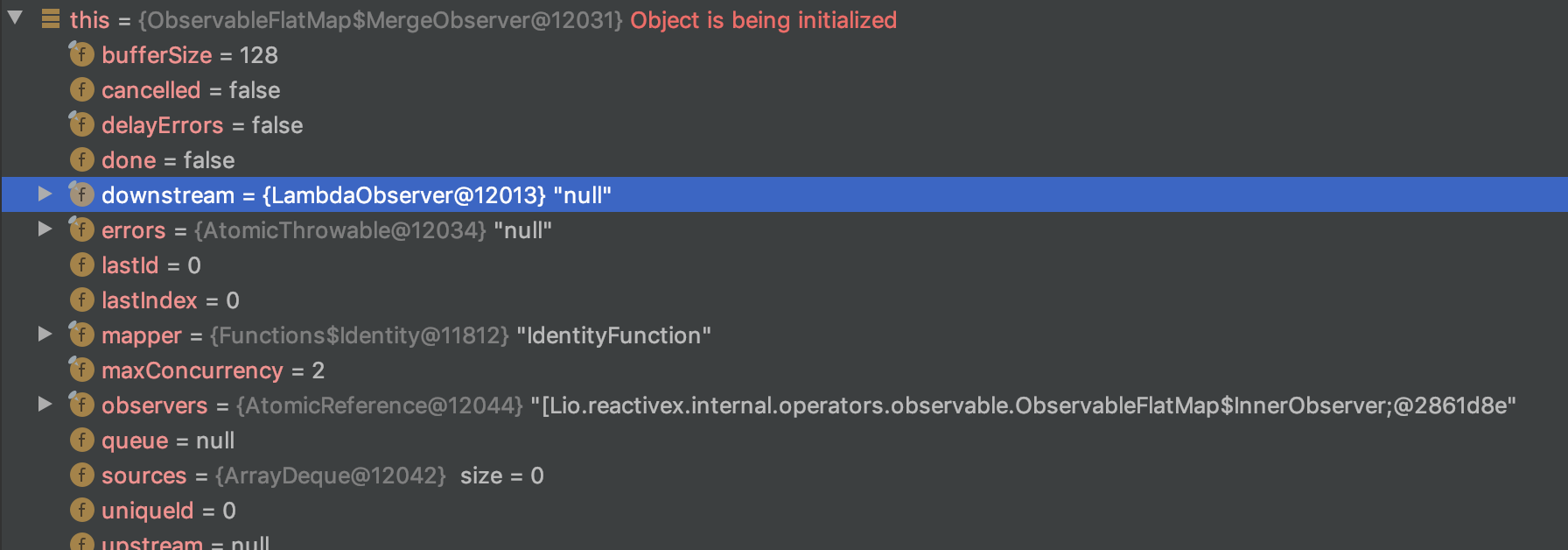

4-3-3 MergeObserver的drain方法，这个方法很长，截取重要部分
void drain() {
if (getAndIncrement() == 0) {
drainLoop();
}
}
void drainLoop() {
**** downstream 是LambdaObserver
final Observer<? super U> child = this.downstream;
int missed = 1;
for (;;) {
if (checkTerminate()) {
return;
}
//省略
boolean d = done;
svq = queue;
**** 获取加入的inner
InnerObserver<?, ?>[] inner = observers.get();
int n = inner.length;
boolean innerCompleted = false;
//省略
for (int i = 0; i < n; i++) {
if (checkTerminate()) {
return;
}
@SuppressWarnings("unchecked")
InnerObserver<T, U> is = (InnerObserver<T, U>)inner[j];
SimpleQueue<U> q = is.queue;
**** 这个q就是ObservableFromArrayDisposable
if (q != null) {
**** 循环遍历元素
for (;;) {
U o;
o = q.poll();
**** 元素遍历完退出循环
if (o == null) {
break;
}
**** 通过child 也就是LambdaObserver，继续分发
child.onNext(o);
}
}
//省略
}
}
第二个even 也是一样，重复执行4-3-1后面的流程，但是因为两着差不多是并行的，所以发射的数据的顺序不保证。
