前言
NameServer是整个RocketMQ的路由中心，功能类似于Zookeeper，用于服务注册和服务发现，是轻量级别的Zookeeper。
NameServer核心的路由表
private final HashMap<String/*topic*/, List<QueueData>> topicQueueTable;
private final HashMap<String/*brokerName*/, BroKerData> brokerAddrTable;
private final HashMap<String/*ClusterName*/, Set<String/*brokerName*/>> clusterAddrTable;
private final HashMap<String/*brokerAddr*/, BrokerLiveInfo> brokerLiveTable;
private final HashMap<String/*brokerAddr*/, List<String>/*Filter Server*/> filterServerTable;
topicQueueTable：topic表示消息类型，消息发送时根据路由表进行负载均衡。
brokerAddrTable：Broker基础信息：Broker名称，所属集群名称，主从Broker地址。
clusterAddrTable：Broker集群信息，存储集群中所有的Broker名称。
brokerLiveTable：Broker状态信息，NameServer每次收到Broker的心跳包时都会更新对应的Broker信息。NameServer的心跳检测主要通过扫面该表完成。

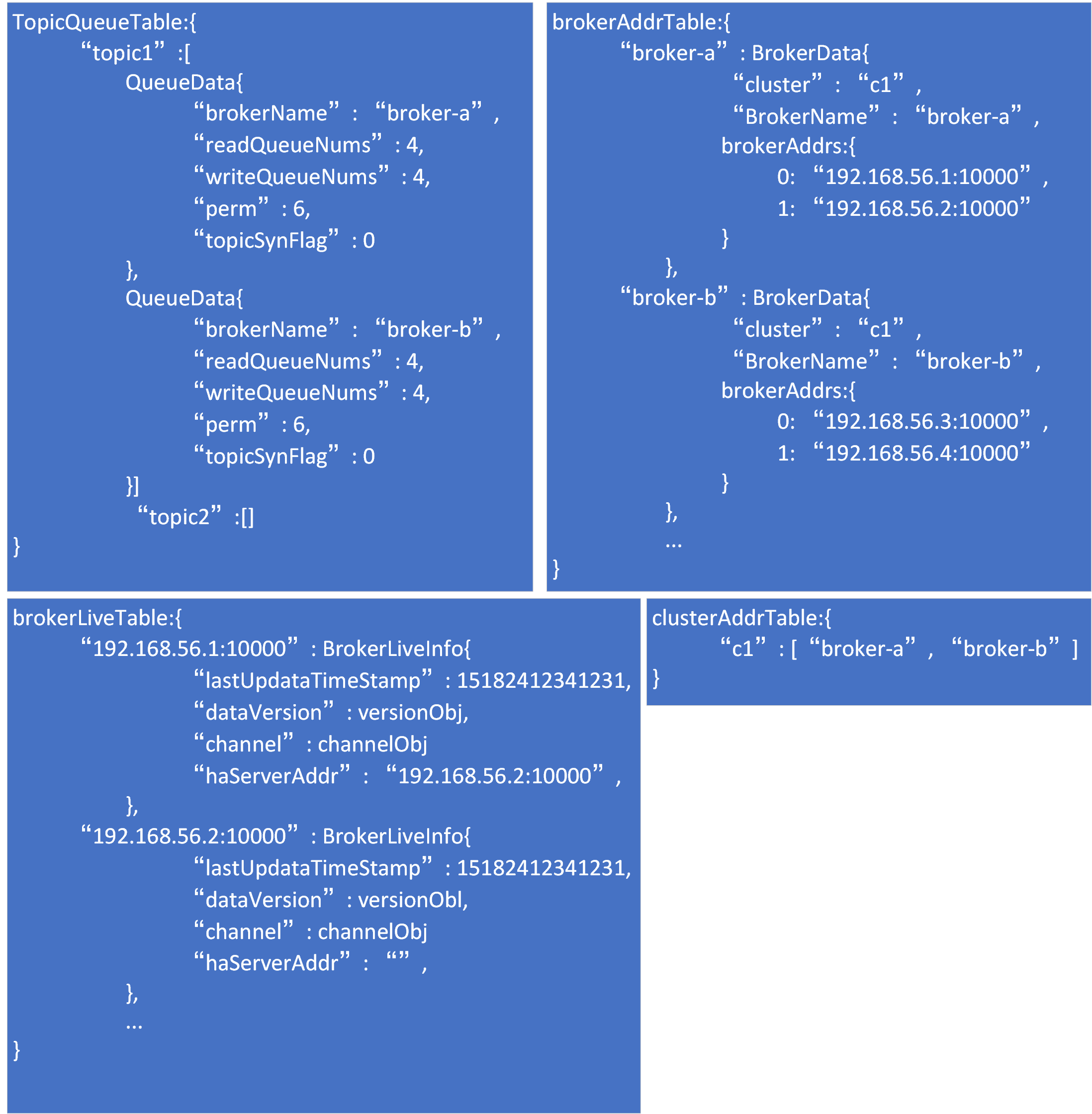

其中关键的四张表的结构如上图所示。在了解表结构之后，可以更加容易理解源码中对于表的操作。
路由注册
Broker启动时回向集群中所有的NameServer发送心跳请求，并且每隔30秒都会向所有的NameServer发送心跳包，Name Server收到Broker的心跳包时会更新brokerLiveTable中对应Broker的BrokerLiveInfo的lastUpdateTimeStamp属性，并且NameServer会每个十秒扫面brokerLiveTable，如果连续120s没有收到某个Broker的心跳包，则将所有该Broker对应的路由信息同时关闭Socket通道。
Broker发送心跳包
Broker在启动时会创建一个包含单线程的线程池ScheduledThreadPoolExector对象用于执行定时任务，每30秒向所有的NameServer发送心跳包。如下面代码所示。
/*BrokerController#start*/
// Broker每隔30秒向NameServer注册中心发送心跳包。
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS);
/*BrokerouterAPI#registerBrokerAll*/
// 获取所有的NameServer服务器的地址列表
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
// 遍历所有NameServer服务器的地址列表
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
// 向NameServer服务器发送心跳包
RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
} catch (Exception e) {
log.warn("registerBroker Exception, {}", namesrvAddr, e);
} finally {
countDownLatch.countDown();
}
}
});
}
/*BrokerouterAPI#registerBroker*/
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.REGISTER_BROKER, requestHeader);
request.setBody(body);
if (oneway) {
try {
this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
} catch (RemotingTooMuchRequestException e) {
// Ignore
}
return null;
}
NameServer处理来自Broker的心跳包
/*DefaultRequestProcessor#processRequest*/
switch (request.getCode()) {
case RequestCode.PUT_KV_CONFIG:
return this.putKVConfig(ctx, request);
case RequestCode.GET_KV_CONFIG:
return this.getKVConfig(ctx, request);
case RequestCode.DELETE_KV_CONFIG:
return this.deleteKVConfig(ctx, request);
case RequestCode.QUERY_DATA_VERSION:
return queryBrokerTopicConfig(ctx, request);
// 走这里
case RequestCode.REGISTER_BROKER:
Version brokerVersion = MQVersion.value2Version(request.getVersion());
if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
return this.registerBrokerWithFilterServer(ctx, request);
} else {
return this.registerBroker(ctx, request);
}
case RequestCode.UNREGISTER_BROKER:
return this.unregisterBroker(ctx, request);
...
case RequestCode.UPDATE_NAMESRV_CONFIG:
return this.updateConfig(ctx, request);
case RequestCode.GET_NAMESRV_CONFIG:
return this.getConfig(ctx, request);
default:
break;
}
/*DefaultRequestProcessor#registerBroker*/
final RegisterBrokerRequestHeader requestHeader =
(RegisterBrokerRequestHeader) request.decodeCommandCustomHeader(RegisterBrokerRequestHeader.class);
RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().registerBroker(
requestHeader.getClusterName(),
requestHeader.getBrokerAddr(),
requestHeader.getBrokerName(),
requestHeader.getBrokerId(),
requestHeader.getHaServerAddr(),
topicConfigWrapper,
null,
ctx.channel()
);
调用RouteInfoManager类的registerBroker()方法更新缓存
/*RouteInfoManager#registerBroker*/
// 防止并发修改
this.lock.writeLock().lockInterruptibly();
//--------------更新clusterAddrTable缓存-----------
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
// 如果为空，则Broker第一次注册
if (null == brokerNames) {
brokerNames = new HashSet<String>();
this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);
//------------更新brokerAddrTable缓存------------
boolean registerFirst = false;
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
// 如果通过brokerName无法得到brokerData，说明是第一次注册
if (null == brokerData) {
// 第一次注册
registerFirst = true;
// 创建BrokerData
brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
// 将brokerData注册到brokerAddrTable中
this.brokerAddrTable.put(brokerName, brokerData);
}
// 拿到brokerName对应的所有地址（主从服务器地址）
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
//Switch slave to master: first remove <1, IP:PORT> in namesrv, then add <0, IP:PORT>
//The same IP:PORT must only have one record in brokerAddrTable
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
// 遍历brokerName对应的所有地址（主从服务器地址）
while (it.hasNext()) {
Entry<Long, String> item = it.next();
// 地址相同，但key值和最新的brokerId不同（brokerId为0代表Master，大于0代表Slave），则说明发生了主从服务器broker变更，删除旧的缓存
if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
it.remove();
}
}
// 将最新的brokerId, brokerAddr放入缓存
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
// --------------更新TopicQueueTable缓存-------------
if (null != topicConfigWrapper
&& MixAll.MASTER_ID == brokerId) {// TopicQueueTable中存的是Master的信息，所以brokerId等于0并且null != topicConfigWrapper时，才更新缓存
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())
|| registerFirst) {// 如果TopicQueueTable缓存中没有broker的地址brokerAddr的信息或收到心跳包的时间和旧的时间不相等或broker为第一次注册。
ConcurrentMap<String, TopicConfig> tcTable =
topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
// 更新TopicQueueTable缓存
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
// --------------更新brokerLiveTable缓存-------------
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
if (null == prevBrokerLiveInfo) {
log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
/*RouteInfoManager#createAndUpdateQueueData*/
// 更新TopicQueueTable缓存
private void createAndUpdateQueueData(final String brokerName, final TopicConfig topicConfig) {
QueueData queueData = new QueueData();
queueData.setBrokerName(brokerName);
queueData.setWriteQueueNums(topicConfig.getWriteQueueNums());
queueData.setReadQueueNums(topicConfig.getReadQueueNums());
queueData.setPerm(topicConfig.getPerm());
queueData.setTopicSynFlag(topicConfig.getTopicSysFlag());
// ---------topicQueueTable缓存---------
List<QueueData> queueDataList = this.topicQueueTable.get(topicConfig.getTopicName());
if (null == queueDataList) {// queueDataList为空这创建并添加最新的queueData
queueDataList = new LinkedList<QueueData>();
queueDataList.add(queueData);
this.topicQueueTable.put(topicConfig.getTopicName(), queueDataList);
log.info("new topic registered, {} {}", topicConfig.getTopicName(), queueData);
} else {
boolean addNewOne = true;
Iterator<QueueData> it = queueDataList.iterator();
while (it.hasNext()) {
QueueData qd = it.next();
// 判断是否已经存在brokerame对应的queueData信息
if (qd.getBrokerName().equals(brokerName)) {
if (qd.equals(queueData)) {// 判断旧的queueData和新的queueData是否等价
addNewOne = false;
} else {
log.info("topic changed, {} OLD: {} NEW: {}", topicConfig.getTopicName(), qd,
queueData);
// 不等价则删除旧的
it.remove();
}
}
}
// 如果最新queueData不等价旧的，或者没有brokerName对应的信息，则添加最新queueData
if (addNewOne) {
queueDataList.add(queueData);
}
}
}
路由删除
在Broker发生宕机无法发送心跳包时，NameServer无法收到心跳包，NameServer每个10秒就会扫面brokerLiveTable，检测每个Broker地址上次收到心跳包的时间lastUpdateTimeStamp是否超过120s，如果超过120s则认为broker失效，NameServer会移除在topicQueueTable，brokerAddrTable，clusterAddrTable，brokerLiveTable，filterServerTable对应的失效Broker信息。
执行路由删除的两个触发点：
- NameServer每十秒的扫描
- Broker在正常状态下执行unregisterBroker指令
由于两个出发点执行都是同一段路由删除代码，下面通过第一个出发点进行源码分析。
/*NamesrvController#initialize*/
// 每个10秒扫描一次Broker，移除处于不激活状态的Broker（遍历brokerLiveTable（HashMap<String/* brokerAddr */, BrokerLiveInfo>,BrokerLiveInfo.lastUpdateTimestamp用于记录Broker上一次发送心跳包的时间，如果超过了120就删除对应的Broker）
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}
}, 5, 10, TimeUnit.SECONDS);
/*RouteInfoManager#scanNotActiveBroker*/
Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, BrokerLiveInfo> next = it.next();
long last = next.getValue().getLastUpdateTimestamp();
// 上次更新的时间如果超过120s则删除
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
// 关闭与该Broker的通道
RemotingUtil.closeChannel(next.getValue().getChannel());
// 删除
it.remove();
log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
// 更新其他缓存中对应的信息
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
}
}
/*RouteInfoManager#onChannelDestroy*/
if (brokerAddrFound != null && brokerAddrFound.length() > 0) {
try {
try {
this.lock.writeLock().lockInterruptibly();
// 从brokerLiveTable中删除失效地址brokerAddrFound的信息
this.brokerLiveTable.remove(brokerAddrFound);
// 从filterServerTable中删除失效地址brokerAddrFound的信息
this.filterServerTable.remove(brokerAddrFound);
String brokerNameFound = null;
boolean removeBrokerName = false;
Iterator<Entry<String, BrokerData>> itBrokerAddrTable =
this.brokerAddrTable.entrySet().iterator();
// // 从brokerAddrTable找到失效地址对应得Broker名字
while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) {
BrokerData brokerData = itBrokerAddrTable.next().getValue();
Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> entry = it.next();
Long brokerId = entry.getKey();
String brokerAddr = entry.getValue();
if (brokerAddr.equals(brokerAddrFound)) {
// 失效地址的Broker名字
brokerNameFound = brokerData.getBrokerName();
// 从失效地址的Broker名字对应的brokerData的主从地址集中删除失效地址
it.remove();
log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed",
brokerId, brokerAddr);
break;
}
}
// 如果失效地址的Broker名字对应的brokerData的主从地址集中已经没有地址，说明Broker名字对应的所有服务器失效，需要从brokerAddrTable中删除失效地址的Broker名字对应的brokerData
if (brokerData.getBrokerAddrs().isEmpty()) {
removeBrokerName = true;
itBrokerAddrTable.remove();
log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed",
brokerData.getBrokerName());
}
}
// 失效地址的Broker名字对应的地址已经全部失效，删除其在clusterAddrTable中对应的信息
if (brokerNameFound != null && removeBrokerName) {
Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, Set<String>> entry = it.next();
String clusterName = entry.getKey();
Set<String> brokerNames = entry.getValue();
boolean removed = brokerNames.remove(brokerNameFound);
if (removed) {
log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed",
brokerNameFound, clusterName);
if (brokerNames.isEmpty()) {
log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
clusterName);
it.remove();
}
break;
}
}
}
// 失效地址的Broker名字对应的地址已经全部失效，删除其在topicQueueTable中对应的信息
if (removeBrokerName) {
Iterator<Entry<String, List<QueueData>>> itTopicQueueTable =
this.topicQueueTable.entrySet().iterator();
while (itTopicQueueTable.hasNext()) {
Entry<String, List<QueueData>> entry = itTopicQueueTable.next();
String topic = entry.getKey();
List<QueueData> queueDataList = entry.getValue();
Iterator<QueueData> itQueueData = queueDataList.iterator();
while (itQueueData.hasNext()) {
QueueData queueData = itQueueData.next();
if (queueData.getBrokerName().equals(brokerNameFound)) {
itQueueData.remove();
log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed",
topic, queueData);
}
}
if (queueDataList.isEmpty()) {
itTopicQueueTable.remove();
log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed",
topic);
}
}
}
} finally {
this.lock.writeLock().unlock();
}
} catch (Exception e) {
log.error("onChannelDestroy Exception", e);
}
}
路由发现
通过主题先从topicQueueTable中获取到对应的所有Broker信息，然后再从brokerAddrTable中根据broker名称获取对应的信息，最后通过从brokerAddrTable获取的地址信息从filterServerTable获取对应的信息。
/*DefaultRequestProcessor#processRequest*/
switch (request.getCode()) {
case RequestCode.PUT_KV_CONFIG:
return this.putKVConfig(ctx, request);
...
case RequestCode.UNREGISTER_BROKER:
return this.unregisterBroker(ctx, request);
// 走这里
case RequestCode.GET_ROUTEINTO_BY_TOPIC:
return this.getRouteInfoByTopic(ctx, request);
case RequestCode.GET_BROKER_CLUSTER_INFO:
return this.getBrokerClusterInfo(ctx, request);
...
case RequestCode.GET_NAMESRV_CONFIG:
return this.getConfig(ctx, request);
default:
break;
}
/*DefaultRequestProcessor#getRouteInfoByTopic*/
final RemotingCommand response = RemotingCommand.createResponseCommand(null);
final GetRouteInfoRequestHeader requestHeader =
(GetRouteInfoRequestHeader) request.decodeCommandCustomHeader(GetRouteInfoRequestHeader.class);
// 通过主题先后从topicQueueTable，brokerAddrTable，filterServerTable获取对应的信息
TopicRouteData topicRouteData = this.namesrvController.getRouteInfoManager().pickupTopicRouteData(requestHeader.getTopic());
if (topicRouteData != null) {
if (this.namesrvController.getNamesrvConfig().isOrderMessageEnable()) {
String orderTopicConf =
this.namesrvController.getKvConfigManager().getKVConfig(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG,
requestHeader.getTopic());
topicRouteData.setOrderTopicConf(orderTopicConf);
}
byte[] content = topicRouteData.encode();
response.setBody(content);
response.setCode(ResponseCode.SUCCESS);
response.setRemark(null);
return response;
}
response.setCode(ResponseCode.TOPIC_NOT_EXIST);
response.setRemark("No topic route info in name server for the topic: " + requestHeader.getTopic()
+ FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
return response;
/*RouteInfoManager#pickupTopicRouteData*/
TopicRouteData topicRouteData = new TopicRouteData();
boolean foundQueueData = false;
boolean foundBrokerData = false;
// 用于存放主题对应的所有broker名称
Set<String> brokerNameSet = new HashSet<String>();
// 用于存放从brokerAddrTable获取的brokerData
List<BrokerData> brokerDataList = new LinkedList<BrokerData>();
topicRouteData.setBrokerDatas(brokerDataList);
// 用于存放从filterServerTable获取的信息
HashMap<String, List<String>> filterServerMap = new HashMap<String, List<String>>();
topicRouteData.setFilterServerTable(filterServerMap);
try {
try {
this.lock.readLock().lockInterruptibly();
// 获取主题对应的broker服务器信息，即topicQueueTable中主题对应的所有QueueData
List<QueueData> queueDataList = this.topicQueueTable.get(topic);
if (queueDataList != null) {
topicRouteData.setQueueDatas(queueDataList);
foundQueueData = true;
Iterator<QueueData> it = queueDataList.iterator();
while (it.hasNext()) {
QueueData qd = it.next();
brokerNameSet.add(qd.getBrokerName());
}
//根据主题对应的broker名称，从brokerAddrTable中获取对应brokerData信息，brokerData包含集群名称，broker名称，broker主从地址信息
for (String brokerName : brokerNameSet) {
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
if (null != brokerData) {
BrokerData brokerDataClone = new BrokerData(brokerData.getCluster(), brokerData.getBrokerName(), (HashMap<Long, String>) brokerData
.getBrokerAddrs().clone());
brokerDataList.add(brokerDataClone);
foundBrokerData = true;
// 根据brokerDataClone的地址信息获取到filterServerTable中的信息
for (final String brokerAddr : brokerDataClone.getBrokerAddrs().values()) {
List<String> filterServerList = this.filterServerTable.get(brokerAddr);
filterServerMap.put(brokerAddr, filterServerList);
}
}
}
}
} finally {
this.lock.readLock().unlock();
}
} catch (Exception e) {
log.error("pickupTopicRouteData Exception", e);
}
log.debug("pickupTopicRouteData {} {}", topic, topicRouteData);
if (foundBrokerData && foundQueueData) {
return topicRouteData;
}
return null;
