SpringBoot集成Flowable-modeler模块并去除权限认证

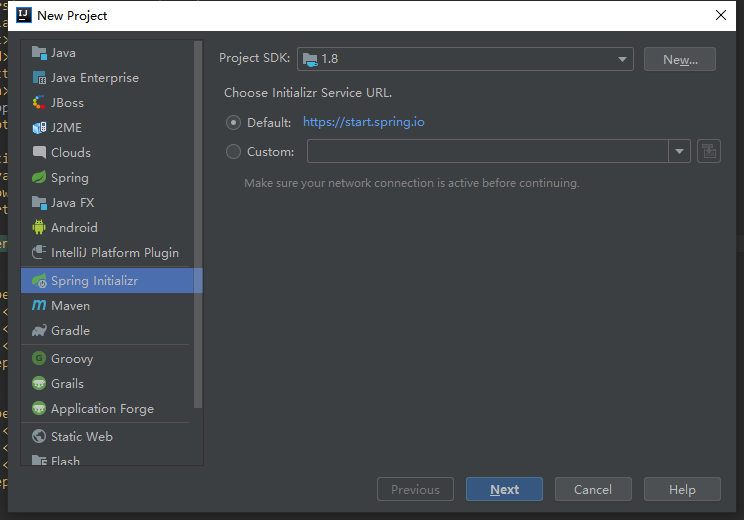

一.新建SpringBoot框架,引入相关maven依赖

1.8 6.4.1

<dependencies>

    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.4.6</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>1.3.2</version>
    </dependency>
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-ui-modeler-rest</artifactId>
        <version>${flowable.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.flowable/flowable-spring-boot-starter-process -->
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-spring-boot-starter-process</artifactId>
        <version>6.4.1</version>
    </dependency>
    <!-- Druid数据库连接池 -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
        <version>1.1.22</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
        <exclusions>
            <exclusion>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-logging</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>org.liquibase</groupId>
        <artifactId>liquibase-core</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>

二.修改配置

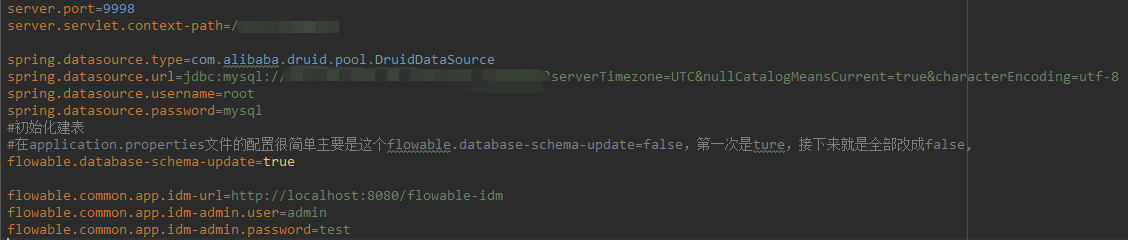

resources/application.properties

配置数据库地址时后面的几个配置也不要忘记,尤其是

characterEncoding=utf-8,会解决画出的流程图的中文说明显示为乱码的问题

flowable.common.app.idm的三个配置在以后的开发中是不需要的,因为要剔除掉idm的用户权限,用自己系统的用户

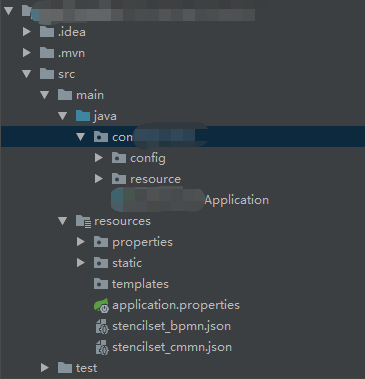

三.这是最终完成后的目录结构,下面会对里面文件内容做说明

/config:两个文件,字体配置和流程引擎配置

/resource:一个文件,修改对idm查询用户登录的接口

/resources/properties:flowable-modeler的数据库脚本

/resources/static:flowable-modeler的ui文件

stencilset_bpmn.json:汉化文件

stencilset_cmmn.json:汉化文件
