因为公司业务中需要在项目中加入在线流程设计的功能，在对比了vfd和bpmn.js两个插件的基础上，选择了bpmn.js。
使用npm安装bpmn.js
npm install --save bpmn-js在vue中使用bpmn.js
<template>
<div>
<div id="canvas" class="canvas" ref="canvas"></div>
</div>
</template><script>
import BpmnModeler from 'bpmn-js/lib/Modeler'
import {bpmnXmlStr} from '存放bpmn的文件'
export default{
mounted(){
this.init()
},
data(){
return{
}
},
methods:{
init(){
const canvas=this.$refs.canvas;
this.bpmnModeler=new BpmnModeler({
container:canvas
})
this.createNewDiagram();
},
createNewDiagram(){
const that=this;
that.bpmnModeler.importXML(bpmnXmlStr,function(err){
if(err){
this.$message.success('初始化失败');
}else{
this.$message.success('初始化成功');
}
})
}
}
}
</script>
<style>
</style>bpmnXmlStr文件中的内容(可以自定义)
export const containxml=`<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" targetNamespace="" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL http://www.omg.org/spec/BPMN/2.0/20100501/BPMN20.xsd">
<collaboration id="sid-c0e745ff-361e-4afb-8c8d-2a1fc32b1424">
<participant id="sid-87F4C1D6-25E1-4A45-9DA7-AD945993D06F" name="Customer" processRef="sid-C3803939-0872-457F-8336-EAE484DC4A04" />
</collaboration>
<process id="sid-C3803939-0872-457F-8336-EAE484DC4A04" name="Customer" processType="None" isClosed="false" isExecutable="false">
<extensionElements />
<laneSet id="sid-b167d0d7-e761-4636-9200-76b7f0e8e83a">
<lane id="sid-57E4FE0D-18E4-478D-BC5D-B15164E93254">
<flowNodeRef>sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26</flowNodeRef>
<flowNodeRef>sid-E49425CF-8287-4798-B622-D2A7D78EF00B</flowNodeRef>
<flowNodeRef>sid-D7F237E8-56D0-4283-A3CE-4F0EFE446138</flowNodeRef>
<flowNodeRef>sid-E433566C-2289-4BEB-A19C-1697048900D2</flowNodeRef>
<flowNodeRef>sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9</flowNodeRef>
<flowNodeRef>SCAN_OK</flowNodeRef>
</lane>
</laneSet>
<task id="sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26" name="Scan QR code">
<incoming>sid-4DC479E5-5C20-4948-BCFC-9EC5E2F66D8D</incoming>
<outgoing>sid-EE8A7BA0-5D66-4F8B-80E3-CC2751B3856A</outgoing>
</task>
<task id="sid-E49425CF-8287-4798-B622-D2A7D78EF00B" name="Open product information in mobile app">
<incoming>sid-8B820AF5-DC5C-4618-B854-E08B71FB55CB</incoming>
<outgoing>sid-57EB1F24-BD94-479A-BF1F-57F1EAA19C6C</outgoing>
</task>
<startEvent id="sid-D7F237E8-56D0-4283-A3CE-4F0EFE446138" name="Notices QR code">
<outgoing>sid-7B791A11-2F2E-4D80-AFB3-91A02CF2B4FD</outgoing>
</startEvent>
<endEvent id="sid-E433566C-2289-4BEB-A19C-1697048900D2" name="Is informed">
<incoming>sid-57EB1F24-BD94-479A-BF1F-57F1EAA19C6C</incoming>
</endEvent>
<exclusiveGateway id="sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9">
<incoming>sid-7B791A11-2F2E-4D80-AFB3-91A02CF2B4FD</incoming>
<incoming>sid-337A23B9-A923-4CCE-B613-3E247B773CCE</incoming>
<outgoing>sid-4DC479E5-5C20-4948-BCFC-9EC5E2F66D8D</outgoing>
</exclusiveGateway>
<exclusiveGateway id="SCAN_OK" name="Scan successful? ">
<incoming>sid-EE8A7BA0-5D66-4F8B-80E3-CC2751B3856A</incoming>
<outgoing>sid-8B820AF5-DC5C-4618-B854-E08B71FB55CB</outgoing>
<outgoing>sid-337A23B9-A923-4CCE-B613-3E247B773CCE</outgoing>
</exclusiveGateway>
<sequenceFlow id="sid-337A23B9-A923-4CCE-B613-3E247B773CCE" name="Yes" sourceRef="SCAN_OK" targetRef="sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9" />
<sequenceFlow id="sid-4DC479E5-5C20-4948-BCFC-9EC5E2F66D8D" sourceRef="sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9" targetRef="sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26" />
<sequenceFlow id="sid-8B820AF5-DC5C-4618-B854-E08B71FB55CB" name="No" sourceRef="SCAN_OK" targetRef="sid-E49425CF-8287-4798-B622-D2A7D78EF00B" />
<sequenceFlow id="sid-57EB1F24-BD94-479A-BF1F-57F1EAA19C6C" sourceRef="sid-E49425CF-8287-4798-B622-D2A7D78EF00B" targetRef="sid-E433566C-2289-4BEB-A19C-1697048900D2" />
<sequenceFlow id="sid-EE8A7BA0-5D66-4F8B-80E3-CC2751B3856A" sourceRef="sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26" targetRef="SCAN_OK" />
<sequenceFlow id="sid-7B791A11-2F2E-4D80-AFB3-91A02CF2B4FD" sourceRef="sid-D7F237E8-56D0-4283-A3CE-4F0EFE446138" targetRef="sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9" />
</process>
<bpmndi:BPMNDiagram id="sid-74620812-92c4-44e5-949c-aa47393d3830">
<bpmndi:BPMNPlane id="sid-cdcae759-2af7-4a6d-bd02-53f3352a731d" bpmnElement="sid-c0e745ff-361e-4afb-8c8d-2a1fc32b1424">
<bpmndi:BPMNShape id="sid-87F4C1D6-25E1-4A45-9DA7-AD945993D06F_gui" bpmnElement="sid-87F4C1D6-25E1-4A45-9DA7-AD945993D06F" isHorizontal="true">
<omgdc:Bounds x="83" y="105" width="933" height="250" />
<bpmndi:BPMNLabel labelStyle="sid-84cb49fd-2f7c-44fb-8950-83c3fa153d3b">
<omgdc:Bounds x="47.49999999999999" y="170.42857360839844" width="12.000000000000014" height="59.142852783203125" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="sid-57E4FE0D-18E4-478D-BC5D-B15164E93254_gui" bpmnElement="sid-57E4FE0D-18E4-478D-BC5D-B15164E93254" isHorizontal="true">
<omgdc:Bounds x="113" y="105" width="903" height="250" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26_gui" bpmnElement="sid-52EB1772-F36E-433E-8F5B-D5DFD26E6F26">
<omgdc:Bounds x="393" y="170" width="100" height="80" />
<bpmndi:BPMNLabel labelStyle="sid-84cb49fd-2f7c-44fb-8950-83c3fa153d3b">
<omgdc:Bounds x="360.5" y="172" width="84" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="sid-E49425CF-8287-4798-B622-D2A7D78EF00B_gui" bpmnElement="sid-E49425CF-8287-4798-B622-D2A7D78EF00B">
<omgdc:Bounds x="728" y="170" width="100" height="80" />
<bpmndi:BPMNLabel labelStyle="sid-84cb49fd-2f7c-44fb-8950-83c3fa153d3b">
<omgdc:Bounds x="695.9285736083984" y="162" width="83.14285278320312" height="36" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="sid-EE8A7BA0-5D66-4F8B-80E3-CC2751B3856A_gui" bpmnElement="sid-EE8A7BA0-5D66-4F8B-80E3-CC2751B3856A">
<omgdi:waypoint x="493" y="210" />
<omgdi:waypoint x="585" y="210" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="494" y="185" width="90" height="20" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="sid-8B820AF5-DC5C-4618-B854-E08B71FB55CB_gui" bpmnElement="sid-8B820AF5-DC5C-4618-B854-E08B71FB55CB">
<omgdi:waypoint x="635" y="210" />
<omgdi:waypoint x="728" y="210" />
<bpmndi:BPMNLabel labelStyle="sid-e0502d32-f8d1-41cf-9c4a-cbb49fecf581">
<omgdc:Bounds x="642" y="185" width="16" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="sid-7B791A11-2F2E-4D80-AFB3-91A02CF2B4FD_gui" bpmnElement="sid-7B791A11-2F2E-4D80-AFB3-91A02CF2B4FD">
<omgdi:waypoint x="223" y="210" />
<omgdi:waypoint x="275" y="210" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="204" y="185" width="90" height="20" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="sid-4DC479E5-5C20-4948-BCFC-9EC5E2F66D8D_gui" bpmnElement="sid-4DC479E5-5C20-4948-BCFC-9EC5E2F66D8D">
<omgdi:waypoint x="325" y="210" />
<omgdi:waypoint x="393" y="210" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="314" y="185" width="90" height="20" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="sid-57EB1F24-BD94-479A-BF1F-57F1EAA19C6C_gui" bpmnElement="sid-57EB1F24-BD94-479A-BF1F-57F1EAA19C6C">
<omgdi:waypoint x="828" y="210" />
<omgdi:waypoint x="901" y="210" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="820" y="185" width="90" height="20" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="sid-337A23B9-A923-4CCE-B613-3E247B773CCE_gui" bpmnElement="sid-337A23B9-A923-4CCE-B613-3E247B773CCE">
<omgdi:waypoint x="611" y="234" />
<omgdi:waypoint x="610.5" y="299" />
<omgdi:waypoint x="300.5" y="299" />
<omgdi:waypoint x="301" y="234" />
<bpmndi:BPMNLabel labelStyle="sid-e0502d32-f8d1-41cf-9c4a-cbb49fecf581">
<omgdc:Bounds x="585" y="236" width="21" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNShape id="StartEvent_0l6sgn0_di" bpmnElement="sid-D7F237E8-56D0-4283-A3CE-4F0EFE446138">
<omgdc:Bounds x="187" y="192" width="36" height="36" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="182" y="229" width="46" height="24" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="EndEvent_0xwuvv5_di" bpmnElement="sid-E433566C-2289-4BEB-A19C-1697048900D2">
<omgdc:Bounds x="901" y="192" width="36" height="36" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="892" y="231" width="56" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="ExclusiveGateway_1g0eih2_di" bpmnElement="sid-5134932A-1863-4FFA-BB3C-A4B4078B11A9" isMarkerVisible="true">
<omgdc:Bounds x="275" y="185" width="50" height="50" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="210" y="160" width="90" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="ExclusiveGateway_0vci1x5_di" bpmnElement="SCAN_OK" isMarkerVisible="true">
<omgdc:Bounds x="585" y="185" width="50" height="50" />
<bpmndi:BPMNLabel>
<omgdc:Bounds x="568" y="157" width="88" height="24" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
<bpmndi:BPMNLabelStyle id="sid-e0502d32-f8d1-41cf-9c4a-cbb49fecf581">
<omgdc:Font name="Arial" size="11" isBold="false" isItalic="false" isUnderline="false" isStrikeThrough="false" />
</bpmndi:BPMNLabelStyle>
<bpmndi:BPMNLabelStyle id="sid-84cb49fd-2f7c-44fb-8950-83c3fa153d3b">
<omgdc:Font name="Arial" size="12" isBold="false" isItalic="false" isUnderline="false" isStrikeThrough="false" />
</bpmndi:BPMNLabelStyle>
</bpmndi:BPMNDiagram>

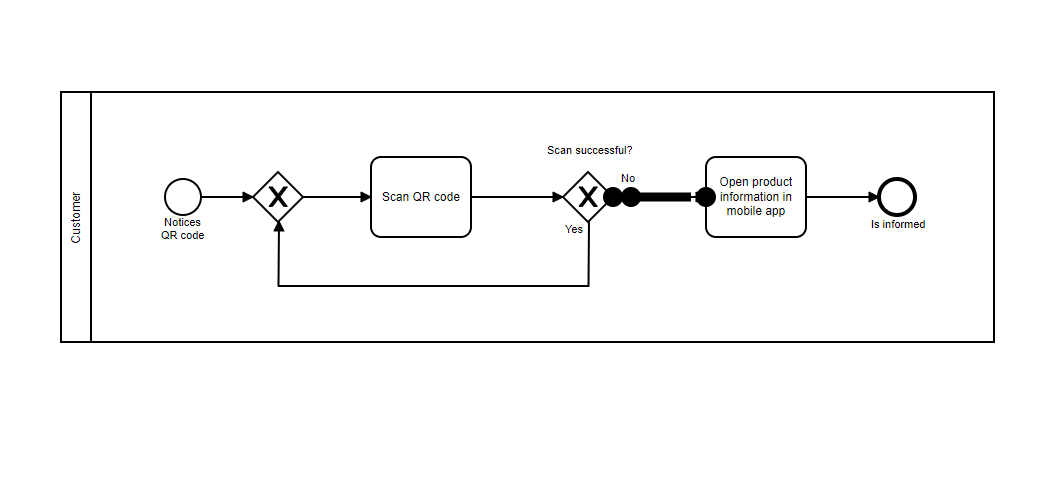

</definitions>`启动项目，可以看到渲染完成的流程图。
