前言

上篇文章分享了Flutter仿微信/微博九宫格。已实现类似微信/微博展示图片九宫格,拖拽排序,微信群组头像,钉钉群组头像。
本次分享Flutter实现仿QQ讨论组头像.

参考资料

计算圆的半径,这里直接参考的YiiGuxing的CompositionAvatar项目,文章

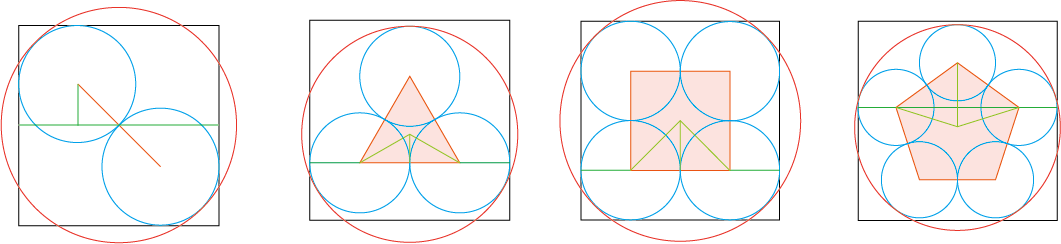

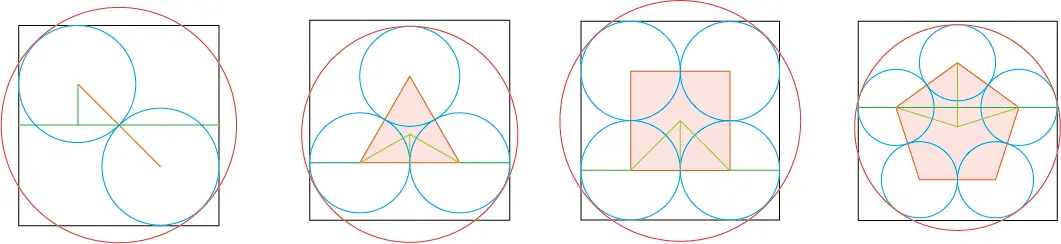

View宽D,蓝色小圆半径r,红色大圆半径R,Y轴上偏移量dy,头像数量n。

正文

一、计算每个小圆的中心坐标

  1. 首先需要得到大圆中心坐标。这里头像数量n为3为例。
//中心坐标x。
double centerX = width / 2;
//中心坐标y, 因为3和5在y轴上有偏移量,需要单独计算。
double centerY = width / 2;
//小圆半径。
double r;
//大圆中心到小圆中心的半径。
double r1;
switch (n) {
  case 3:
    r = width / (2 + 4 * math.sin(math.pi * (n - 2) / (2 * n)));
    r1 = r / math.cos(math.pi * (n - 2) / (2 * n));
    double R = r * (1 + math.sin(math.pi / n)) / math.sin(math.pi / n);
    double dy = 0.5 * (width - R - r * (1 + 1 / math.tan(math.pi / n)));
    centerY = dy + r + r1;
    break;
}
  1. 圆心坐标通用公式,当n为2和4的时候初始角度为-45度。
for (int i = 0; i < n; i++) {
  double degree1 = (n == 2 || n == 4) ? (-math.pi / 4) : 0;
  double x = centerX + r1 * math.sin(degree1 + i * 2 * math.pi / n);
  double y = centerY - r1 * math.cos(degree1 + i * 2 * math.pi / n);
}

二、如何实现圆弧缺口

使用ClipPath组件,自定义clipper。

class QQClipper extends CustomClipper<Path> {
  QQClipper({
    this.total,
    this.index,
    this.initIndex: 1,
    this.previousX,
    this.previousY,
    this.degree,
    this.arcAngle: 60,
  }) : assert(arcAngle != null && arcAngle >= 0 && arcAngle <= 180);
  //头像数量。
  final int total;
  //头像index。
  final int index;
  //头像initIndex。
  final int initIndex;
  //上一个圆心坐标x。
  final double previousX;
  //上一个圆心坐标y。
  final double previousY;
  //圆弧中心角度。
  final double degree;
  //圆弧角度。
  final double arcAngle;

  @override
  Path getClip(Size size) {
    double r = size.width / 2;
    Path path = Path();
    List<Offset> points = List();
    //头像数量为2,头像index为initIndex时,保持整圆。
    if (total == 2 && index == initIndex) {
      path.addOval(Rect.fromLTRB(0, 0, size.width, size.height));
    } else {
      //圆弧路径坐标。
      double spaceA = arcAngle / 2;
      double startA = degree + spaceA;
      double endA = degree - spaceA;
      for (double i = startA; i <= 360 + endA; i = i + 1) {
        double x1 = r + r * math.sin(d2r(i));
        double y1 = r - r * math.cos(d2r(i));
        points.add(Offset(x1, y1));
      }

      //圆弧缺口路径坐标。
      double spaceB = math.atan(
              r * math.sin(d2r(spaceA)) / (2 * r - r * math.cos(d2r(spaceA)))) /
          math.pi *
          180;
      double r1 = (2 * r - r * math.cos(d2r(spaceA))) / math.cos(d2r(spaceB));
      double startB = degree - 180 - spaceB;
      double endB = degree - 180 + spaceB;
      List<Offset> pointsB = List();
      for (double i = startB; i < endB; i = i + 1) {
        double x1 = previousX + r1 * math.sin(d2r(i));
        double y1 = previousY - r1 * math.cos(d2r(i));
        pointsB.add(Offset(x1, y1));
      }
      points.addAll(pointsB.reversed);
      path.addPolygon(points, true);
    }
    return path;
  }

  /// degree to radian.
  double d2r(double degree) {
    return degree / 180 * math.pi;
  }

  @override
  bool shouldReclip(CustomClipper<Path> oldClipper) {
    return this != oldClipper;
  }
}

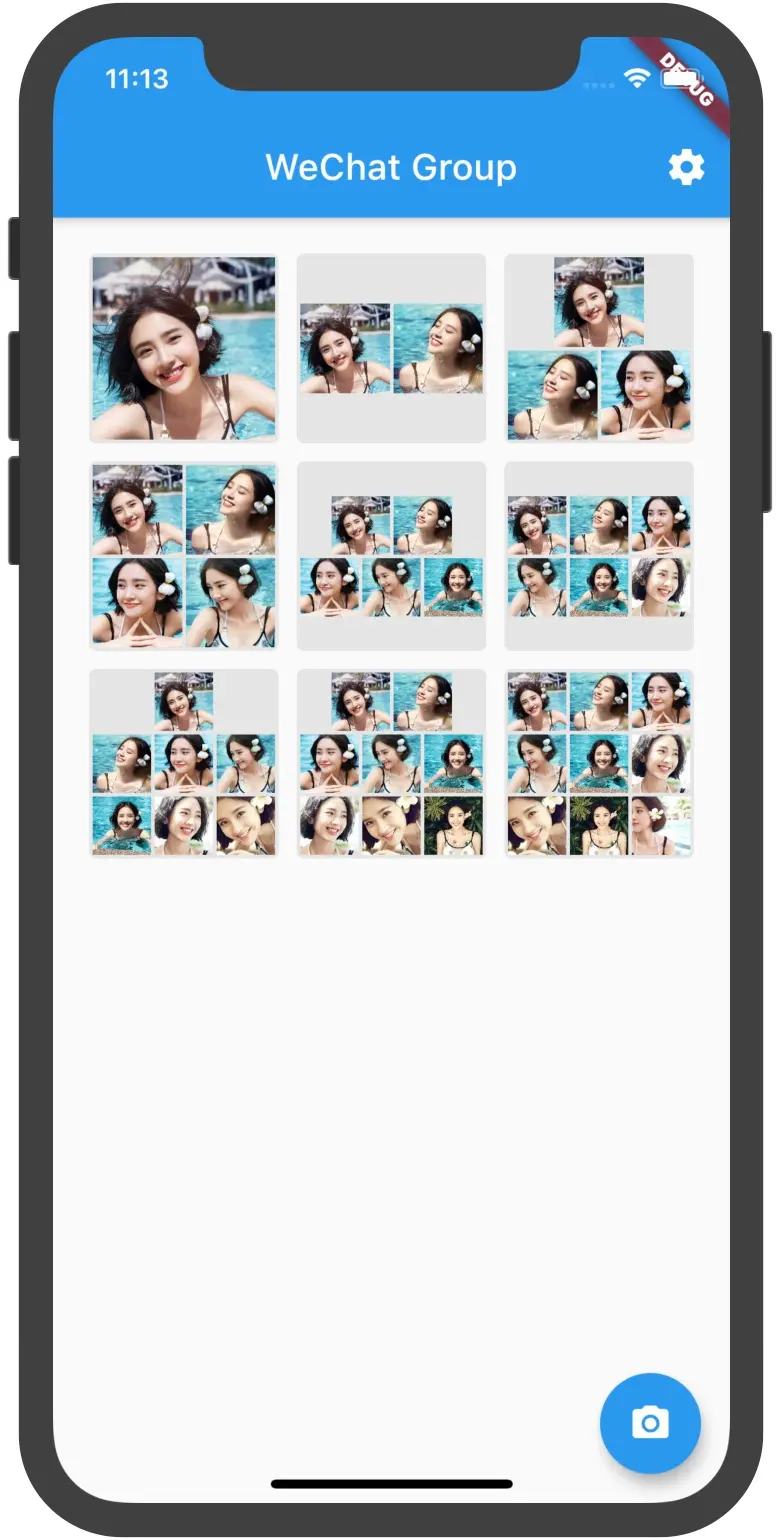

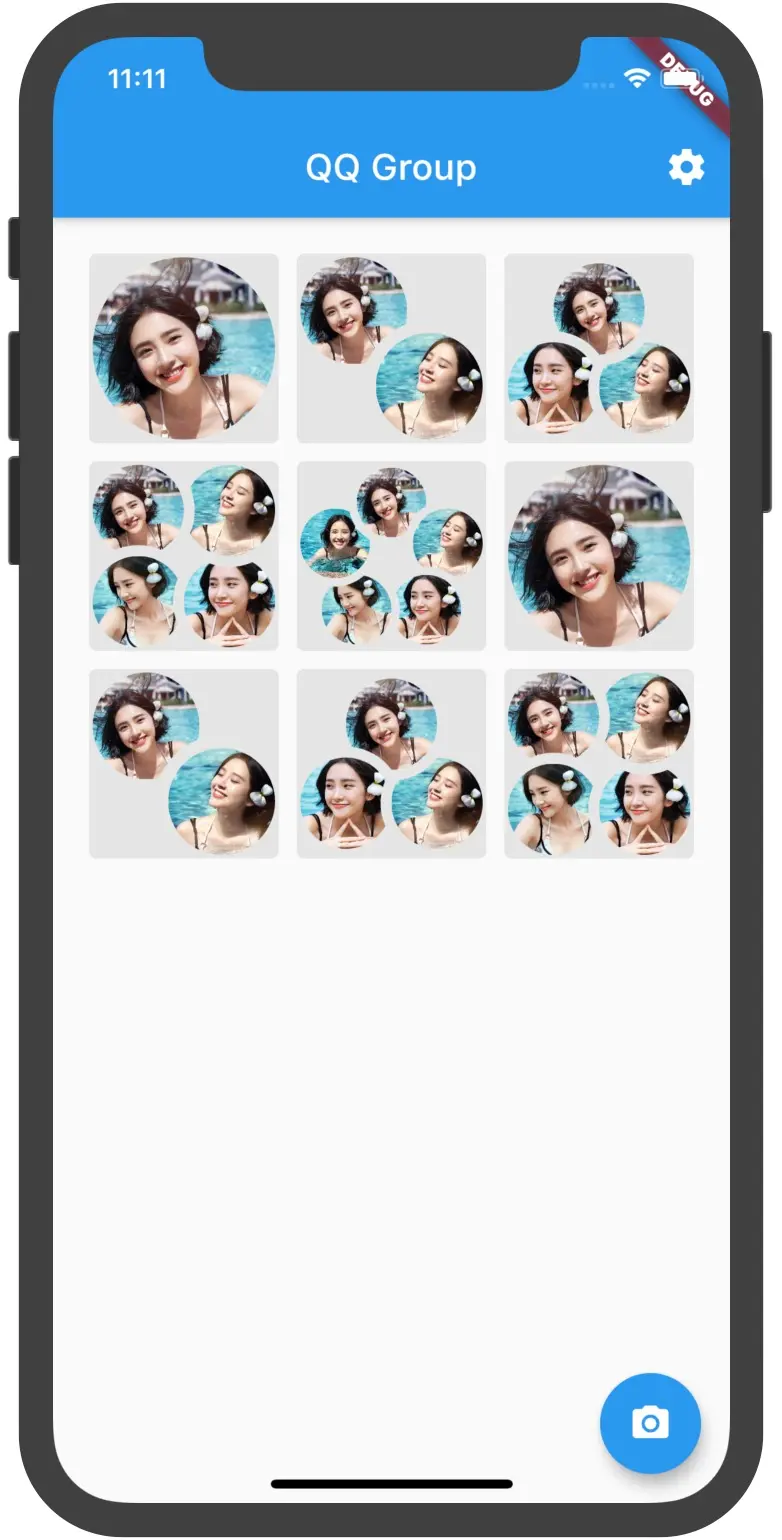

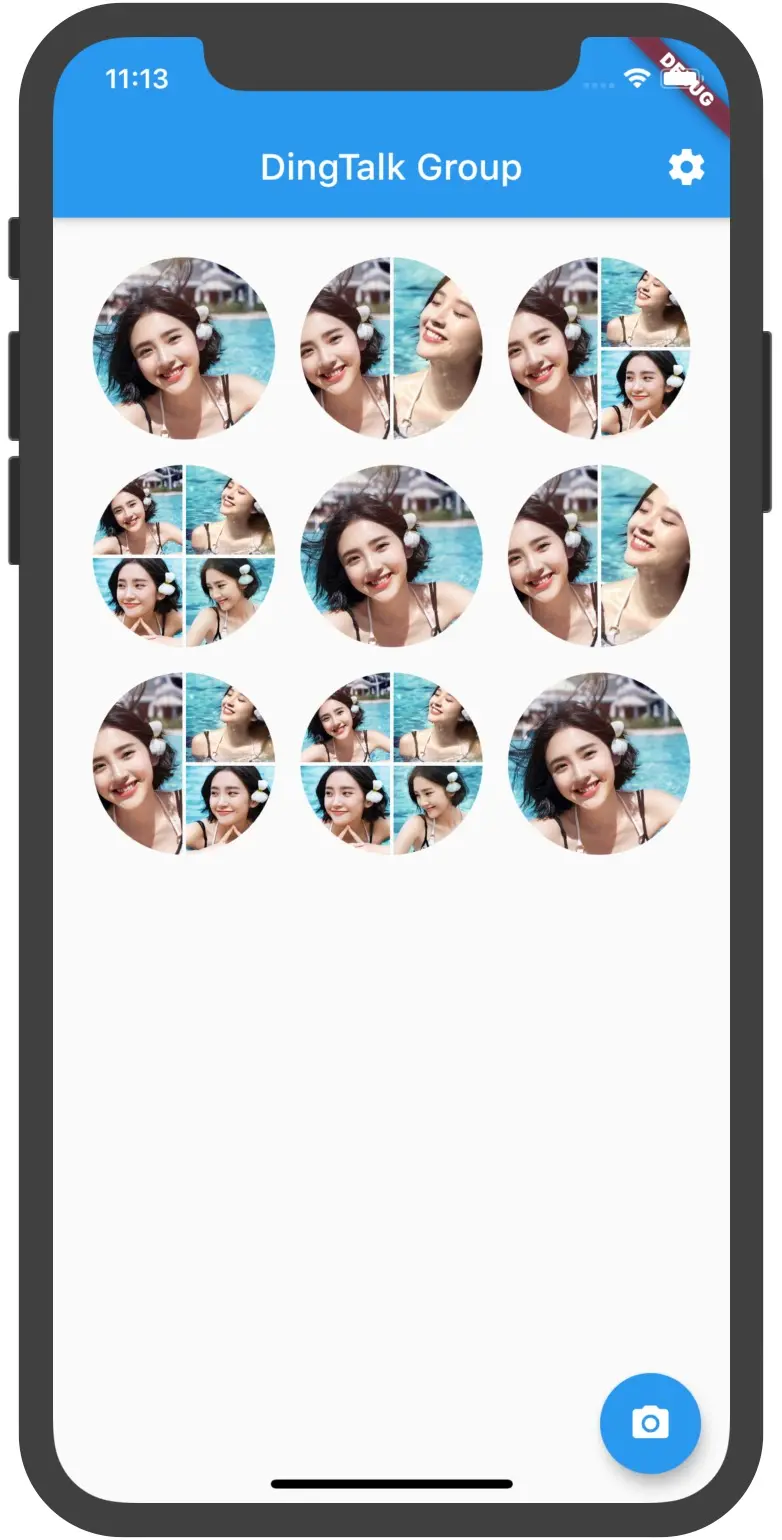

Screenshots
